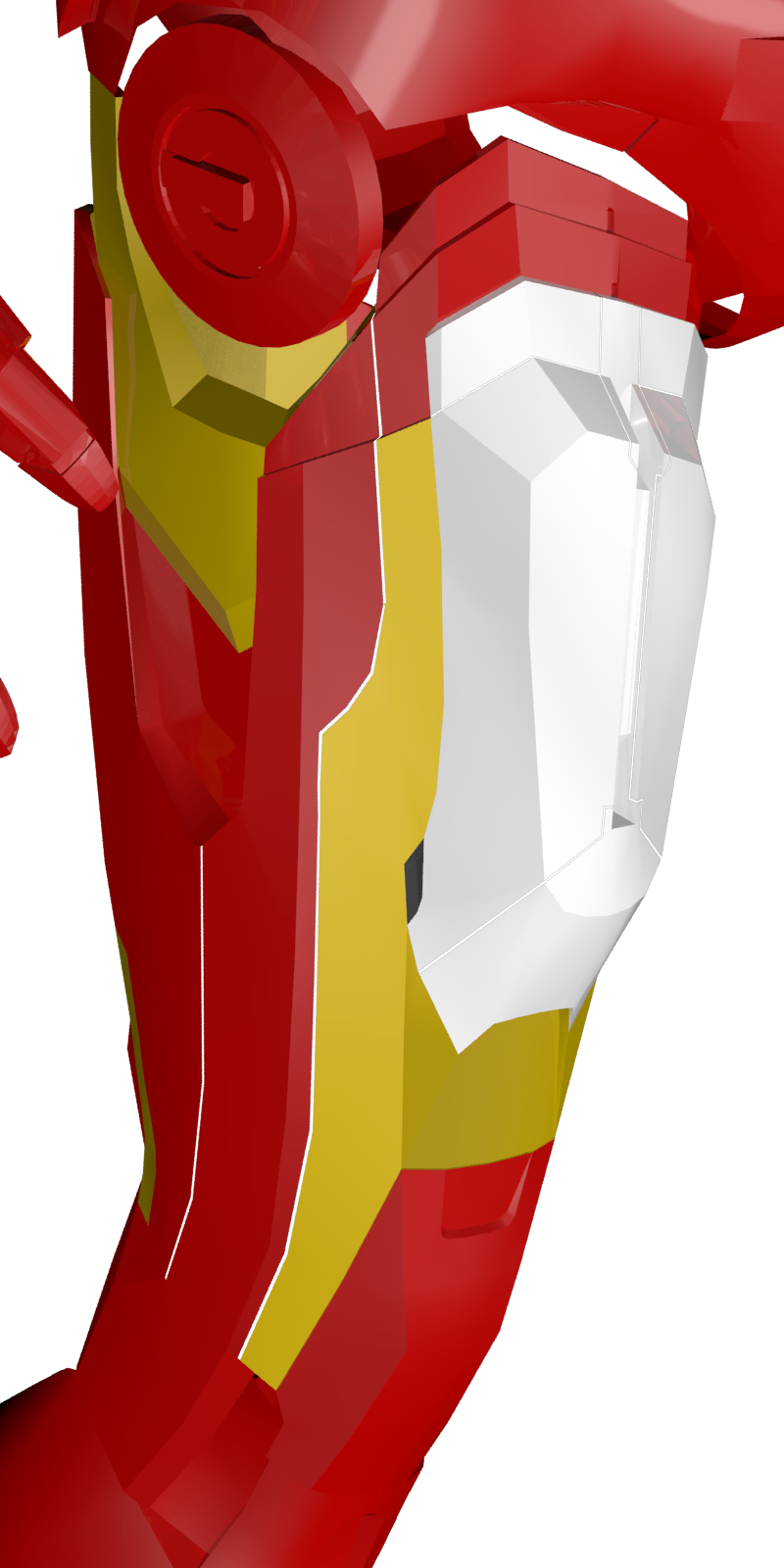

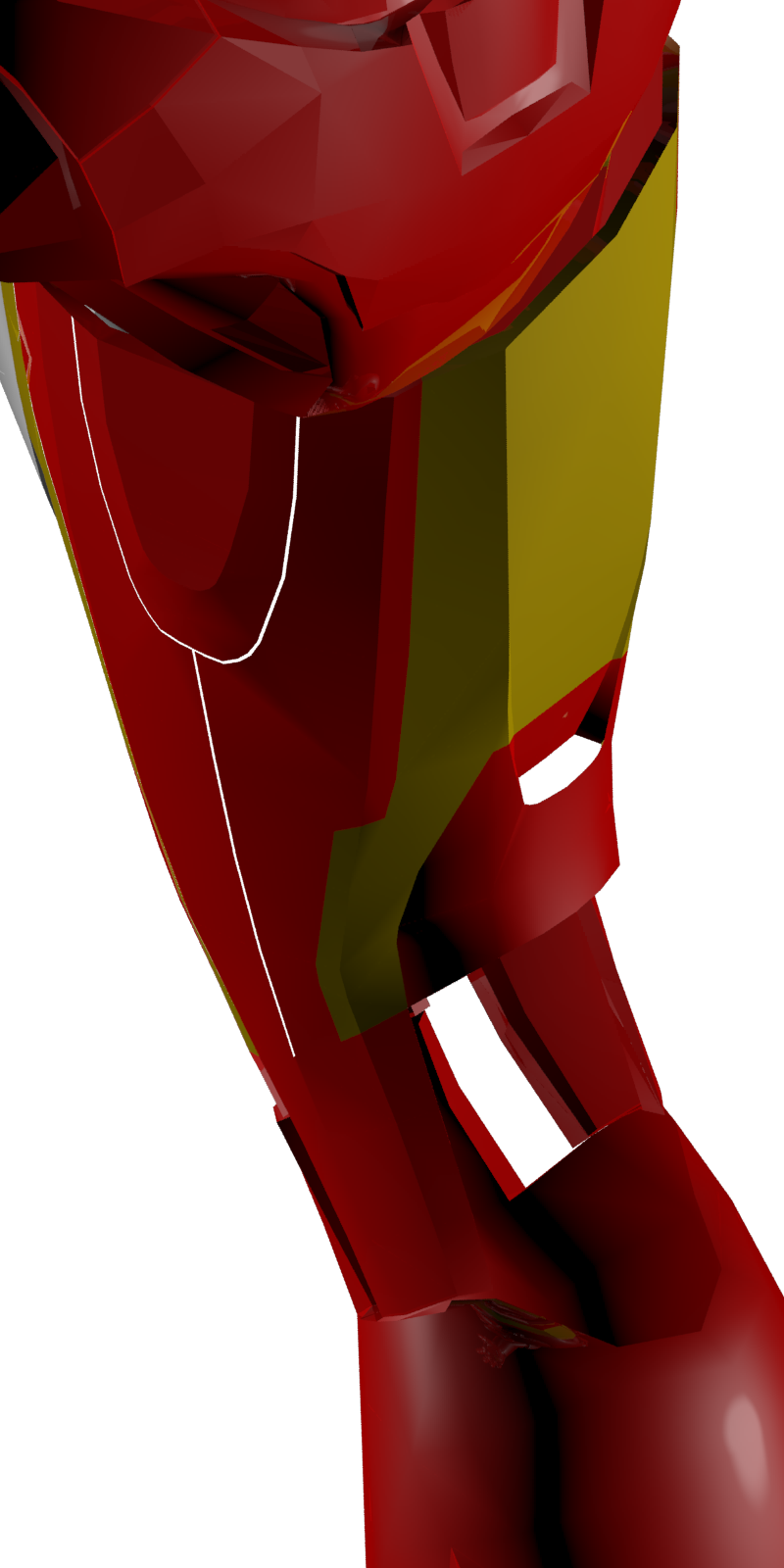

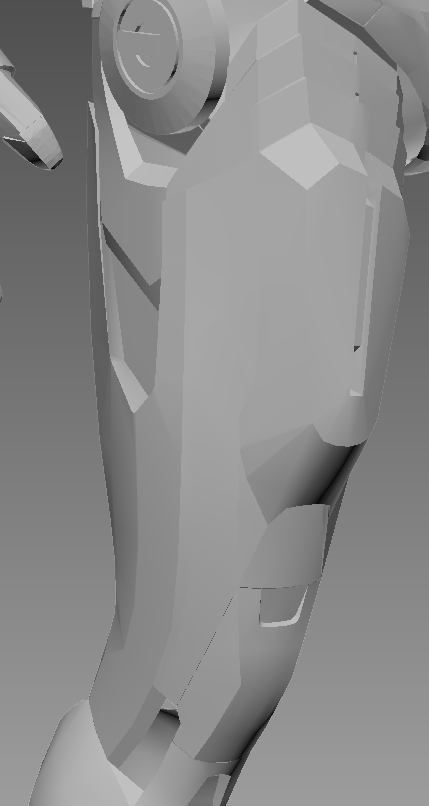

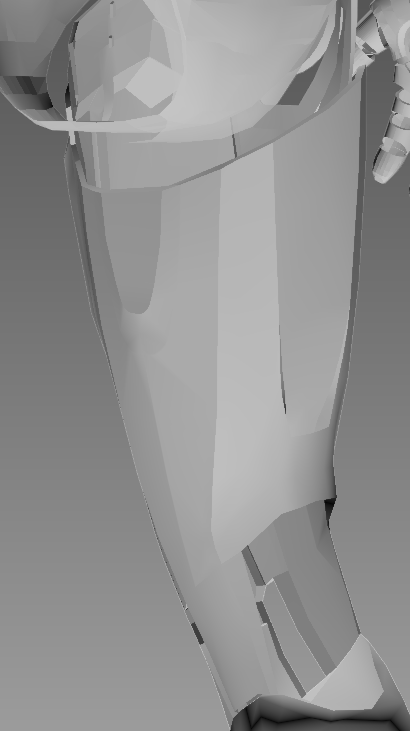

Just finished the structure on the thigh. I just need to go back and smooth it out a bit and add color it to show the lines and such. Next up the shin and then I will pretty much be done.
Darkside501st's Iron Man Mk VII pepakura files - Password in First Post
- Thread starter darkside501st
- Start date

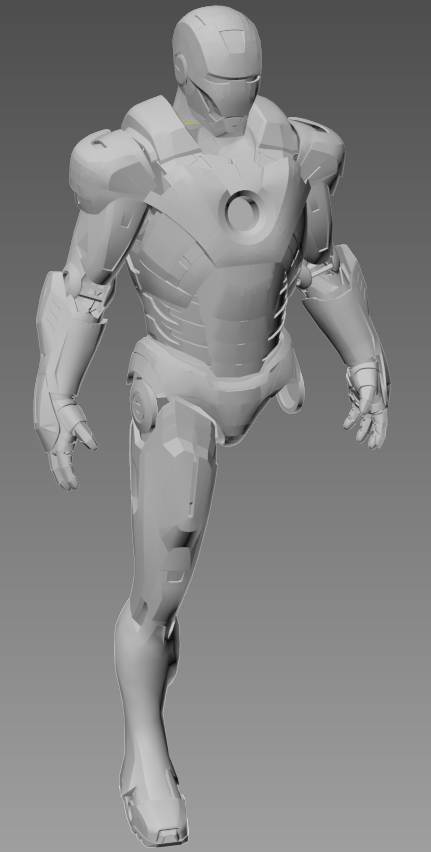

Simple renders:

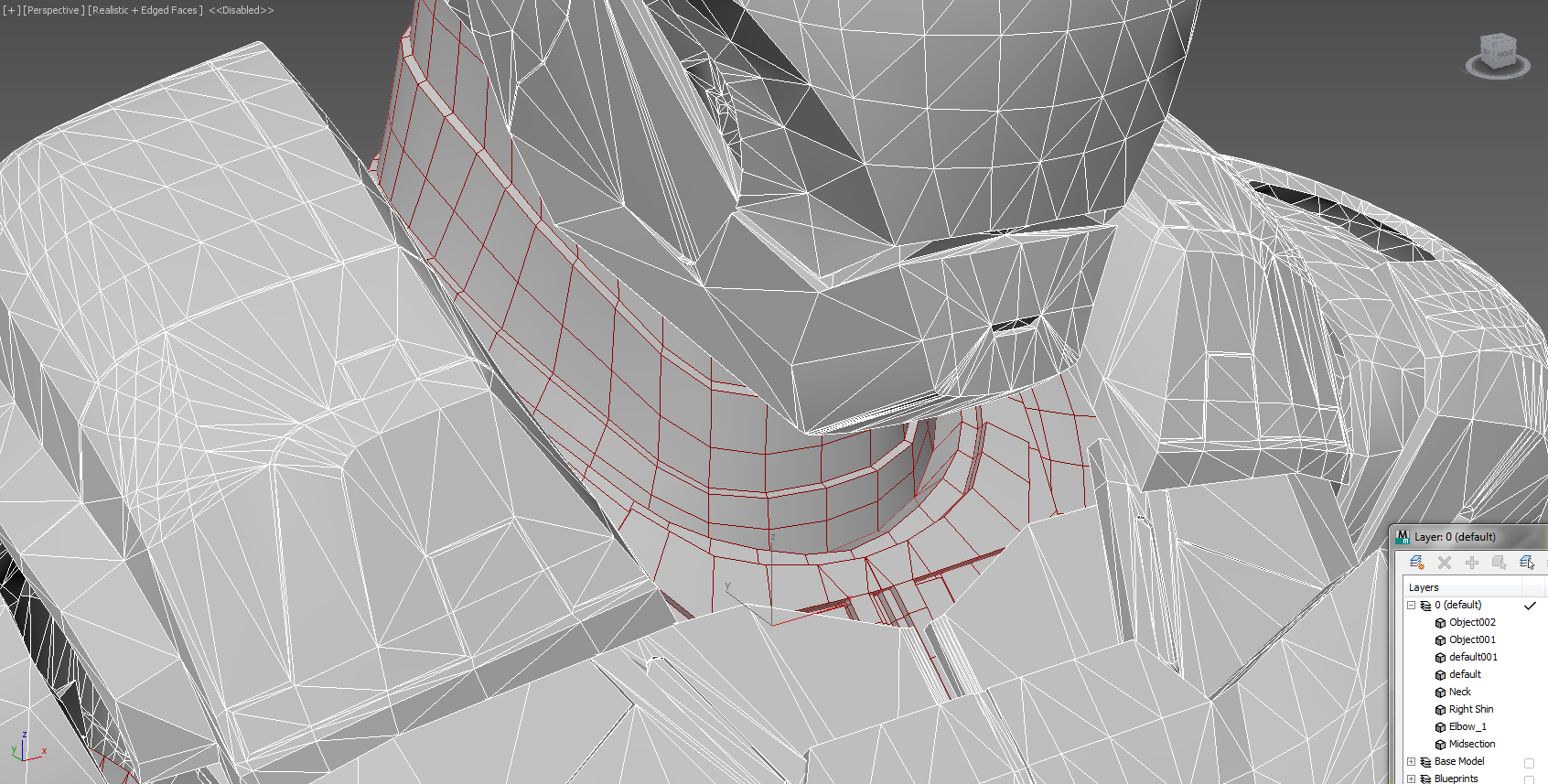

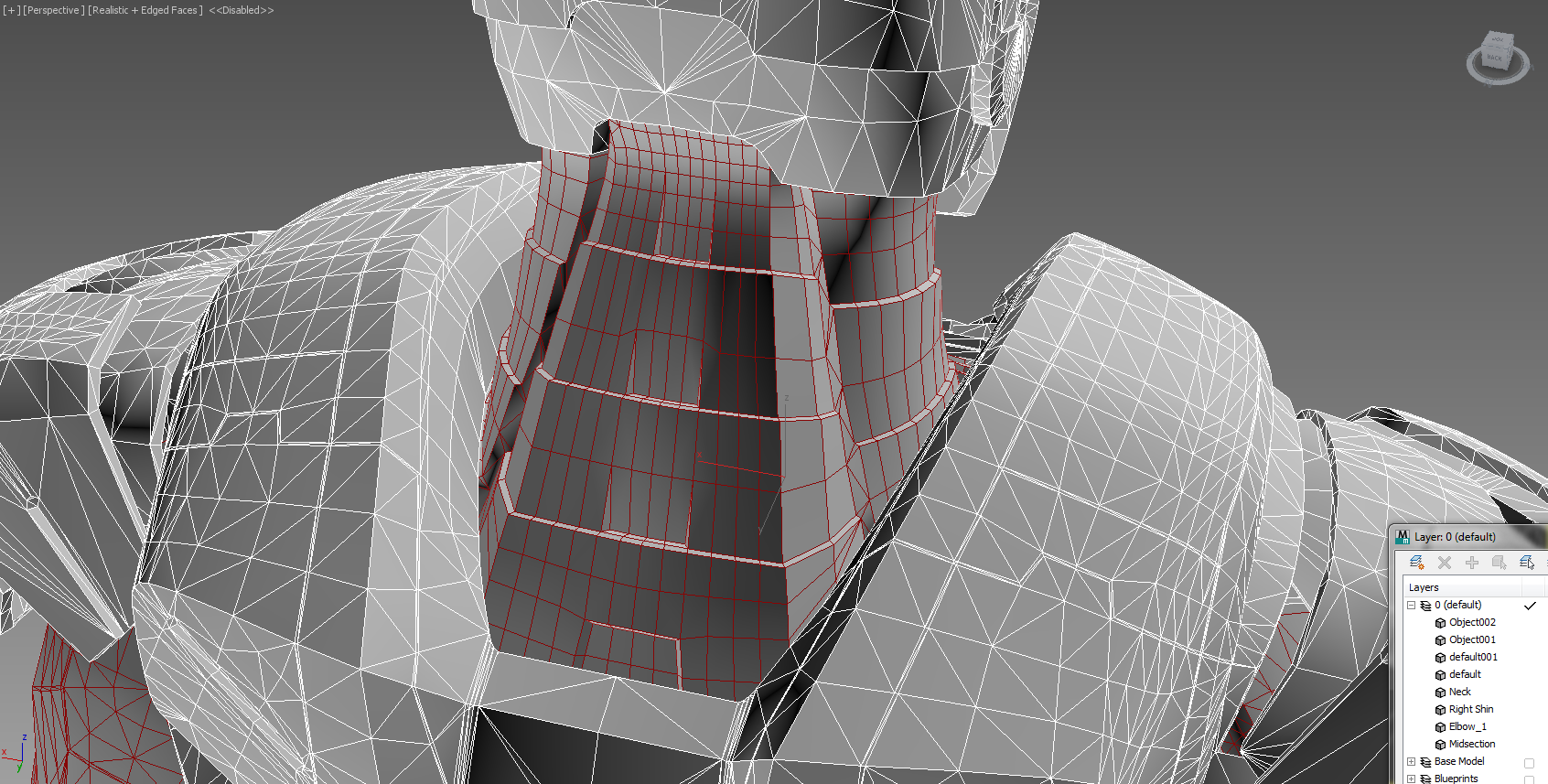

Got some pictures of the neck.

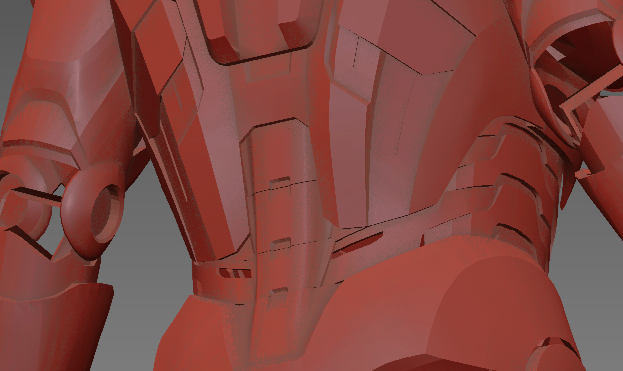

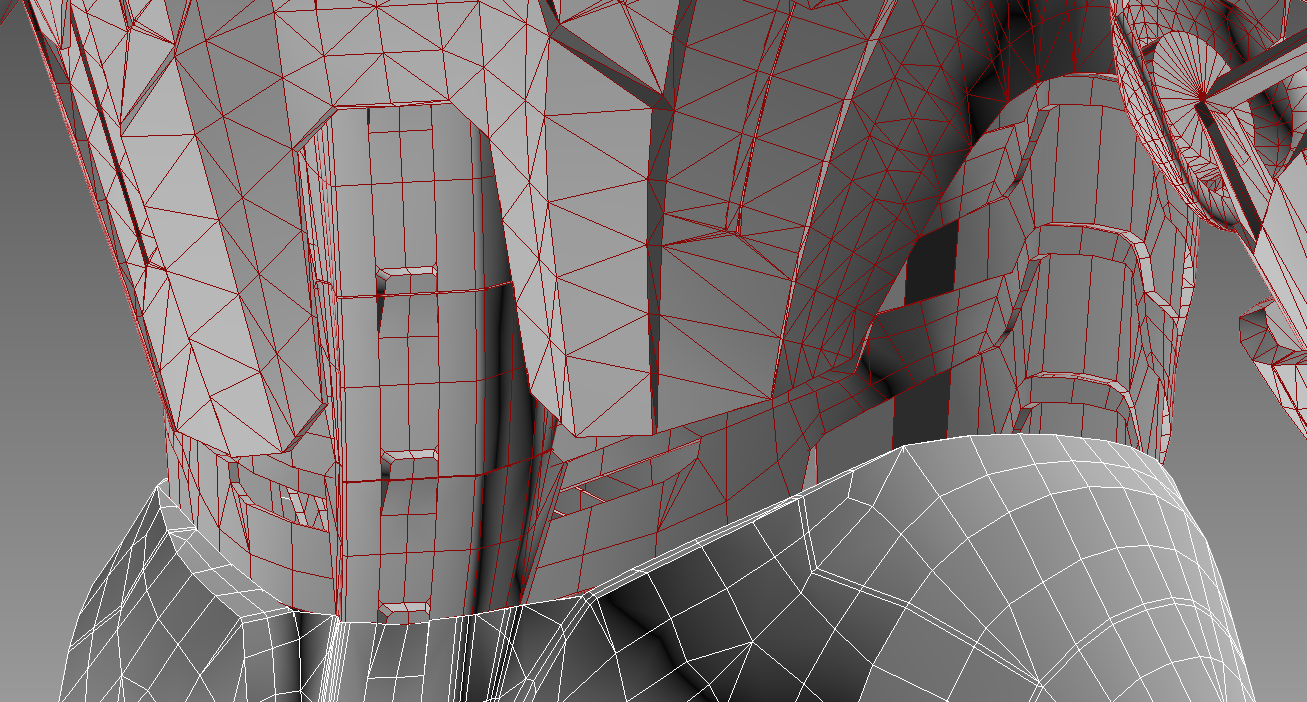

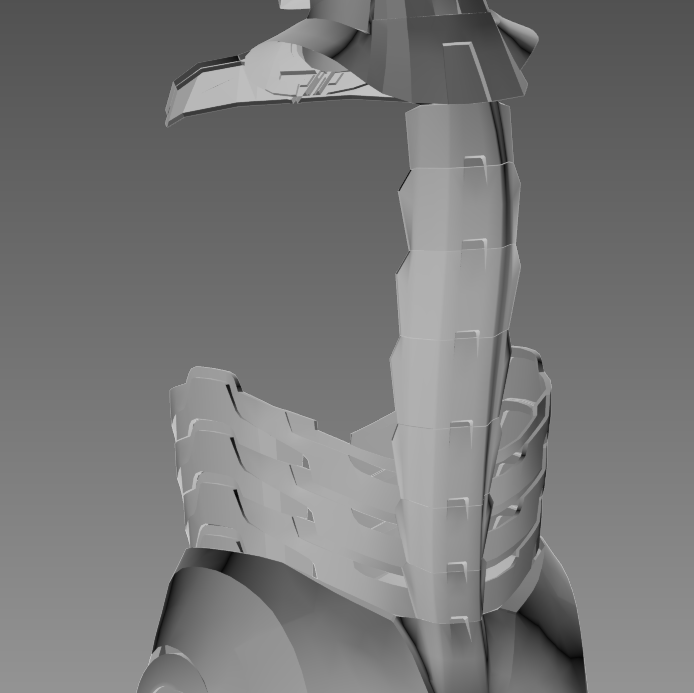

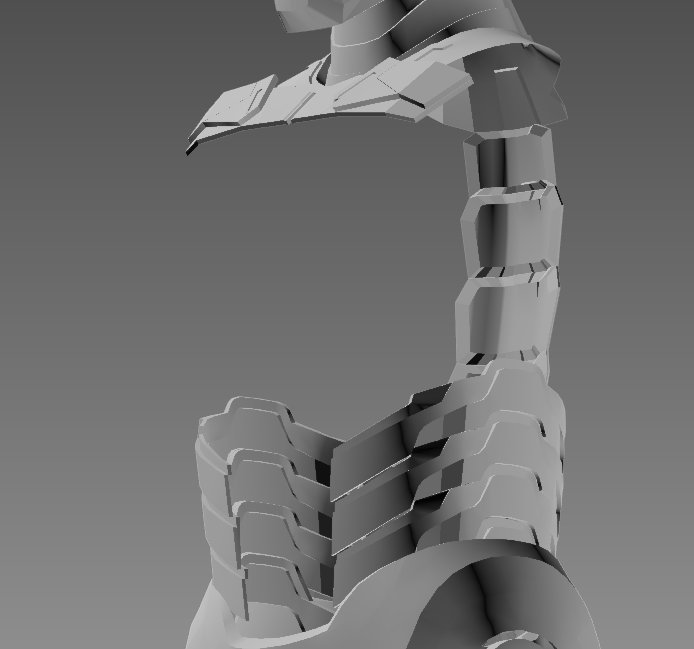

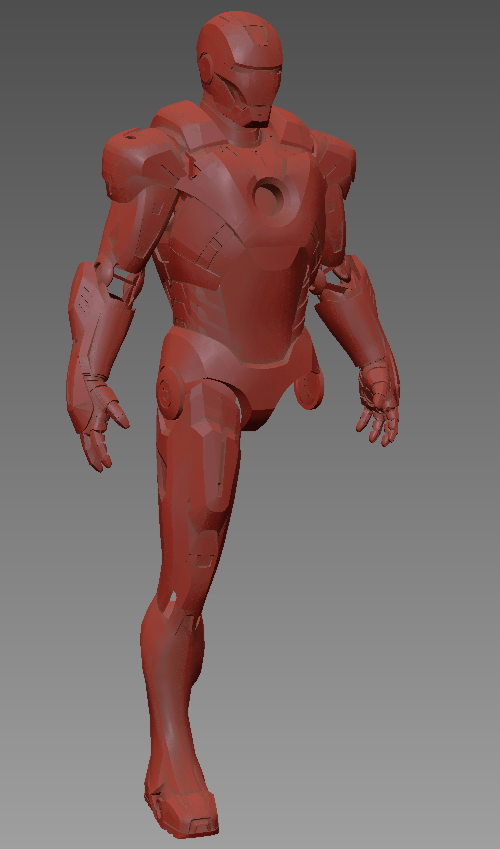

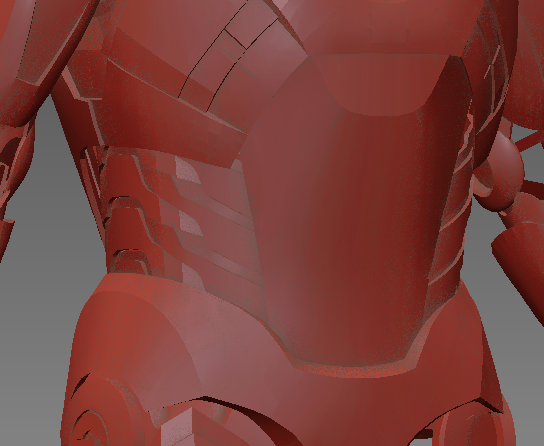

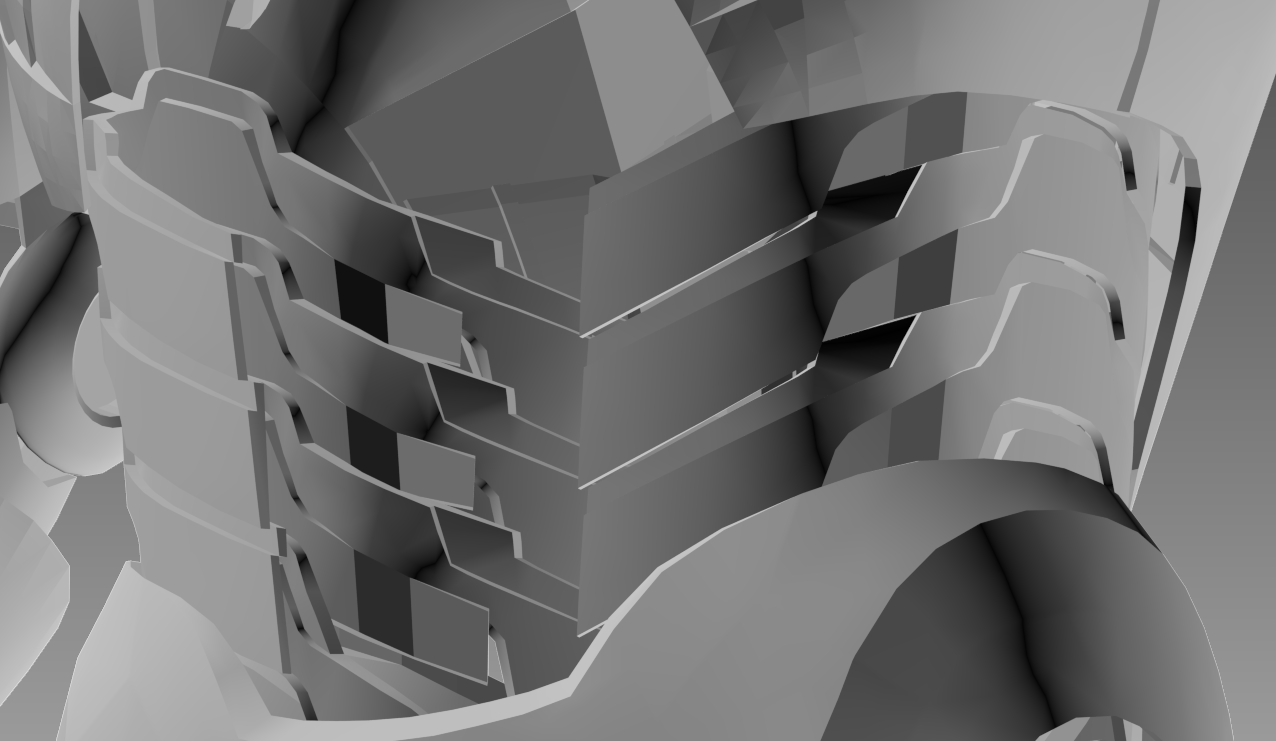

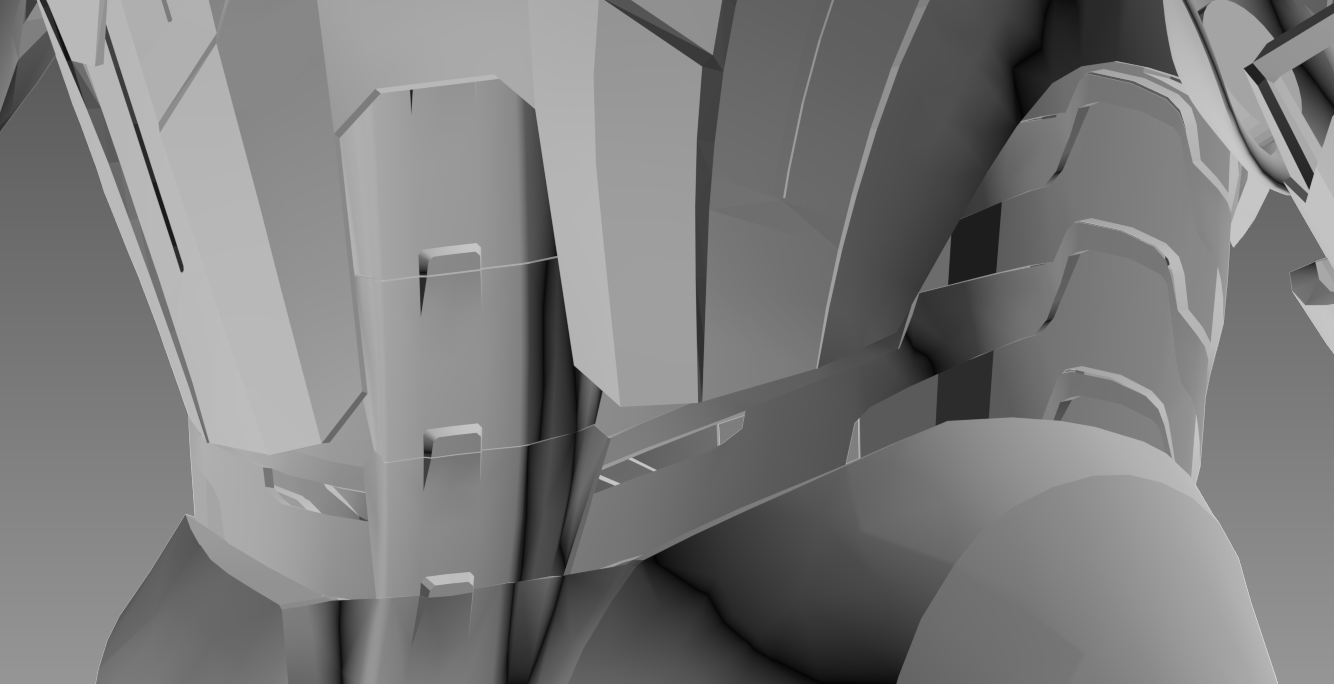

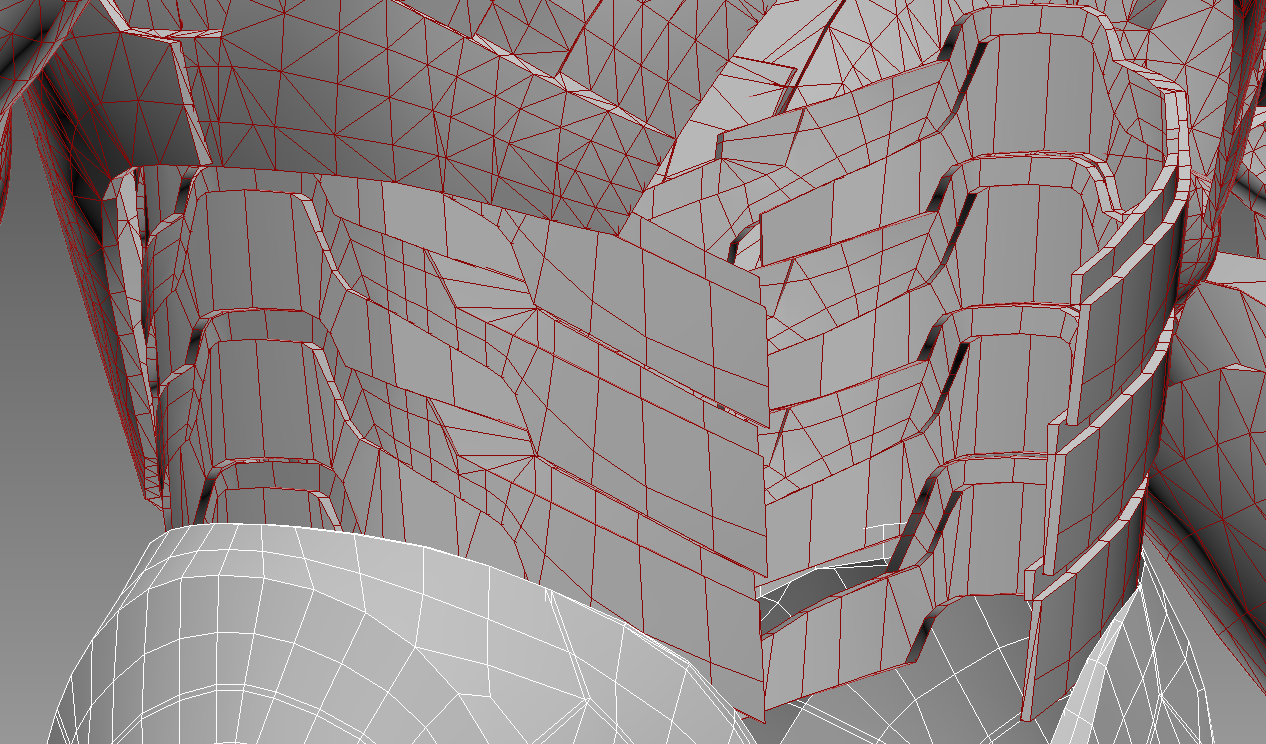

I got access to some wireframe and raw images of the original model used in the movies and so I reworked my spine, midsection, and the cod piece to be even more accurate than it was before. I am still working on the abs.
sylvester86
Active Member
it's looking really good Mike :thumbsup did you ever figure out how to fix the elbow joint problem ??
Yeah, I will be making the inside of the joint flat and the outside curved. It is the best way to do it.
sylvester86
Active Member
but won't that take up space and make it a tight fit for the person inside ? or am I just over thinking it ??
Last edited:
I will make sure that there is enough room.
sylvester86
Active Member
fair enough... can't wait to see the end result
DarkPrimus
New Member
Simply just amazing work, been following this topic for some time now and it takes awhile for V2 to be here but oh man its so gonna be worth it..keep up the amazing work you do Mike!
InCOGnito B2TE
Active Member
This is looking sweet Mike, nice job dude!
jerrybatacas
New Member
Cant wait to see the final pics!
great work Mike!
great work Mike!
saltcityspider
New Member
Just sent this message to Darkside but wondering if anyone else can help me. Just getting started on an Iron man suit for myself. Totally new to all the pepakura stuff and fairly new to Foam but I've watched alot of Video's and feel pretty prepared. However I can't seem to scale anything like your instructions, and it never asks me for the password. What am I doing wrong? Thanks! Your work is amazing.
DarkPrimus
New Member
Try download Pepakura Designer and use that instaid of Pepakura Viewer, once you got Designer go to the ''2D Menu''>''Change Scale''>''Scale Factor''...that should do it

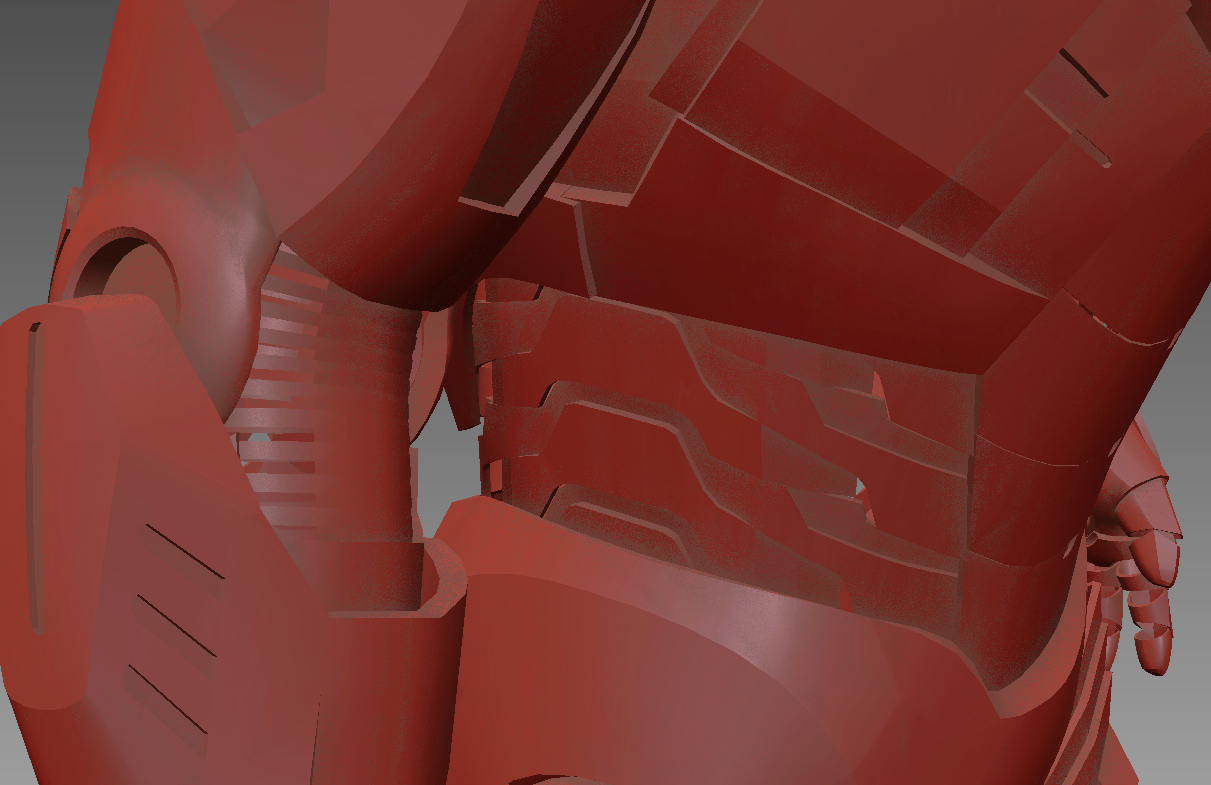

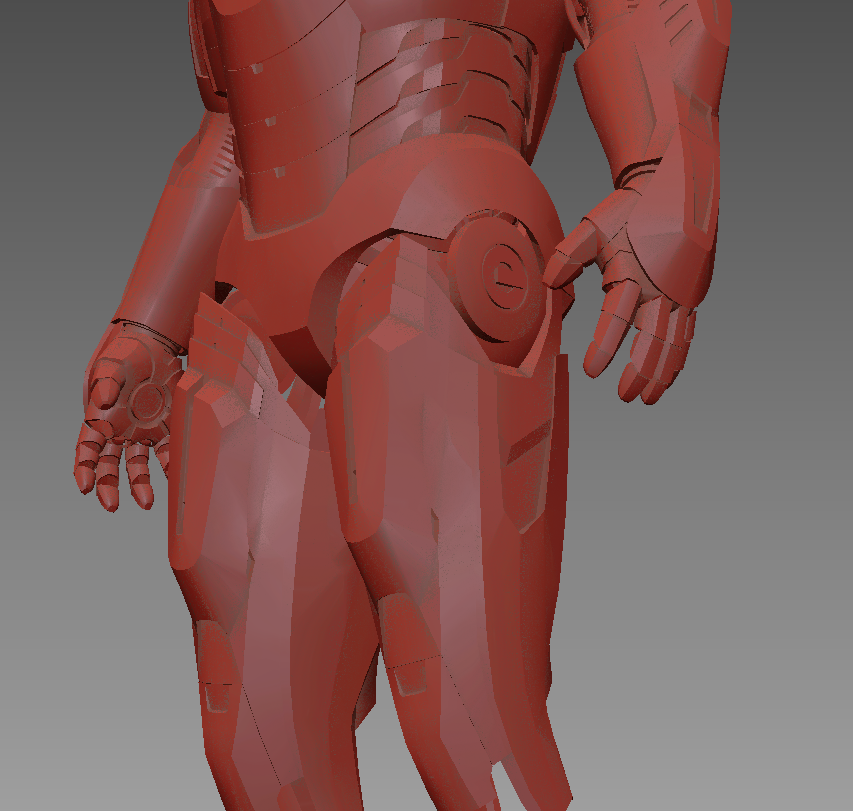

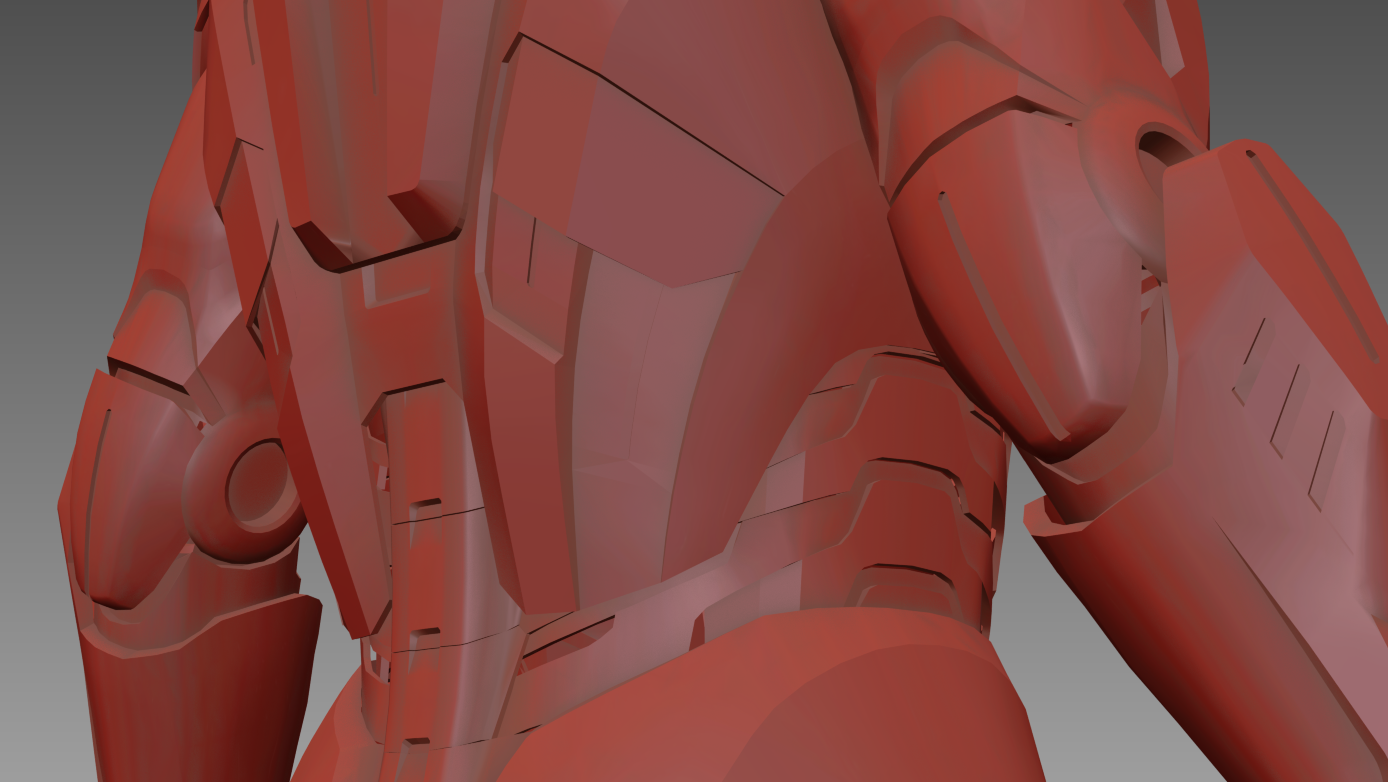

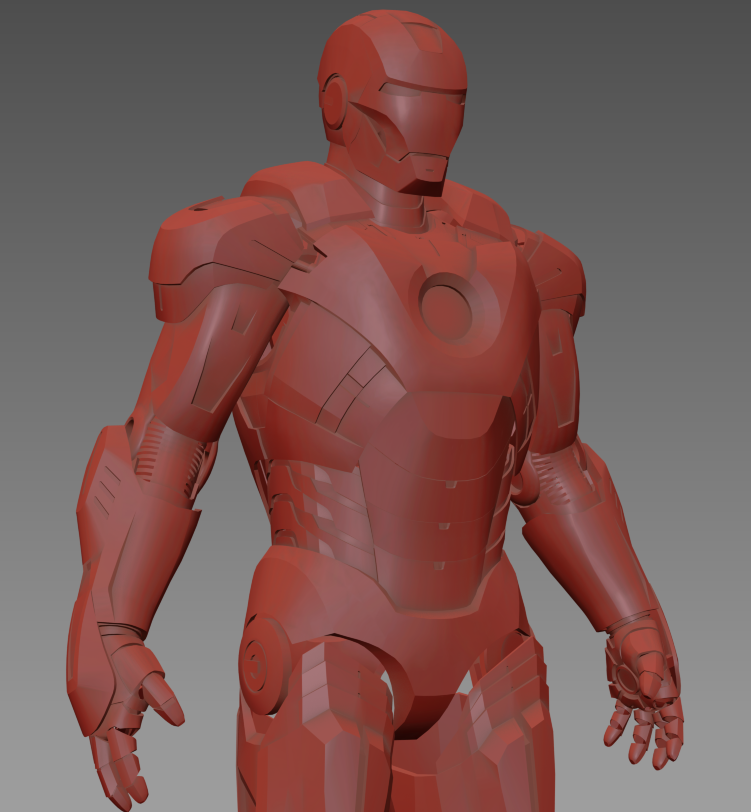

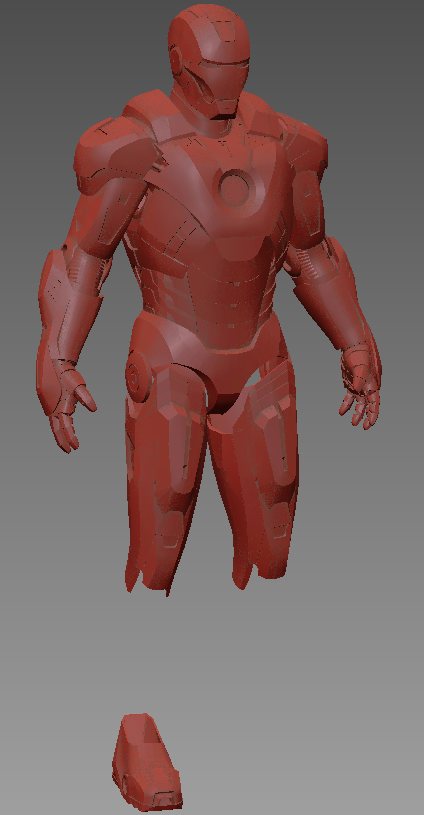

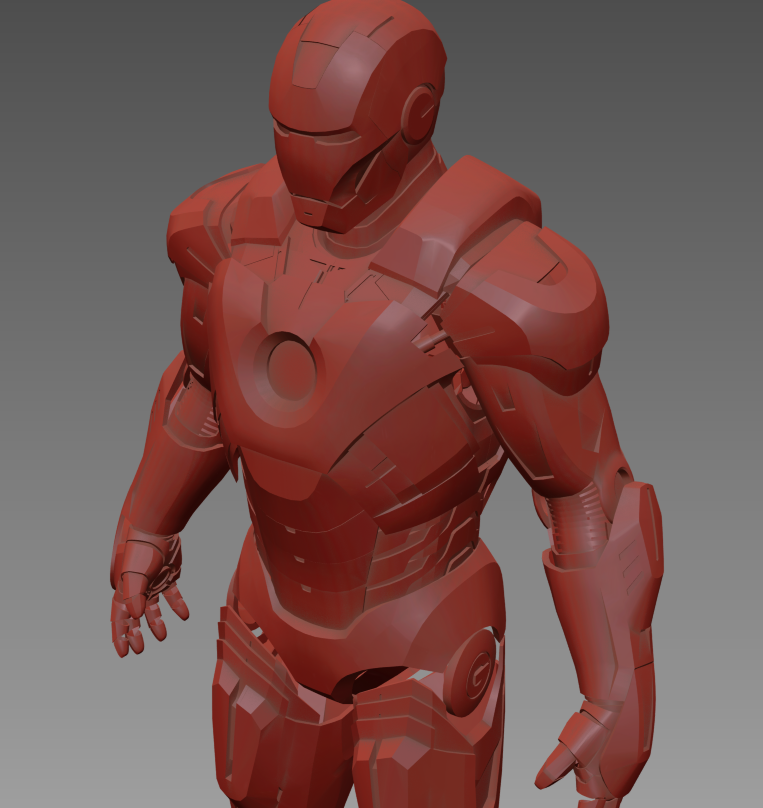

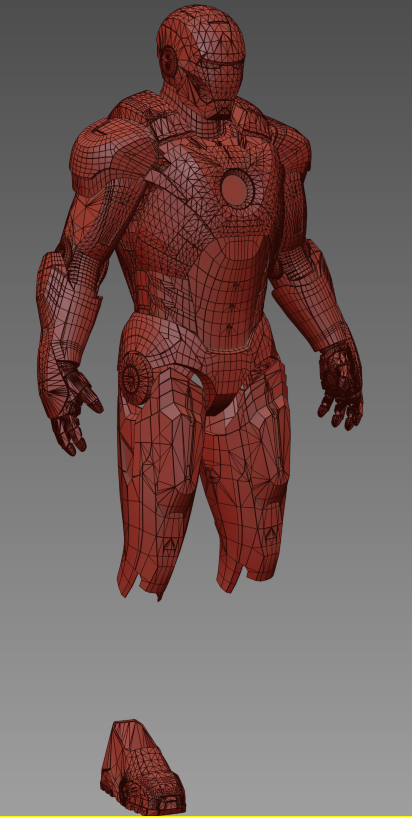

I have been real busy lately but I went back through the arms and reworked the elbow joint. I completely remodeled the elbow piece and the upper forearm and then I reworked the biceps. I also added some frills by making the inner elbow, inner shoulder, and the major pneumatic piston visible in the shoulder area. I completely remodeled the shoulders, the cod piece, and finished the abs (so the midsection has been completely remodeled). I will ad some frills to the cod area and the inner knee. Then model the shin and then I will be completely done and I wouldn't mind saying it should be the most accurate Mk VII model out there. After that I might do the inner back armor and model the sections under the amo pods and vents. Take a look and tell me what you think.
After that I might do the inner back armor and model the sections under the amo pods and vents. Take a look and tell me what you think.
stigmorgan
Sr Member
WOW! Amazing work.

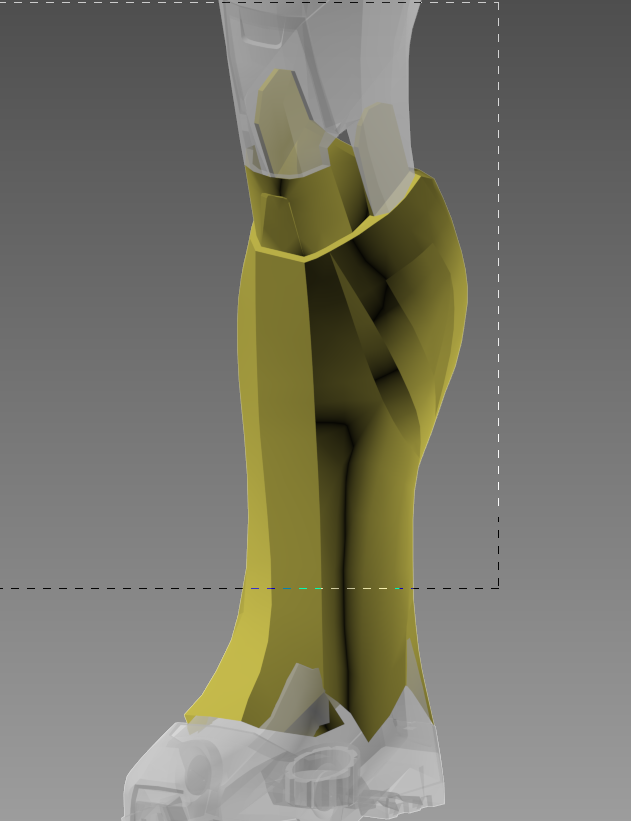

Did some work on the Mk VII shin. It is about half done now.
