Dark Knight - Joker's M76 Machine Gun Build WIP

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


BornKilr

Sr Member
RPF PREMIUM MEMBER
Just getting started on a commission build for a S&W M76 machine gun replica for a Dark Knight Joker display.

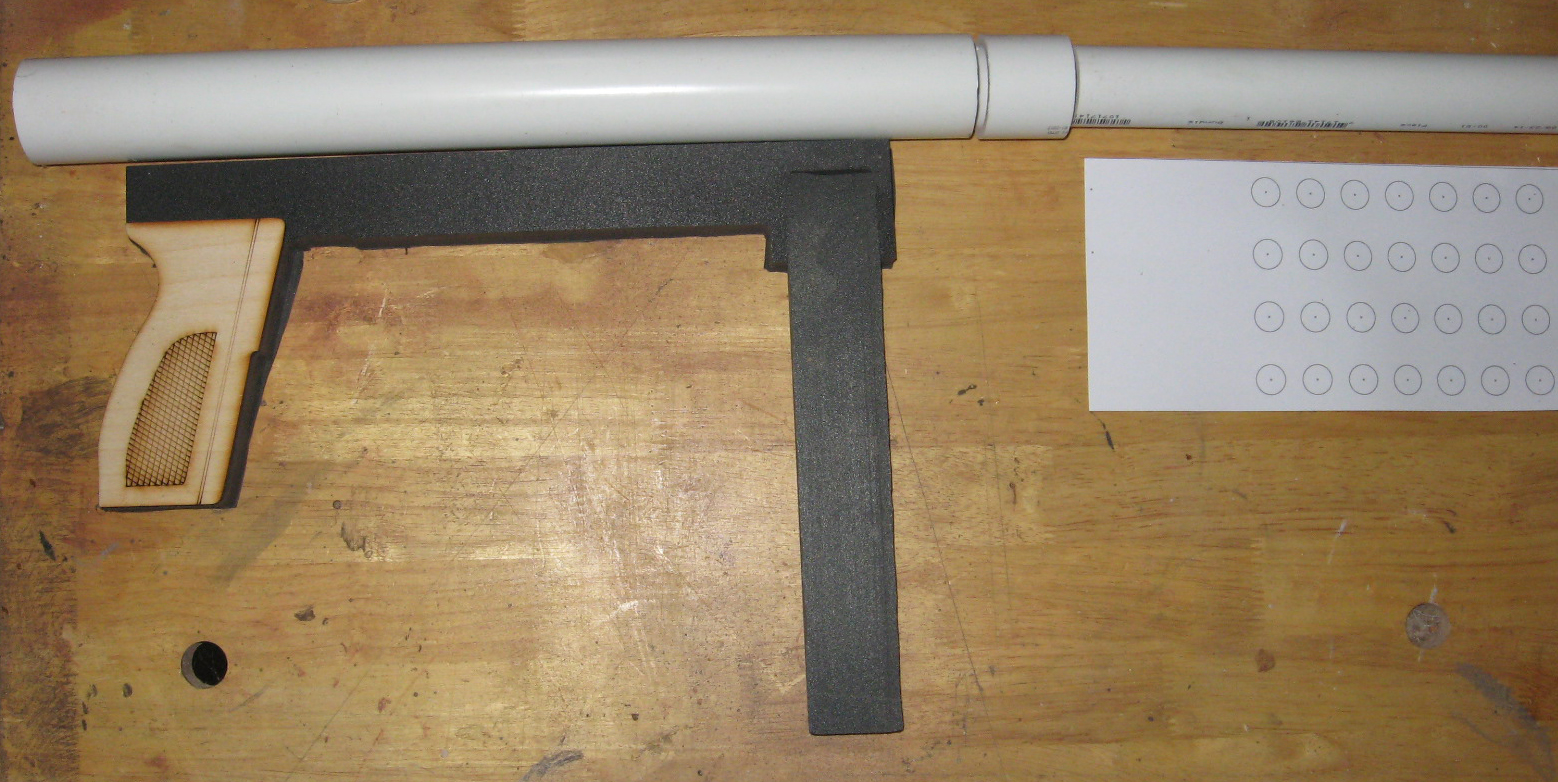

Just finished all cutting all major parts

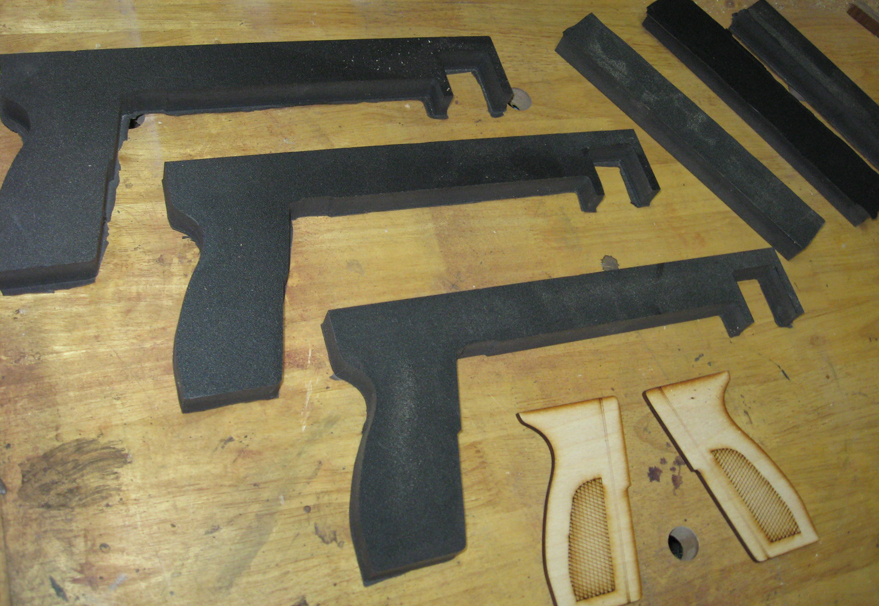

Receiver. magazine and handle
. IMG_8839.JPG
Upper receiver and barrel shroud (with hole template)

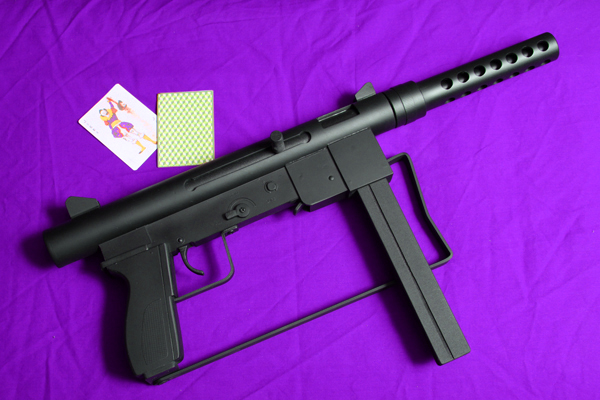

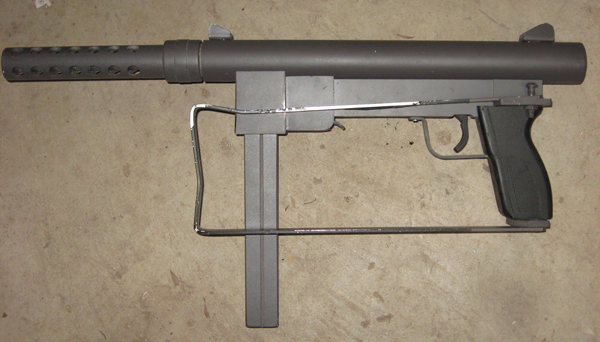

This is what the finished product should look like, other than color and a few improvements. This was my first build from several years ago.
original M76.jpg


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

BornKilr

Sr Member
RPF PREMIUM MEMBER
Finally getting back to work on this build.

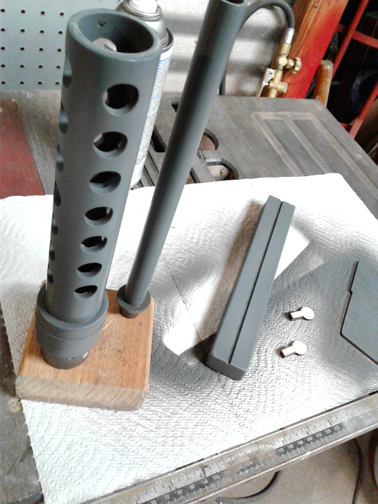

Completed the barrel and shroud. Sanded and primed magazine and glued fire select switch.

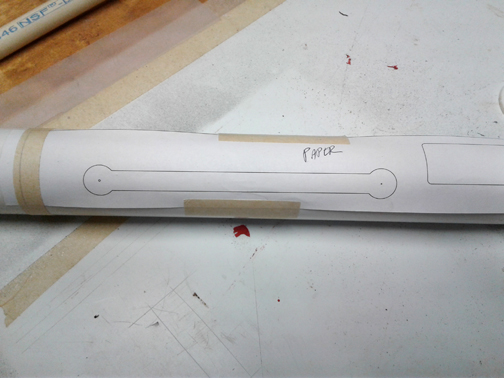

Template in place to cut receiver

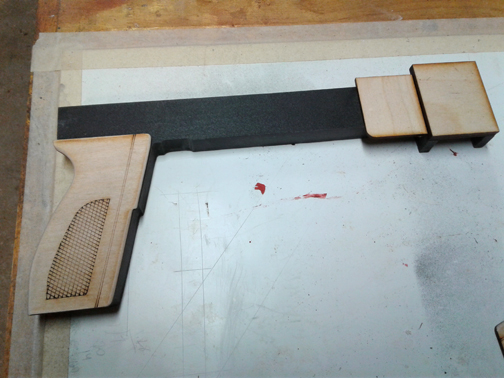

Receiver with grip test fit


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

_Lee_

Sr Member
RPF PREMIUM MEMBER
Had to post a reply to this. I'm looking to make one of these, are there any plans /blueprints for it?

Thanks


darthwhitey

Sr Member
RPF PREMIUM MEMBER
You'll have to reach out to BornKilr...he did an excellent job on the replica at a fair price with terrific communication and updates.

In fact, I'd probably pick up another one if he ever did a few...I sold mine with my 1:1 Ledger Joker :(


BornKilr

Sr Member
RPF PREMIUM MEMBER
Had to post a reply to this. I'm looking to make one of these, are there any plans /blueprints for it?

Thanks
Well, there were 'plans', but they were created by me from photos of the actual gun. They are pretty haphazard with no notations of any kind. Some of the parts were set up for a CNC router, some a laser cutter and some for hand cutting on a scroll saw. Its very possible that some of the parts were modified on the fly if they didn't work and the changes never made it back to the 'blueprints'. And some of the detail was created by scratch. I'll look this weekend for the files and try to find the most recent/complete version. They were created in Illustrator CS5 but should open in any of the newer versions.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

BornKilr

Sr Member
RPF PREMIUM MEMBER
Hey, man. Haven't forgotten you. Just got busy this past week. I think I've found most of the final art and will merge it into one file.


BornKilr

Sr Member
RPF PREMIUM MEMBER
Heys guys, if anyone is interested, I'm thinking of starting an interest thread for this build. I've had a little activity lately so figured I'd throw it out there. I'm gonna start reconning material prices (since things have gone up so much right now) then check what parts I still have on hand, then depending on interest, I can get some pricing info together.
