Building The ANH 5'Millennium Falcon

eagle1

Sr Member
RPF PREMIUM MEMBER
Unbelievable!

Its funny how you look at something over and over and then all of a sudden the penny drops.
Actually it's disturbing, but that's by the by....

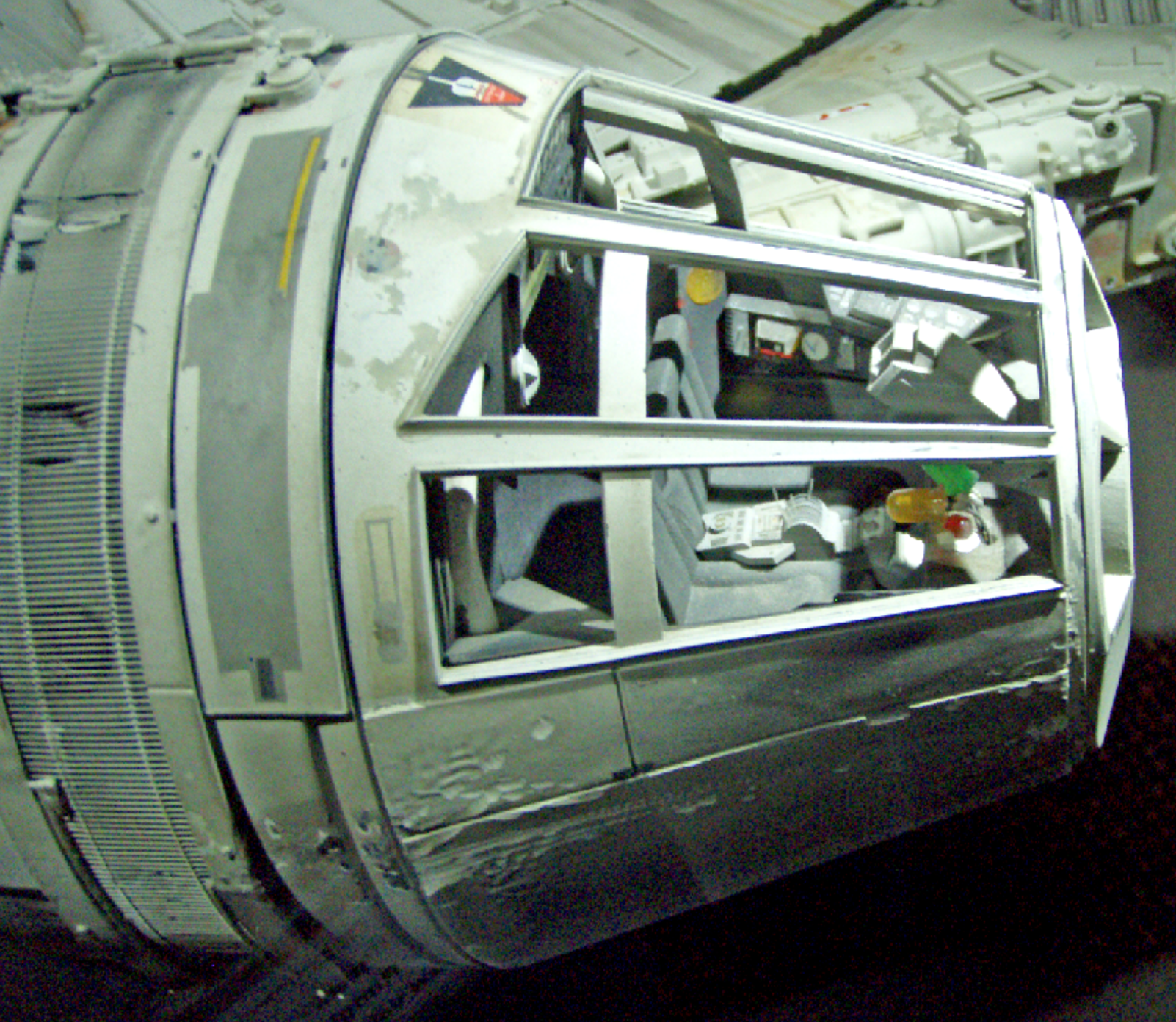

Regarding the 5-6mm wide angled strip that sits behind the cockpit. I have often thought it weird that this piece of plating at the bottom appears on an angle, whilst the upper strip is noticeably straight. I figured it was just some wonky building by ILM to add character to this beat up ship.

View attachment 1593983

Stu, whilst you didn't really mention it in your video I figured that you likely already know this, however I had no clue....

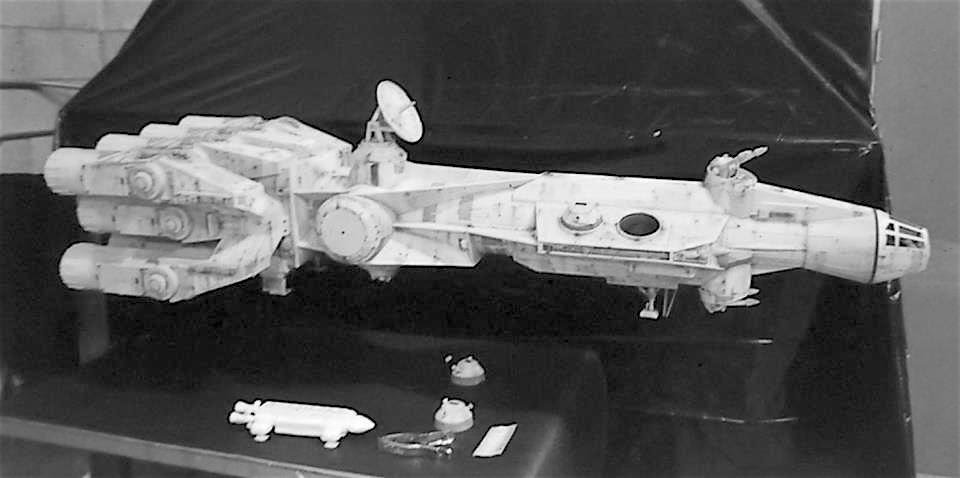

It just dawned on me that the visible angle strip piece is what remains of the back of the famously removed cockpit rear cone as it was mounted to the original ILM pirate ship which later became the Tantive or Blockade Runner.

View attachment 1593975

They simply cut it 5-6mm (shy of 1/4") behind the front cone. Likely at a diameter to ease joining with the 6" plastruct cockpit tube.
Or it could simply be where they wanted to join the new cockpit for the BRunner.

Thinking this may also add some credibility to the old tale of the cockpit cone being intended to be rotated during filming but was dropped due to the complexity it would have added.

Awesome to see that T2sides has also incorporated this detail on his spectacular model. I just checked :p

Thanks again for the excellent video!

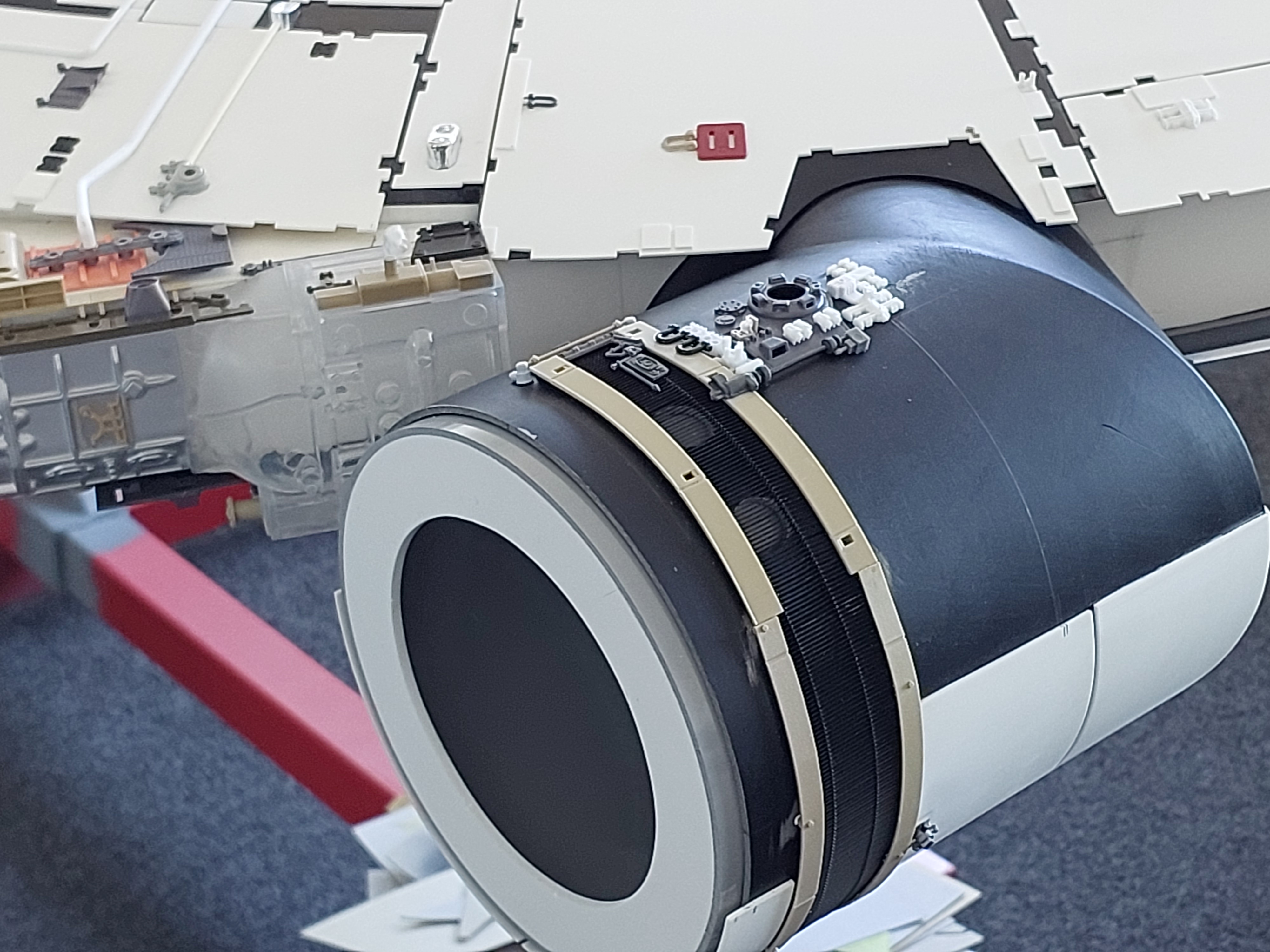

So the cockpit is quite a complex assembly to match the actual miniature.
The miniatures back wall of which the interior is attached to is a solid acrylic machined part that is basically a plug that inserts into the 6" tube. There is a machined hole in the middle for the fan to sit, which helped to cool the cockpits lighting.
The 5 to 6mm strip that sits behind the cockpit cone is not a separate part...its machined as part of the acrylic plug, so in essence its all one part.
I am pretty sure this acrylic plug also attached to a slide in tube as I have done.

Mine is an interpretation of this, but ultimately the look is the same, just different materials & techniques.

Stu


Sparky70

Active Member
Hey guys!.

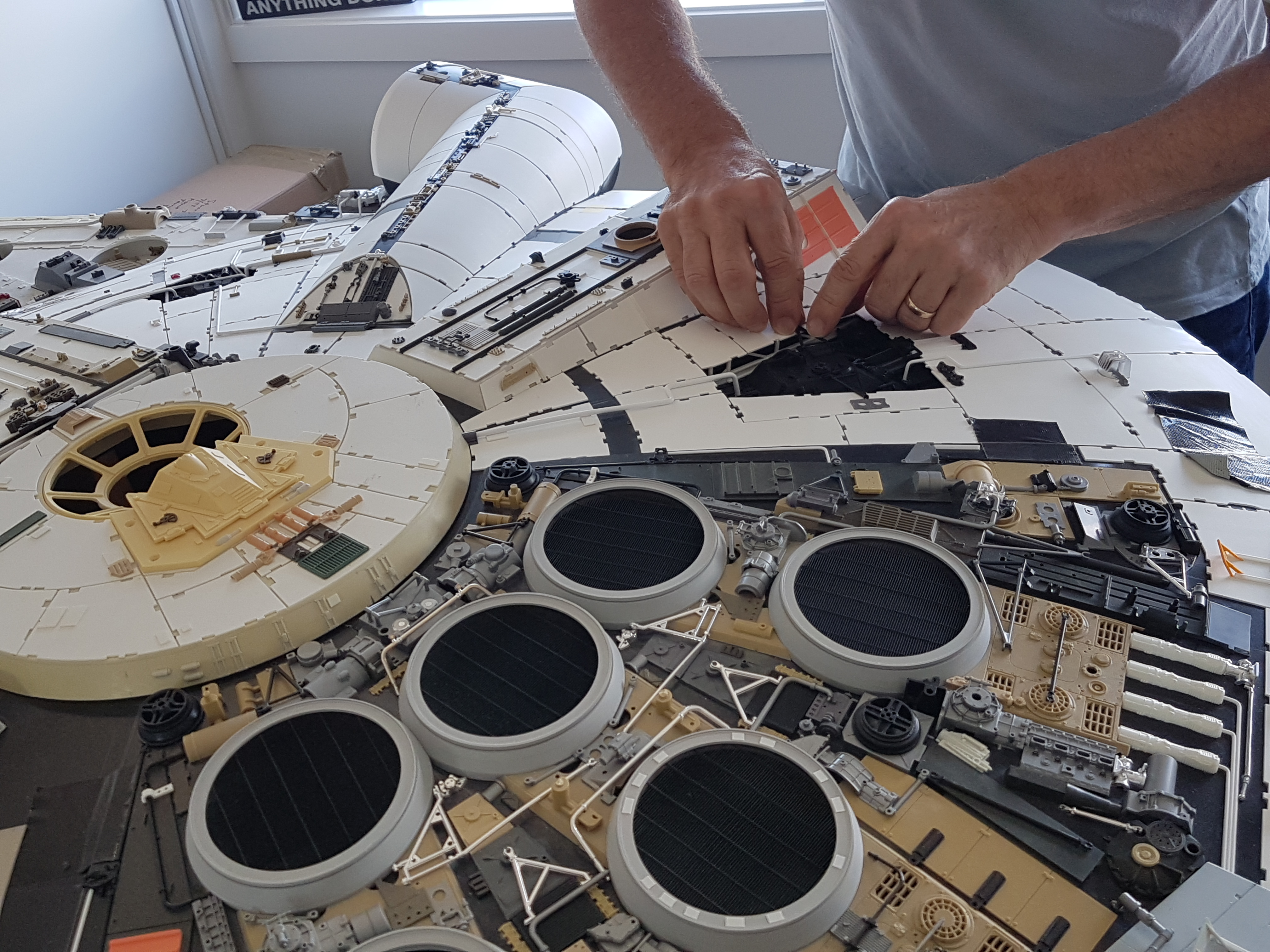

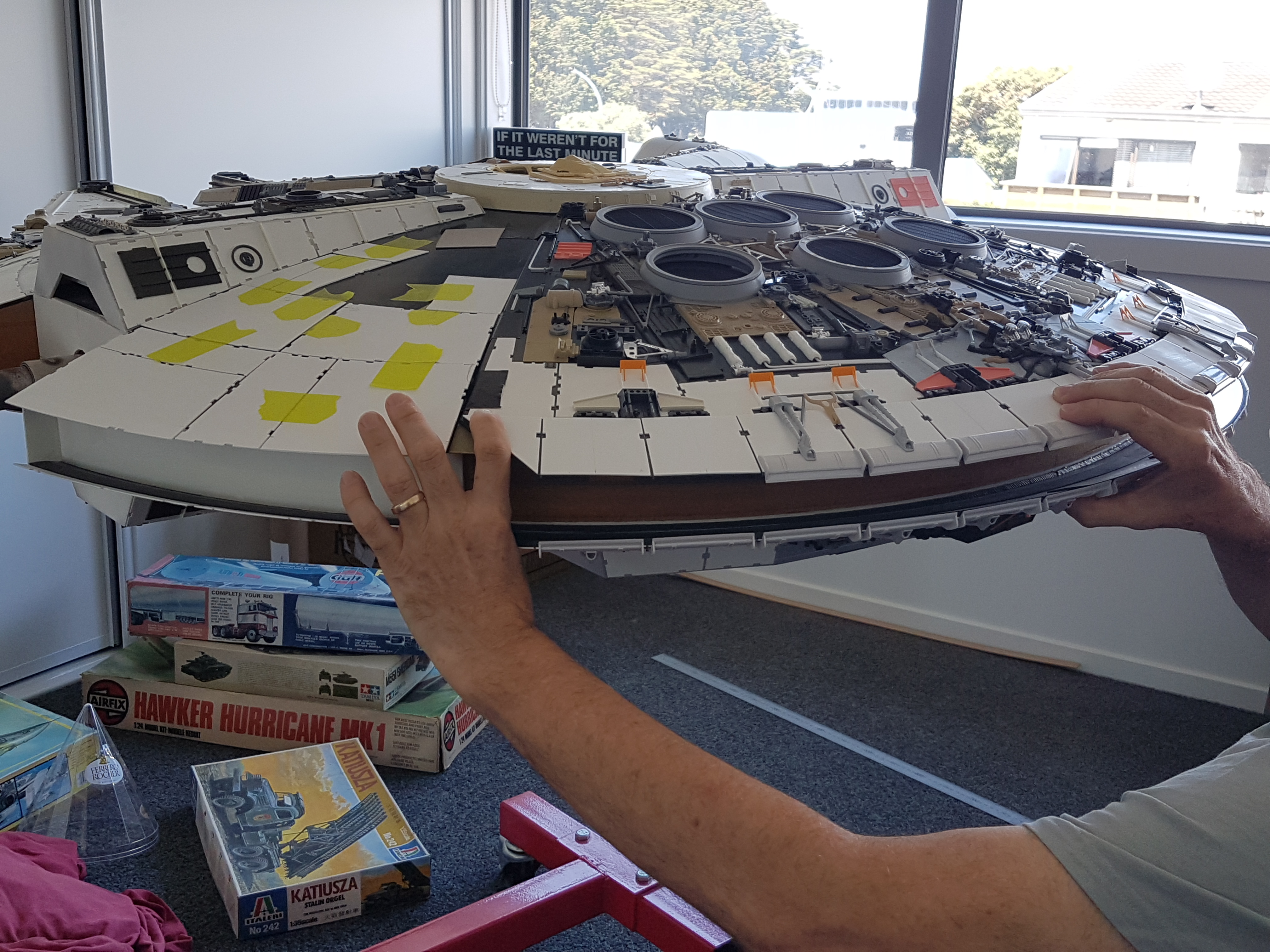

A few pics of me working around the Falcons rear end & what a complicated rear end she has!.
Nearly finished up the engine petal strips top & bottom. Gets repetitive here in that there are 26 styrene plates, 26 M8 plough blades & 26 struts to add. I'm finding going back to this area in intervals works best for me, while working on other others, keeps the interest levels up & not bogged down on one set area for long.

The dome sets i have had to reorganise with another fabricator for some of you, this has been a real, lets say 'challenge' to get right in how i envisioned them, but they will be delivered to all who ordered them.

Cheers
Stu View attachment 1549350 View attachment 1549351 View attachment 1549352 View attachment 1549353
The dome sets i have had to reorganise with another fabricator for some of you, this has been a real, lets say 'challenge' to get right in how i envisioned them, but they will be delivered to all who ordered them.
What's happening with the domes Stu? I'm still waiting, almost been two years since I paid for them!
You seem to be ignoring the emails I've sent you asking when I can expect to receive them?
