Avengers 2 Hulkbuster

[Shadeling]

Link added to first post, still in progress of converting to 3D from paper doodles



Edit: all parts made and uploaded, may need some modification for desired build. I'll make additional brackets tomorrow to support magnet use for quick detaching of face plate. A second revision will be added for servo control and chin attachment.

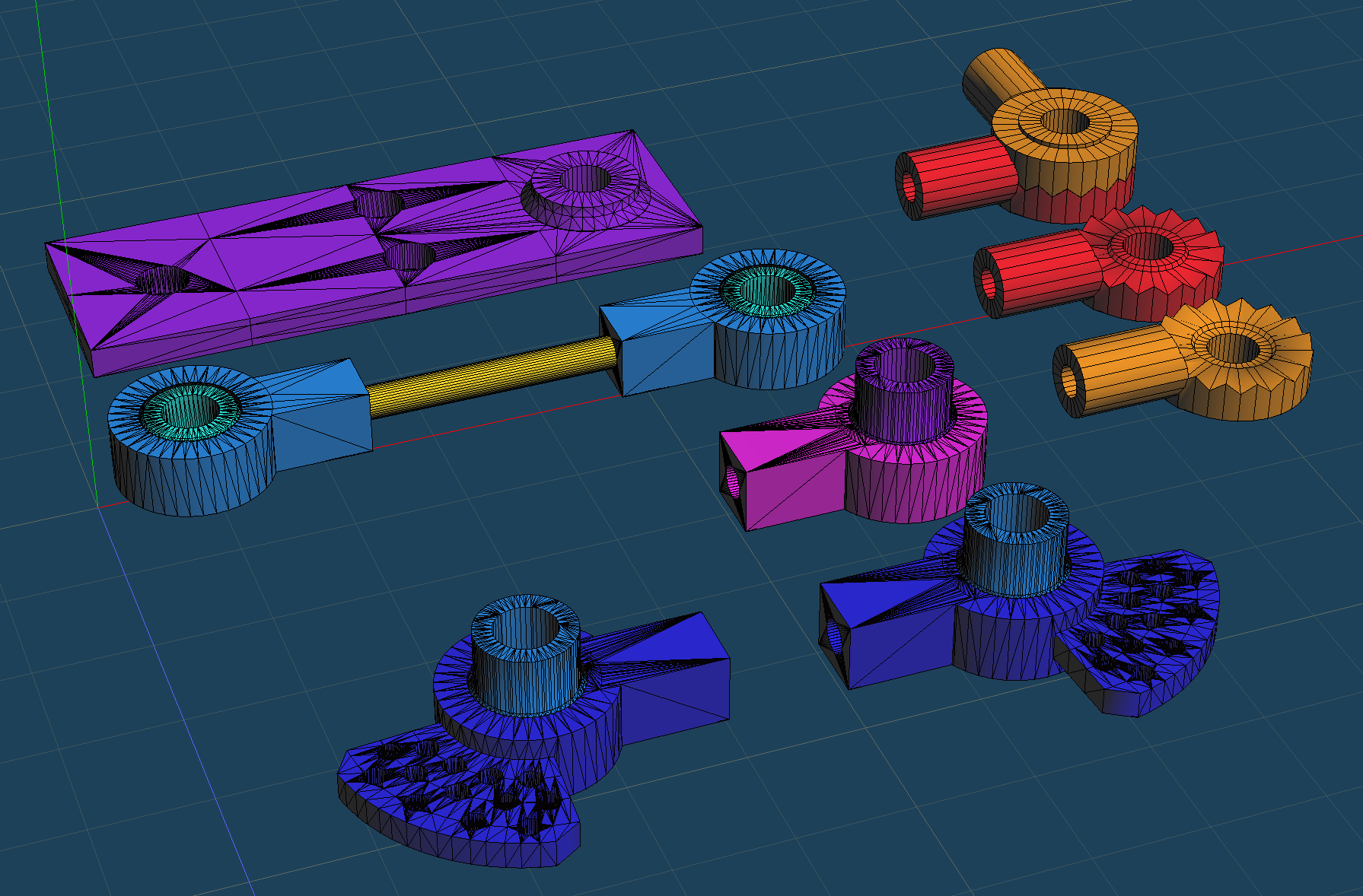

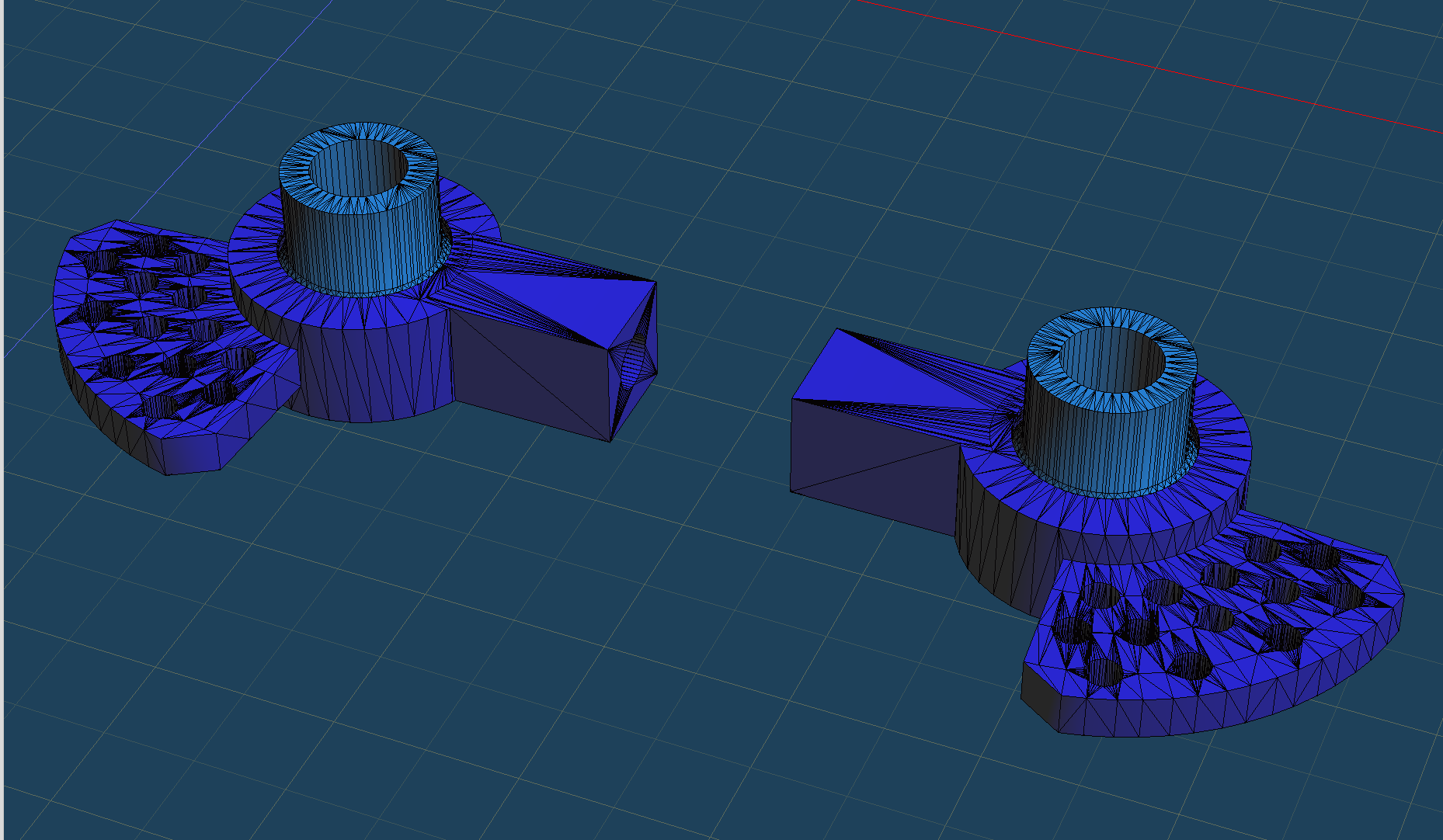

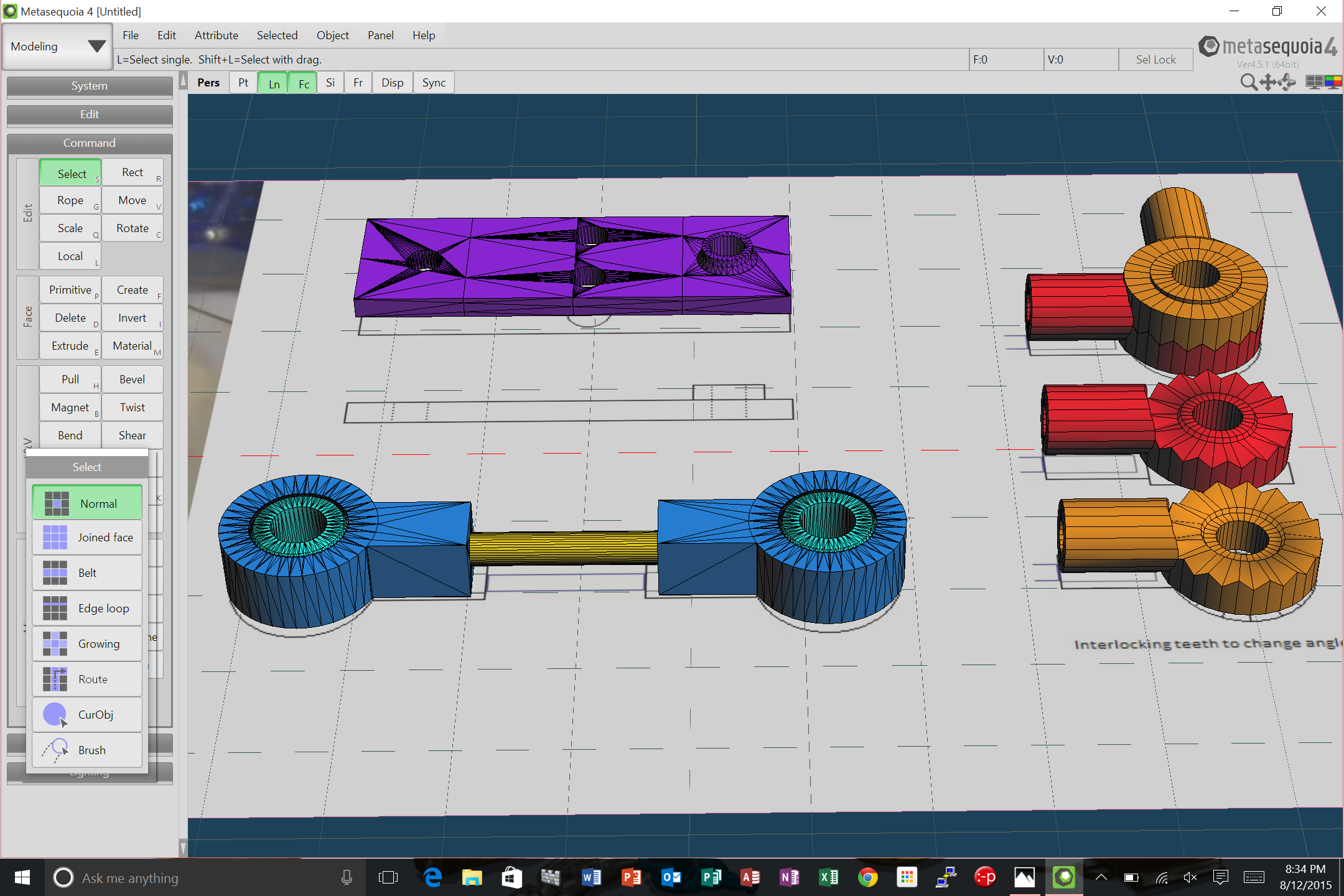

assembly sample



[Jmen]

Link added to first post, still in progress of converting to 3D from paper doodles

View attachment 514190

Edit: all parts made and uploaded, may need some modification for desired build. I'll make additional brackets tomorrow to support magnet use for quick detaching of face plate. A second revision will be added for servo control and chin attachment.

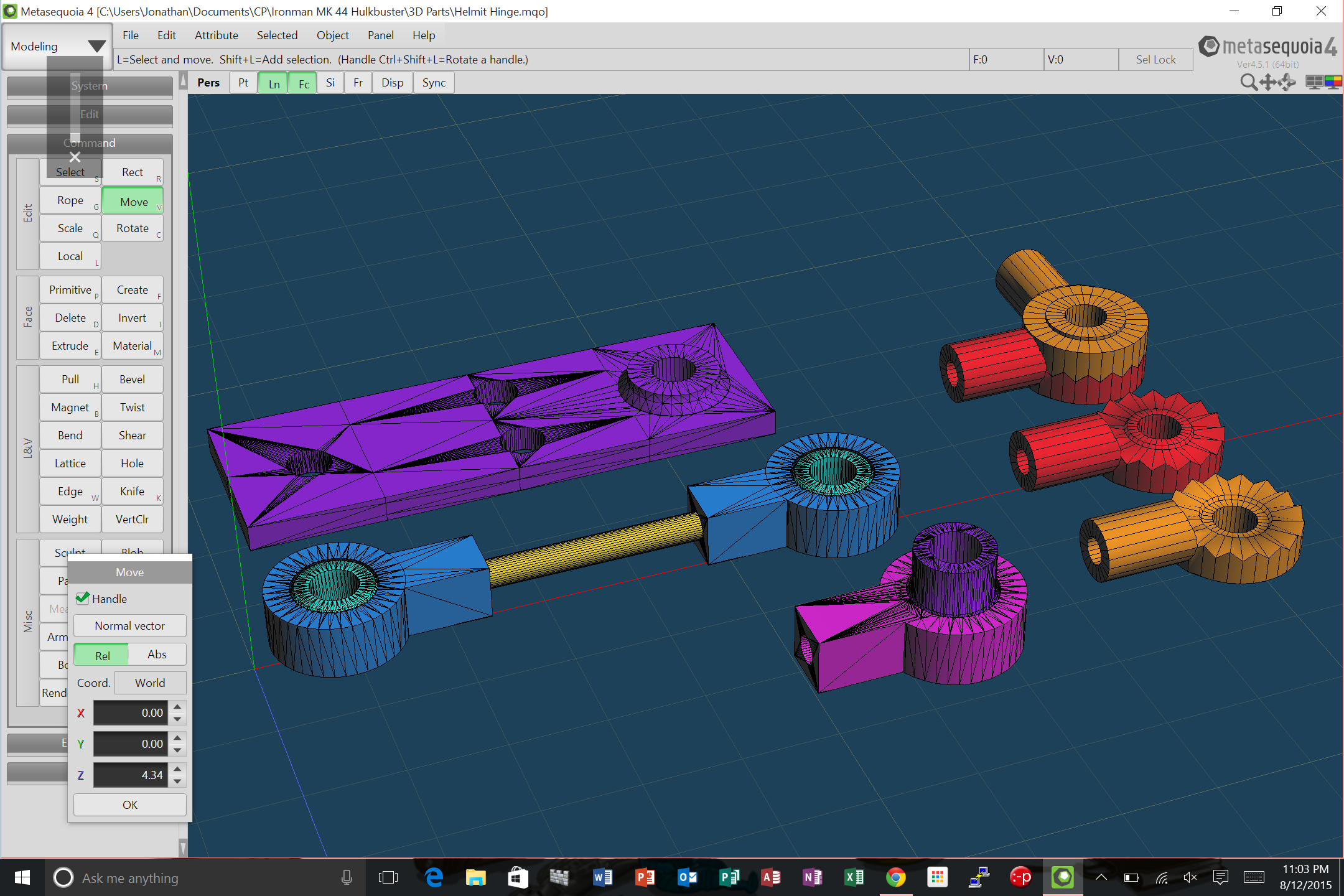

View attachment 514286

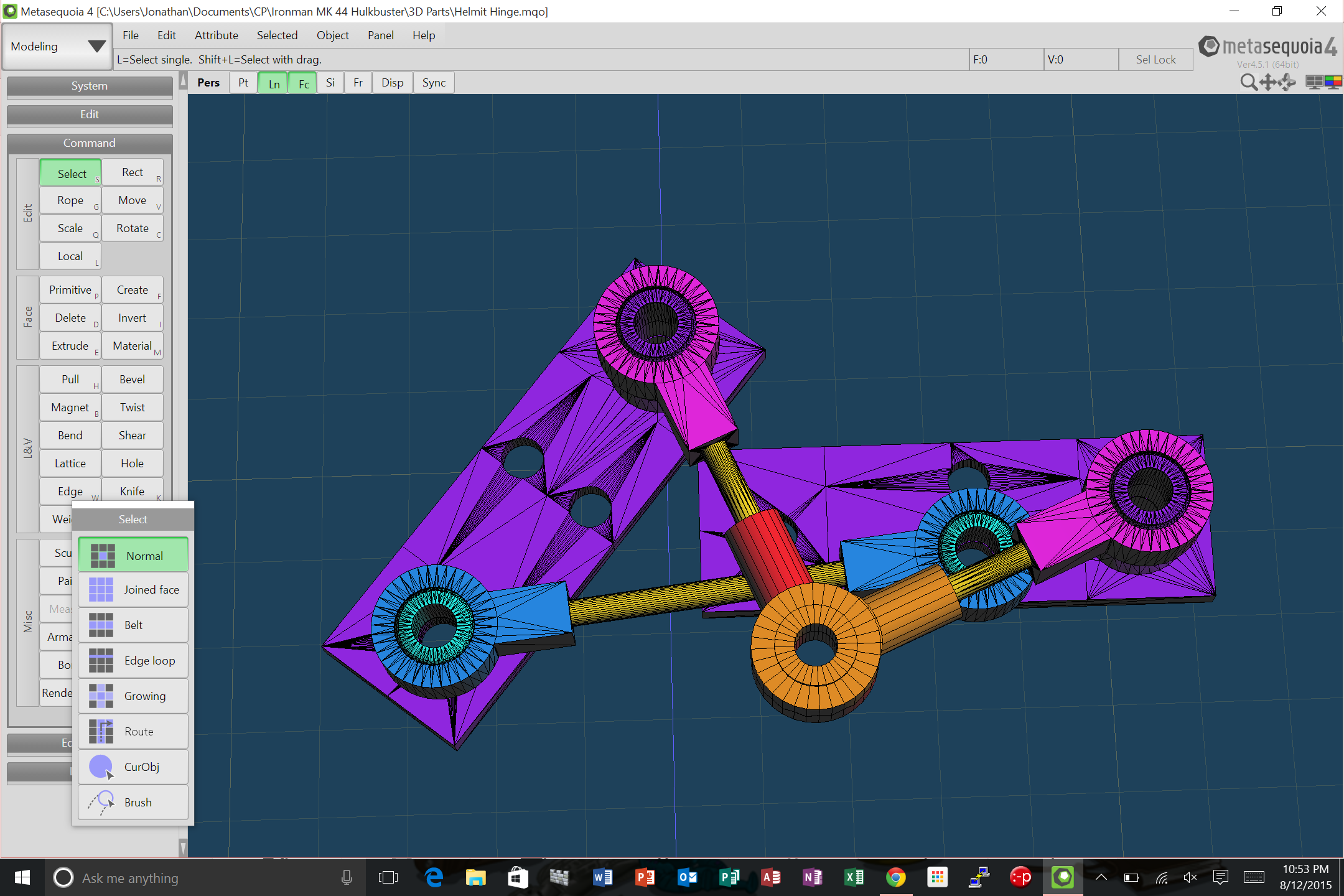

assembly sample
View attachment 514280

Holy $*@#!!! it's better, than in the movie. i feel like a caveman with my paper model :lol



[Shadeling]

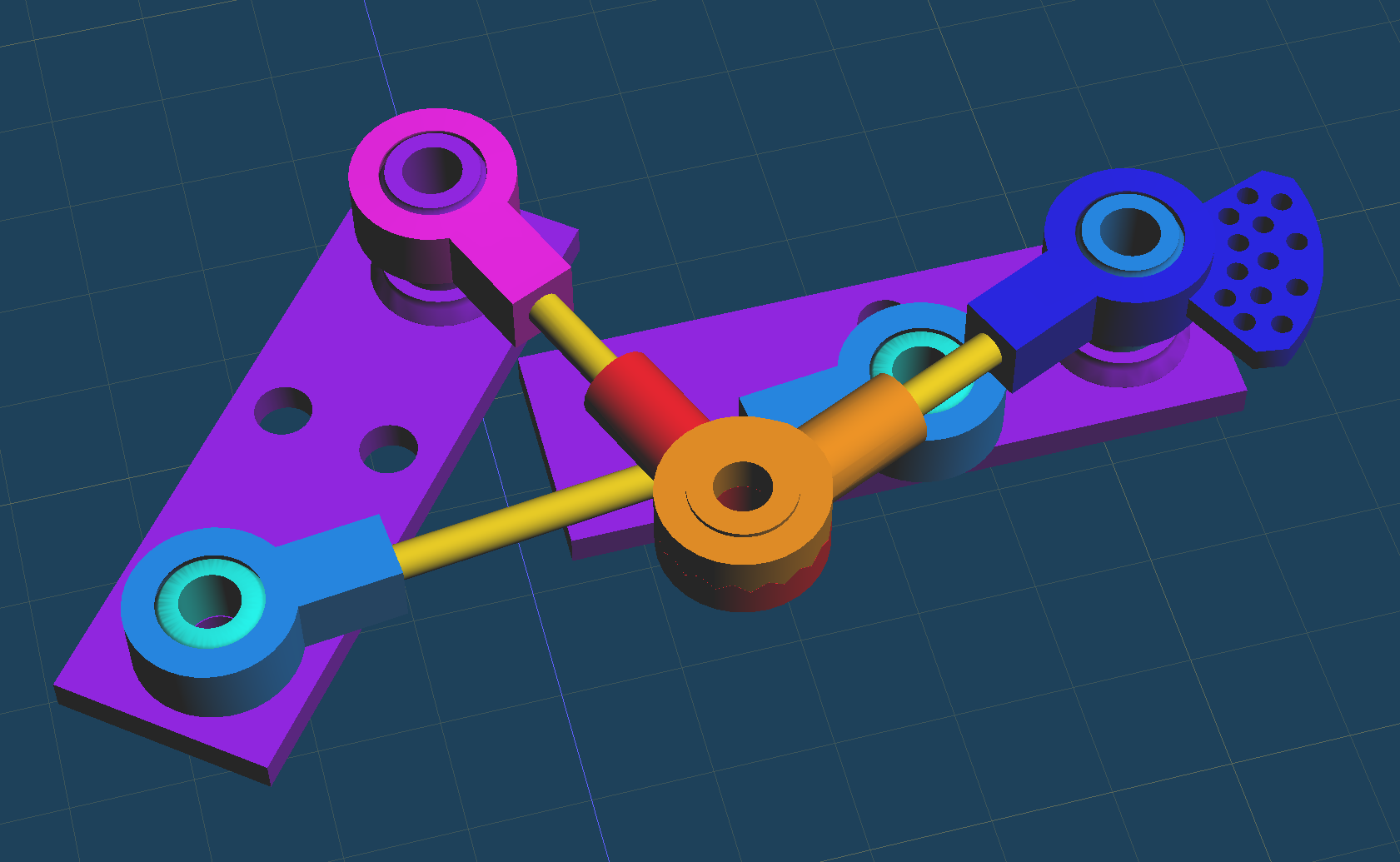

Servo and jaw connections added into the mix



[Shadeling]

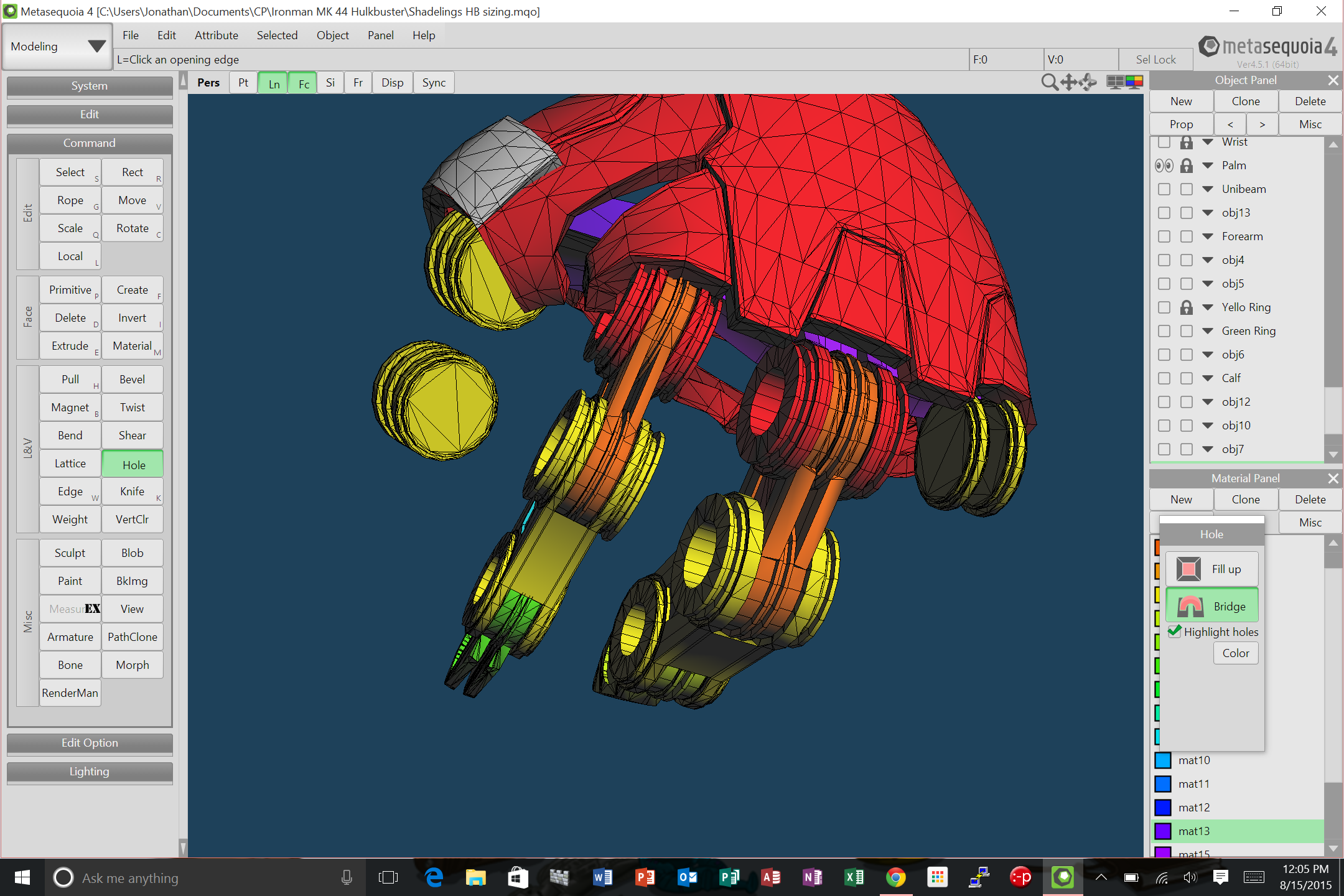

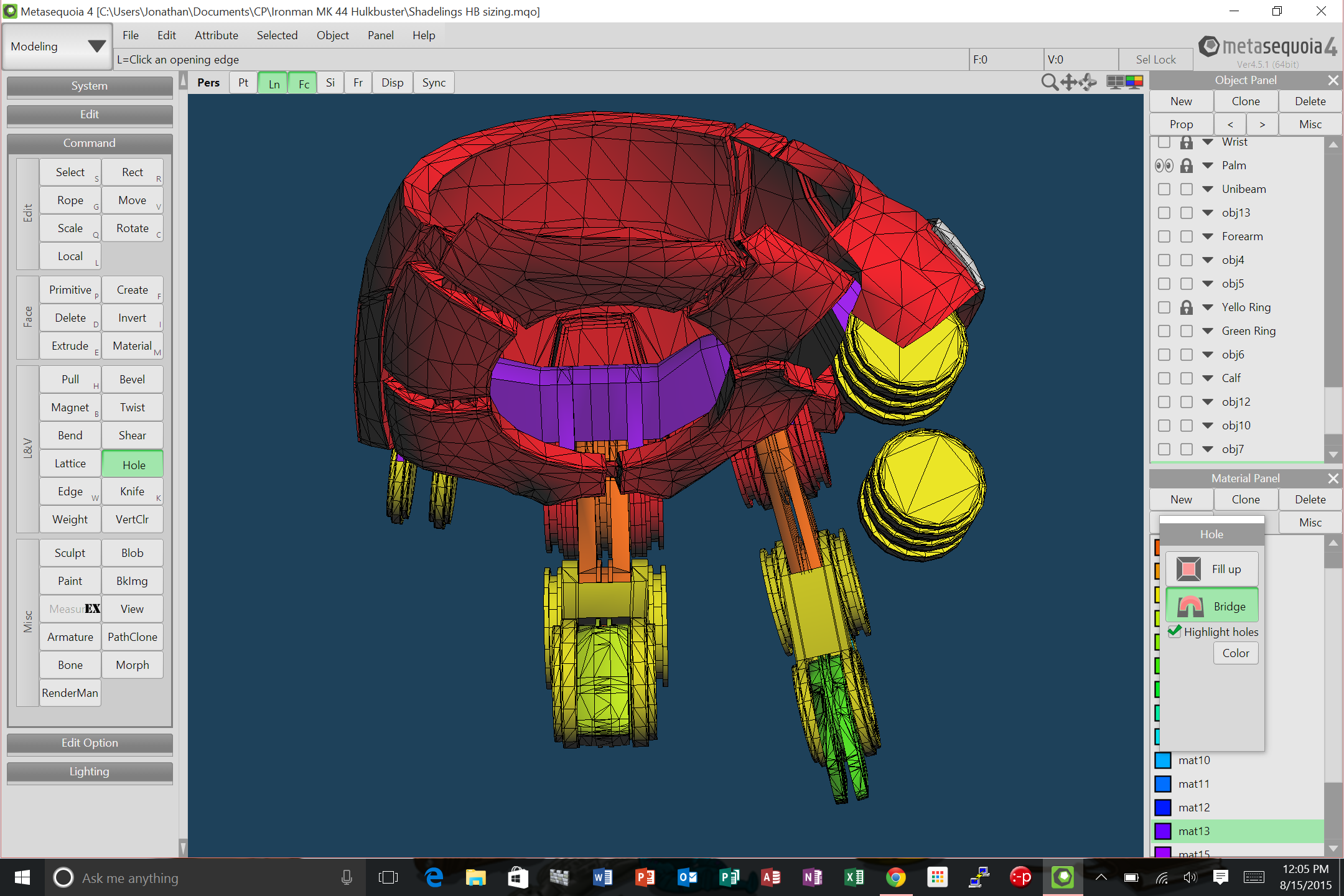

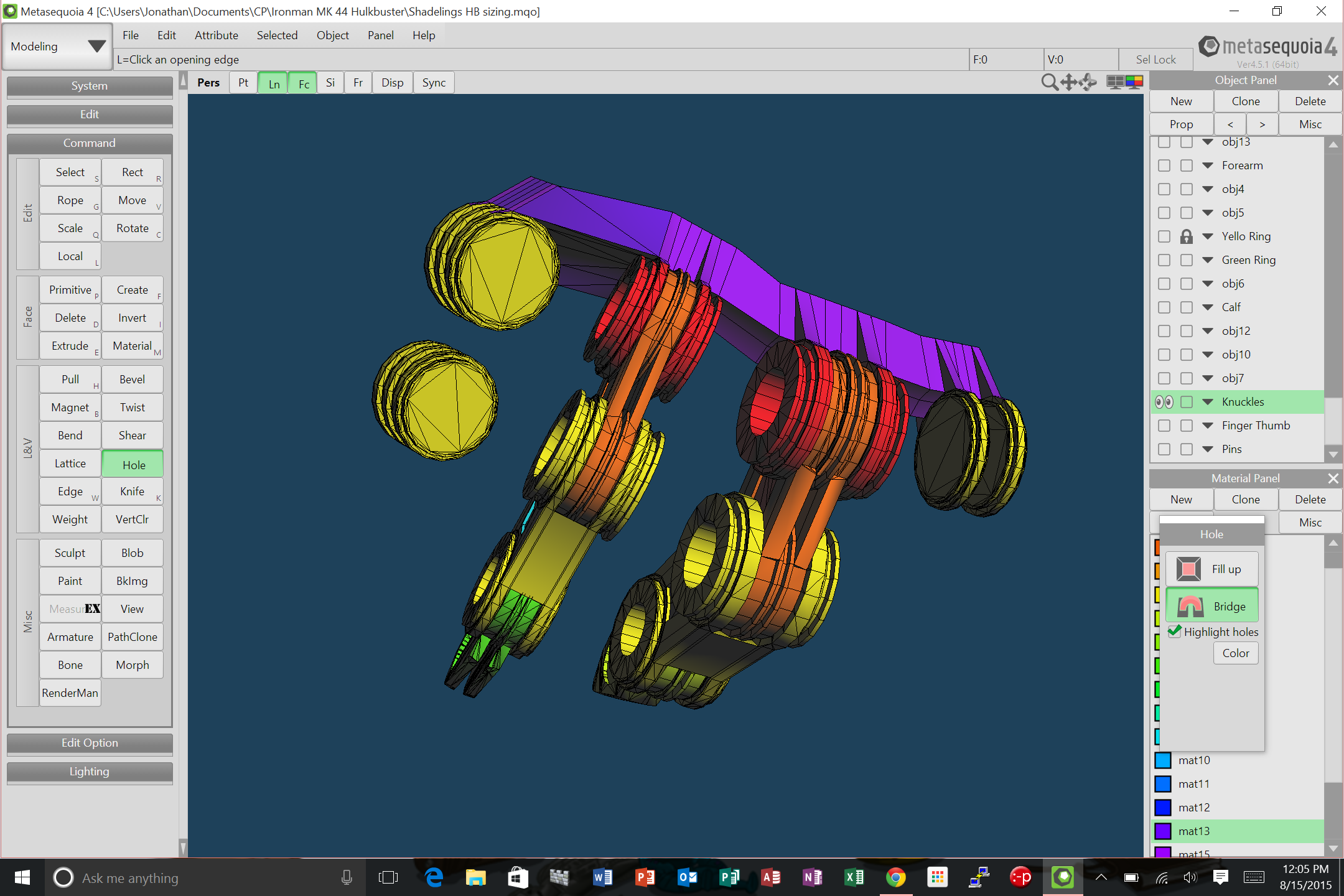

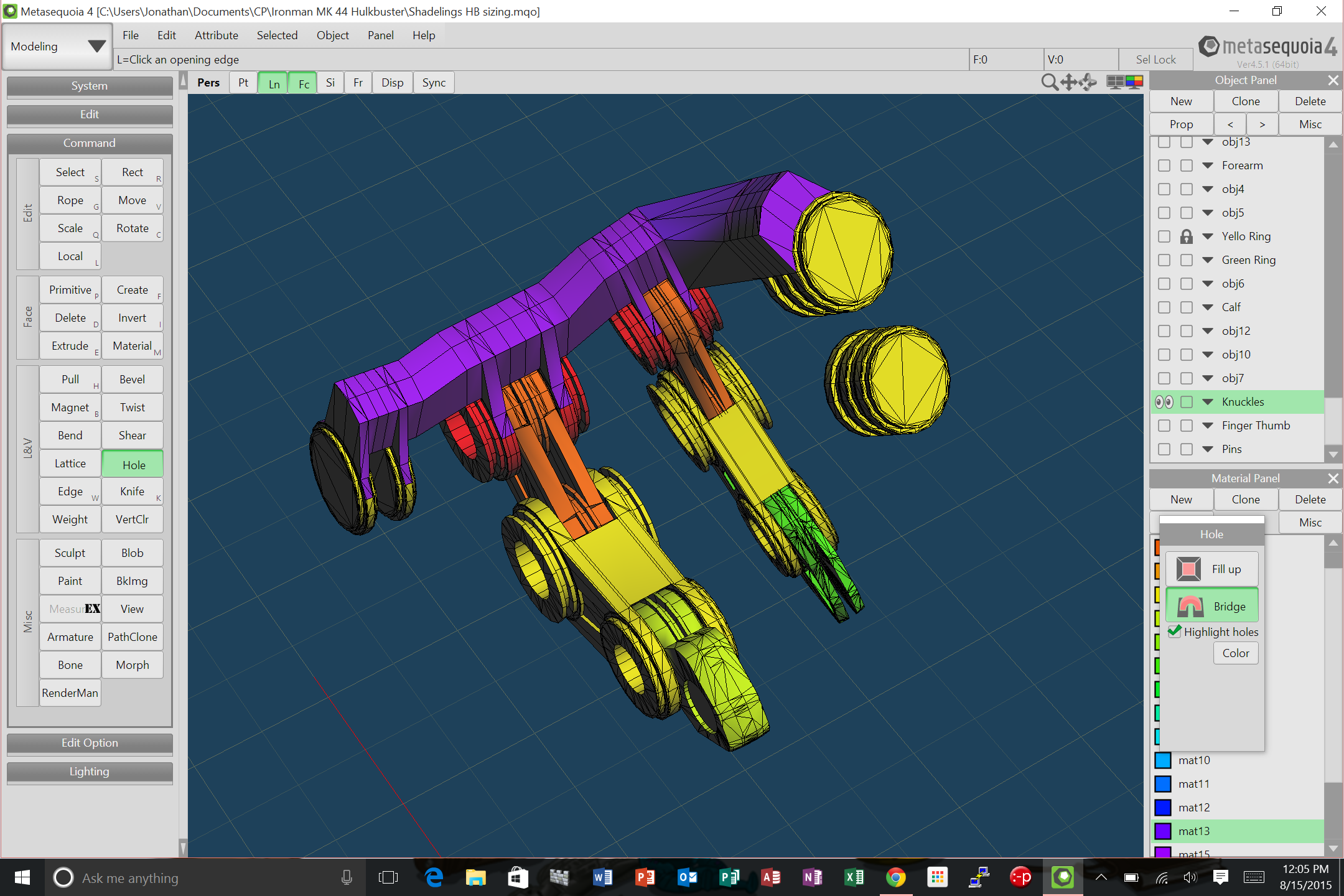

Had a chance to work on the knuckles and index finger



[Shadeling]

Radial Linear Bearing concept design to support the bicep and solve part of the forearm issue



[Jmen]

:eek amazing...



[Shadeling]

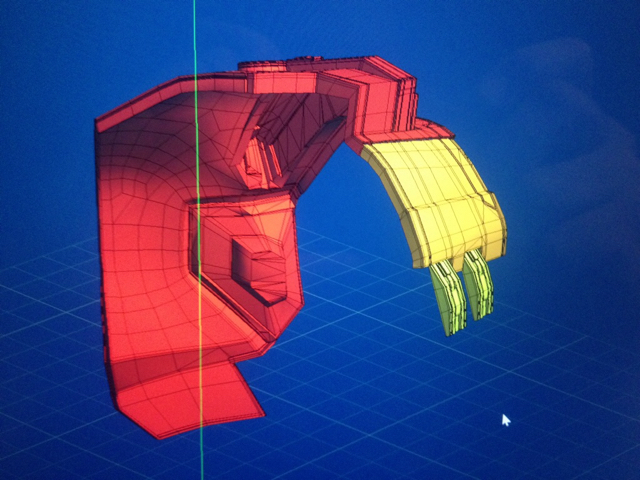

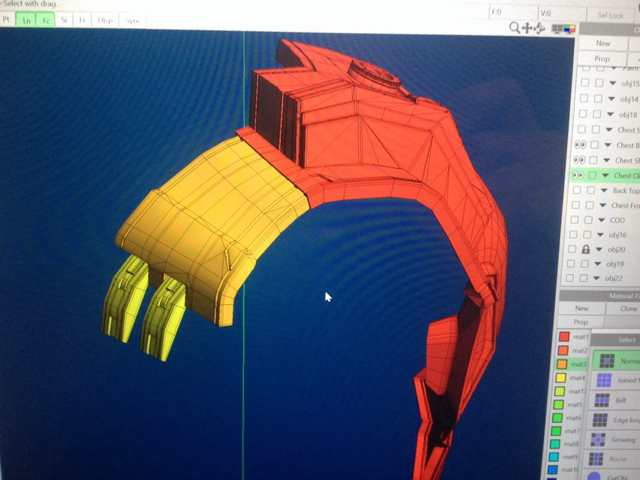

On the road again for work with internet that that great. Here is the back section with the front shoulder section on the chest piece modified to slide in (Orange), the chest locking thingies (yellow) will be spring loaded (ball point type) to remain ether open or closed depending on the front piece is attached or not.

[http://www.hsn.com/products/nabi-bi...GTVLZWOKR7_U8pc16fxcIaAqpj8P8HAQATTACH]526306[/ATTACH]


Sent from my iPhone using Tapatalk



[Mockle]

I did the same thing a while back for the Ironman suit working good so far

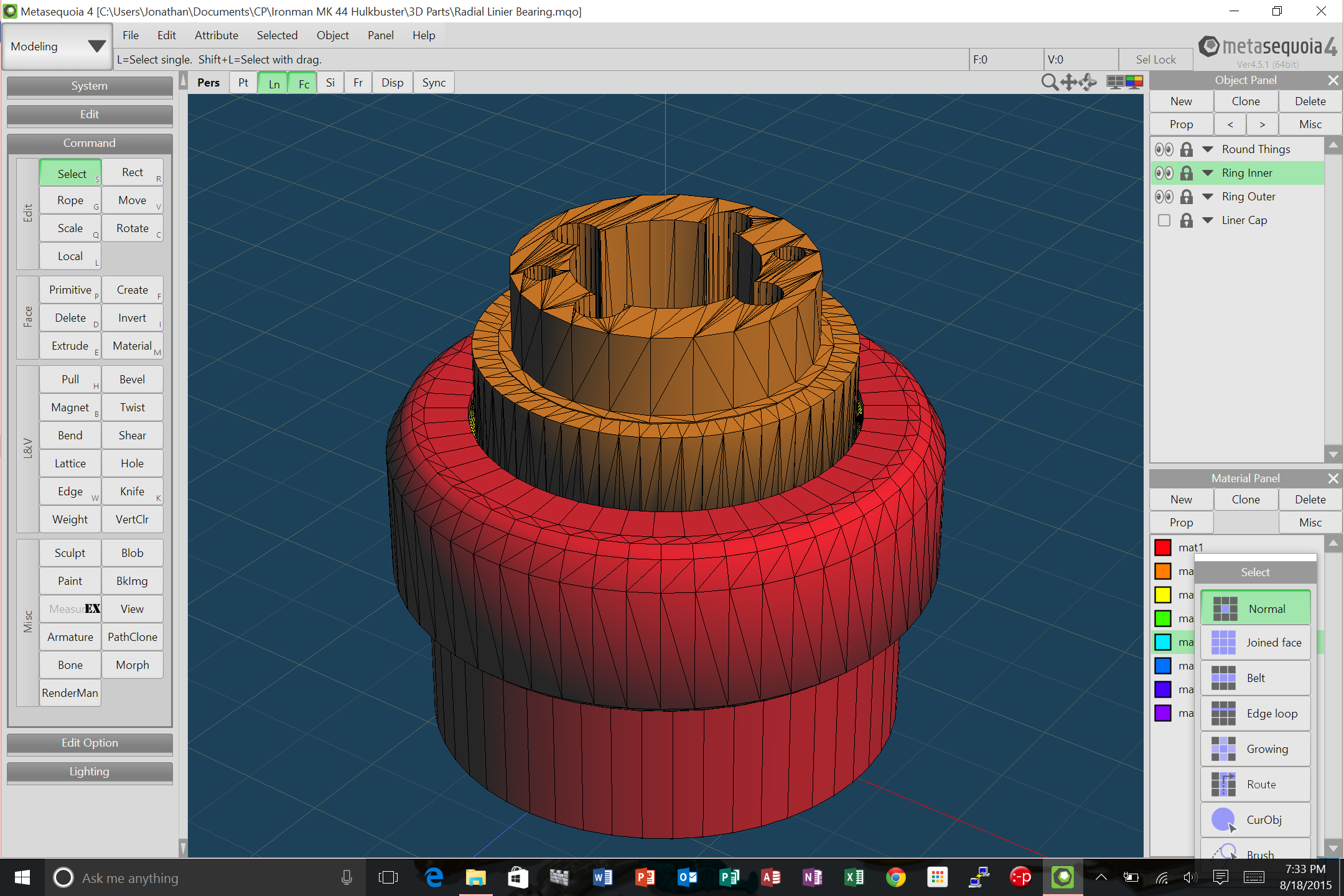

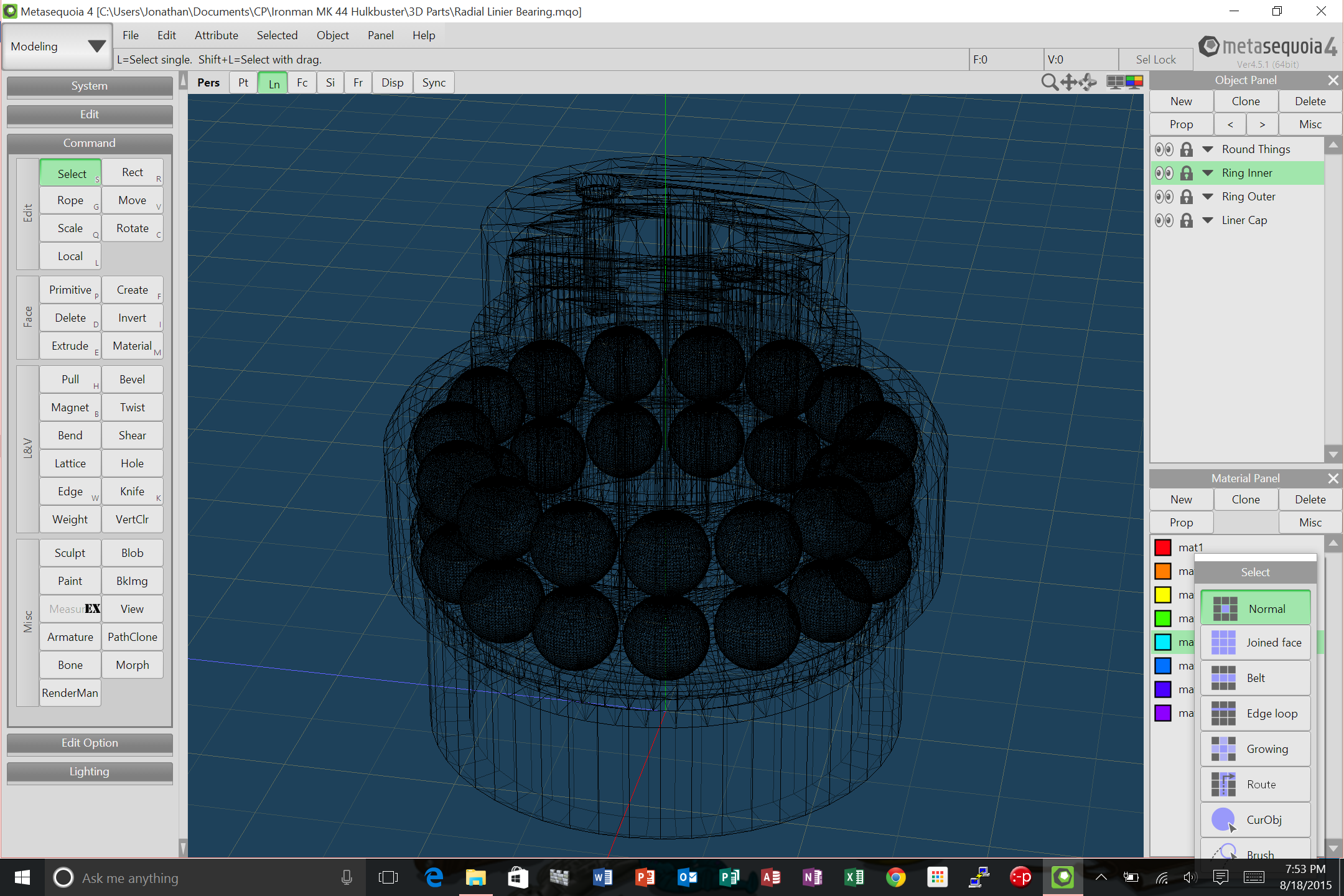

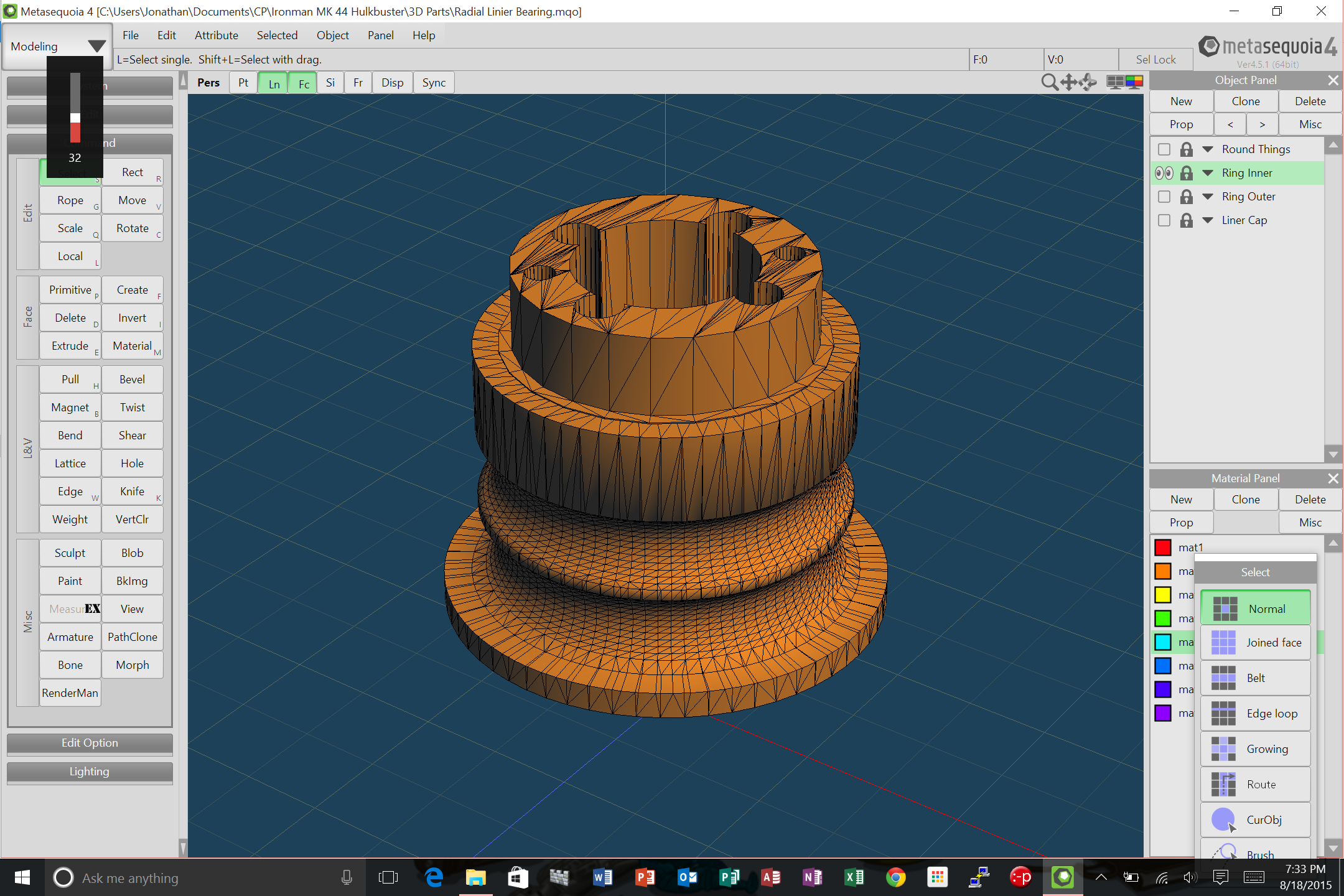

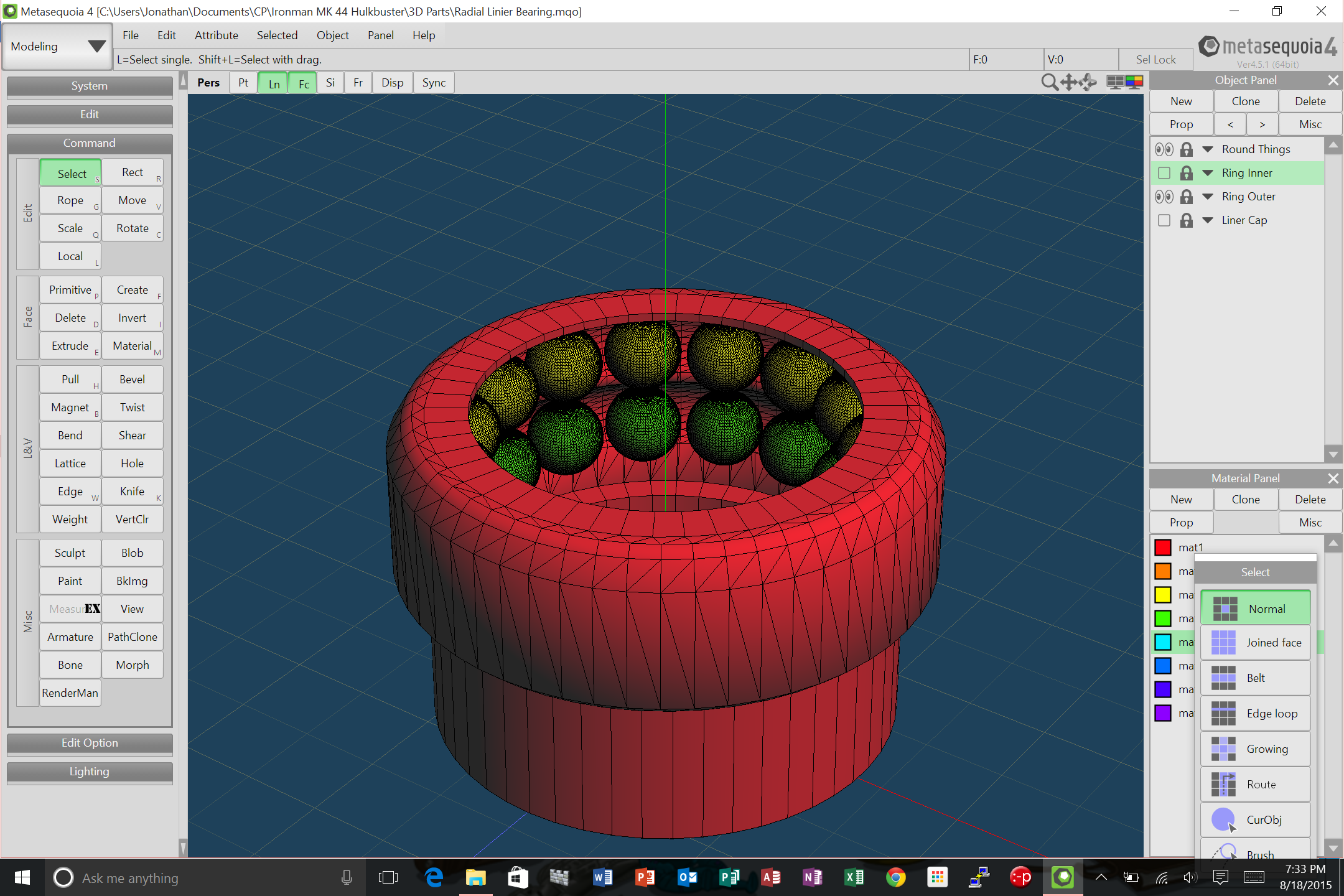

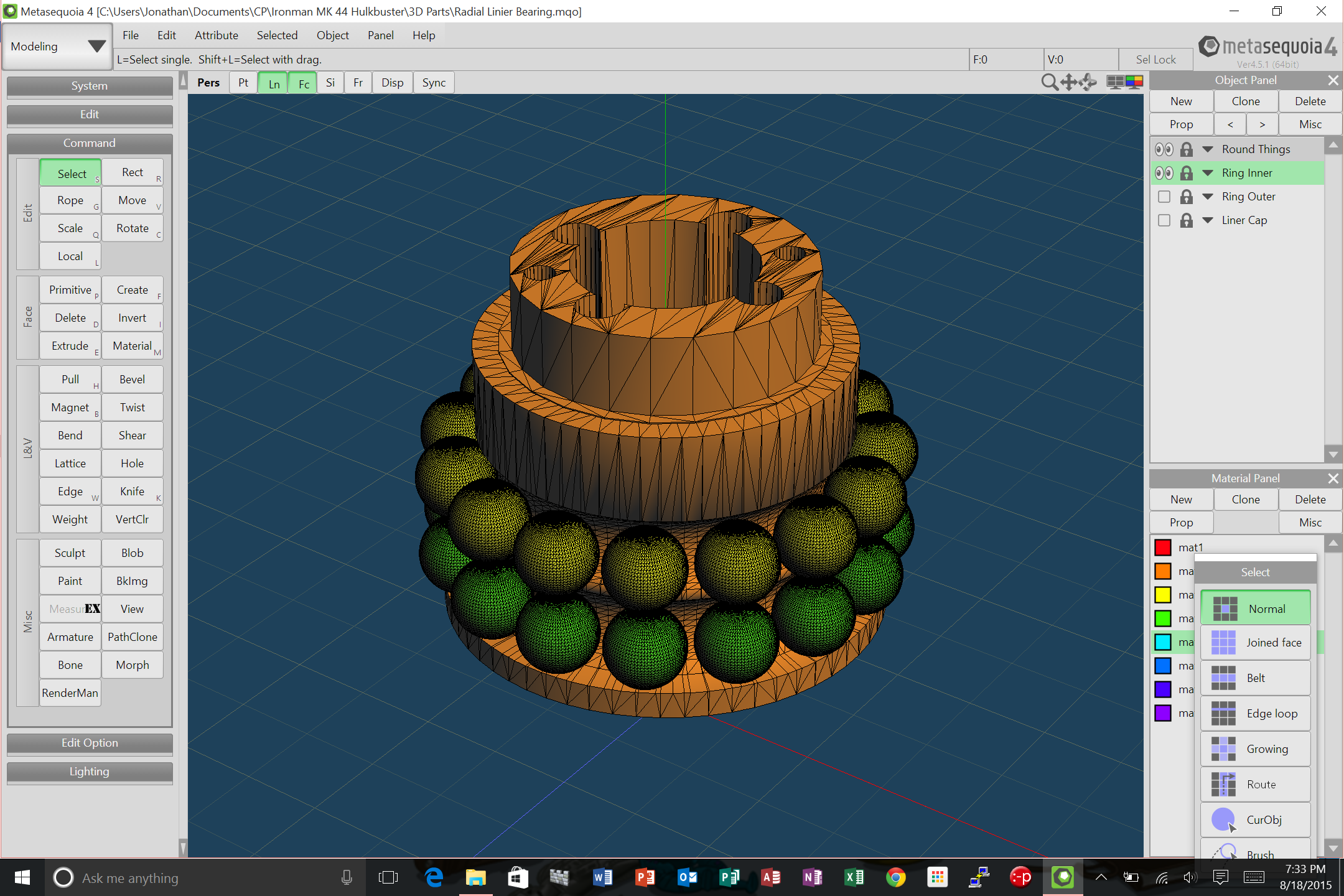

Radial Linear Bearing concept design to support the bicep and solve part of the forearm issue
View attachment 516661View attachment 516662View attachment 516663View attachment 516664View attachment 516665



[mclareniak]

Delete pls



[mclareniak]

ok, guys, all done.
HulkBuster, Modeling by Shadeling, Unfolded by Jmen.
8,5Ft (2,6m) A4, 846 parts, (LEFT PARTS ONLY). WARNING: TOTAL 384 pages.
http://www.4shared.com/file/Un8voU7nce/HB_Full_UNFOLD_85Ft__26m_.html
I did the best i can. If you want unfolded some different - do it yourself:lol

Excuse my poor English
Please, why in Jmen's 8' 5" Unfold not included the lower back part?



[Jmen]

Excuse my poor English
Please, why in Jmen's 8' 5" Unfold not included the lower back part?

Because "lower back" part was added to the project later. Shadeling gives me "all in one file", but without back part. Who want - take back part and unfold it with 2,6m (8,5Ft) scale.



[mclareniak]

Unfortunately I do not know to work in Pepakura Designer.



[Jmen]

Unfortunately I do not know to work in Pepakura Designer.

Noone will make for you your work. if you want something - do it yourself. Anyone here can give advice to make your work better. All of other stuff you need to do by yourself.



[mclareniak]

OK. I'll try somehow to adapt this.
Lower Back
PDO: https://drive.google.com/file/d/0B_6...ew?usp=sharing



[mclareniak]

I want to ask,
Jmen's 8' 5" Unfold
http://www.4shared.com/file/Un8voU7n...5Ft__26m_.html
for the paper, or for the foam?



[Jmen]

I want to ask,
Jmen's 8' 5" Unfold
http://www.4shared.com/file/Un8voU7n...5Ft__26m_.html
for the paper, or for the foam?

Its for Paper.



[Shadeling]

The past few months have been non stop here work wise...

The Shell design is about 65% complete in prep for 3D print.
The skeleton concept has been completely redesigned (mostly on paper at the moment), which will include aprox 7 stepper motors, 2-3 control boards, Power regulation/charging, and joint locking when exiting the suit.

Lazy Susan bearing designed to support between COD and belly for 20 degree swivel.

Foot, ankle, and pelvic mechanics concept drawn out with help from some friends smarter than me in that area.

New 3D printer mother board to be connected and calibrated hopefully by the weekend, another project has priority atm tho

battery compartments will be in the thighs and back

Inner MK 43 suit will basically be a thin cloth jumper with 3D printing from a minimalic perspective (shoulders, chest piece, ect...)

Note to self... get a gym membership...



[IronMeg]

Wow! lots going on there! Can't wait to see it



[Shadeling]

Wow! lots going on there! Can't wait to see it

Keeping it as light as possible is going to be a challenge. Some of the 3D printing will have to be done in metal threw Shapeways. I'll print all the test pieces for proof of concept and functionality before that tho for joint support.

I got the idea for the legs to open on the front from an old razor that has disposable blades.


Sent from my iPhone using Tapatalk



[IronMeg]

Keeping it as light as possible is going to be a challenge. Some of the 3D printing will have to be done in metal threw Shapeways. I'll print all the test pieces for proof of concept and functionality before that tho for joint support.

I got the idea for the legs to open on the front from an old razor that has disposable blades.


Sent from my iPhone using Tapatalk

Neat idea from the razor And yes, weight I can see being an issue for sure.
