I started working on the steel outer feet. Got the holes drilled and the drives mounted.
ANH R2-D2 Build (Weathered CS:R spec)
- Thread starter matty matt
- Start date
matty matt
Sr Member
I got him out of the basement for a little bit to try on his new shoes.
I still need a center foot shell.
I still need a center foot shell.
matty matt
Sr Member

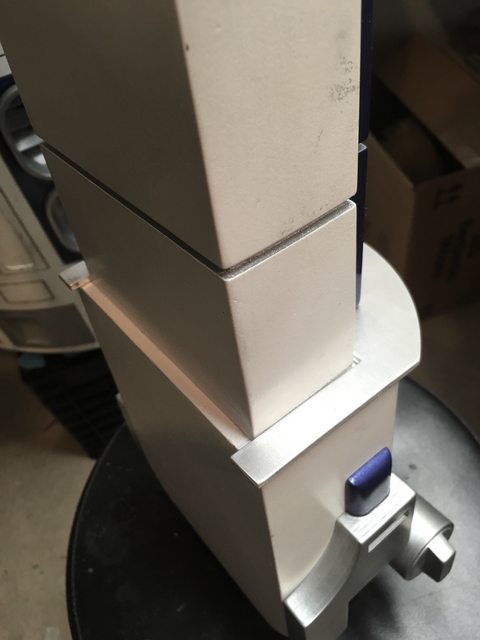

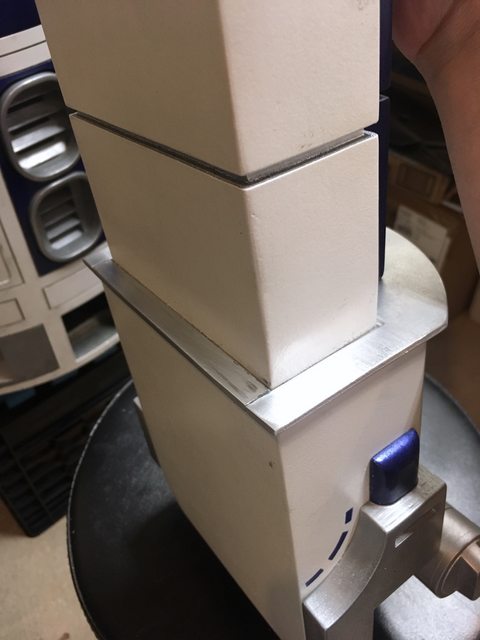

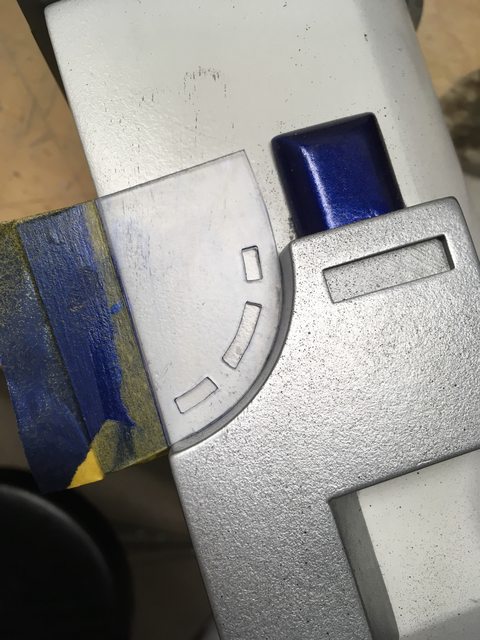

The open ankle bracelets kind of bugged me so I made some metal to go around the backs. I also made a little acrylic stencil so I could paint the blue notches that go on the ankles (this was harder than it looks). I thought I was done with the legs, but I guess not!
I like that painters template!! Good thinking!
matty matt
Sr Member
Now that I've got most of the major parts assembled I thought I'd work on the weathering a little. Weathering is always my favorite part of a build.

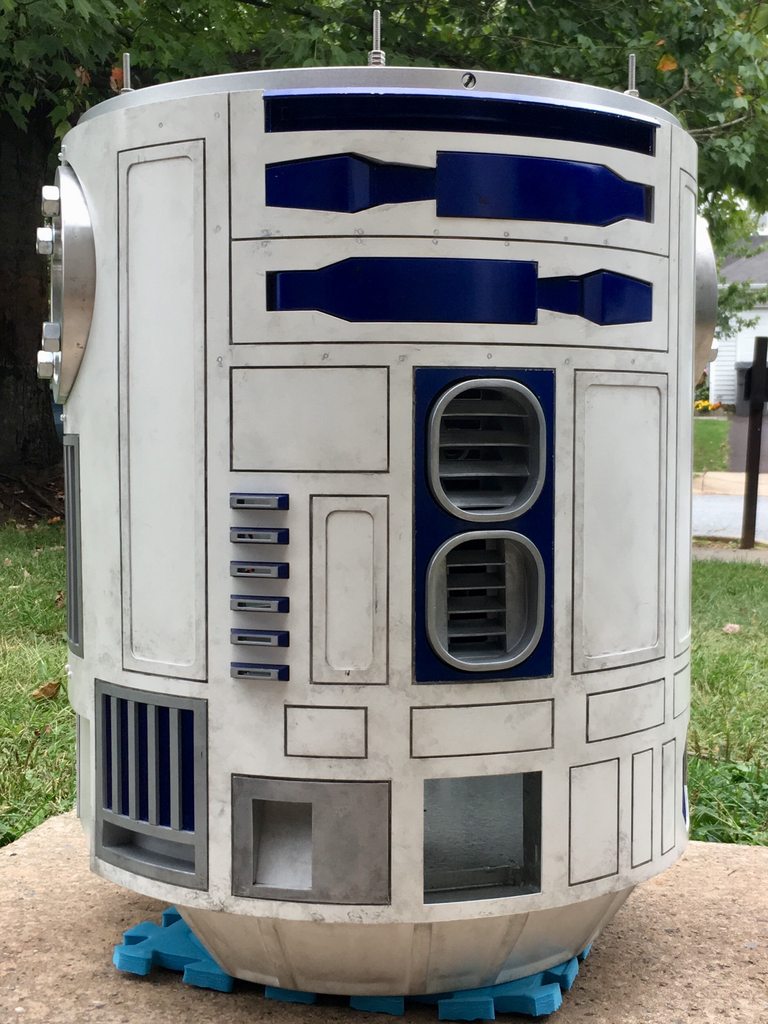

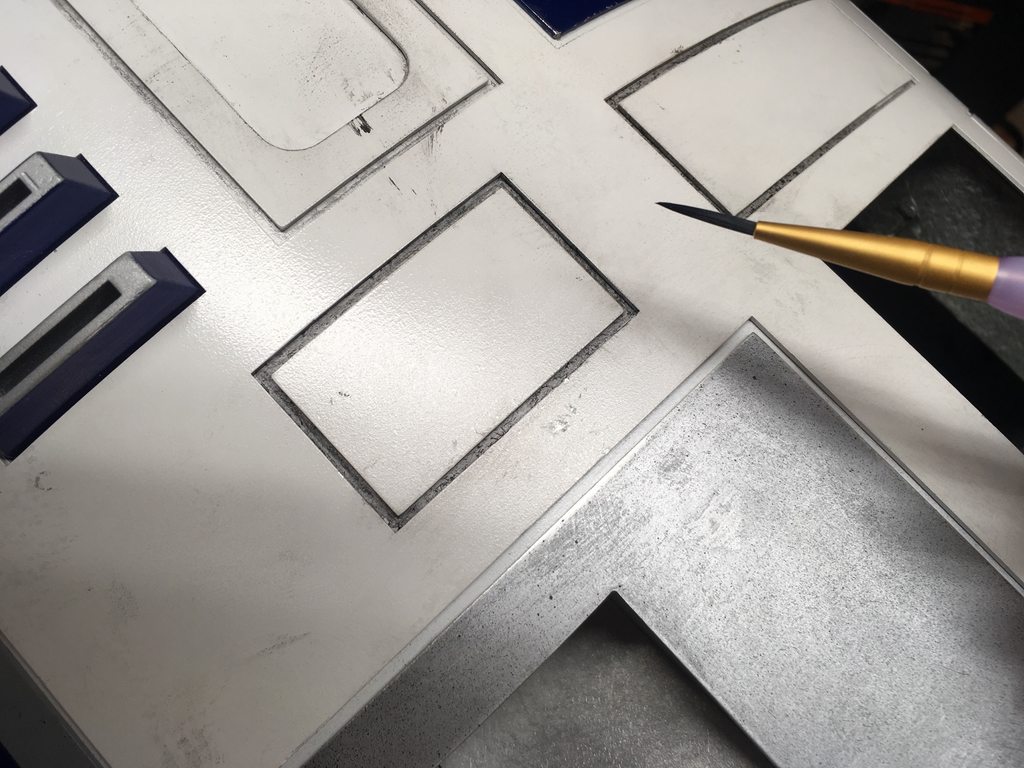

I darkened the panel lines with a dirty wash (black acrylic paint and Windex). I love this method. It almost turns the paint into a glaze. The Windex dries super fast and makes a cool effect. I take my time with this and build it up in layers. I then made another wash with gray and dirtied up the rest of the body by dabbing it with a paper towel.
I also added the ANH "rivets" because I love all these weird details.
I darkened the panel lines with a dirty wash (black acrylic paint and Windex). I love this method. It almost turns the paint into a glaze. The Windex dries super fast and makes a cool effect. I take my time with this and build it up in layers. I then made another wash with gray and dirtied up the rest of the body by dabbing it with a paper towel.
I also added the ANH "rivets" because I love all these weird details.
This is really incredible matty matt .
DarthBlackWolf
New Member
Looking into building an R2D2 with an aluminum skin with a 3D printed frame. I have a 3D CAD system so I can do any mods I need and reprint the frame part.
matty matt
Sr Member
Wow, it's been a while since I updated this. Lots of progress to report!

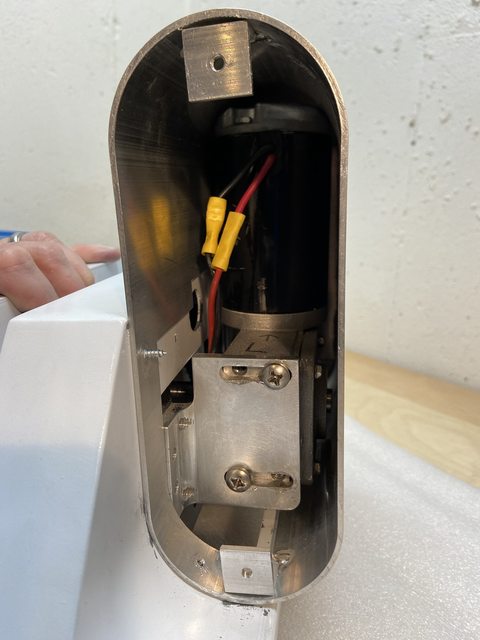

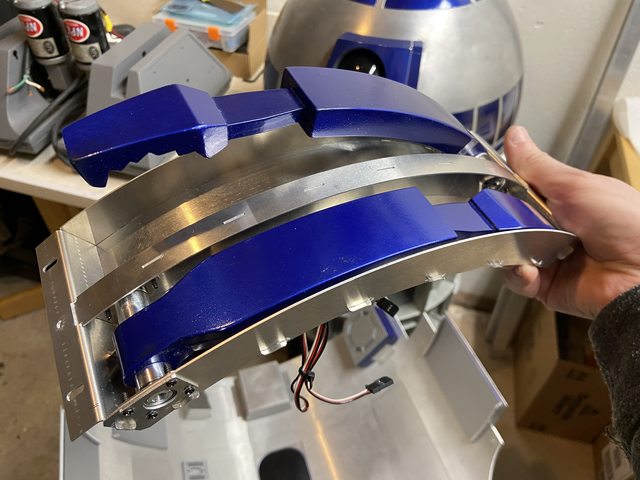

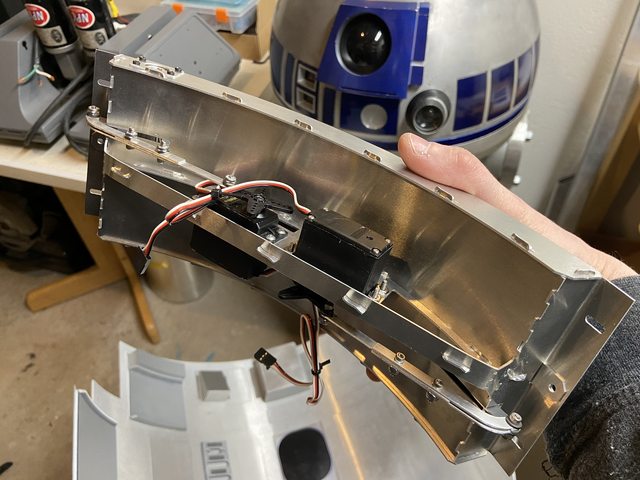

A while back I decided to rip out the utility arms and replace everything with a better setup. The 3D printed one I had just wasn't cutting it. So I put this together and installed it behind the skins.

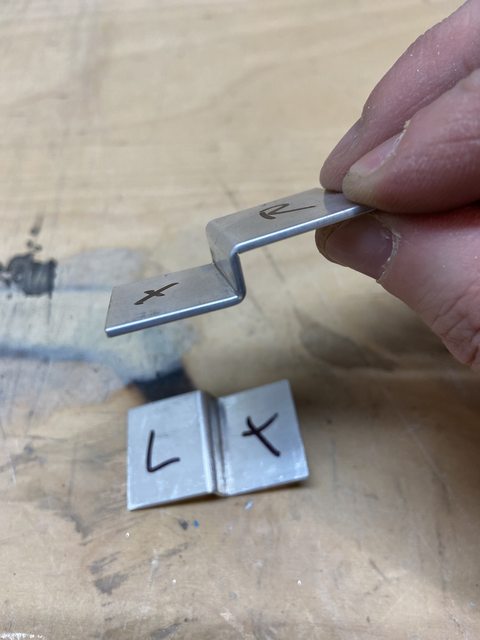

I had to remove the LDP shelf to fit the utility arms so I made little metal brackets to hold it in place. Worked great.
A while back I decided to rip out the utility arms and replace everything with a better setup. The 3D printed one I had just wasn't cutting it. So I put this together and installed it behind the skins.
I had to remove the LDP shelf to fit the utility arms so I made little metal brackets to hold it in place. Worked great.
matty matt
Sr Member

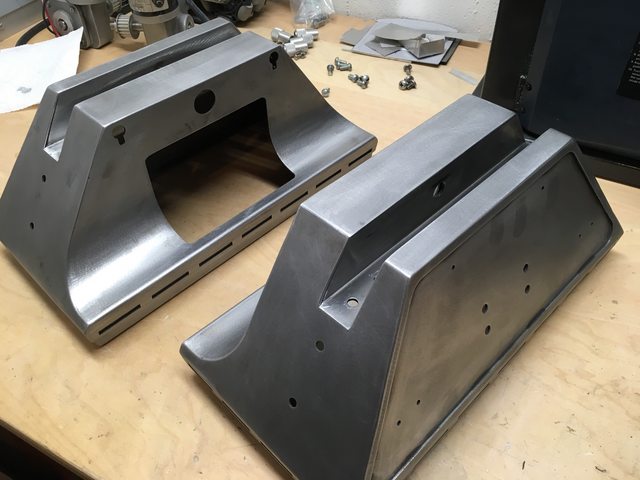

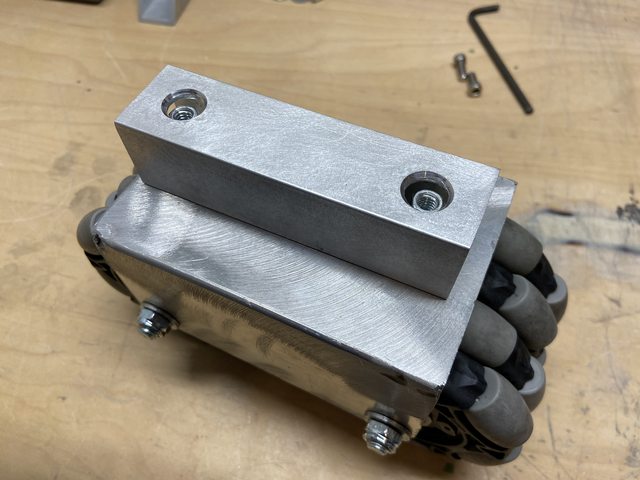

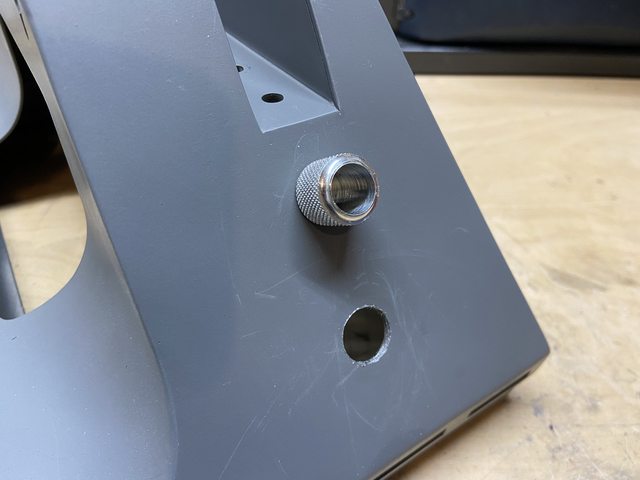

Next I worked on the center foot. I was finally able to get on a run for a steel foot shell earlier this year. To attach it to the omni wheel bracket I decided to use coupling nuts. I figured this would let me bolt the foot shell on without fumbling around with nuts or even removing the side plates.
matty matt
Sr Member

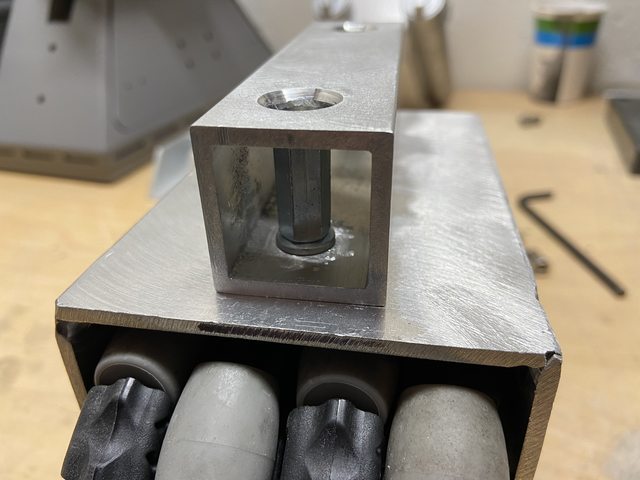

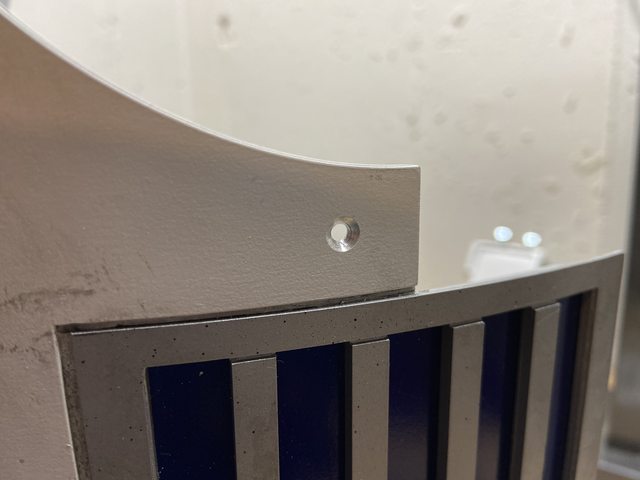

Drilled holes for the KHF's and at some point also countersunk the holes for the skin screws. They're a little less noticeable now.
matty matt
Sr Member
Thanks! I've been working pretty steadily since the winter so I've gotten a ton of work done.
Glad you like it because there's more coming!
matty matt
Sr Member

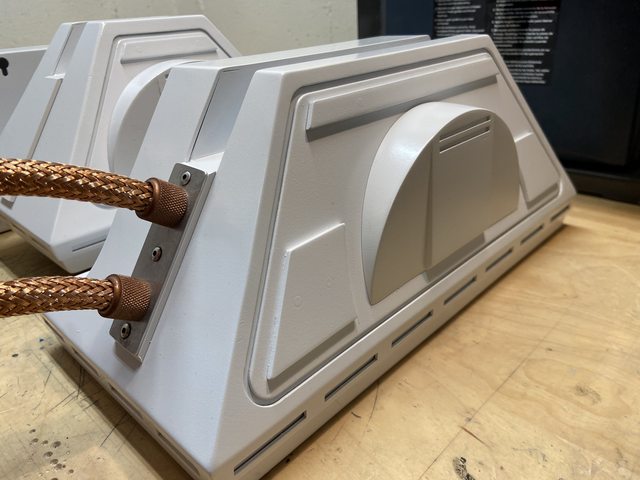

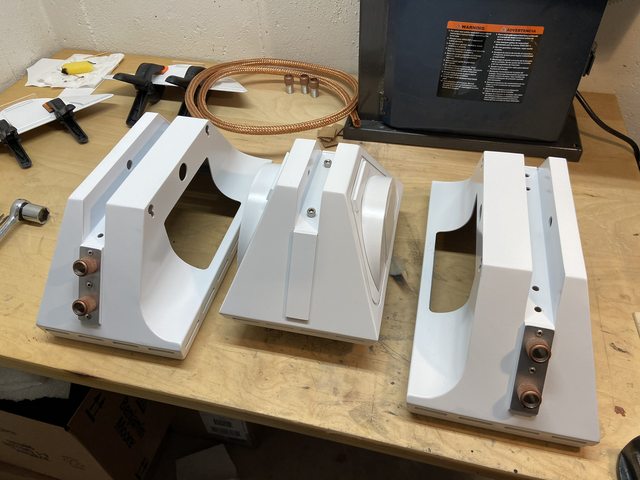

Next I got the feet painted up and worked on assembling them. Since it's ANH I painted the KHFs a copper color to better match the hoses. I also hand cut aluminum plates to rivet onto the side foot strips.

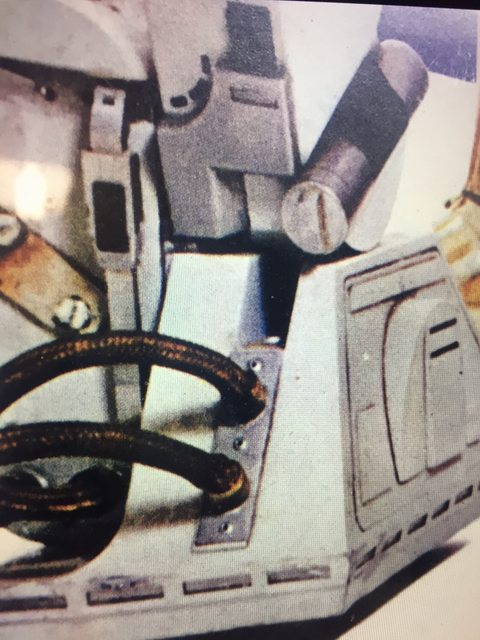

Here's some reference.

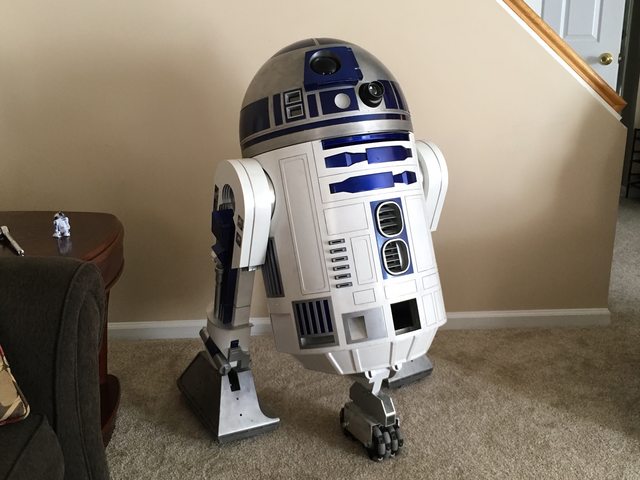

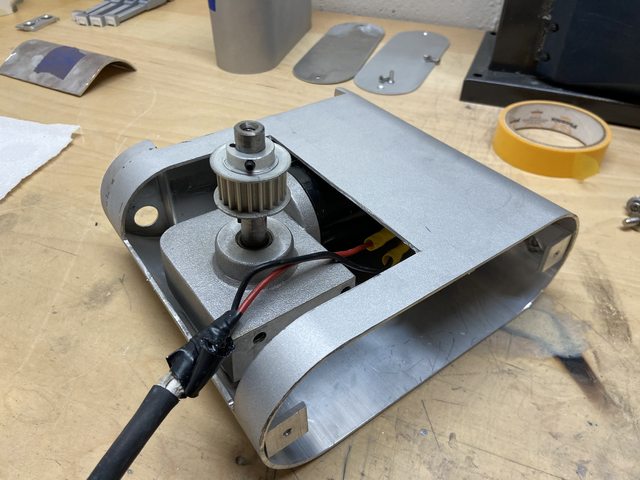

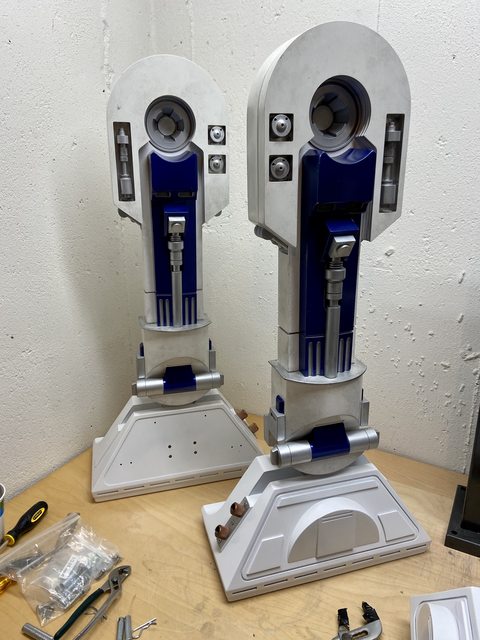

Test fitting with my legs. I 3D printed the half moons. Everything else on the feet is metal.
Next up...battery boxes!
Here's some reference.
Test fitting with my legs. I 3D printed the half moons. Everything else on the feet is metal.
Next up...battery boxes!
Incredible work!
matty matt
Sr Member

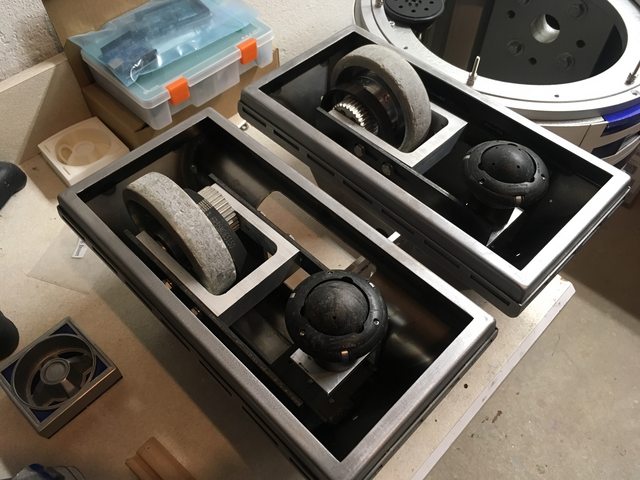

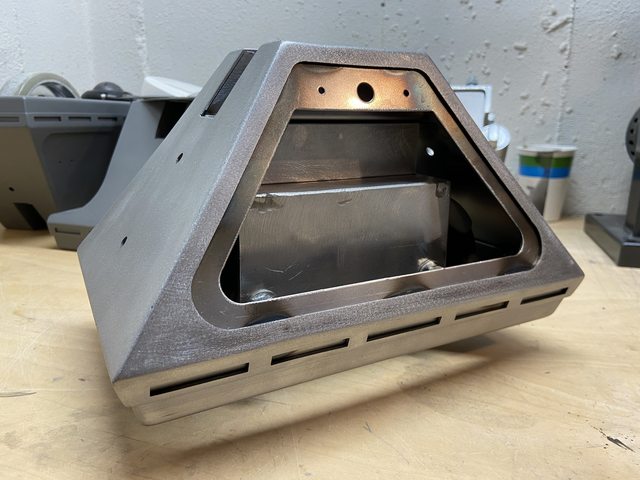

I tried to make 3D printed battery boxes with no luck. The NPC motors just wouldn't fit inside without sizing them up to ridiculously large dimensions. I eventually broke down and ordered an aluminum set. The thinner wall size allows the motors to fit better. They still didn't really fit, but I was able to get them in by grinding the top of the motors down and cutting away a good portion of the side of the box.
Here was my initial cut. The motor kind of went in but it wasn't enough.

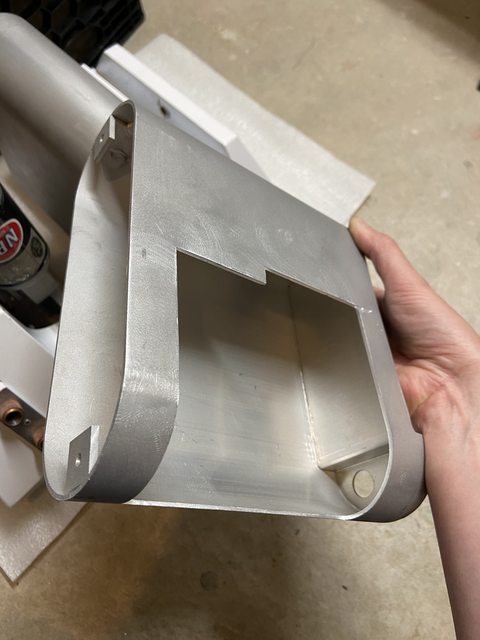

I ended up cutting a lot more away. The hole is just barely covered by the foot shell.
It's a very tight fit.
Here was my initial cut. The motor kind of went in but it wasn't enough.
I ended up cutting a lot more away. The hole is just barely covered by the foot shell.
It's a very tight fit.
