ANH Luke Macrobinocular Build

[trooper]

yep

I’m 99% certain the transition box is made from the Kalimar body. It’s a pain to do but it matches up to reference.



[OdiWan72]

I’m 99% certain the transition box is made from the Kalimar body. It’s a pain to do but it matches up to reference.[/QUOTE

- - - Updated - - -

That's what I used on my builds.
Jerry...post a picture of the transition box I build, if you want



[trooper]

Odiwan72's box is a work of art !

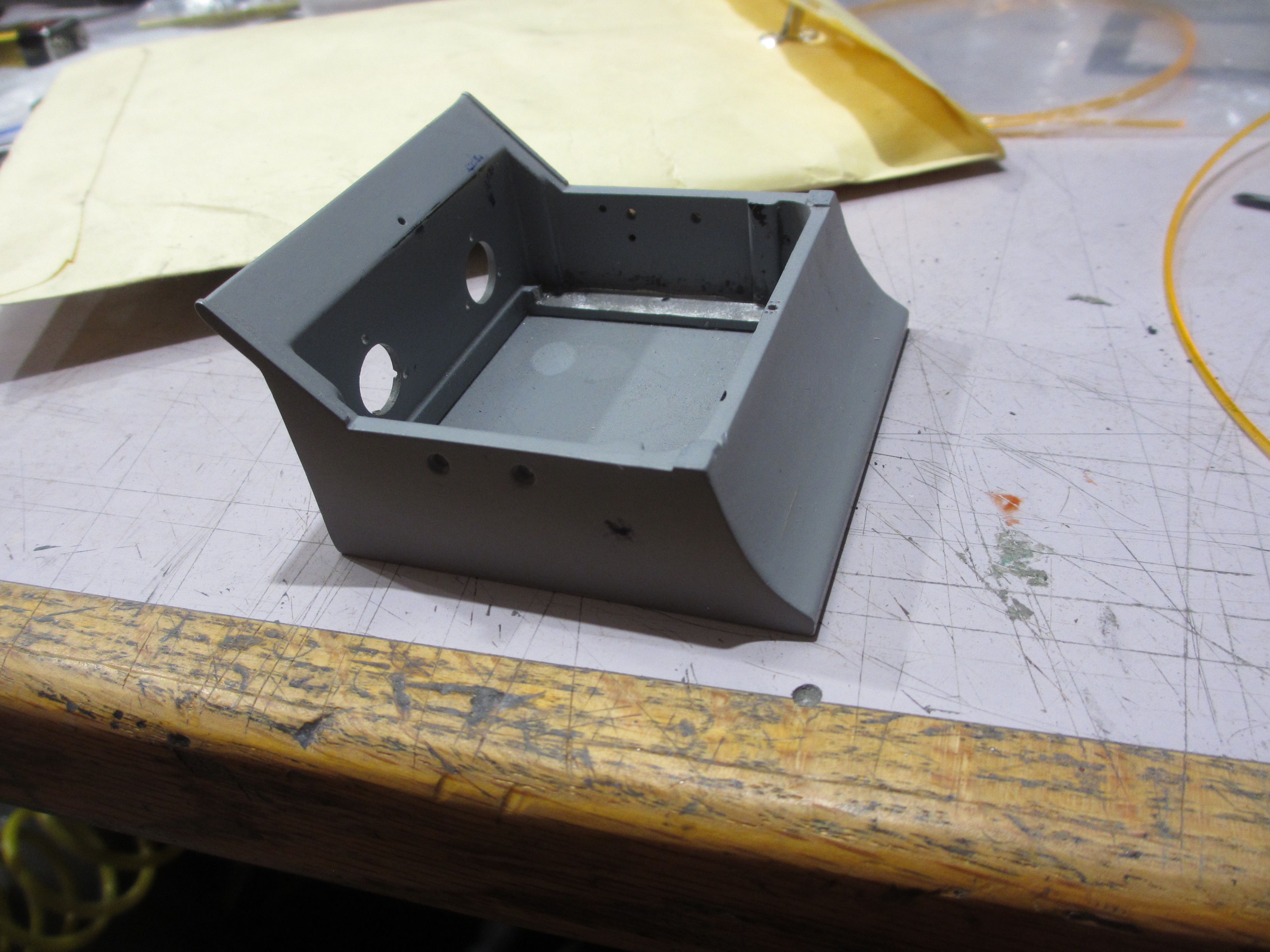

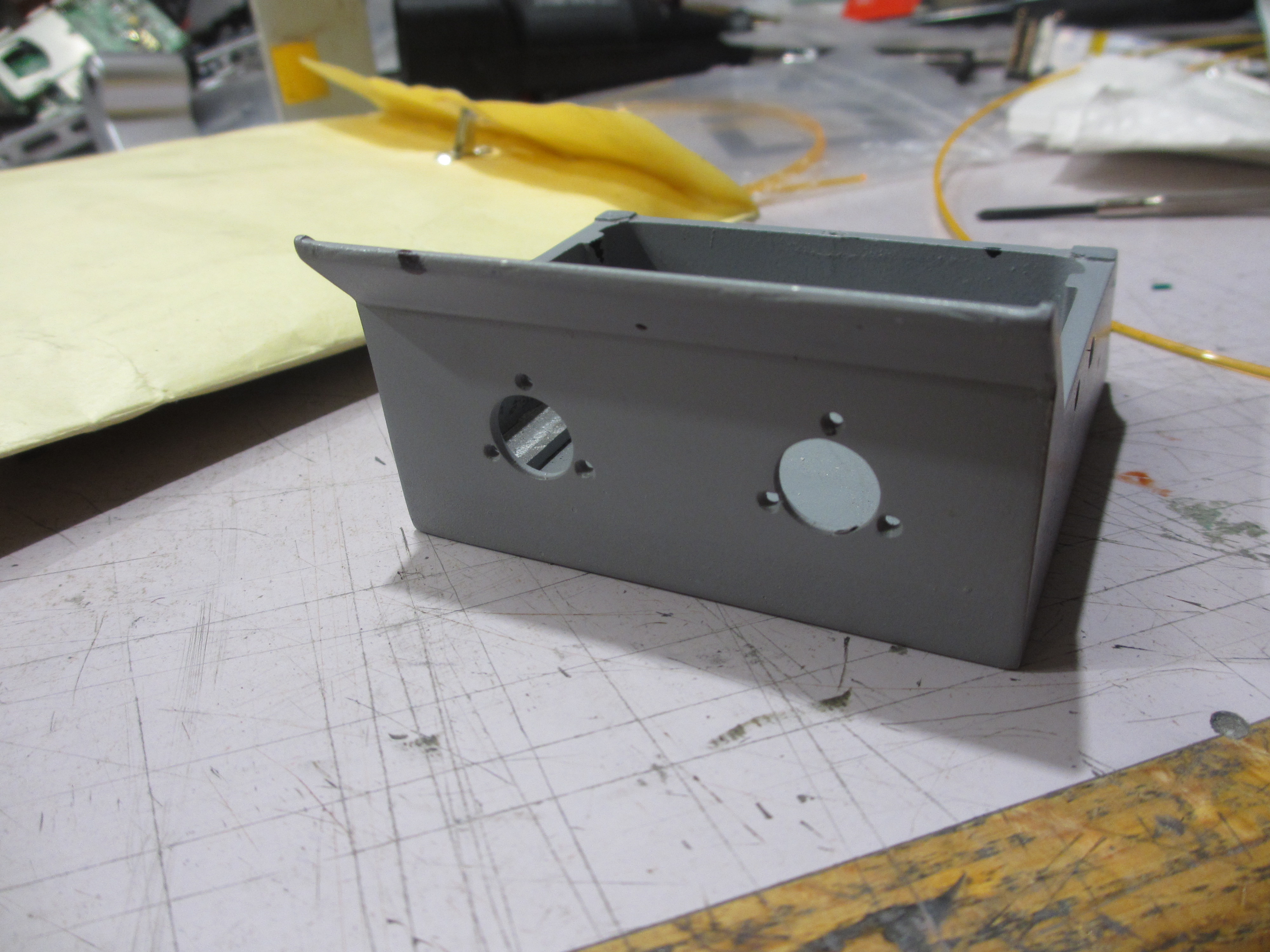

fyi to others, my resin transition boxes are molded from a moded kalimar top...only way to do it !!!

That's what I used on my builds ��

- - - Updated - - -

That's what I used on my builds.
Jerry...post a picture of the transition box I build, if you want



[THX1138]

I’m 99% certain the transition box is made from the Kalimar body. It’s a pain to do but it matches up to reference.

I also agree with this. I cut one apart for a board member many years ago to use as his transition box and it worked out great and looked accurate.

It IS a pain to do!

- Jim



[Cameron]

Cameron do you still have a mystery box available!
Craig

heya Craig. The mystery box is no longer a mystery and Trooper now makes an exact copy. He da man for those.

- - - Updated - - -

I’m 99% certain the transition box is made from the Kalimar body. It’s a pain to do but it matches up to reference.

Do tell?



[trooper]

much easier if you have a metal cutting band saw one zip and done ! lol

I also agree with this. I cut one apart for a board member many years ago to use as his transition box and it worked out great and looked accurate.

It IS a pain to do!

- Jim



[NickCline]

trooper I sent you a PM.



[trooper]

and replied

@trooper I sent you a PM.



[mgoob]

I'm trying to visualize this as to what part of the camera was cut and bent to make said transition box.



[MastahBlastah]

Wow, I never heard of making the T-box from the Kalimar body ... I love that idea! Would love to see a build thread for one of these!



[trooper]

the top is cut off, then a bottom plate is added. i fill in the swoop with filler, but you can also bend a piece into shape. for my purpose i just needed it to last for making a mold. i find the resin is more sturdy than epoxied together parts.

I'm trying to visualize this as to what part of the camera was cut and bent to make said transition box.



[Themodelshopman]

Where did you get the plaque? Is there somewhere i can order one?

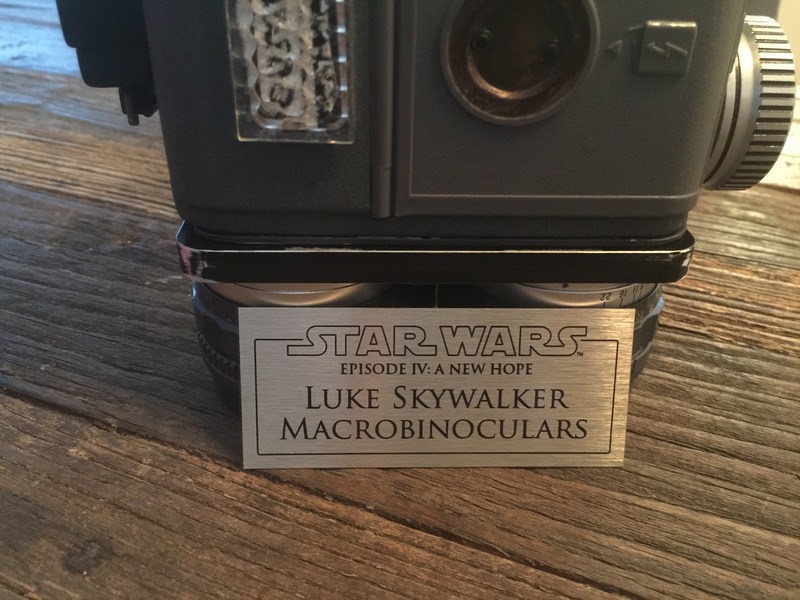

Plaque came in...need a acrylic stand for it!

View attachment 638212



[Themodelshopman]

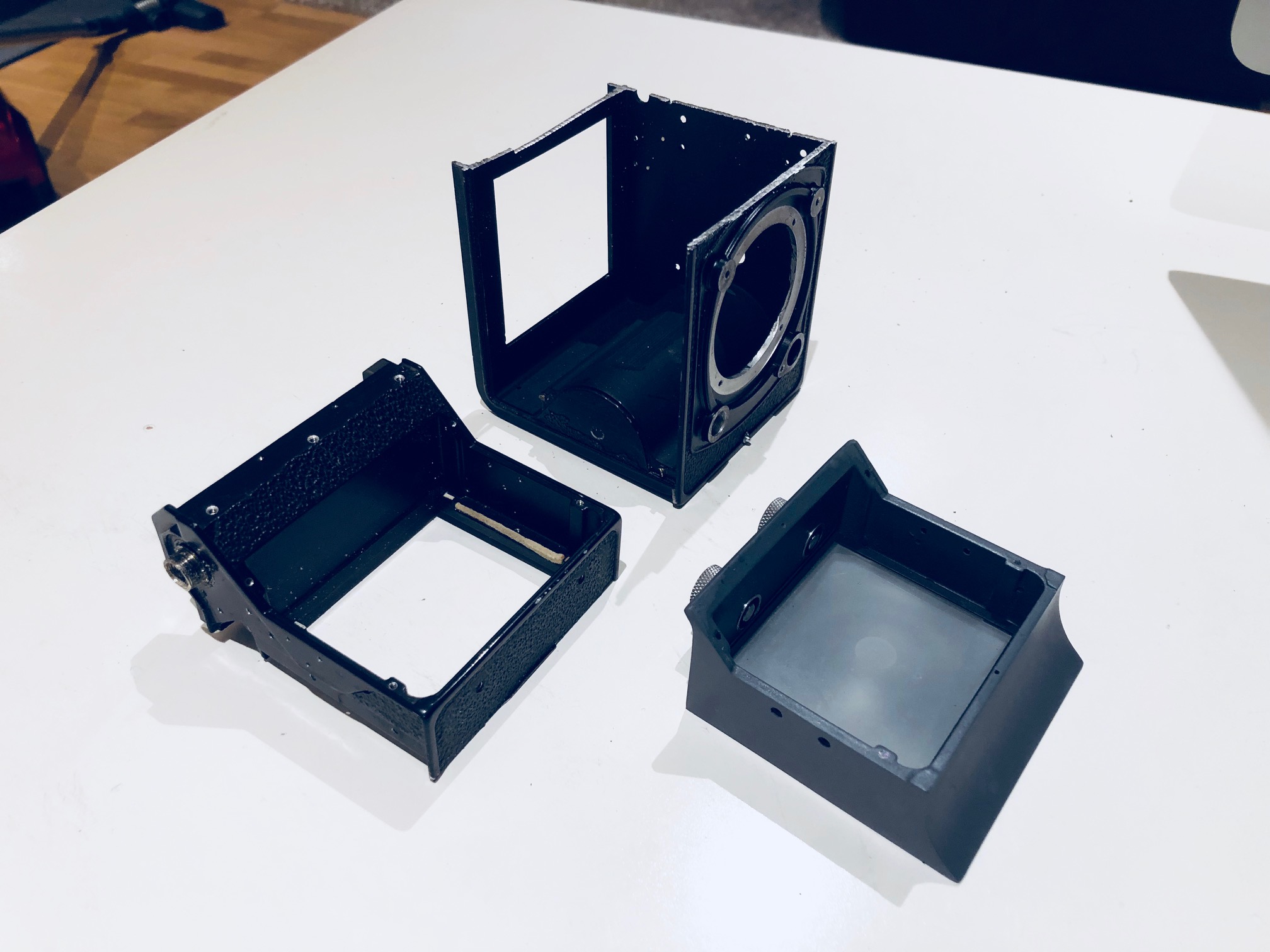

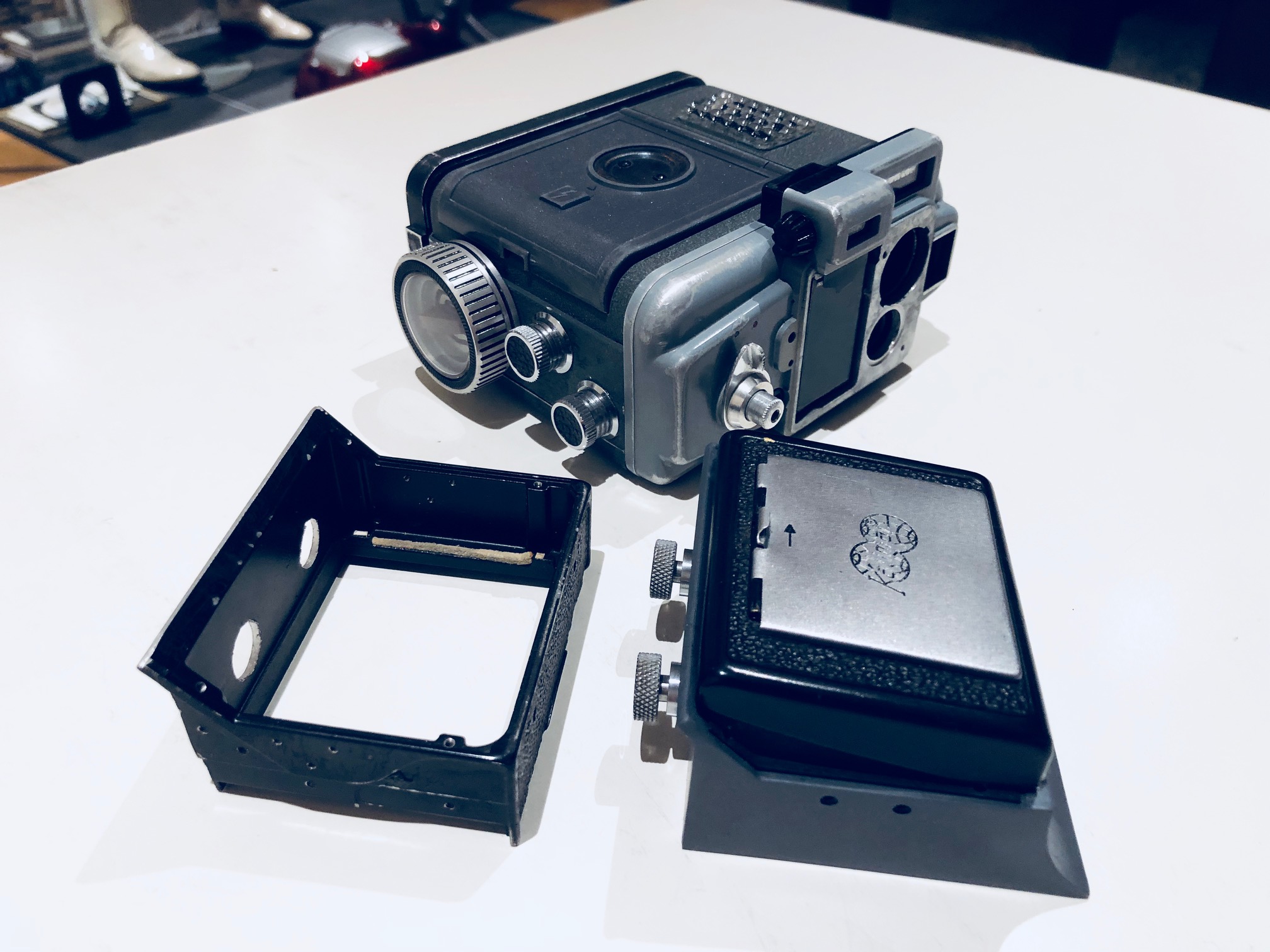

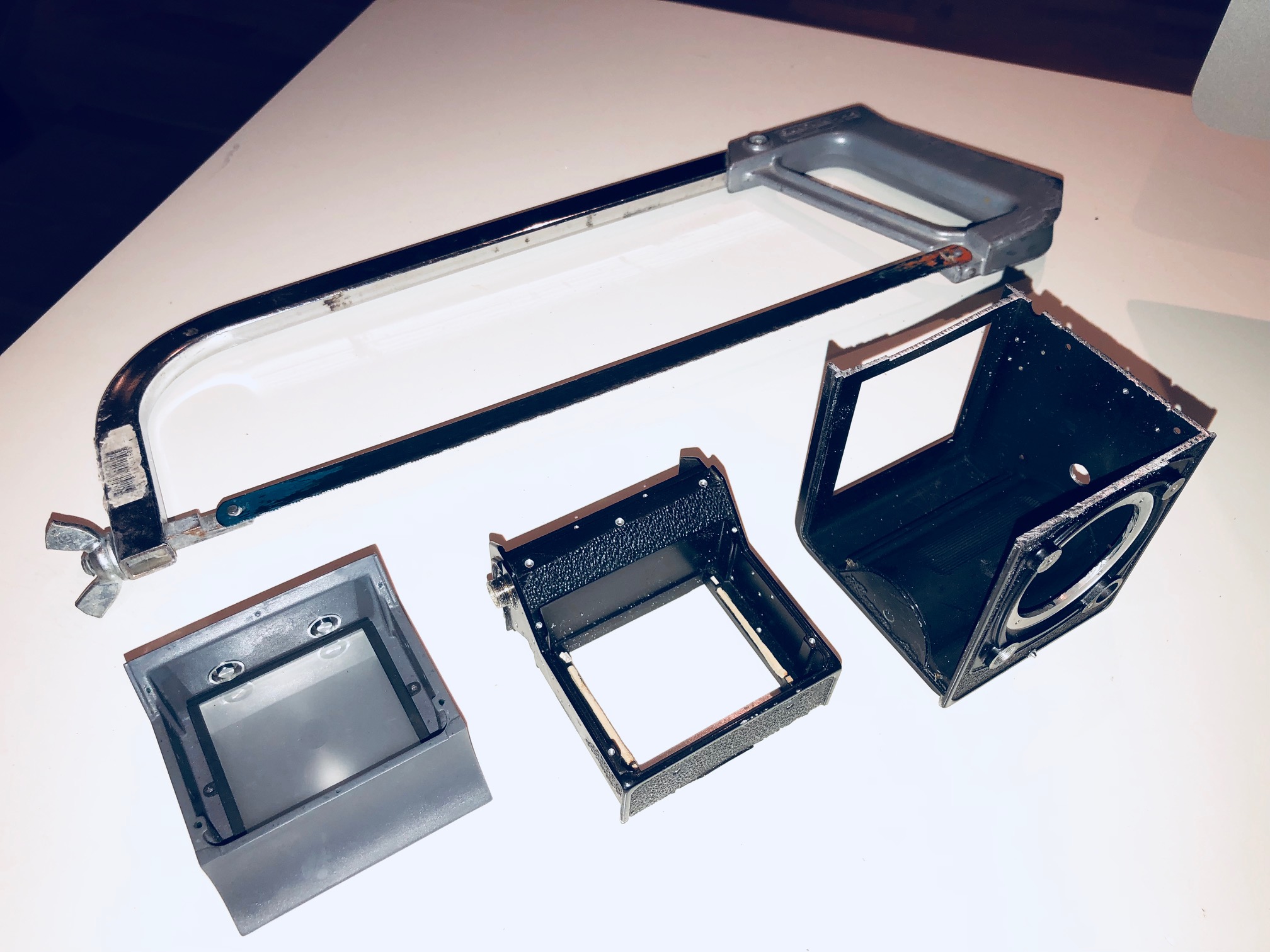

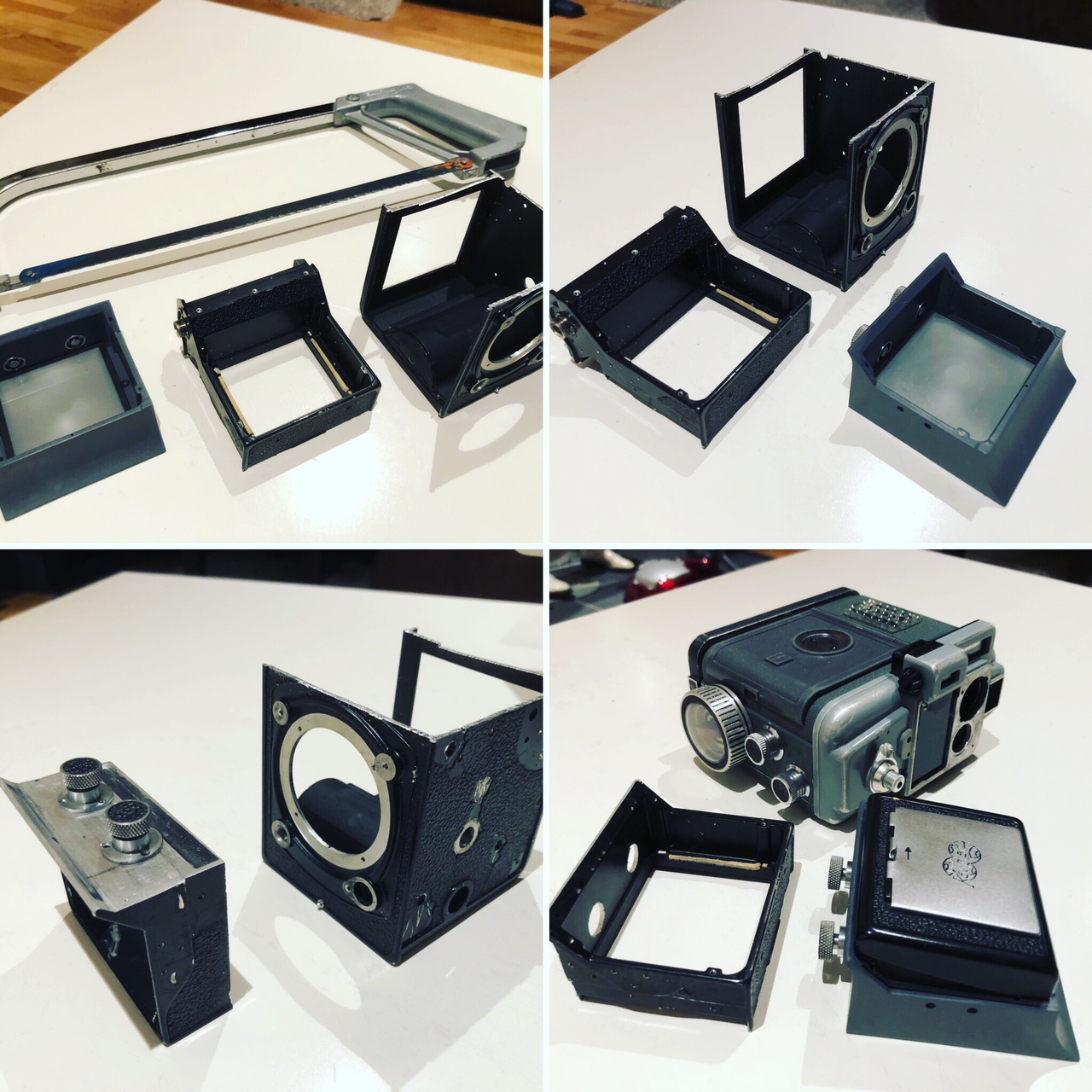

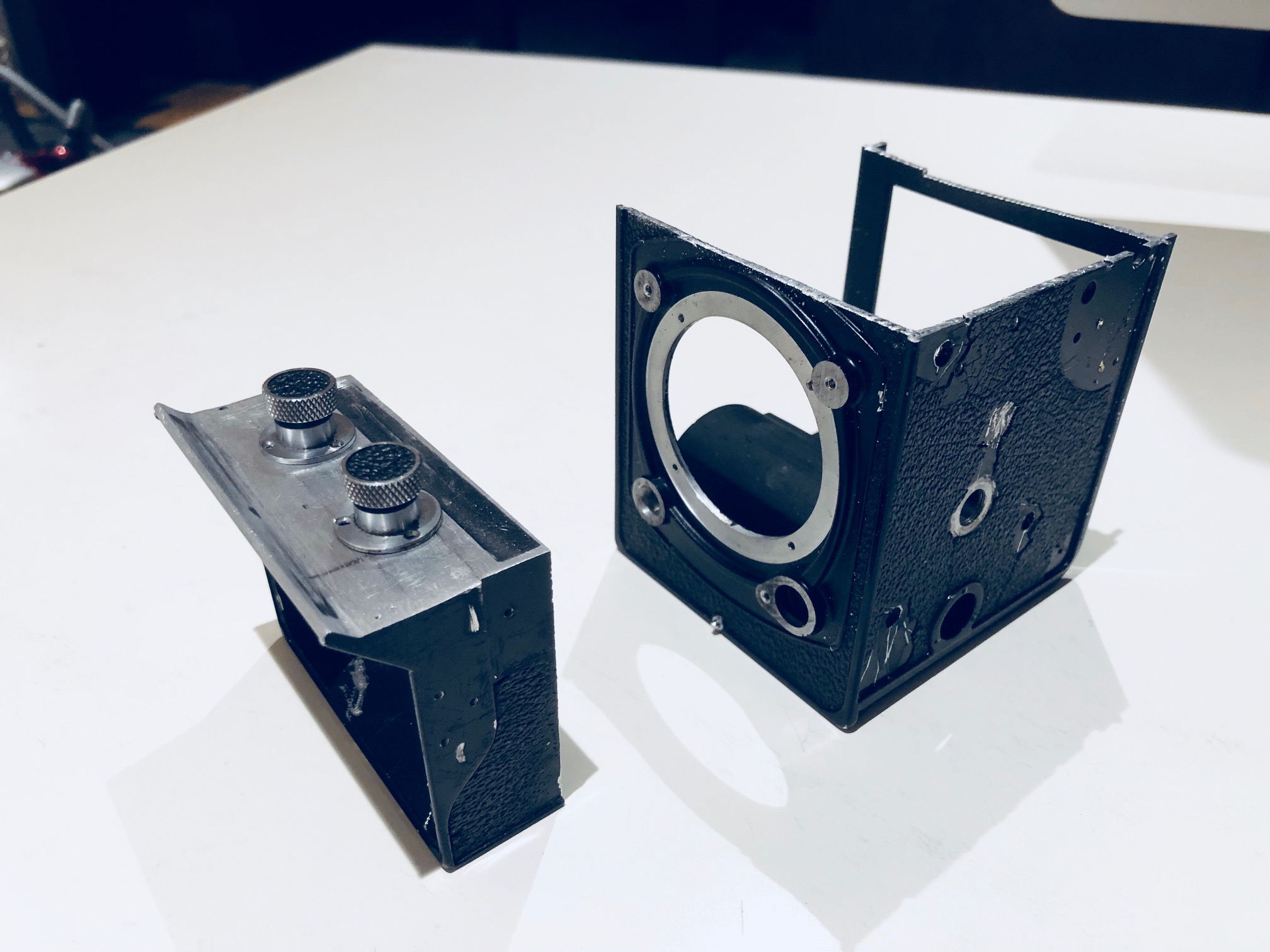

I am playing around with making a transition box this way and have cut the top of a kalimar reflex camera. Pretty much identical to the six sixty. I used a hacksaw to cut the top of, and then sawed and filed off the excess material. The next step will be to add the bottom plate and make the lower bend. My sawed off top is showed next to the excellent resin part i for from Jerry

Wow, I never heard of making the T-box from the Kalimar body ... I love that idea! Would love to see a build thread for one of these!



[TatooineMachine]

Where did you get the plaque? Is there somewhere i can order one?

i got it off eBay



[OdiWan72]

I am playing around with making a transition box this way and have cut the top of a kalimar reflex camera. Pretty much identical to the six sixty. I used a hacksaw to cut the top of, and then sawed and filed off the excess material. The next step will be to add the bottom plate and make the lower bend. My sawed off top is showed next to the excellent resin part i for from Jerry
View attachment 807374View attachment 807377View attachment 807376View attachment 807375View attachment 807373

Exactly how I did mine...well done



[MastahBlastah]

I am playing around with making a transition box this way and have cut the top of a kalimar reflex camera. Pretty much identical to the six sixty. I used a hacksaw to cut the top of, and then sawed and filed off the excess material. The next step will be to add the bottom plate and make the lower bend. My sawed off top is showed next to the excellent resin part i for from Jerry
View attachment 807374View attachment 807377View attachment 807376View attachment 807375View attachment 807373

Wow, that is so cool! I think you've sold me on trying this. Hacksaw did the job?



[Lichtbringer]

I don't think the prop guys would have gone through all that work.
Why did you choose this way?



[Themodelshopman]

The original transition box was likely something made from scratch by the propguys. This is more an alternate way to make it i think.



[mgoob]

I am playing around with making a transition box this way and have cut the top of a kalimar reflex camera. Pretty much identical to the six sixty. I used a hacksaw to cut the top of, and then sawed and filed off the excess material. The next step will be to add the bottom plate and make the lower bend. My sawed off top is showed next to the excellent resin part i for from Jerry

Very impressive.

Looking forward to the finished product.

(I'll be using Jerry's as I don't have a camera)



[Themodelshopman]

Me too Still, I would opt for troopers resin box as it is really nice!
