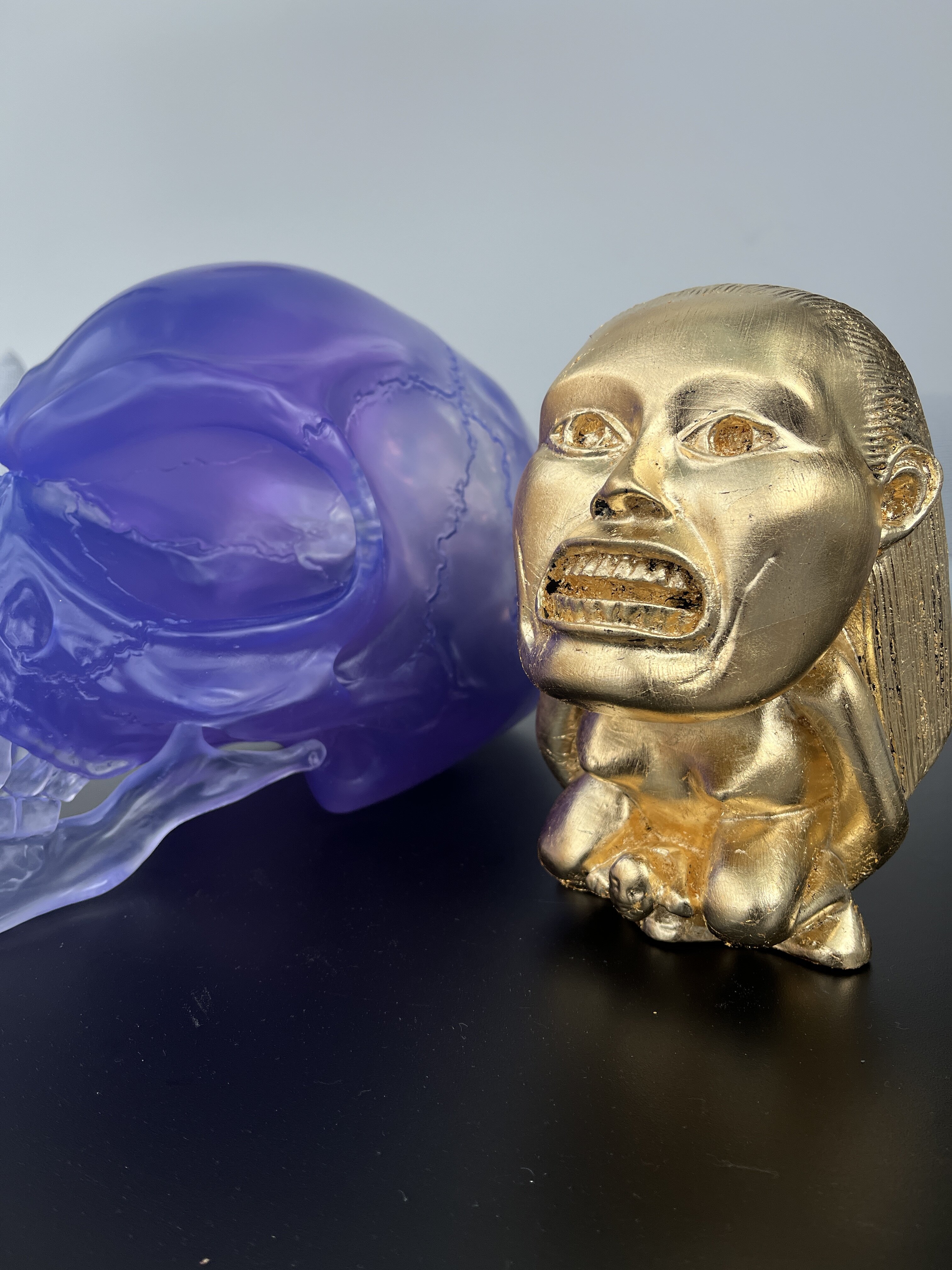

Life's been so busy, so it's been a minute since I posted around here. That being said, I recently started a new job at Formlabs and have had access to some of their incredible larger format printers.

I decided that it was time to use that to my advantage to start crossing items off of my collection wish list.

The first big item that I was able to do that with was the crystal skull. While it's far from my favorite Indy movie, I can't deny that I think it's an amazing and cool prop.

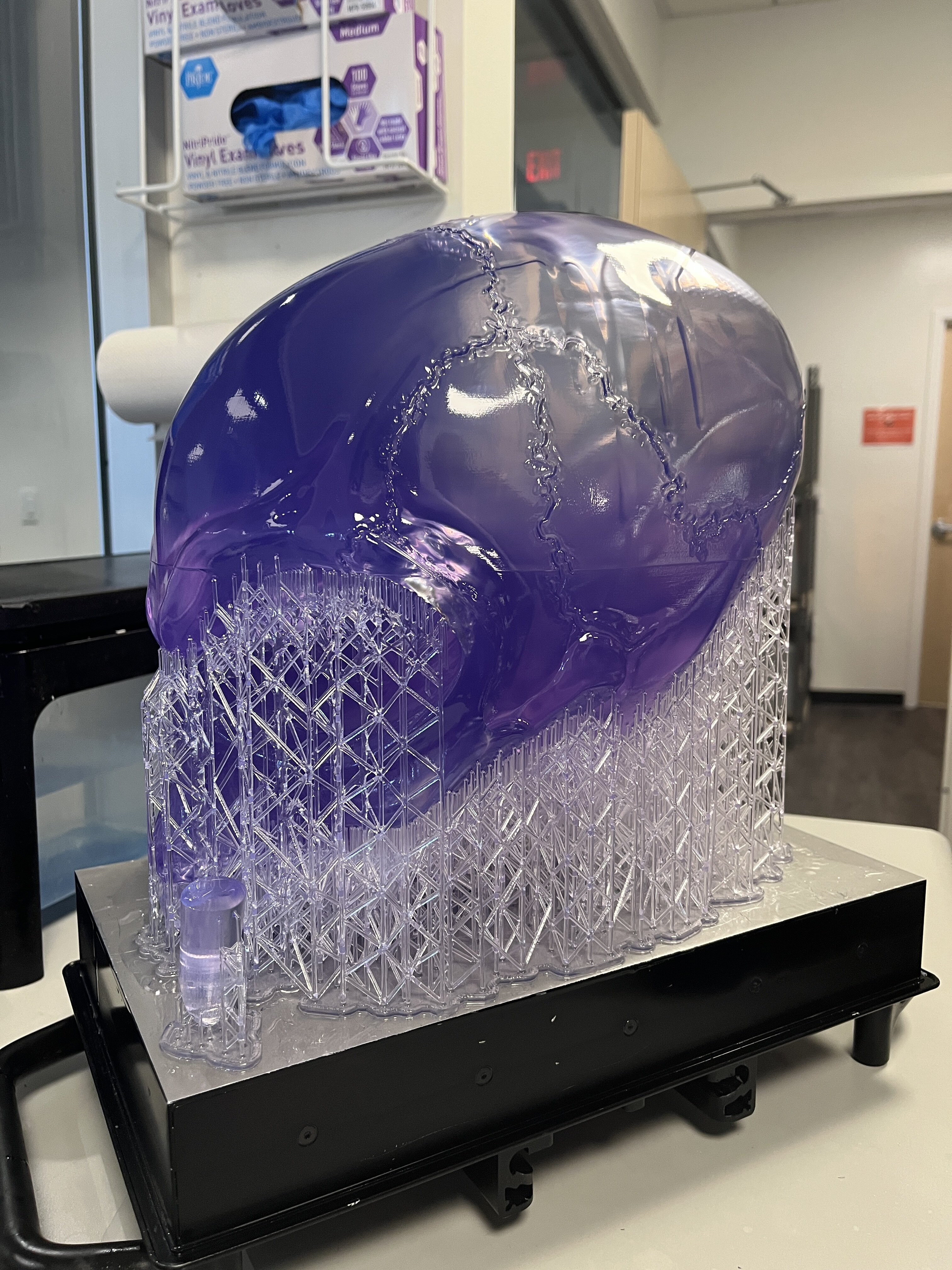

I used Formlabs biomed clear resin to print this thing. In the end, it amounted to 4.5 liters of resin used, and the finished piece weighs over 10 pounds.
I also finally got around to stuffing some of the iridescent gift wrapping plastic into the hollow cavity to give it that crystal-like brain structure.

This thing also took an incredible amount of wet-sanding and polishing to get it to where I wanted it to be, even with as clean as the print came out. I used mineral oil after all of that to polish it up.


Attachments

  • IMG_6352.JPG
    1.5 MB · Views: 148
  • IMG_6706.JPG
    1.6 MB · Views: 158
  • IMG_6351.JPG
    1.5 MB · Views: 146
  • IMG_6328.JPG
    3.3 MB · Views: 148
  • IMG_6327.JPG
    3.3 MB · Views: 149
  • IMG_6287.JPG
    2.2 MB · Views: 153
  • IMG_6354.JPG
    1.6 MB · Views: 144
  • IMG_6353.JPG
    1.3 MB · Views: 147
Interesting color choice for the resin, can you show us a side view, from the photos I can't tell if it's all perspective warpage or if thats the 3d model? Love this prop

Interesting color choice for the resin, can you show us a side view, from the photos I can't tell if it's all perspective warpage or if thats the 3d model? Love this prop

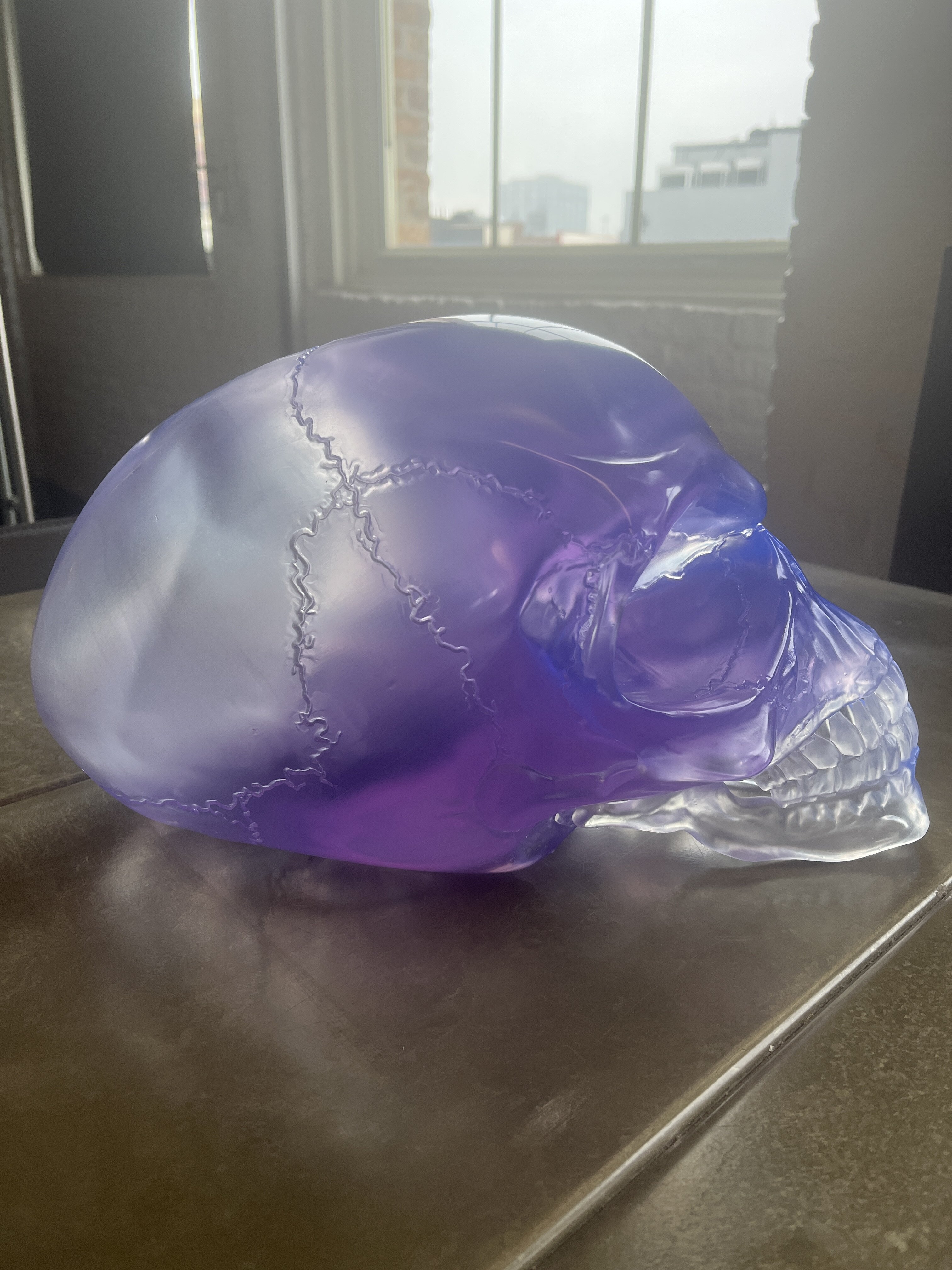

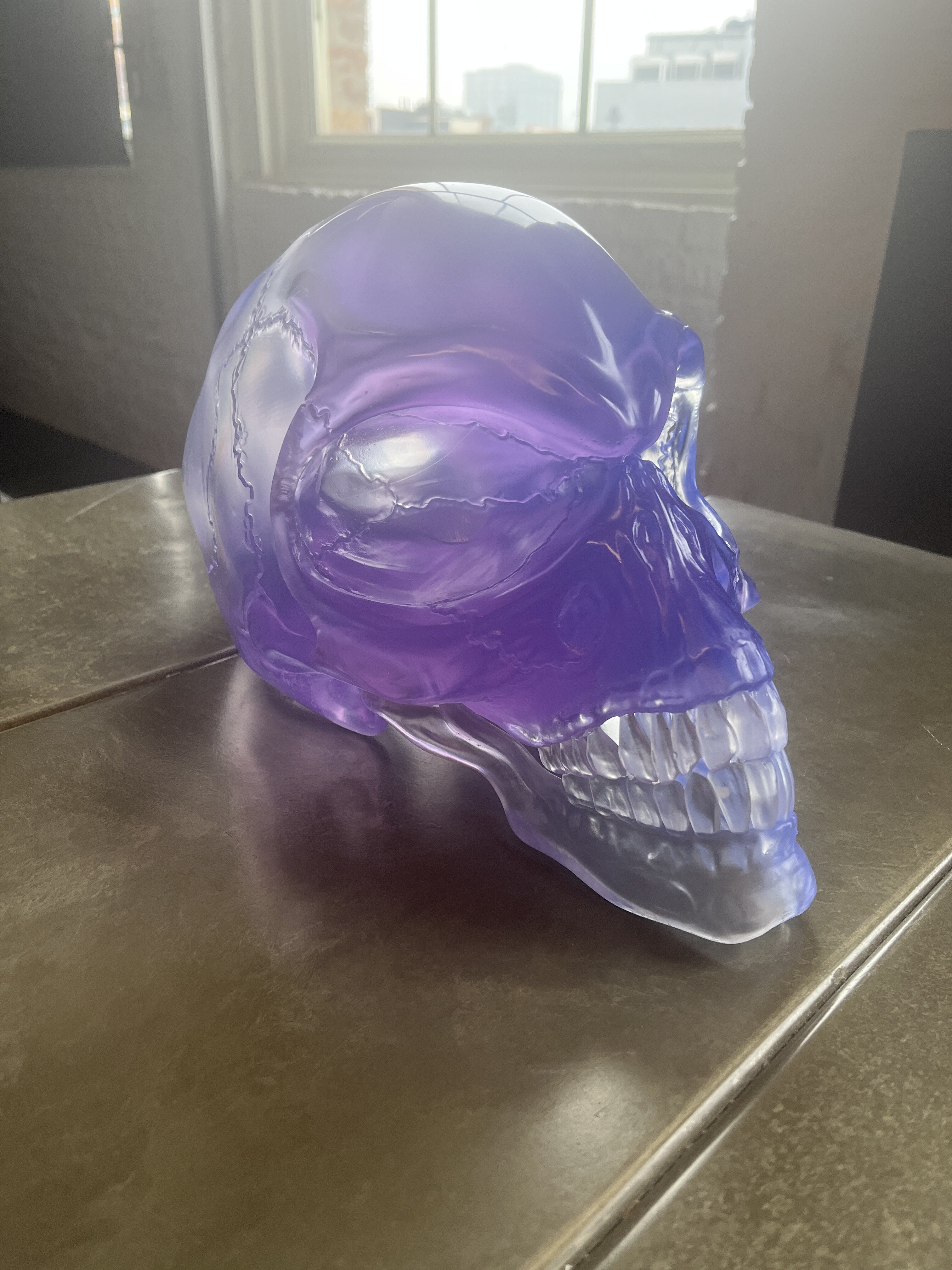

I have a side view shot in there, unless there’s a specific variation you’re looking for?

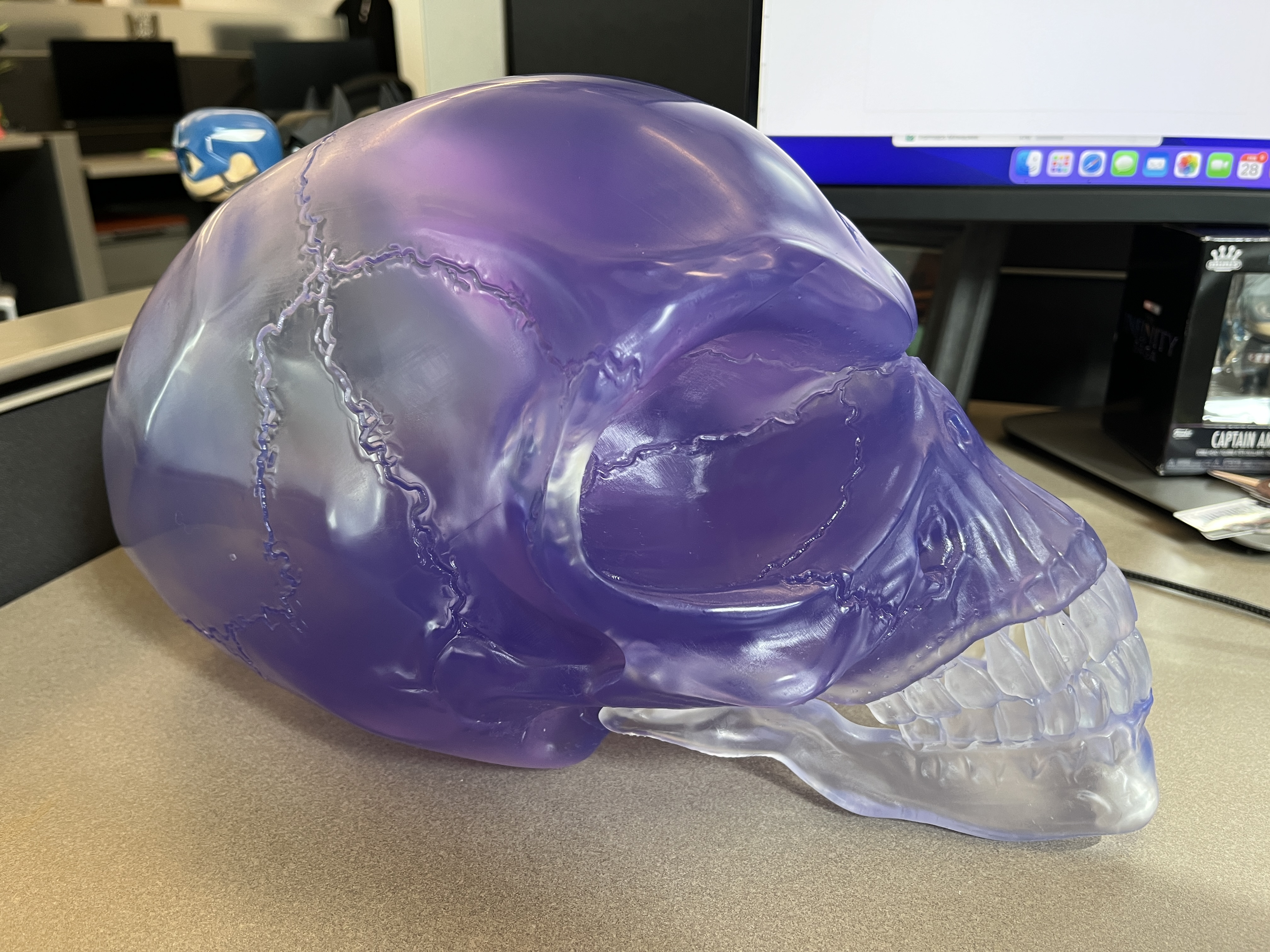

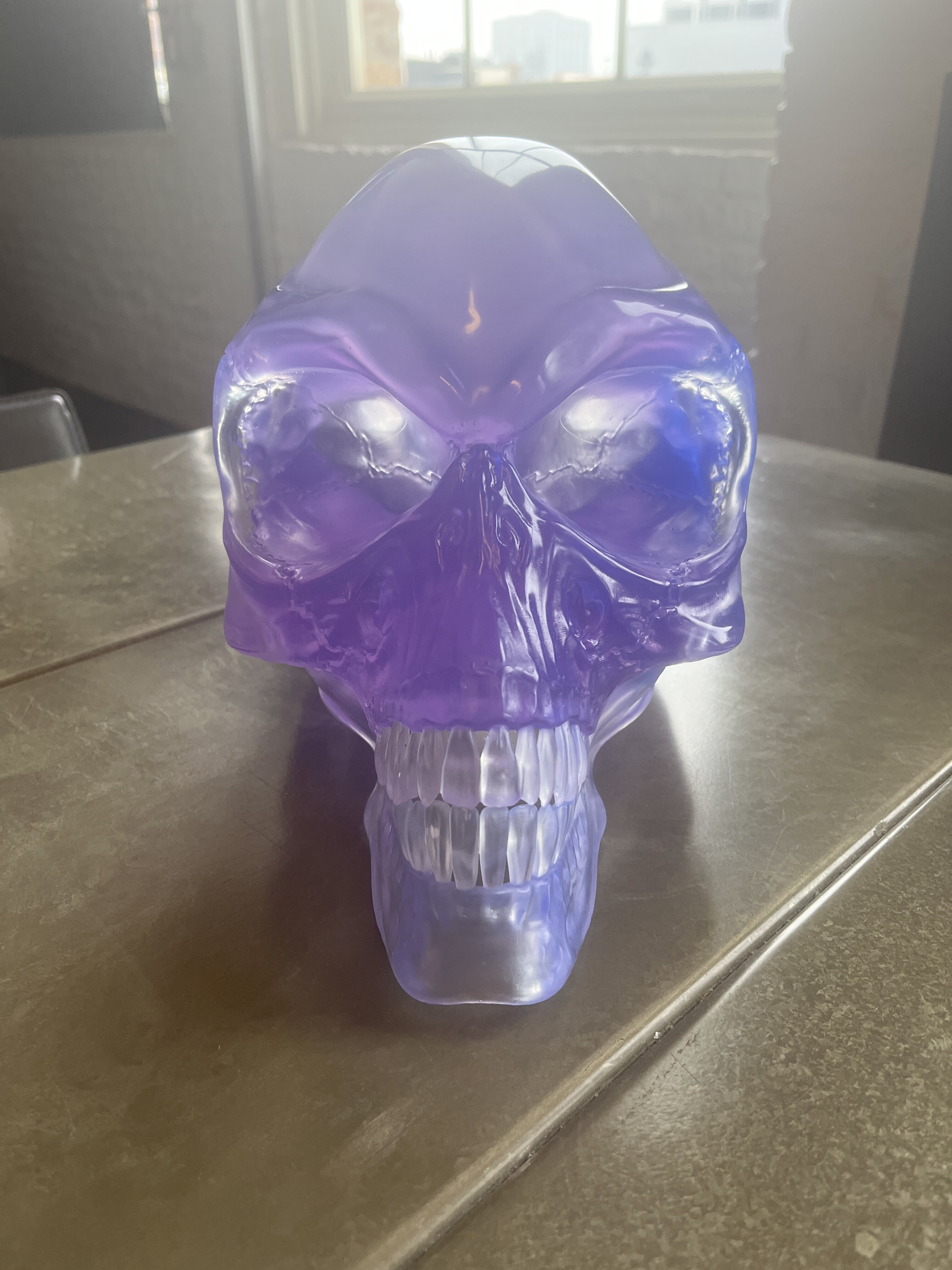

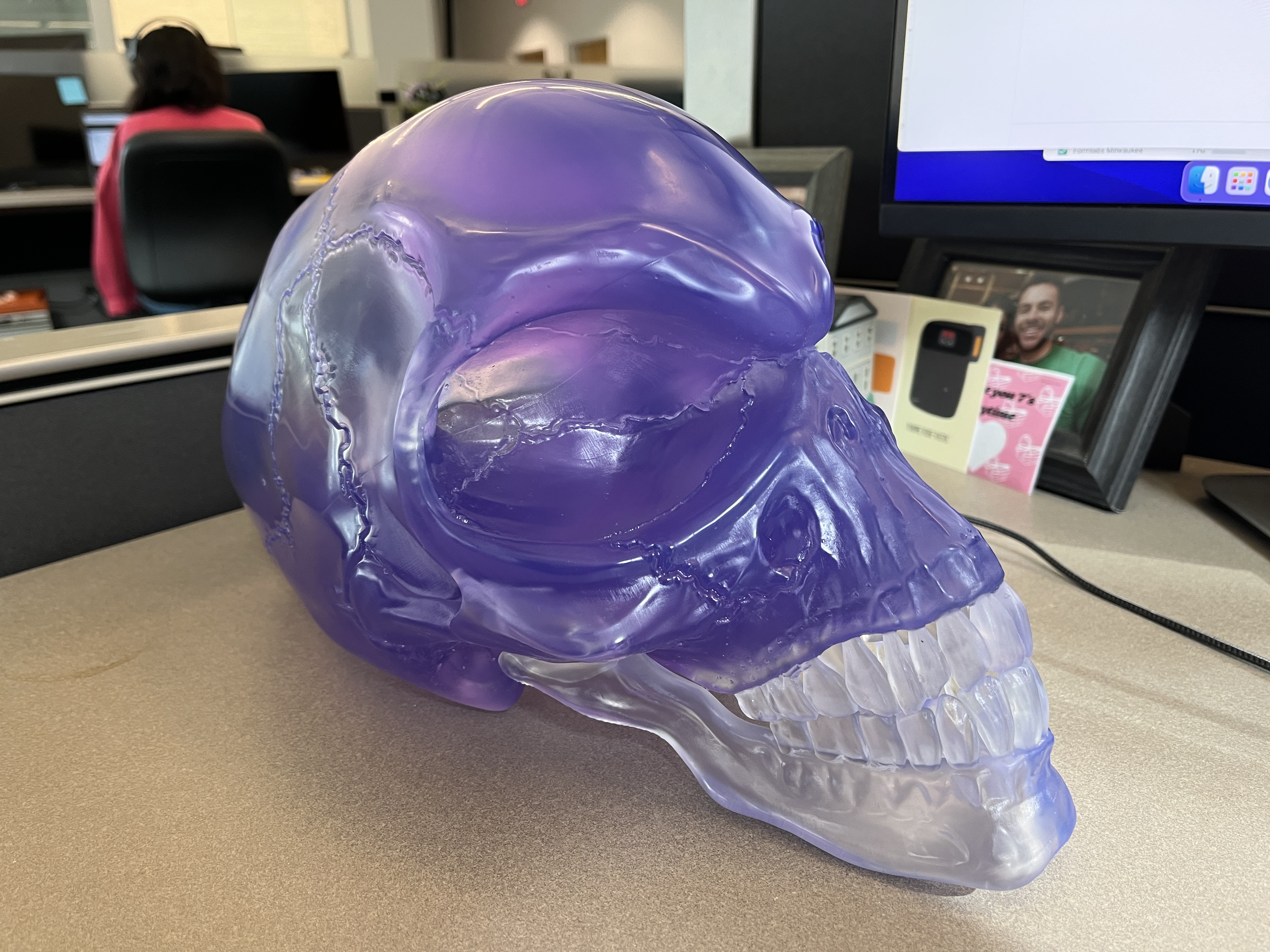

As for the color, it was a bit of a surprise— the biomed clear resin I used looks very blue tinted in smaller pieces, but when built up in very thick parts, like the front of the skull, it was very purple, which I honestly thought looked really cool, though not crazy accurate to the movie coloring.

Someday I may run one off in our traditional clear just to get a different color scheme.

Really really cool!
Thank you! I’m very happy with how it came out.
That's a lotta resin!
That's insane, brilliant, lot of resin tho

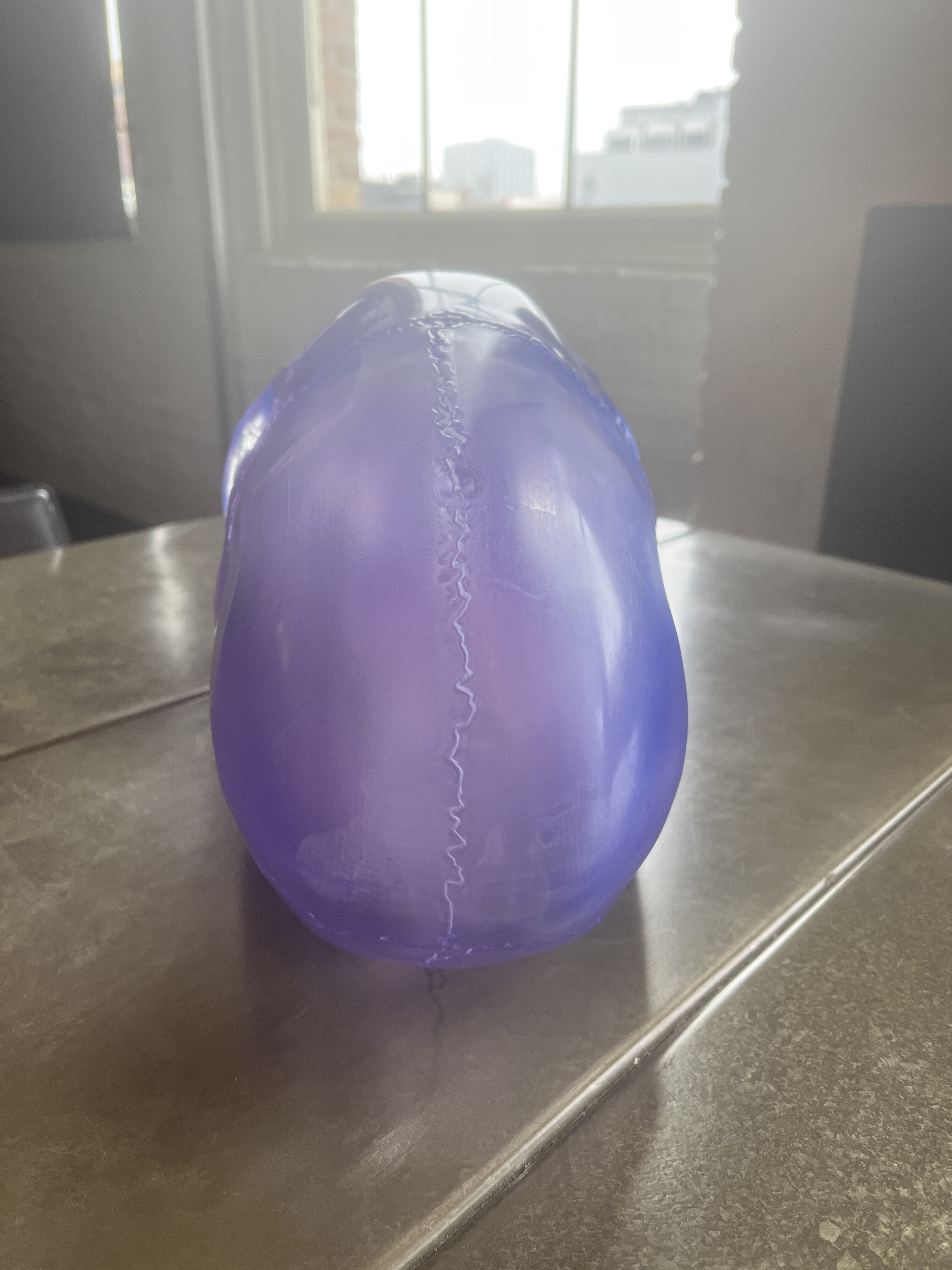

A lot of resin is an understatement I tapped out two full cartridges on a day when we had a bad snow storm, so I didn’t make it into the office to check on it. Because it sat for an extended period of time, I ended up with a bit of a seam line on the skull which I then did a ton of sanding and polishing on to remove.

Last edited:

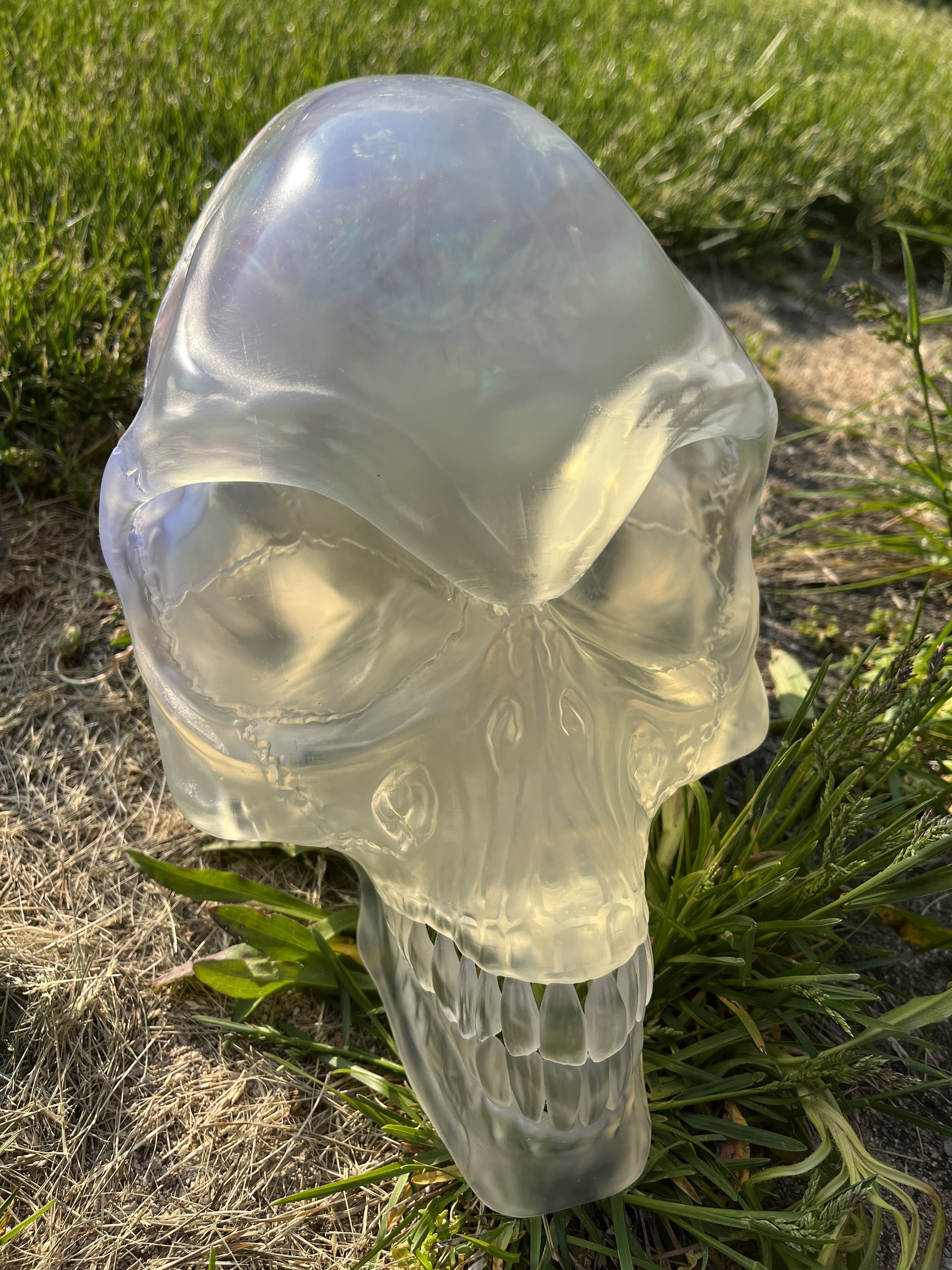

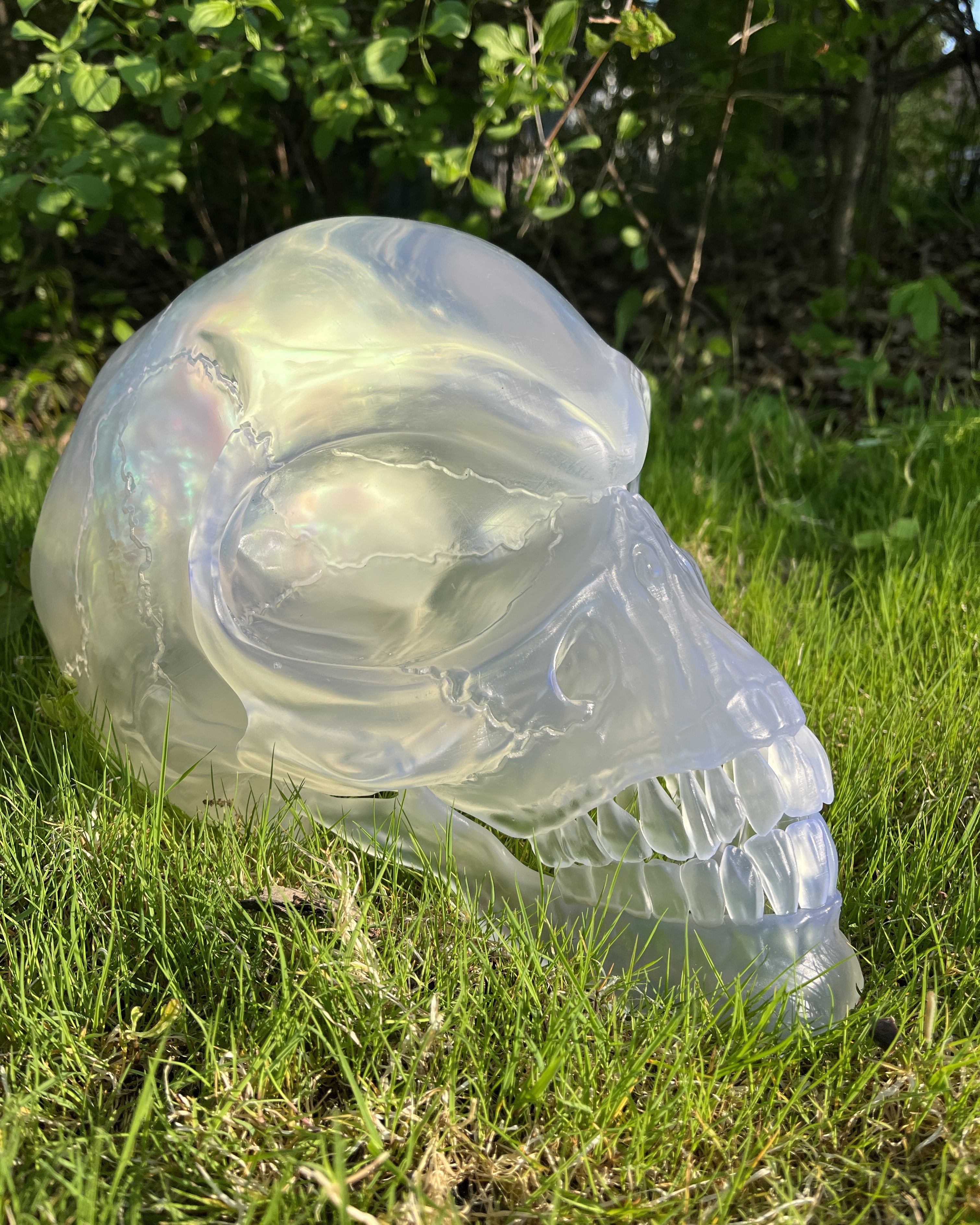

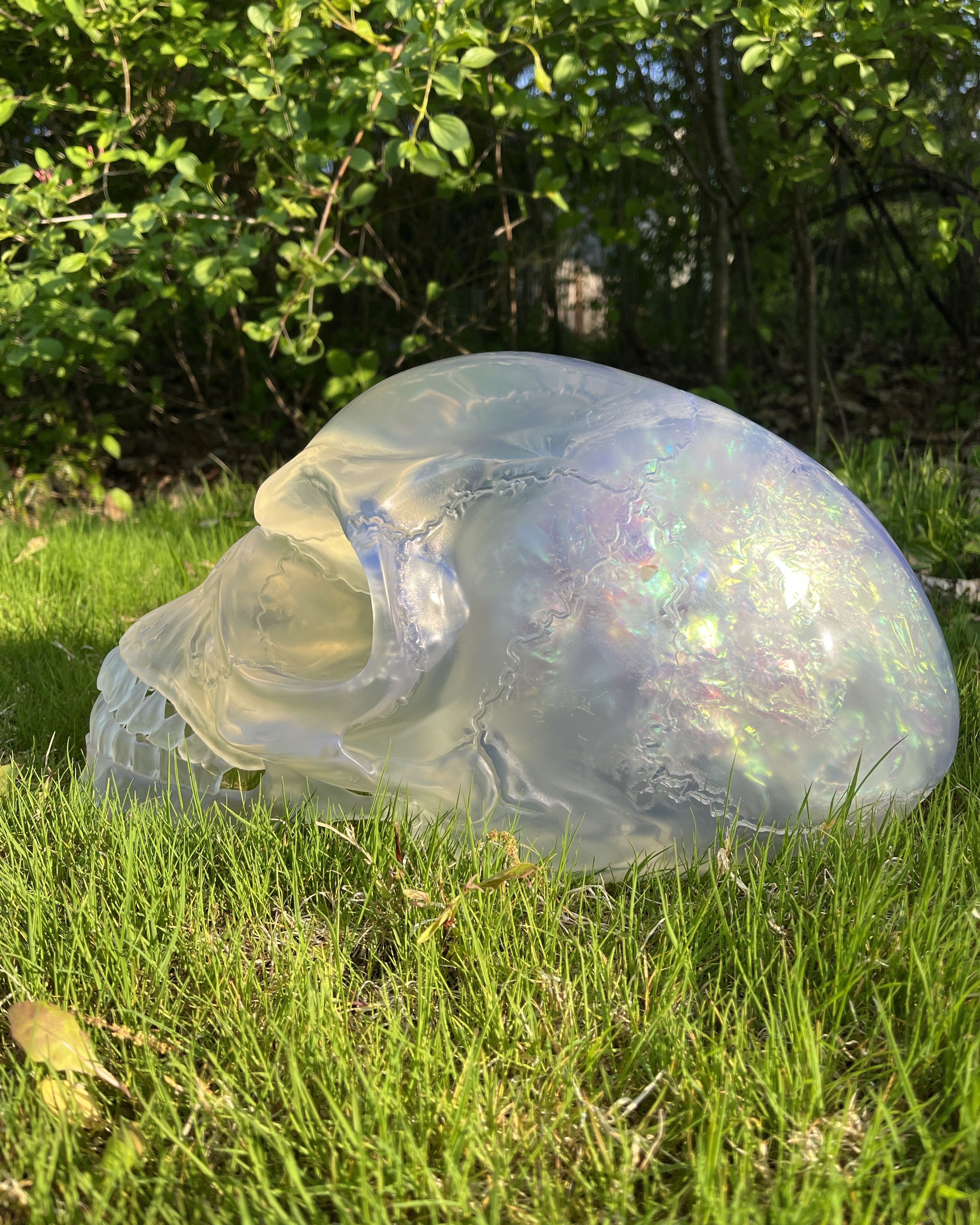

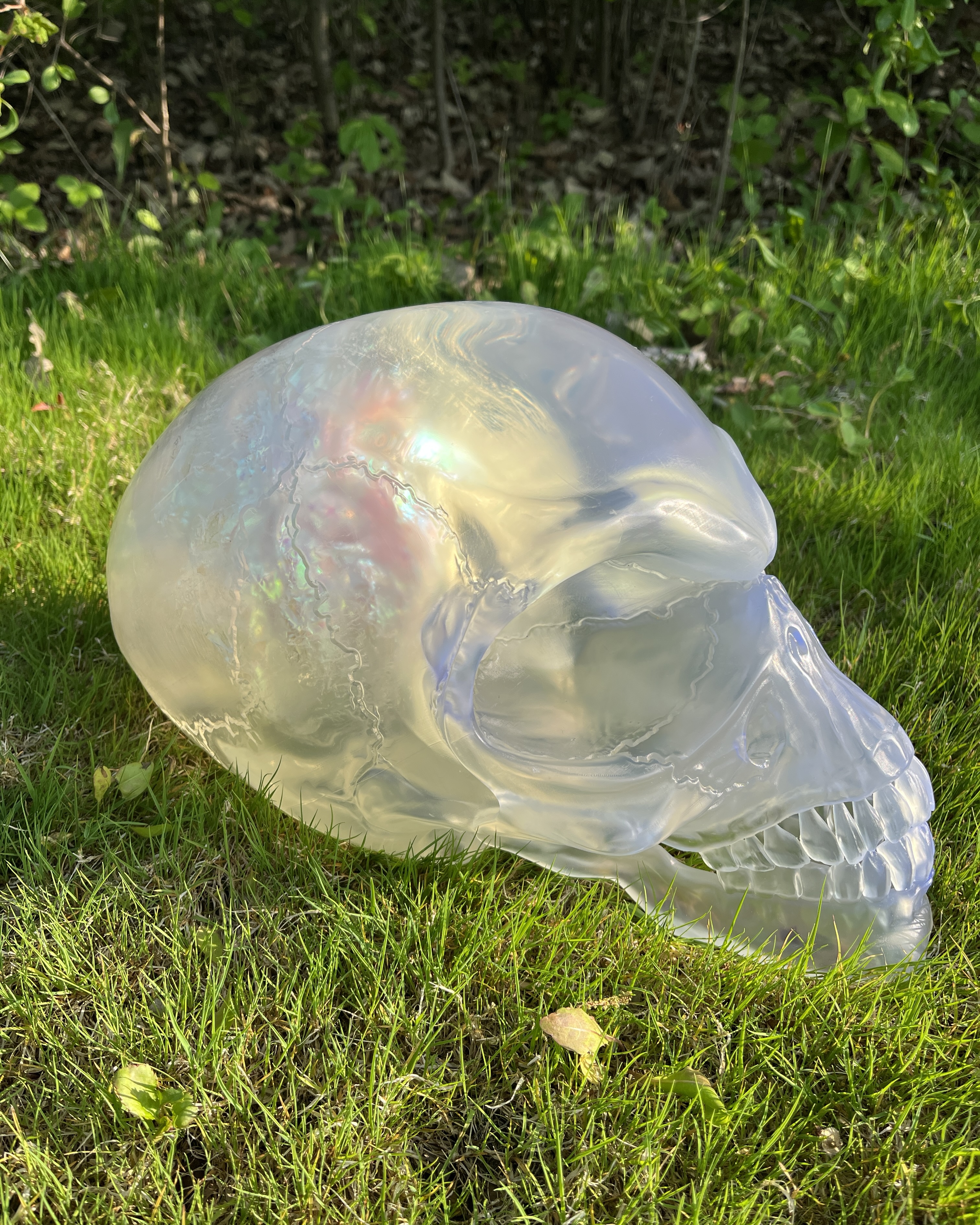

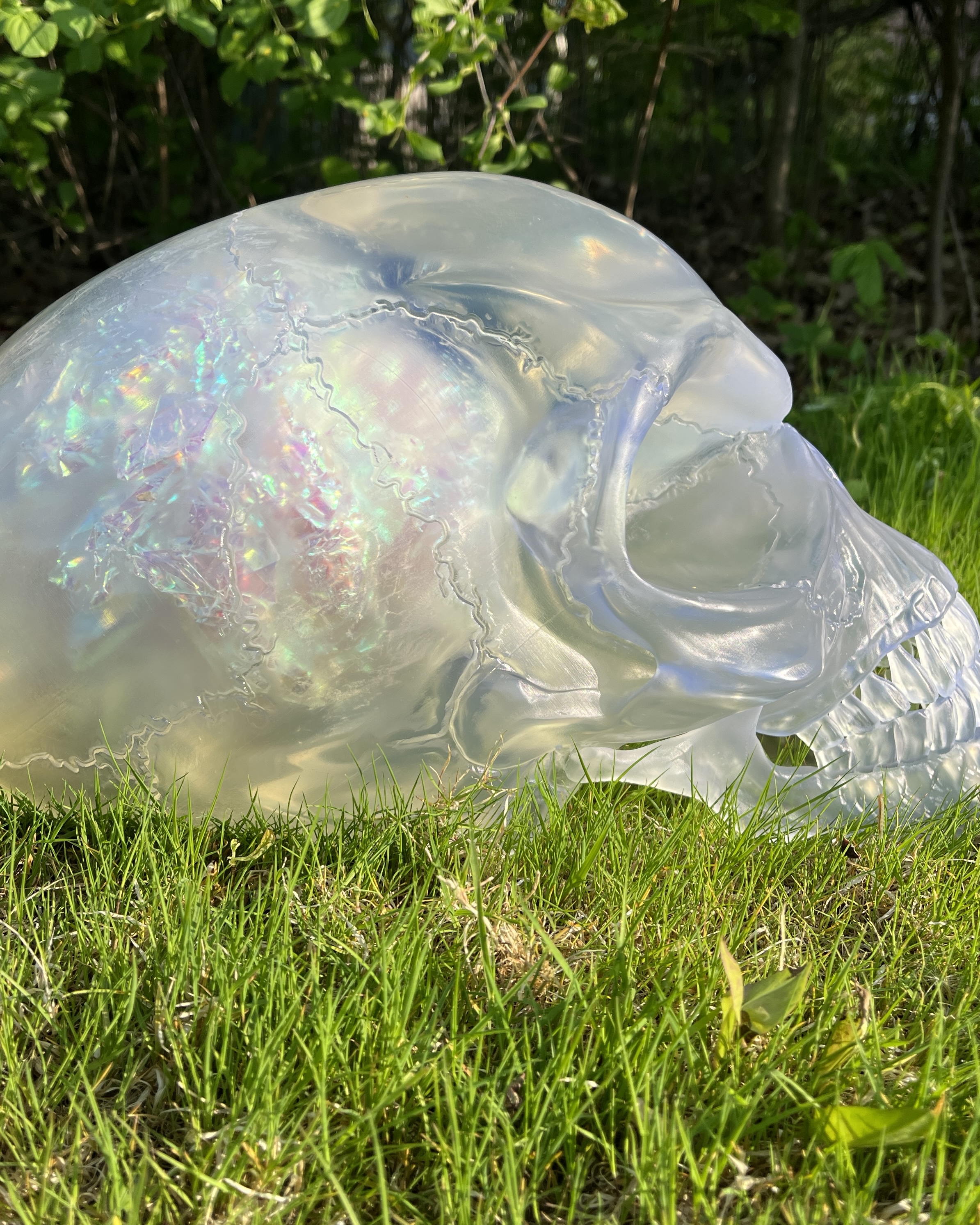

So an update to share— I reprinted a second skull in Formlabs’ regular clear resin. Much happier with the results.


Attachments

  • DD57619F-CB96-457A-A644-A3D95580AFC3.jpeg
    4.5 MB · Views: 115
  • E619ABC9-0A23-4416-8672-66B76E8FFB95.jpeg
    2.9 MB · Views: 112
  • 009C8D67-D1AC-4DA5-B46D-C22B5B2EDC20.jpeg
    4.4 MB · Views: 100
  • 094C6953-66E0-414D-A305-DBB1D153775F.jpeg
    3.9 MB · Views: 98
  • BB4738C3-E731-449E-9B66-21BD1E12A2CE.jpeg
    4.6 MB · Views: 96
  • 8815A09E-C51A-4227-B4C3-030196D66998.jpeg
    4.9 MB · Views: 95
  • 80B3CB93-4DD4-451B-833E-490DA64CE99E.jpeg
    3.3 MB · Views: 100
  • 745FEFFE-46E9-42E9-A4D0-4C40DD190B12.jpeg
    2.2 MB · Views: 115
