3d printed ......... Aliens M41A Pulse RIfle

[TazMan2000]

What the.....? HAHA

TazMan2000

You can see his latest rounds of posted images?

Are you logged into a/your 'google account' right now?


I WANNA SEE TOO!!!!

Here today...Gone tomorrow...Or later that day.

I don't see a hyperlink to the pictures. They appear to be loaded to this site, if I'm not mistaken. Server issue?

TazMan2000



[paulsboutique]

Sorry Images fixed - user error



[Deetz]

Yes! Fantastic work!!



[NostromoCrew]

Incredible work paulsboutique BRAVO!



[Lear60man]

That is a huge feat especially since you started with nothing and built it from scratch. Bravo.



[MangyDog]

trurly stunning really magnificent, and an amazing finish... I also want to see a vid of it running



[TheLegendOfMart]

Hi,

Can you share a little what colour paints you used for the Thompson, Spas Grip and Spas cage?

Also what brand pearl paints did you use to create the gun blue effect?

Sorry for all the questions, I am doing a Pulse Rifle myself but I want to get a realistic gun effect than just using flat black paint. Here is mine I modeled myself. It doesn't mechanically work, you can pump the stock and rack the bolt but nothing happens. It will have a light up number display though.

Amazing work!



[paulsboutique]

Hi,

Can you share a little what colour paints you used for the Thompson, Spas Grip and Spas cage?

Also what brand pearl paints did you use to create the gun blue effect?

Sorry for all the questions, I am doing a Pulse Rifle myself but I want to get a realistic gun effect than just using flat black paint. Here is mine I modeled myself. It doesn't mechanically work, you can pump the stock and rack the bolt but nothing happens. It will have a light up number display though.

Amazing work!

Thanks, good render there, should be a nice build when done

I used Trident DNA Airbrush paints for the black and pearls on the thompson. I mixed silver and some blue pearls into the black to try and emulate the blueing effect.
The Spas cage was hit with silver base and then a trident grey mixed with black.
The Spas grip was just a straight flat black over a grey.
The thompson grip was wood pla filament with a furniture wood stain
To flatten it all down i used an auto 2k mat clear over the top.



[TheLegendOfMart]

Brilliant thank you so much, that is a massive help.



[Krats]

Oh wow. Just saw the images of your pulse rifle and it looks AMAZING!

I would also like to see a video of it in action.



[DOUGLAS713]

Long time lurker of this site and constantly in awe of some of the builds, thought it was time to post up one of my current builds.
I always wanted an M41A, but living in Australia basically put a stop to that dream, anyhow got into 3d Design and printing about 4 years ago, built many a printer... to build more printers .... i decided it was time to have a go at a "hero" pulse rifle.
I know there are a few "3d stl's" of pulse rifles out there, but honestly most are crap and do not do 3d printing the justice it deserves.

anyhow....
As i am going for a hero piece i wanted to be able to see the remington in the spas shroud so i started there.
View attachment 757405


Then i looked at the actual spas cage and then modeled that over the top.
View attachment 757406

View attachment 757407

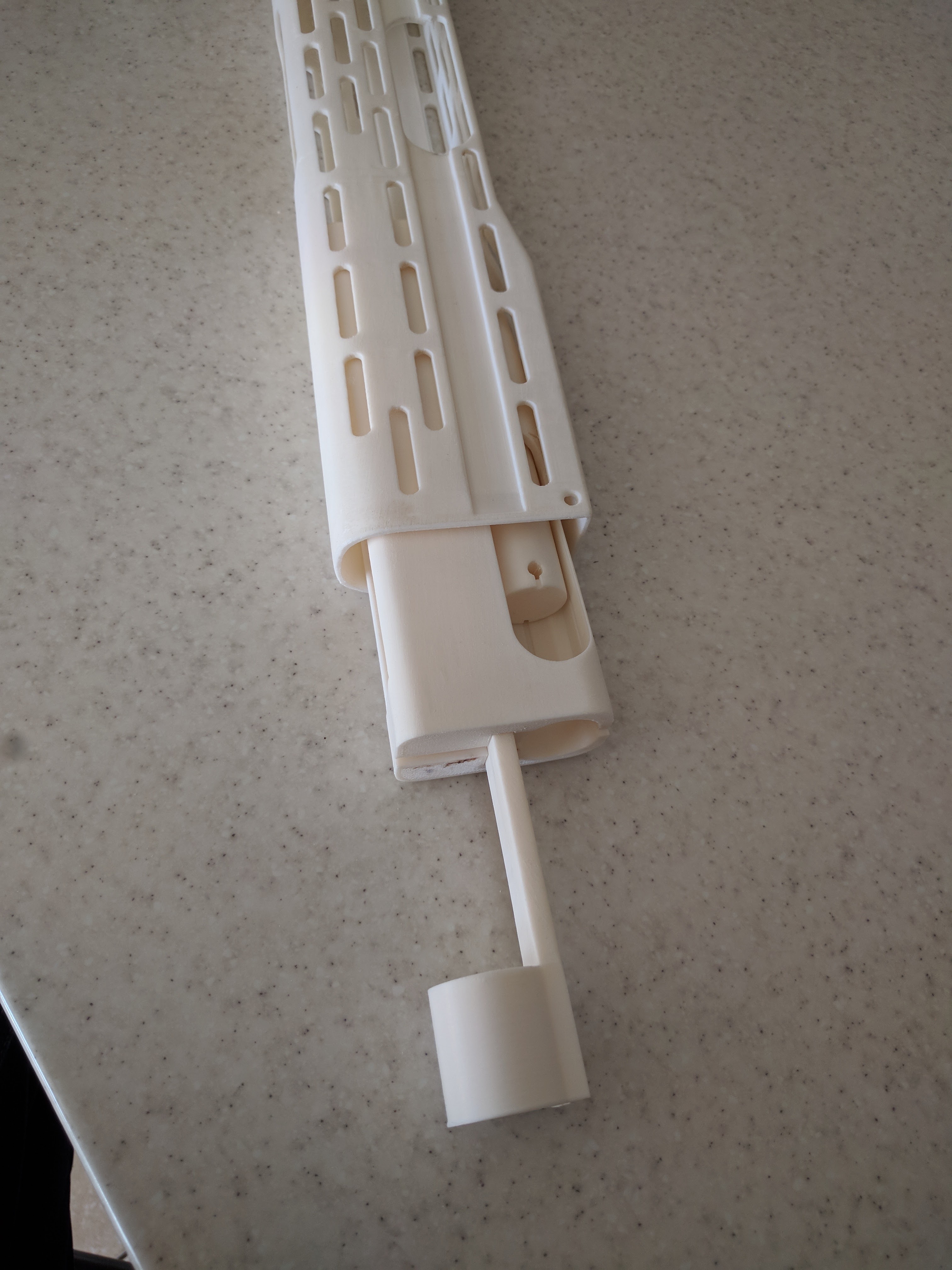

ok sent these to the printer ..... next check for fitment of the remington and actual pump action

View attachment 757408

View attachment 757409

View attachment 757410

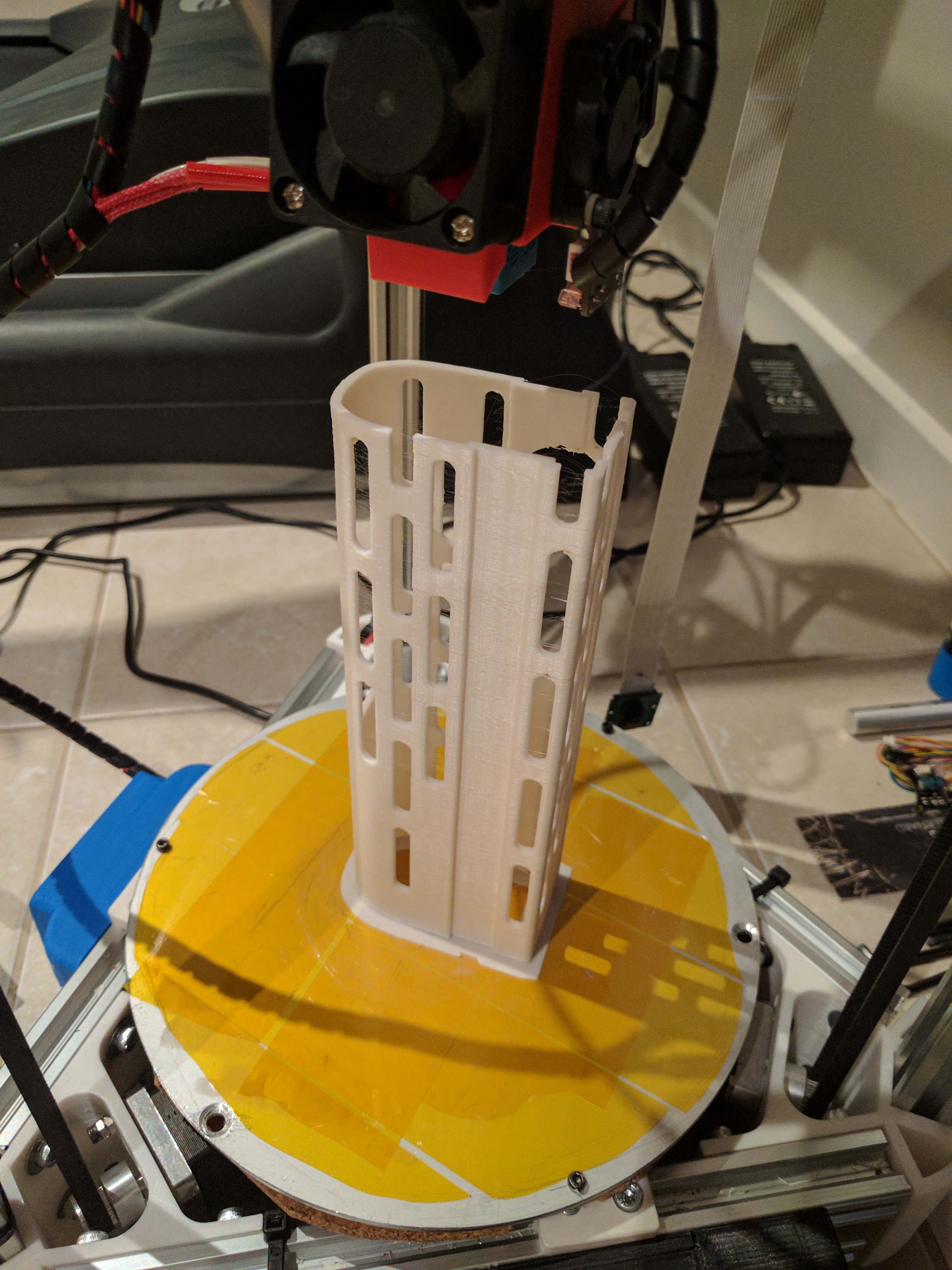

Half of the spas cage on the printer
View attachment 757411

View attachment 757412

View attachment 757413

View attachment 757414

View attachment 757415
View attachment 757416

Could you please share where can I buy the STL for this SPAS and Pump? Thanks a lot.



[DOUGLAS713]

Long time lurker of this site and constantly in awe of some of the builds, thought it was time to post up one of my current builds.
I always wanted an M41A, but living in Australia basically put a stop to that dream, anyhow got into 3d Design and printing about 4 years ago, built many a printer... to build more printers .... i decided it was time to have a go at a "hero" pulse rifle.
I know there are a few "3d stl's" of pulse rifles out there, but honestly most are crap and do not do 3d printing the justice it deserves.

anyhow....
As i am going for a hero piece i wanted to be able to see the remington in the spas shroud so i started there.
View attachment 757405


Then i looked at the actual spas cage and then modeled that over the top.
View attachment 757406

View attachment 757407

ok sent these to the printer ..... next check for fitment of the remington and actual pump action

View attachment 757408

View attachment 757409

View attachment 757410

Half of the spas cage on the printer
View attachment 757411

View attachment 757412

View attachment 757413

View attachment 757414

View attachment 757415
View attachment 757416

Could you please share where can I buy the STL for this SPAS and Pump? Thanks a lot.



[paulsboutique]

Could you please share where can I buy the STL for this SPAS and Pump? Thanks

I'm about to release my updated files. They are a total redesign and far more accurate. I'm also doing a few different versions so you can choose which pulse rifle you would like to build.
This is the 10 hole Cameron wip



[DOUGLAS713]

I'm about to release my updated files. They are a total redesign and far more accurate. I'm also doing a few different versions so you can choose which pulse rifle you would like to build.
This is the 10 hole Cameron wip

Wow. That's great! Any idea about when the new versions will be released? About the current one, can you sell the SPAS and Pump files with the grenade launcher mechanism? Mine is complete and 100% printed. But I would like to replace these parts and complete my current project before starting a new one. Then I could start making my 2nd one with your new version. (remark: No commercial purpose or re-casting your work. I just make props as a Hobby for Star Wars, Terminator, etc.). Please let me know about the price, if you are OK about that. Thank you very much.



[paulsboutique]

No the old files are not that accurate and needed to much rework, hence the redesign. I should have the file set released in the next couple of weeks. They will be around the same price as my m240 flame thrower



[pengbuzz]

Really like this build! Nicely done, and I hear ya about trying to fit electronics into very limited space (goign through that right now with a project!). Yours really looks the part and looks like it's a real rifle!
