3d printed ......... Aliens M41A Pulse RIfle

[paulsboutique]

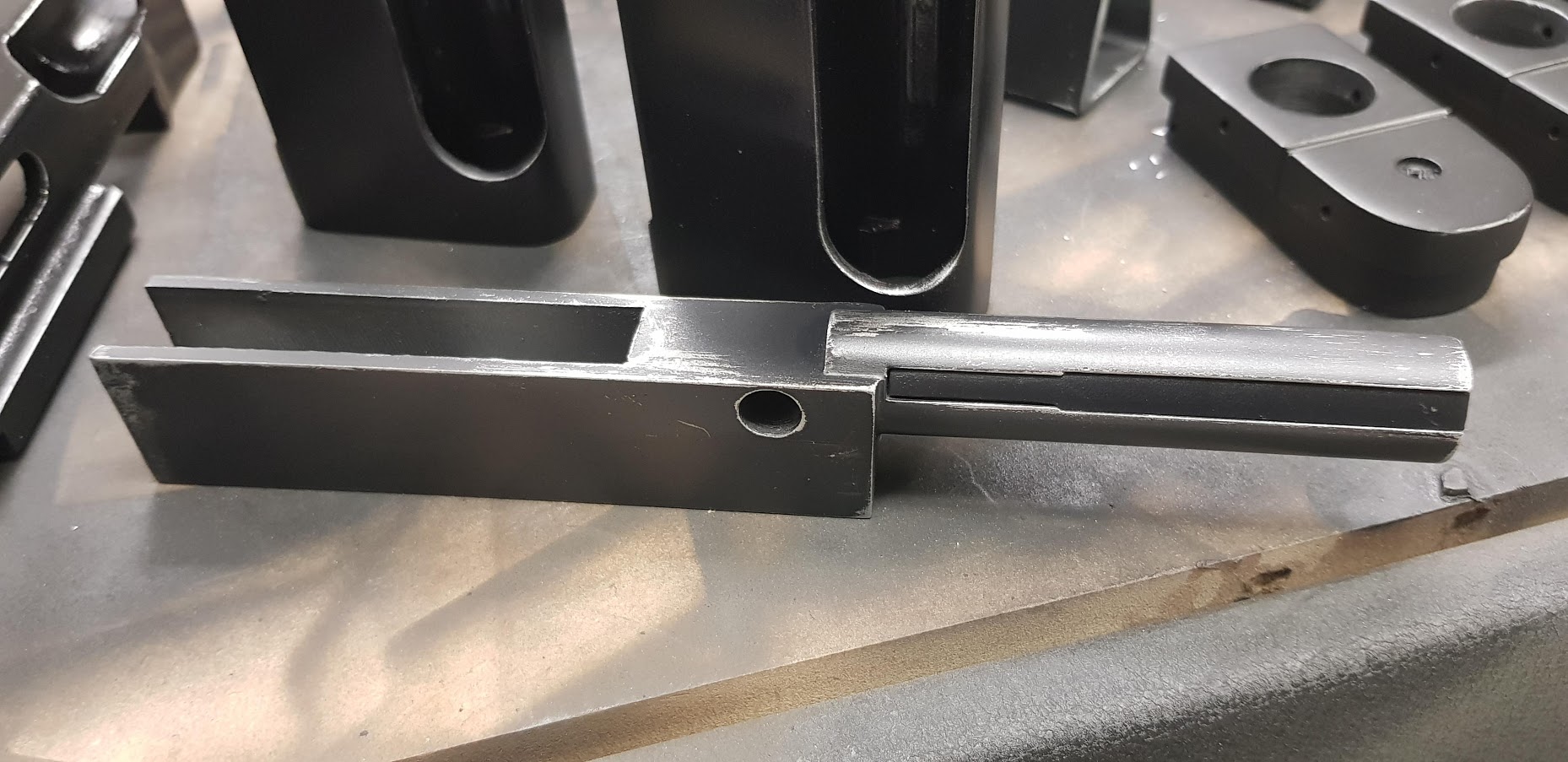

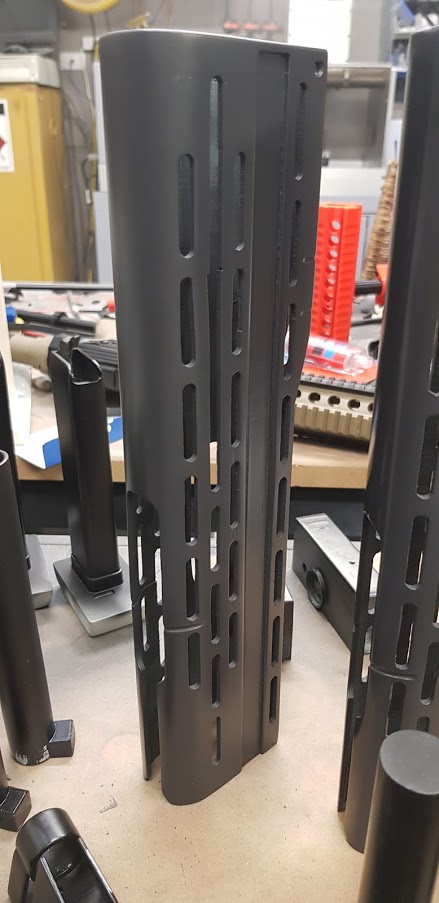

Finished the thompson and remington 870's today and got a couple of coats of 2k flat clear on.....



[paulsboutique]

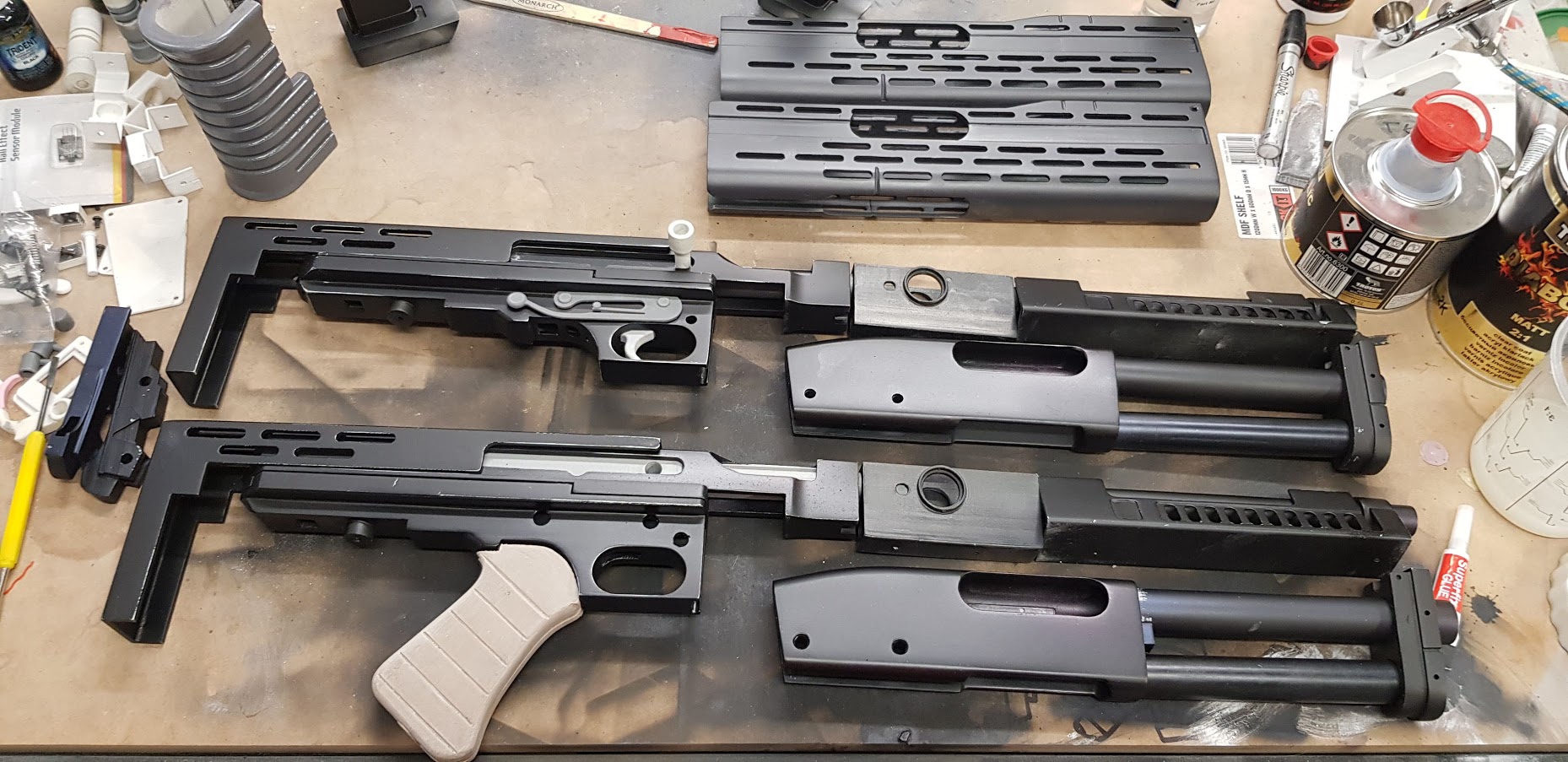

A few more shots partially assembled, and I started weathering on the smaller parts....



[joberg]

Pro-Job all the way!! Love the weathering already; not too much but subtle and life-like



[KillKen]

Can't get enough of this build, amazing work mate!



[paulsboutique]

Finished up the remington, spas cage and pump handle

Test fit proved an issue with the handle as the paint on the spas cage made the fit too tight. So ill reprint the handle with a few mill clearance

Close up of breach block and ejector

More detailing on the thompson magazine



[xl97]

Awesome job so far! LOVE IT!

I'm actually working on an electronics kit for the PR...

Does anyone have any sound clips (.wav preferred).. of the sound FX for this?

Main fire
Main reload
Grenade fire
Grenade reload

Thanks!



[Seananigans]

Excellent work fella...would you consider parting with the stl files for a price by any chance?



[neophyl]

Awesome job so far! LOVE IT!

I'm actually working on an electronics kit for the PR...

Does anyone have any sound clips (.wav preferred).. of the sound FX for this?

Main fire
Main reload
Grenade fire
Grenade reload

Thanks!

Send me a pm with your email address in it as I have quite a few. I’ve built several laser tag pulse rifles over the years with sound boards and ir led outputs so I collected all I could find over the years. Definitely got firing, and the grenade load, not sure about the loading but I’ll send you what I have.



[TazMan2000]

Can't you just sand the handle inside? The rub seems pretty minor, looking at the pictures.

TazMan2000



[Seananigans]

Re: looking down the barrel of a gun ......... Aliens M41A Pulse RIfle

Having had a few of the airsoft PR's I would suggest making some kind of guide rails for the mag inside the shroud to get the mag aligned as its inserted. Putting a mag in an airsoft PR can be quite the fiddly task.

Splendid work so far. Once completed will your design be available for download so others can print one?

I would definitely be up for paying for the files if only the Spas12 cage and Remington shotgun parts...



[paulsboutique]

Can't you just sand the handle inside? The rub seems pretty minor, looking at the pictures.

TazMan2000

I am trying to minimise the "sanding to fit" problem. I did resize the pump handle and the reprinted part slid on perfectly. I was way off with the tolerance before.



[propmainiac]

All I can say is Wow! Nice finish on the print. Looking at it you can't tell it's 3d printed



[prev]

Good looking PRs dude.

Very well done sir.



[KramStaar]

Stunning work



[Bluewinters21]

Very Nice!



[cokefiend]

I have been wanting to print this gun for years but all the files Ive ever found are pretty basic, This is by far the best Ive seen. Please tell me your files are for sale?



[JakeySnakey630]

That’s a very nice finish on 3D printed parts. Tough to achieve!



[paulsboutique]

Thanks for all the positive comments guys. In relation to the files, im not selling them or making them available. I wanted to challenge myself to see if I could do something this accurate so it would kill me to see my files ripped off on etsy etc.. When i started this journey i had little 3d desgn experience and now its become my main hobby, venturing into full working designs of gel blasters (airsoft with soft gel balls 7-8mm ).



[paulsboutique]

I have made a start on the electronics finally.... knocked up a pcb for the 7 segment displays and max7219 controller and sent it off to JCLPCB ....insert wuhan delay .... and these beauties arrived



[paulsboutique]

Solderd in the 7 segment displays and the max 7219 controller

Uploaded a quick countdown loop to test and boards are a success !!
