Big Dog
Active Member
Re: Y-Wing Parts Map for the "Green Leader" Project
Thank you Hammer! Does anyone know if the part that he called out for the Saturn V changed tooling at any time? I know there are different versions of the kit and based on my scan the part looks a bit different in what I have. That part takes up tons of space! Nice find
Thank you Hammer! Does anyone know if the part that he called out for the Saturn V changed tooling at any time? I know there are different versions of the kit and based on my scan the part looks a bit different in what I have. That part takes up tons of space! Nice find
Hammer3246
Sr Member
Last edited:
Hammer3246
Sr Member
Re: Y-Wing Parts Map for the "Green Leader" Project
View attachment 622279
The parts labeled Lee should be Sherman.....I keep screwing that up
View attachment 622279
The parts labeled Lee should be Sherman.....I keep screwing that up
Last edited:
Hammer3246
Sr Member
Re: Y-Wing Parts Map for the "Green Leader" Project
That part and the part on top of the cockpit look like amt wheels in build pics I've seen.
Great job on the parts maps!
That part and the part on top of the cockpit look like amt wheels in build pics I've seen.
Great job on the parts maps!
Hammer3246
Sr Member
Re: Y-Wing Parts Map for the "Green Leader" Project
Thanks ,that's what I thought too and it makes sense. Wonder if anyone can verify?
Thanks ,that's what I thought too and it makes sense. Wonder if anyone can verify?
Rats
Sr Member
Re: Y-Wing Parts Map for the "Green Leader" Project
The toothpaste tube cap next to R-2 looks like a German MG34/42 ammunition container. Possibly from the 1/15 Hummel?

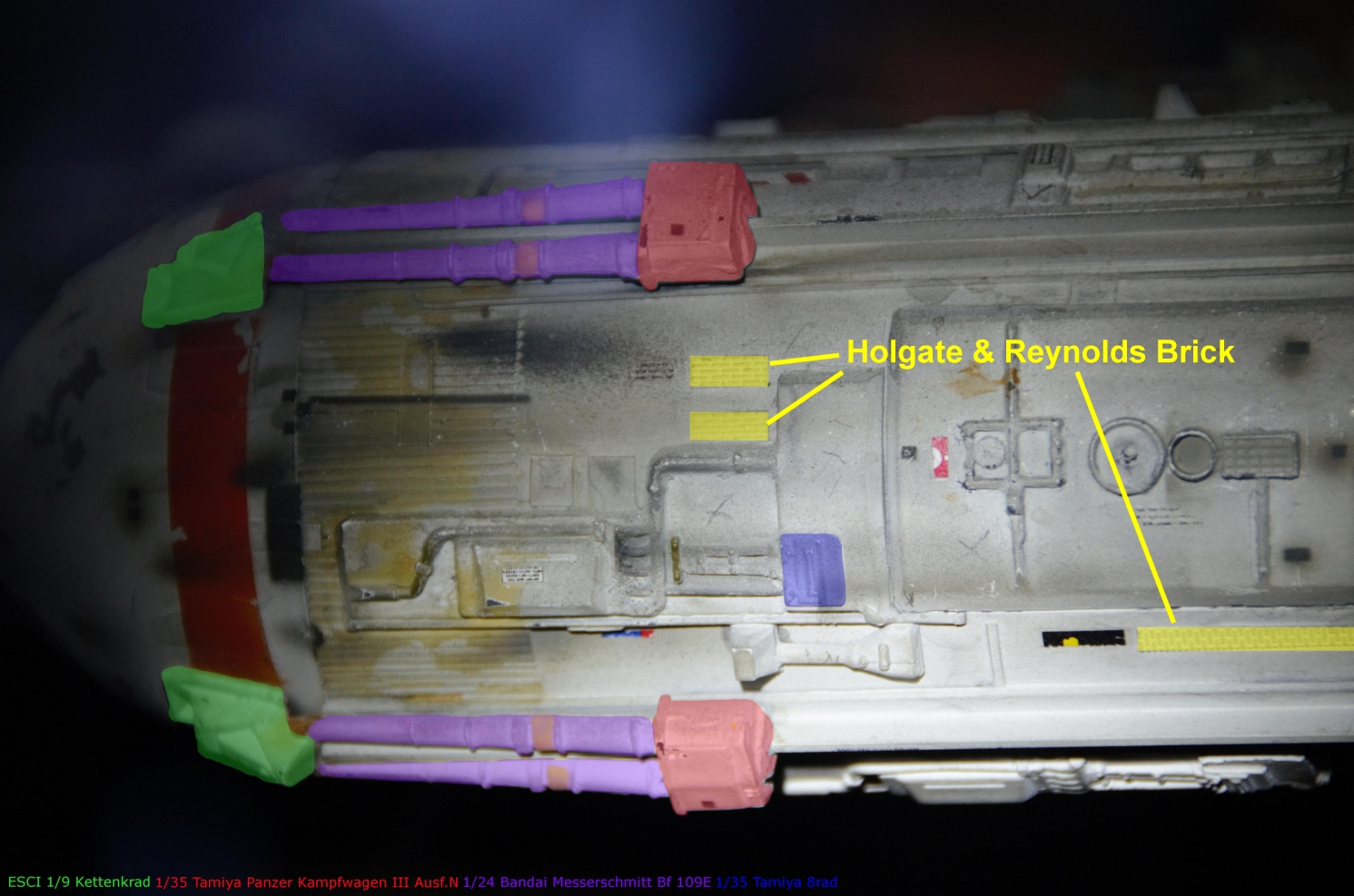

Also, the brick textures on the engine cans are probably Holgate and Reynolds brick sheet (HO/OO)
This Y-Wing engine can detail is very different to the others (esp. Gold 5)
Cheers
The toothpaste tube cap next to R-2 looks like a German MG34/42 ammunition container. Possibly from the 1/15 Hummel?
Also, the brick textures on the engine cans are probably Holgate and Reynolds brick sheet (HO/OO)
This Y-Wing engine can detail is very different to the others (esp. Gold 5)
Cheers
Hammer3246
Sr Member
Re: Y-Wing Parts Map for the "Green Leader" Project
I believe that's from the Hummel as well.
I believe that's from the Hummel as well.
Hammer3246
Sr Member
Avanaut
Well-Known Member
Re: Y-Wing Parts Map for the "Green Leader" Project
I wonder if it was possible to gather all this information, and then some, to make comprehensive part maps for each bird. I love the fact that this thread exists but it would be fantastic if it could provide us with a conclusive map in the end, not another long, long thread from which images (and information) will disappear over time. I'll try something, I'll post it if it works.
I wonder if it was possible to gather all this information, and then some, to make comprehensive part maps for each bird. I love the fact that this thread exists but it would be fantastic if it could provide us with a conclusive map in the end, not another long, long thread from which images (and information) will disappear over time. I'll try something, I'll post it if it works.
Big Dog
Active Member
Re: Y-Wing Parts Map for the "Green Leader" Project
Avanaut that is already the purpose of this thread (at least from my viewpoint). I (along with plenty others) have been posting part maps with updated pieces each time and that information is taken and updated in the first post of this entire thread. I also have a list of kits and am trying to also write down part numbers used so each detail can be known. And that's why the focus has mostly stayed on the Red Jammer so that we can identify one specific Y Wing before moving on to a different and equally unique one.
Avanaut that is already the purpose of this thread (at least from my viewpoint). I (along with plenty others) have been posting part maps with updated pieces each time and that information is taken and updated in the first post of this entire thread. I also have a list of kits and am trying to also write down part numbers used so each detail can be known. And that's why the focus has mostly stayed on the Red Jammer so that we can identify one specific Y Wing before moving on to a different and equally unique one.
Avanaut
Well-Known Member
Re: Y-Wing Parts Map for the "Green Leader" Project
I missed the Red Jammer emphasis, no wonder I was a little lost here. We are after the very same thing. Perfect! Will check on the parts with that in mind.
I missed the Red Jammer emphasis, no wonder I was a little lost here. We are after the very same thing. Perfect! Will check on the parts with that in mind.
Hammer3246
Sr Member
Re: Y-Wing Parts Map for the "Green Leader" Project
I wasn't aware that it was a Red Jammer focus either, more of a "if you find a part that was used" kinda thing. I think that should be the objective, it would save a lot of rehashing scans when someone is looking to build a Gold version this way you have a parts list covering the different version. The builder can decided what he/she wants from there.
I wasn't aware that it was a Red Jammer focus either, more of a "if you find a part that was used" kinda thing. I think that should be the objective, it would save a lot of rehashing scans when someone is looking to build a Gold version this way you have a parts list covering the different version. The builder can decided what he/she wants from there.
Big Dog
Active Member
Re: Y-Wing Parts Map for the "Green Leader" Project
Sure, of course people can post whatever they'd like but I only post parts maps for Red Jammer at the moment (besides the highly similar underside shots). For me personally it would be overwhelming to be coloring parts maps for multiple versions of these ships all at the same time so when someone posts or provides me with info of a ship that isn't the Red Jammer I tuck that info away for the moment. With such minute or large differences in certain parts of the ships, I would rather "complete" or have one largely finished before looking at a new Y and finding which parts do not overlap and need to be called out from there.
Sure, of course people can post whatever they'd like but I only post parts maps for Red Jammer at the moment (besides the highly similar underside shots). For me personally it would be overwhelming to be coloring parts maps for multiple versions of these ships all at the same time so when someone posts or provides me with info of a ship that isn't the Red Jammer I tuck that info away for the moment. With such minute or large differences in certain parts of the ships, I would rather "complete" or have one largely finished before looking at a new Y and finding which parts do not overlap and need to be called out from there.
Hammer3246
Sr Member
Re: Y-Wing Parts Map for the "Green Leader" Project
Fair enough, I see your point. I'm no expert by any means, but I think after Red Jammer the Golds have more parts but I don't believe they vary much in detailing. Hopefully someone can chime in who knows more.
Fair enough, I see your point. I'm no expert by any means, but I think after Red Jammer the Golds have more parts but I don't believe they vary much in detailing. Hopefully someone can chime in who knows more.
Avanaut
Well-Known Member
Re: Y-Wing Parts Map for the "Green Leader" Project
The golds differ from each other surprisingly quite a lot, but the biggest difference is between them and the red. They all share the same base with a lot of common greeblies, if not most of them, but the "finishing layer" is different. That's why I suggested separate part maps for each not knowing this thread is aimed at Red Jammer primarily. It's really quite fascinating.
The golds differ from each other surprisingly quite a lot, but the biggest difference is between them and the red. They all share the same base with a lot of common greeblies, if not most of them, but the "finishing layer" is different. That's why I suggested separate part maps for each not knowing this thread is aimed at Red Jammer primarily. It's really quite fascinating.
Re: Y-Wing Parts Map for the "Green Leader" Project
Luckily, in a hobby shop find a couple of years ago, I have some of that brick sheet. I'm expecting to use some for an x-wing build in the future too. I can share it with anyone who has a build thread started on the RPF - under those conditions. I don't want to run low on it just to have it sit in a closet.
Luckily, in a hobby shop find a couple of years ago, I have some of that brick sheet. I'm expecting to use some for an x-wing build in the future too. I can share it with anyone who has a build thread started on the RPF - under those conditions. I don't want to run low on it just to have it sit in a closet.
