Avengers Thor Hammer Mjolnir from scratch (sintra)

[AimToMisbehave]

Looking mighty good!

Mighty...good one!



[Pannaus Props]

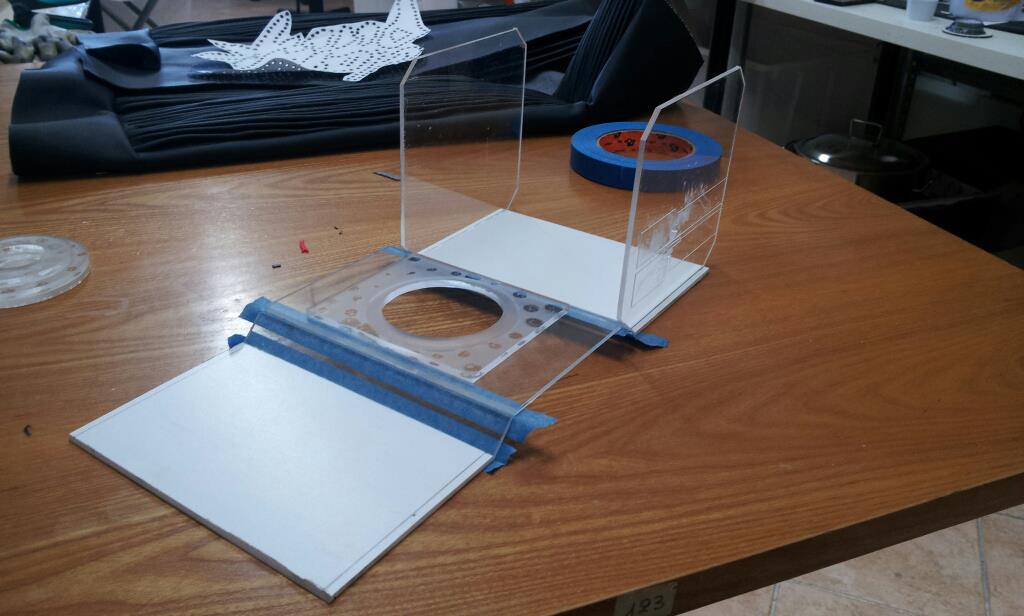

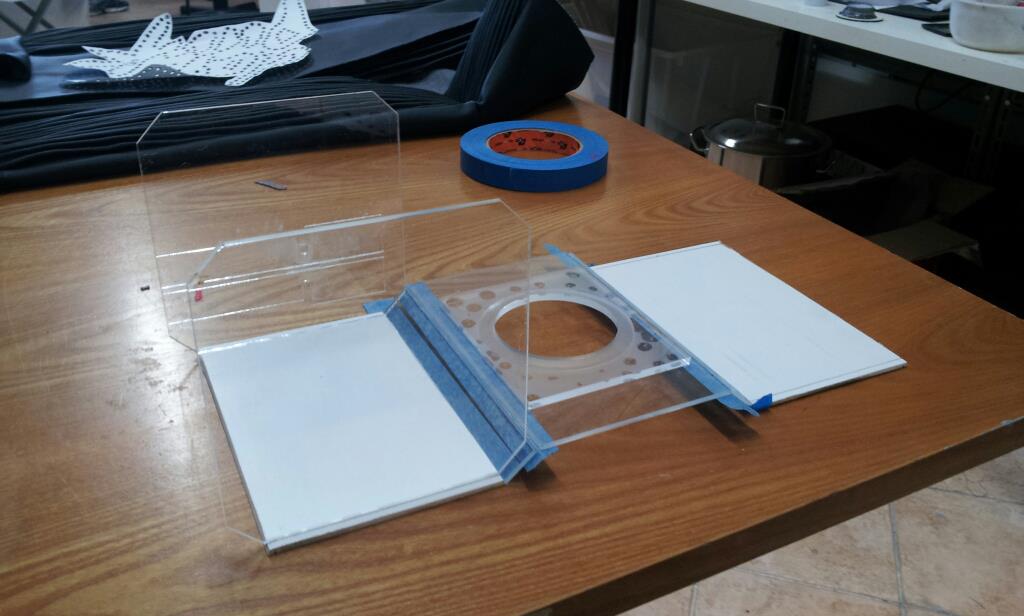

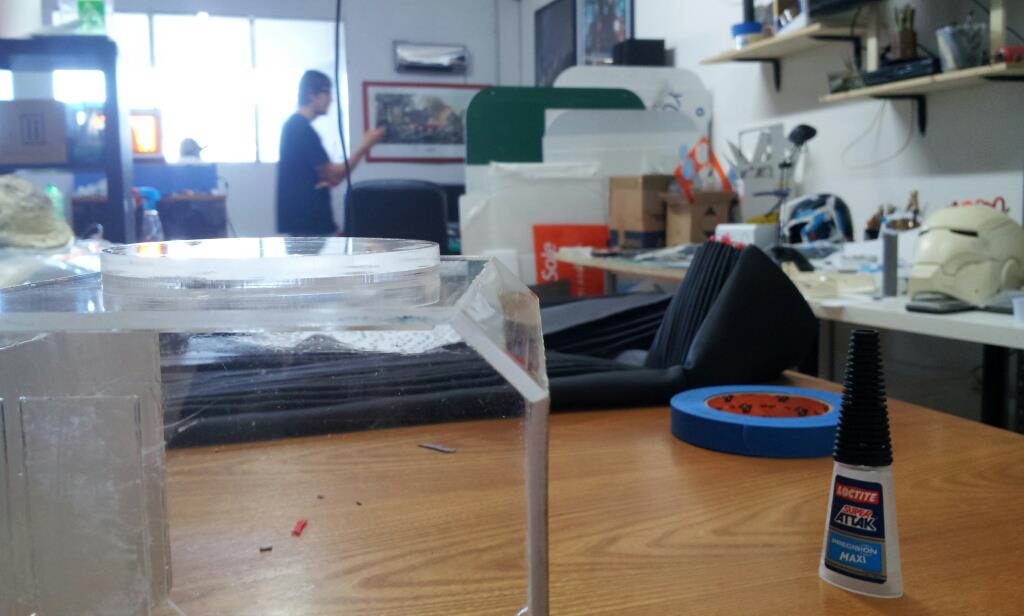

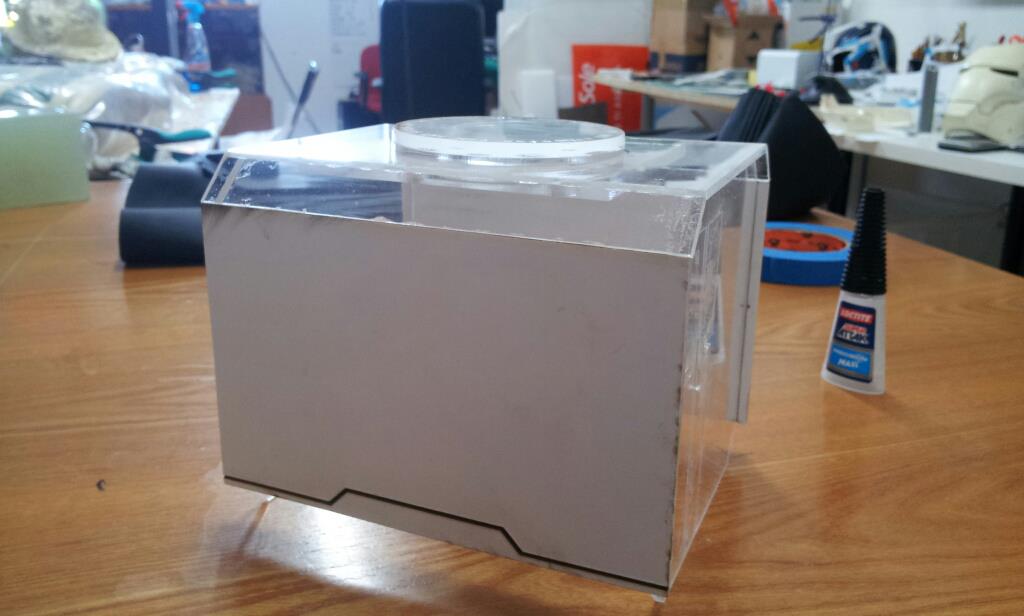

I'm remaking the whole thing by using my laser cutter to have more precise pieces:

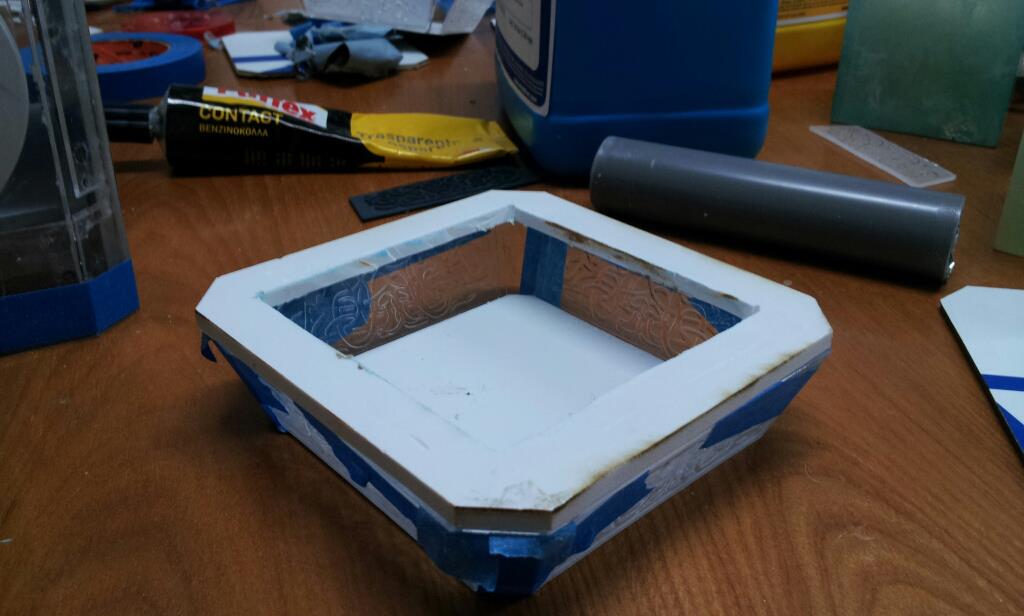

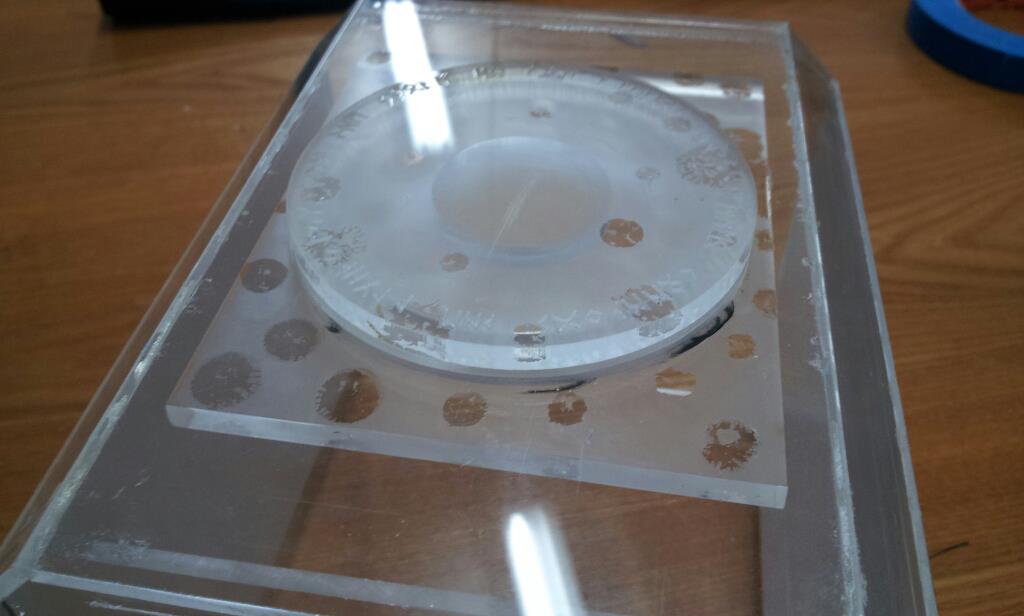

I'm also putting a octagonal base under the side cap of the head, so that when you assemble the hammer, the side caps will just go inside the hammer head so that you'll have just to glue it in place and that will be it

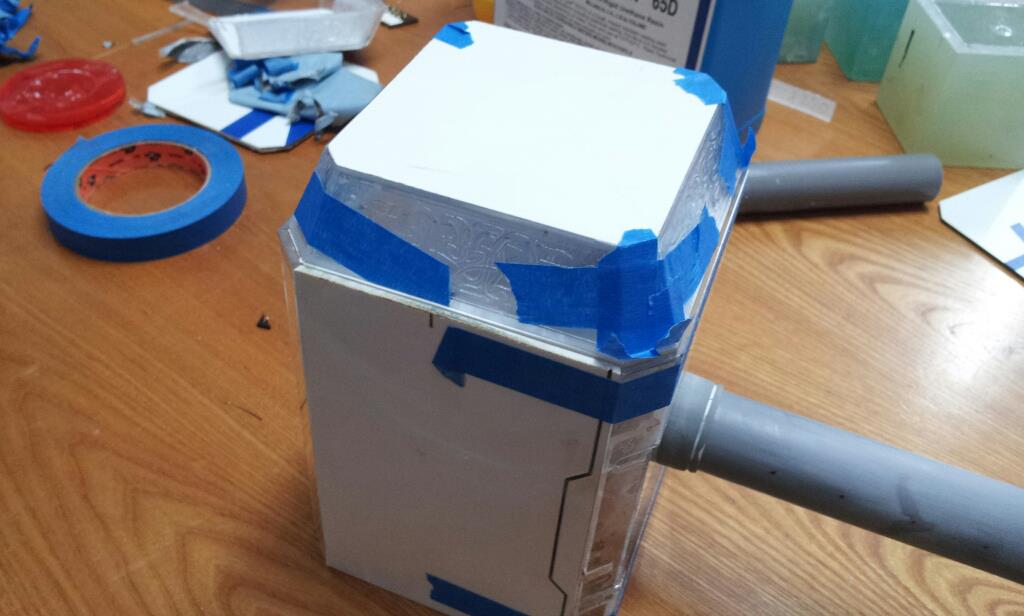

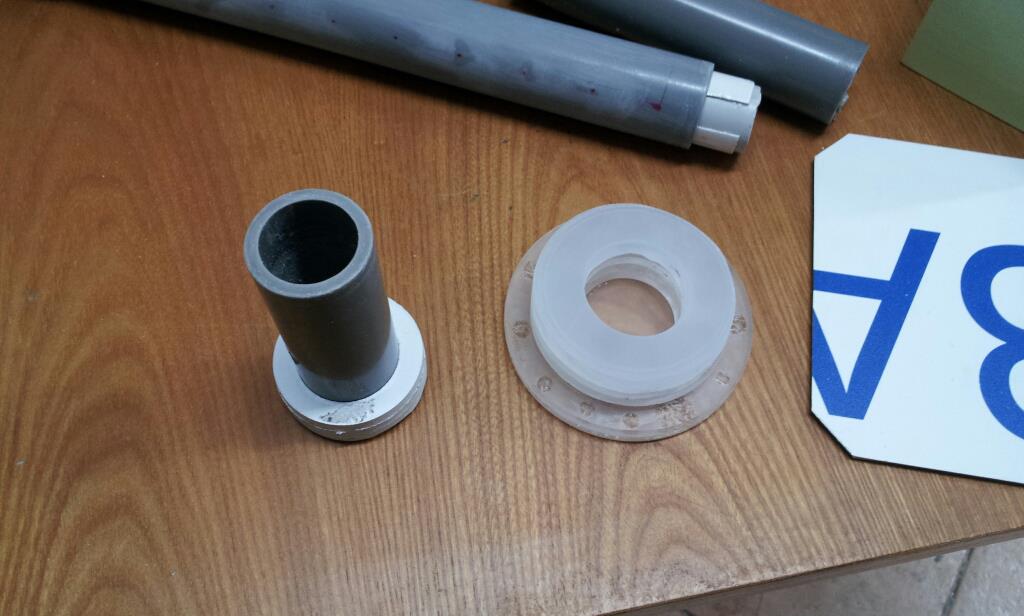

I think this is going to be mold in 3 or 4 parts:

main head part
2 side caps

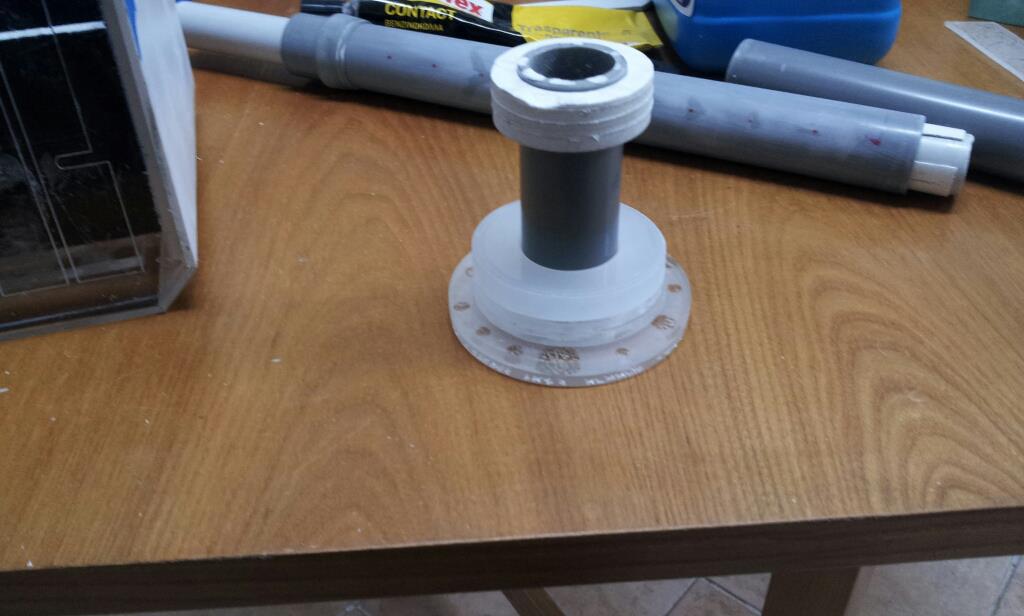

capstone with tube
handle



[AMP]

This is awesome!
I have access to a laser and scrap plastic, I may have to try this.
Thanks for the inspiration.



[Pannaus Props]

little update



[Lord Vicious]

Thor would be proud! :thumbsup



[morcon1223]

I love the details on the hammer, specially the panel



[daniloferro]

Fantastic!



[daniloferro]

Impressive work...



[Pannaus Props]

Well I guess I've skipped quite a few steps but you can see them here.

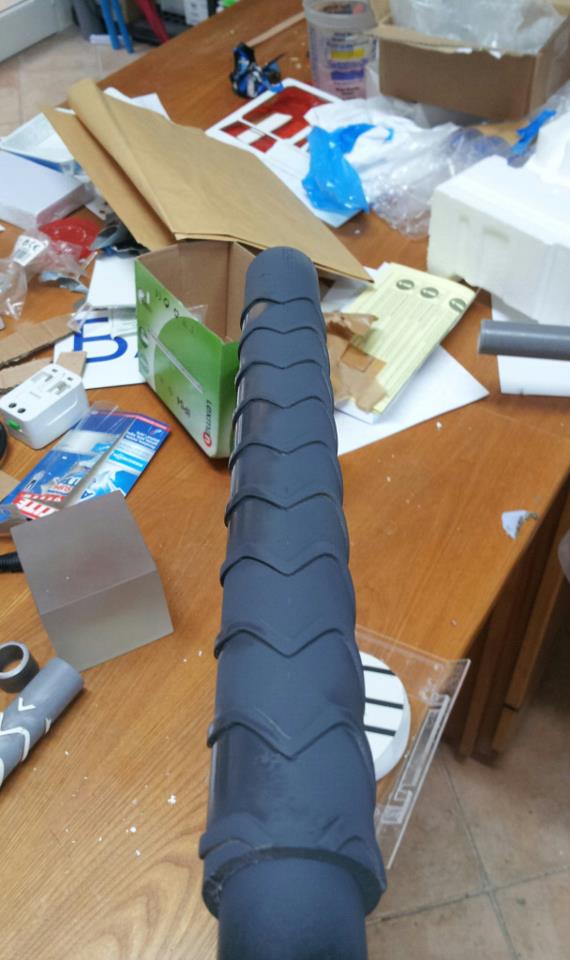

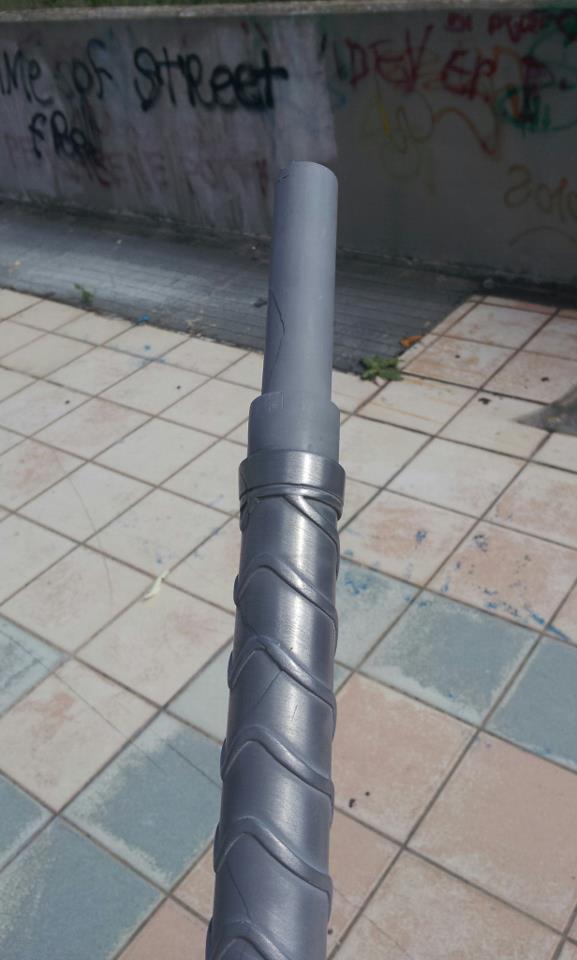

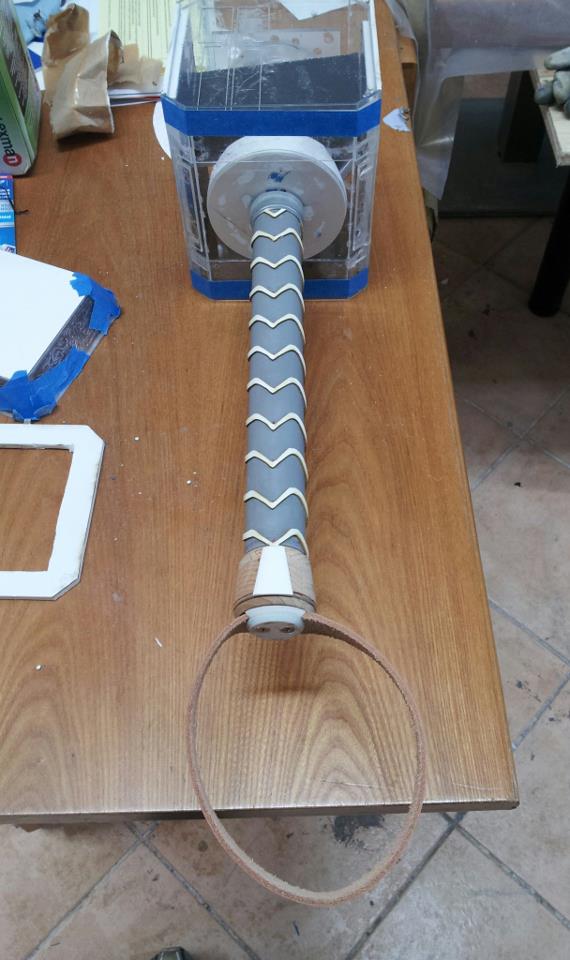

I wasn't happy with the way the first handle turned out so I made it again.

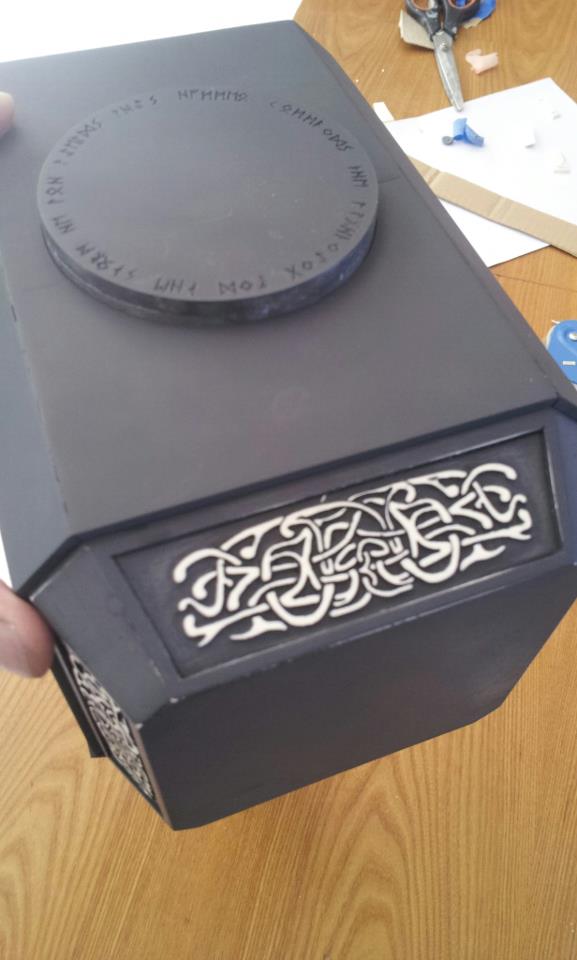

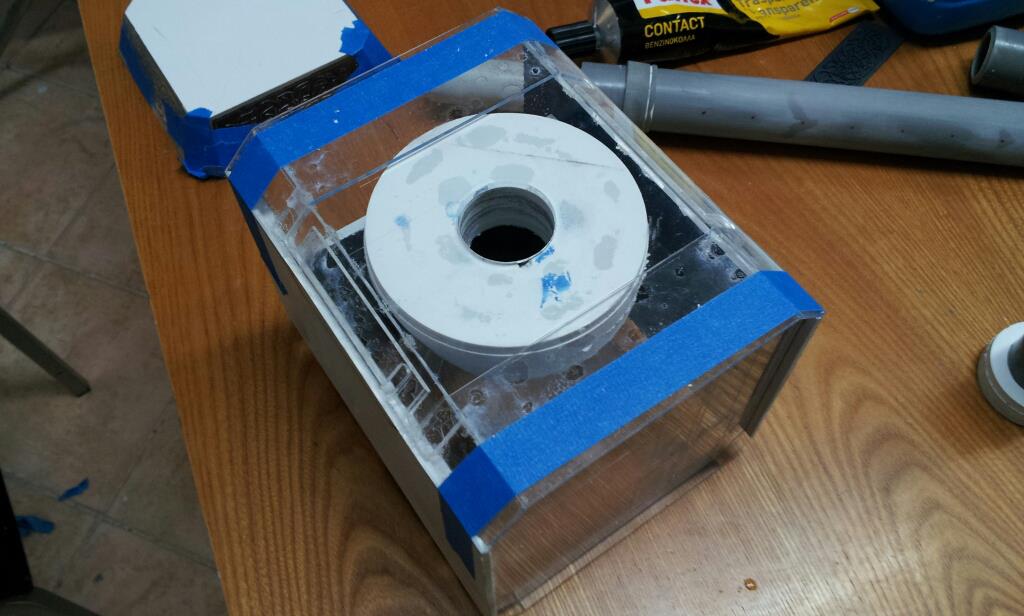

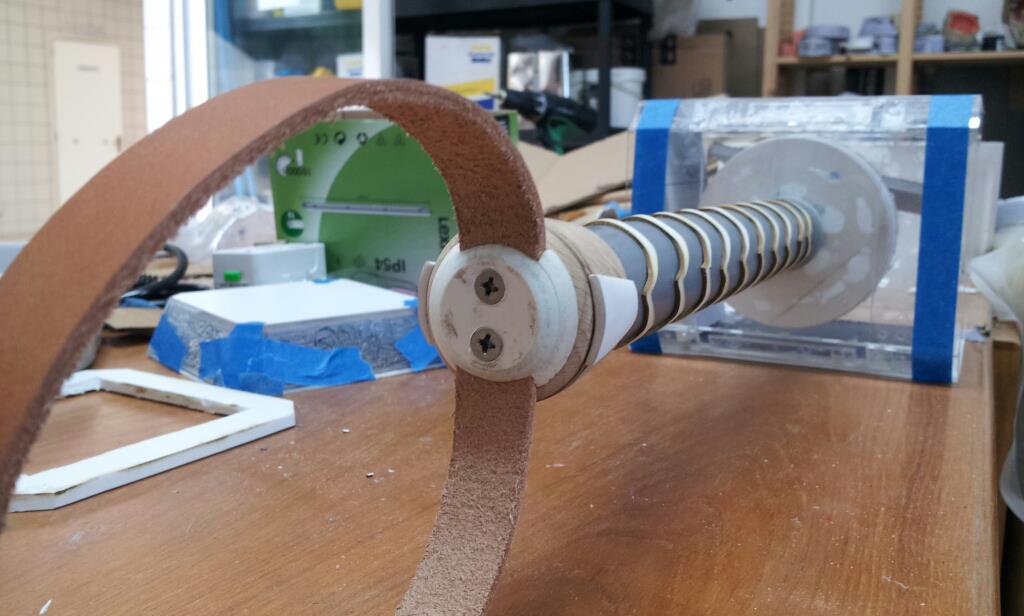

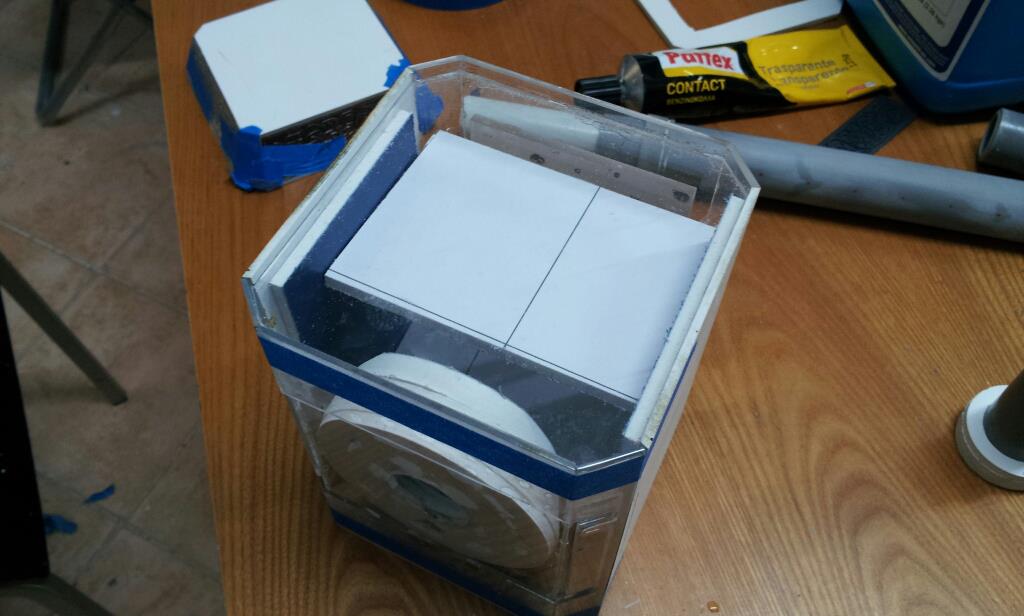

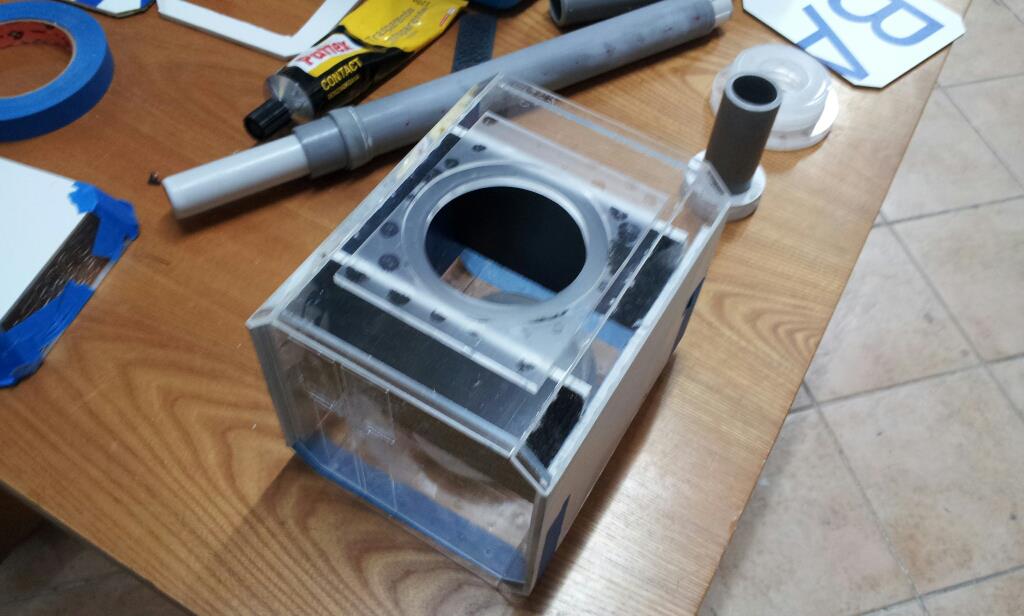

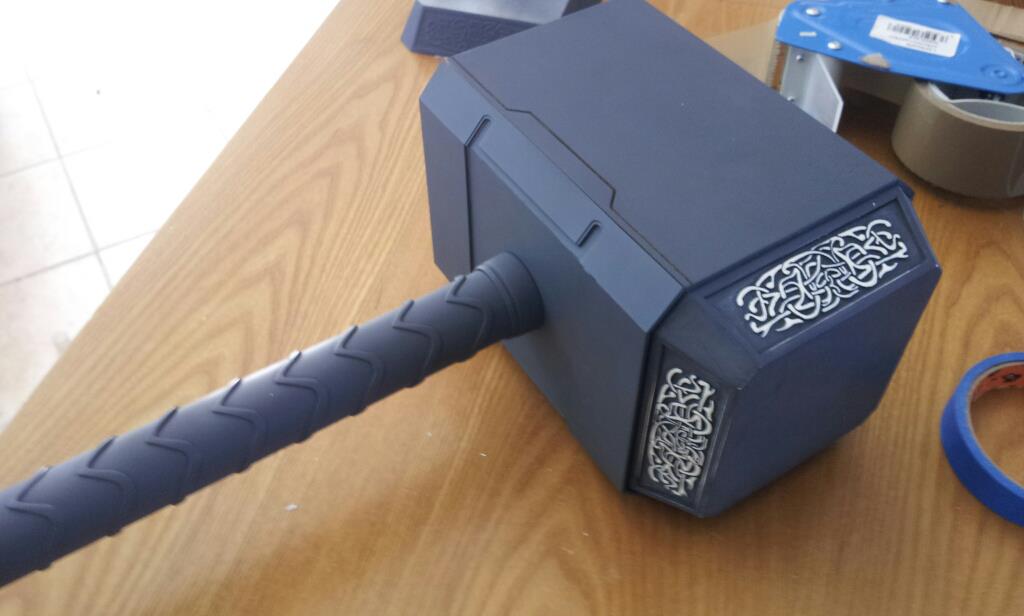

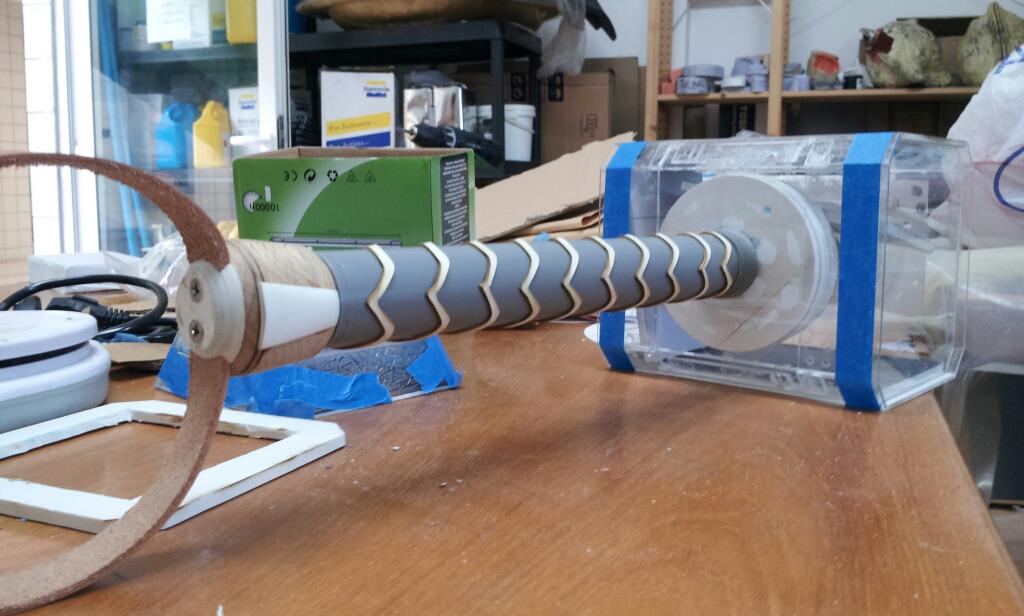

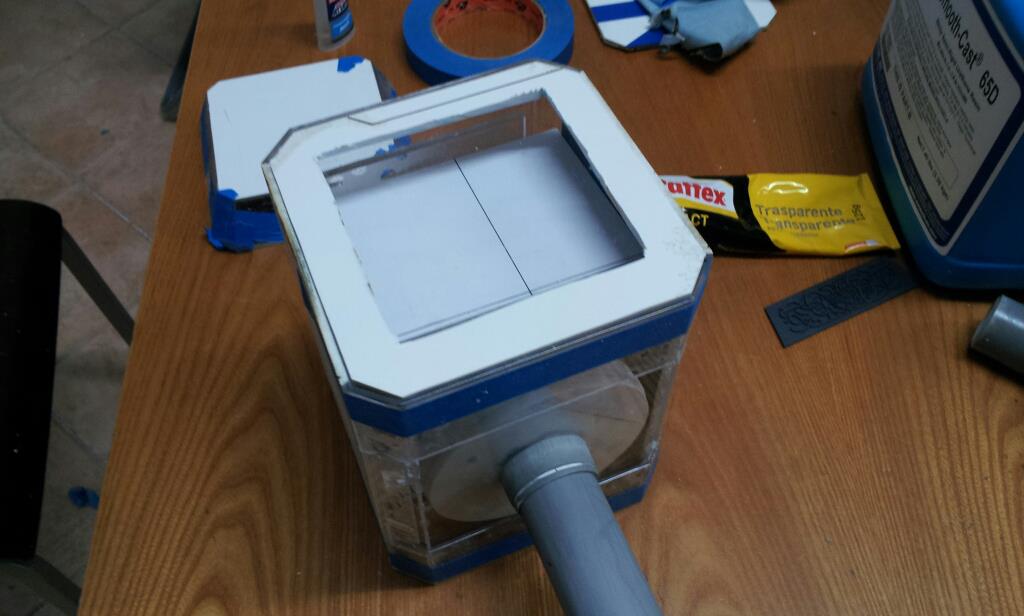

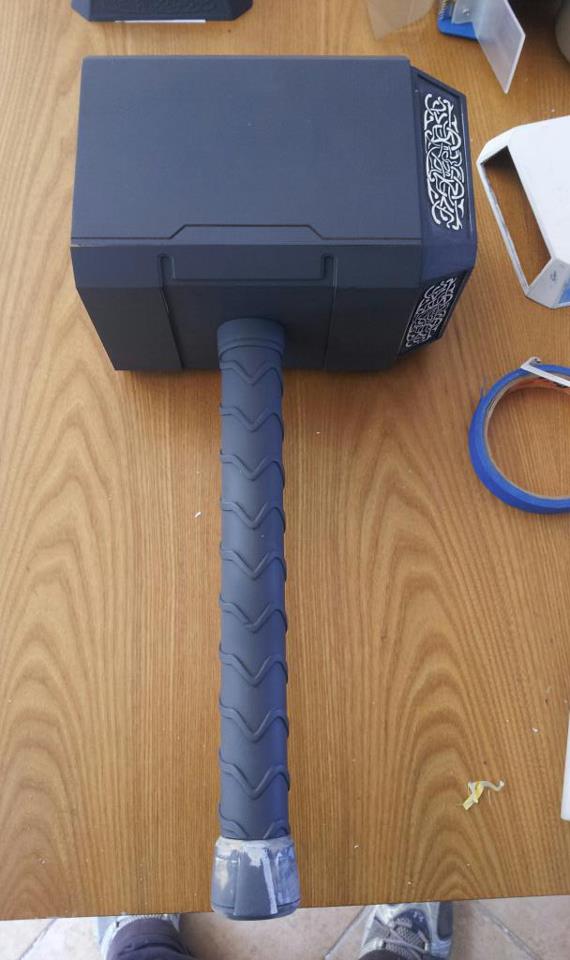

This is the prepped for molding hammer:



[garzavive]

Well I guess I've skipped quite a few steps but you can see them here:

http://www.therpf.com/f13/avengers-mjolnir-thor-hammer-now-taking-deposits-152639/index3.html

AWESOME WORK, MEN!!!
which measures has the hammer´s head ? would you have a design of each part to send me?
thanks!



[Ghostsoldier]

Simply beautiful! :thumbsup

Rob



[Pannaus Props]

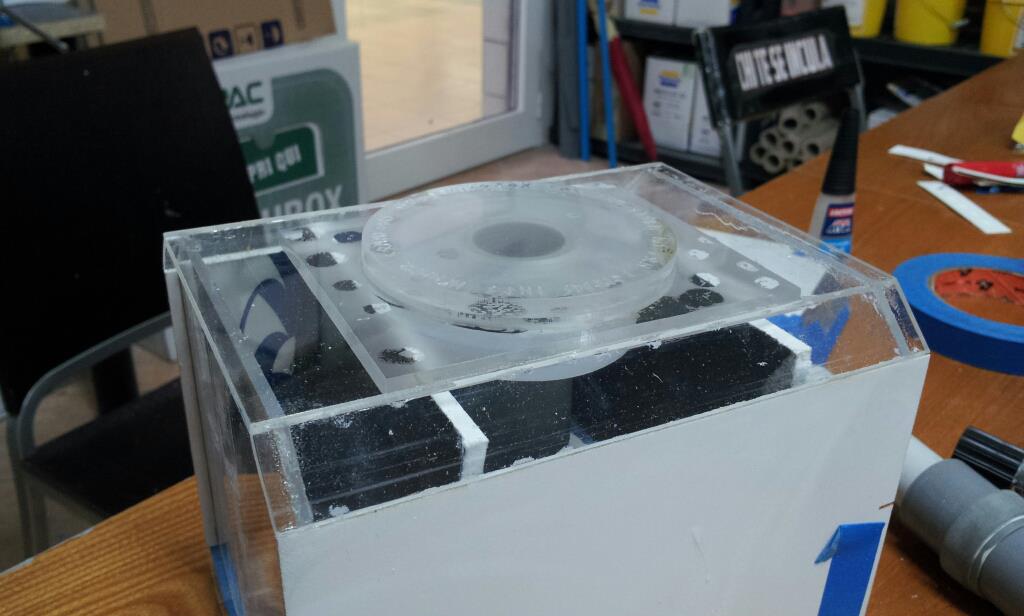

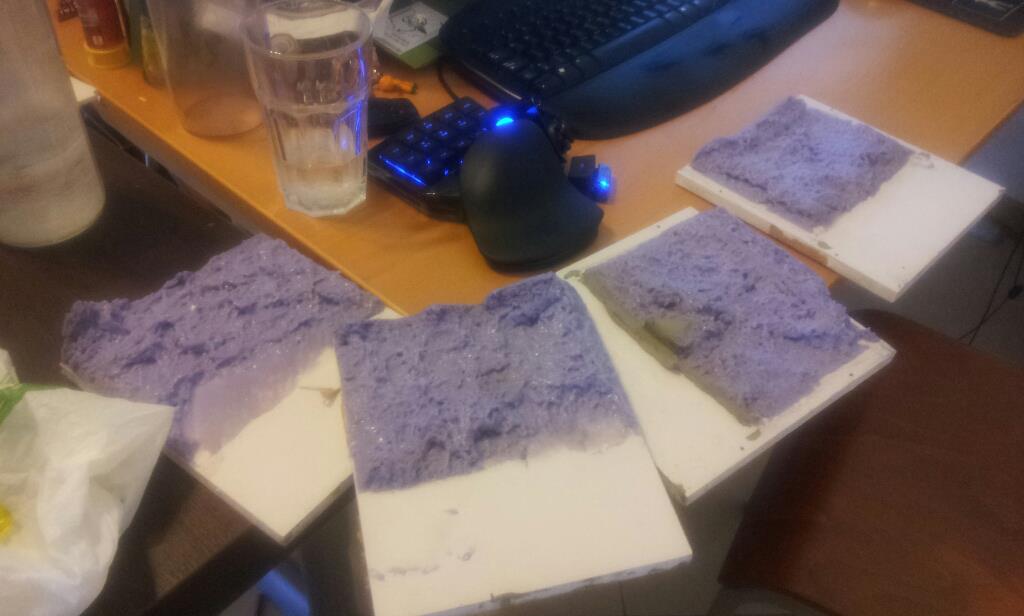

First mold was a total disaster as I mistakely used one part of Rebound 25 with the hardner of the Mold Max 25.
This was the result:

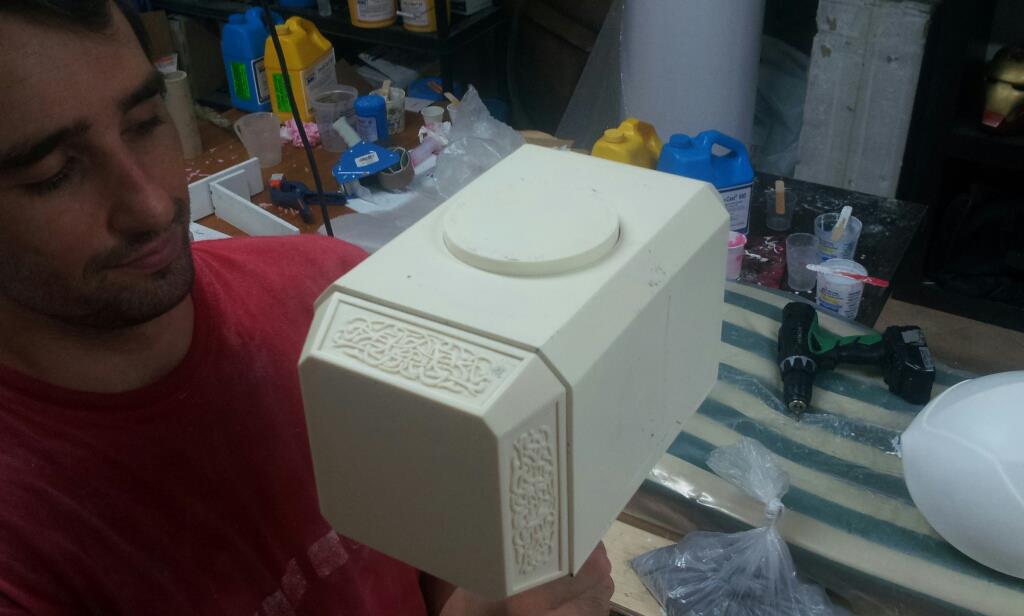

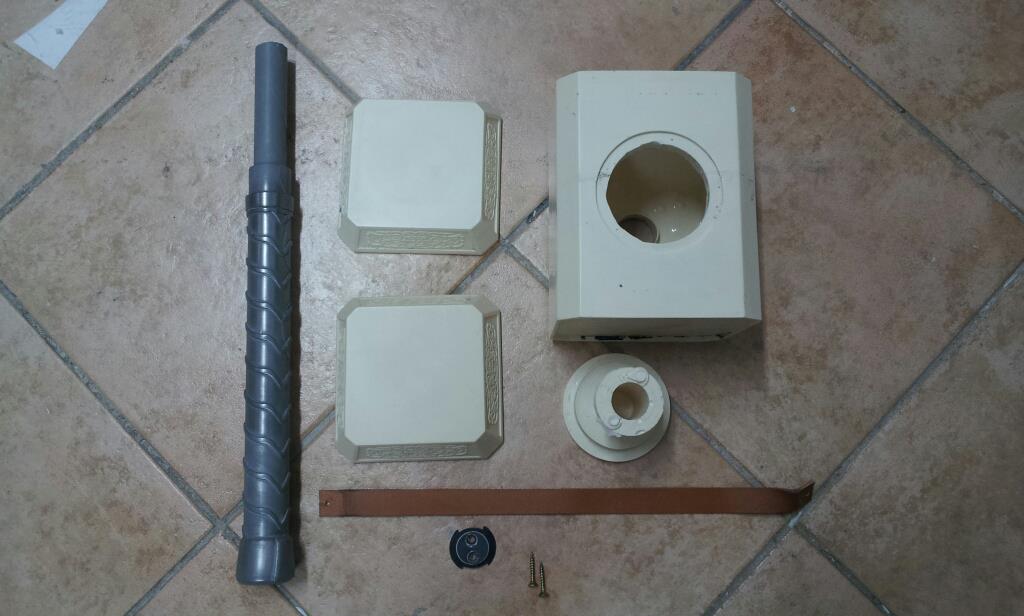

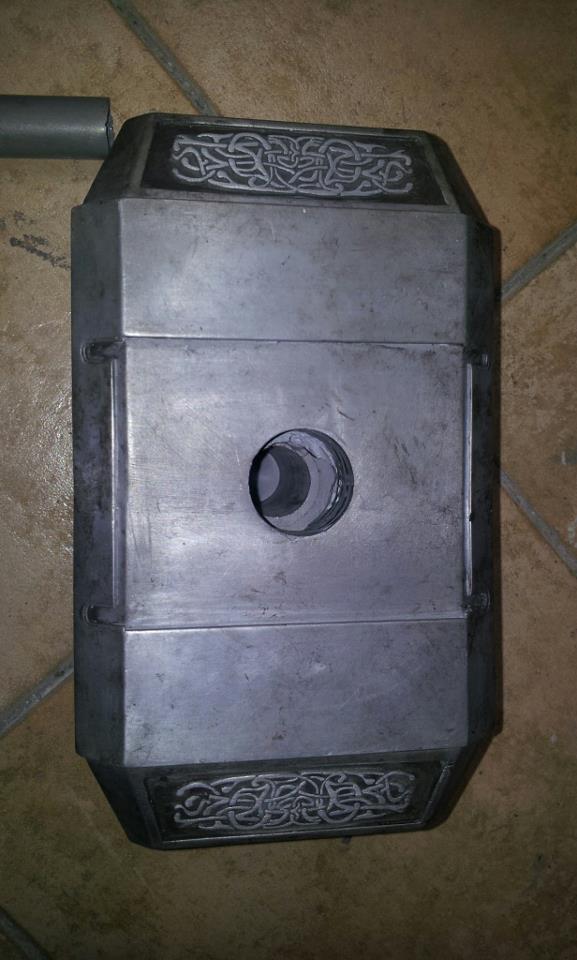

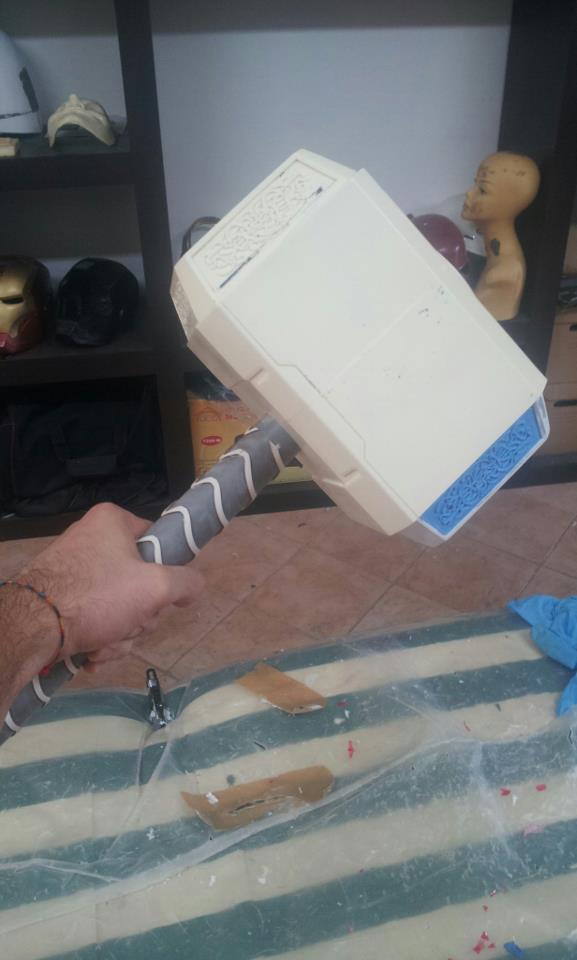

After that it was just a matter of time. I started pulling the first resin casts:

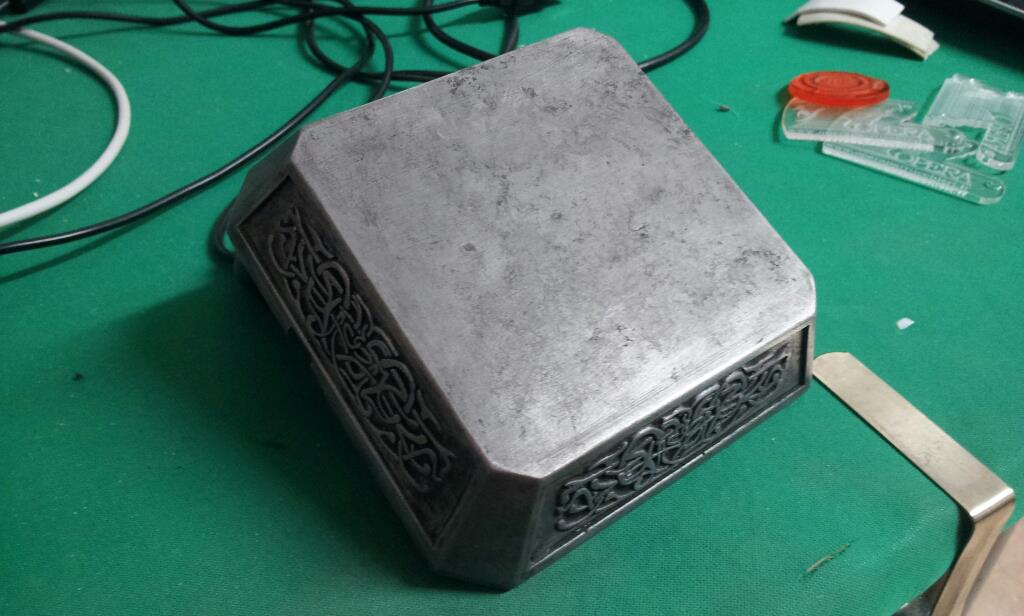

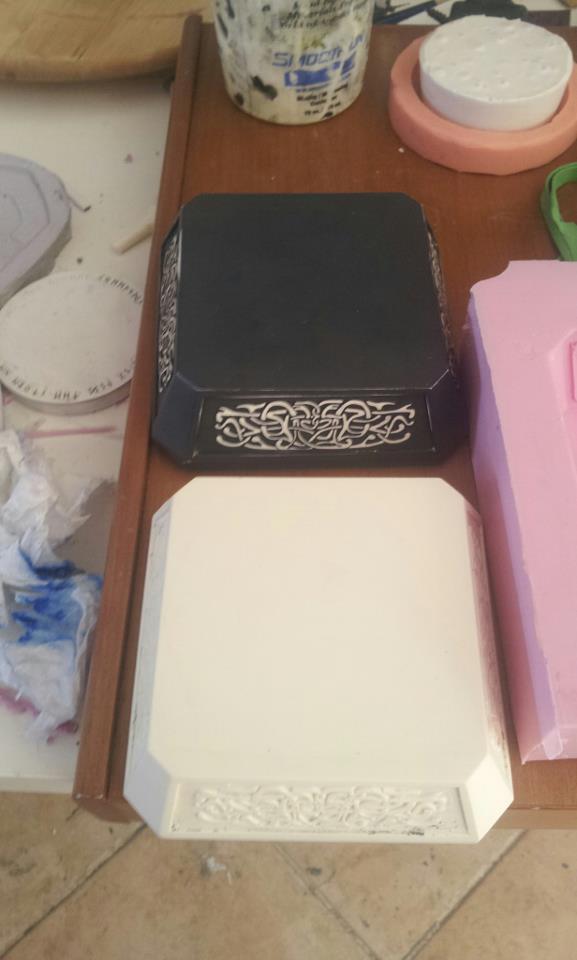

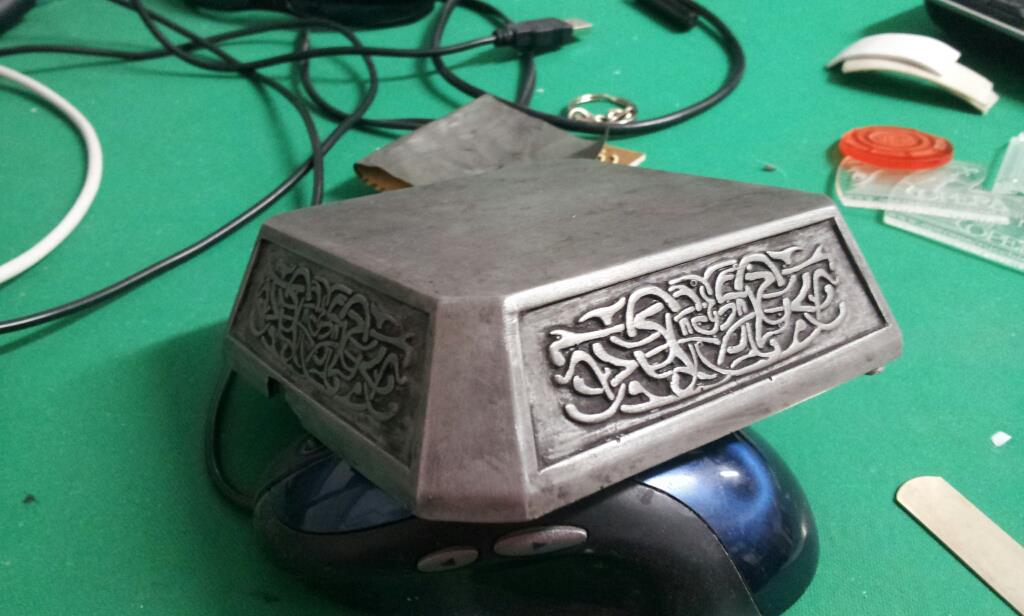

Then I started cold casting the pieces:

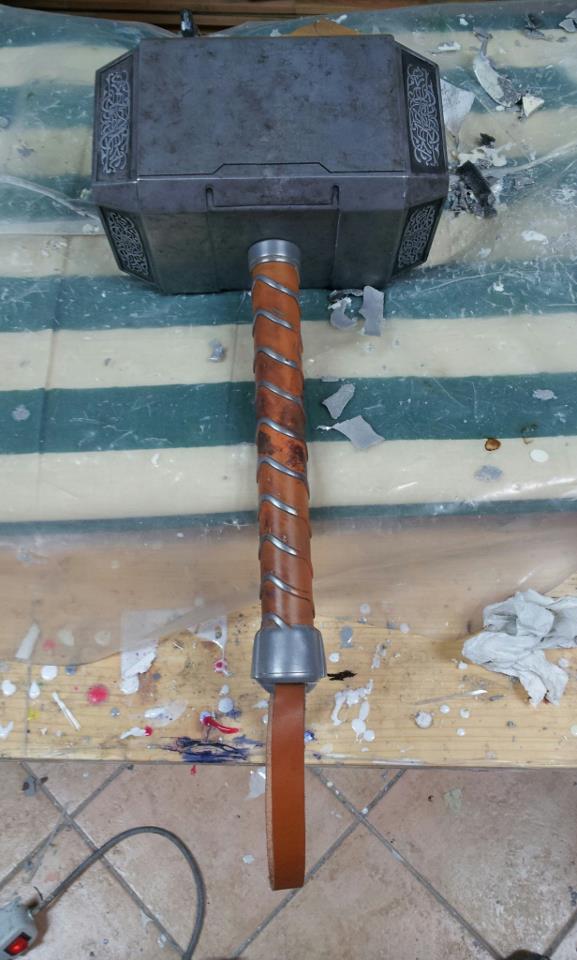

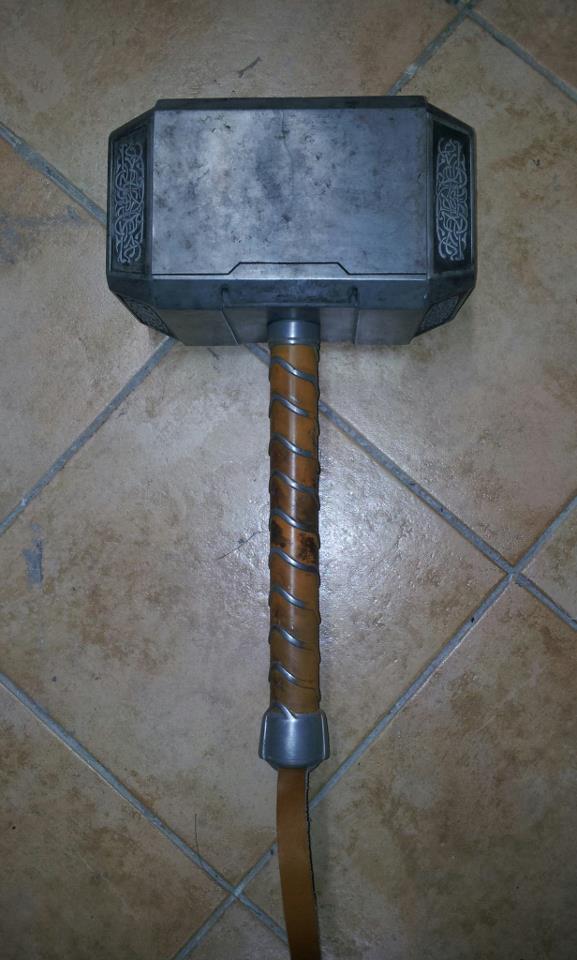

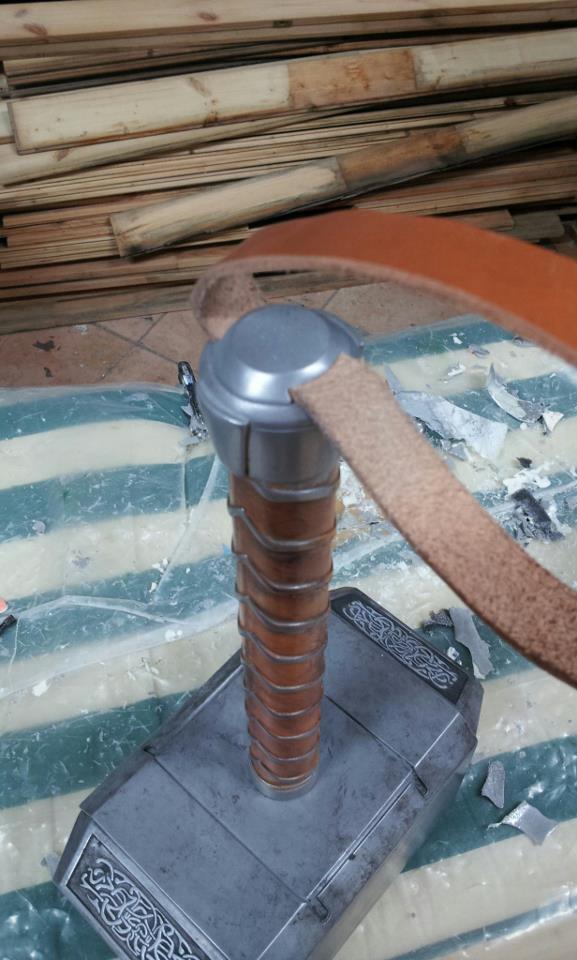

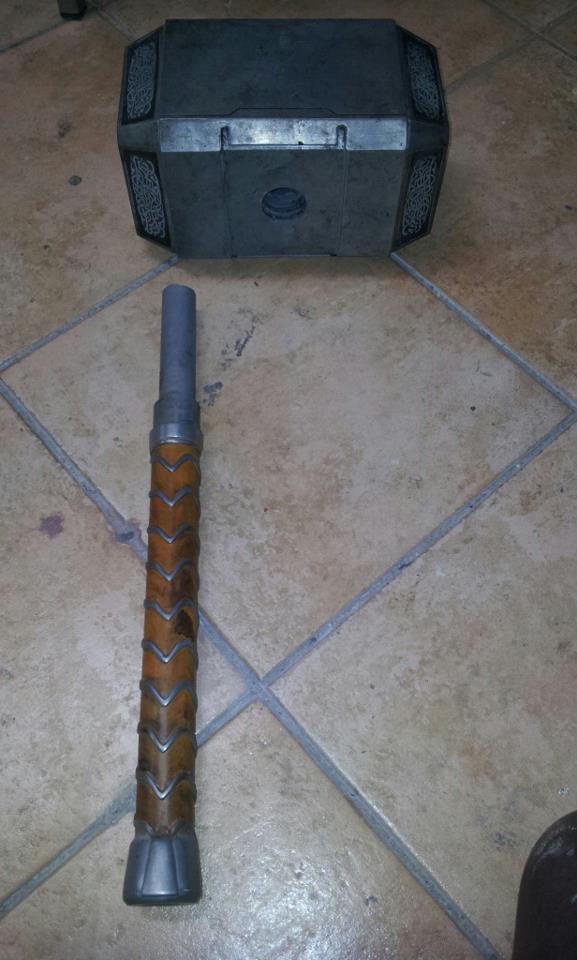

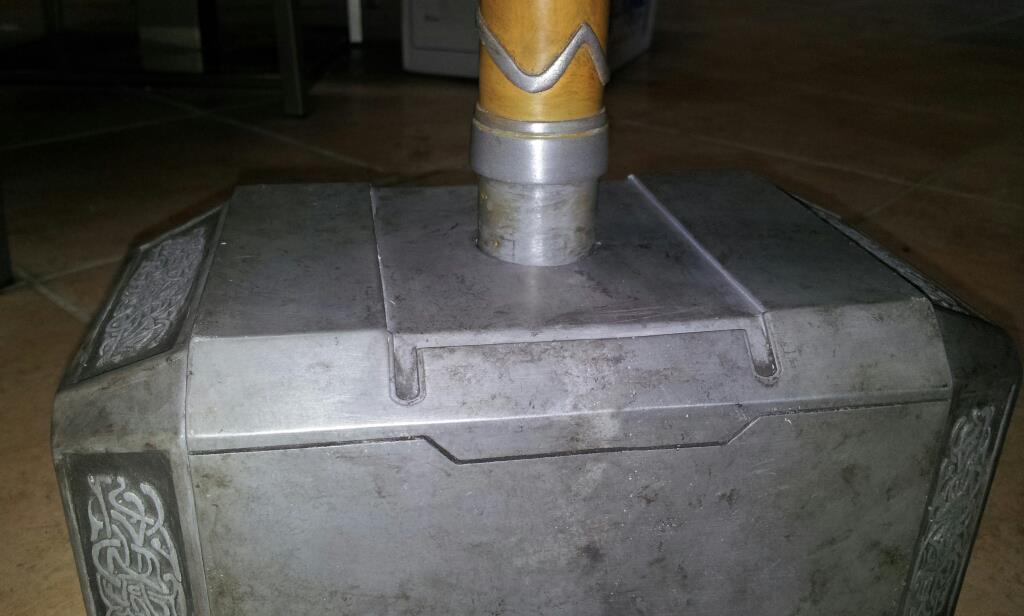

And finally went on to get the final piece:



[Pannaus Props]

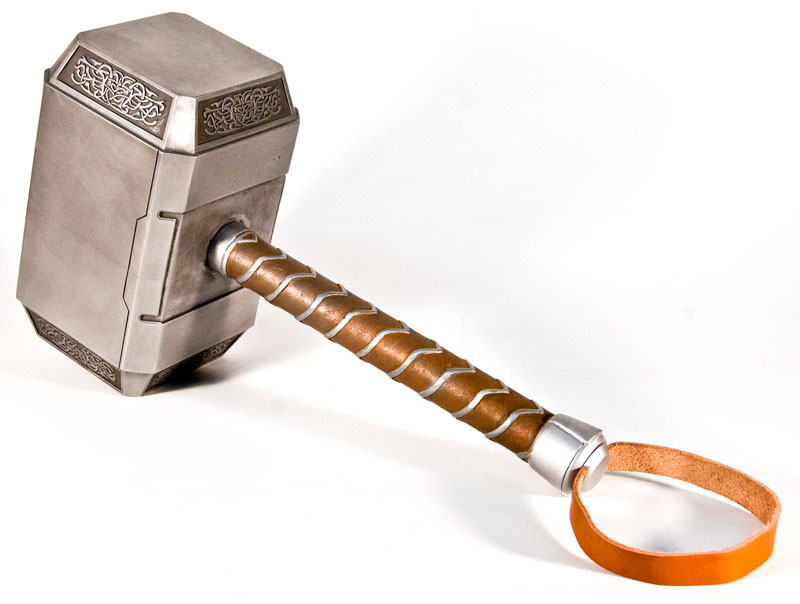

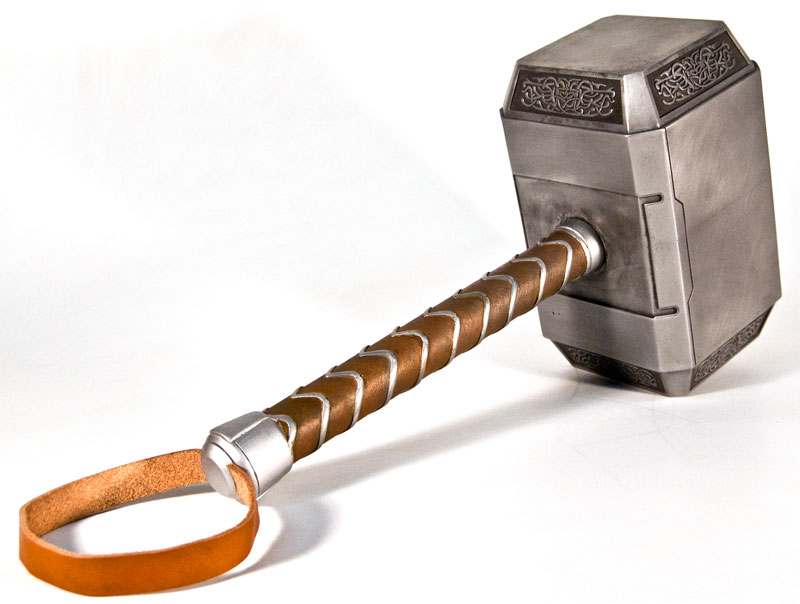

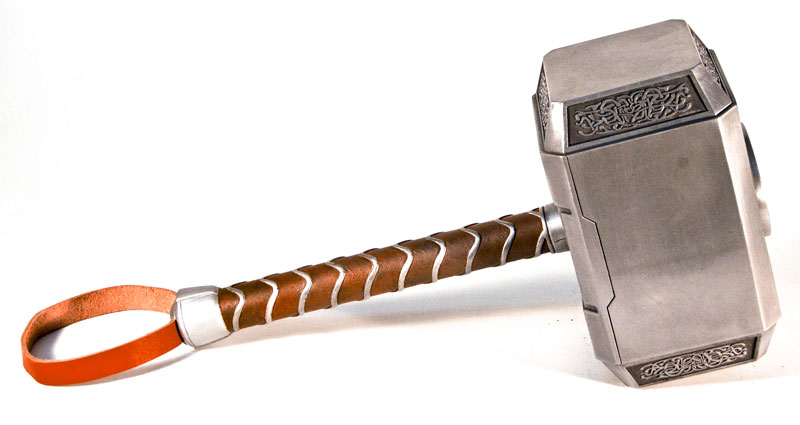

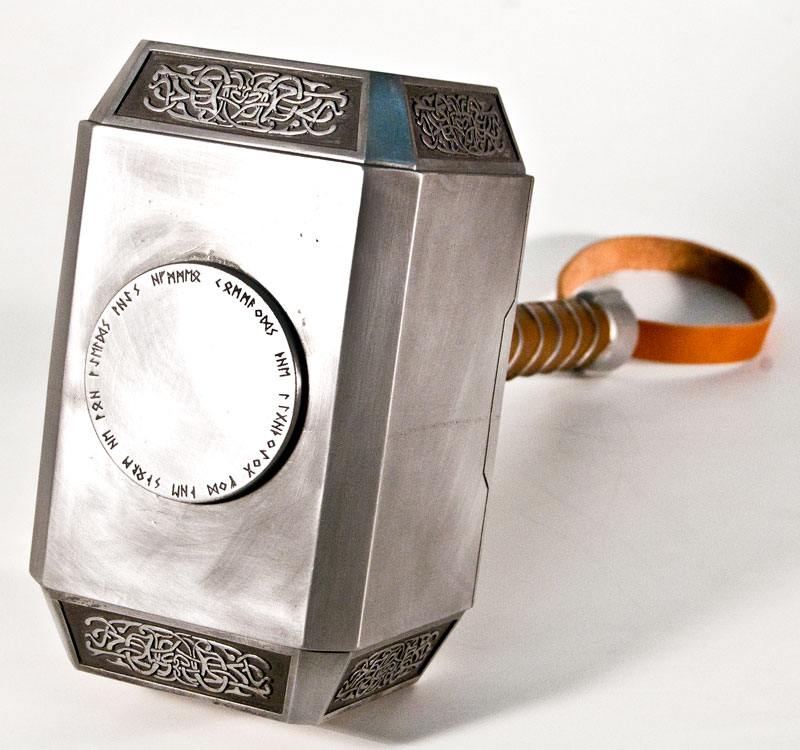

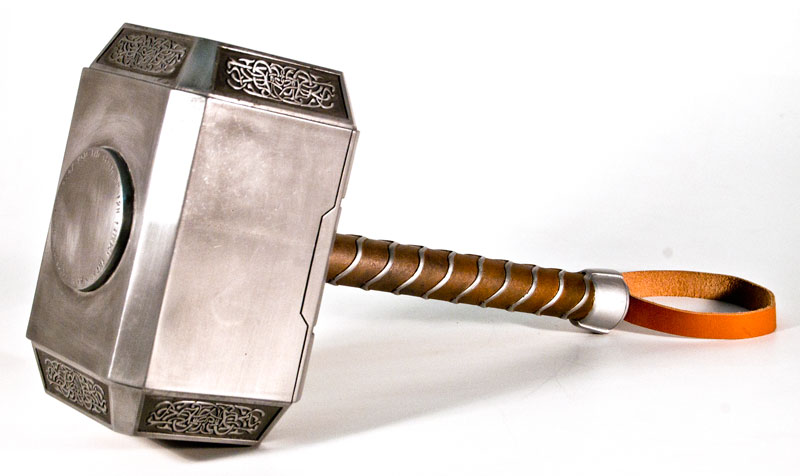

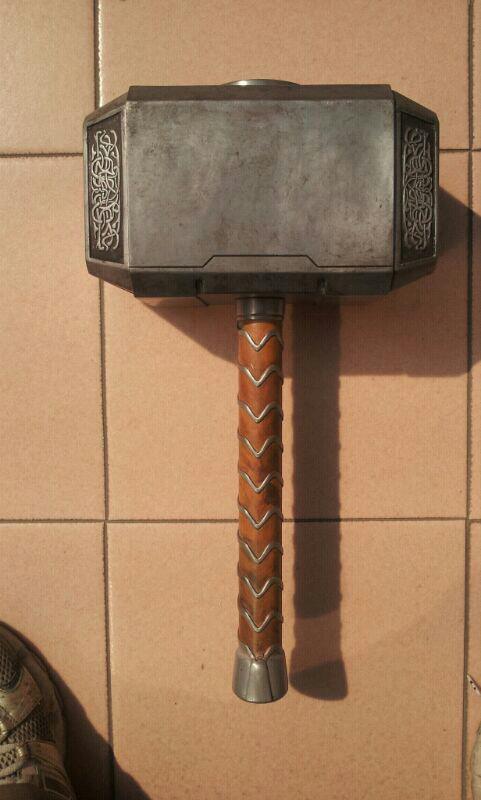

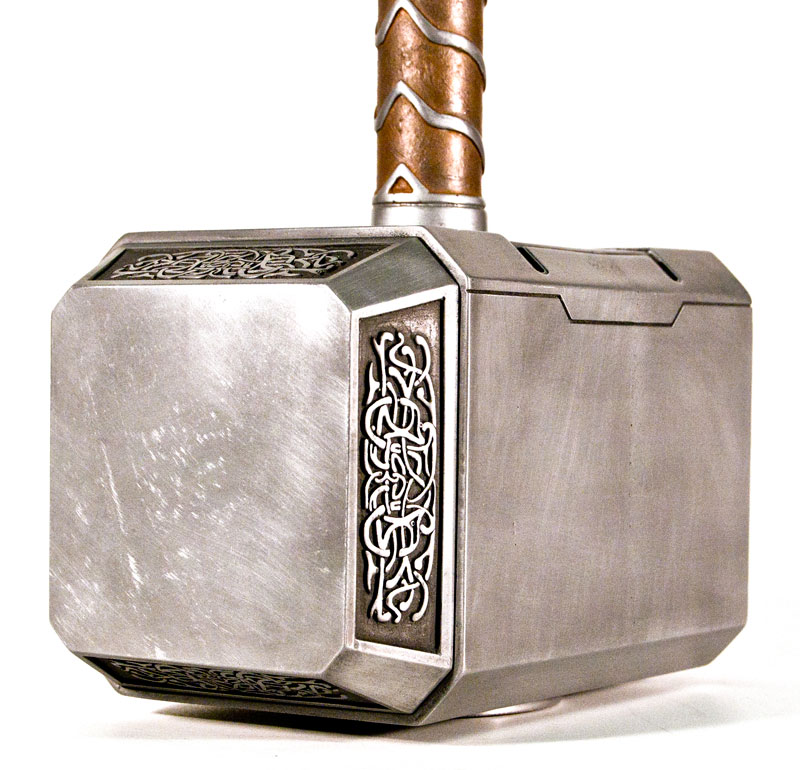

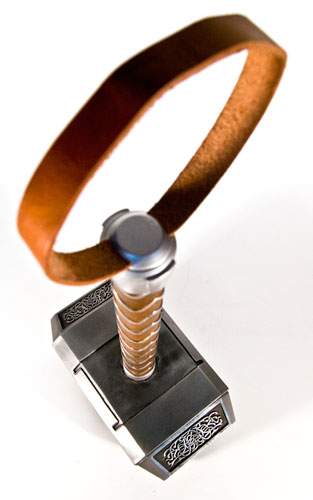

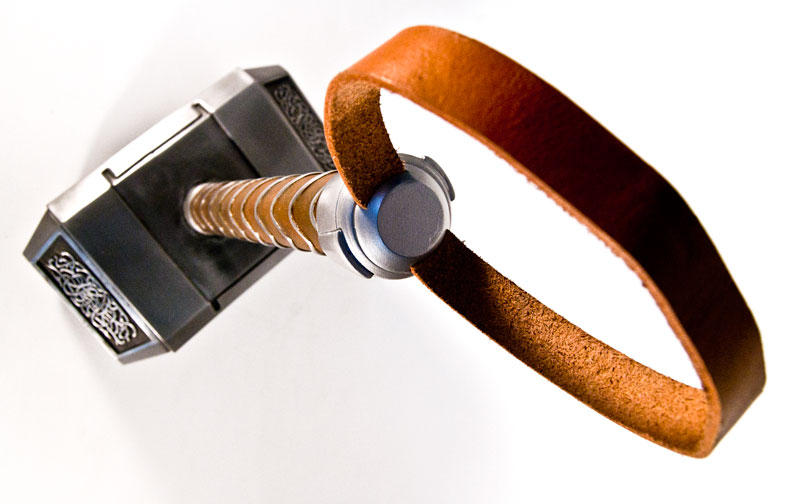

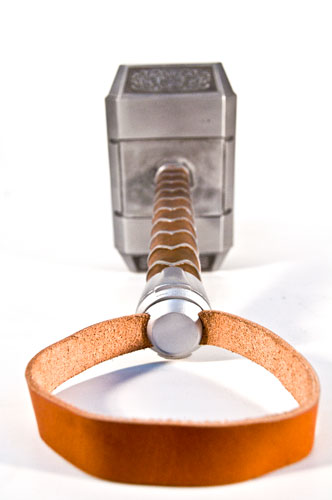

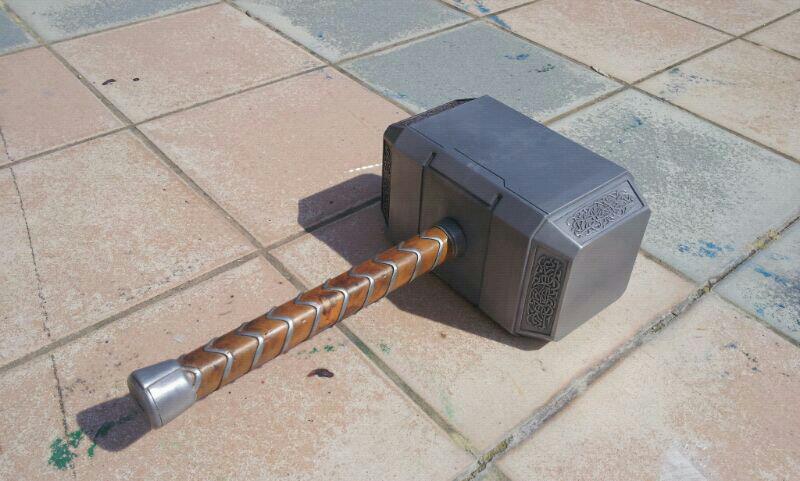

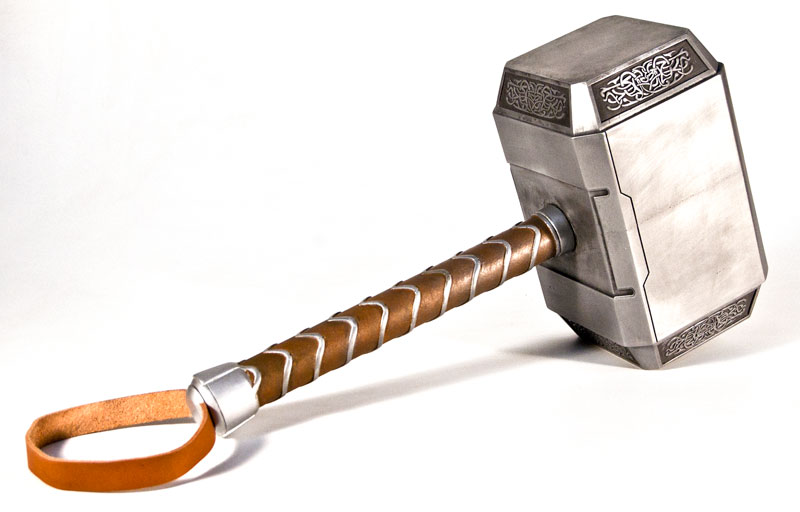

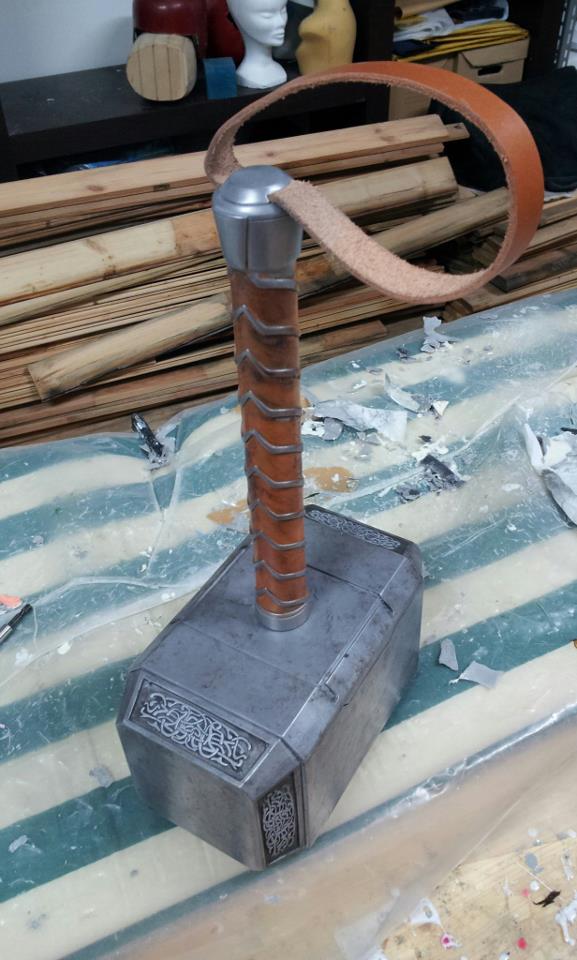

Eventually took some beaty shots of the hammer:



[rad1701]

Love it! Most impressive!



[Ghostsoldier]

Nice work!
Rob



[ahrensusmc]

Hey guys,
it's been quite a few weeks I had in mind to give a shot to this baby and I finally went at it.

I started making the template of the hammer head, thinking that my usual method would work.


View attachment 217962
View attachment 217963

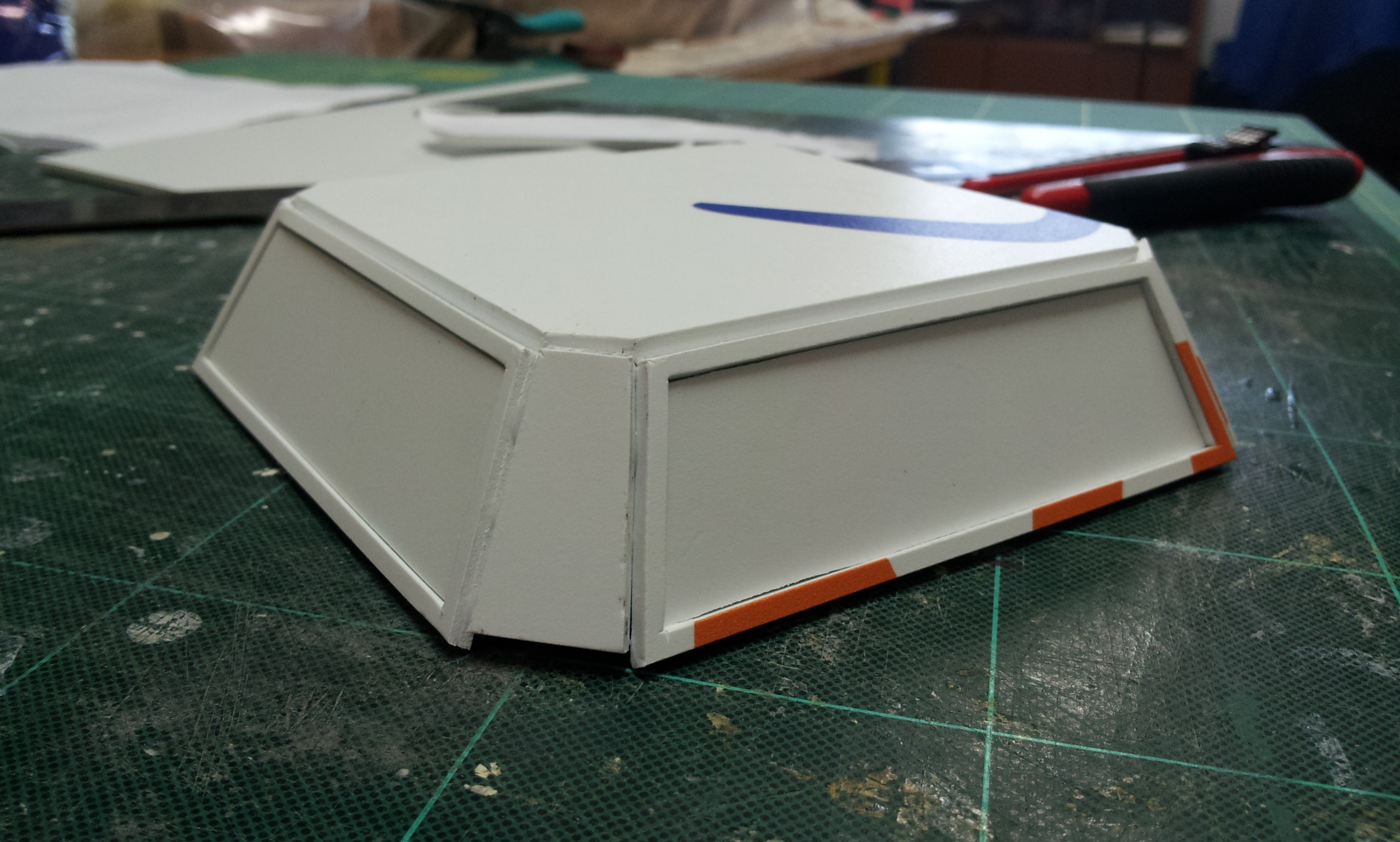

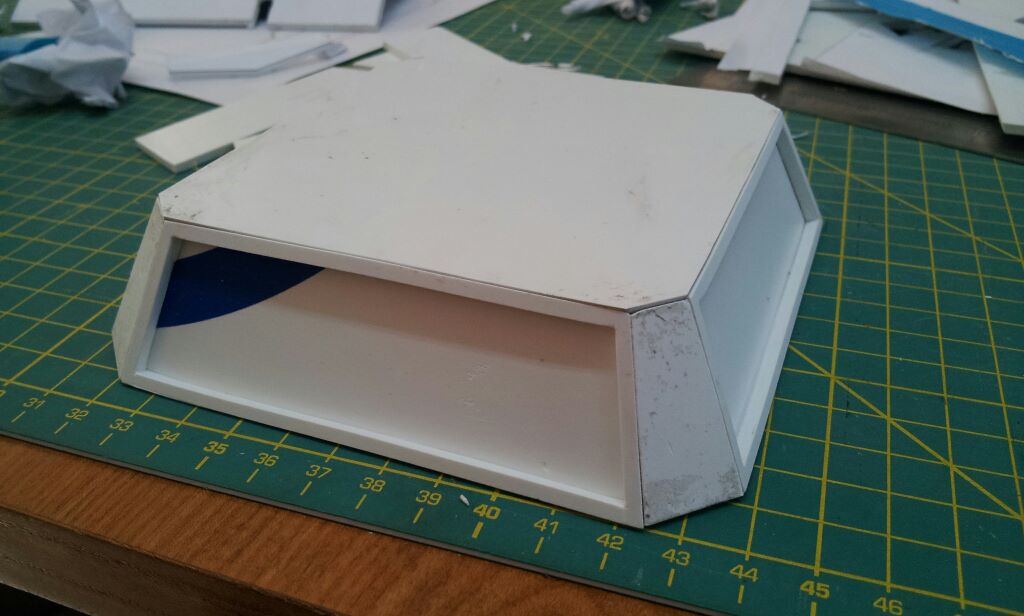

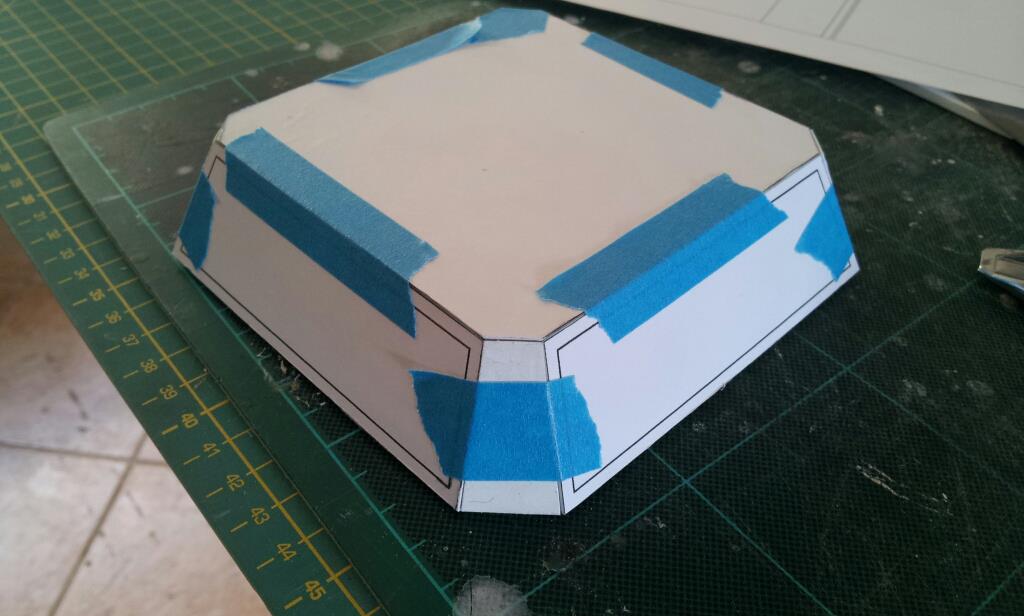

I then found out that making a narrow in the sintra and then bending it would affect sizing of the hammer, so I just cut the single pieces and then worked a 22.5° angle with my sander belt.

View attachment 217964
View attachment 217965
View attachment 217966

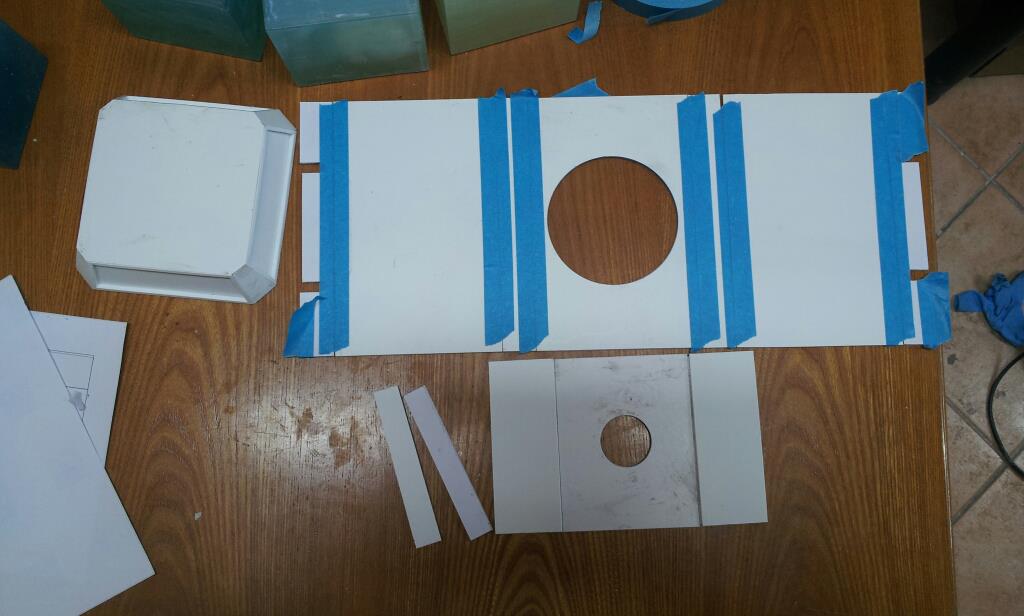

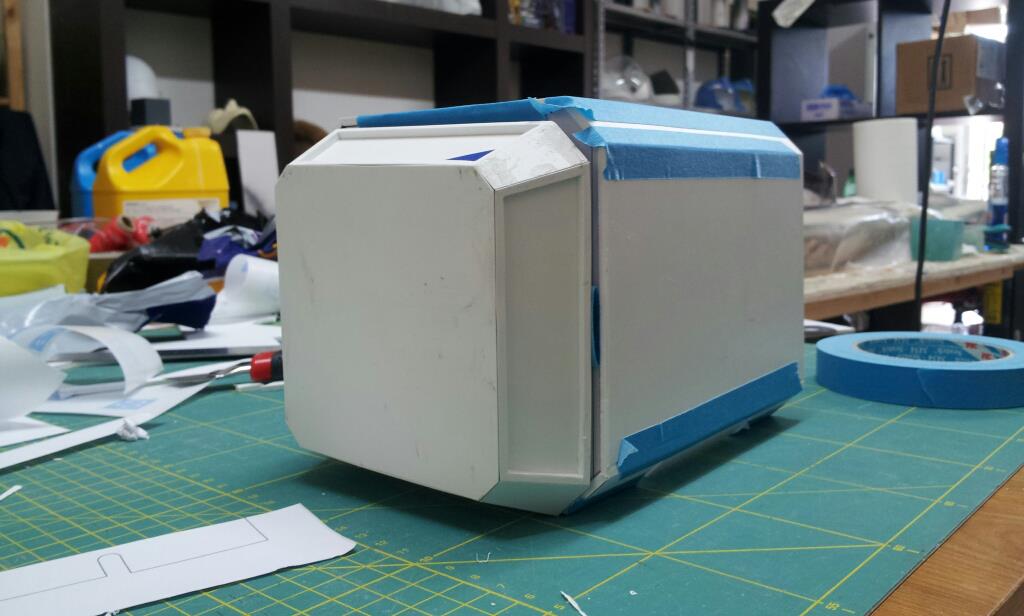

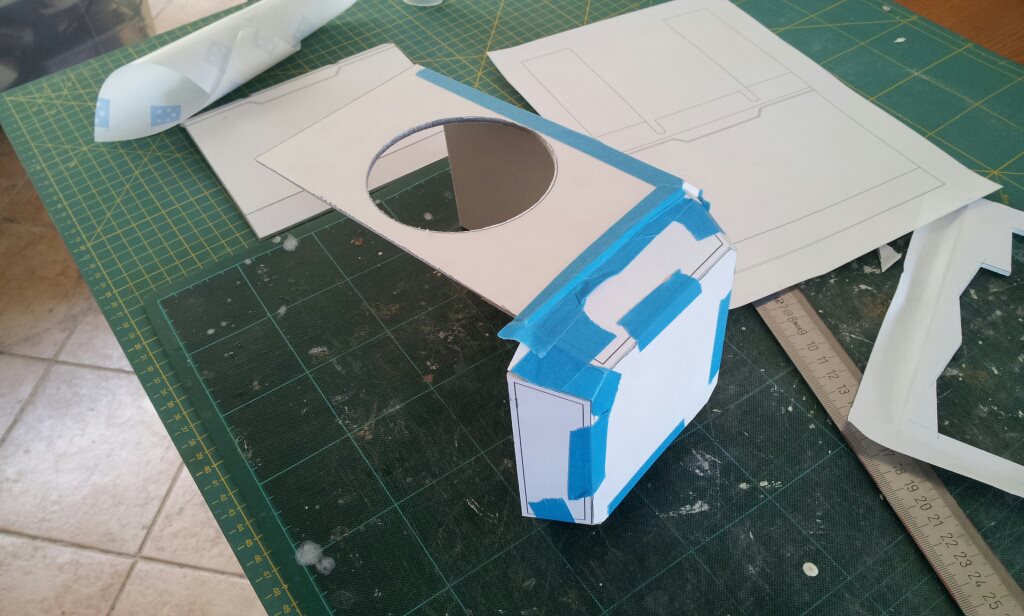

That just worked out good so I went on to work on the panels of the head using the same method.

View attachment 217967
View attachment 217968
View attachment 217969

Thor's hammer is pretty easy at the beginning stages with this method. Hard part comes when you need to engrave stuff The capstone engraving required two tries before I got it right, but the panels are just impossibile to do by hand.

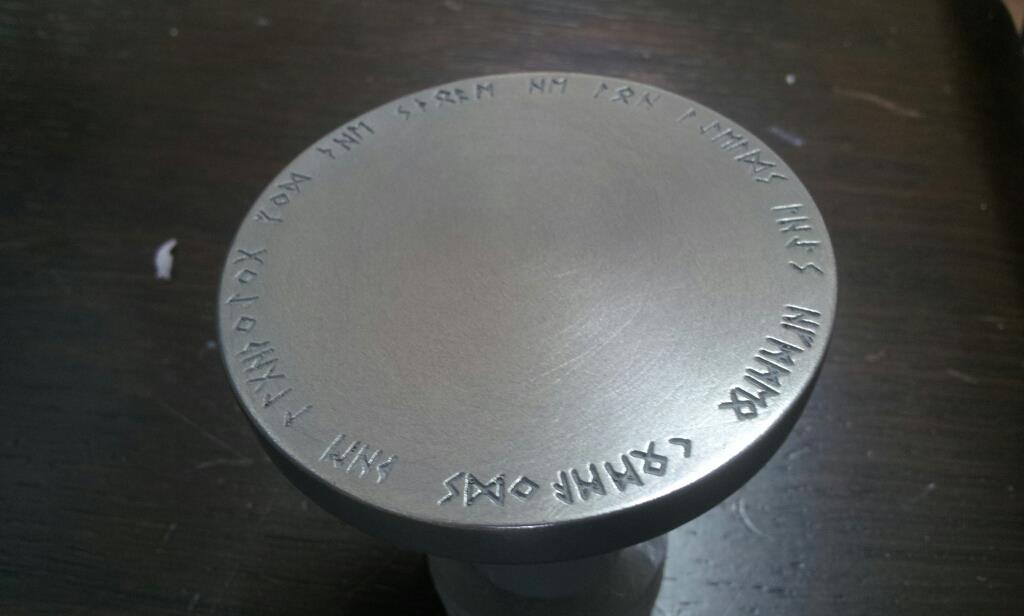

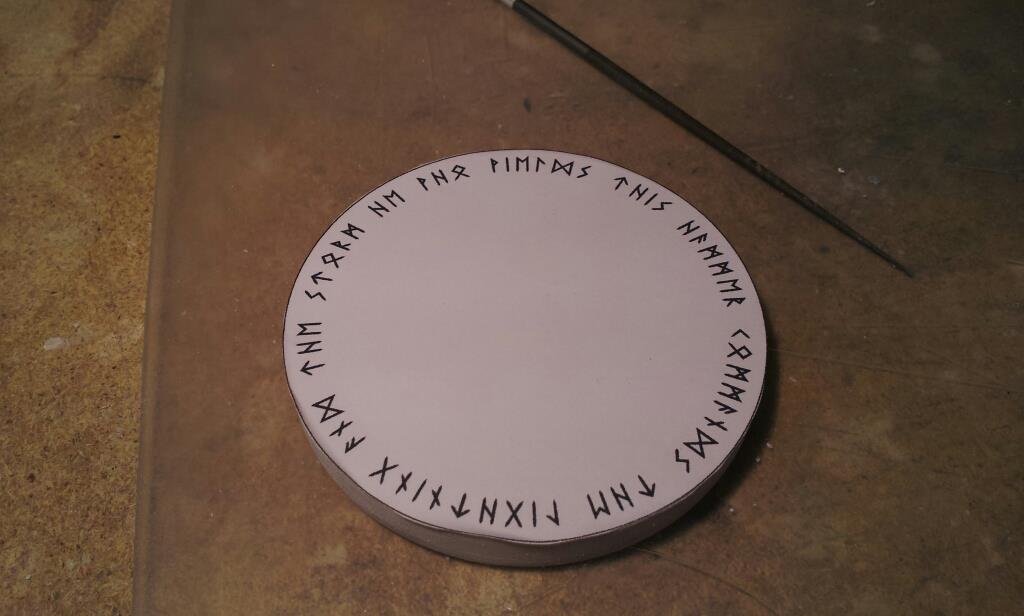

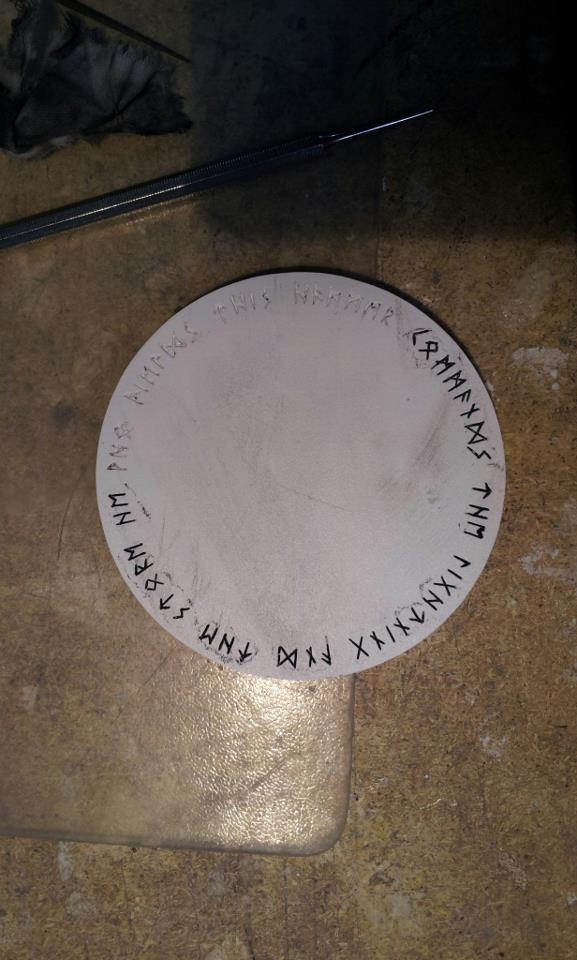

For the capstone I just made the template, printed it on a sticker and then used a edgy tool to engrave the runes

View attachment 217970
View attachment 217971

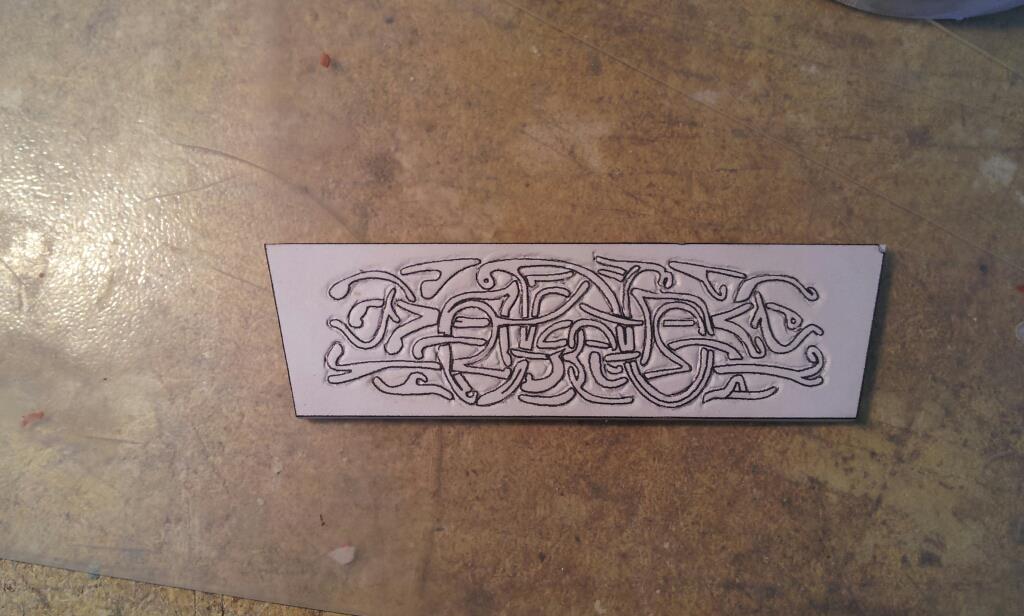

Here's my first try doing the panel engravings:

View attachment 217972

I'll have to get them laser cut eventually.

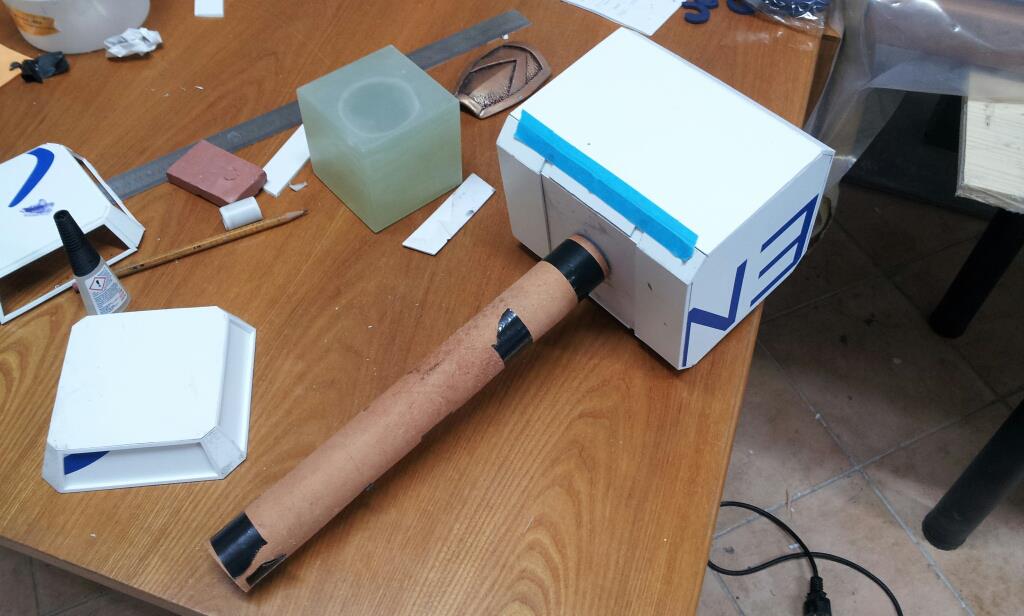

I then went on to cut the holes for the capstone and the handle which I made 3.2 cm of diameter. I'll then use a 3mm thick leather to cover it and make 3.8 as it supposed to me.

View attachment 217975

The hammer measures a little bit more then the 5 inches x 8 and some as seen in the "profile in history" auction catalog for captain america.

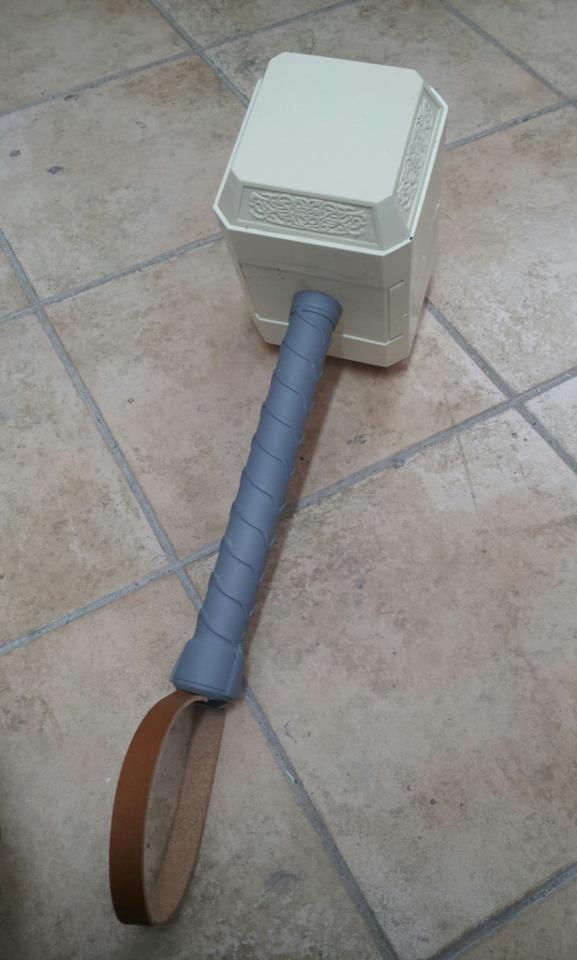

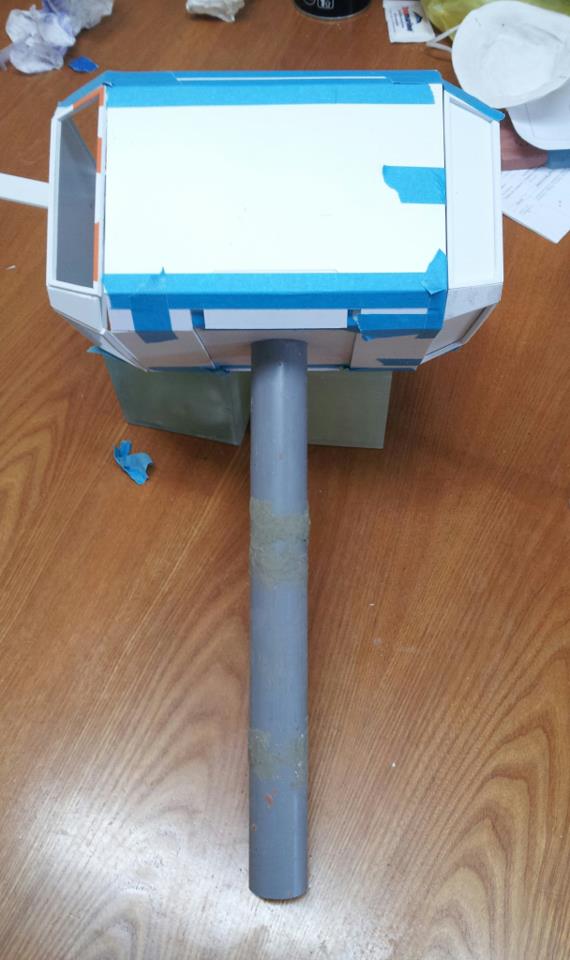

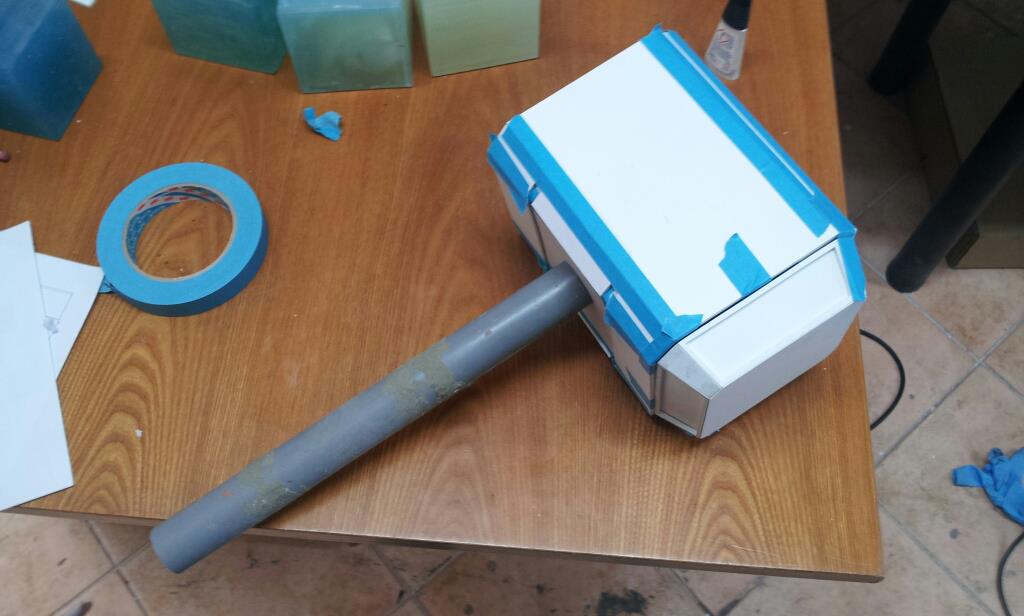

Here are the pics of the mockup

View attachment 217974
View attachment 217973

Thanks for your attention

Nice work on the runes. Most people get them all switched around. I'm pretty sure the one's used in the movie are even guilty of this.



[stonekeat]

Hey guys,
it's been quite a few weeks I had in mind to give a shot to this baby and I finally went at it.

I started making the template of the hammer head, thinking that my usual method would work.


View attachment 217962
View attachment 217963

I then found out that making a narrow in the sintra and then bending it would affect sizing of the hammer, so I just cut the single pieces and then worked a 22.5° angle with my sander belt.

View attachment 217964
View attachment 217965
View attachment 217966

That just worked out good so I went on to work on the panels of the head using the same method.

View attachment 217967
View attachment 217968
View attachment 217969

Thor's hammer is pretty easy at the beginning stages with this method. Hard part comes when you need to engrave stuff The capstone engraving required two tries before I got it right, but the panels are just impossibile to do by hand.

For the capstone I just made the template, printed it on a sticker and then used a edgy tool to engrave the runes

View attachment 217970
View attachment 217971

Here's my first try doing the panel engravings:

View attachment 217972

I'll have to get them laser cut eventually.
I then went on to cut the holes for the capstone and the handle which I made 3.2 cm of diameter. I'll then use a 3mm thick leather to cover it and make 3.8 as it supposed to me.

View attachment 217975

The hammer measures a little bit more then the 5 inches x 8 and some as seen in the "profile in history" auction catalog for captain america.

Here are the pics of the mockup

View attachment 217974
View attachment 217973

Thanks for your attention

Very nice build there. May I know how do you get the pattern on the side of the hammer done?
I mean the one you engraved on wax and then used resin to get a positive.
You did it manually with hand tools?



[Pannaus Props]

It was done on adobe flash and then laser cut.
The wax thing was just a try to see if I could do it myself



[stonekeat]

It was done on adobe flash and then laser cut.
The wax thing was just a try to see if I could do it myself

Thanks for the reply.
would you mind share the file for the runes and pattern on the hammer?
because I was unable to do it free hand. would really appreciate it if you could share it.
but I am also understand that you have the right to not to share them..

Anyway, thanks in advance



[SigsegV]

Absolutely fantastic job. I'm working on making the Thor version of this out of foam right now and I'm having some trouble figuring something out from reference pictures. Do you know if the spiral pattern is the same in the Thor version as in this one? For that matter, is it even a spiral in Thor? I can't find any reference pictures of it connecting at either end of the handle, but most of the reference pictures I'm finding are of the stunt version.
