Another BTTF Pepsi Perfect Build Thread. (Update 29/01/2017)

[EmmaInCandyland]

Re: Another BTTF Pepsi Perfect Build Thread. (NEW PIC PAGE 3)

Does anyone know the dimensions of the fliptop straw? I am going to be creating these pieces this week and would like to get as accurate as possible.

Thanks!

9" or 10" tall i guess?



[nitrox]

Re: Another BTTF Pepsi Perfect Build Thread. (NEW PIC PAGE 3)

Yup I wad guessing around 1cm tall also, I'm kinda hoping Gaty will chime in with tje depth and width of his straw as I'm going to be going the same construction route as him.



[nitrox]

Re: Another BTTF Pepsi Perfect Build Thread. (NEW PIC PAGE 3)

OK, so after a two week vacation and a week of catching back up on work, I have some updates :-

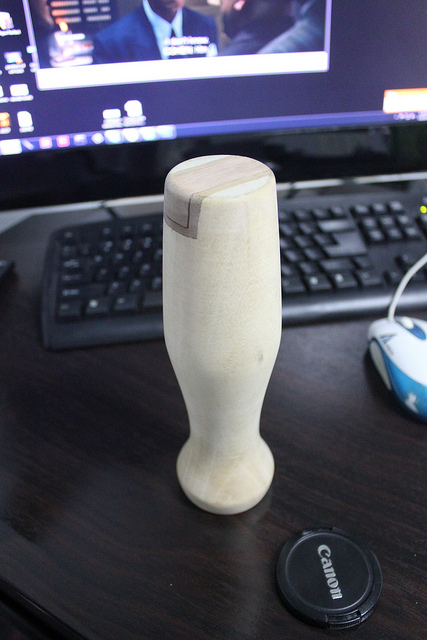

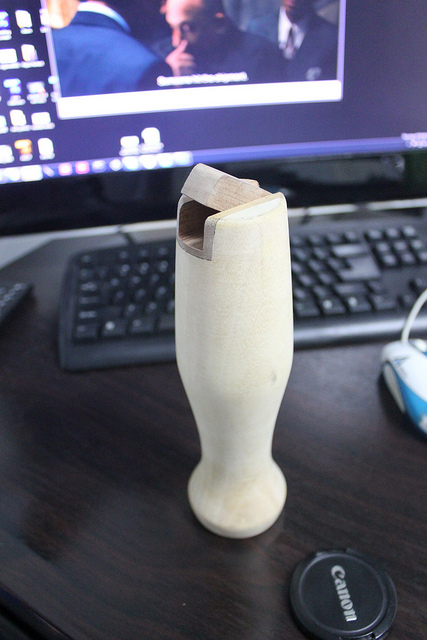

This is my prototype, eventually I will cast each piece out of resin and offer this out as a kit complete with stickers. Let me know your thoughts guys and girls!

Oh and after a two week vacation I see some crazy changes have taken place here, I'm sure I'll get to grips with this new layout at some point.

Dan.



[Wallabe]

Re: Another BTTF Pepsi Perfect Build Thread. (New Pics April 25th))

That prototype looks fantastic, but it's hard to give feedback on the flip-top from that angle.



[nitrox]

Re: Another BTTF Pepsi Perfect Build Thread. (New Pics April 25th))

Yup I agree, they were a couple of quick photos I took, I will try and add some more over the weekend.



[MAKE BELIEVE]

Re: Another BTTF Pepsi Perfect Build Thread. (New Pics April 25th))

Hi mate

Looks great
I'll be waiting for more pics



[BoboFatt]

Re: Another BTTF Pepsi Perfect Build Thread. (New Pics April 25th))

Looking good. I'd be interested in a kit depending on price and if I have the funds at the time. Keep us posted.



[EmmaInCandyland]

Re: Another BTTF Pepsi Perfect Build Thread. (New Pics April 25th))

Looks nice



[nitrox]

Re: Another BTTF Pepsi Perfect Build Thread. (New Pics April 25th))

Looks nice

Thanks Emma. I'm hoping to have this all smoothed down and primered this Week



[EmmaInCandyland]

Re: Another BTTF Pepsi Perfect Build Thread. (New Pics April 25th))

Great From this point of view the cap looks a bit too thick, but we'll see once you'll take more pictures! Can't wait hehe



[nitrox]

Re: Another BTTF Pepsi Perfect Build Thread. (New Pics April 25th))

So after a long hiatus I have gone back to the drawing board after I just wasn't getting the results I wanted with the Wood.

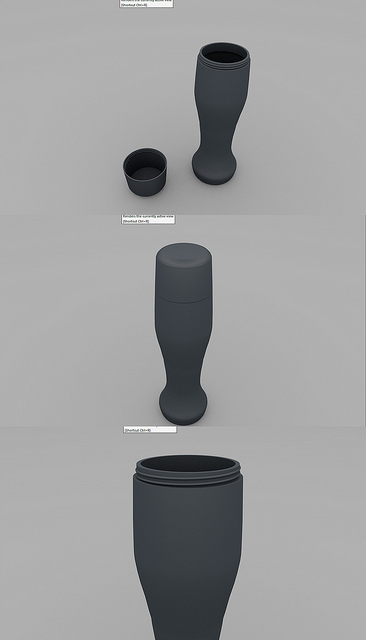

In two weeks time I have access to my friends 3D printer and together we will do something awesome, make a functional Diet Pepsi bottle. I have gone back to my original model and started making the changes needed to accomplish this, this project has been a long time coming but I WILL get there sooner rather than later. Enjoy the new pics:-



[Jedifyfe]

Re: Another BTTF Pepsi Perfect Build Thread. (Update 11/7/2013)

Love the screw top!



[nitrox]

Re: Another BTTF Pepsi Perfect Build Thread. (Update 11/7/2013)

Love the screw top!

Thanks Brad,

I'm also thinking of placing an o-ring on the bottom of the lid so a real seal can actually be made. I will also try to come up with someting that seals the bottle when the staw is folded closed. And yes, there will be a run folks.



[Jedifyfe]

Re: Another BTTF Pepsi Perfect Build Thread. (Update 11/7/2013)

That's cool. I would love to get one.



[BlobVanDam]

Re: Another BTTF Pepsi Perfect Build Thread. (Update 11/7/2013)

Looks good. Can't wait to see the results of this one! Hopefully the printer manages it.



[nitrox]

Re: Another BTTF Pepsi Perfect Build Thread. (Update 11/7/2013)

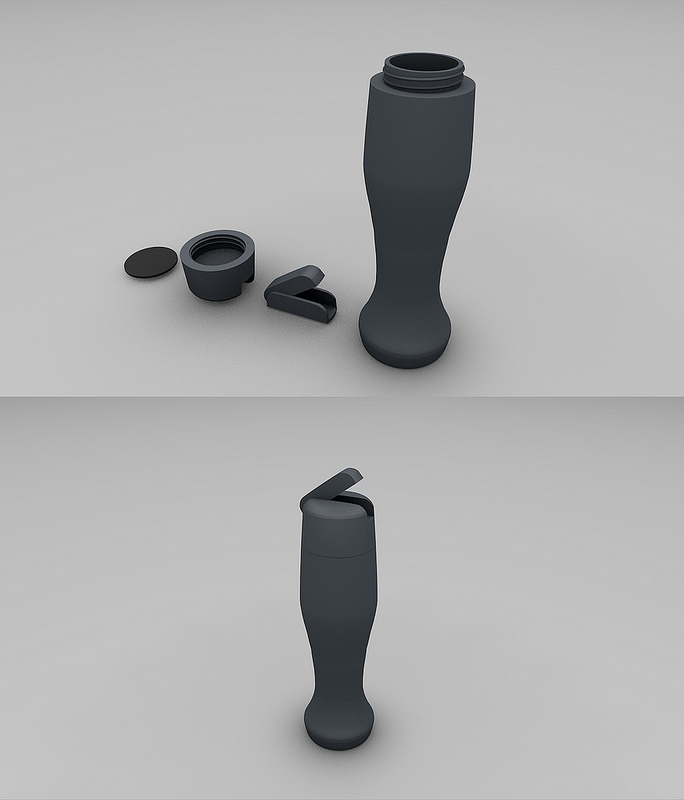

So, I have reworked the model yet again and I am pleased to say it's 95% finished. In the pictures below you can see how I have set the model out, the black disk will be printed then used to mold a rubber disk which will be placed in the lid to seal the bottle. I'm VERY pleased with how this has come out and look forward to the 3D printer arriving.

As always your thoughts are welcome and appreciated.

-Dan.



[Jedifyfe]

Re: Another BTTF Pepsi Perfect Build Thread. (Update 12/7/2013)

Paypal waiting!!



[nitrox]

Re: Another BTTF Pepsi Perfect Build Thread. (Update 12/7/2013)

Paypal waiting!!

Once I get the first print done and get it cleaned up for molding I will start an interest thread in the JY. Still a little way to go yet.



[mydigitalvoid]

Re: Another BTTF Pepsi Perfect Build Thread. (Update 12/7/2013)

Looks awesome! Can't wait to see it finished.



[brivette007]

Re: Another BTTF Pepsi Perfect Build Thread. (Update 12/7/2013)

I love watching the progress on this, it's looking fantastic! Are you just making the diet, or are you going to do the perfect as well?

I have to go calm my wallet down now...:behave
