1:1 Millennium Falcon Cockpit Replica - Group Build

[maruska]

So exciting!

Hey SK - have you considered making an infinity mirror for the nav computer display on the back wall?

Here's a tutorial. I'm pretty sure that's what they did on the original set.

Make An Infinity Mirror!

The laser cut bits you showed earlier served to mask some of the wiring, methinks.

J.



[SofaKing01]

Hi Gang,

Another great night at the Makers Local! I stepped out of the car and found one of these laying on the ground! Now I have two!

I met up with Daniel and finished up the swing arms

MMMMM Primer

MMMM Paint

ugh... bad pic

Now we're waiting for the new seat plates to arrive. More to Follow!



[Zippyy]

Hey guys, Scott here.

Thought I'd toss a quick update on the button panel's driver board before heading to bed. I've got most of the heavy duty wiring done, all that's left is one more chip and connections to the header pins.



[Toxx]

Hi Gang,

Another great night at the Makers Local! I stepped out of the car and found one of these laying on the ground! Now I have two!
http://i778.photobucket.com/albums/...sole Build057/20140522_183828_zps2e083144.jpg

where does it goes in your build?

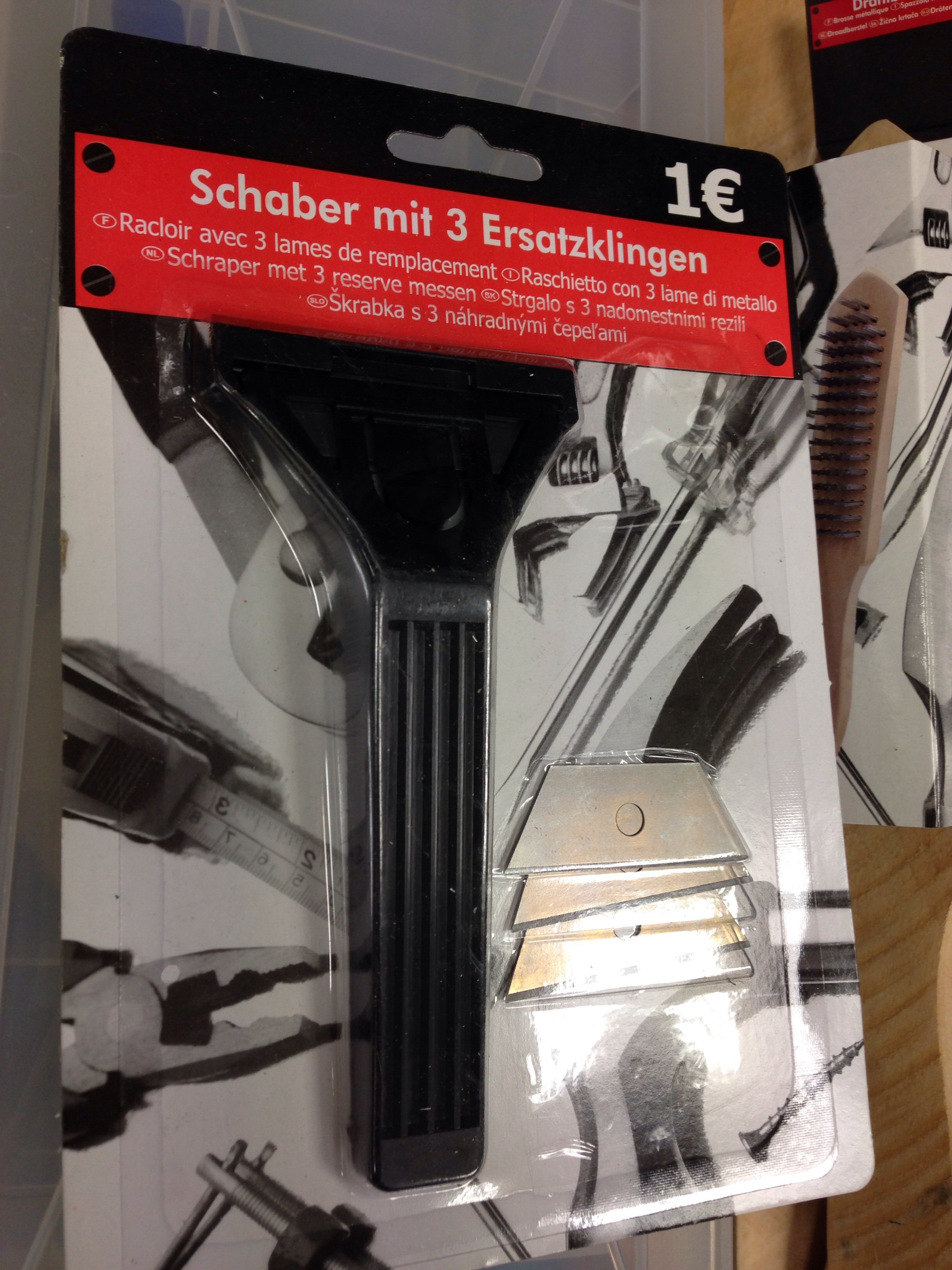

Found those in our local 1€ shop...



[HEMADEW]

Are you going to hang dice?



[Mike J.]

And what is the new button panel going to do?



[maruska]

And what is the new button panel going to do?

Pew pew!

; )



[SofaKing01]

Hi Gang,

I was at the lab early this morning. Jessie was kind enough to come in a wee bit early and help me get some things knocked out! Now it's break time! Enjoy

The morning started with my mounting this little guy - still needs paint and handle pads

Handle pads and other greeblies being laser cut

Pads and Paint

Need to add the plasti-Dip before mounting it

Check out the new liner Leah made! Excellent workmanship!

Jessie and I then got to work on multiple greeblies. Some we haven't laser cut yet... Those are coming

LOVE IT!

All these new greeblies got a layer of filler & primer

Paint is added

This new greeblie is now mounted and ready for show!

One step closer...

Hey now... the skin arrived! Thanks Daniel!

Stay Tuned! LOTS MORE COMING!



[maruska]

I love the headliner! That is so very cool! Nice Leah!



[sonicscrudvr]

damn fine progress...



[SofaKing01]

Hi Gang,

I'm testing something with the radar scope... unfortunately, the laser cutter fan went down last night so I'm not sure when it's going to be fixed...

Laser Cut Pieces

Love that laser cutter

I'm not sure if what I'm planning will work...

These areas are all painted white - it's like a HUGE puzzle

Painted these red

And that's as far as I got last night... I'm headed to the lab now to apply the temp skin! More to Come!



[ataru72ita]

Hi Gang,

I'm testing something with the radar scope... unfortunately, the laser cutter fan went down last night so I'm not sure when it's going to be fixed...

Laser Cut Pieces


And that's as far as I got last night... I'm headed to the lab now to apply the temp skin! More to Come!

The more You go on the more the drooling process aggravates itself!!

Regards,

Alberto



[SofaKing01]

Hi Gang,

MORE UPDATES!

Jessie has been my hero these few past days... Taking time from her days off she's been helping me blast through all these projects before the Phoenix Festival!

The day stated out with our removing the canopy and prepping for the skin

Then we traced the canopy arch and created a second arch for the back

Found the correct position

Made some accommodations

Looking from Han's side toward the rear

We then bolted the new rear arch and added these horizontal braces...

Added some Velcro

And our first piece of the skin is applied - this is only temp to hide the wood

More beams

More skin

Unfortunately, because of the lower panels, we had to make them flat before creating the actual "curve" of the cockpit

Joe then helped me get started on this little greeblie

Jessie and me cleaning up the edges of the new front window trim

And LOTS and LOTS of greeblies

Somewhere in this pile is a lot of greeblies waiting to be put together

Jessie fab'd, primed and painted this greeblie only before finding out I measured everything wrong... UGH... It was too small...

Jessie also worked on our new name badges

Whew... It's been a LONG couple of days. We're hoping to have the skin finished this morning. Stay Tuned!



[trainman]

Nice to see the skin in place and the front window trim being cranked out.



[joberg]

Beauty! Love those updates with pics and stuff being built:cool



[SofaKing01]

Hi Gang,

Not as many pics as I would have liked... We have been pedal to the metal all day! Enjoy!

The day started with acrylic and the laser cutter!

Primer added

Lots of filler

Jessie created these faux cassette fronts - they were very prominent in the cockpit

More filler

A little Plasti-Dip going on

Back to the skin!

And then bounced over to here...

Another acrylic greeblie

Scott working away on making the button panel something special!

And another greeblie

Heat gun made this happen

Another greeblie - we call the tissue box (yes... we're strongly considering it)

More greeblies...

I can't wait to see this finished!

Showing a little more skin...

What the heck is this?

WHOA! We have a window! Jessie holding the front "temp" window!

WHEW... More to come!



[crystaloftruth]

The skin's looking cool already. Love that there's gonna be the front section of the window, even if it's only a temp version.
I also love that in all this there is an actual laser involved. )



[ataru72ita]

Yeahh!!! this is getting beautifully detailed too, couldn't expect more!

The laser cutter definitely is the dream propmaking machine!

Regards,

Alberto



[Michael Bergeron]

Love that front window!

Sent from my SGH-I317M using Tapatalk 2



[Toxx]

Hi Gang,

Not as many pics as I would have liked... We have been pedal to the metal all day! Enjoy!


http://i778.photobucket.com/albums/...sole Build060/20140525_103336_zps9b7c5ff9.jpg

Oh, euro look cylinders on the right, maybe you should imitate the keyway

More filler


Scott working away on making the button panel something special!
http://i778.photobucket.com/albums/...sole Build060/20140525_110704_zpsb88332f2.jpg

Ever thought about "wire wrap" technique? Your soldering skills needs a little improvement, young jedi...
