XCV-330 Enterprise model

[mmhnc]

I had to order more plastic, go figure right, it will be arriving middle of the week so hopefully I will have started by the weekend, look forward to a real update soon!



[mmhnc]

Plastic arrived yesterday, got the sides traced out and ruff cut, will get them cut out tonight and start on some details!



[mmhnc]

Go the sides cut out, and started figuring out where the vent thingies would go.



[mmhnc]

Ok got the "vents" cut out, I like it so far, hopefully next I will start connecting the 2 sides.



[JGG1701]

Looking good!
-Jim G.G.



[mmhnc]

Let night I had some time to start working on the tower vents.
first I drew everything out to fit in the opening.

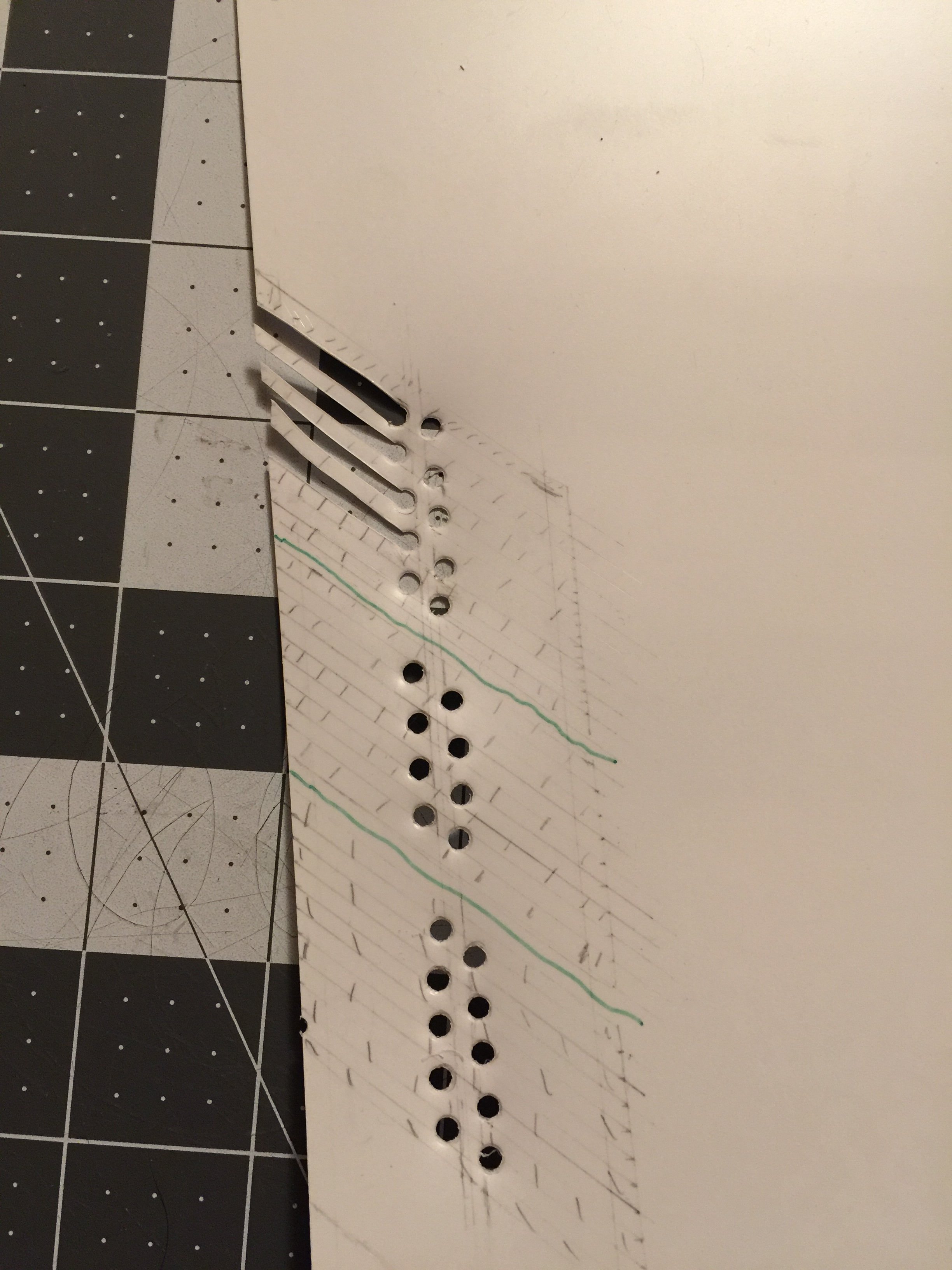

Then I tried to start by punching out the radius ends with a punch tool but as you can see that didn't work out, my blan B will be to file the radius in. Fingers crossed that works.


- - - Updated - - -

Looking good!
-Jim G.G.

Thanks for the support Jim, it's really appreciated!



[Duncanator]

I don't suppose you have access to a laser cutter? Cutting those pill shaped openings would be a snap. I know they are a pain to do by hand.



[mmhnc]

Good idea, I may have a connection or 2 with access to a laser cutter, I will have to see if they can help.

I don't suppose you have access to a laser cutter? Cutting those pill shaped openings would be a snap. I know they are a pain to do by hand.
