X-Wing part ID help please.

[Redfinger]

Kit ID help please.

I am 3d printing a studio scale xwing and running into problems with the wing.

Anyway, I have decided to scratch build the wings.

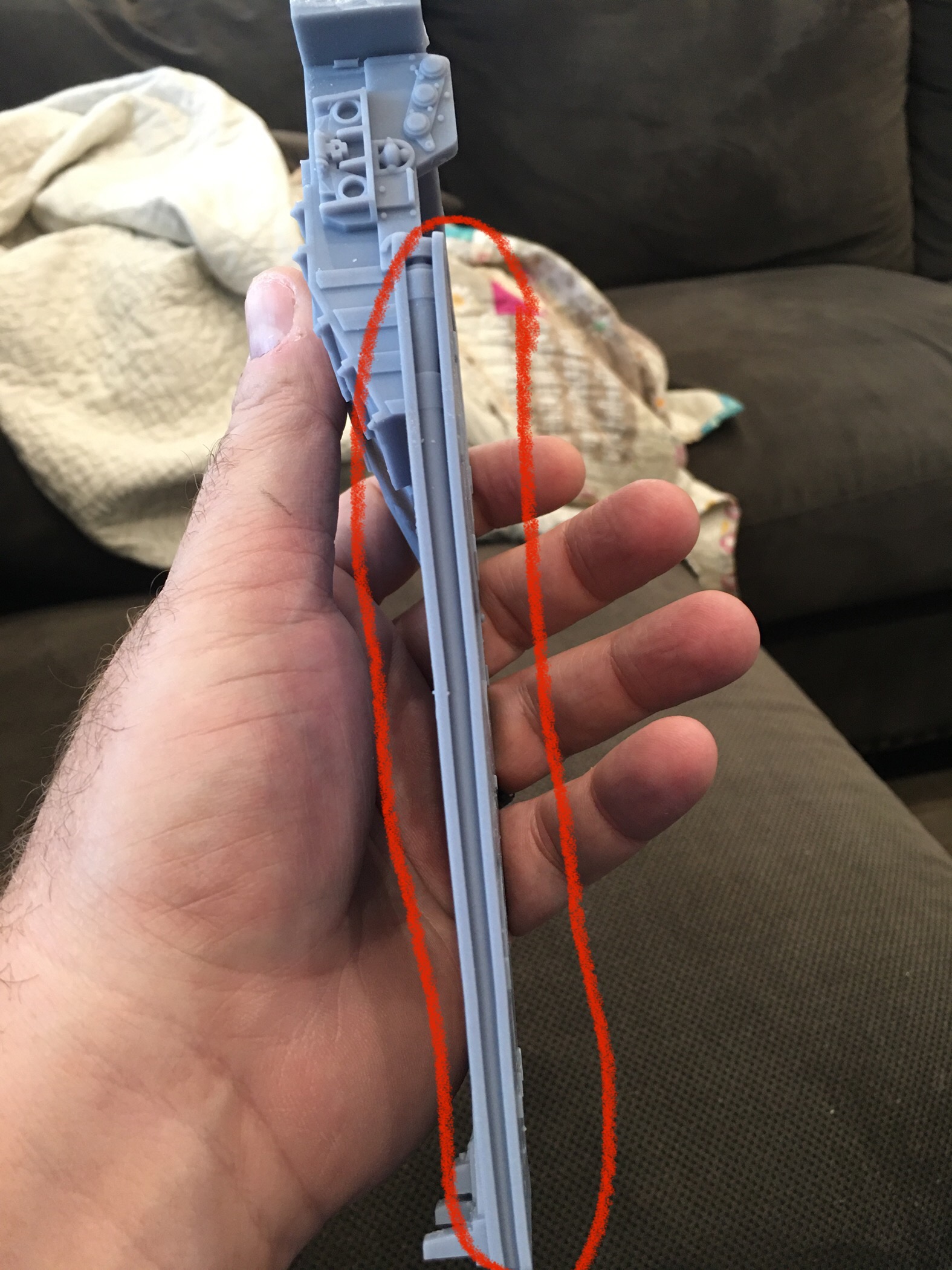

On the back of the wing is the groove that this pipe like part is in. I am assuming this was just half-round styrene on the original studio model?

Also, at 1/24 scale, what thickness styrene should I use to make the wing overhangs the right thickness?

Any input would be appreciated thanks.



[Jkirkon]

I think I’ve used 2mm styrene rod, or a similar size brass tube



[Jkirkon]

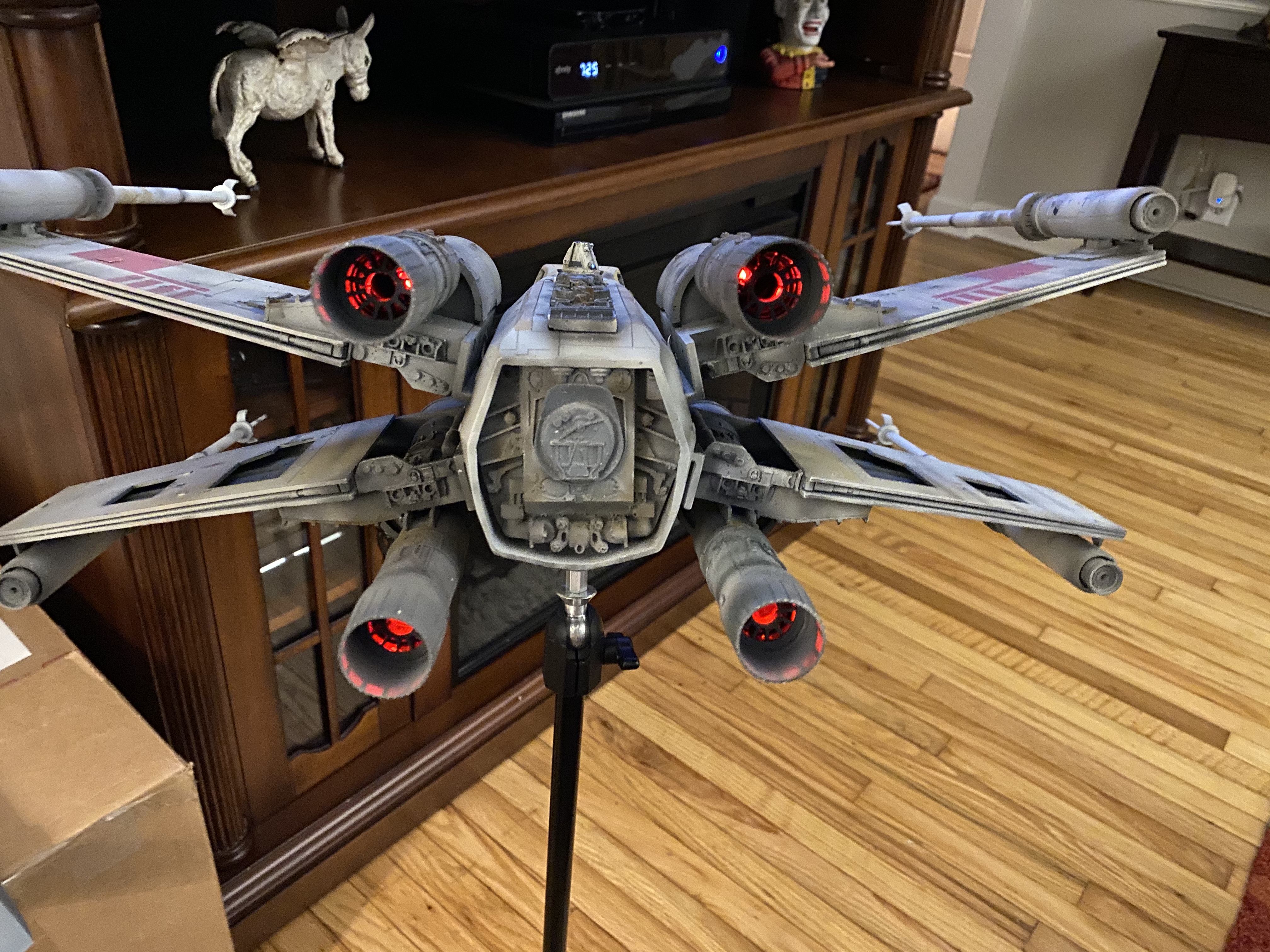

I think the 2mm styrene rod is correct. If you zoom in on that area on my Red4, you’ll be able to see that.
I don’t have the Plastruct part number offhand.



[Redfinger]

I think the 2mm styrene rod is correct. If you zoom in on that area on my Red4, you’ll be able to see that.
I don’t have the Plastruct part number offhand.

Thank you very much for that clarification!

I have read that the detail part in the recess near the fuselage is from the Tamyia 8 Rad kit? Are you able to clarify that?

A.



[Jkirkon]

Offhand, I believe you are correct.



[ganesha7]

Thank you very much for that clarification!

I have read that the detail part in the recess near the fuselage is from the Tamyia 8 Rad kit? Are you able to clarify that?

A.

While that would be correct for most Xwings, others use a bit from the Hanomag.
I don't have access to my notes, but I believe Blue1/Red2 should be one of those with the Hanomag greeblie.



[Redfinger]

While that would be correct for most Xwings, others use a bit from the Hanomag.
I don't have access to my notes, but I believe Blue1/Red2 should be one of those with the Hanomag greeblie.

Thanks for that clarification, I am doing my best to represent Red 5.



[ganesha7]

Thanks for that clarification, I am doing my best to represent Red 5.

Check this post by the great Moska:
XWing Parts Maps

It should cover almost everything you need to know about the Xwing kitbash parts.
