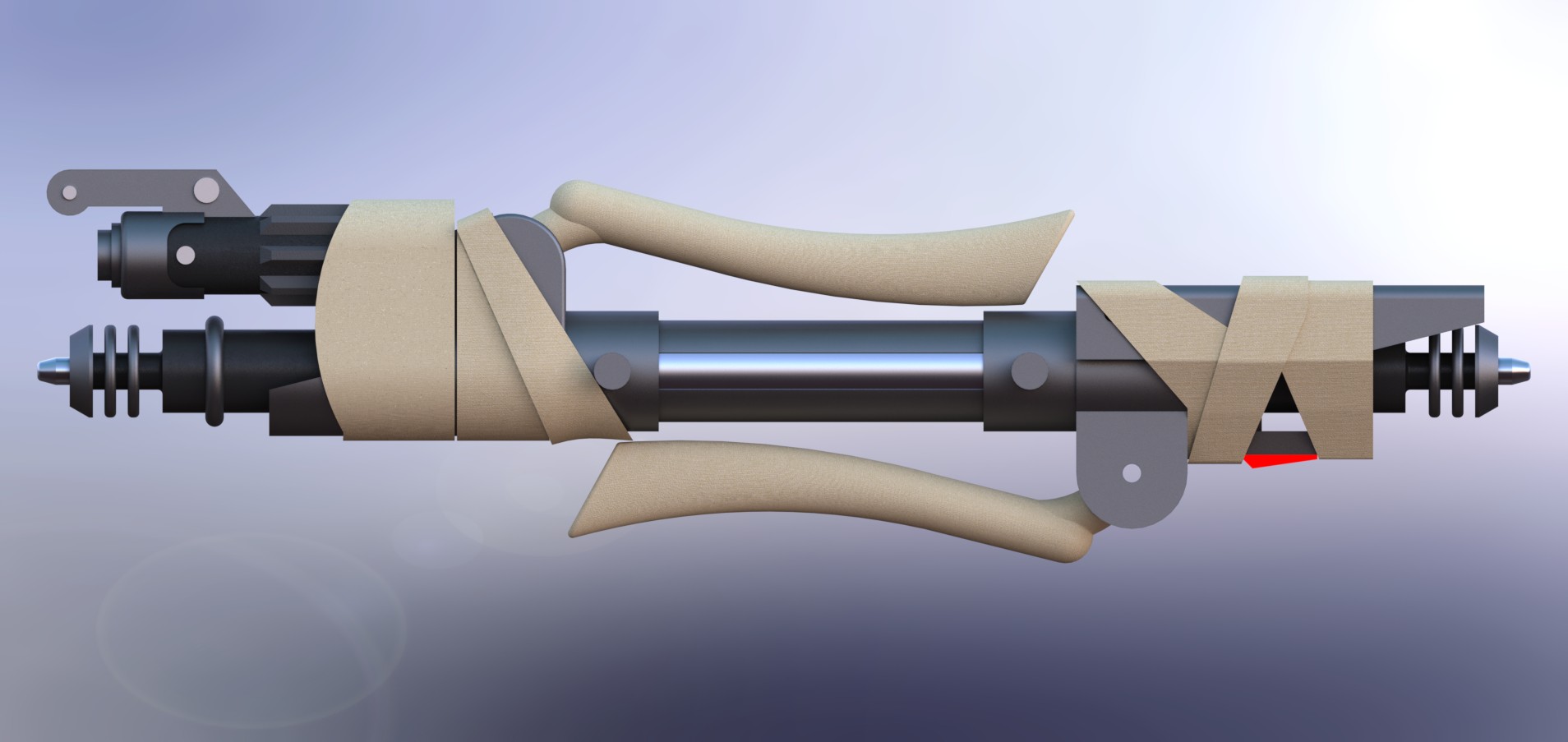

Some of you may remember seeing this pic a while back.
While I was waiting for certain equipment I decided to try my hand in engineering this beast. I got as far as getting the cosmetic stuff done, but I could not figure out how to get it to extend and retract like in the show. Well today I decided to revisit this.

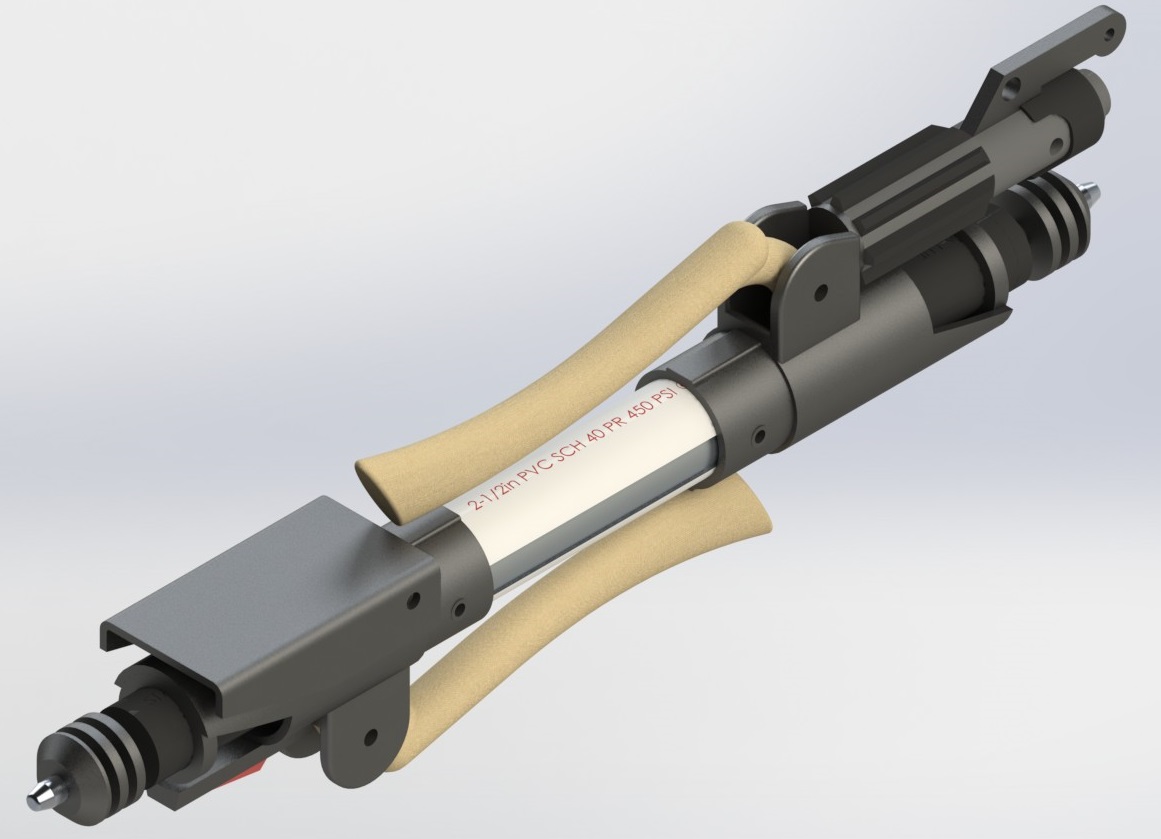

The difference between the 2, is the second has been designed to be made, not just look correct. This is a static length prop, mostly because I can not figure out how to build the mechanism in the space available. That being said, I still have a few other things to figure out. Namely the trigger and how to make up the various pins that stick out all over the place.
I should be starting the build real soon.
While I was waiting for certain equipment I decided to try my hand in engineering this beast. I got as far as getting the cosmetic stuff done, but I could not figure out how to get it to extend and retract like in the show. Well today I decided to revisit this.
The difference between the 2, is the second has been designed to be made, not just look correct. This is a static length prop, mostly because I can not figure out how to build the mechanism in the space available. That being said, I still have a few other things to figure out. Namely the trigger and how to make up the various pins that stick out all over the place.
I should be starting the build real soon.
![DSC_0042[1].JPG](https://therpf-f28a.kxcdn.com/forums/data/attachments/211/211623-933c93880ba072d5b37b1dcfda3e29d6.jpg "DSC_0042[1].JPG")
![DSC_0043[1].JPG](https://therpf-f28a.kxcdn.com/forums/data/attachments/211/211624-af987523d7f5176c613c76fc4099a090.jpg "DSC_0043[1].JPG")

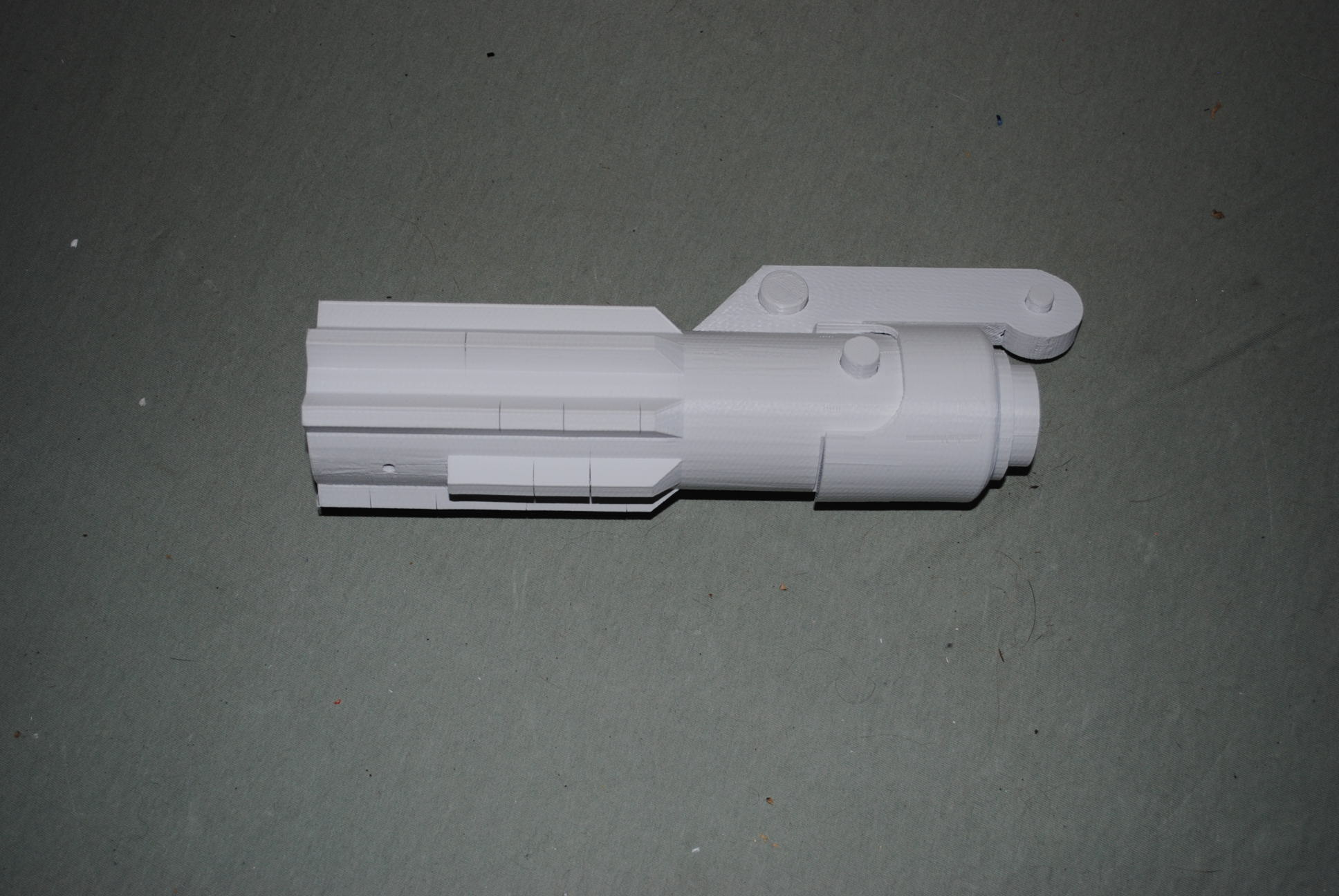

![DSC_0044[1].JPG](https://therpf-f28a.kxcdn.com/forums/data/attachments/211/211626-d93c4b8ba870fc7a08f5d5dafc18874c.jpg "DSC_0044[1].JPG")
