Tutorial DIY DC-17 Clone Trooper Pistol (FINISHED!)

Re: DIY DC-17 Clone Trooper Pistol - WIP

Well, after a couple of weeks of constant work I finally finished the basic construction of my DC-17 hand blaster!
https://www.youtube.com/watch?v=-Zn8auahLTQ
Now I have to add putty, sand, add putty, sand, add putty and sand again a gazillion times before painting it. I want it to be pretty much perfect :p


But first I'll take a few days off. Happy new year! :)

Re: DIY DC-17 Clone Trooper Pistol - WIP (Ready to paint!)

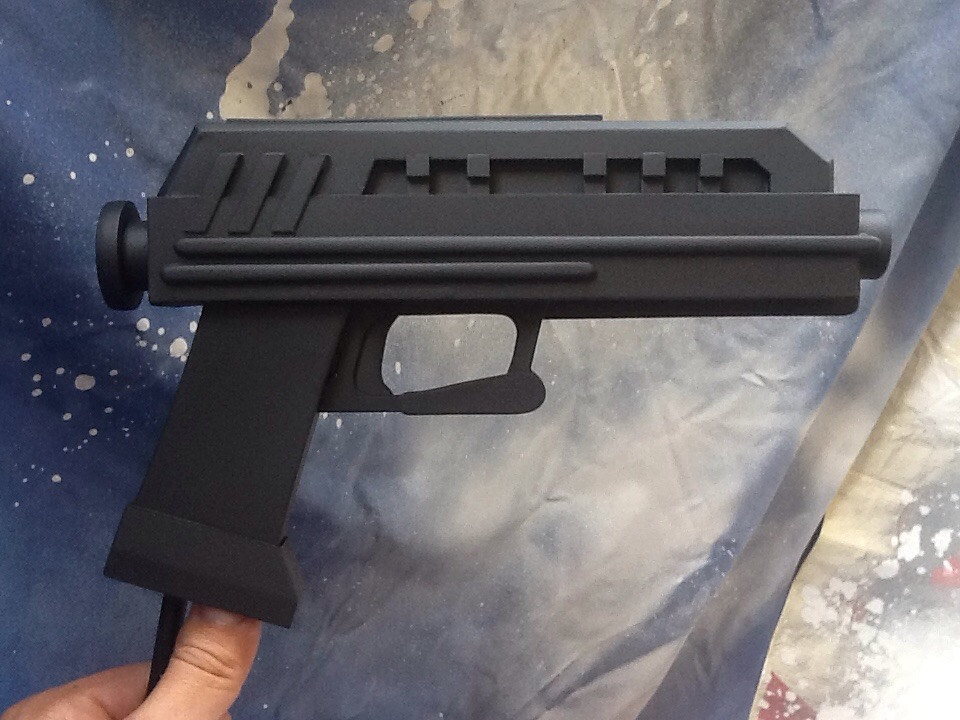

Almost there! :)


Attachments

  • image.jpeg
    173 KB · Views: 297
Re: DIY DC-17 Clone Trooper Pistol - WIP (Ready to paint!)

Aaaannd... done! Really happy with the result. Now I can focus on my armor again ;)



This looks absolutely amazing! I have downloaded the blueprints to start my own so thank you for such an incredible look. My only problem that I'm running into is finding a place that supplies sheets of this type of plastic

These are so awesome. I am well underway building a set of these. I have gotten to the point where I am now thinking about the electronics part. I found the LED's like he used, battery pack and correct push buttons. But I'm thinking why have lights if there is No sound? I have done some research on it but would like to hear some suggestions about how to add sound from you all.

Last edited:
Depends on how much you want to spend.. and your skill level on electronics things?

You can use an Adafruit SoundFX board..

or a DFPlayer MIni board to add 'sounds'..


You can expand on these by using an Arduino to control the lights as sounds together.. to get a more seamless type effect.

While this a bit more extravagant and created for the full sized DC-17 blaster..
T
his is a kit I came up with a few years ago:


Last edited by a moderator:
That is really impressive!!! I want mine to act similar to that.I was already looking at the DFPlayer. I have 0 skill with electronics but that doesn't scare me. I'm always up for learning something new. I want the blasters to have the LED to flash when the trigger is pulled with the blaster sound to go with it. I appreciate you help.

You need to decide if you are going to use an Arduino/micro controller with it. or have it stand alone?

With it.. your LED control will be limited... to just on/off based on button pressing.
