TLJ graflex grip qurstion.

[REVANSSkywalker]

Do the grips in TLJ run the entire length of the graflex bottom or are they spaced like in the Maz box version from TFA?



[roygilsing]

No, they are the same as the other TFA hero saber (Finn's saber):

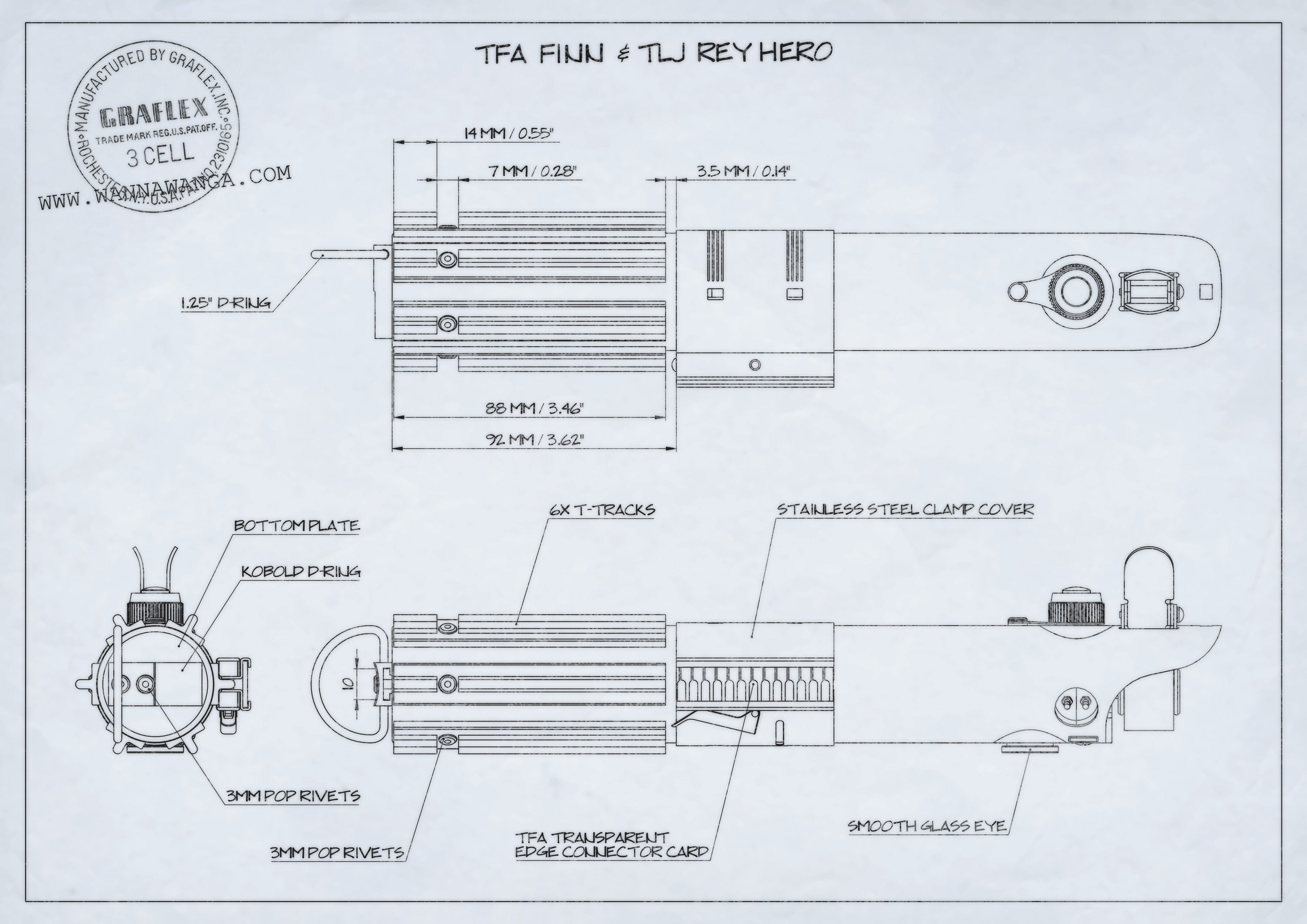

The numbers are slightly different than in this image: length grip: 88mm, cut notch: 7.0mm wide and 14.0mm distance from edges. The rivet head diameter is 5.6mm.

Roy



[REVANSSkywalker]

Thanks Roy!!!



[Title]

The better looking length IMO Never was a huge fan of the Maz box grips



[roygilsing]

The better looking length IMO Never was a huge fan of the Maz box grips

Me neither! They made a good choice imo. And I think they were more consequent throughout TLJ.



[Halliwax]

Love your 3d model work roy!!


Sent from my iPhone using Tapatalk



[AnubisGuard]

Bumping this because I'm doing a TFA/TLJ conversion – the grips touch the bottom the the can, right? If so, how does the 3.5mm gap between the grips and the clamp work?

3-cell bottom: 92 mm (the 2 Roman's and 1 vintage bottoms I have actually stick out 92.5mm when pushed all the way in)

Grips: 88mm

Which leaves a 4mm gap. (4.5mm, in the case of my flash, which looks absolutely enormous.)

So...what gives?



[PrinceZip]

Contrary to popular belief, TLJ Hero (one displayed in Awesomecon) has a grip length of about 90mm, and not 88mm that many people believe it to be.



[Halliwax]

I also think vintage bottom cans are not consistent in length



[AnubisGuard]

Contrary to popular belief, TLJ Hero (one displayed in Awesomecon) has a grip length of about 90mm, and not 88mm that many people believe it to be.

That's more in line with what I'm seeing. I've modeled a 90mm version and am having it printed. Thanks!



[PrinceZip]

AnubisGuard
Cool! Can you show me your grips when completed?



[AnubisGuard]

AnubisGuard
Cool! Can you show me your grips when completed?

Sure thing.
