the dark knight batcage

Discussion in 'DC Costumes and Props' started by Yarooon, May 14, 2015.

  1. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    So i was thinking about this for awhile and now i finnally was able to start building it with the help of the BCD prop club( yes the guys who make those awsome star wars sets )

    i came recently invthe possesion of a 1:6 batcage so i used that one to make mine 1:1
    doors will open at both sides
    parts or them will be lasercut

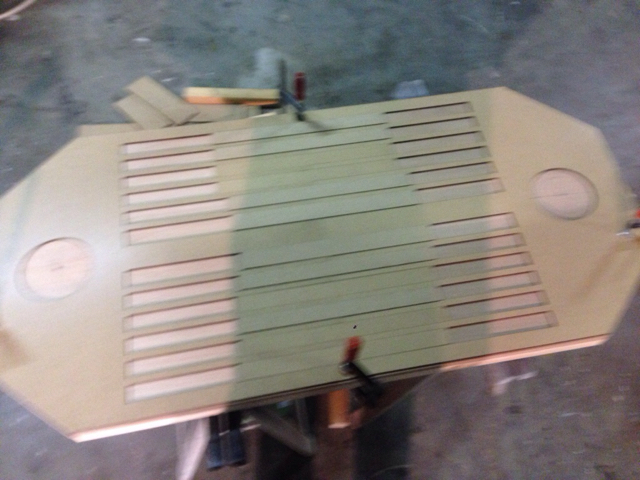

    ill write a more detailed process later this week here are some pictures of my progress

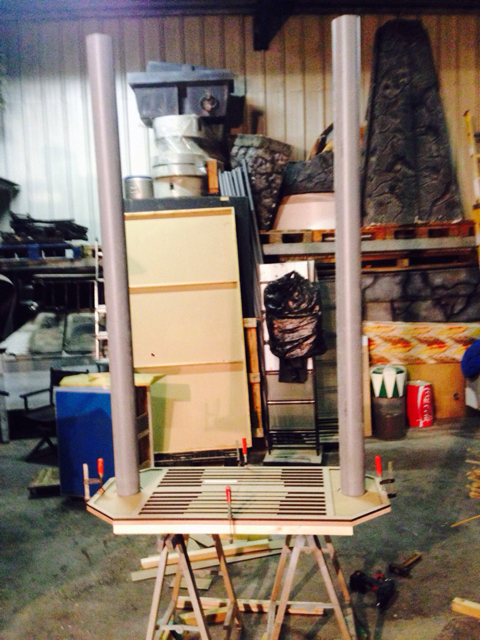

    ImageUploadedByTapatalk1431638634.838447.jpg ImageUploadedByTapatalk1431638673.304348.jpg
    ImageUploadedByTapatalk1431638695.800634.jpg ImageUploadedByTapatalk1431638708.569595.jpg

    the 1:6 cage im using ImageUploadedByTapatalk1431801123.166763.jpg

    Last edited: May 16, 2015
    Art Andrews and Knight Watchman like this.
  2. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    gadgets
    since i need lots of them i started together with teragon on sticky bomb gun the belt mines etc
    sticky bomb has been laser cut and in progress of being build ( 1st prototype) in need 3 of them for the cage so here are some pictures of first pieces that i have build needs some filling and sanding offcourse






    PlayWithFire and Knight Watchman like this.
  3. Forge

    Forge Member

    Trophy Points:
    191
    Nice so far, I'll be following this, interested in making one myself but for motorcycle gear.

  4. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    the basic design aint hard the thing is mine needs to be constructed so its easy to be transported to cons
    the cage itself is around 1,30m long and 65cm width 2m heigh plus the top on there

  5. teragon

    teragon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    The mini mines (and sticky gun trigger) curing in the sun

  6. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    im using 3 different size of pvc pipes 90mm/110mm/125mm

    the 90mm is being used as base pieces they are attached to the bottom plate and the top one

    the 110mm is a complete length roughly 2m will have lasercut discs inside and ( steel profile ) it slides over the 90mm and one of the discs will have a disc that fits on to the 90mm disc so that the disc can't move when on the 90mm pieces

    the 125mm disc will be cut in several pieces so that the hinges for the door and gear boxes can be slided over the 110mm pipe

    the steel profile will have thread on top and bottom so they can be screwn in steel frame at bottom and top and make it all more stable

    im thinking of making a bit of the concrete floor around the cage so that the doors are supported by the floor when open

    i hope i wrote it down in a way most of you can understand ;)

    Knight Watchman likes this.
  7. mattycsi

    mattycsi Sr Member

    Trophy Points:
    1,990
  8. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    ill be going for a lightweight effect it needs to be transportable

  9. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    ImageUploadedByTapatalk1432041340.721341.jpg ImageUploadedByTapatalk1432041358.387121.jpg ImageUploadedByTapatalk1432041372.120773.jpg
    these pieces arrived in the mail ill be cashing the check soon :p

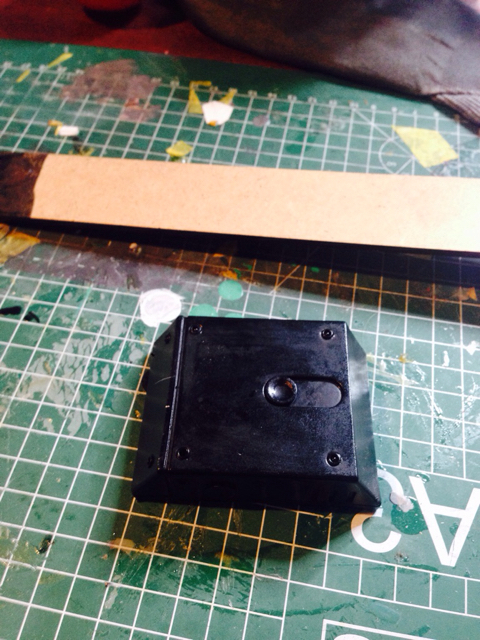

    this is the button that the sticky bomb gun will have on the static displays

    PlayWithFire likes this.
  10. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    19010_10206005508469939_6718456539301395537_n.jpg 22381_10206005508749946_1642928058007401809_n.jpg 10421516_10206005508269934_1350866367287978363_n.jpg 11232078_10206007142870798_9042683883474175285_n.jpg

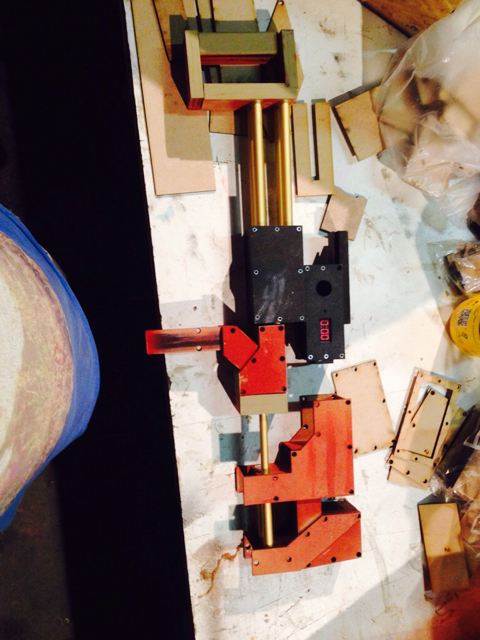

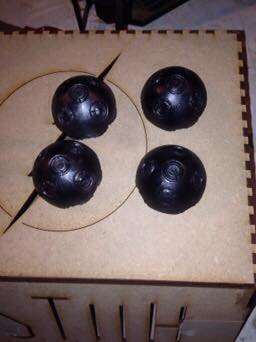

    here are some pics of the first mines and a sticky gun prototype ( rest will be comming later)
    i have been working on the cage ordering metal and doing some calculations so nothing worth showing

    PlayWithFire likes this.
  11. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    since im working away from the cage at the moment i have instructed some friends to print some gadgets so i can work forward when i get back home here is one of those straight from printer ImageUploadedByTapatalk1433114532.087312.jpg

  12. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    Small update test of roof and bottom together with a suit (yes i know the belt is too low)
    Our original plan was to be able to take down the hole thing for transport but we decided against it we are going to make it so that it stays in one piece
    The backdoors are going to be build closed so the roof has more support
    here is a pic of the cage with roof (not finished )
    11418447_10206137386326803_1417468927_n.jpg 11328910_10206137386086797_727379839_n.jpg

  13. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016

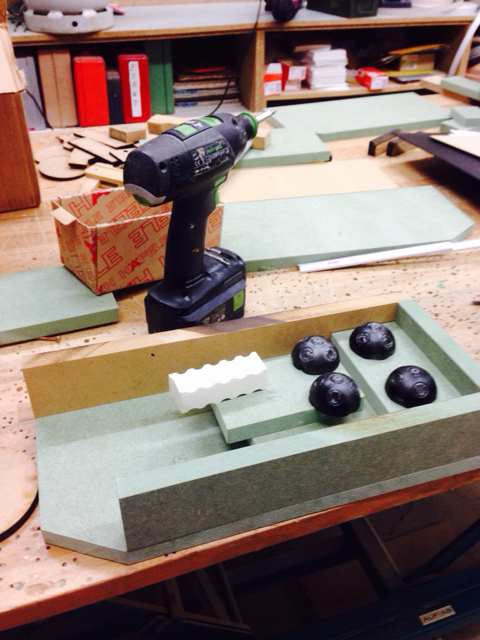

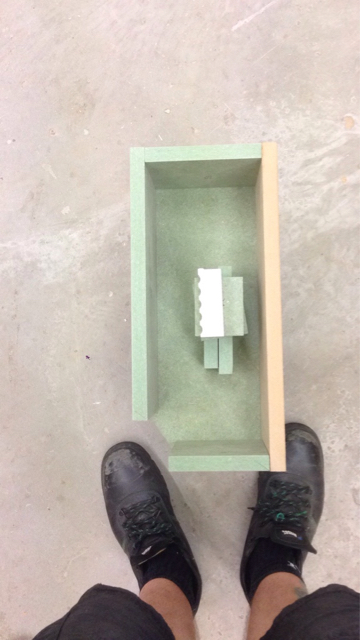

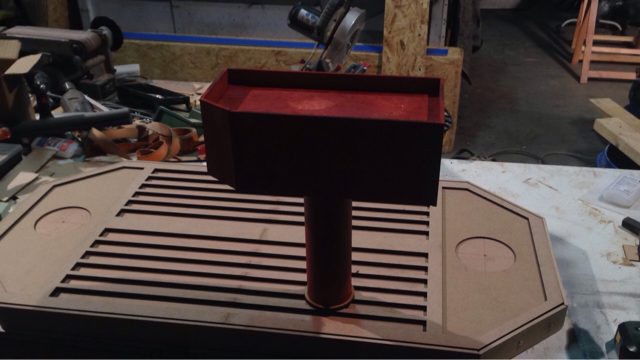

    some boxes made
    ImageUploadedByTapatalk1433889712.638507.jpg ImageUploadedByTapatalk1433889730.956303.jpg ImageUploadedByTapatalk1433889761.203729.jpg ImageUploadedByTapatalk1433889782.556300.jpg

  14. Tumbler

    Tumbler Active Member

    Trophy Points:
    262
    Cool project. Would love to put together a nice display like that for my UR suit. Can't wait to see it come together.

  15. Atlante313

    Atlante313 Active Member

    Trophy Points:
    211
    awesome !! keep up the great work !

    Yarooon likes this.
  16. chevron

    chevron Active Member

    Trophy Points:
    242
    This is great!

  17. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    after remaking the boxes with smaller sides buying foam for inside i started casting some gadgets after throwing the 3d printed masters in to the mold
    here is test cast ( don't mind the bubbles will be gone in the next cast
    next cast

  18. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    update!!

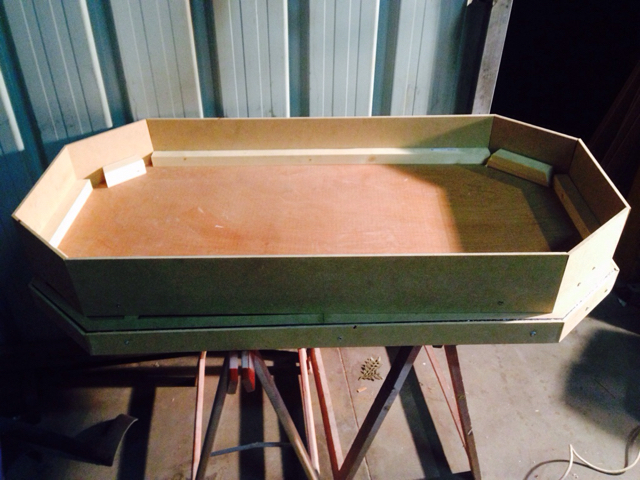

    redid the side of bottom and roof

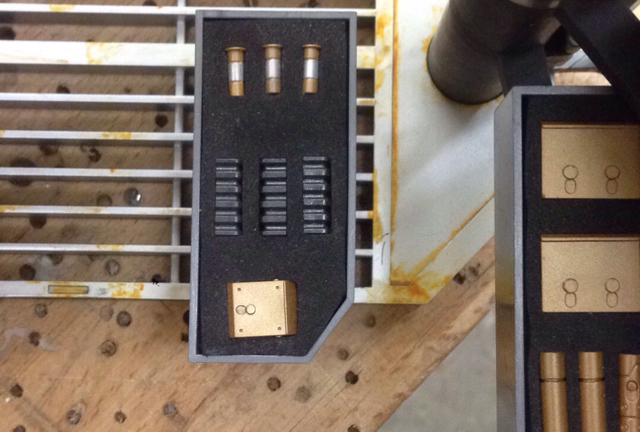

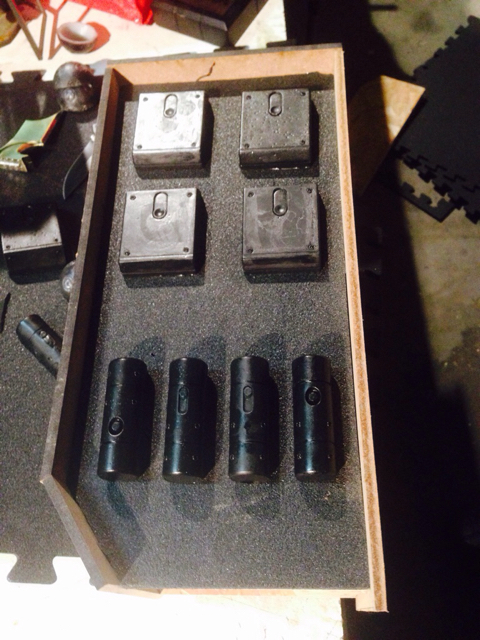

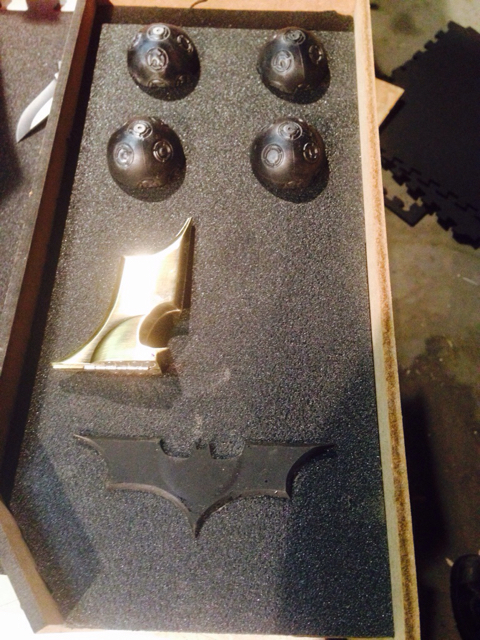

    had alot of gadgets made
    next on the list are doors and frame
    ImageUploadedByTapatalk1436486827.178692.jpg ImageUploadedByTapatalk1436486838.844268.jpg ImageUploadedByTapatalk1436486856.177427.jpg ImageUploadedByTapatalk1436486878.461198.jpg ImageUploadedByTapatalk1436486902.160971.jpg

    teragon likes this.
  19. Rickhemingway

    Rickhemingway Well-Known Member

    Trophy Points:
    866
    Looks so good! Keep it up! :D

    Yarooon likes this.
  20. creative stress

    creative stress Well-Known Member

    Trophy Points:
    635
    Yarooon likes this.
  21. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    small update since my welding guy was busy with fireman training me and my friends debated if we put a floor around it .
    Since it will be show at several cons safety we decided for a floor so here is a picture of cage bottom in what will look like a concrete floor.

    The Floor is just big enough for the doors to rest on the floor (again safety) cause this cage is Top Heavy and has more chance to fall over if we didn't do it like this.


  22. alhasan89

    alhasan89 New Member

    Trophy Points:
    17
    Yarooon this is looking very nice mate! You've literally read my mind! I've always been a batman fanatic and have always wanted a proper suit for display at home, and now that I can afford it I got myself a Hot Toys Batman Armory 1:6 scale as prototype and was planning on starting this project once I source the suit (not planning on building it since I lack the skill and experience!).

    I will def be following up on this project, will be taking notes ;) good luck!

  23. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    im not displaying at home mate its to big to stay at home unfortunatly
    im building so i can show it at the rpf stand at facts in belgium

  24. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    small update too because in steel it was becomming heavy and mobility is an issue then im making the doors in wood and paint in hammered steel ImageUploadedByTapatalk1441044325.355237.jpg
    painted the top adding lights this week
    close up of paint how it looks ( just the primer)
    part of the floor was painted in same primer allready
    other part will be done today aswell as bottom

    stigmorgan likes this.
  25. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    top has gotten second layer of paint now ill be making it look like wet concrete next
    lights casings are installed too ( need to be made to look like not new)

    floor has been painted aswell as the cage piece
    and i just cut the nameplate that will sit in the floor

  26. brucebatman

    brucebatman Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,036
    Wow that Is amazing great work!!

    Yarooon likes this.
  27. VaultUK

    VaultUK Well-Known Member

    Trophy Points:
    866
    Very nice. Will have to commission you to make me one

    Yarooon likes this.
  28. teragon

    teragon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Can't wait to see this finally completed at FACTS !

    Yarooon likes this.
  29. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    big update
    ill add the pics now text later ;)
    first door is inside the cage wich means we can hold it upright with not much problems beams in circles will not be seen
    here is how it looks with tubes final will be over complete length

    PlayWithFire likes this.
  30. Rickhemingway

    Rickhemingway Well-Known Member

    Trophy Points:
    866
    It's really coming together!

  31. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    ImageUploadedByTapatalk1442440817.063958.jpg lights installed foamies cut for gadget boxes
    this one sits allready flush :-D
    this one needs some more cutting to be done im defiating a bit of the 1:6 cage
    adding small welding thingies with hot glue to the boxes to cover up measureing mistakes :p Doors will have these too it makes it more like made in a cave

    hope you like the update next one will be with doors in it hopefully boxes installed too

    PlayWithFire and creative stress like this.
  32. creative stress

    creative stress Well-Known Member

    Trophy Points:
    635
    Loving this build cant wait to see it all come together excellent

    Sent from my SM-G900F using Tapatalk

    Yarooon likes this.
  33. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    update time !

    with pictures all 4 doors ready for paint :-D


    PlayWithFire likes this.
  34. Rickhemingway

    Rickhemingway Well-Known Member

    Trophy Points:
    866
    You are going to nail it!

  35. Mektar

    Mektar Well-Known Member

    Trophy Points:
    915
    This is great and best part is ill be able to see it for real once its done. :p

    You gonna get it done for this years facts?

  36. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    thats the plan some small details won't be there yet but most of it will be done ;) painting today ;) and finishing some gadgets

    only 4 of the 6 boxes will be ready so cage will have 4 instead of 6 boxes in cage

    Mektar likes this.
  37. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    all doors in primer

    PlayWithFire and reaton89 like this.
  38. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    tommorow last sprint !!

    creative stress likes this.
  39. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016

    cage was a succes at the con

  40. Rickhemingway

    Rickhemingway Well-Known Member

    Trophy Points:
    866
    It seriously is looking so cool! I bet it got a lot of attention!

  41. stigmorgan

    stigmorgan Sr Member

    Trophy Points:
    1,256
    awesome.

  42. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    at an other event
    Some more gadgets have been added
    This weekend ill be permantly securing some of them to the cage so they won't fall out

    Psicorp7 likes this.
  43. warrenhouck

    warrenhouck Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,035
    This is sick!

    Yarooon likes this.
  44. 13doctorwho

    13doctorwho Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,626
    Very cool! Before The Dark Knight came out I wanted to do a 89 inspired costume safe (with gadgets), but when I saw this I thought it was way more awesome. Your's looks awesome!

    Yarooon likes this.
  45. collector74

    collector74 Active Member

    Trophy Points:
    242
    This looks pretty good. I am trying to build a suit, but having a hard time finding anyone that makes/sells them. As soon as I am done, I would like to make something like this. I also like the plexi-glass one they had.

    Yarooon likes this.
  46. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    small update we threw tis one in the trash after couple years going to a con with it the suit that was in it was decaying because of all the travelling
    so we build a differnt one wich is easier to take down and travel with it in next post ill post our building process
    me and teragon have worked hard on it

  47. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    so buildup of the Bat Vault DOJ
    ill better do in a different thread since this one was from the Dark knight trilogie

    13doctorwho likes this.
  48. Rickhemingway

    Rickhemingway Well-Known Member

    Trophy Points:
    866
    Are you redoing your TDK cage, or making a DoJ vault?

  49. Yarooon

    Yarooon Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,016
    making a DOJ Vault

    PlayWithFire likes this.
