Star Lord Map Gun FINISHED Video on 1st post

Discussion in 'Marvel Costumes and Props' started by Cameron, May 14, 2015.

  1. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831



    Attached Files:

    Last edited by a moderator: Nov 8, 2018
    Psicorp7 likes this.
  2. renaissance_man

    renaissance_man Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,786
    Re: Star Lord Map Gun - WIP

    You've beaten me to it.
    I've been taking photos of my build up and was going to start a thread.

    Good luck with your build, Joe did a great job modeling up the Map scanner.

  3. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Re: Star Lord Map Gun - WIP

    joe did indeed do a great job. Start your thread. It will be fun to see your build as well.

  4. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Re: Star Lord Map Gun - WIP

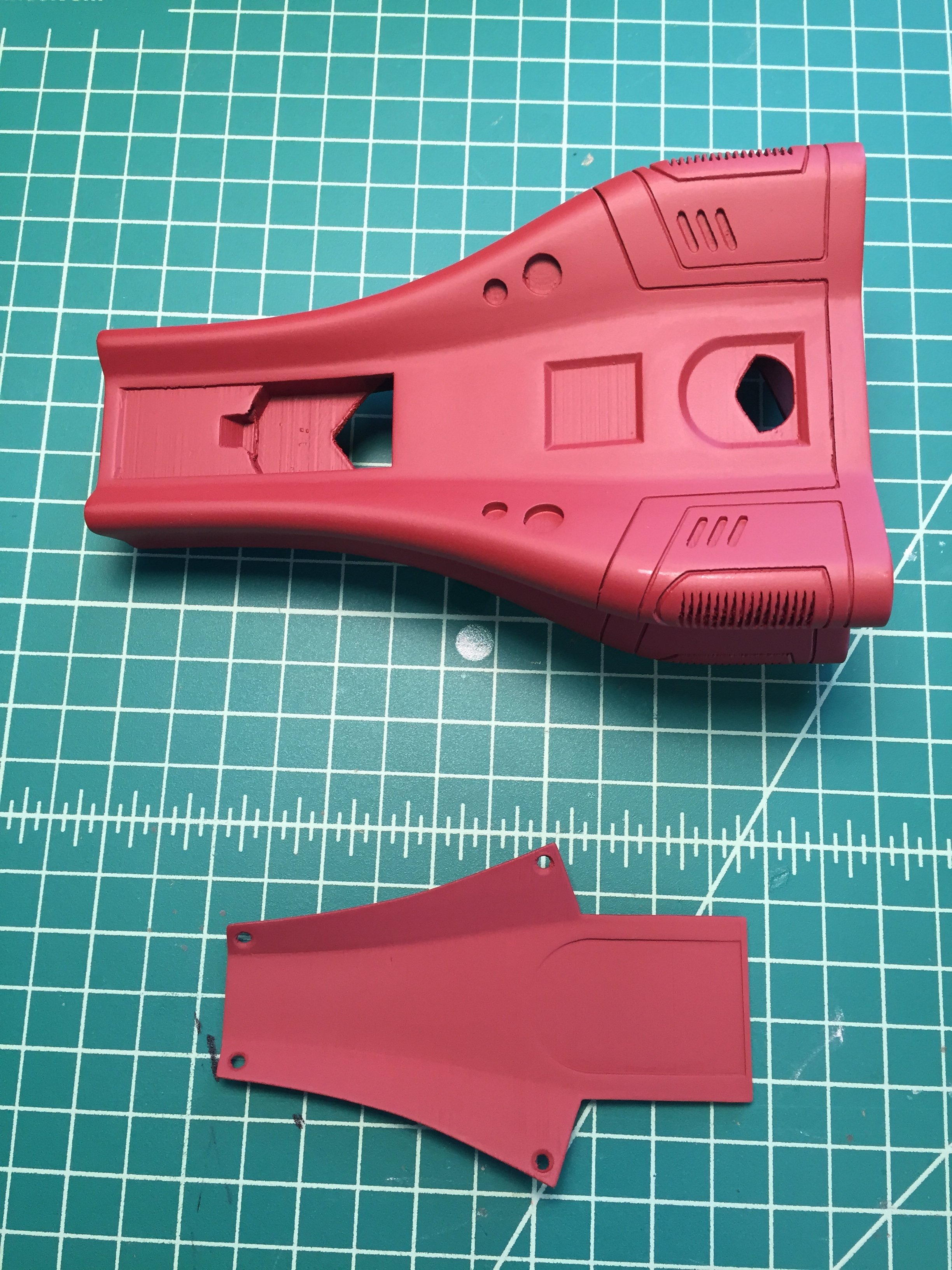

    Time to make some internal support for the high power Blue Leds and the lasers.

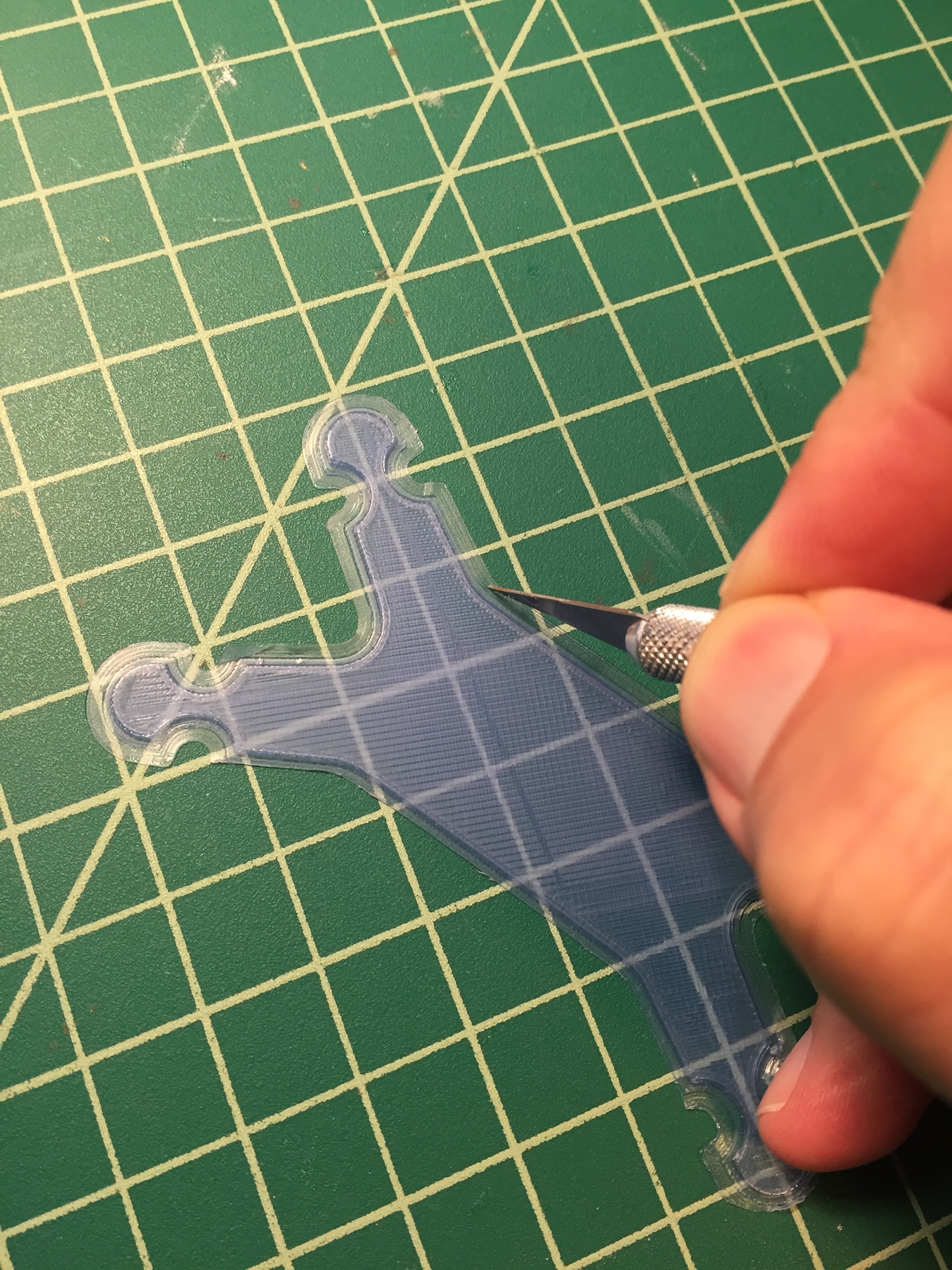

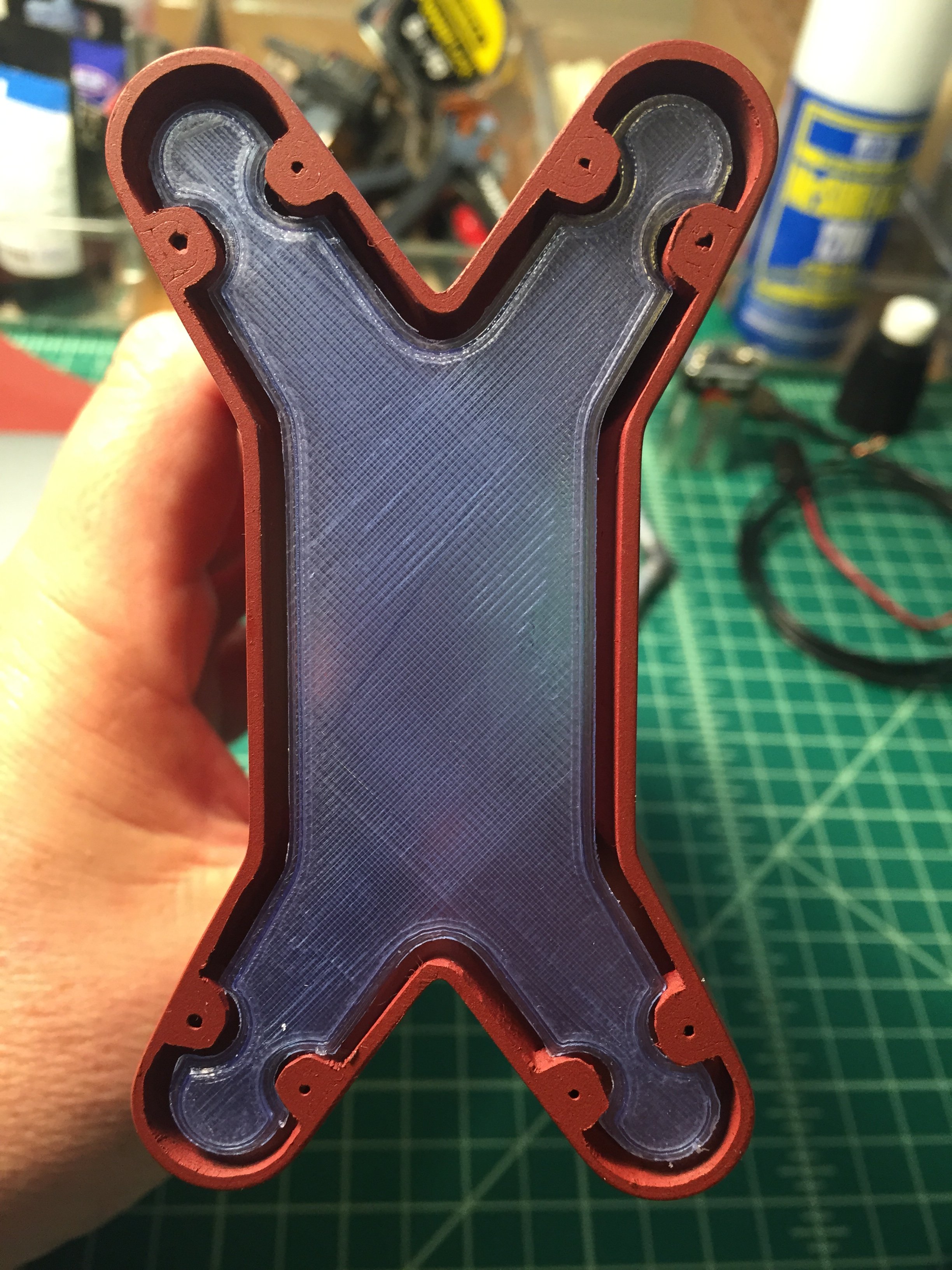

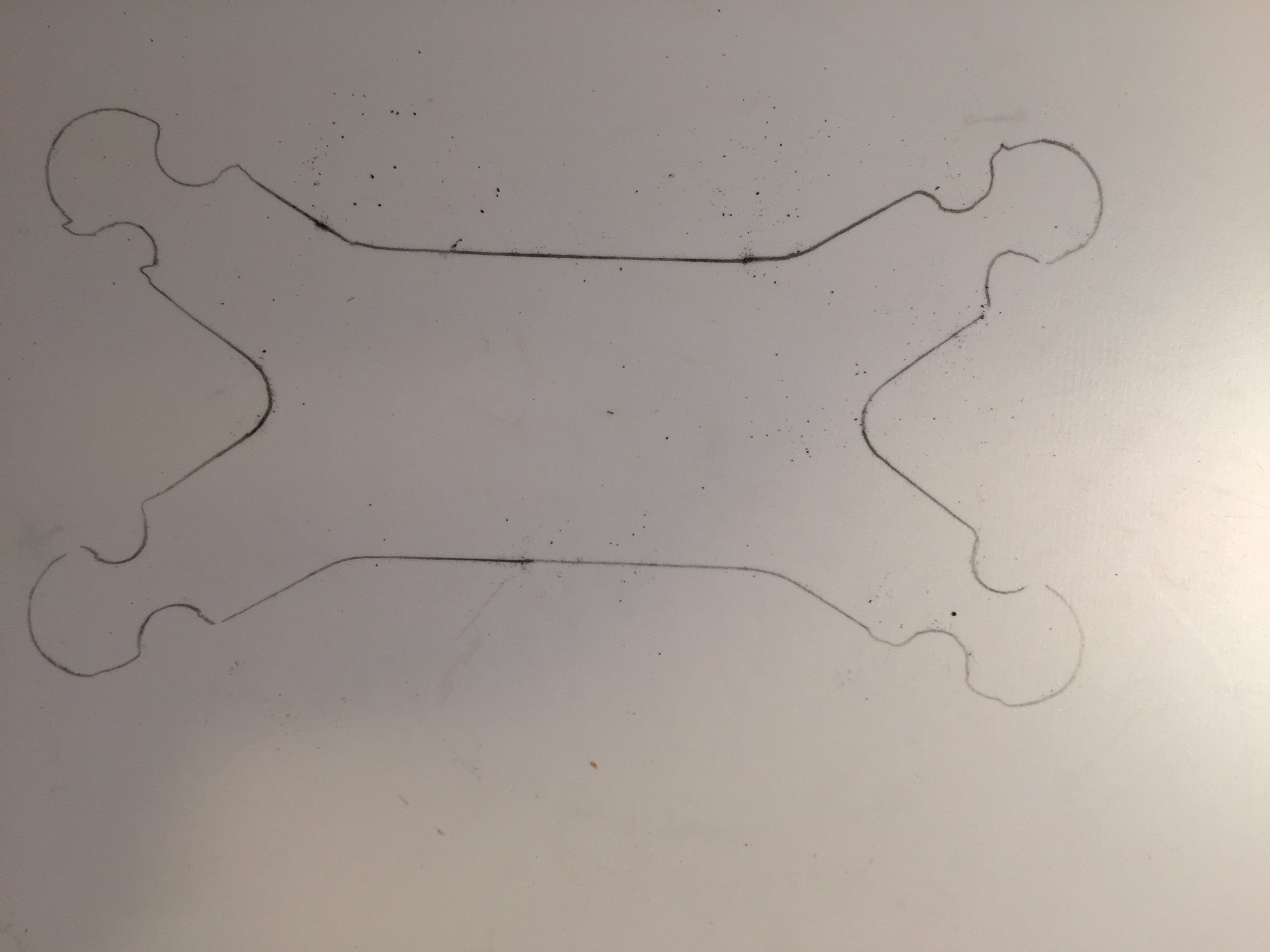

    The Blue transparency makes a good template after cleaning the flash.


    IMG_0517.JPG IMG_0518.JPG

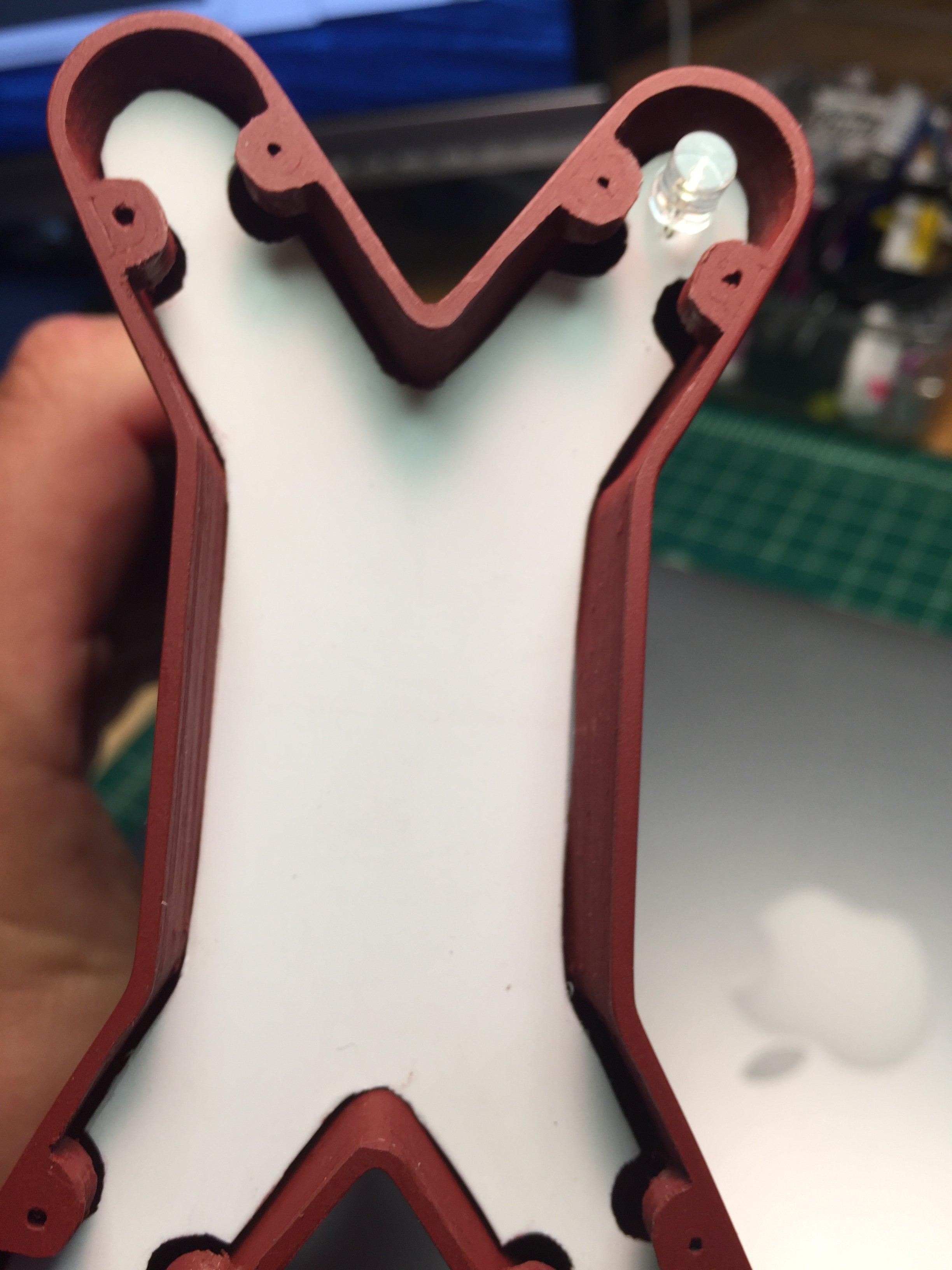

    I cut out a support from styrene.



    Its slides back nicely. Test fit 1 LED....Good to go.


  5. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Re: Star Lord Map Gun - WIP

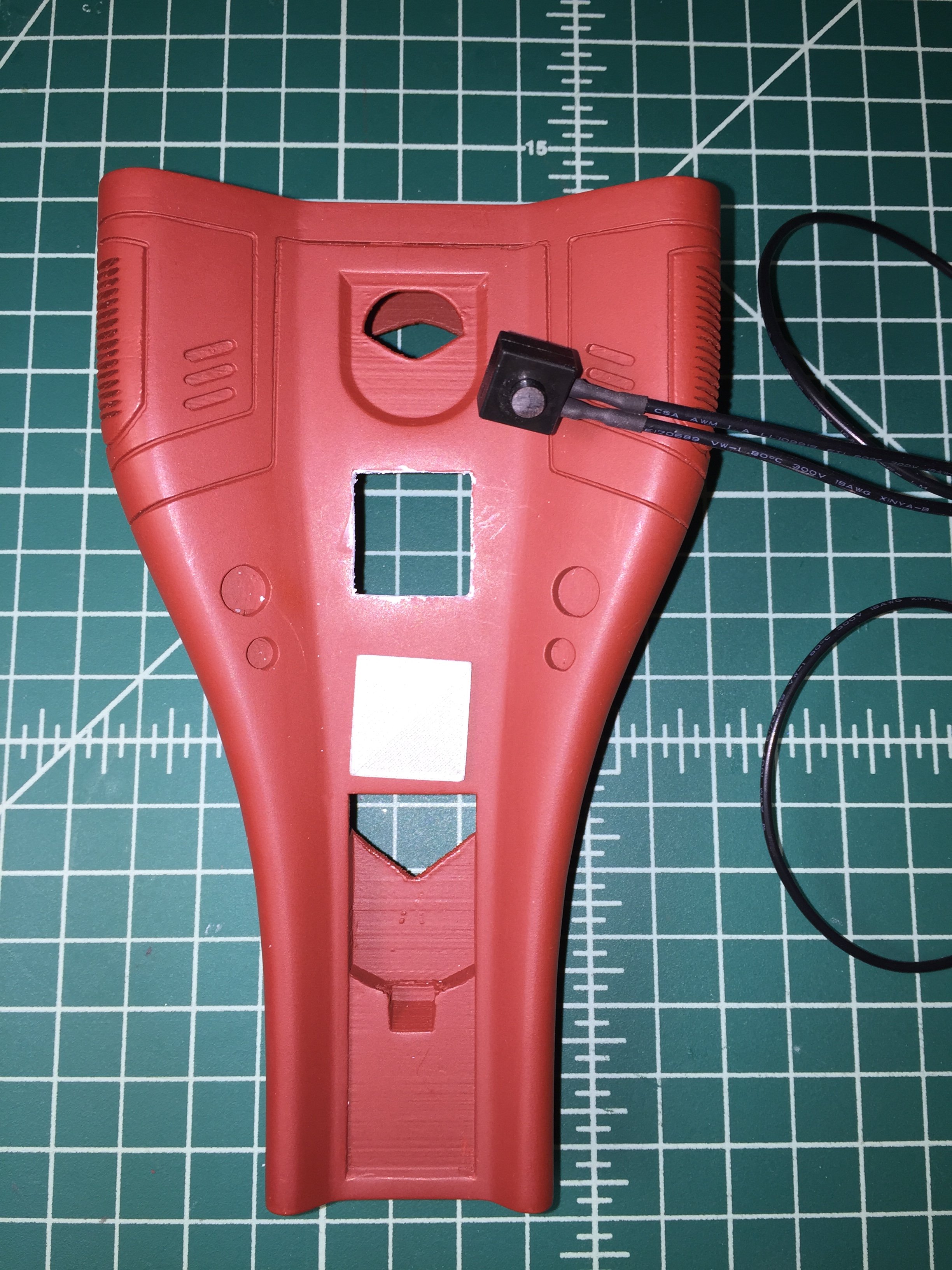

    Quick update. I decided to located the power switch in the square area. I cut out the space for the switch. Since this area is two layers I puttied the inside to avoid the switch sticking.


  6. renaissance_man

    renaissance_man Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,786
    Re: Star Lord Map Gun - WIP

    Any particular reason for moving the switch?
    Seems like an awkward stretch around the prop to turn the LEDs on.

    It looks like the power button was in the rectangular recesses in the narrower end of the map scanner judging by Starlord's thumb angle in the screencaps.

  7. JOATRASH FX

    JOATRASH FX Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,696
    Re: Star Lord Map Gun - WIP

    Looking good so far.

    Is that filler-primer or regular primer? You'll have a much faster result with the former. Also, any reason why you put the power switch that far forward? The rearward rectangle was made specifically to house a circuit-breaker, either by adding a pin to hinge it (in that little indentation) or just by using the flex of the plastic to click a panel switch.

    This is kinda how I see it working:
    Note that this diagram shows BOTH possible variants. You either hinge the plate and add a spring OR you glue the back part of the plate and use the natural flex of the plastic to depress the circuit. If you do the latter, you will need a panel switch with VERY little travel, such as this:

    http://www.alibaba.com/product-detail/6mm-right-angle-round-button-panel_60072565144.html

    You should also position the switch so that it just barely touches the underside of the plate is "off" position. I did this with my Dredd lawgiver, hiding two switches underneath the serial number plate on the side. This allows me to control ammo and firing modes on the gun while not having any visible switches.

  8. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Re: Star Lord Map Gun - WIP

    I may reconsider placement. I couldn't find a small enough push on push off for the lower area. Are you thinking of using a momentary?

    I may use the square to power up the LEDs and the rocker with a momentary to activate the Lasers.

    Last edited: May 18, 2015
  9. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Re: Star Lord Map Gun - WIP

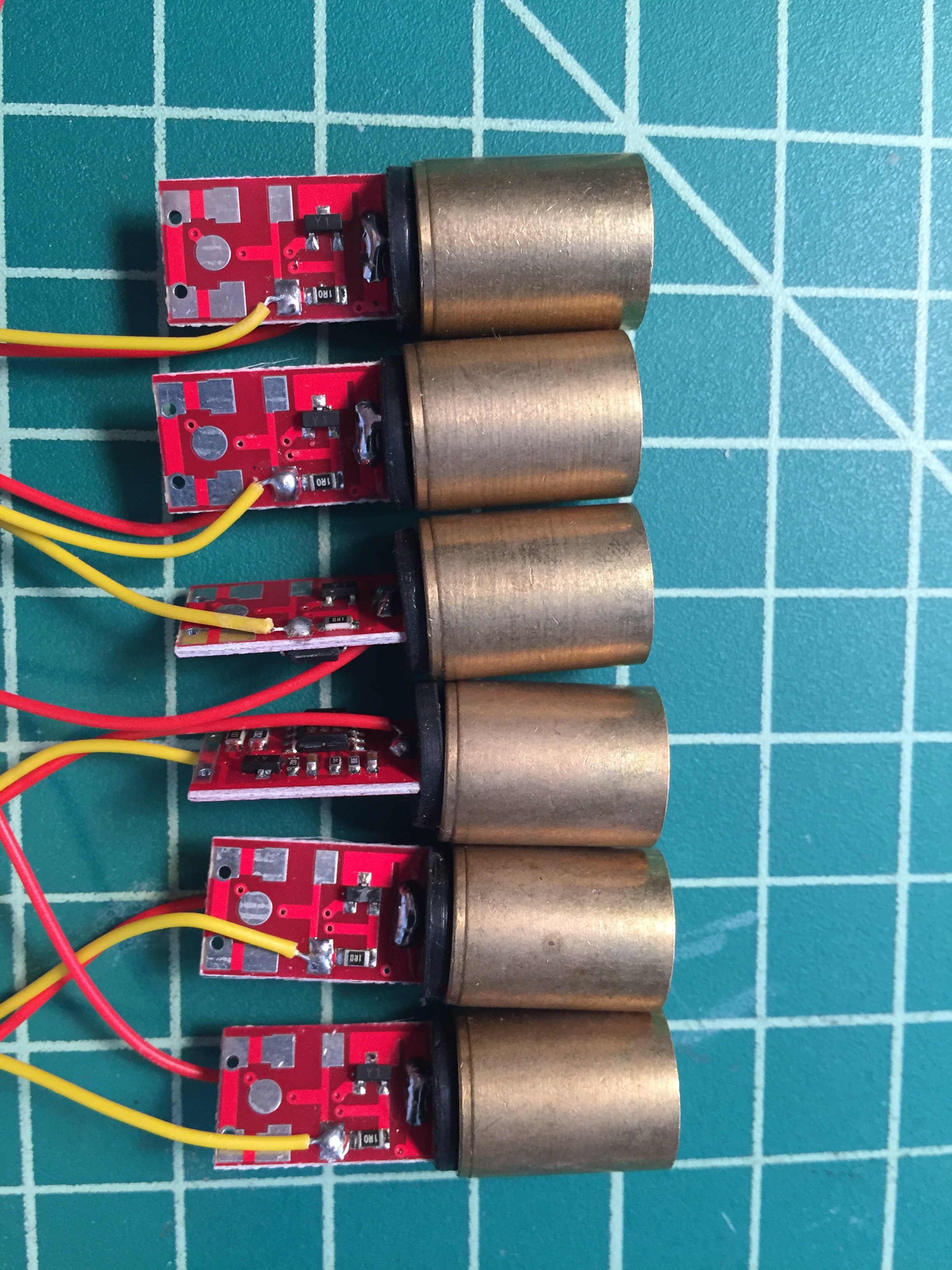

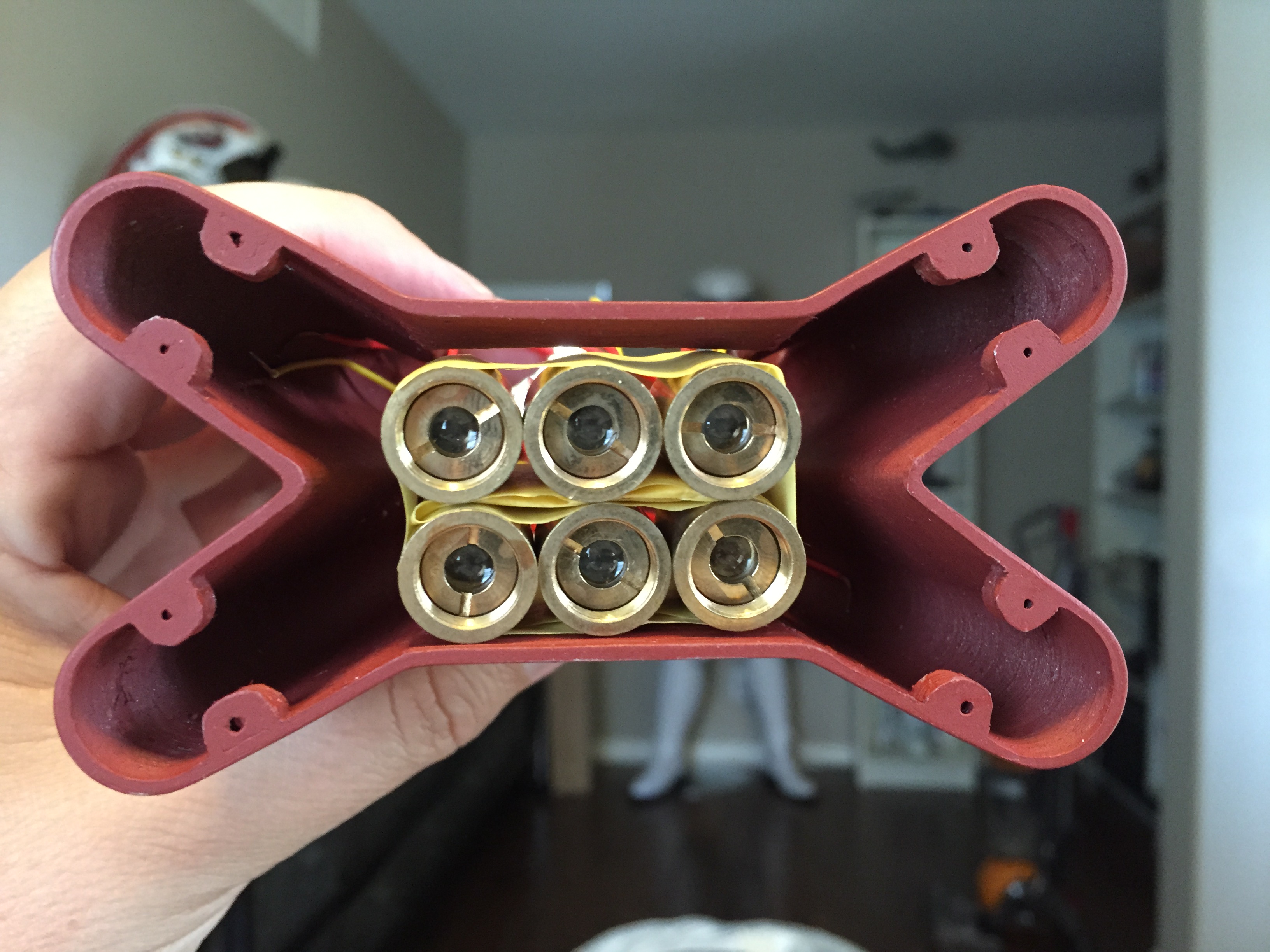

    Lasers arrived!!! What do you call a group of lasers? A Brace, herd? I call it an AWESOME of lasers!


    Test fit.

  10. duality

    duality Active Member

    Trophy Points:
    341
    Re: Star Lord Map Gun - WIP

    Whoa will it make it past the lense? Very cool nevertheless.

  11. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Re: Star Lord Map Gun - WIP

    I'm going to cut some holes in the lens. The red laser can't get through the blue plastic .

  12. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Re: Star Lord Map Gun - WIP

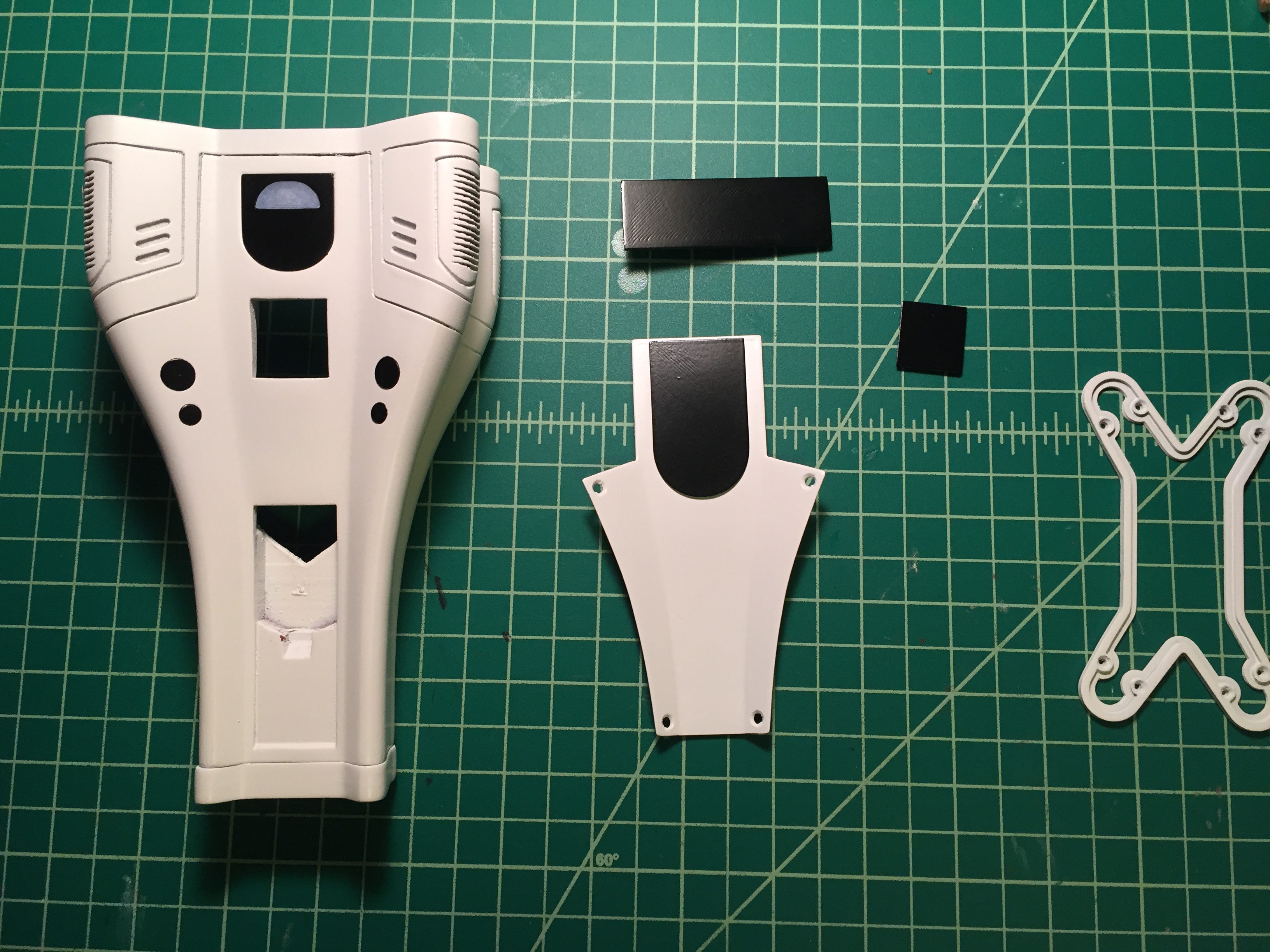

    Quick update. A few more black areas to paint up and then ready for weathering.


    Some experimenting with some lasers and filters.

  13. JOATRASH FX

    JOATRASH FX Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,696
    Re: Star Lord Map Gun - WIP

    Looks good. The only thing I'd mention is that you could have used some more spray filler on the buttons if you want them glass-smooth. Contrary to the advice you usually get about spray painting, it's OK to use a nice thick coating of spray filler-primer. I try to model prints in a way so that detail's don't get filled in by it.

    Cameron likes this.
  14. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Re: Star Lord Map Gun - WIP

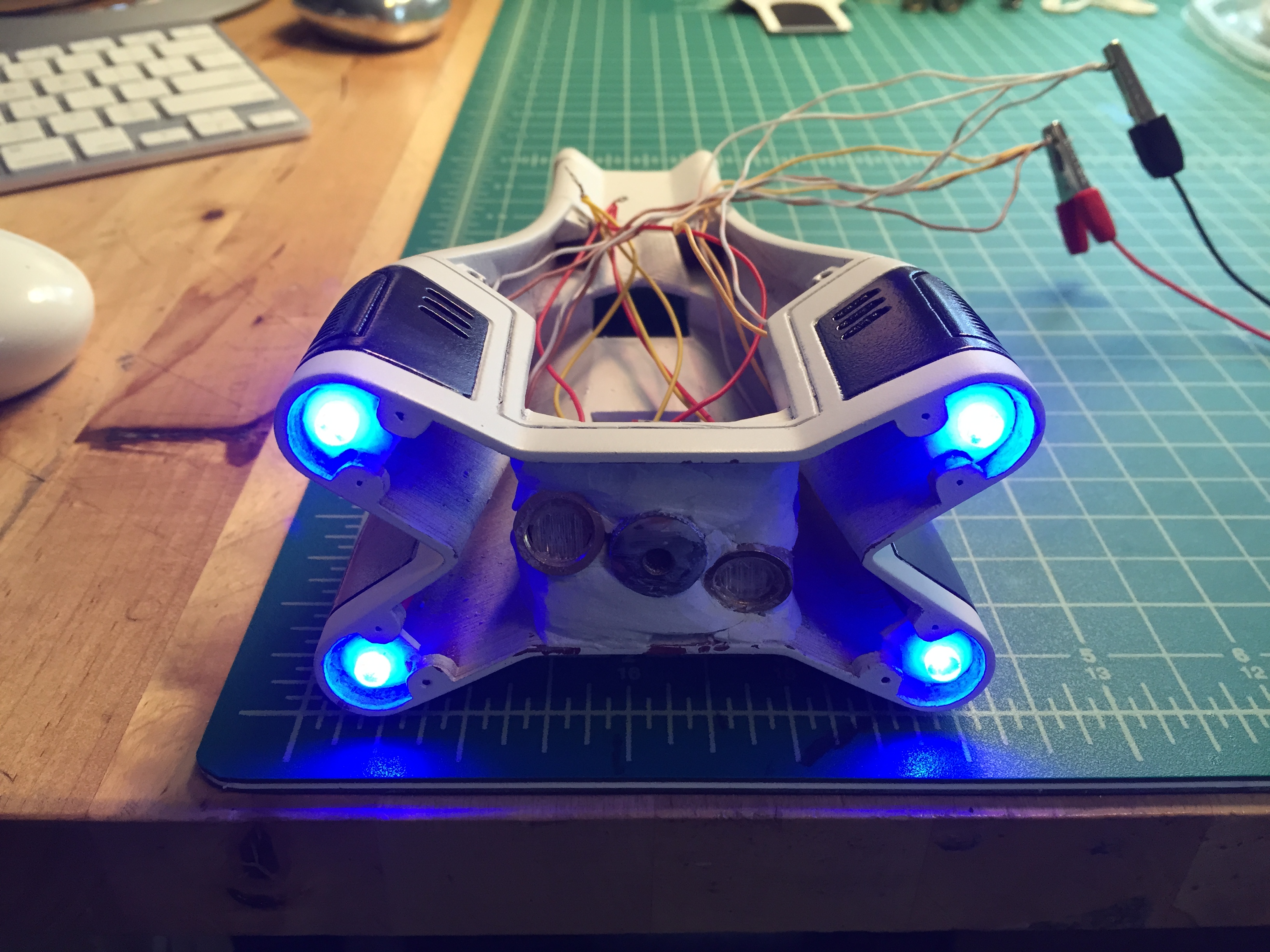

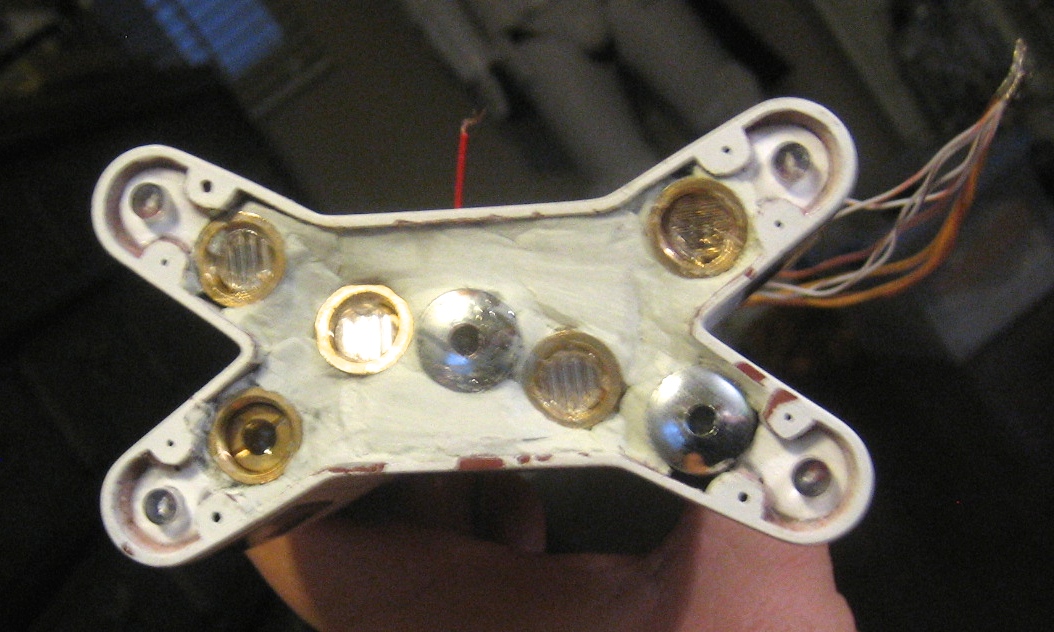

    LEDs up and running and 3 lasers installed.


  15. JOATRASH FX

    JOATRASH FX Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,696
    Re: Star Lord Map Gun - WIP

    REALLY cool! Oh, when will I ever ave time to get started on my own build, haha. (I'm struggling like crazy with another 3d model that I can't talk about yet. It's one of those situations where getting it to be more accurate than similar builds is a real challenge.)

    Cameron likes this.
  16. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Re: Star Lord Map Gun - WIP

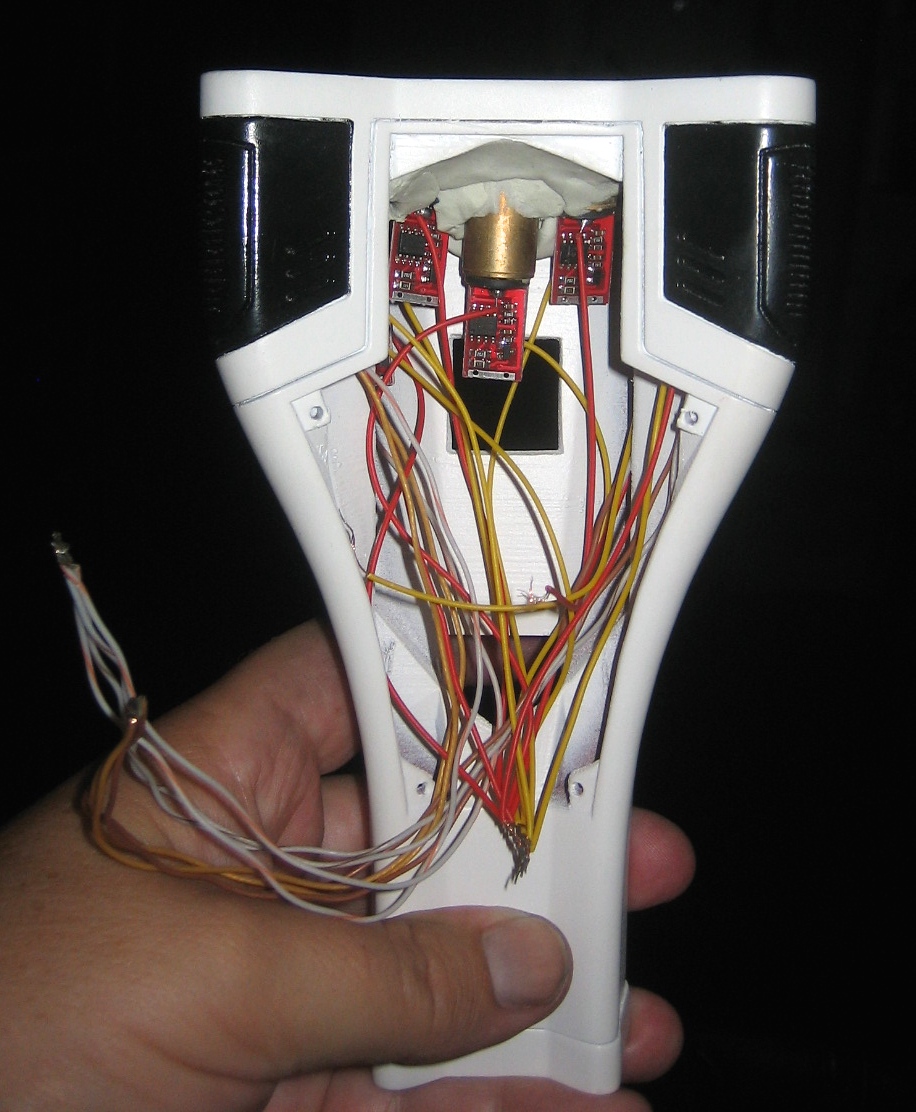

    IMG_9121.jpg IMG_9123.JPG Lazers lock and loaded.

  17. JOATRASH FX

    JOATRASH FX Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,696
    Re: Star Lord Map Gun - WIP

    Nice! That's a LOT of wiring.

    Cameron likes this.
  18. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Re: Star Lord Map Gun - WIP

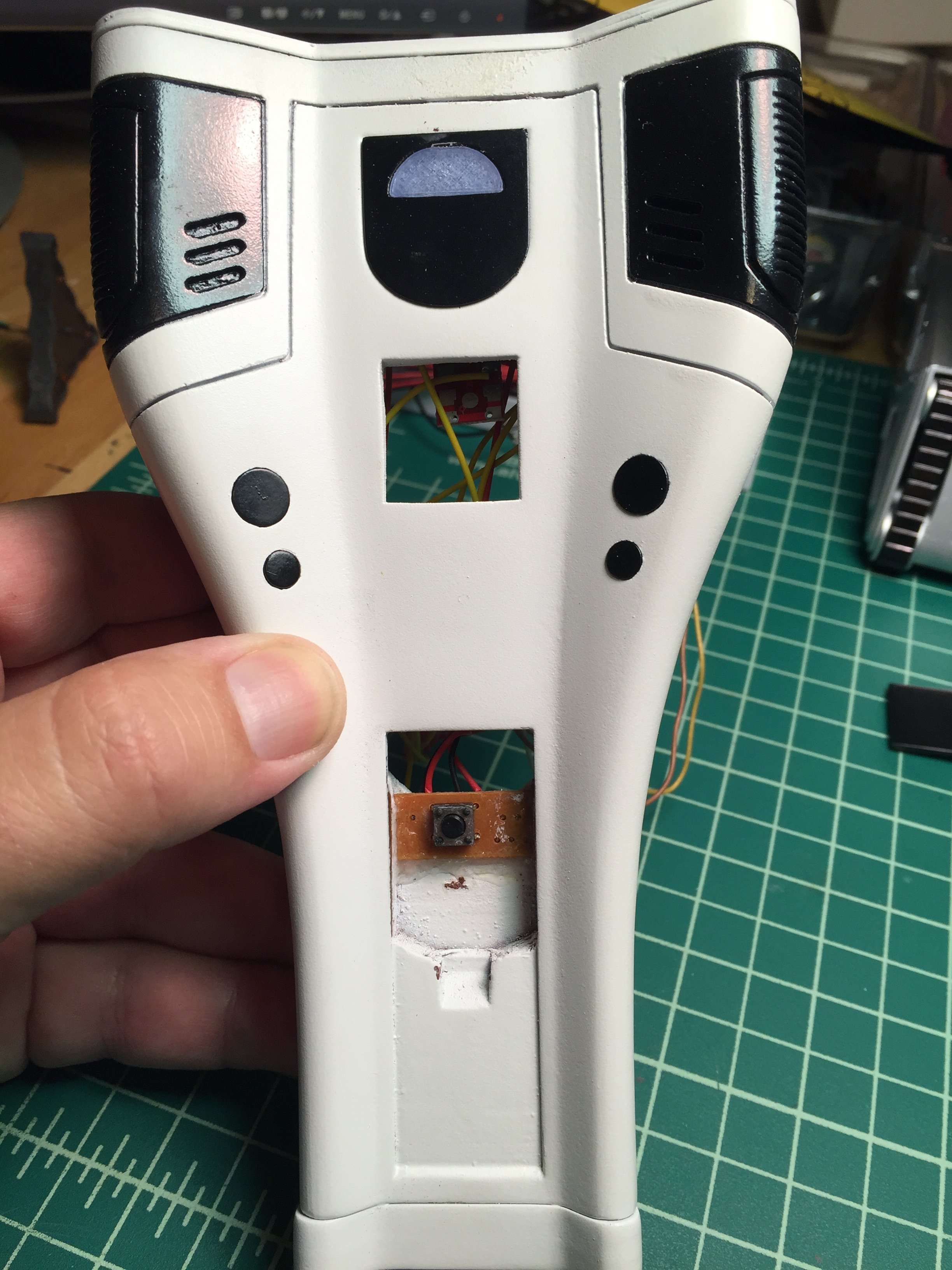

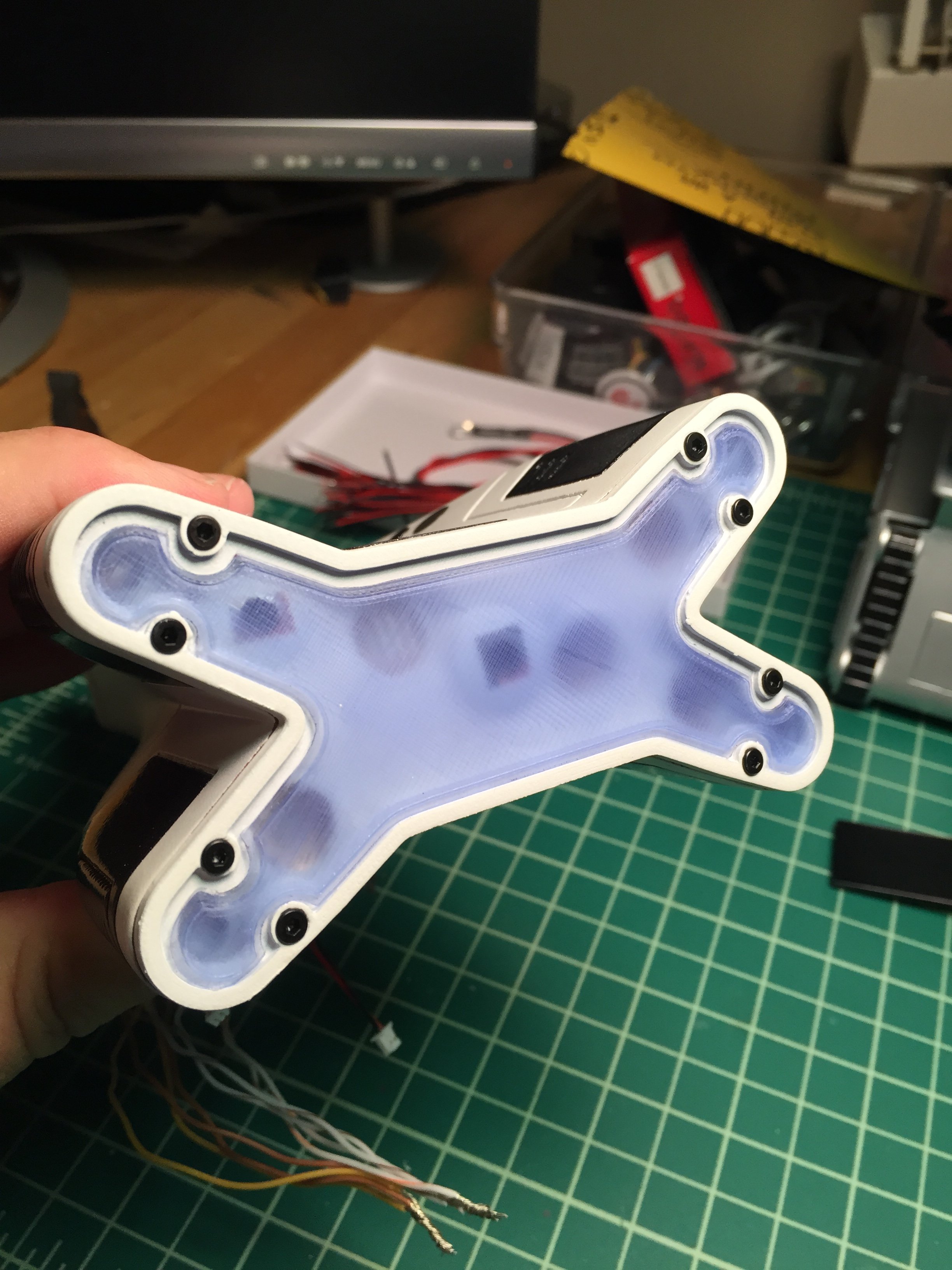

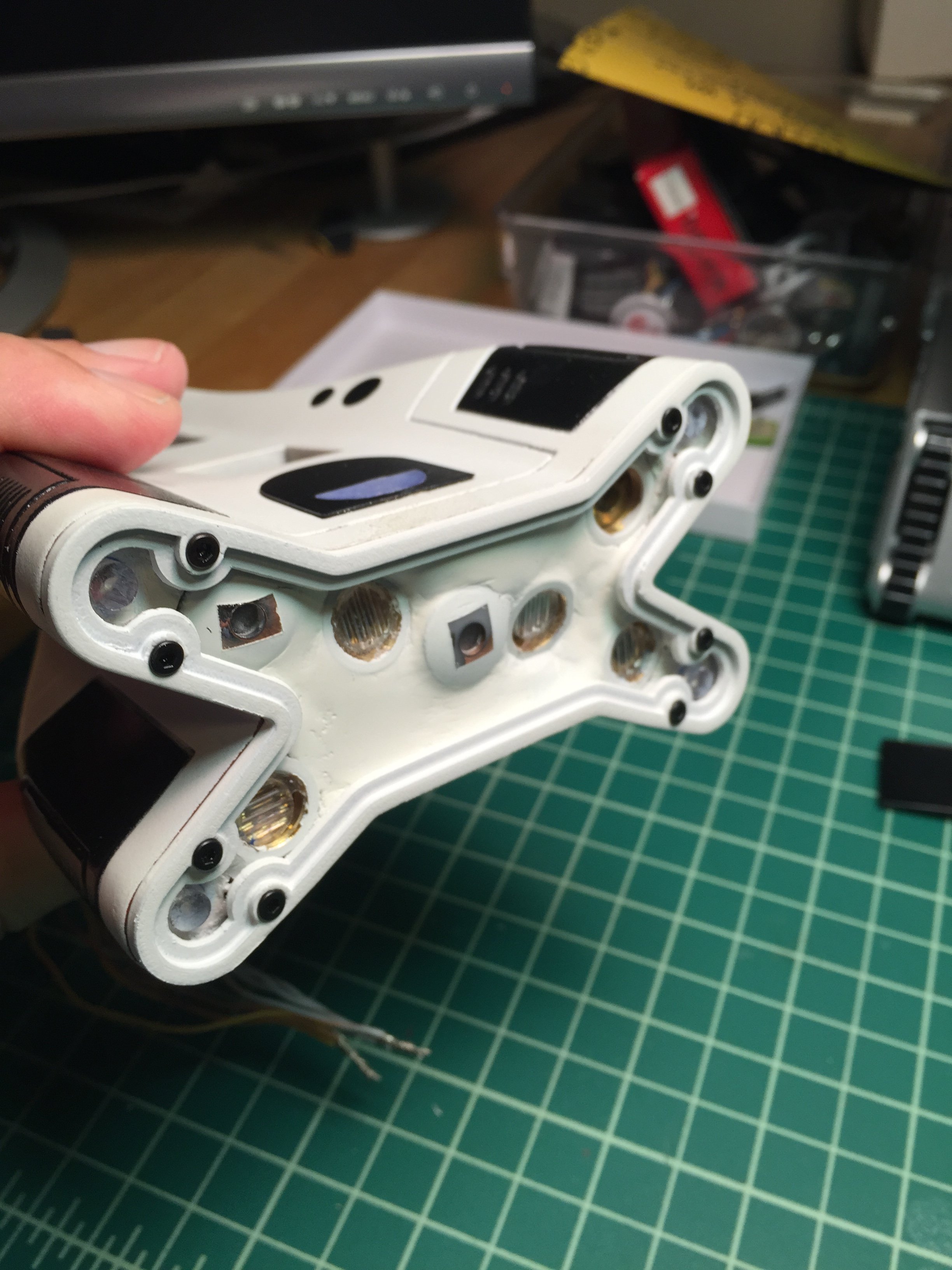

    IMG_1604.JPG IMG_1605.JPG IMG_1606.JPG Switch installed and front finished.

  19. JOATRASH FX

    JOATRASH FX Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,696
    Re: Star Lord Map Gun - WIP

    Beautiful work! Especially the cleanup of the print.

    Note though (just in case you missed it), that the clear blue front goes BEHIND the bezel. You might need to file or trim the inside of the bezel just a tad for it to go in.

    I've at least gotten so far as to cover mine in spray filler, along with a bunch of other parts.

  20. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Re: Star Lord Map Gun - WIP

    Thanks Joe! For this build I will keep the blue bezel double sided taped to the front. The lasers can't get through the blue and I don't want to ruin the blue plastic so it will be on for static display and removed for lighted demo.

  21. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Finished. Video in first post.

  22. Kevin Gossett

    Kevin Gossett Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,980
    Wow. That is nothing short of awesome. Incredible job!

  23. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Thanks Kevin!

  24. GuardianGryphon

    GuardianGryphon New Member

    Trophy Points:
    17
    That is nothing short of wizardry, right there. It's one thing (and a respectable one at that) to make such a high fidelity high quality body, but it's a whole 'nother level of added awesome when it has such great visual functionality. The laser mechanism is especially nifty!

    Cameron likes this.
  25. JOATRASH FX

    JOATRASH FX Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,696
    Looks fantastic!

    Cameron likes this.
  26. mikid

    mikid Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,015
    looks amazing....now where can we get the finished prototype, product......ha

    Cameron likes this.
  27. JOATRASH FX

    JOATRASH FX Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,696
    I make the map gun kit that Cameron used for his build, but you have to supply your own electronics. PM me for info.

  28. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Joatrash's kit is amazing. Get one.

  29. HyruleInfantry

    HyruleInfantry Active Member

    Trophy Points:
    341
    Forgive me if this is a dumb question, but would you supply the electronics if asked for an additional fee of course?
    Again sorry if it is a dumb question.

  30. JOATRASH FX

    JOATRASH FX Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,696
    Well, I just made the kit to mimic the actual prop, but I left it hollow IF people wanted to add some kind of electronics. There are no "standard" electronics for it and I haven't even built one myself yet, so I wouldn't know offhand which electronics to supply. Some people seem to be using lasers but you could stick leds in there... or a flashlight... all depending on how ambitious you want to make it. (I was personally planning to use a mini-projector but I'm so far behind on my GotG stuff that I haven't gotten there yet.)
