Shoulder puller design and pics request.

Discussion in 'Star Wars Costumes and Props' started by Fabian 71, May 5, 2015.

  1. Fabian 71

    Fabian 71 Active Member

    Trophy Points:
    312
    Hi guys, I searched about the "shoulder puller" a device that permits to make the base to the buttons and glass eye in a tube for a graflex replica any of you have pics or info about how to make one??

    Thanks in advance!!



    Nevermind...I foundt it!!!

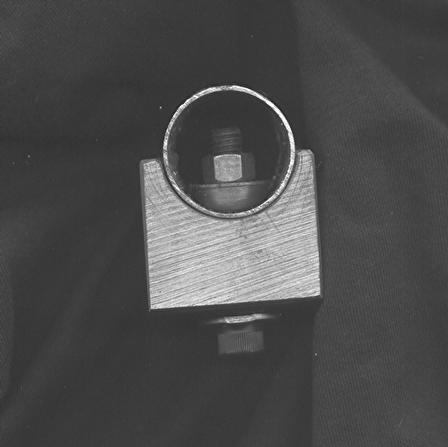

    GraflexPullerTool_03.jpg 73935230103_0_ALB.jpg Puller1.jpg View(4).jpg View(7).jpg View(22).jpg GraflexPullerTool_03.jpg Graflex Shoulder tool.jpg

    Last edited: May 8, 2015
    The14thDr, thd9791 and mugatu like this.
  2. Fabian 71

    Fabian 71 Active Member

    Trophy Points:
    312
  3. Fabian 71

    Fabian 71 Active Member

    Trophy Points:
    312

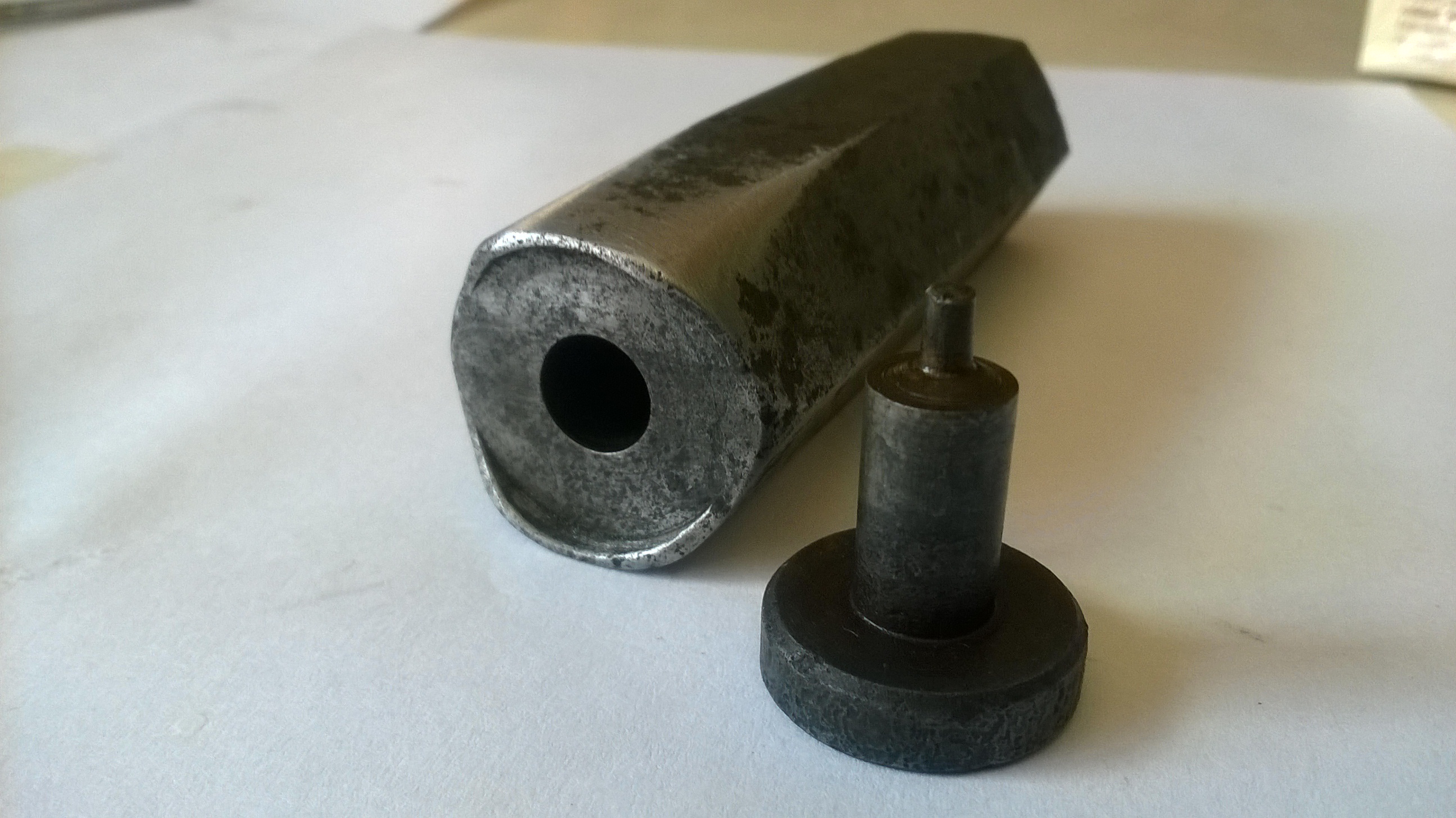

    My design...but it needs a hydraulic/pneumatic press to work ... WP_20150507_001.jpg WP_20150507_002.jpg

    Last edited: May 8, 2015
  4. NeoRutty

    NeoRutty Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,790
    I inquired about this in the past, but seems no one had one any longer, and no one was making them... But good luck! I have a scratch built ROTJ MOM Vader saber that is without a pulled socket... would have been nice at the time.

  5. James Kenobi 1138

    James Kenobi 1138 Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    I have one. Not for sale though.

  6. Fabian 71

    Fabian 71 Active Member

    Trophy Points:
    312
    Last edited: May 8, 2015
  7. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,940
    I know at least three people that still have one. Good luck. It's a true RPF treasure.

  8. Fabian 71

    Fabian 71 Active Member

    Trophy Points:
    312
    NeoRutty I sold my ANH replica and my next stop is a ROTJ STUNT saber and a Ep. 7 Graflex ...by the way your saber is great!!!

  9. Fabian 71

    Fabian 71 Active Member

    Trophy Points:
    312
    This is what I achieved with my tool I had to make some changes to the tooling , you can see the marks it left in the brass . In future replicas the marks are not going to happen
    (I hope...). shoulder2.jpg shoulder.jpg

    Last edited: May 8, 2015
  10. NeoRutty

    NeoRutty Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,790
    Thanks! ROTJ Stunt is maybe my favorite... Which seems blasphemy cuz my grail saber is real parts Obi...

    but there's something about it's slapped together brilliance. Look forward to your build - I assume you're going for scratch built? Roy (wannawanga) is looking to make parts down the line... so I'll likely make one with his parts on a Roman graflex... Can't have too many versions...

  11. Fabian 71

    Fabian 71 Active Member

    Trophy Points:
    312
    yep, totally scratch built, instead of buying a Parks I prefer using the same amount of money in making tools thats allow me to achieve the most accurate replica I can, and is a lot of fun the process.
    when I finished my replica I couldnt believe how similar it looked to the real thing, despite the obvious inaccuracies.Im looking forward to Roy stuff regarding the ROTJ.

    The14thDr likes this.
  12. Brevin Din-Shay

    Brevin Din-Shay Well-Known Member

    Trophy Points:
    941
    This thread really needs to be archived. Excellent information.

    Fabian 71 likes this.
  13. Ridire Firean

    Ridire Firean Sr Member

    Trophy Points:
    1,681
    Hey James! What does yours look like?

    - - - Updated - - -

    Hey Fabian! Have you practiced with your tool lately? I'm curious to see what your final results are!

  14. James Kenobi 1138

    James Kenobi 1138 Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
  15. Ridire Firean

    Ridire Firean Sr Member

    Trophy Points:
    1,681
    Awesome! I love that you engraved it! Thank you for posting the pictures James.

    Do you use bearing grease or something similar inside and out to allow the tube metal to glide past the tool while forming the shoulder? I'm thinking that would help prevent rub marks on the tubing.

  16. tomm1999

    tomm1999 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,731
    I tried making one of these a few months ago but it didn't work too well. Maybe Ill give it another shot. I have 9 Vader ROTJ shrouds so I need to figure out something! Thanks for the pics!

  17. MonkeyHeads

    MonkeyHeads New Member

    Trophy Points:
    17
  18. Ridire Firean

    Ridire Firean Sr Member

    Trophy Points:
    1,681
    Hey Gang! Has anyone ever tried to cast the inside of a GRAFLEX shoulder?

    I'm thinking:
    1. Pour wax into tube.
    2. Make an investment mold (or a silicone mold if you want to make multiple copies) of the hardened wax 'positive'.
    3. Pour steel into the mold.
    4. Tap threads into it.
    5. Trim out the 'nut'.

    Then do the same for the outside to make your shoulder shape accurate. Put part A together with part B and tighten on a bolt.

    VOILA! GRAFLEX SHOULDERS as far as the eye can see!!!

    You could also take measurements of the castings and mill out a new 'puller' at a machine shop. I'm still surprised that with today's modern technologies, that none of the GRAFLEX replicas have accurate shoulders.

    Jedi Reali likes this.
  19. The14thDr

    The14thDr Well-Known Member

    Trophy Points:
    986
    Wrong thread. :p

    Last edited: Oct 15, 2017
  20. propmainiac

    propmainiac Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Any one willing to rent or let a fellow member borrow a shoulder puller? Really would give the finishing touches to my home built Graflex.

    The14thDr likes this.
  21. FolkyPatrol

    FolkyPatrol Active Member

    Trophy Points:
    411
    Last edited: Feb 19, 2018
