Ricos Puzzle Gun (Judge Dredd 1995)

[NuadaDesigns]

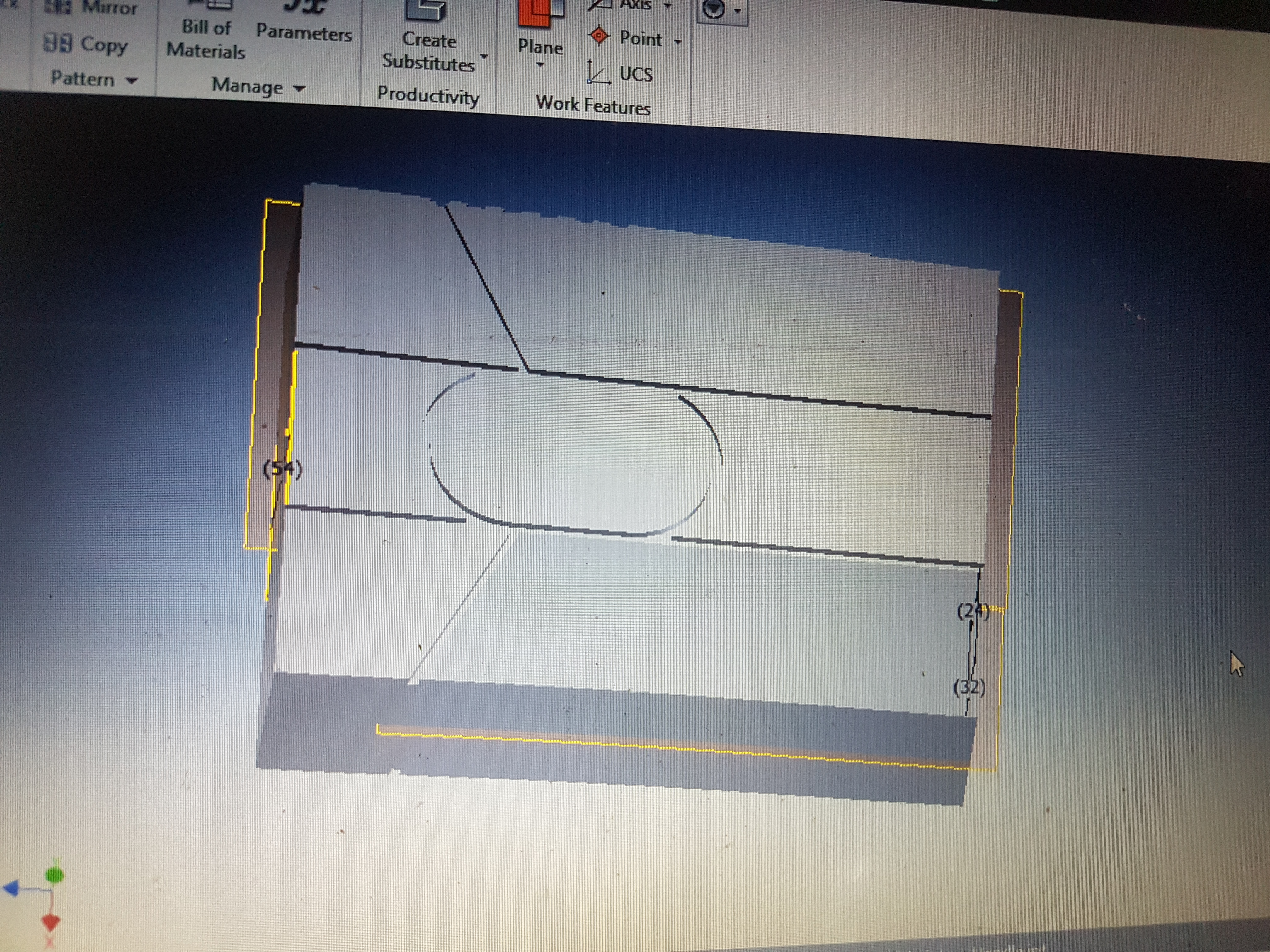

Well after years of different iterations, and attempts, ranging from air drying clay to styrene, I'm finally seeing light at the end of the tunnel.
Some of my favourite movie guns, have been transforming or assembled pistols, like Scaramangas Golden Gun or Learys Composite Pistol. Ricos Puzzle Gun it up there.
Working out how the trigger is concealed while making the top piece above the barrel, spring forward at the same time is tricky.

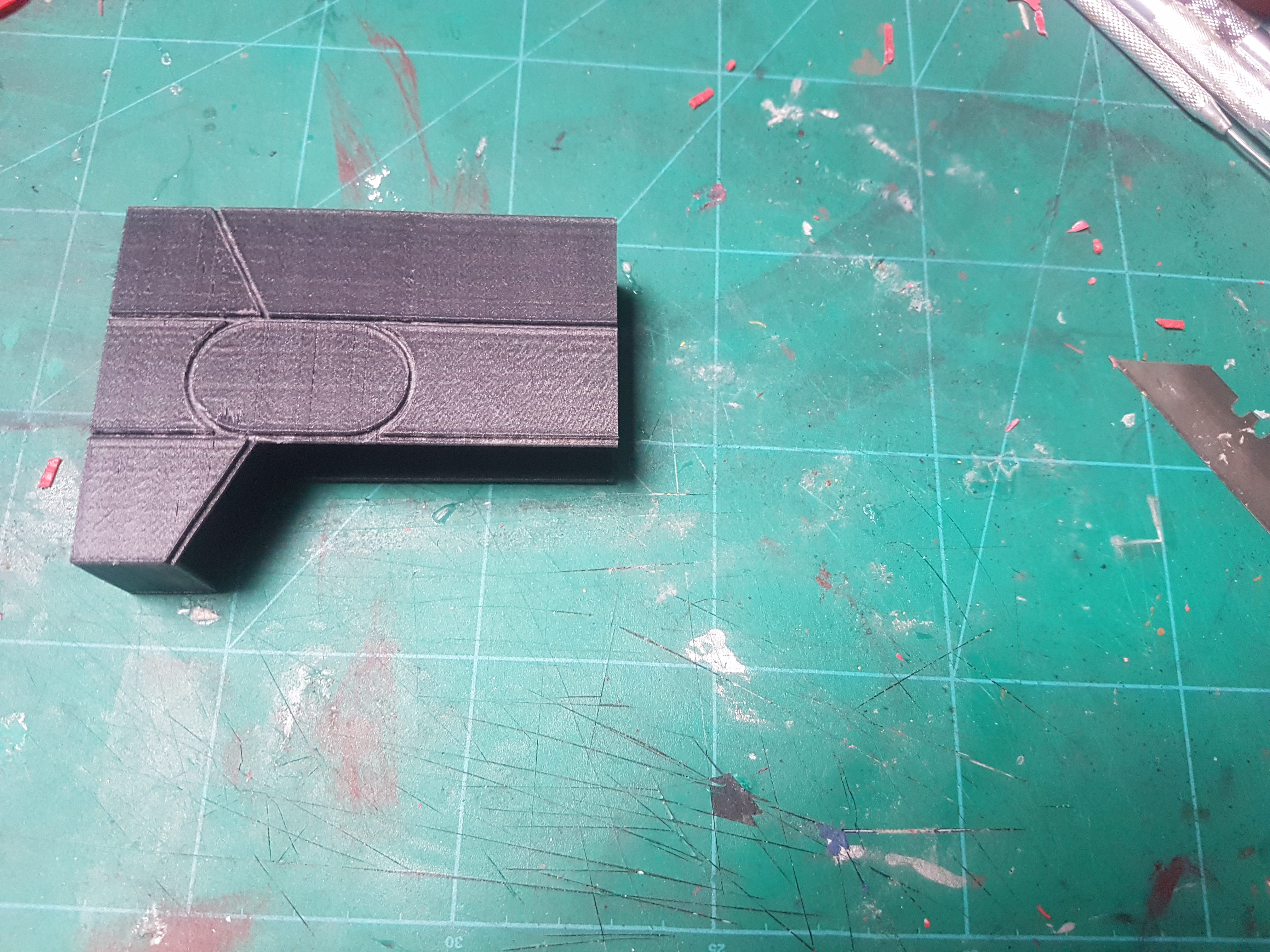

I'm currently printing off my first few pieces and will be sizing them up to see what alterations need to be done.
More pics tomorrow.



[NuadaDesigns]

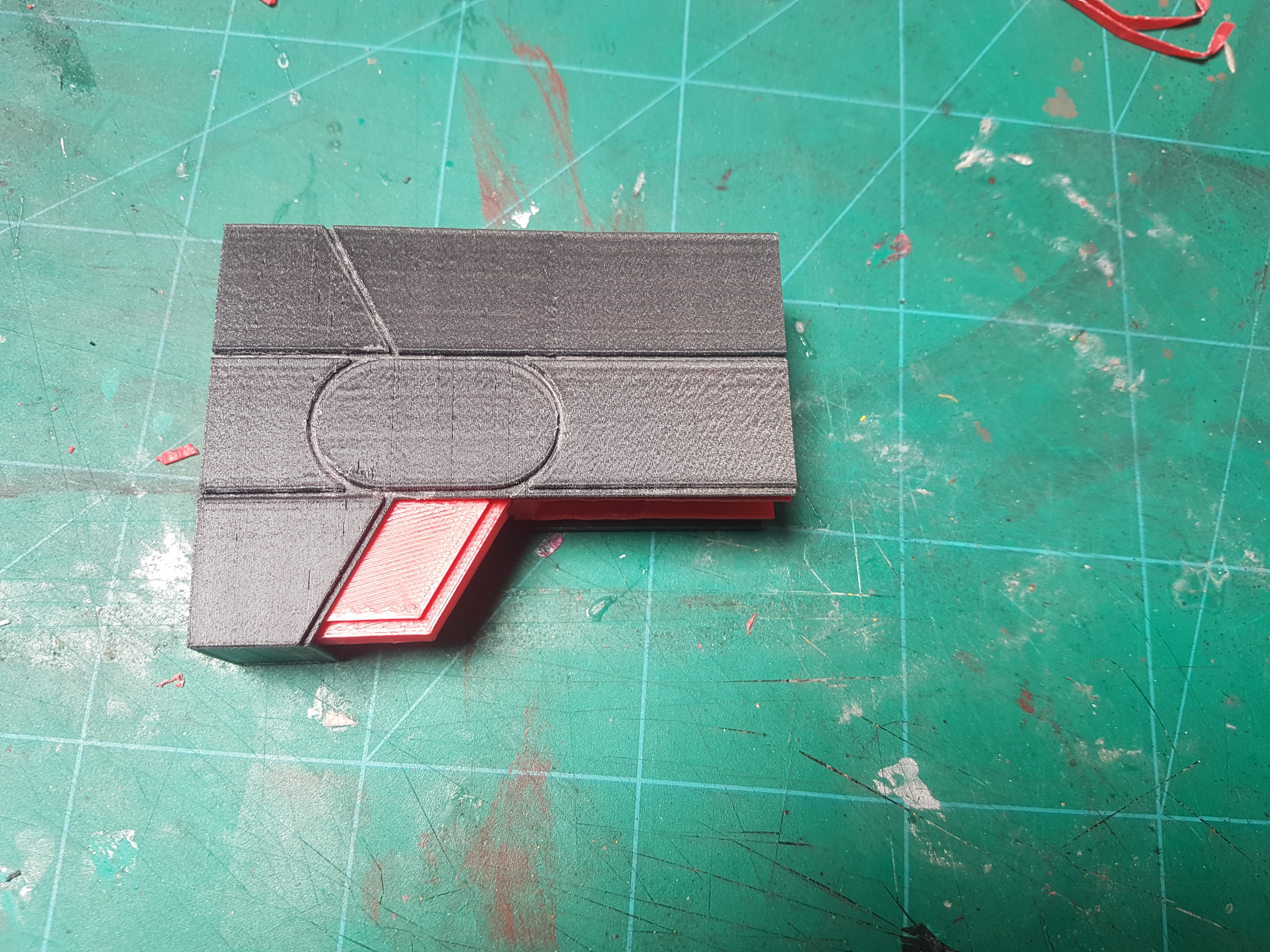

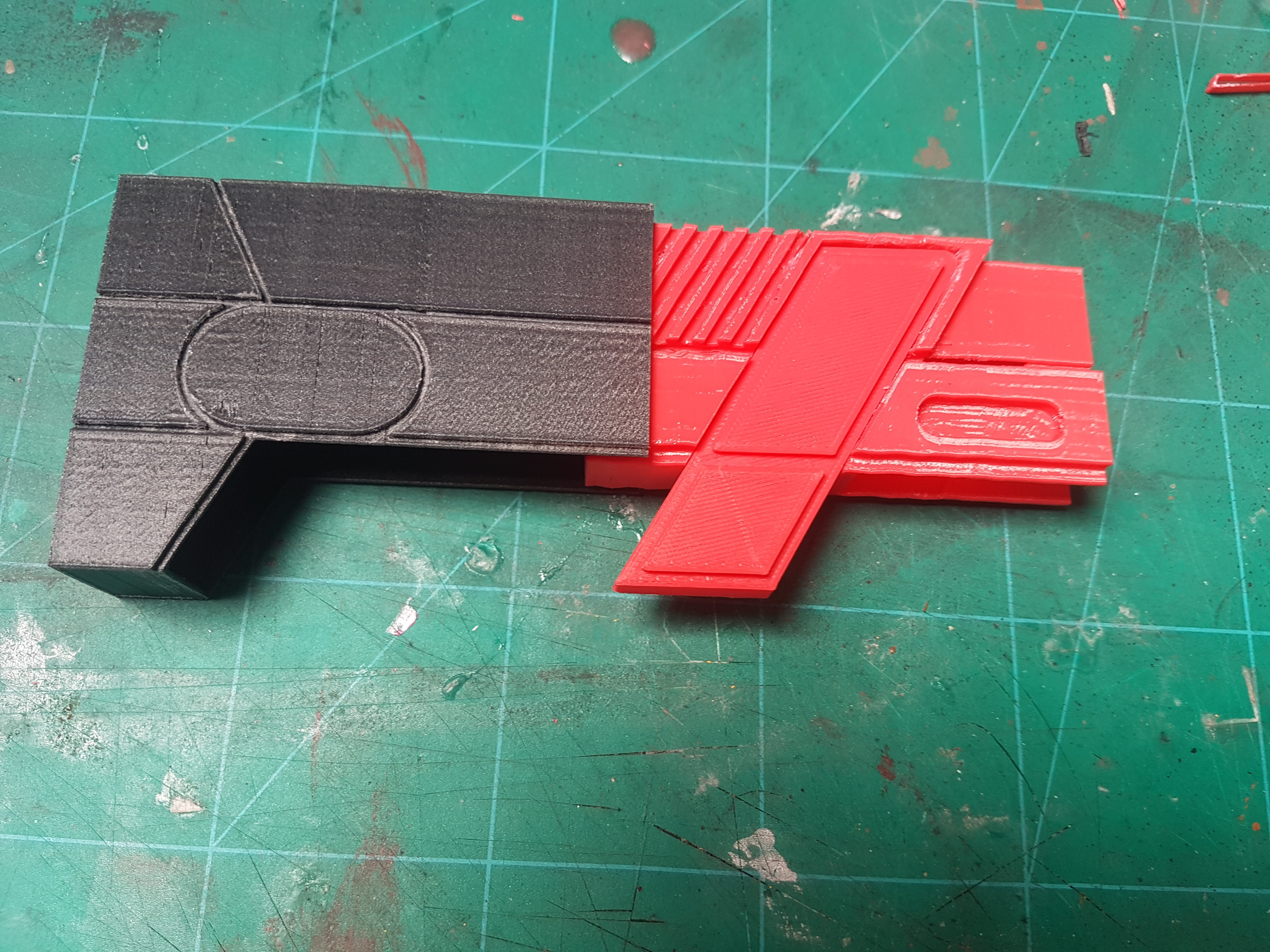

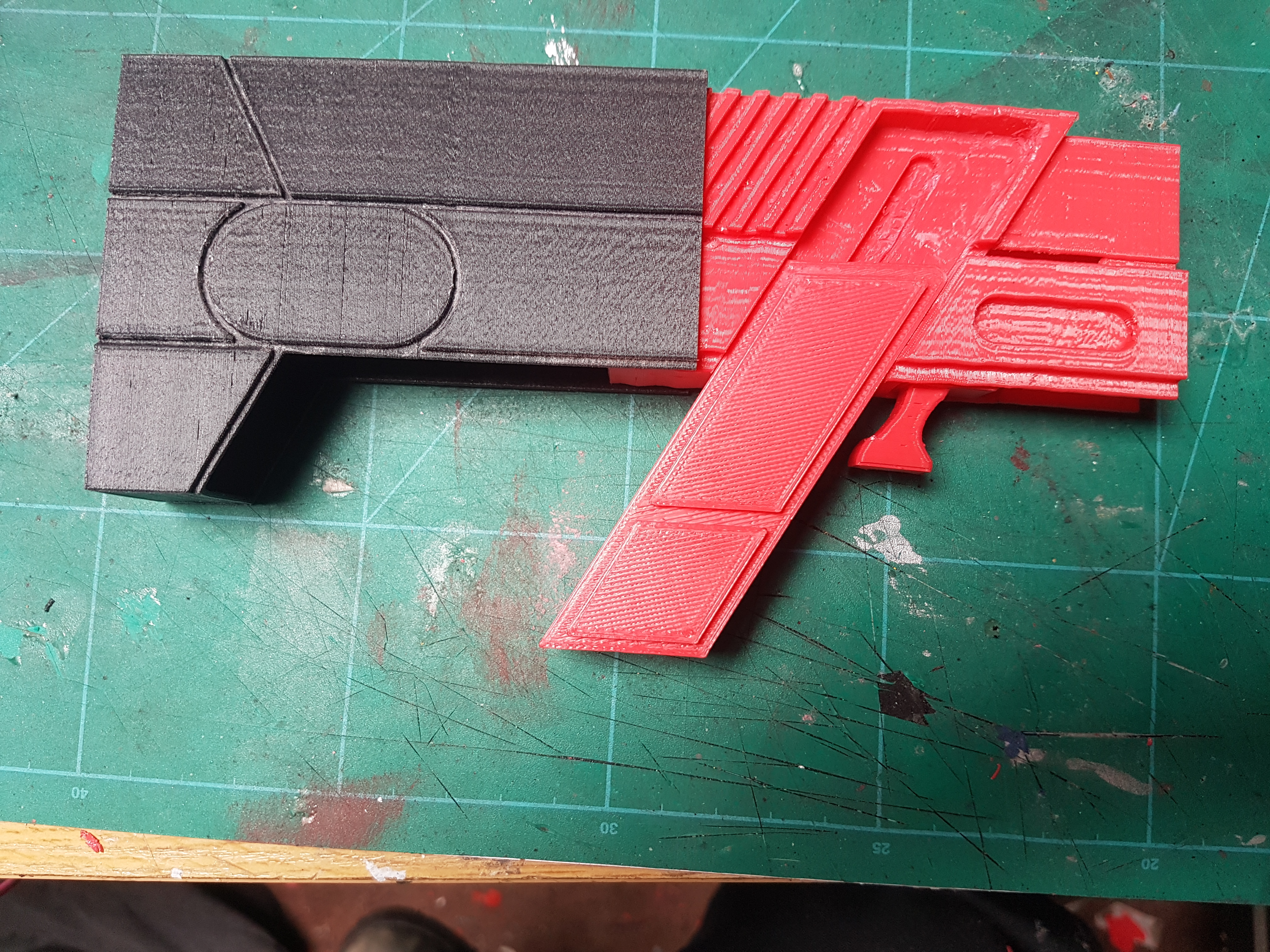

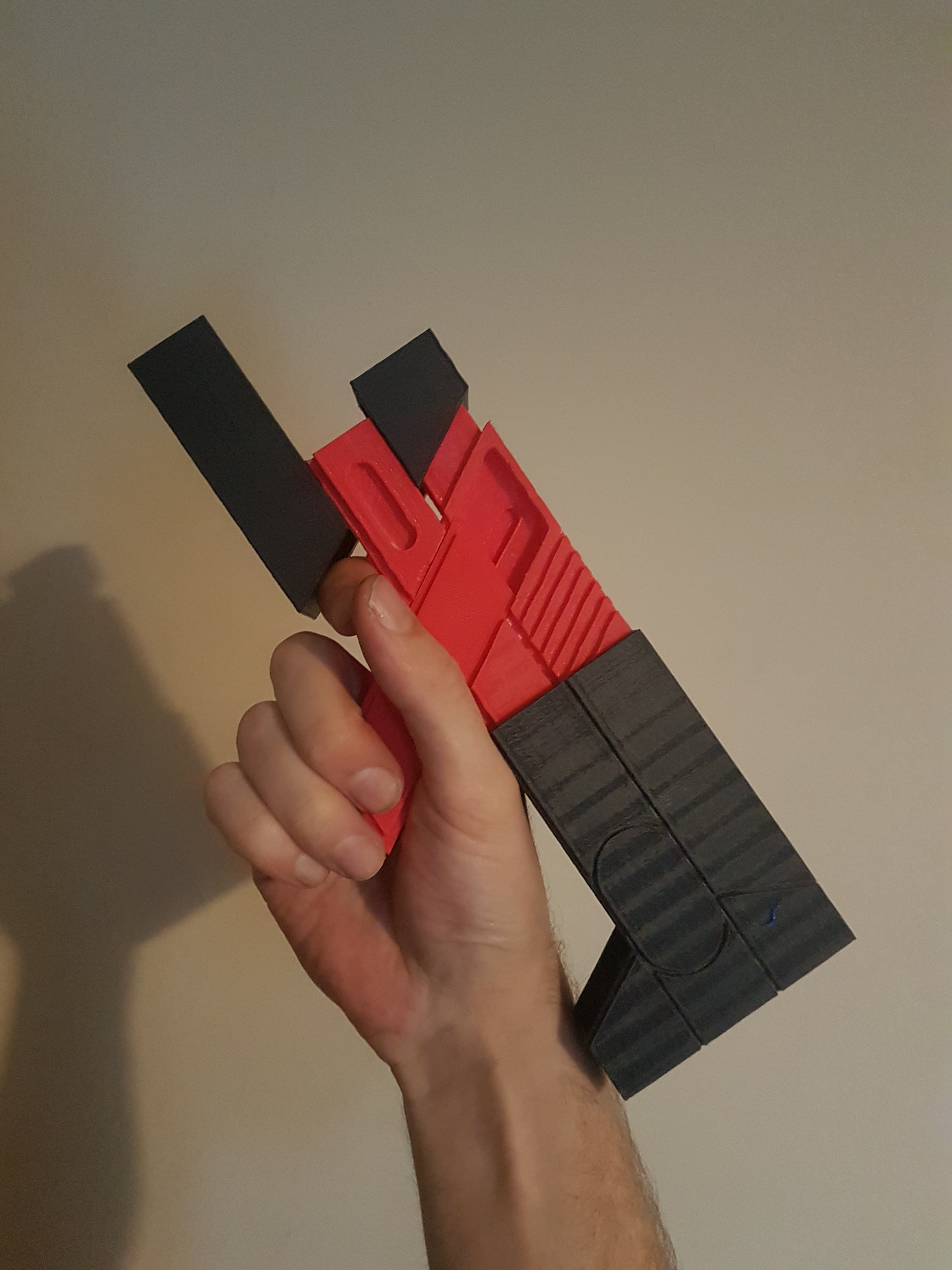

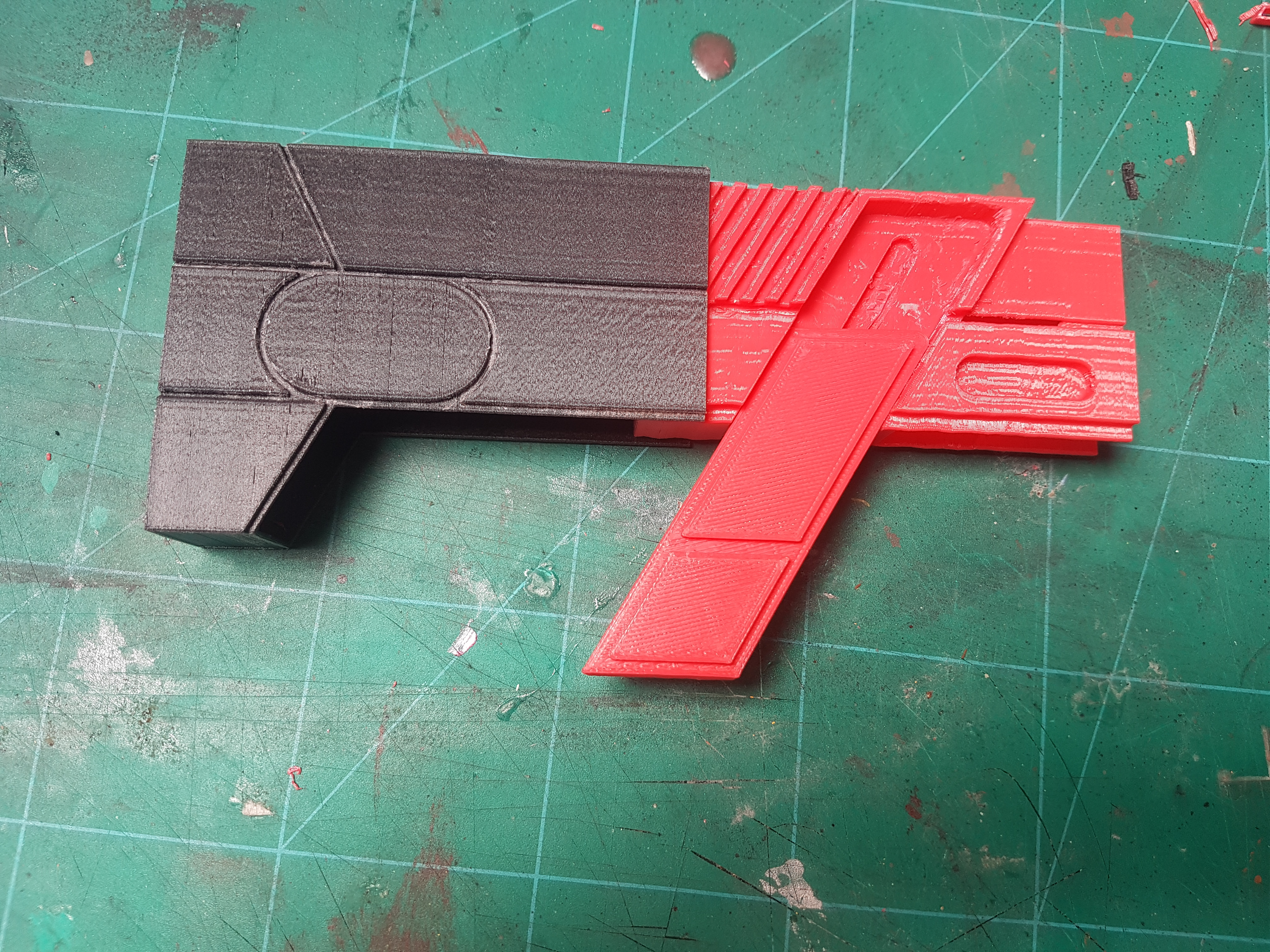

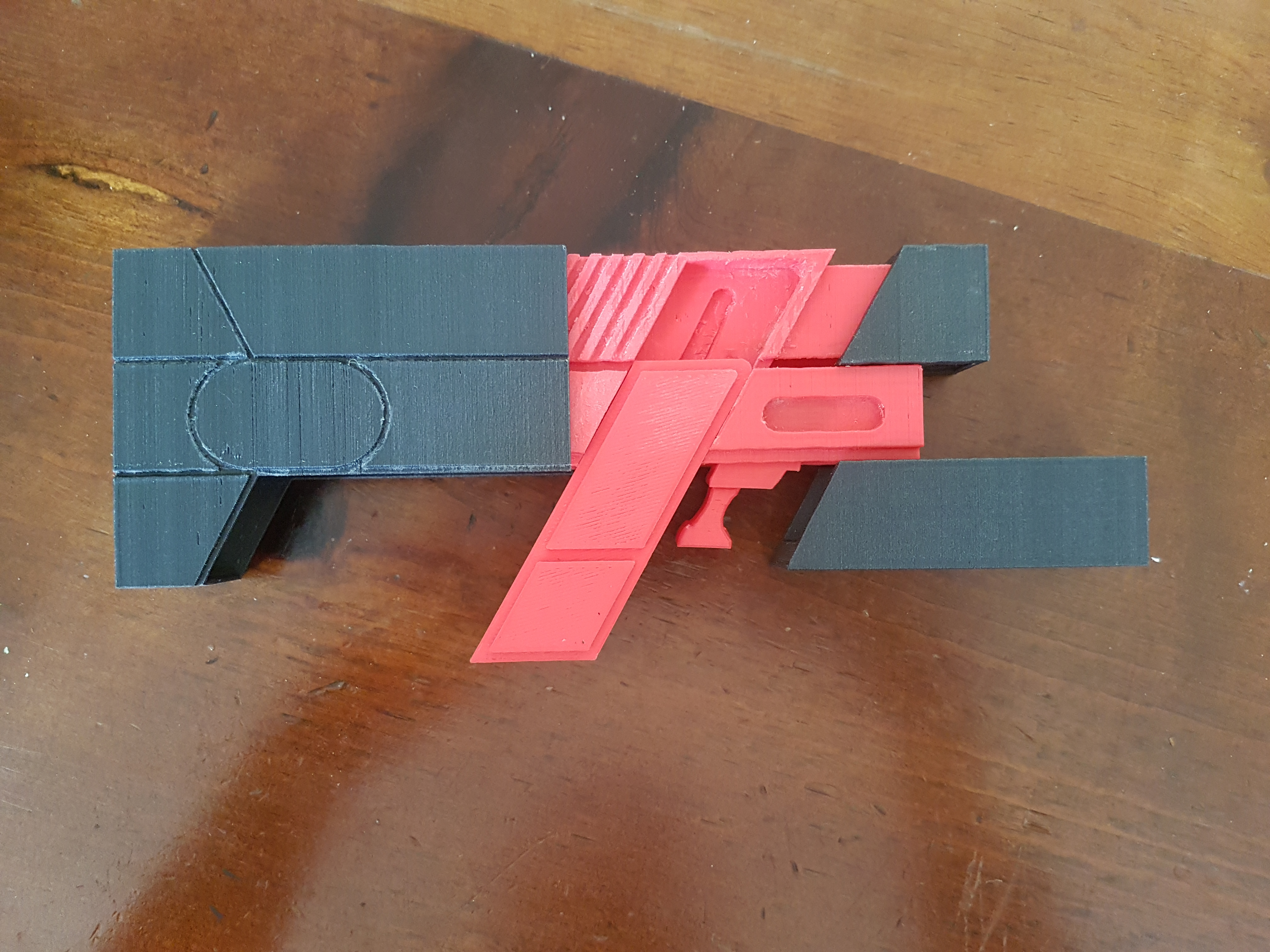

Few more pieces printed. Scale and sizing seems ok, but the placement of the handle needs to go back half an inch.



[NuadaDesigns]



[NuadaDesigns]



[NuadaDesigns]



[NuadaDesigns]

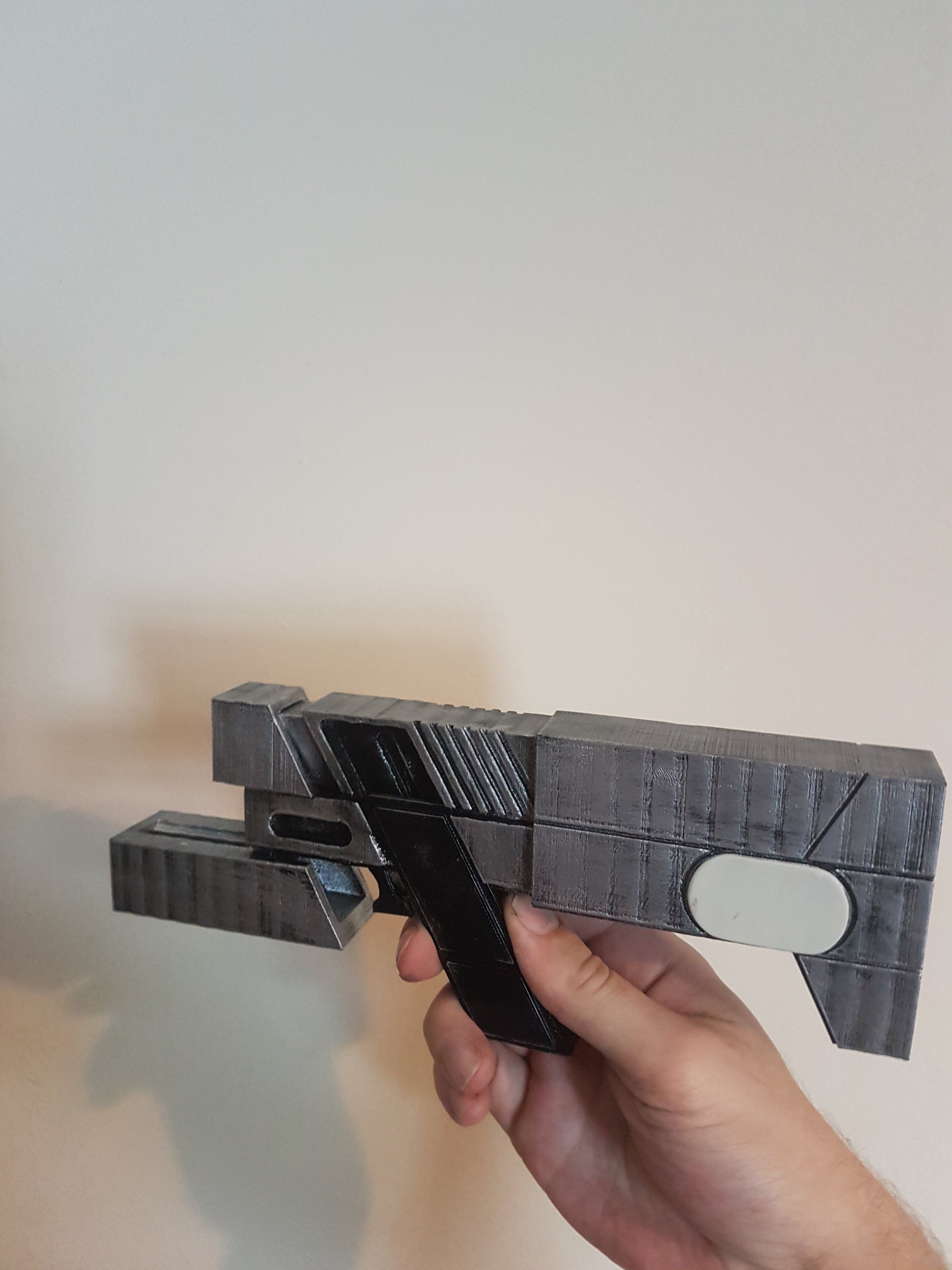

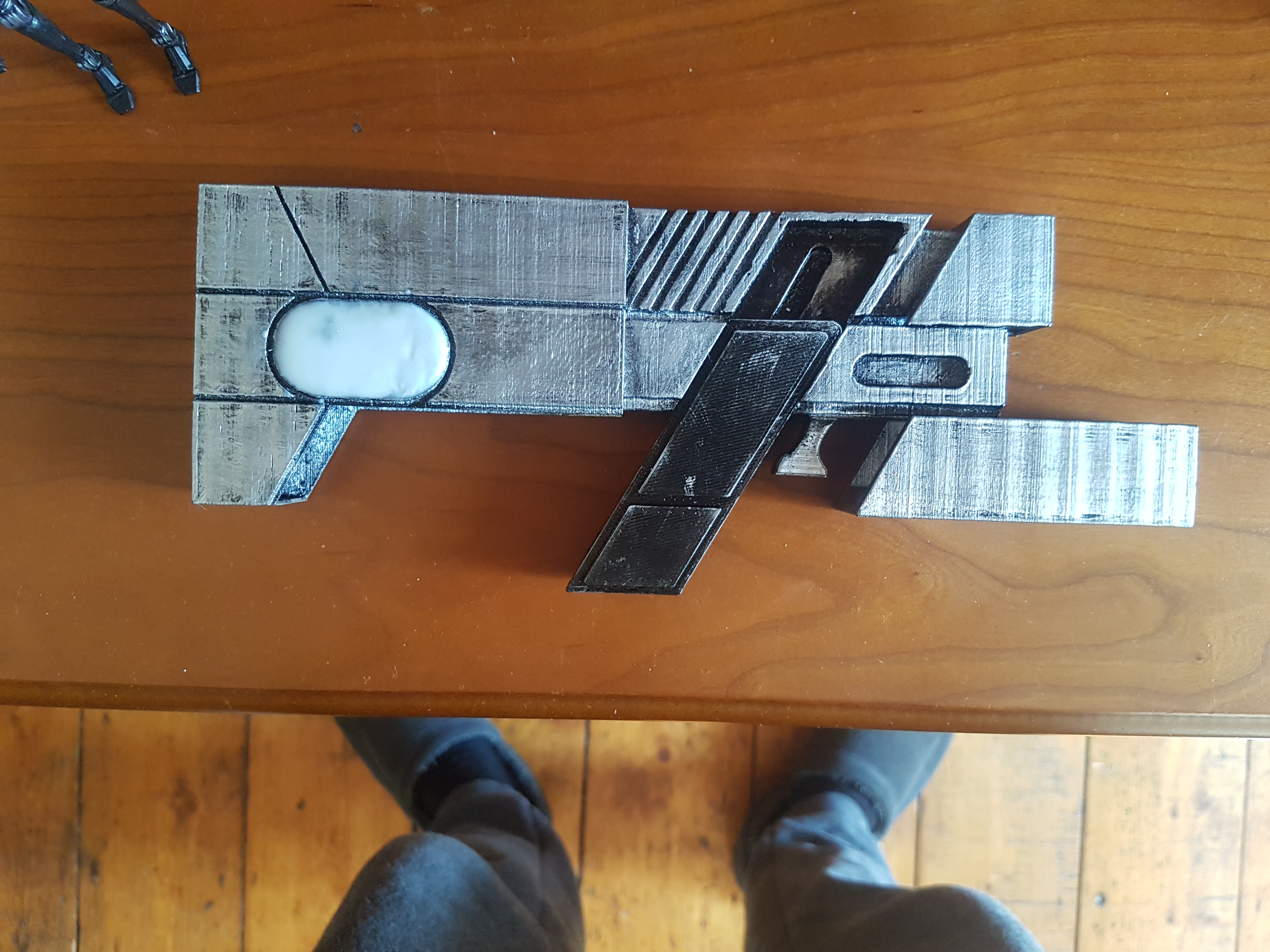

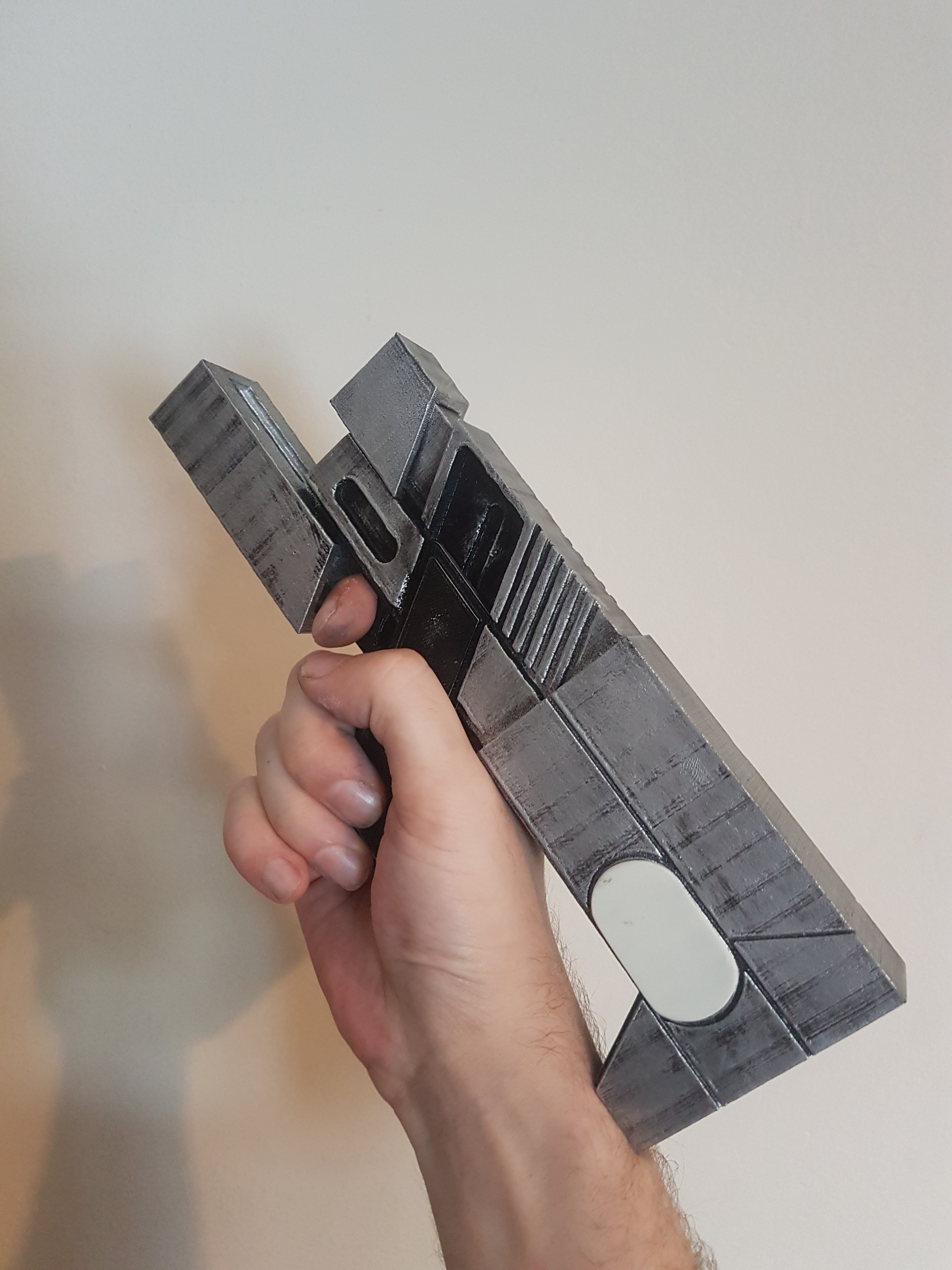

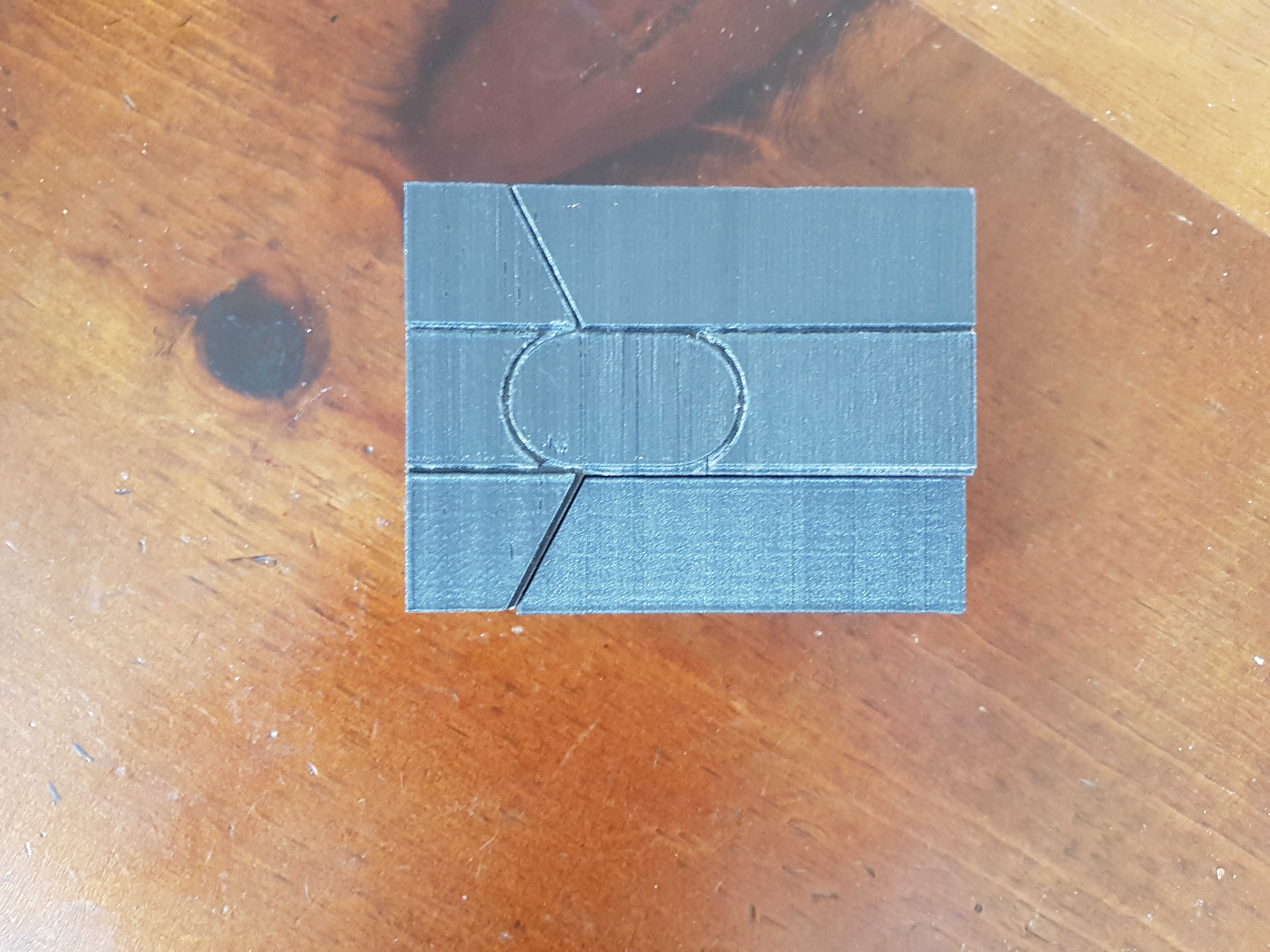

Glued the pieces of that print together to make a static prop, until I make the next one. Painted it up because I'm terribly impatient.



[NuadaDesigns]



[Apollo]

Looks good!!



[NeoTechni]

Any chance of posting the 3d printer files, please/thank you?



[thealeks]

I know this post is kind of old but on the off chance you see this, that looks amazing! Any chance you could share the 3d printing files?



[NuadaDesigns]

Hey, the files are available on my etsy at the moment.
Here's the link. Let me know if you have any questions before buying.

Ricos Puzzle Gun File for 3D Printing judge Dredd 1995 - Etsy Ireland

These are the .stl files for Ricos Puzzle gun, as featured in the 1995 Judge Dredd movie. All pieces fold up into the box and has room for springs, if wanted. All listing are for personal prints unless otherwise stated. For commercial prints, please contact me.

www.etsy.com



[Movie Magic]

Always loved this gun! So cool! Great job!



[NuadaDesigns]

Always loved this gun! So cool! Great job!

Thank you!!
