Hi Everyone,

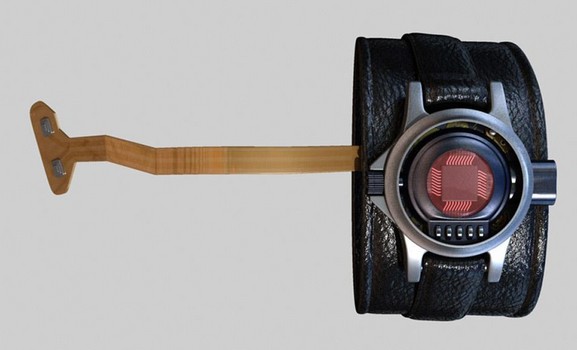

I don't know if some of you still remember that 2 years ago I made a prototype FPC Switch for TASM Webshooter based from below reference photos
attachment.php

attachment.php



Here is the video of the PROTOTYPE FPC I made 2 years ago...
It is very difficult to make and I cannot achieve the quality standard that I am aiming.


Then after 2 long years of extensive research and development, acquisition of machine, high quality raw materials, and special tools, we finally succeeded on making a fully functional, highly accurate, high quality and reproducibility FPC switch.

Although we can now make quite a few, we are not big factory/company that can manufacture it in hundred thousand batches, so I would say it is quite expensive to make and I have very limited supplies.

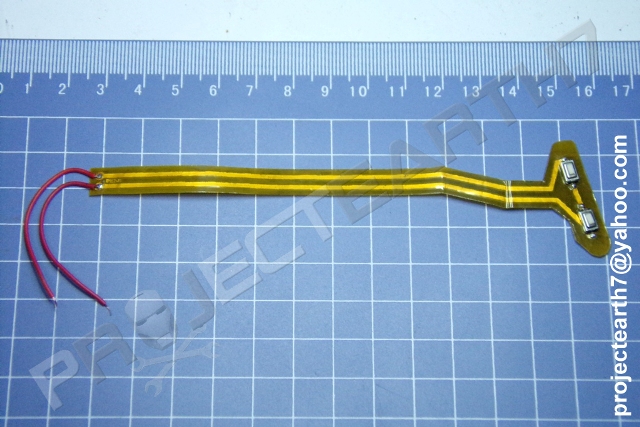

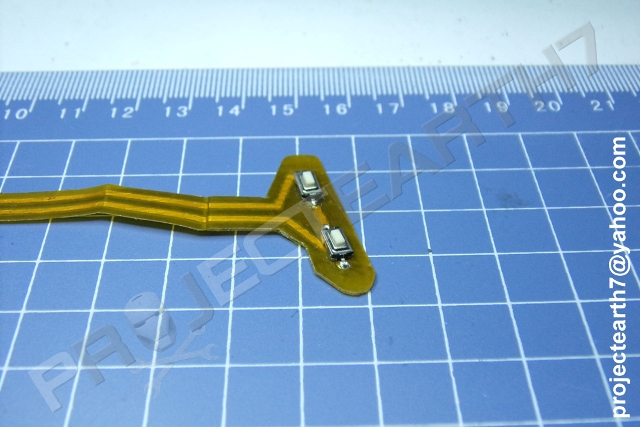

Below are the photos of the NEW FPC Switch
attachment.php


attachment.php


attachment.php

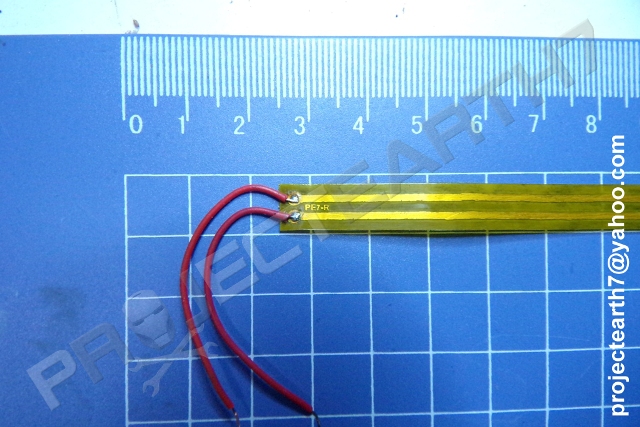

It can be easily solder to the electronic board of a webshooter ;):thumbsup










1335717772_spiderman_web_shooter3.jpg575679_245814965530783_1961948522_n.jpgTASM Webshooter FPC Switch3.jpgTASM Webshooter FPC Switch1.jpgTASM Webshooter FPC Switch2.jpg

Last edited by a moderator:

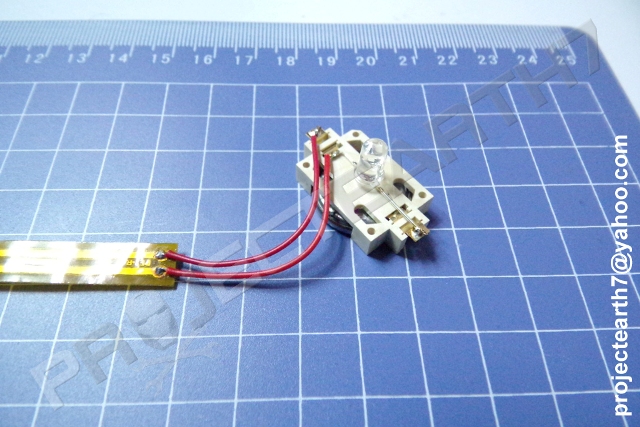

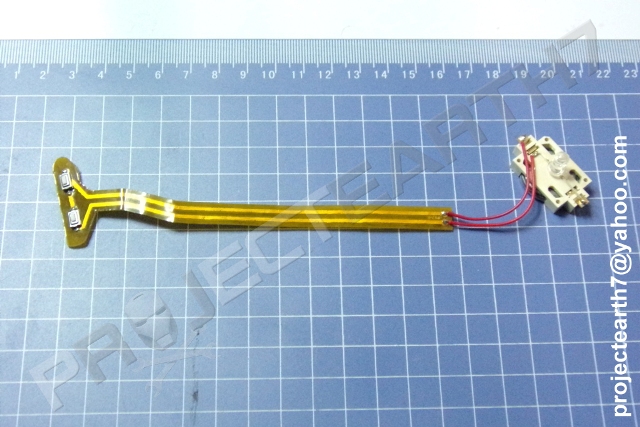

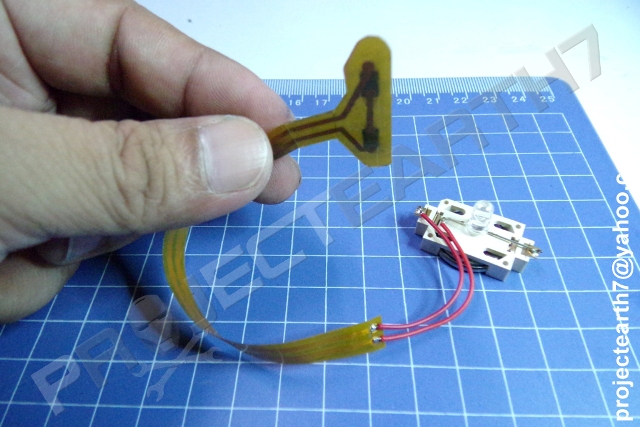

Now I solder the FPC switch to a simple LED/battery assembly to demonstrate its function
attachment.php


attachment.php

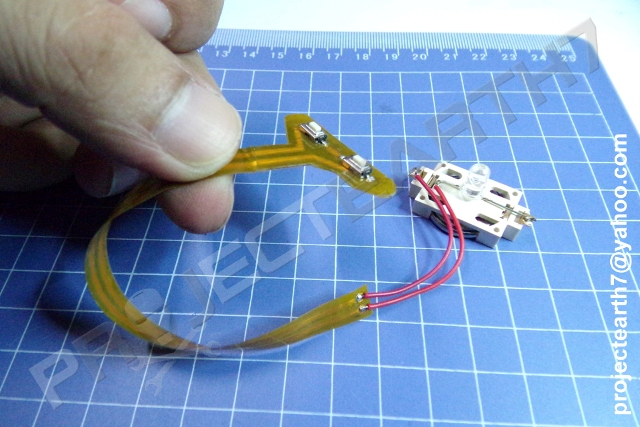

The 2 tact switch is in series connection...
attachment.php


attachment.php


attachment.php

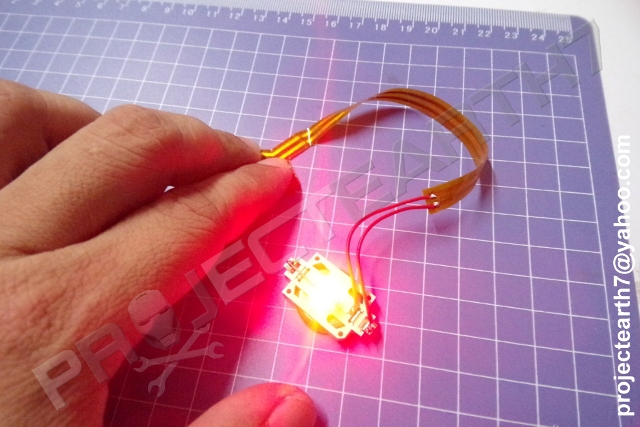

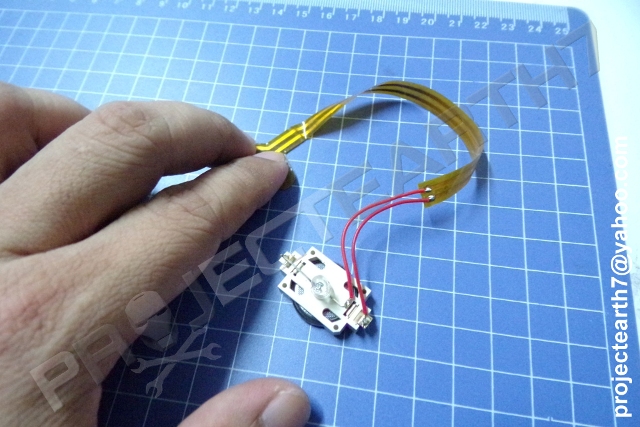

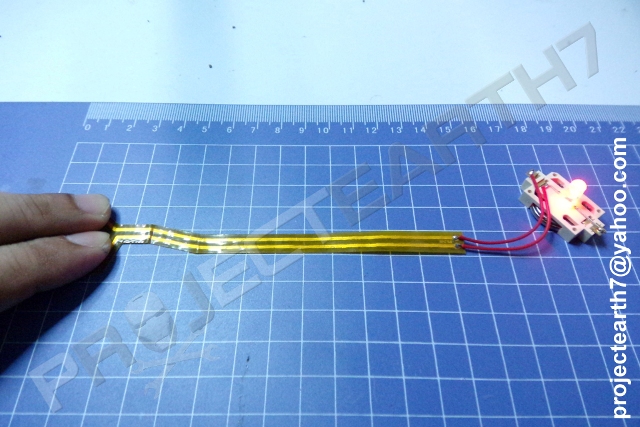

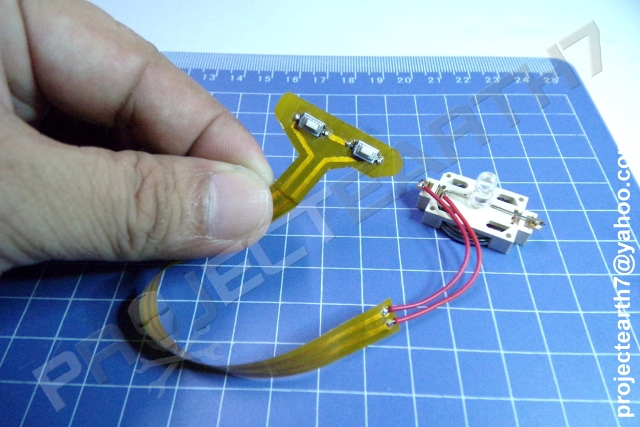

Since the tact switches are connected in series, you need to push the 2 switch to turn ON the LED
attachment.php


attachment.php


attachment.php



And here is the DEMO Vid showing its movie accuracy, flexibility and functionality...


Cheers everyone :):thumbsup





TASM Webshooter FPC Switch4.jpgTASM Webshooter FPC Switch5.jpgTASM Webshooter FPC Switch6.jpgTASM Webshooter FPC Switch8.jpgTASM Webshooter FPC Switch9.jpgTASM Webshooter FPC Switch10.jpgTASM Webshooter FPC Switch11.jpgTASM Webshooter FPC Switch12.jpg

Last edited by a moderator:
