[Noob] Can someone tell me how the pulley contraption on this Alien mask works? Help!

Discussion in 'Replica Props' started by PvtParts, Apr 6, 2015.

  1. PvtParts

    PvtParts New Member

    Trophy Points:
    2
    https://www.youtube.com/watch?v=A7t0VywKtKk

    I want to create the same sort of mechanism, where in the small action of opening my mouth translates to the same action on the Alien head above.
    I think that mouth opening part (not the tongue lol) doesn't require knowledge of servos and all that electronic stuff, but just pulleys.
    But can anyone explain how exactly that works?

    Last edited by a moderator: Nov 9, 2018
  2. Sean

    Sean Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,286
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    I'm thinking it's a spring action. a spring Is holding the alien jaw shut. when the person opens his mouth he's pulling against the spring to open the mouth.

    George likes this.
  3. Sean

    Sean Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,286
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

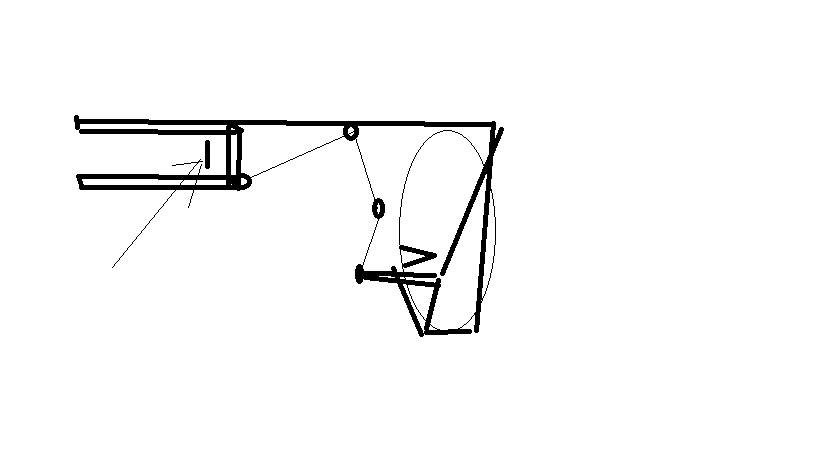

    excuse the crappy drawing i cannot do the computer thing. the arrow is pointing at the spring. and the guy has a face rig on for his jaw to translate the movement.




    George likes this.
  4. PvtParts

    PvtParts New Member

    Trophy Points:
    2
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    Wow, thank you! That's roughly the idea I had in mind.

    But I can't get my head around how his small jaw movement translates to a sort of scaled-up movement on the Alien head.

    And I don't know how the string connected to the Alien lower jaw works.

  5. robn1

    robn1 Master Member

    Trophy Points:
    3,355
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    It's not quite as complicated as Sean's drawing, here's a cap from the video.
    [​IMG]

    Looks like a single pulley, attached to the jaw in front of the hinge. The pulley size can convert the pull into a larger or smaller move, like a gear. but it may take more force to make it move.

    *edit*

    Scratch that. The pulley would need a block and tackle arrangement to adjust the pull, clearly not the case here. It looks like the far placement of the wire to the jaw makes the larger pull. The further out from the pivot point the larger the pull.

    There, that should be clear as mud :lol

    Last edited: Apr 7, 2015
    Sean likes this.
  6. Sean

    Sean Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,286
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    thanks Rob. your a lifesaver man. and i wouldn't even call what i did a drawing..:lol

  7. PvtParts

    PvtParts New Member

    Trophy Points:
    2
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    @robn1 @sean Can you guys make a diagram of that? I'm not quite sure I get the entire thing yet. :(

    I'm pretty much a super noob to building things (and simple machines, apparently).

  8. PukkaLemons

    PukkaLemons Jr Member

    Trophy Points:
    93
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    It looks like its one movement, but the further he opens his mouth the more it shows on the head i.e if he just moves a bit, the lips curl and snarl, if he fully opens the lips still curl and snarl but are overshadowed by the movement of the entire jaw.

  9. CaptChunkyChew

    CaptChunkyChew Active Member

    Trophy Points:
    341
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    I think the wires must be attached to the lip of the head- to make it curl at first, and move the entire jaw move by pulling it further. I think the jaws of the alien head must have sprung pivots at the move point.

  10. a438980

    a438980 Active Member

    Trophy Points:
    263
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

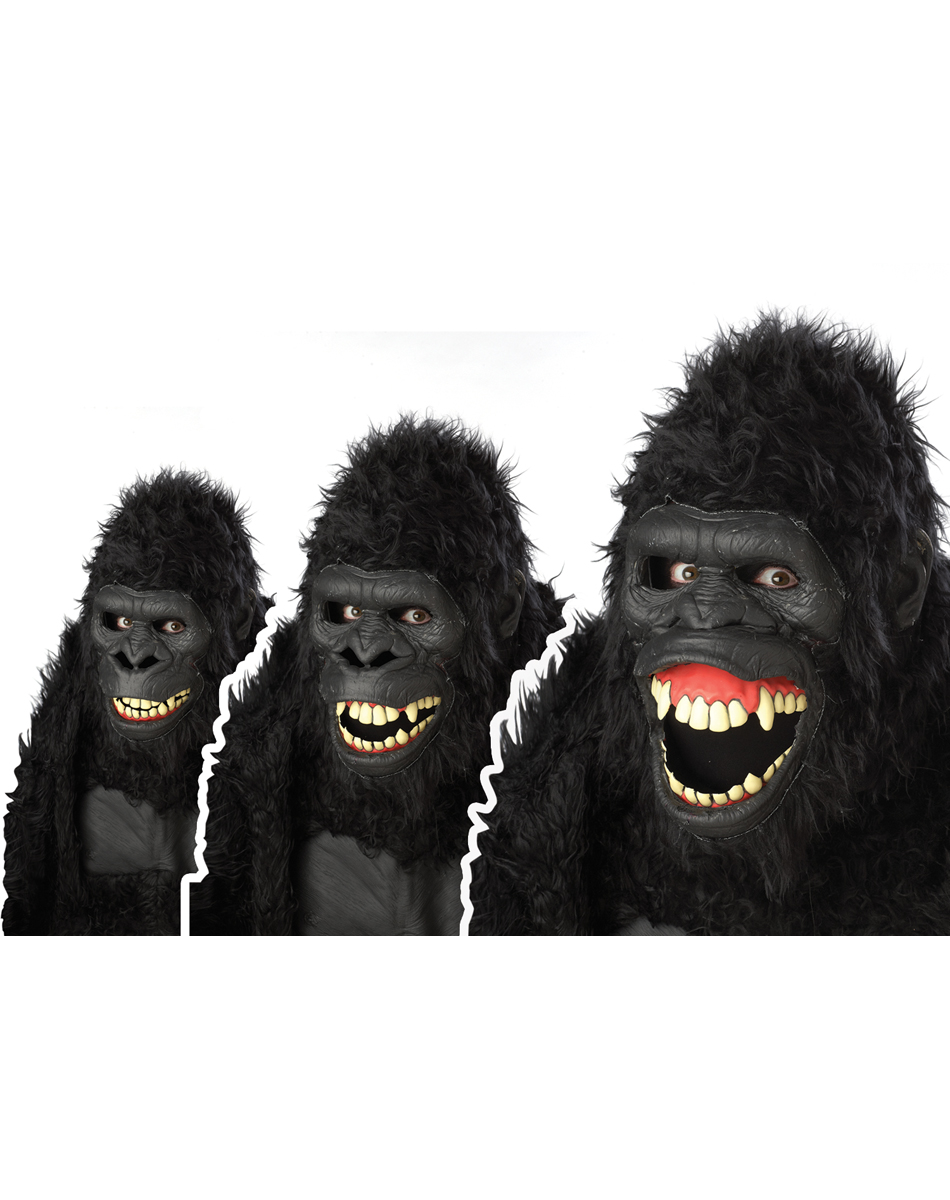

    If you can get one, or if someone has taken one apart to see how it works, there is actually a line of masks offered by Spirit and other halloween stores that do the same thing (lips pull back before mouth opens) that sell for $25-$37. I tried a quick search to see how that work so I could post a diagram or something, but couldn't find one. You may have more luck than I did though. Here's a few examples:
    01107176.interactive.a.jpg 01107150.zoom.a.jpg 07190572.zoom.b.jpg

    The distance and positioning of the wearer's face from the mask's face will make it a little different than these, but possibly not more complicated than just having to add a couple extra pulleys.

  11. Sean

    Sean Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,286
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    There's a second pulley on the right side of his head. how it's controlled i have no clue...



  12. Dracosfire83

    Dracosfire83 Well-Known Member

    Trophy Points:
    915
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    This is what I can make out.

    Red= Pulley
    Blue=Cable

    [​IMG]

    George likes this.
  13. PvtParts

    PvtParts New Member

    Trophy Points:
    2
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    What's the second pulley above his head for?

  14. Dracosfire83

    Dracosfire83 Well-Known Member

    Trophy Points:
    915
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    Probably used for extending the little mouth.

  15. DangerDan

    DangerDan New Member

    Trophy Points:
    2
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    this is an awesome thread. Ive what these same videos over and over again trying to figure it out. Anyone else found anything on the mechanisms?

  16. Pr6i6e6st

    Pr6i6e6st New Member

    Trophy Points:
    3
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    I know this is an older thread but I've began working on a xenomorph costume as well. I've got a tail mechanism working and am working on the head. I've got most of it done and am ready to start on the mechanics of it. I've worked out something that may work.

    https://www.facebook.com/PR6I6E6ST/posts/10157466027020621

    https://www.facebook.com/PR6I6E6ST/posts/10157460641820621

    https://www.facebook.com/PR6I6E6ST/posts/10157361865420621

    Last edited: Sep 29, 2016
  17. Pr6i6e6st

    Pr6i6e6st New Member

    Trophy Points:
    3
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    I'm going to rig the second jaw to something inflatable and have a wire pull the little jaws shut when it reaches the extent. The inflatable will be rigged to a tube to my mouth. Just seems like the easiest way to do it with limited space.

  18. Gato

    Gato New Member

    Trophy Points:
    3
    Re: [Noob] Can someone tell me how the pulley contraption on this Alien mask works? H

    Here is my video of using a brake cable. The mouth closes with the help of used condoms on the jaws. Oops, I mean unused...;)
    I'm still experimenting on how I'm going to mount it to make it functional.

    https://youtu.be/_xRs2Z11RiU


    Last edited by a moderator: Nov 8, 2018
