My Mk. 42 build, new STL files for upper arm section

[jhondesousa]

What about the iron man hand ?



[markseven]

What about the iron man hand ?

This! pls can we have the hand files



[MiddleFinger]

This! pls can we have the hand files

Abb didn't make a 3D hand file. He used pepakura for that. The only things that were 3D printed for the hand were the fingers. However! This thread right HERE has many print files available to download including the entire hand.



[markseven]

Thx!

Gesendet von meinem GT-I9305 mit Tapatalk



[jblee]

We need an update of your amazing work sir.



[GORGONA]

I did a forearm using your files
It's pretty good
Thank you for generously sharing



[ninjacentaur]

What software should be used to view and print these files?



[ninjacentaur]

Never mind, figured out I can use blender to view them.



[timecon]

Hey abb, I got to say thank you very much for the files I've already printed everything and Im in the finishing process now would you be willing to post pictures on how you put the arm/elbow parts together similar to your glove that was very helpful.



[nolocrema]

hello

i like your work with armor
can you send the armor in stl?

i want print in my printer 3D

ty



[jaballard]

I would like to say thanks for all of the files. I have printed all of the fingers, and the main forearm piece, i will be printing all of them over the next few days/weeks. the fingers are almost ready for paint, and the forearm section has a few layers of high build primer on it.



[bluedynno]

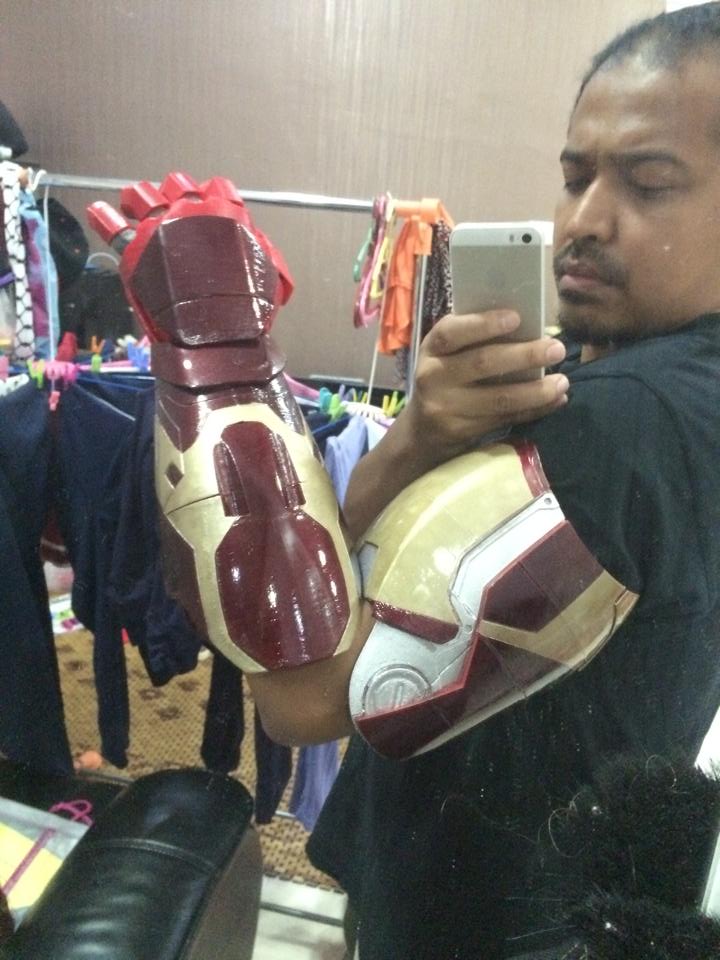

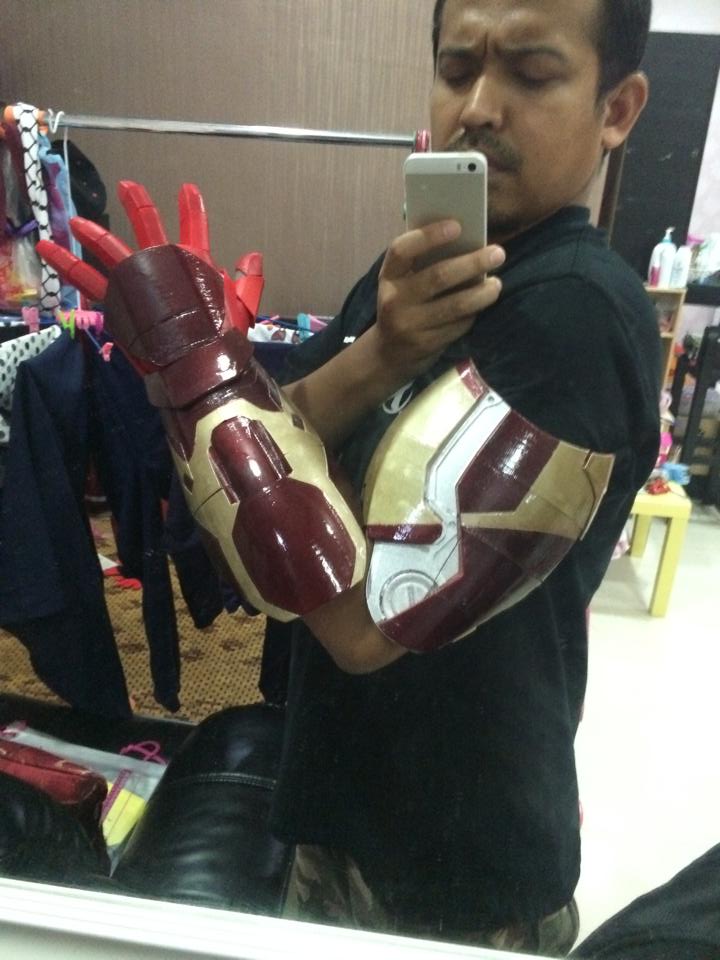

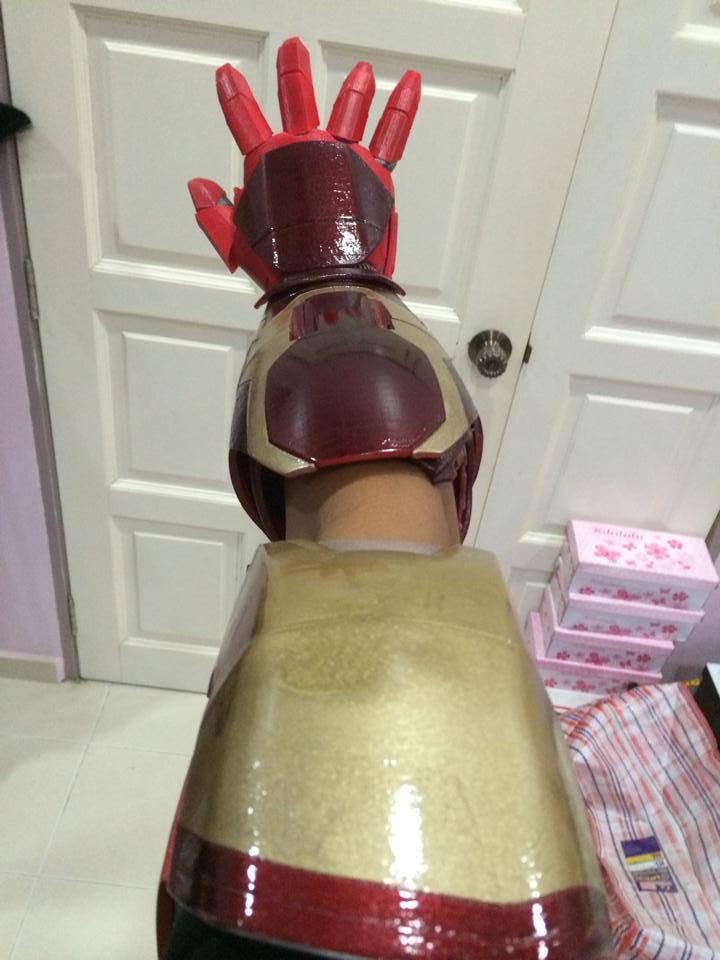

Hi, I would like to say thanks for the files. Already printed and painted it. Fit my arm just nicely

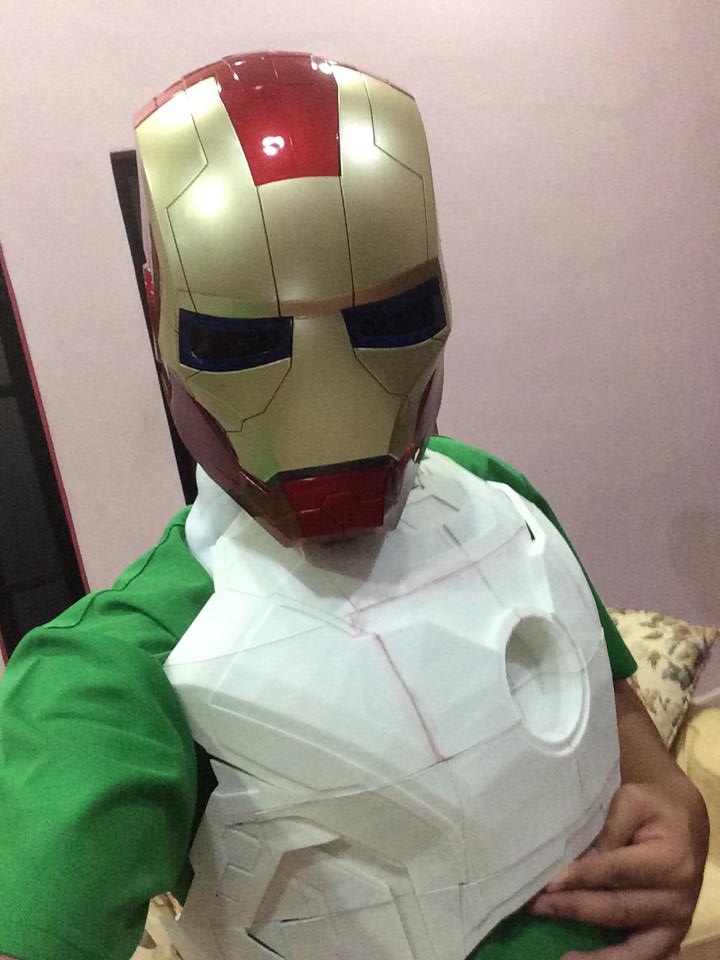

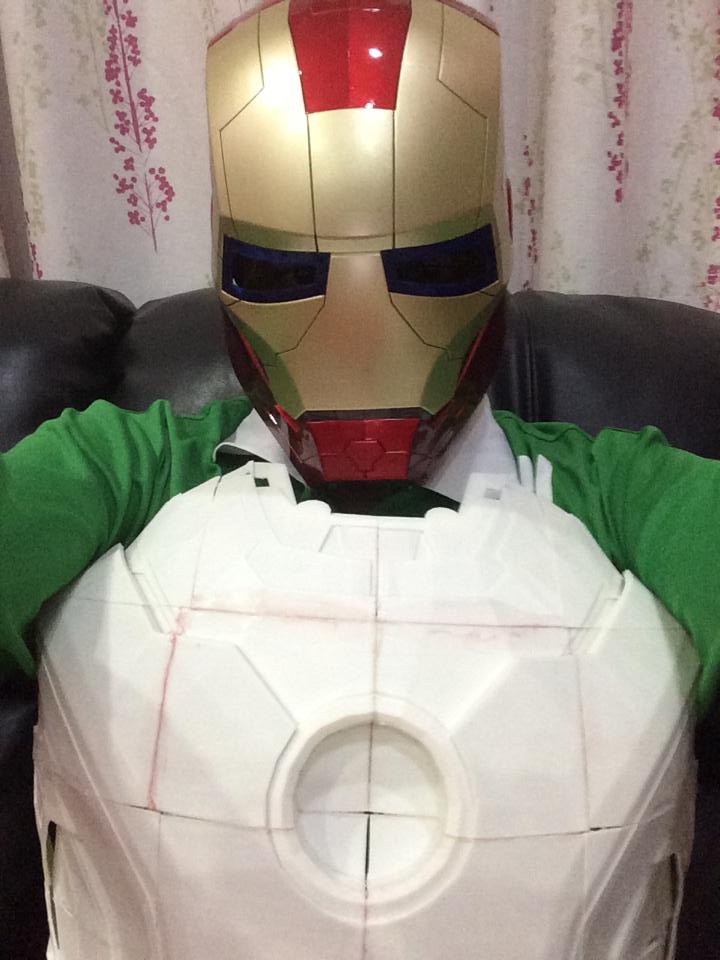

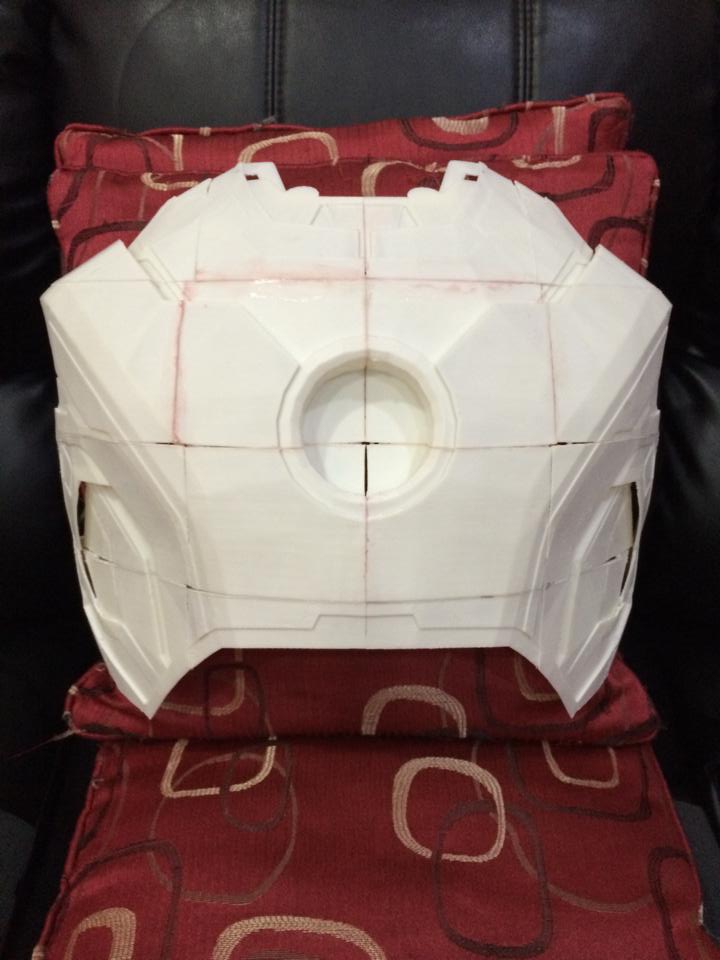

I've also converted some files from pepakura to STL using files from Helagaks & Jackieisrockin. Already printed the chest piece. I'm willing to share the files but don't know whether it is appropriate or not. If everyone is ok and the original owner of the files don't mind then I will share here.



I already converted for the whole suit but only manage to print the chest at the moment. Now printing the back piece still in progress.



[jballard86]

What printer are you using? print resolution? total print time for the chest?

I use a printrbot with a 12" x axis, i print files like these at .3mm for faster prints, and i estimate 4-10hrs per print.

Hi, I would like to say thanks for the files. Already printed and painted it. Fit my arm just nicely



I've also converted some files from pepakura to STL using files from Helagaks & Jackieisrockin. Already printed the chest piece. I'm willing to share the files but don't know whether it is appropriate or not. If everyone is ok and the original owner of the files don't mind then I will share here.



I already converted for the whole suit but only manage to print the chest at the moment. Now printing the back piece still in progress.



[bluedynno]

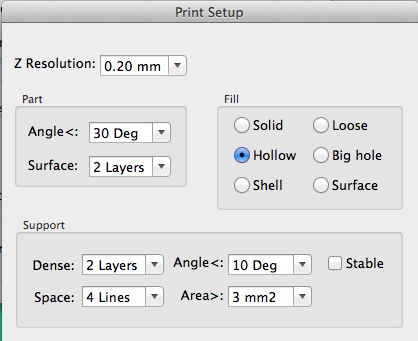

I'm using Up! Mini. Below is the settings:

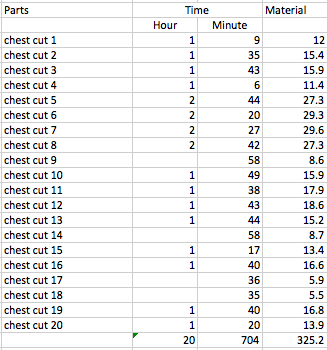

And below is the total print time & material for each piece



[IronGemenis]

wow, an awesome job, you will continue converting PDOs files to stl? I would love to get the rest of the pieces.



[bluedynno]

Actually, I already converted all of it. Here is the chest piece for download: http://www.thingiverse.com/thing:455950. I will upload the rest once I successfully print them, just in case the file is not good. Credit goes to jackieisrockin for his awesome files.



[TonySingh]

@.@..... wow.
And that pretty much sums it up...lol.



[Fetts.Sobriquet]

Actually, I already converted all of it. Here is the chest piece for download: http://www.thingiverse.com/thing:455950. I will upload the rest once I successfully print them, just in case the file is not good. Credit goes to @jackieisrockin for his awesome files.

How did you add thickness? The OBJ has none. Did you extrude it in maya or something similar?



[bluedynno]

How did you add thickness? The OBJ has none. Did you extrude it in maya or something similar?

I used Solidify tool in Blender to add the thickness after I rescale it to my body size.



[Fetts.Sobriquet]

I used Solidify tool in Blender to add the thickness after I rescale it to my body size.

Thanks! You and I are working on parallel projects it seems. I'm doing the same but with the MKIII
