My Lifesize 1:1 Gonk Droid

Discussion in 'Star Wars Costumes and Props' started by azheat01, Jul 17, 2015.

  1. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Since I'm needing a little help with my Ben Kenobi tunic and have some free time, and because I've been inspired by some of the excellent Gonk droid projects out there, I figured "why not?".

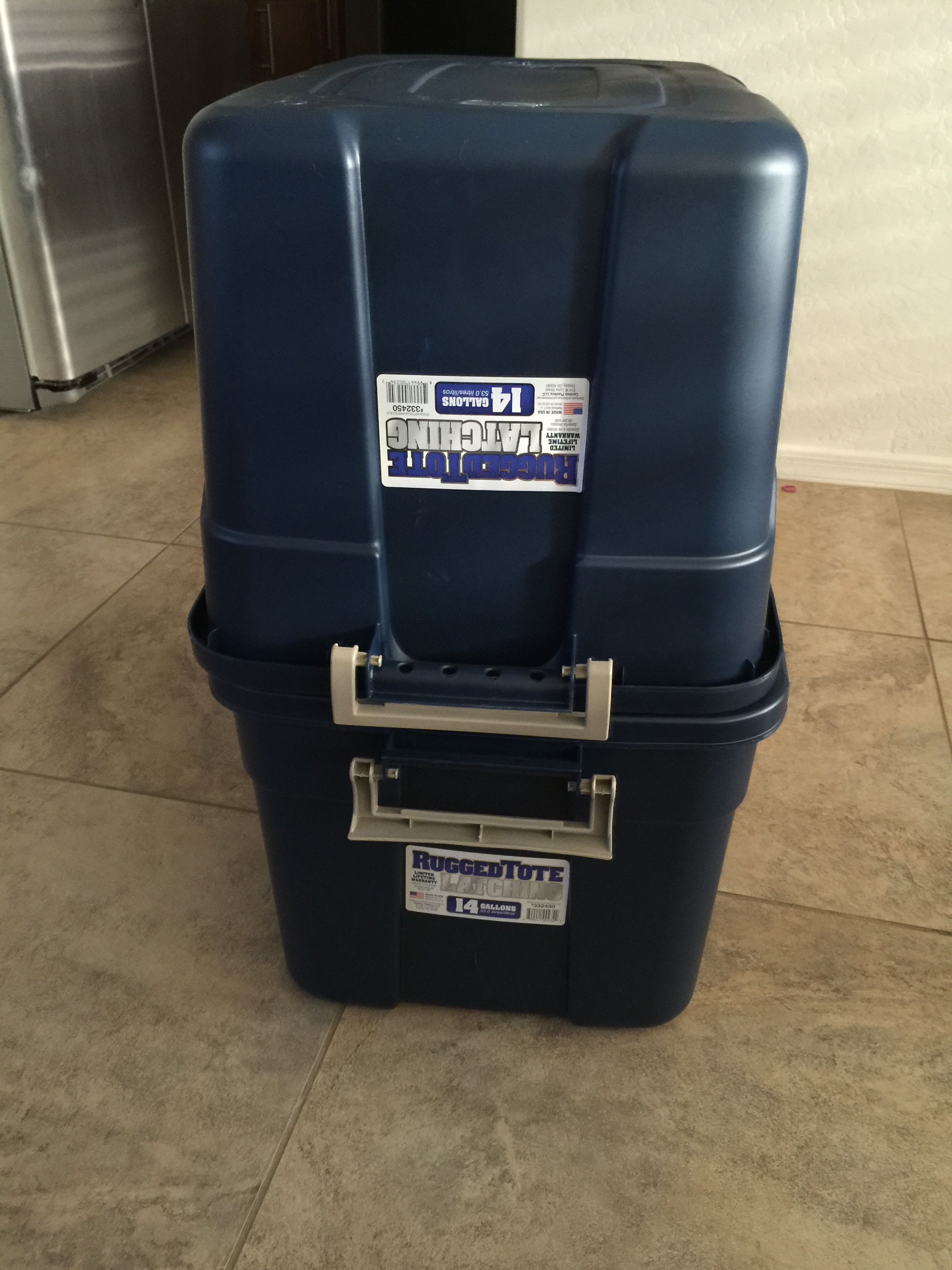

    I found these 14 gallon Rugged Tote boxes at Lowe's. I love the fact they're blue so I don't need to paint them. They were also reasonably priced, about $8 each.

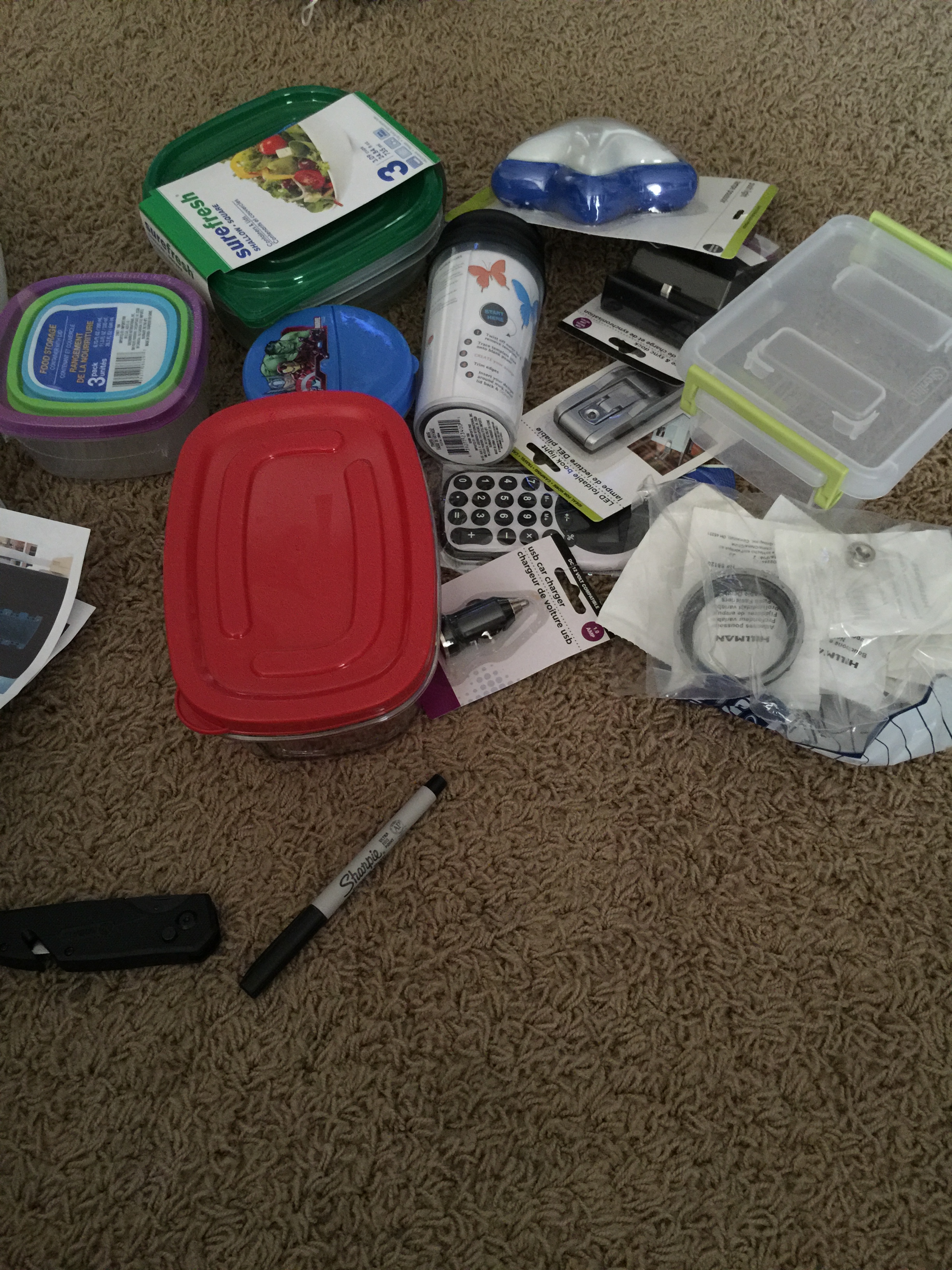

    I also went to the dollar store and bought about $15 in odds and ends.

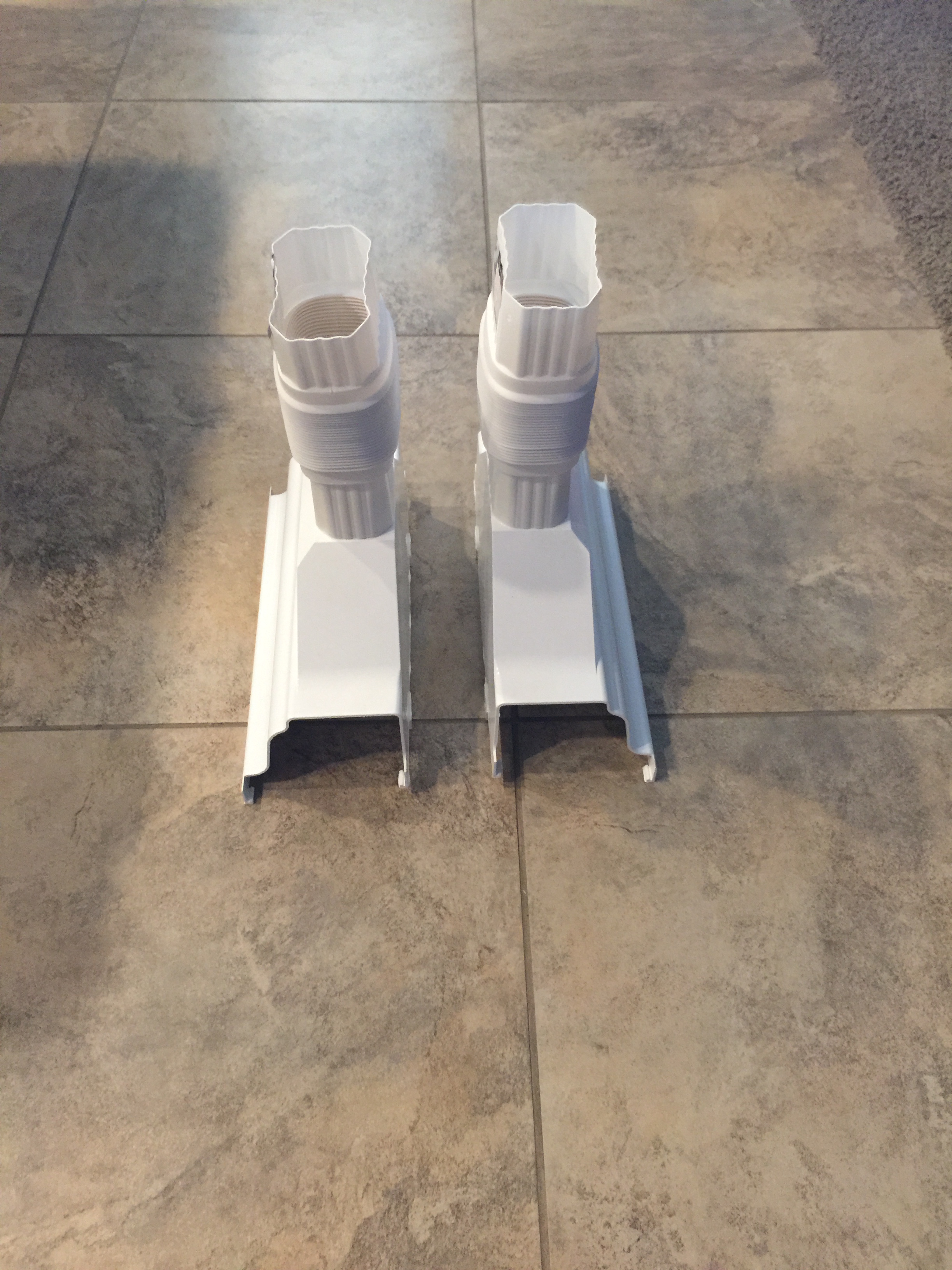

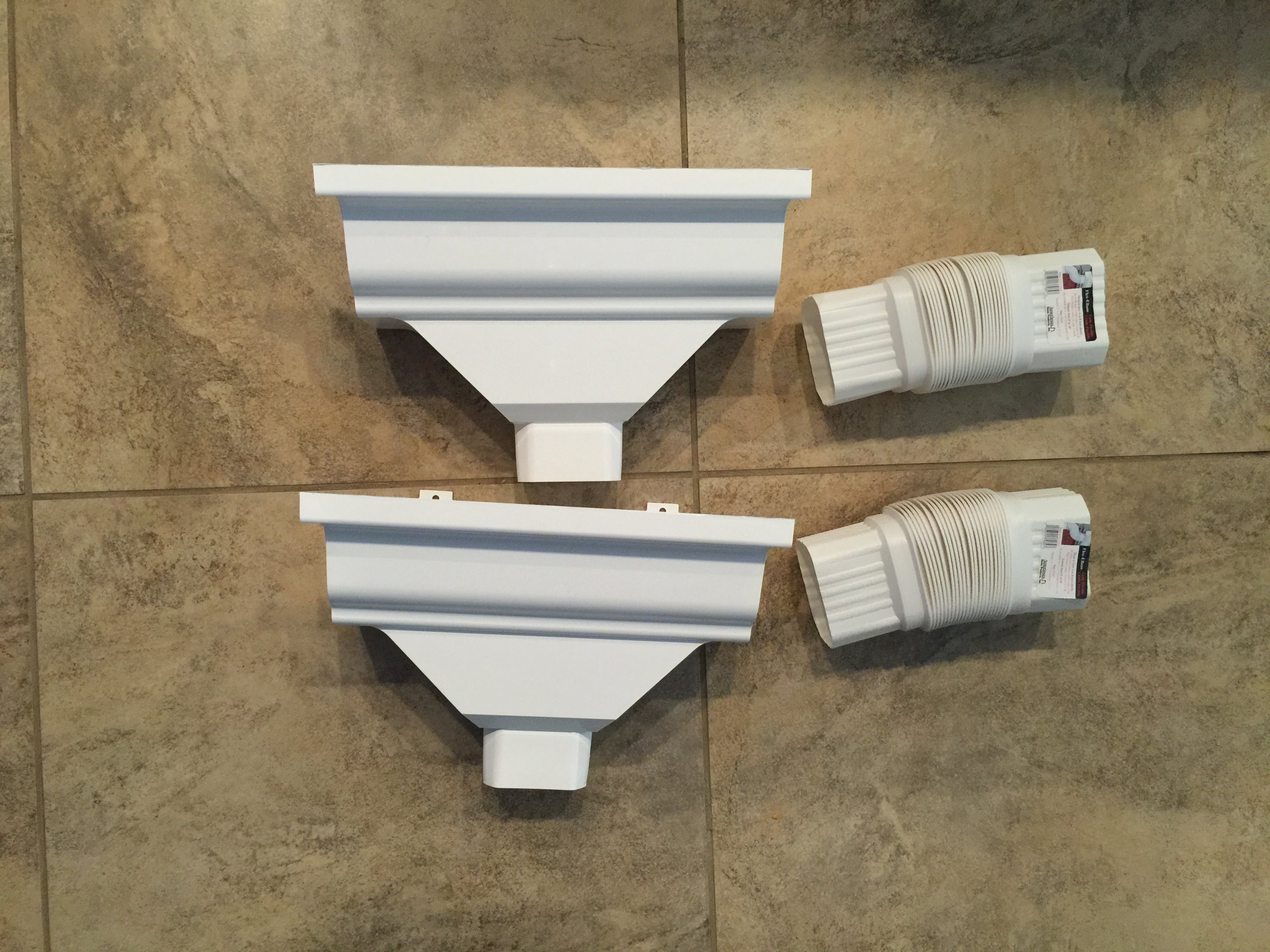

    I was originally going to scratch build the feet, but while walking around Lowe's I saw these gutter drop outlets and thought they'd work great. I also picked up some flexible downspouts for the legs. I'm going to remove the little tabs on both ends of the feet and then close both sides with a piece of styrene. I think by the time I paint them black and add greeblies, they'll look the part.

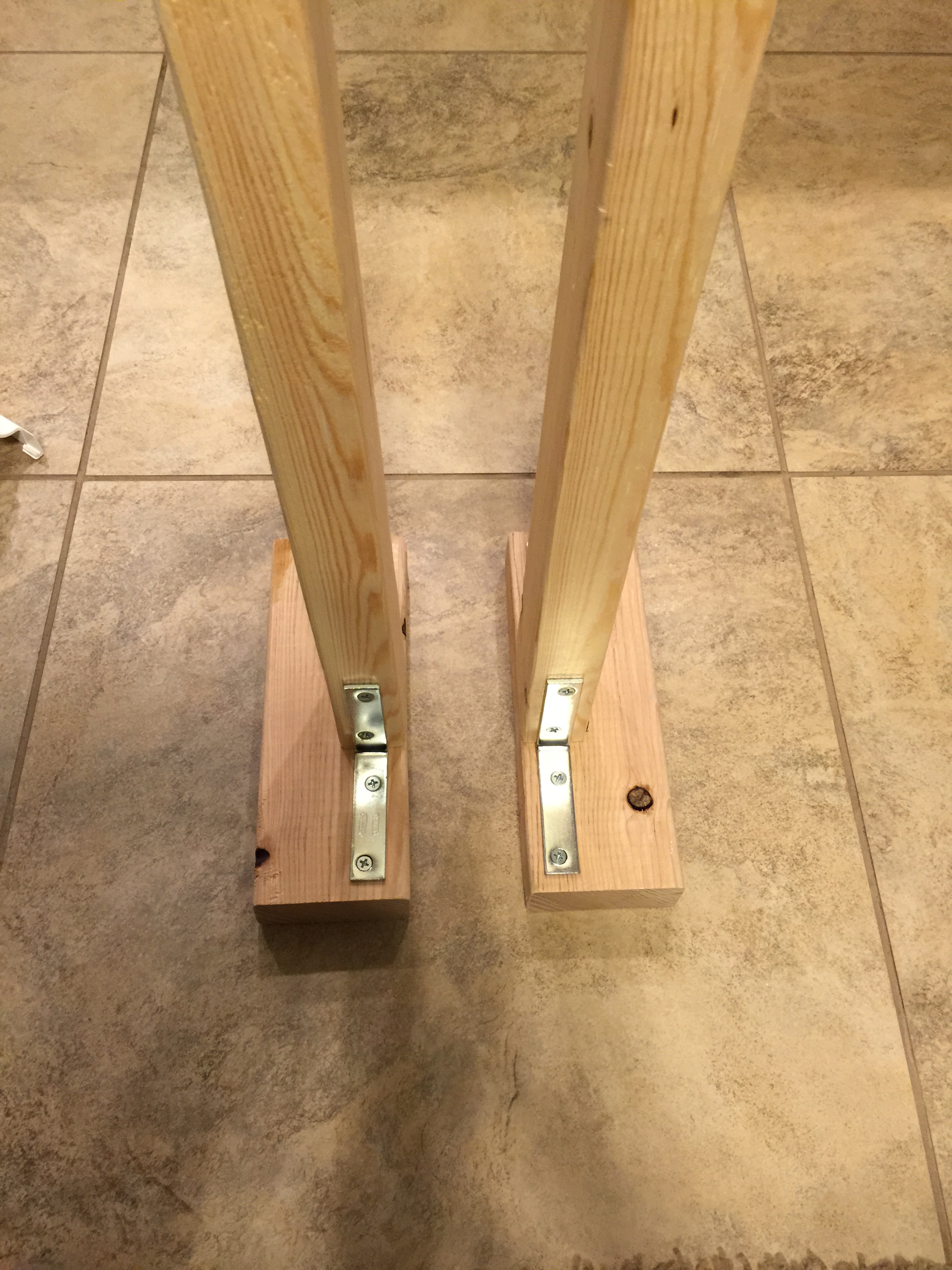

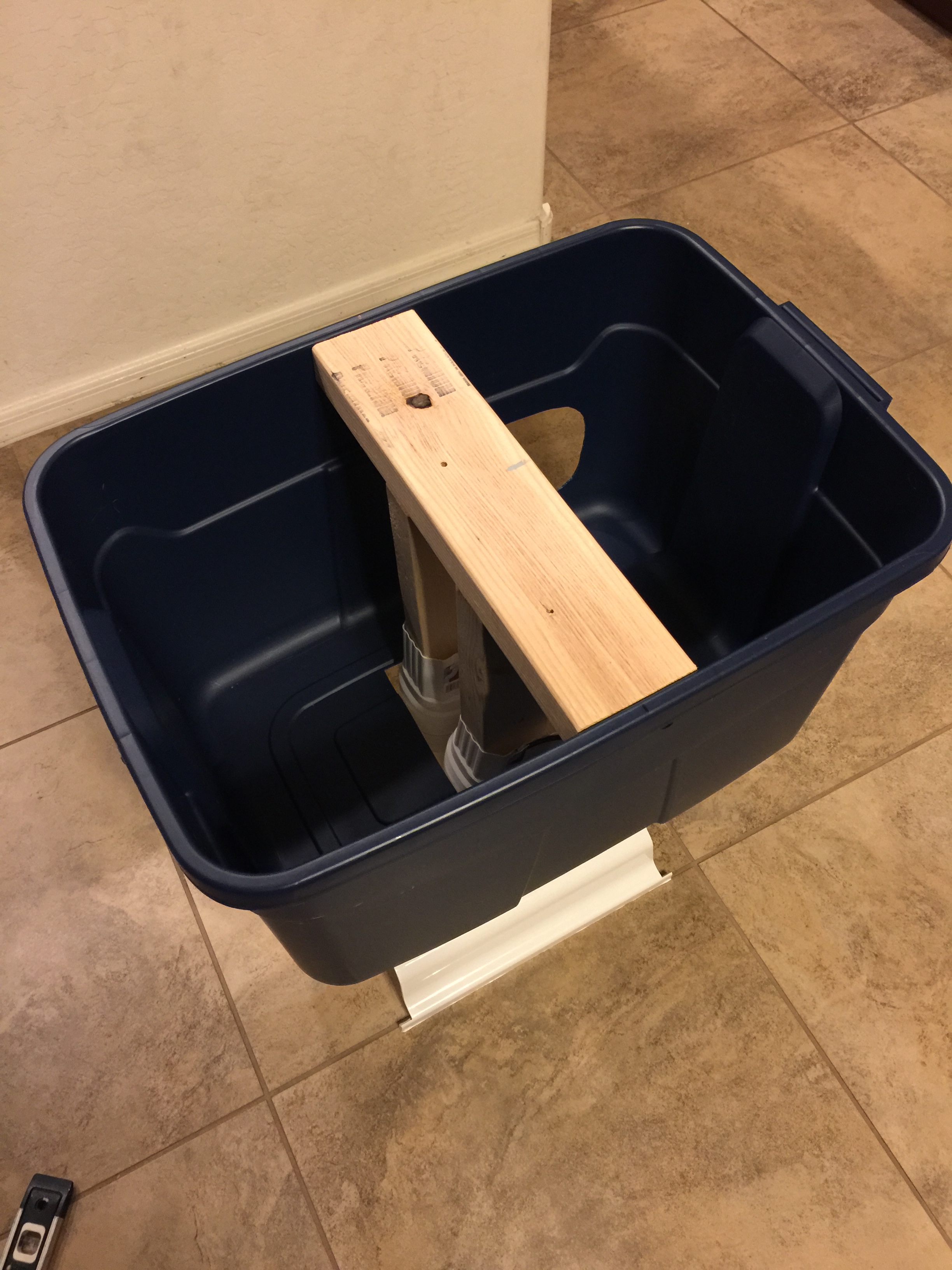

    I built some internal supports for the legs / feet and added a center support to the body.

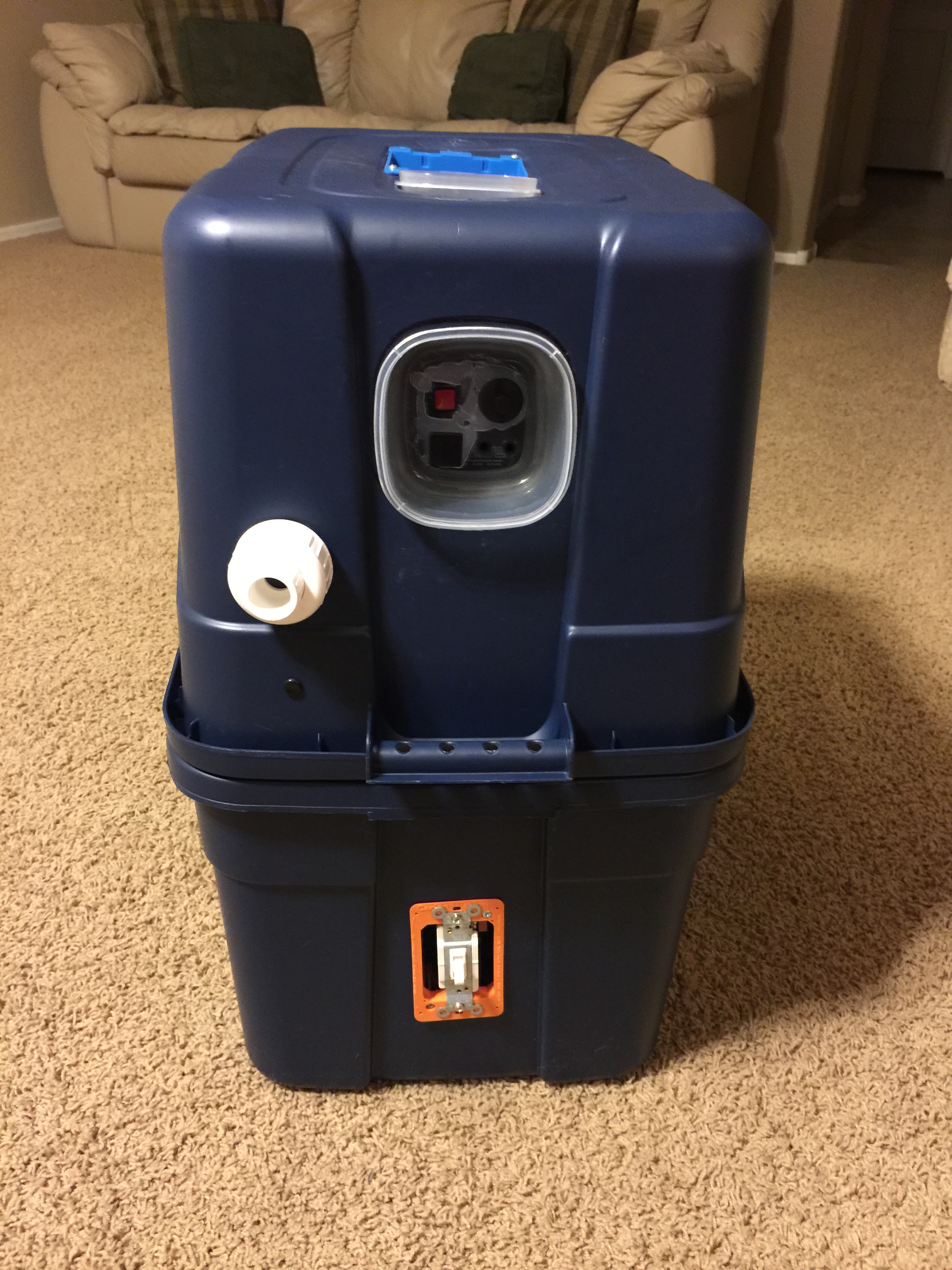

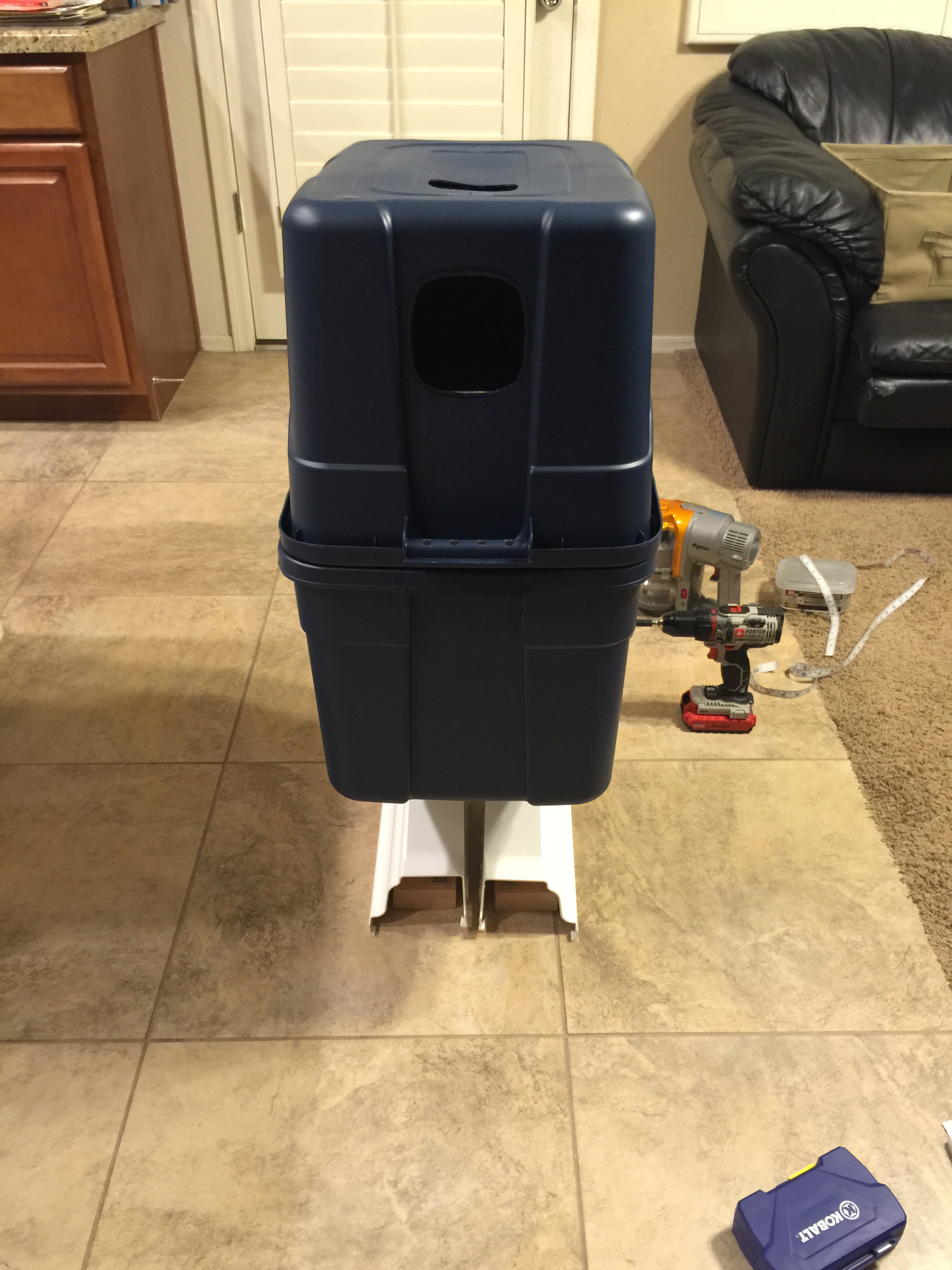

    I started removing the latch handles and cut a few holes. I think it's off to a good start!



    Last edited: Jul 17, 2015
    russellsch and SofaKing01 like this.
  2. DaveF45122

    DaveF45122 New Member

    Trophy Points:
    3
    Looks good

    Sent from my Galaxy Note 4

  3. usajdm

    usajdm Well-Known Member

    Trophy Points:
    935
    Great start.
    Diggin' the idea for the legs.

  4. SofaKing01

    SofaKing01 Master Member

    Trophy Points:
    3,660
    Excellent! Wonderful start!

  5. division 6

    division 6 Master Member

    Trophy Points:
    3,045
    Nice start.

    I saw Target has some new colored tubs for back to college.

    For those that didn't see it, there are a few new Gonk Droids in the SDCC behinds the scenes video for E7.
    Includes a nice shot of the feet and one with the top off and the actor inside.

  6. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,015
    Looks like a really fun project!

  7. Fuzzual

    Fuzzual Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    yeah buddy . . . looks great!

  8. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Thanks all. Fuzzual, as I mentioned in my Obi-Wan thread, I'm using your Gonk builds as my inspiration. You did an incredible job! Mine won't be nearly as intricate, but I hope it turns out well.

  9. Fuzzual

    Fuzzual Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Thank you for saying that, very kind. I am sure yours will turn out great!

  10. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881

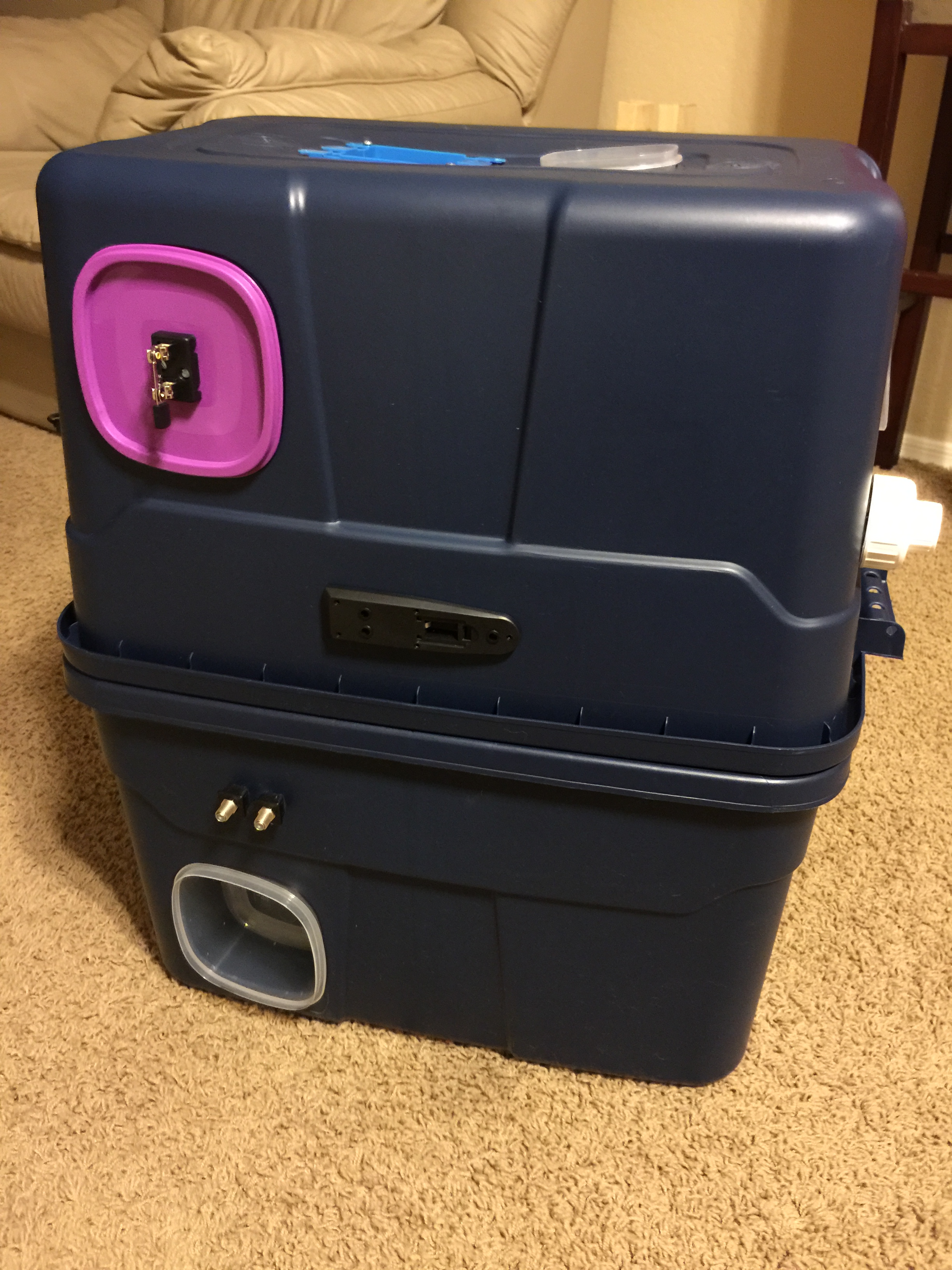

    Did a little work today, most of these parts aren't permanent yet as I still need to paint them. Just mocking it up and roughing in pieces.

    Going to add some LEDs and other greeblies to the front.

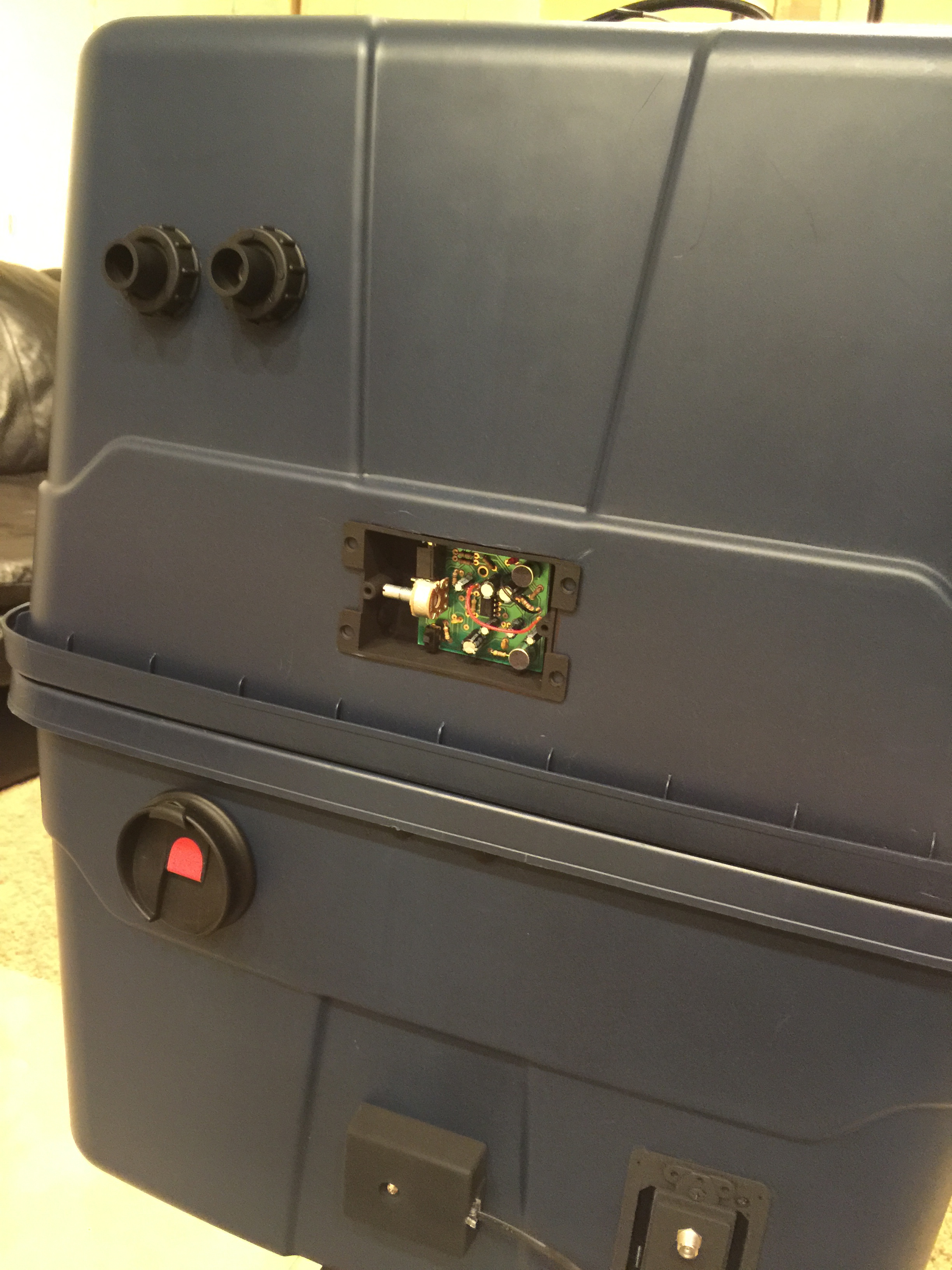

    I used the bottom half of a dollar store book light as a side detail piece which will also have LEDs. I also used two furniture caps, drilled holes and added cable outlets, epoxied a small bolt into each one and put those on as well.

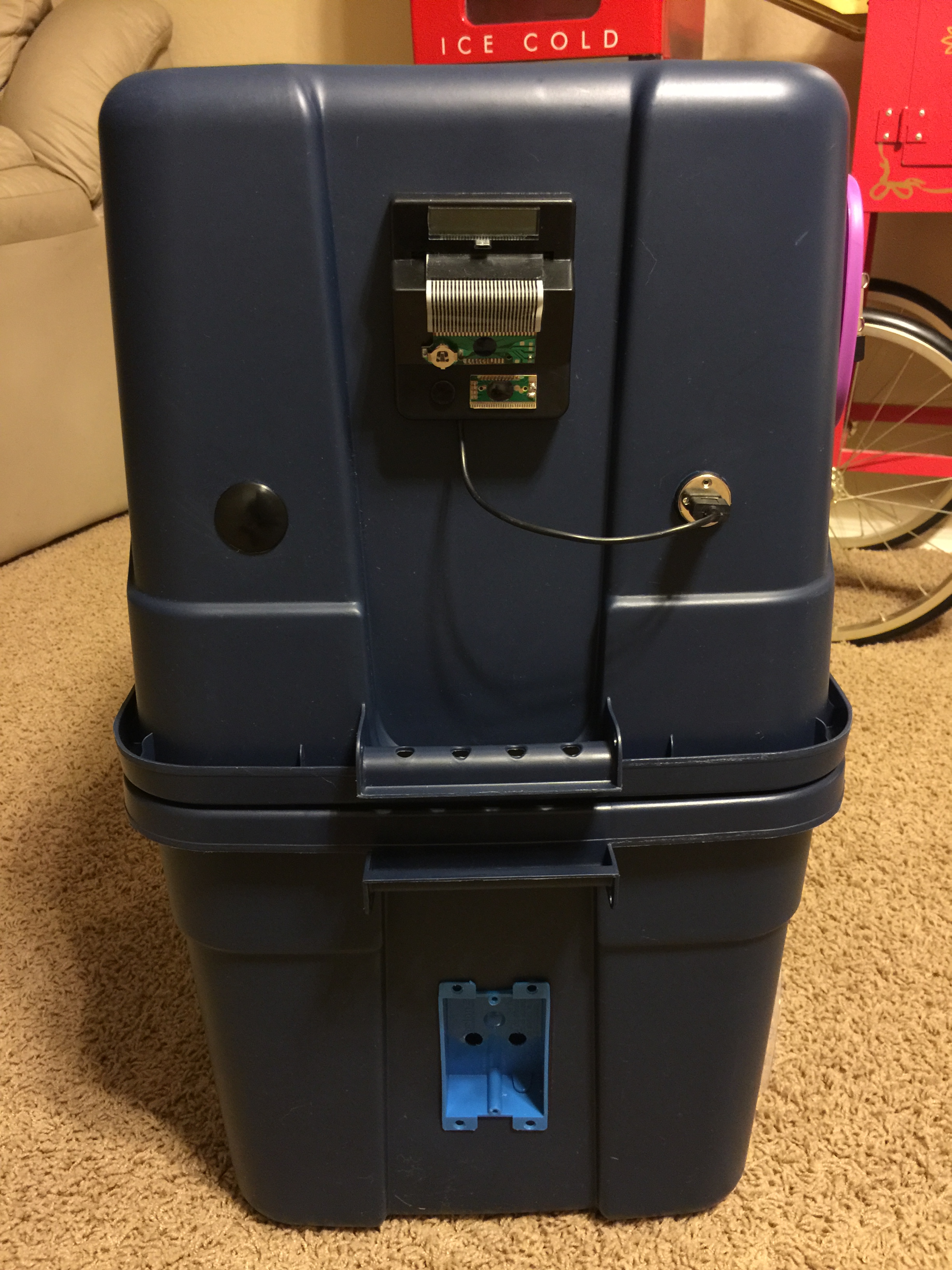

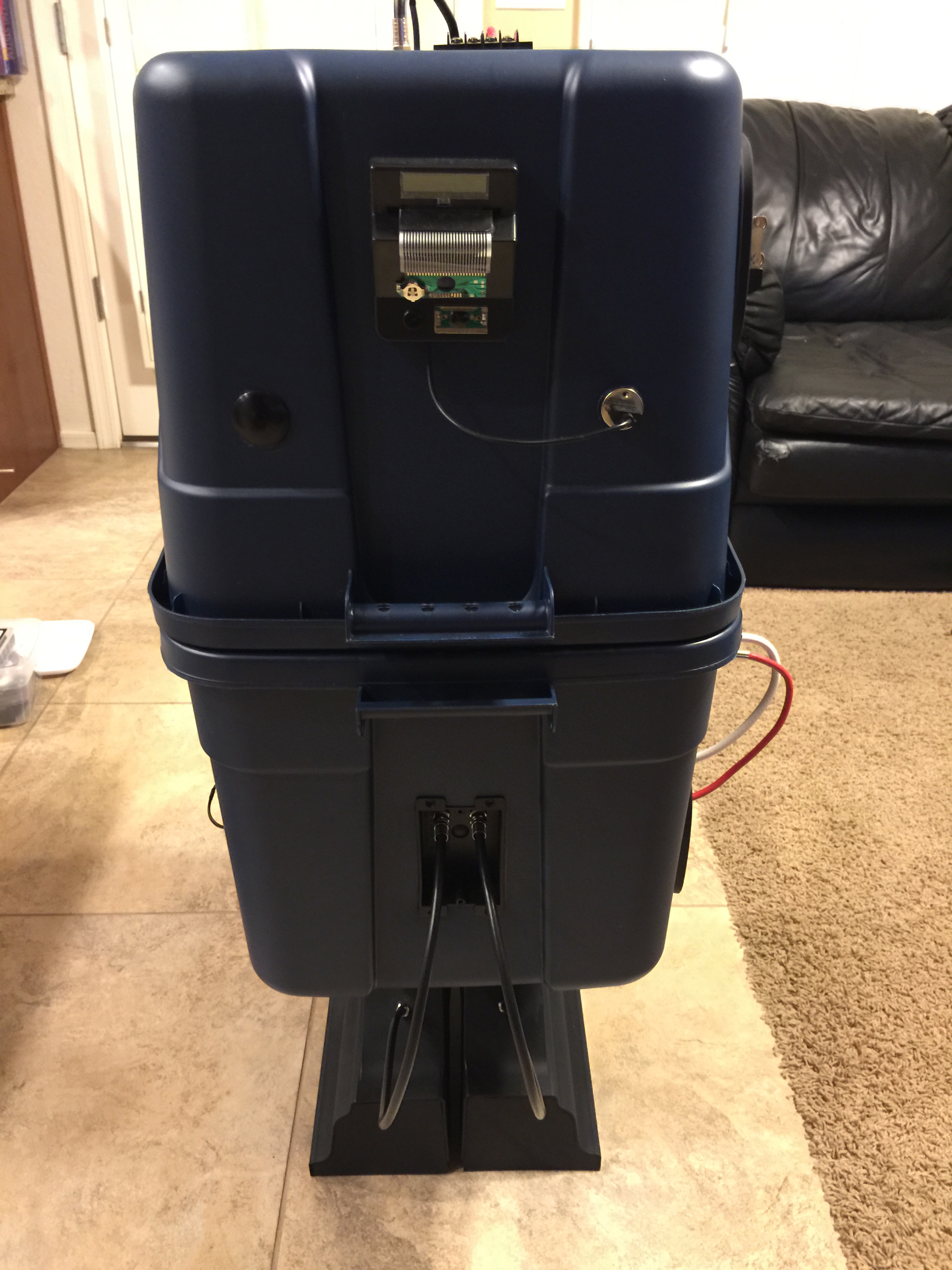

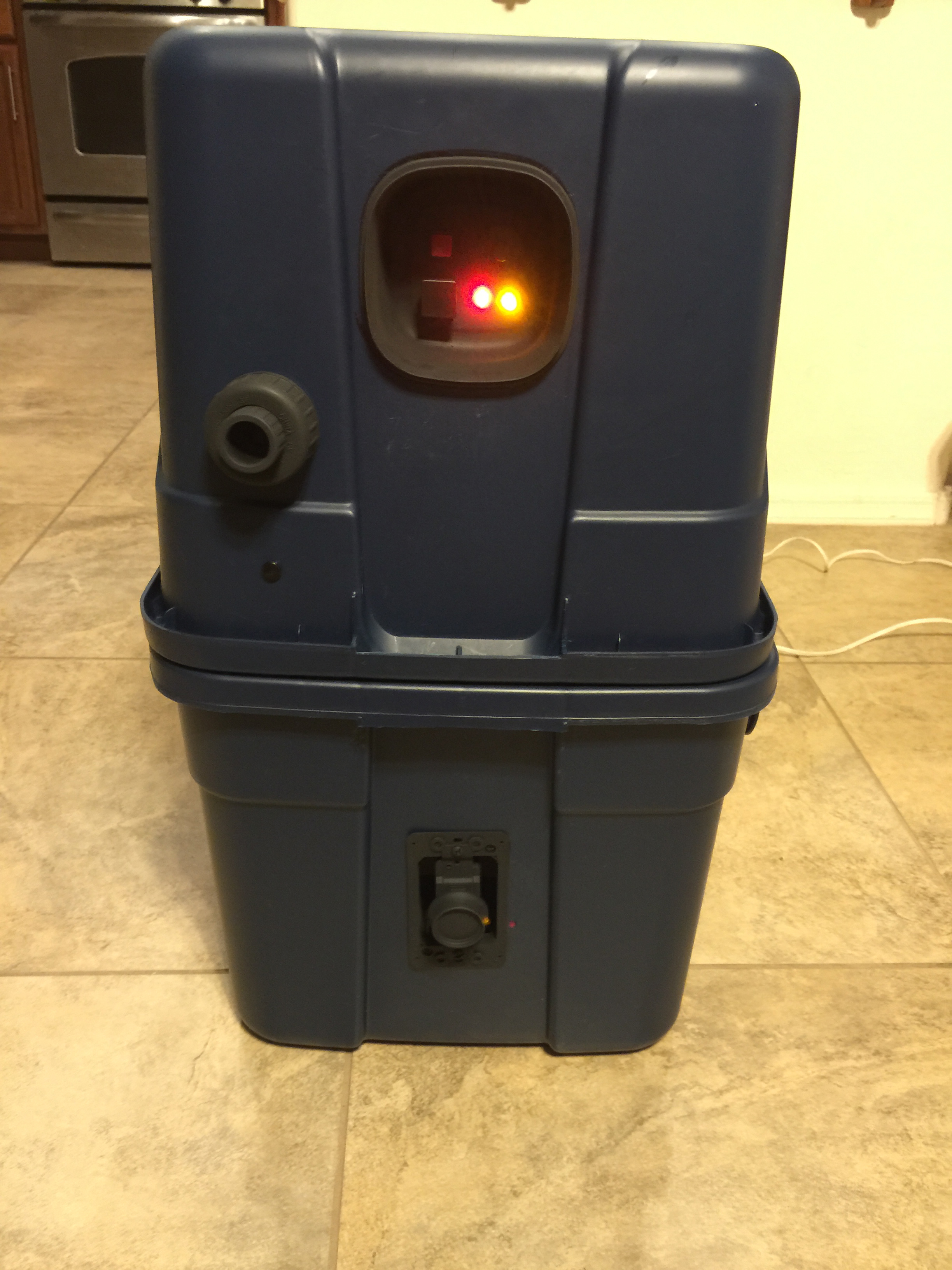

    On the back I used a phone docking station, parts from a calculator, and a cigarette outlet USB port; all from the dollar store.

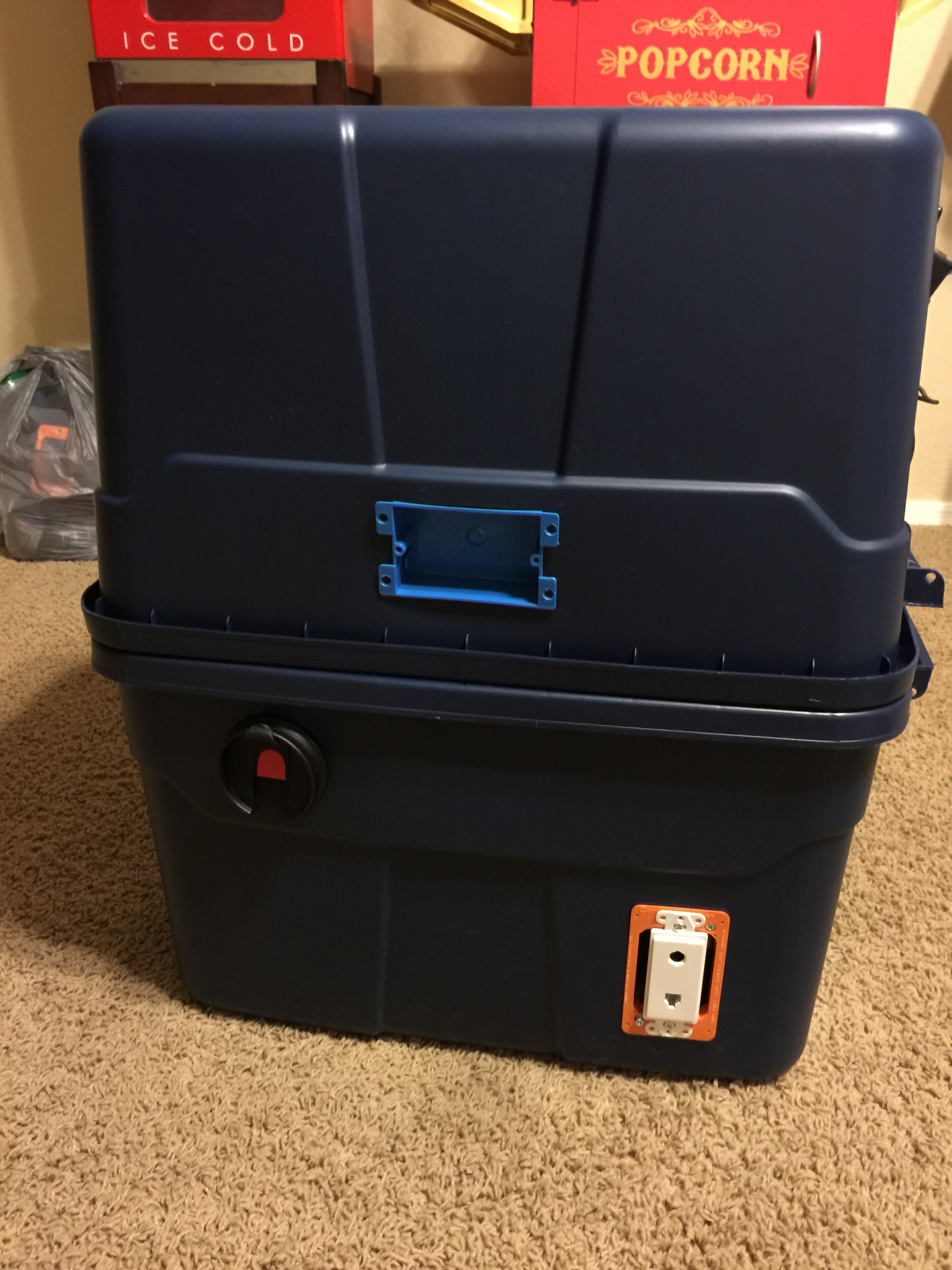

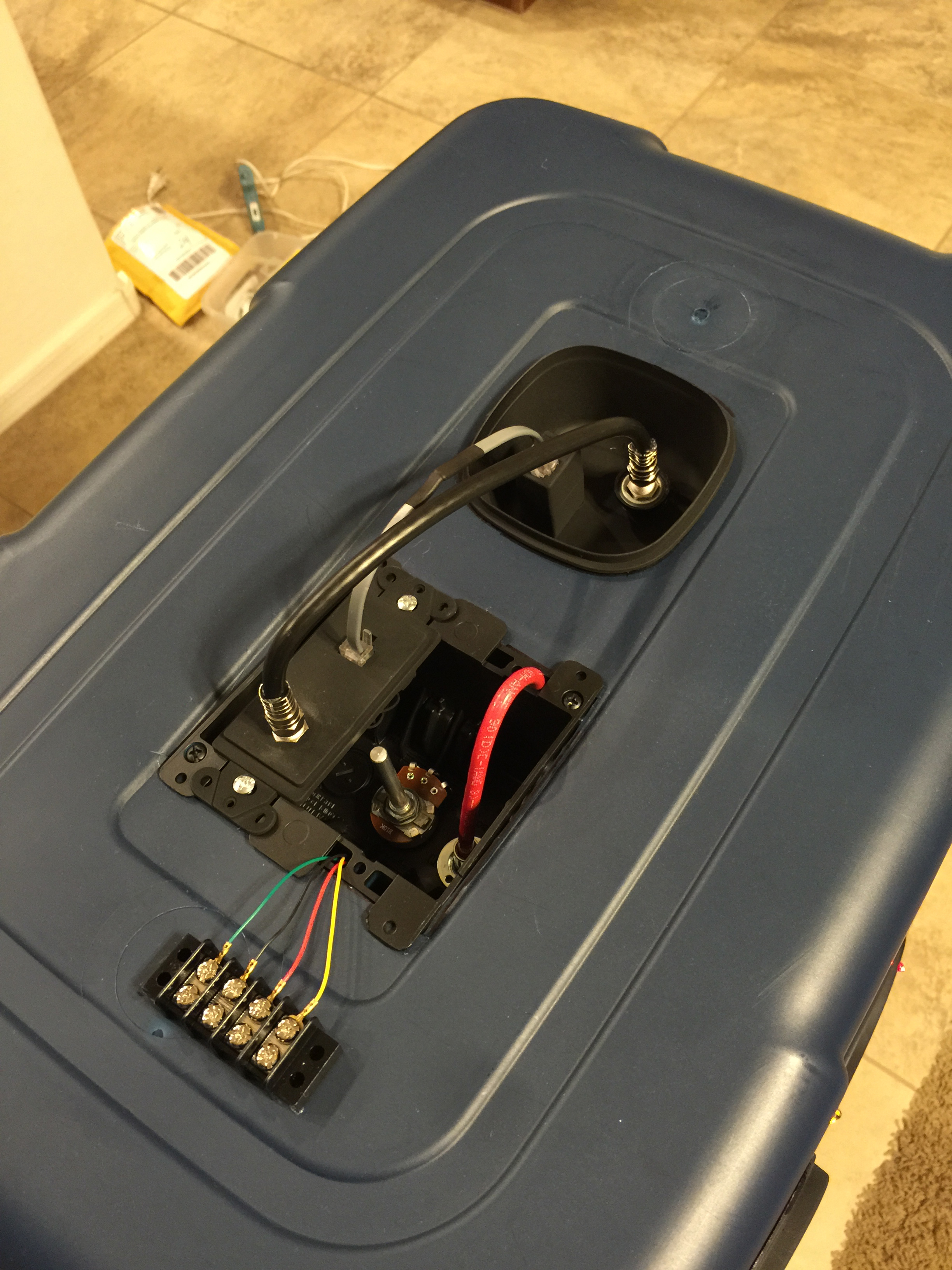

    I added an electrical box and a gang box to the other side and added a screw top lid from a themas I got from the dollar store.


    Gotta say this is a pretty simple and fun build, sorry I waited so long to start one! More to come.................

    Last edited: Aug 1, 2015
    russellsch and SofaKing01 like this.
  11. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881

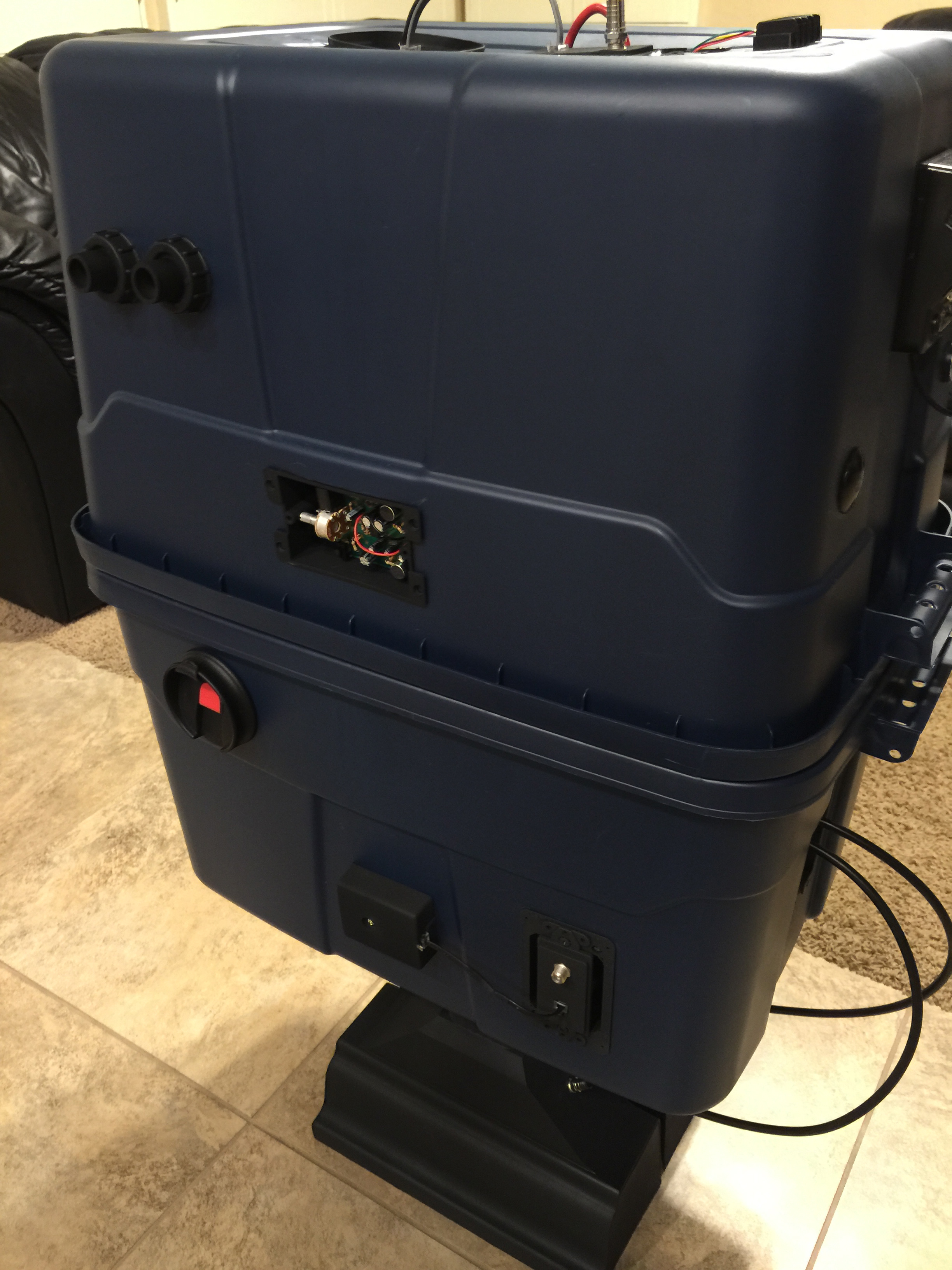

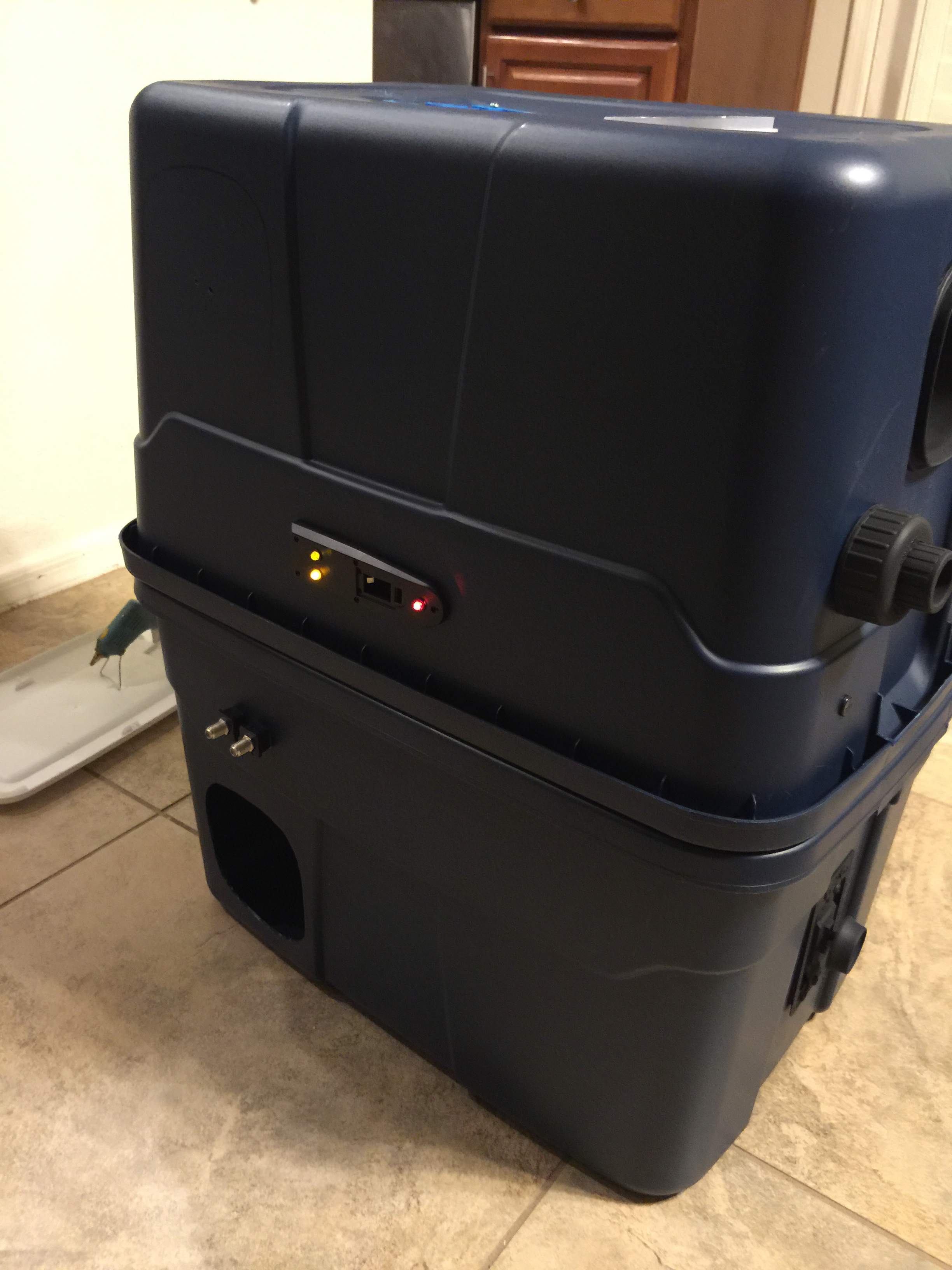

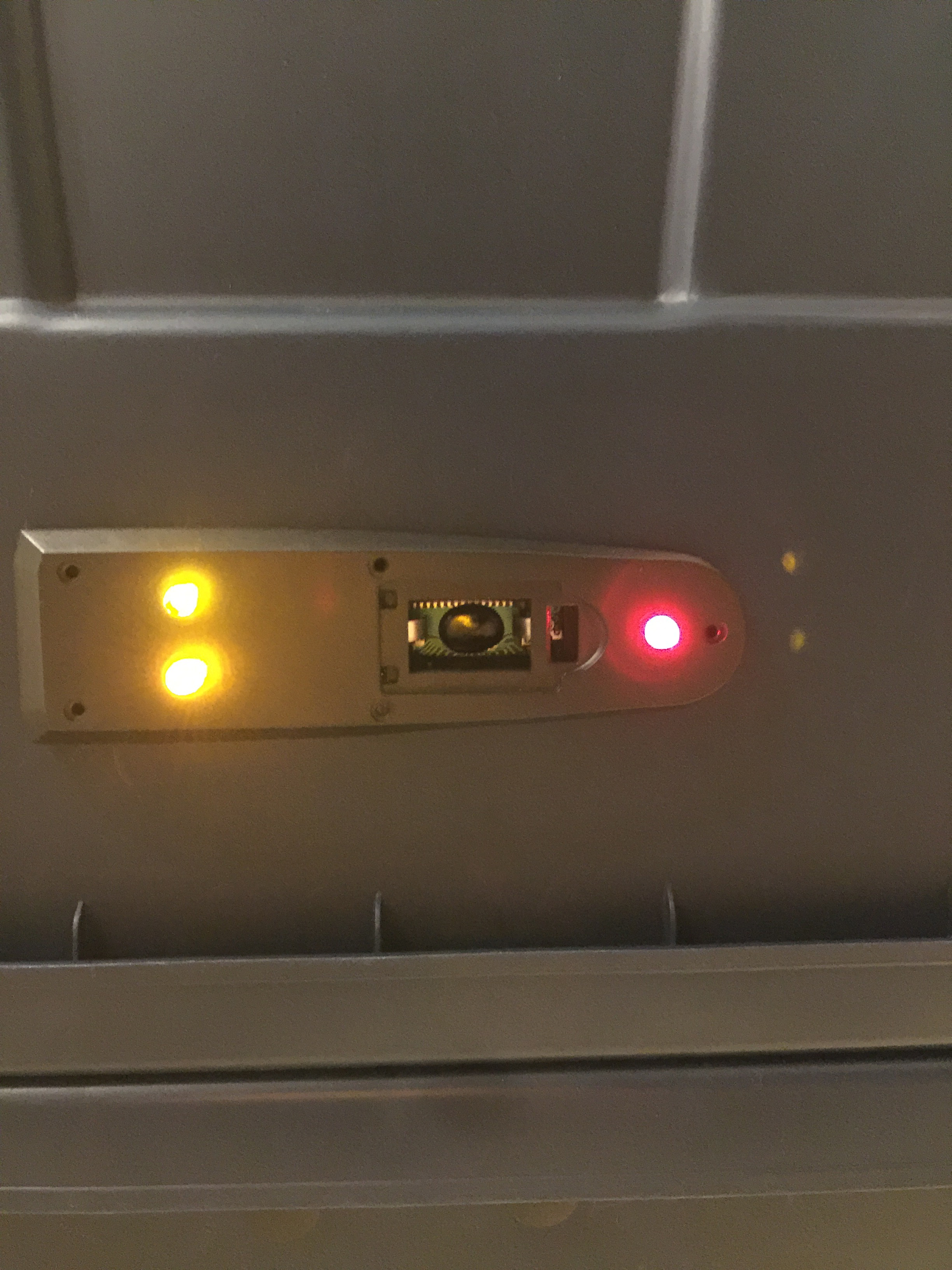

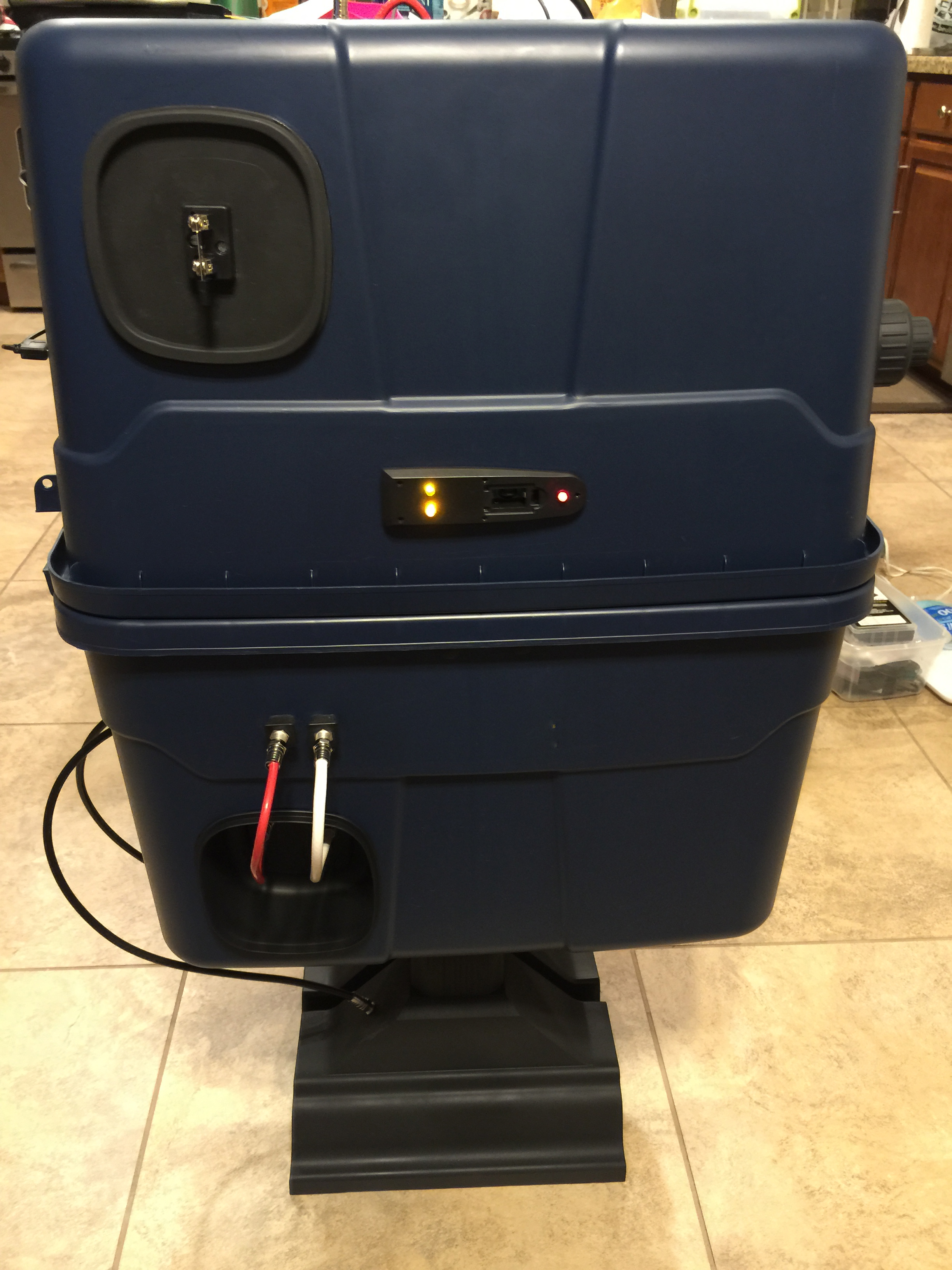

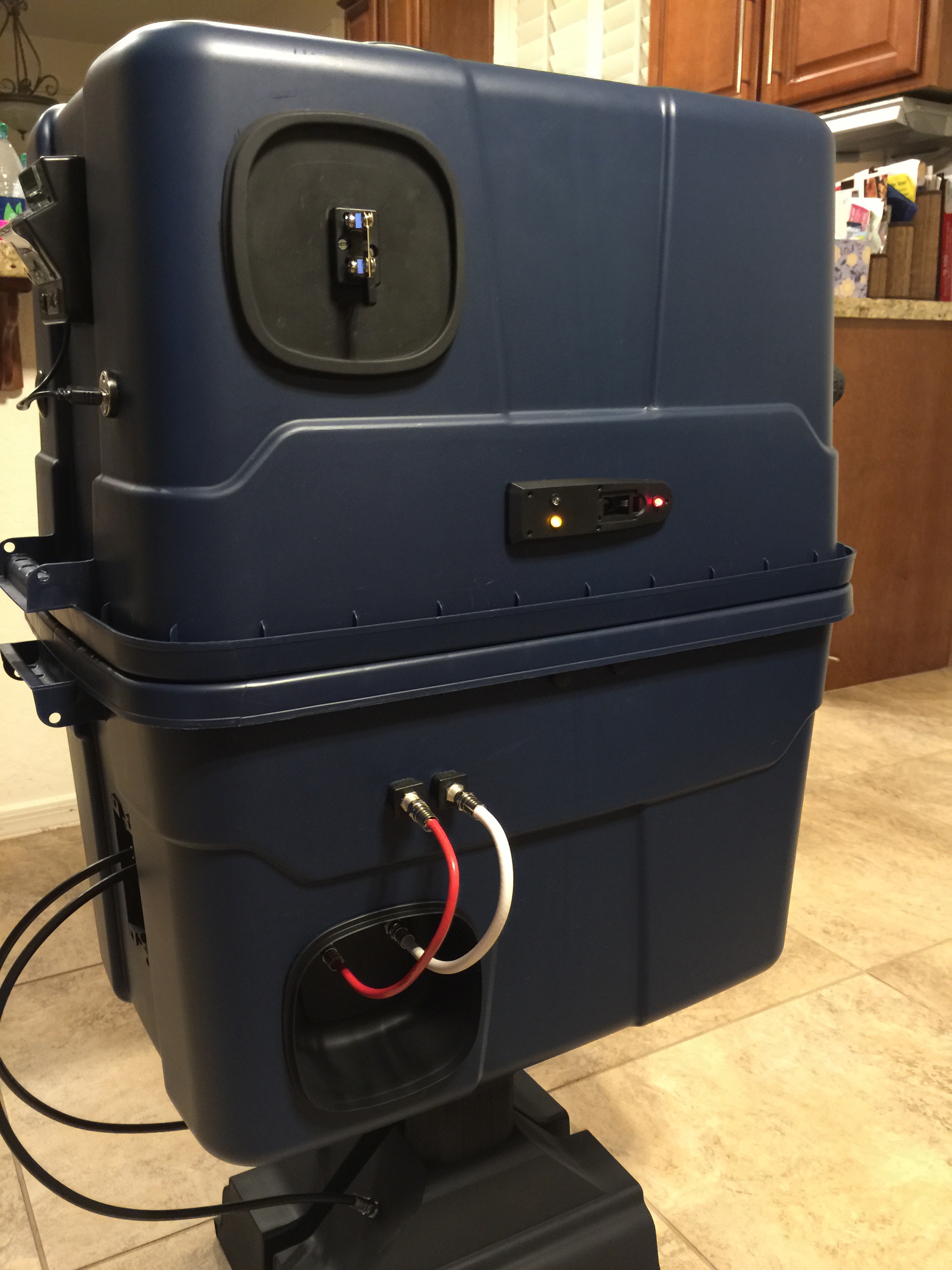

    Got the LEDs installed and the legs and a few of the other greeblies painted black. Here's a test fit. I still need to paint several pieces, straighten and secure everything, and start assembling.






  12. _Lee_

    _Lee_ Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    846
    Wow-thats one of the best ive seen. Great work :)

  13. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Thanks!

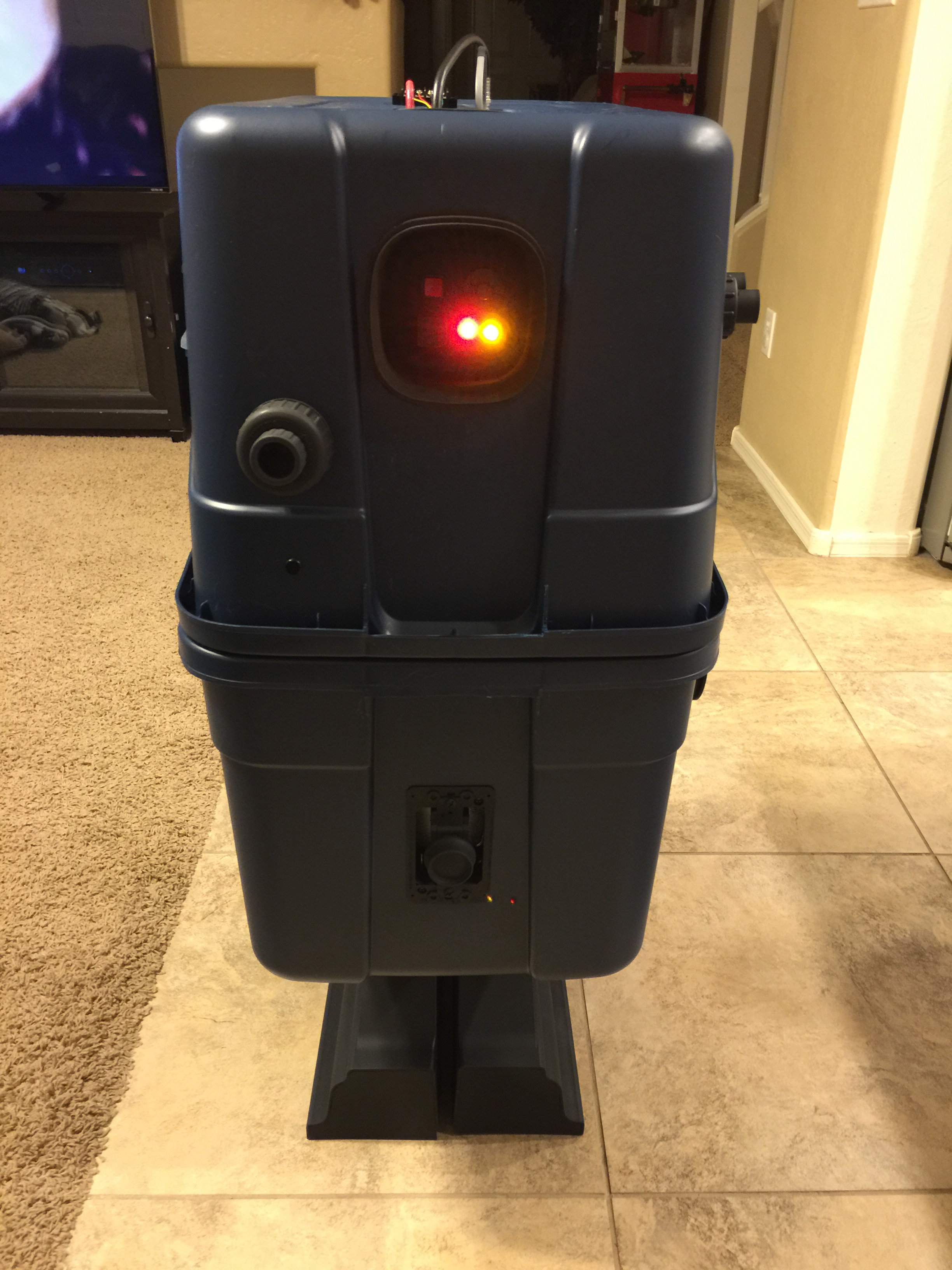

    I was able to get most of the assembly completed. I'd say I'm about 95% done with this, just have a few finishing touches.

    I've got less than $85 in this, pretty happy with it.








    Last edited: Aug 2, 2015
  14. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881

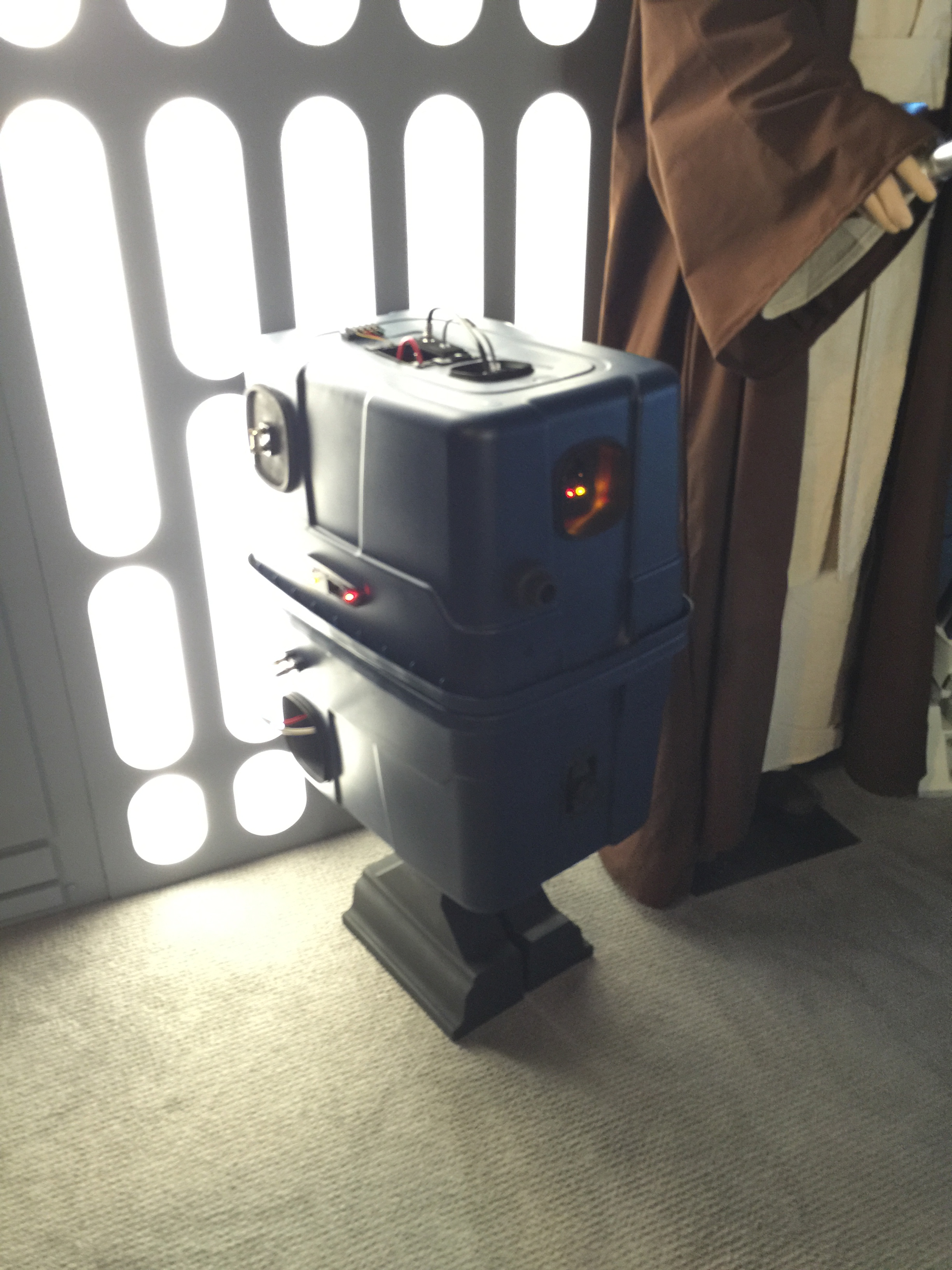

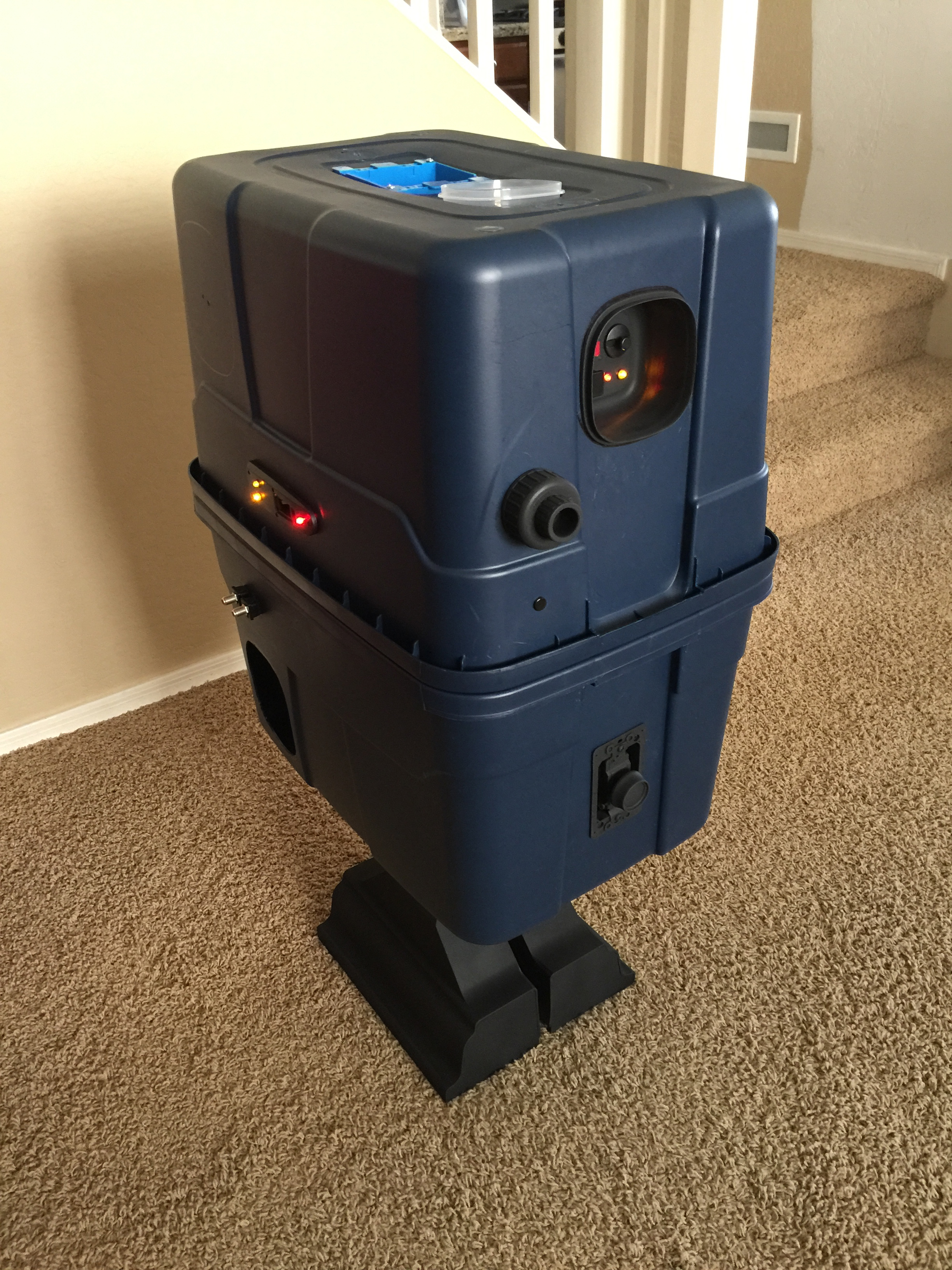

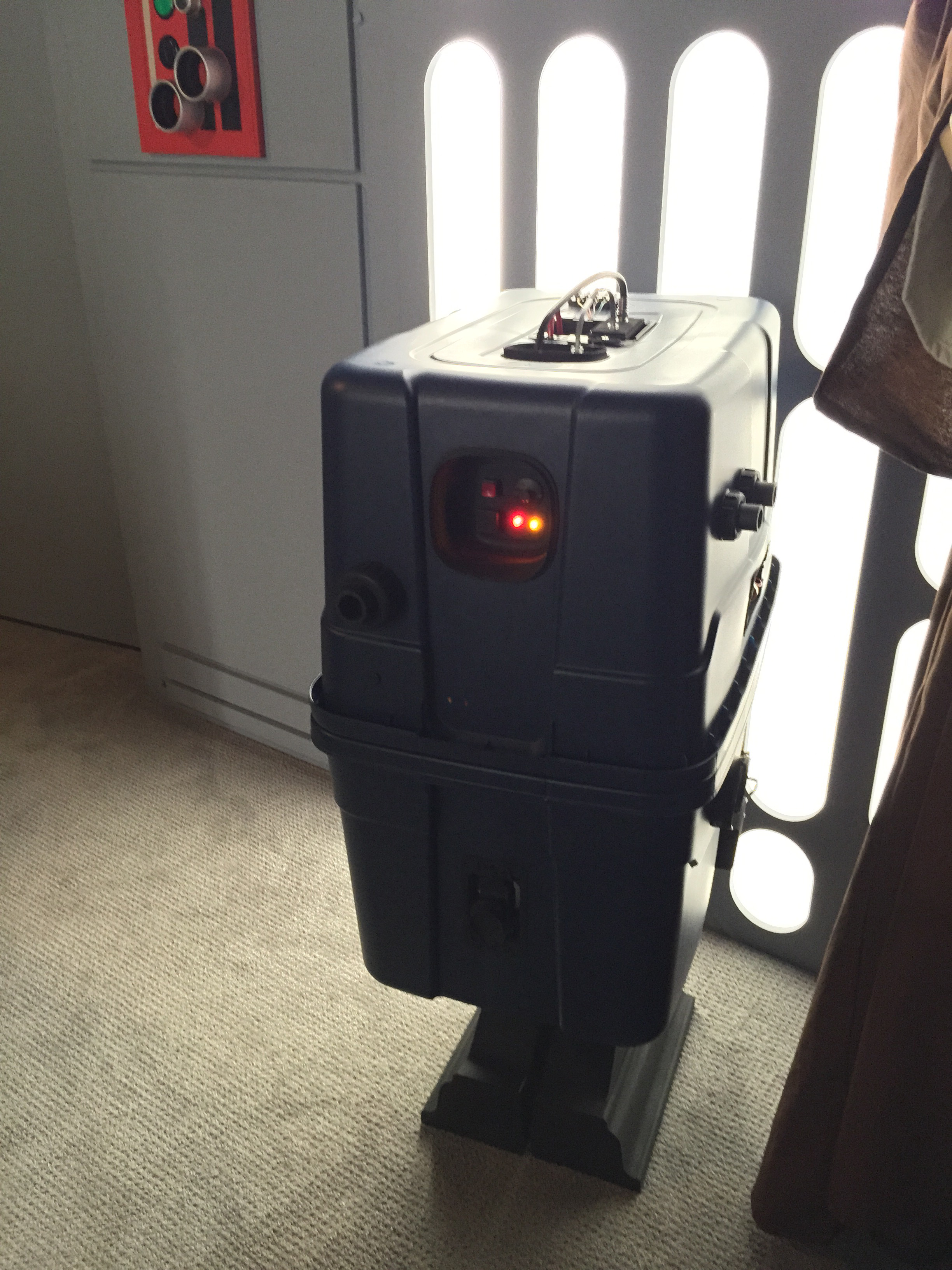

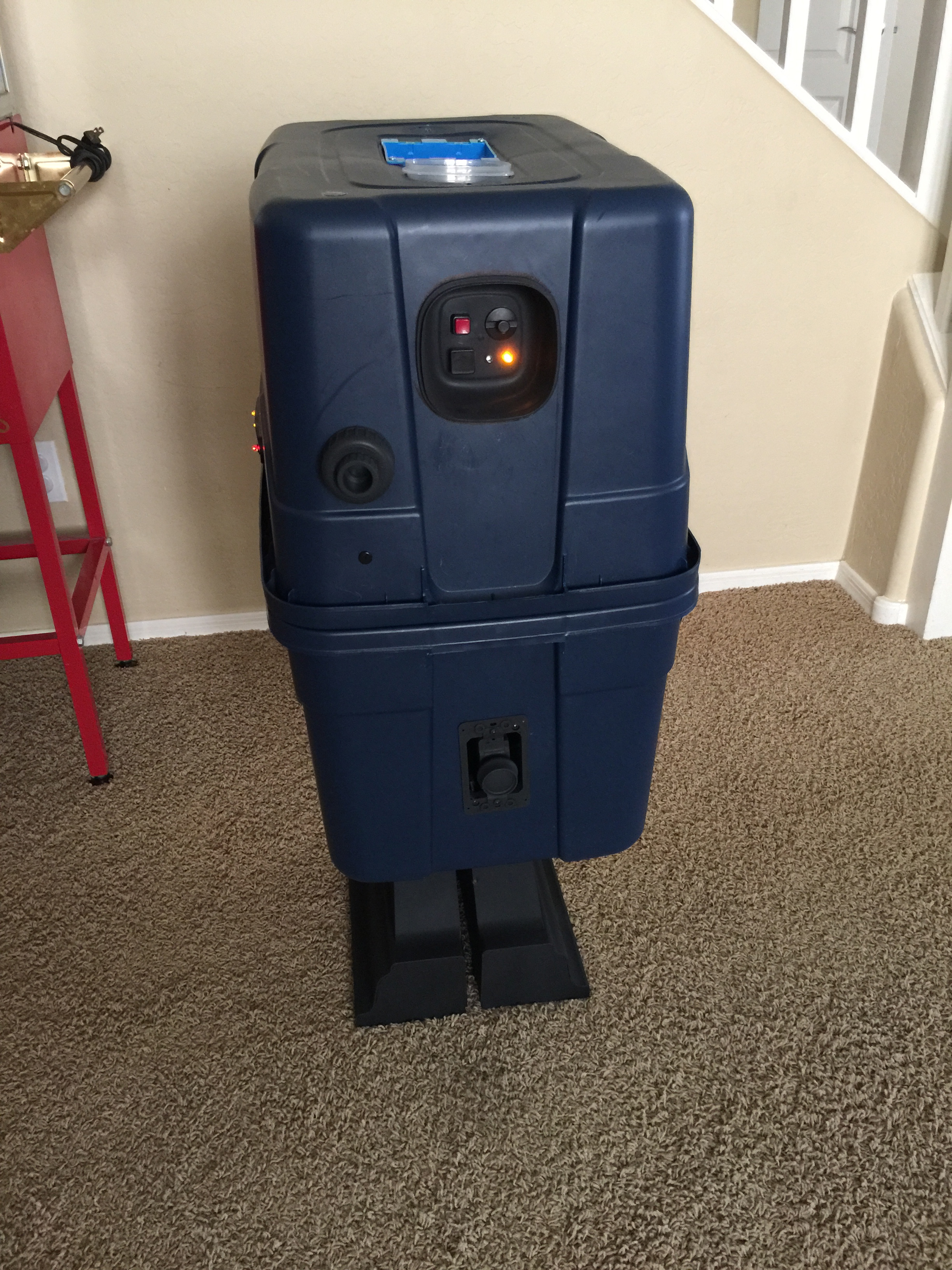

    Couple quick pictures now that I've moved him to his final spot.....
