Klingon D5 Tanker 1/350

[frostrubin]

It's one of the first Klingon ships we see on Enterprise.
I've start to build the a 3D model for print a while ago. And manage to finish the files and to print it on my resin printer.
The 3D model:

The files:

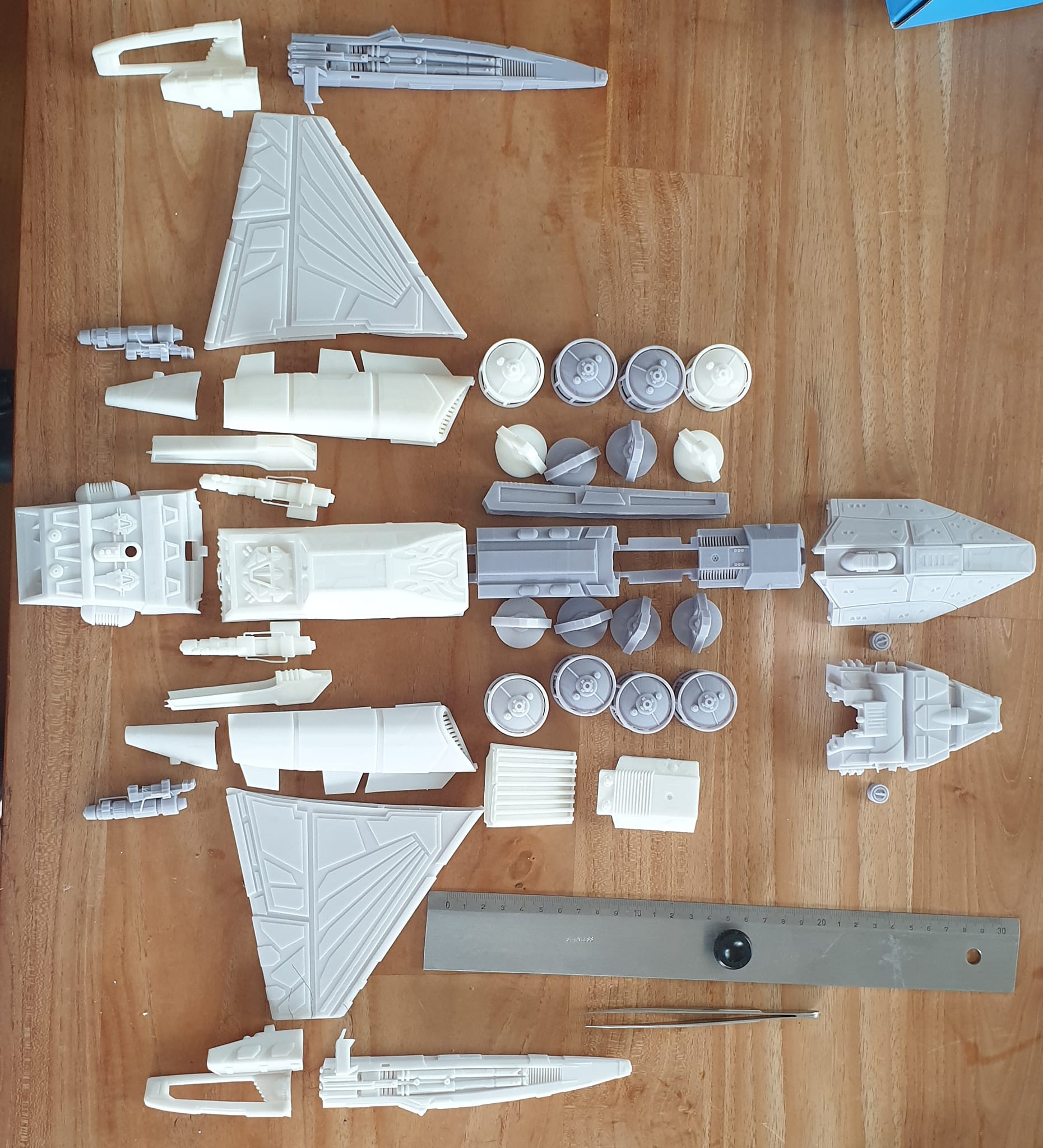

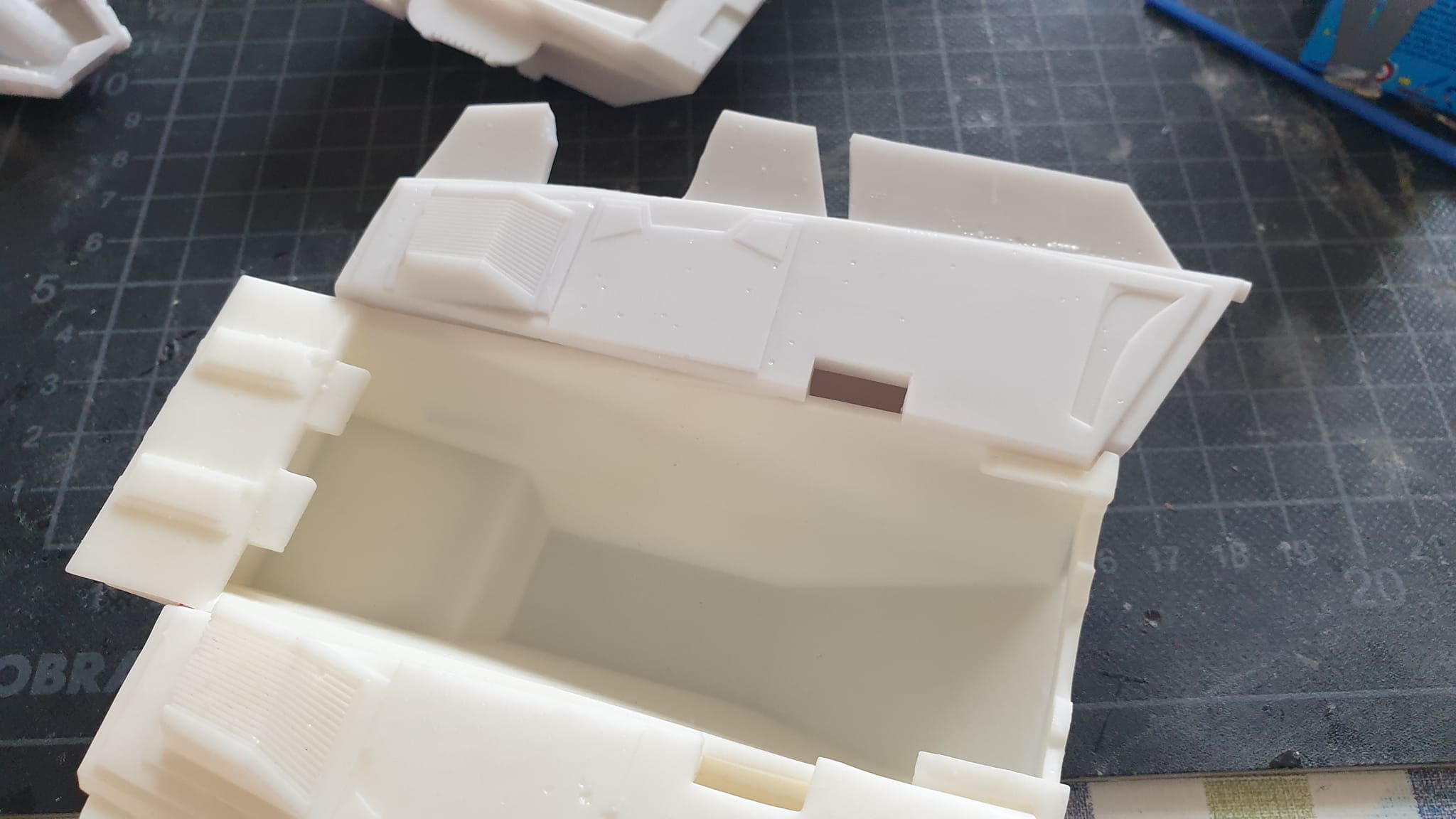

The printed parts:



[frostrubin]

Some progress pictures of the build up.

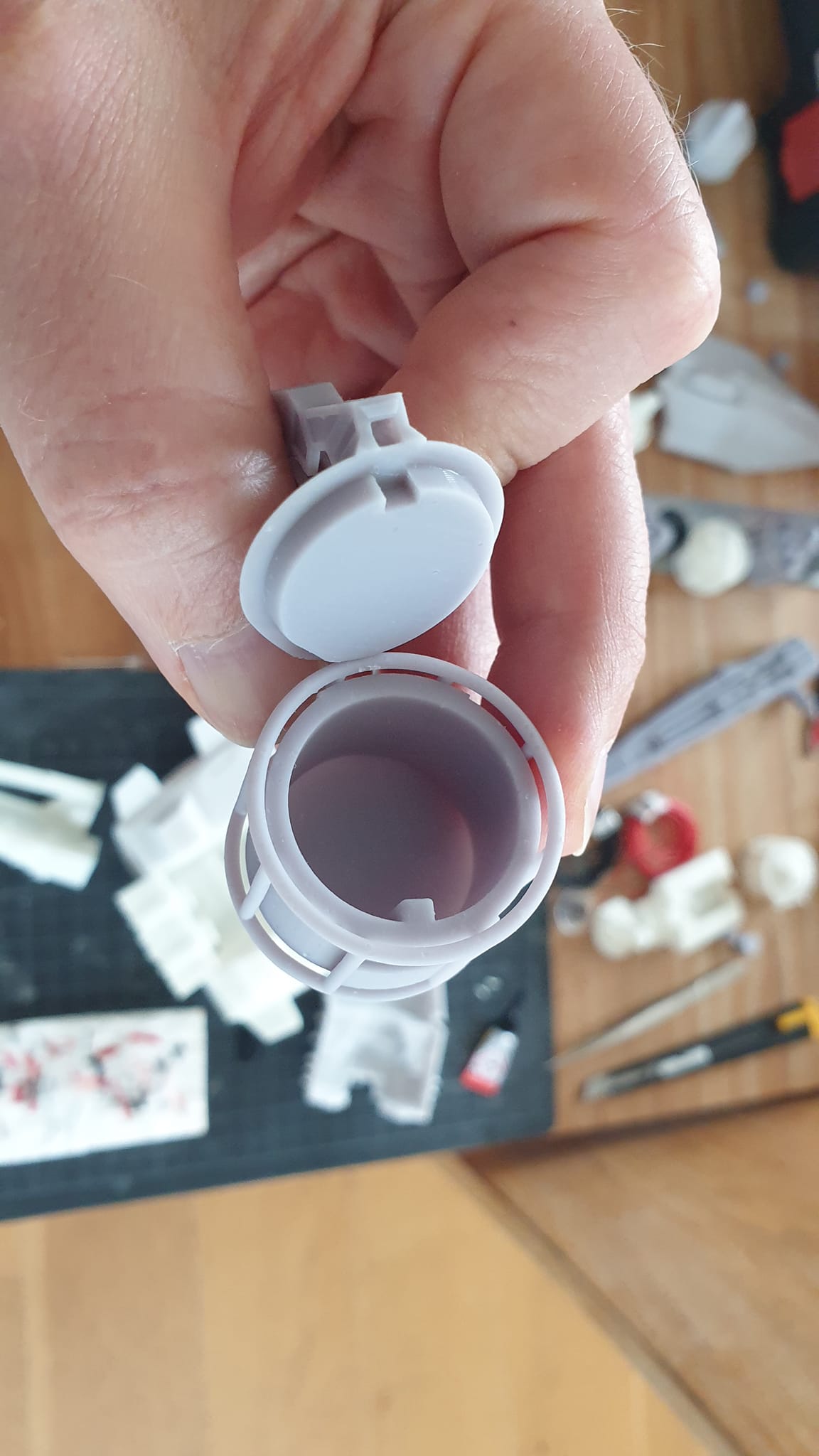

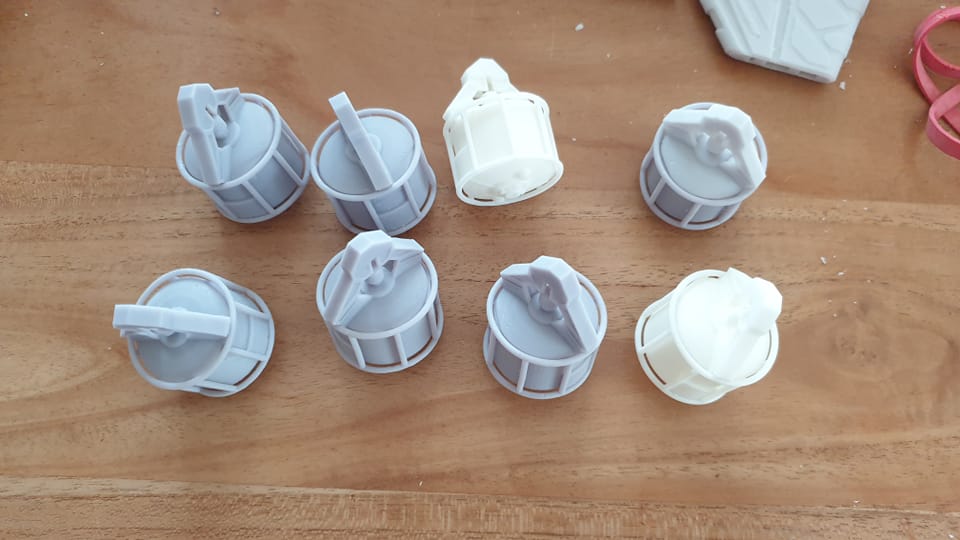

The tanks are a good point to begin…

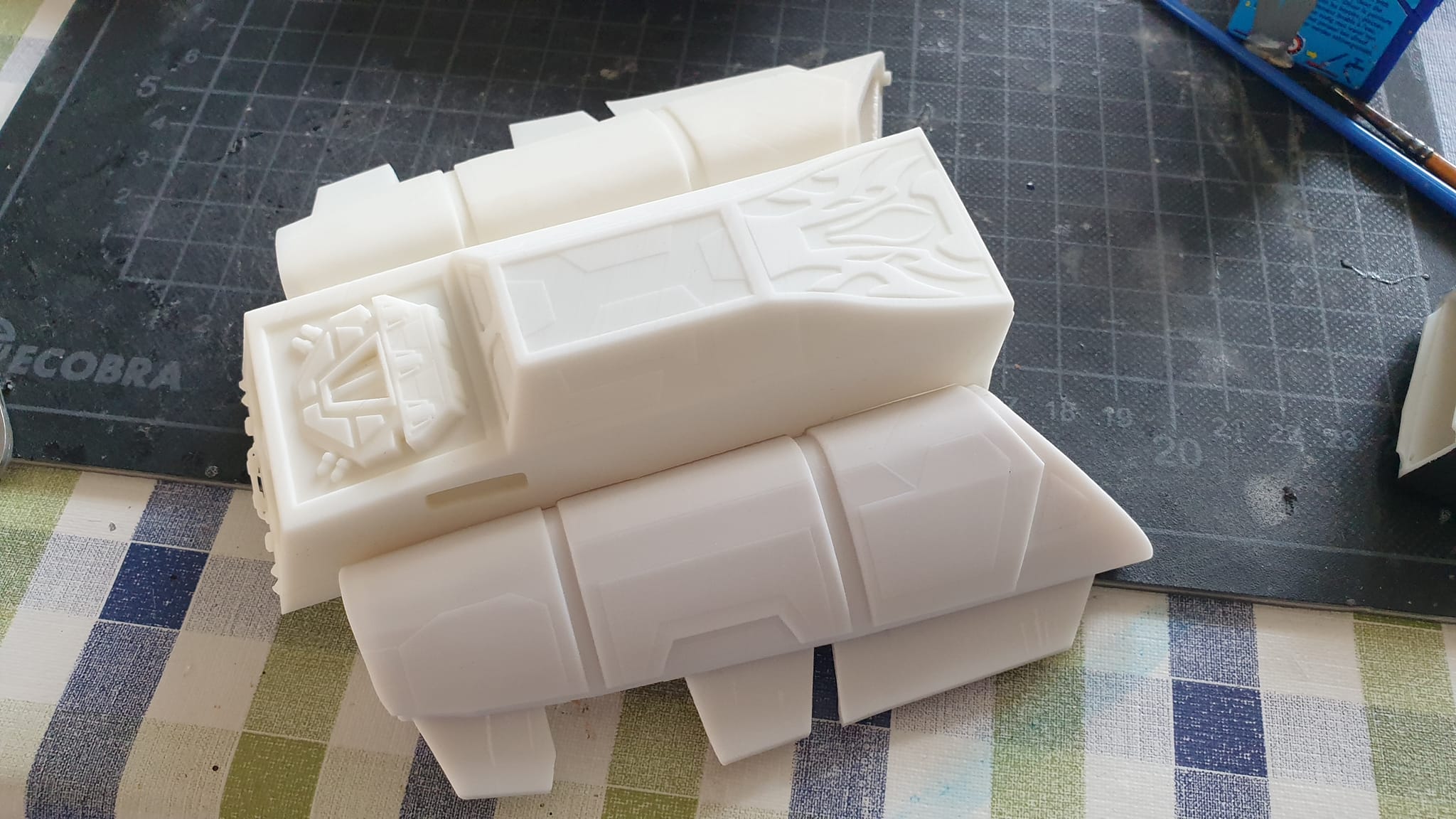

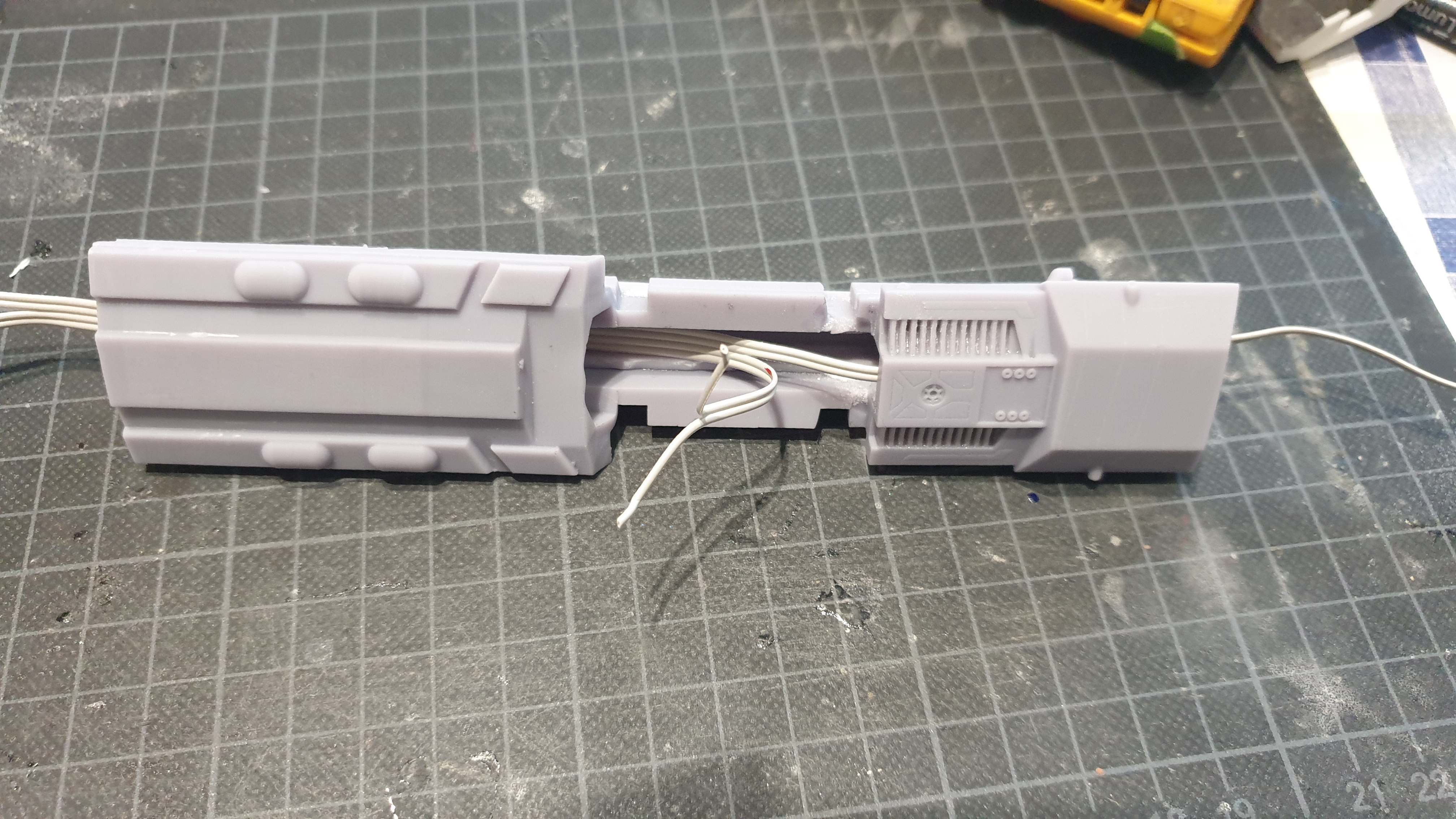

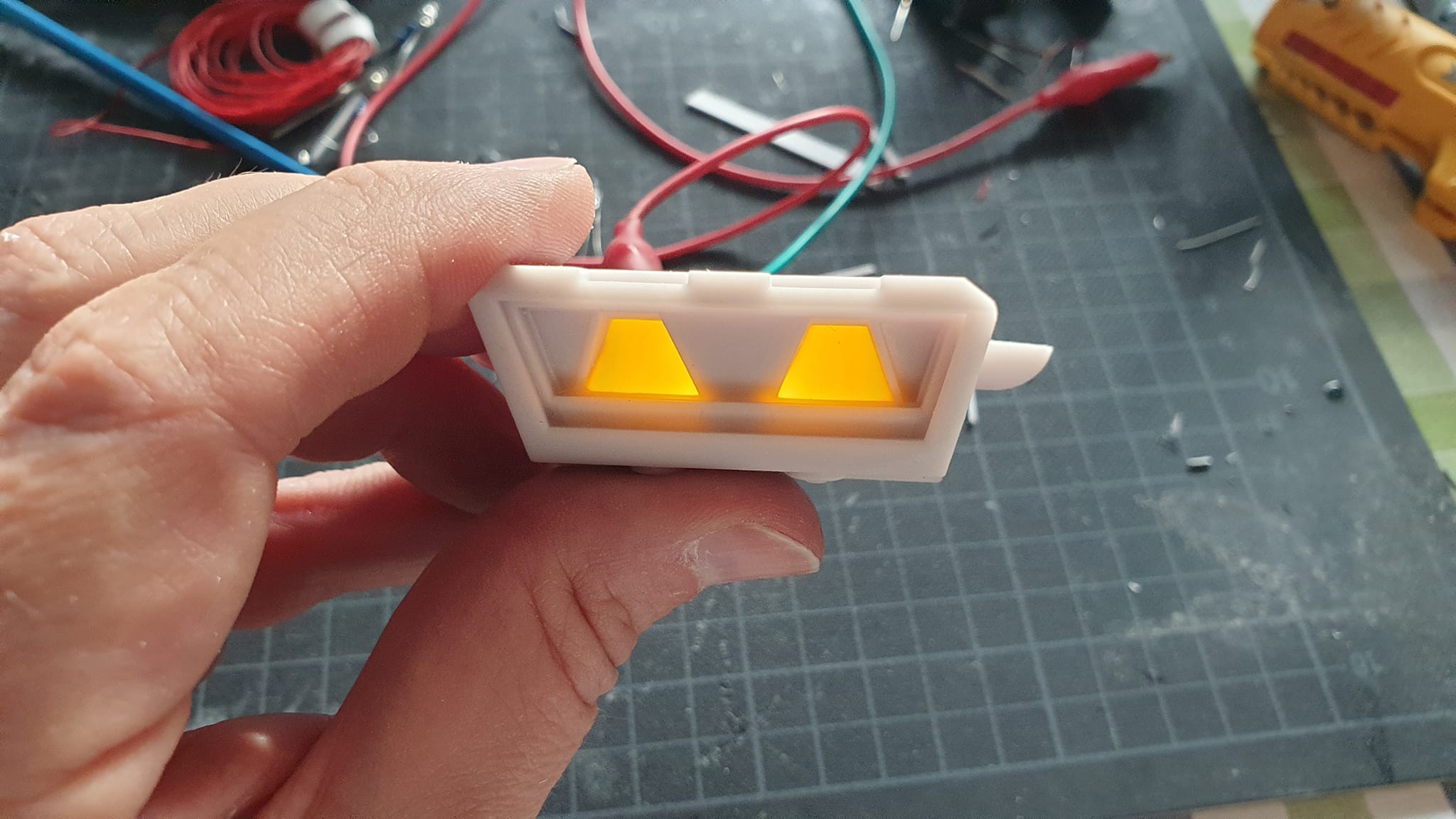

The main/engineer section with the "cowls":

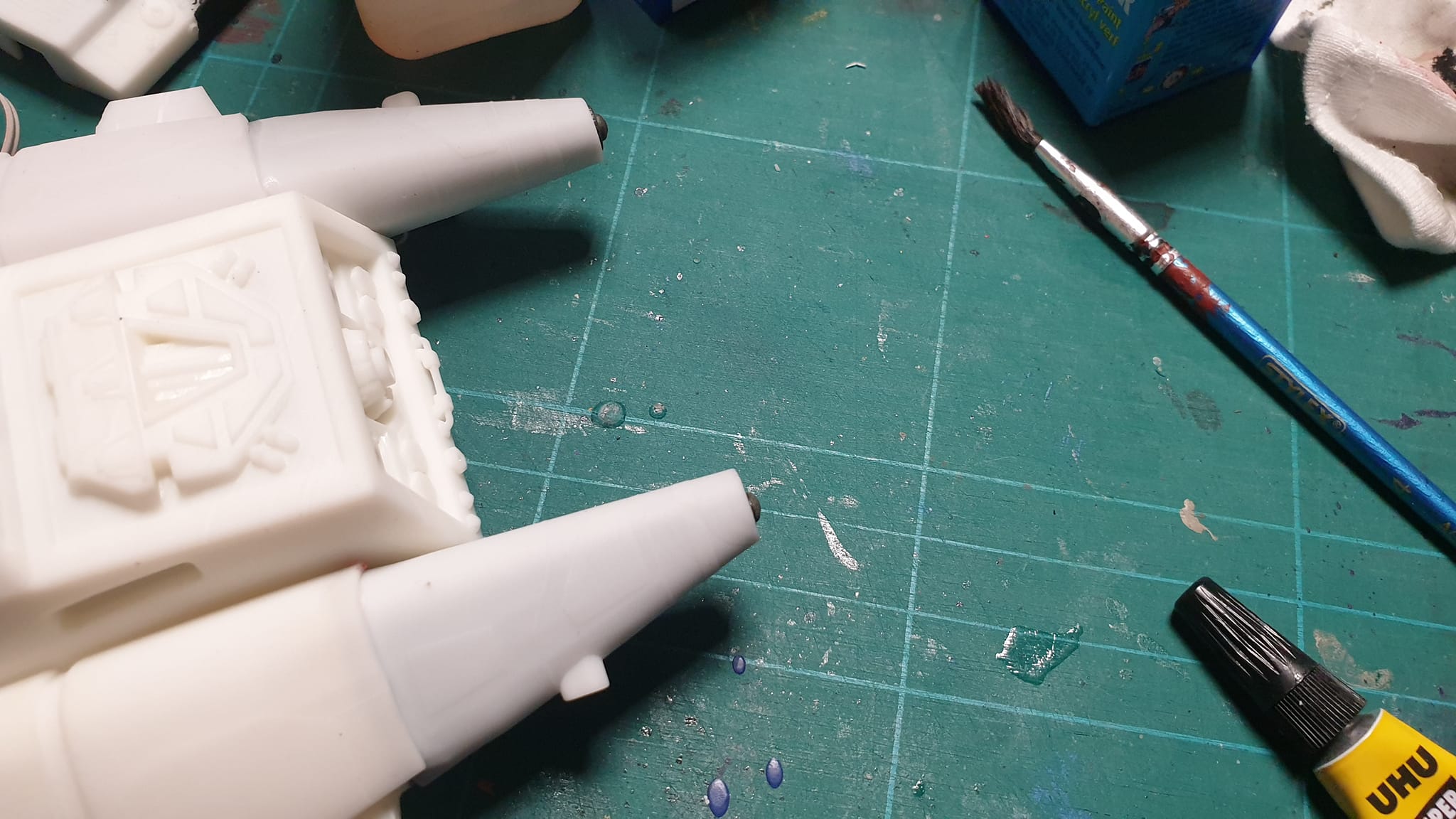

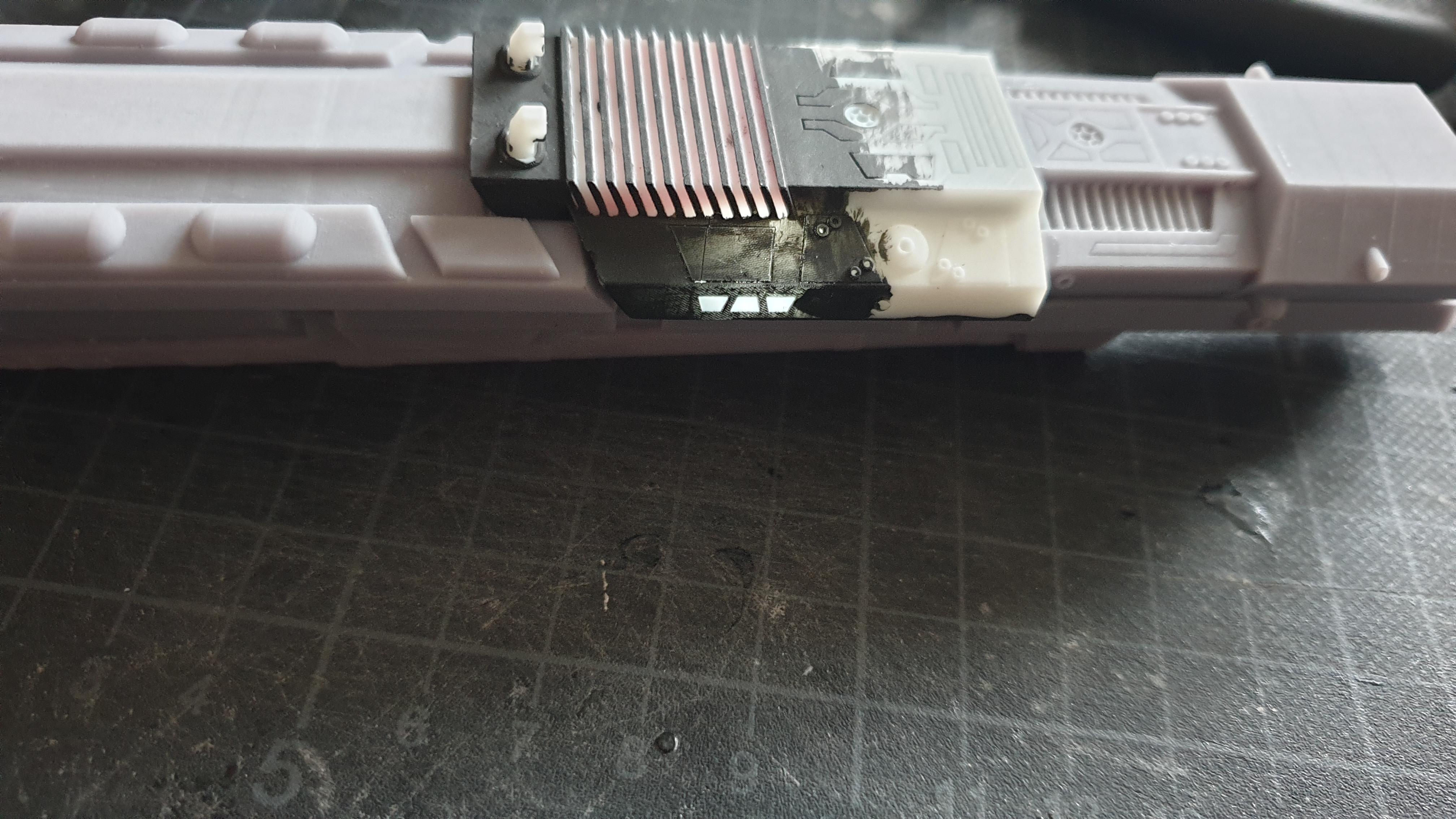

base colour on the booster before the back cowl part is glued over it.

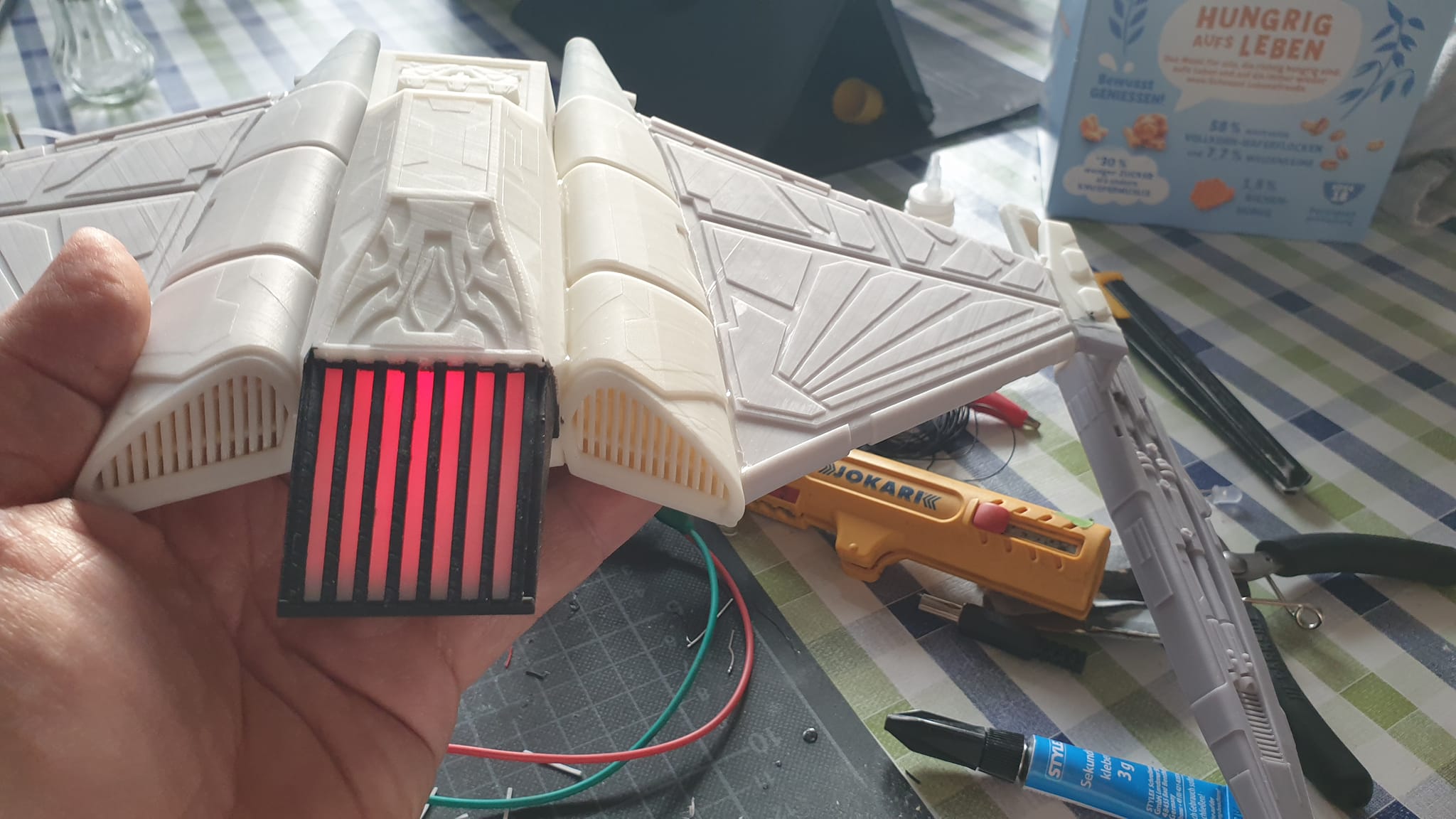

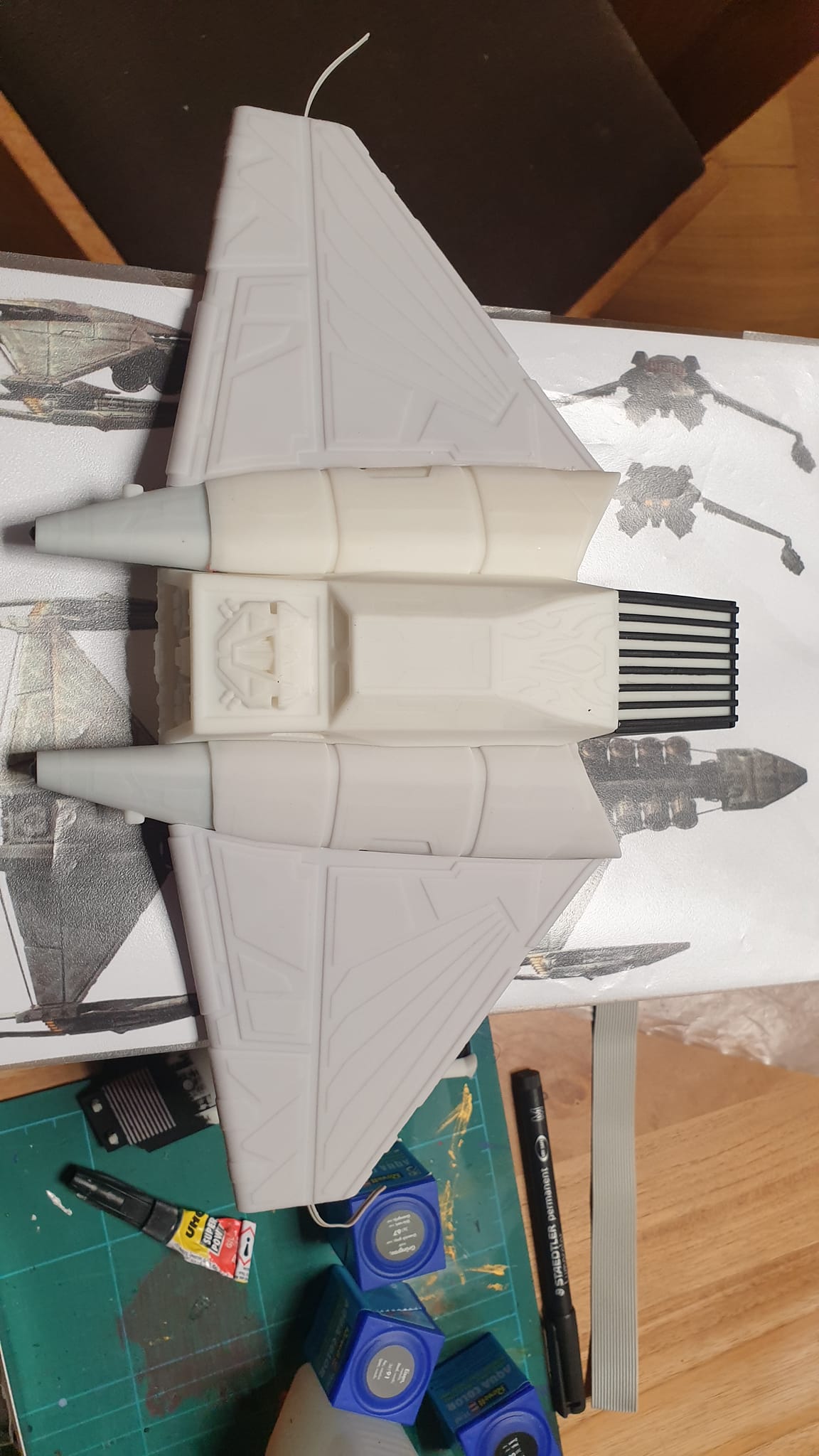

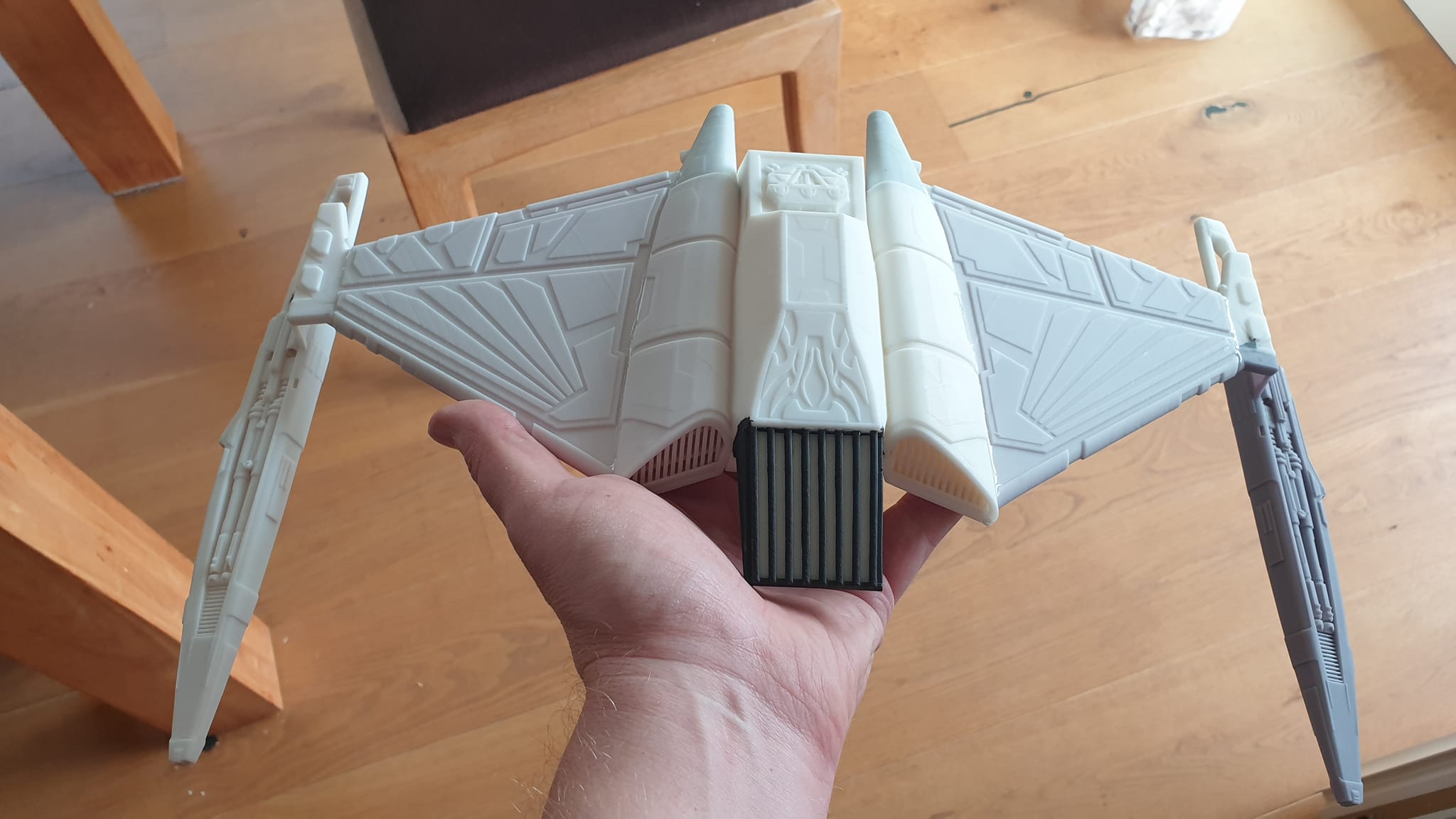

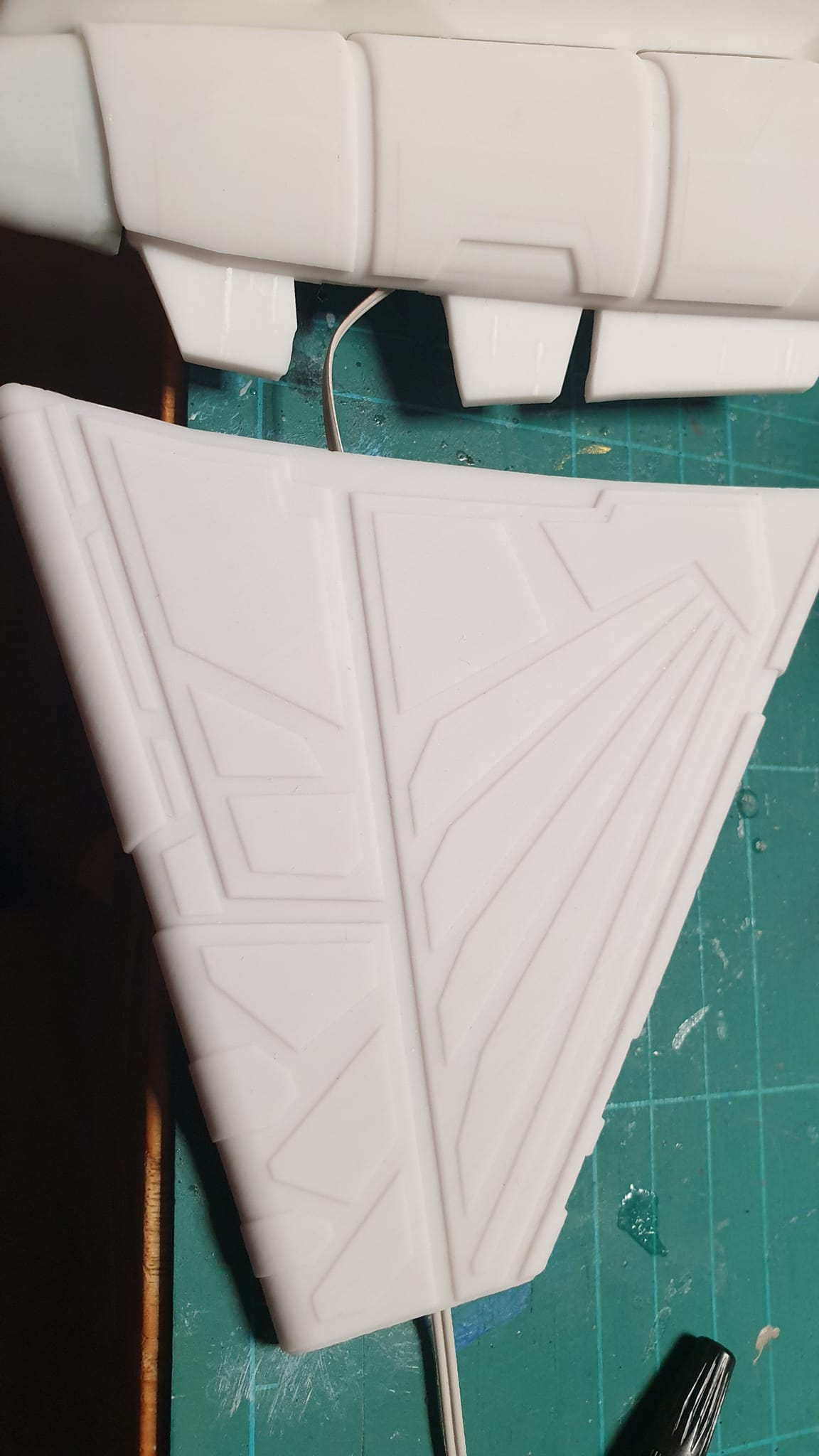

Attaching the wings

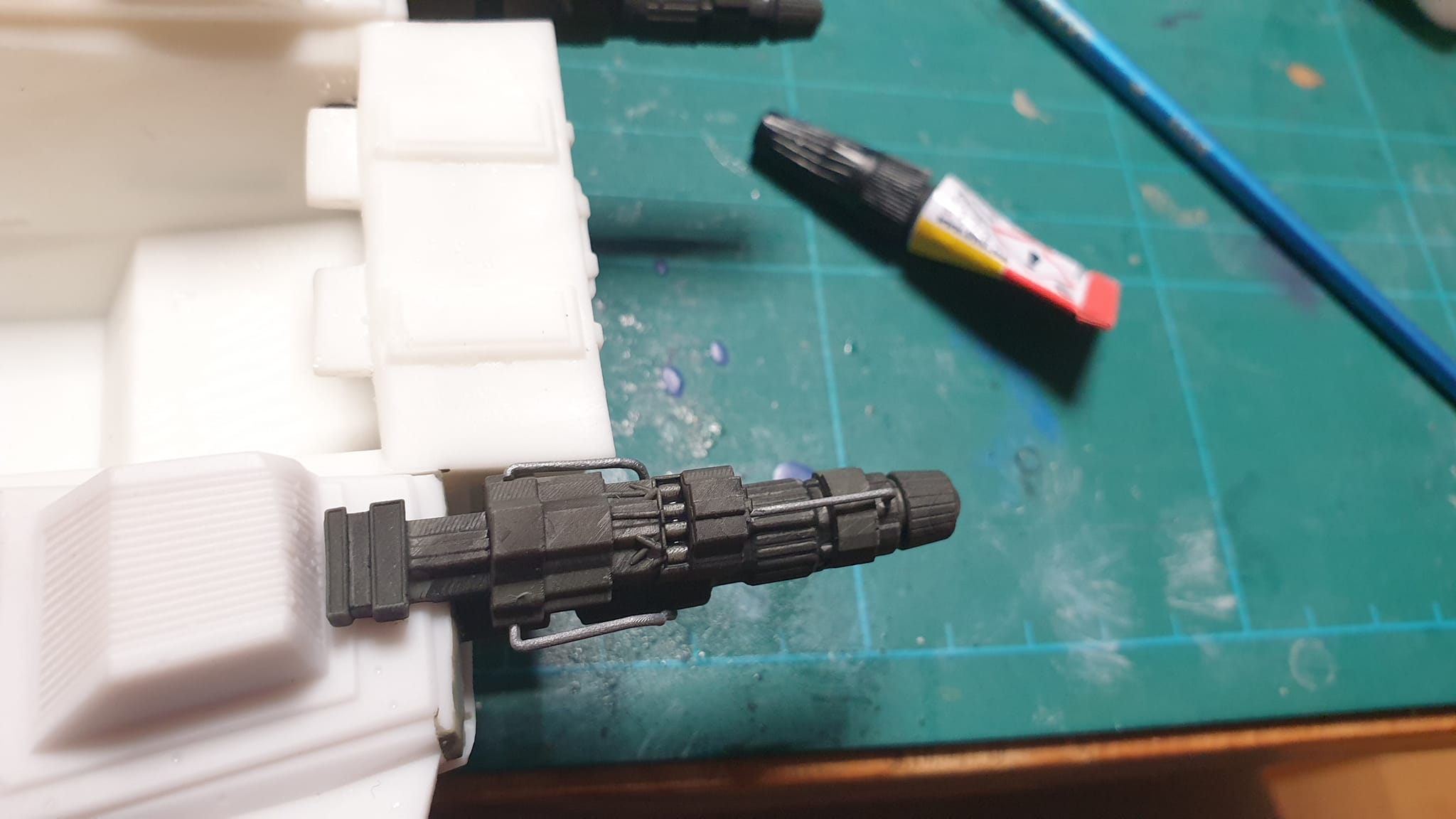

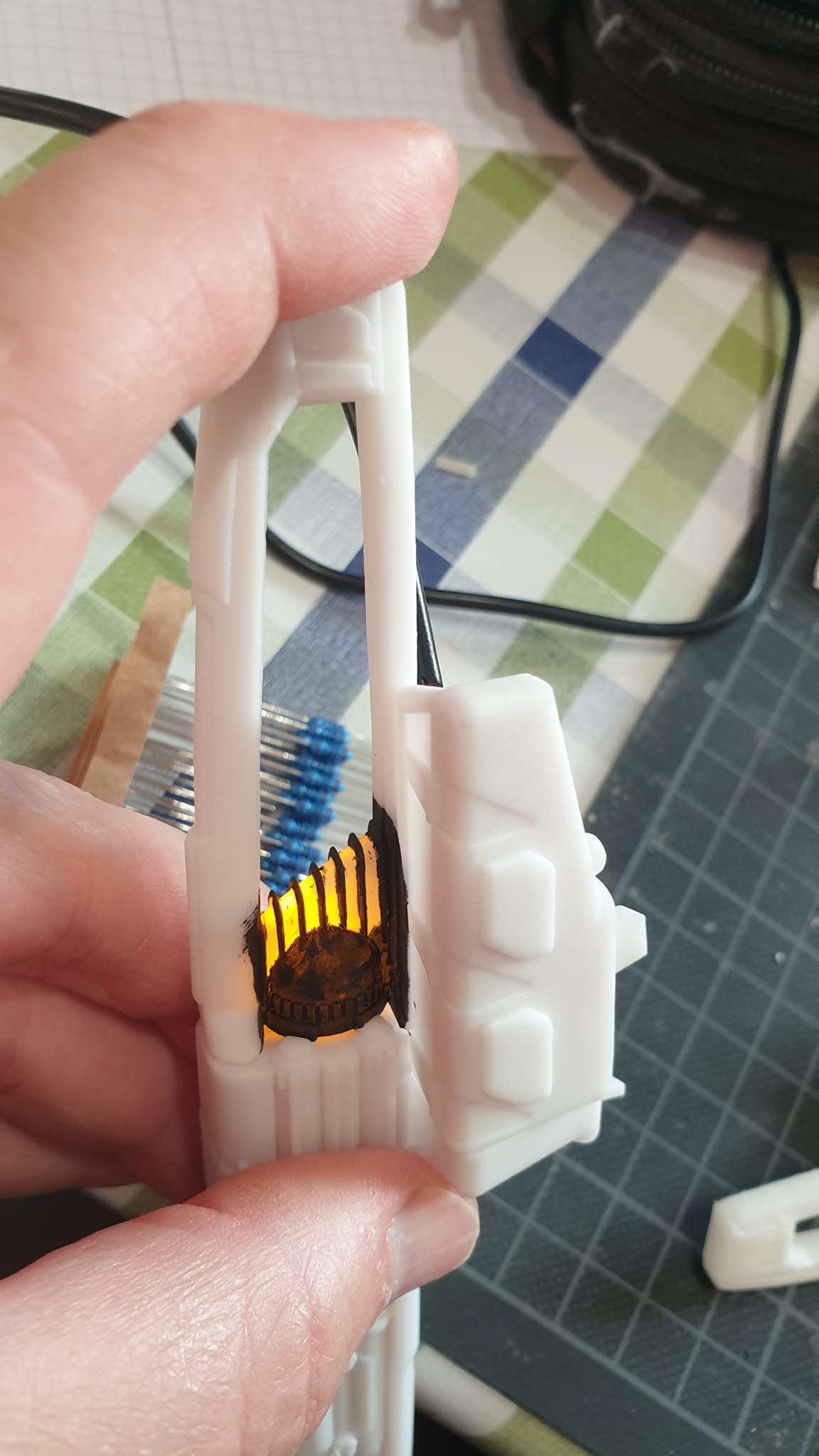

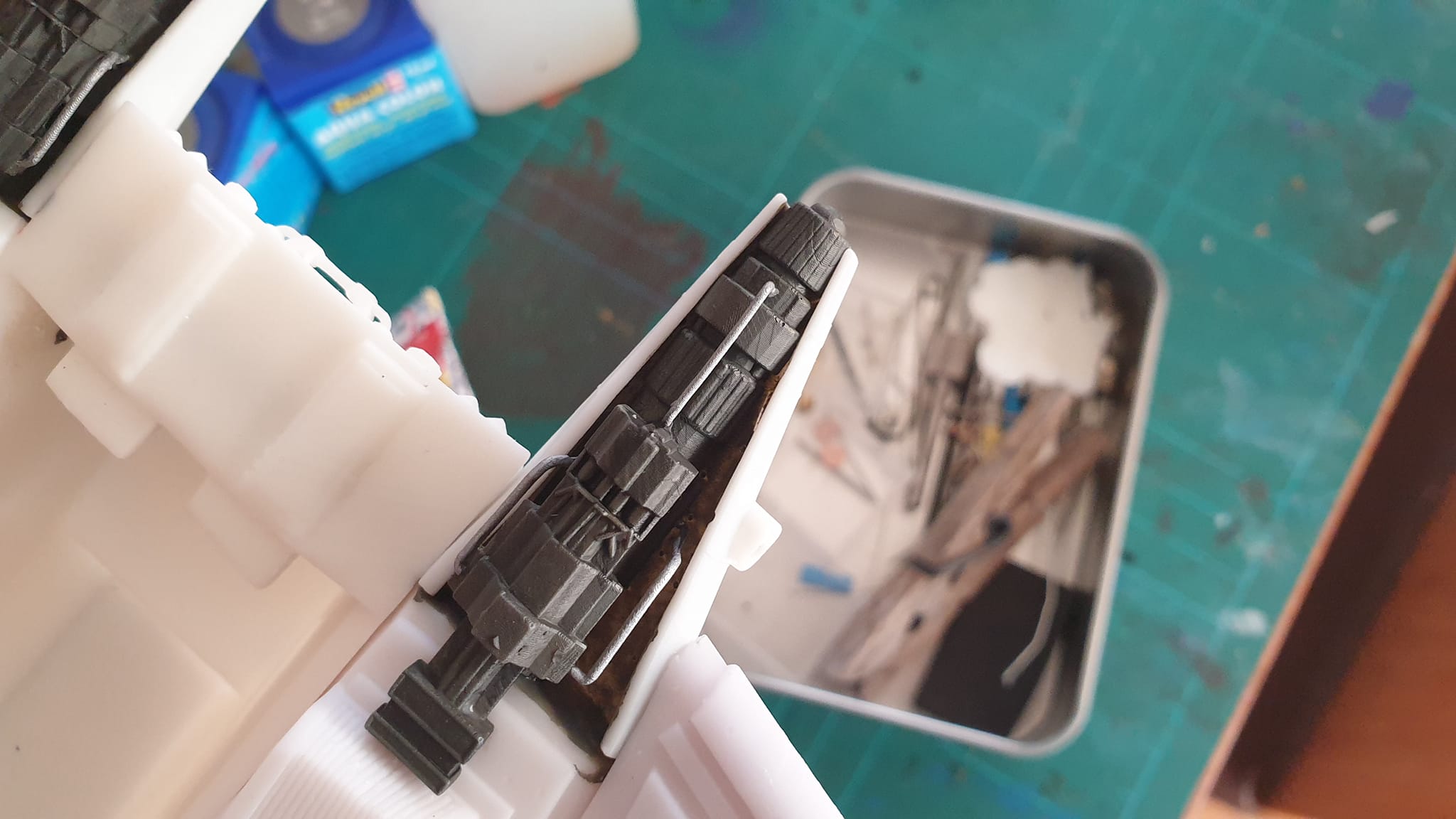

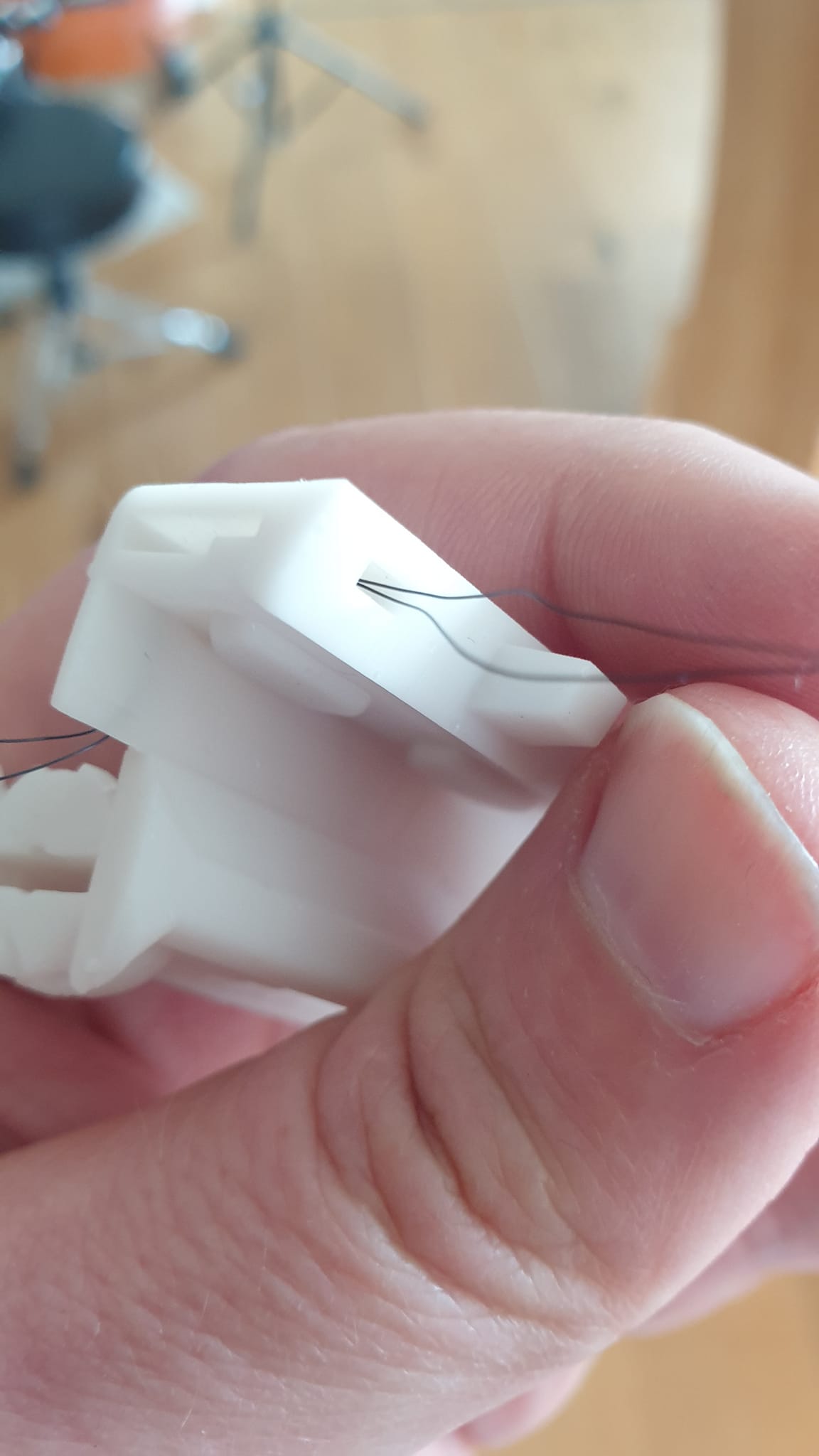

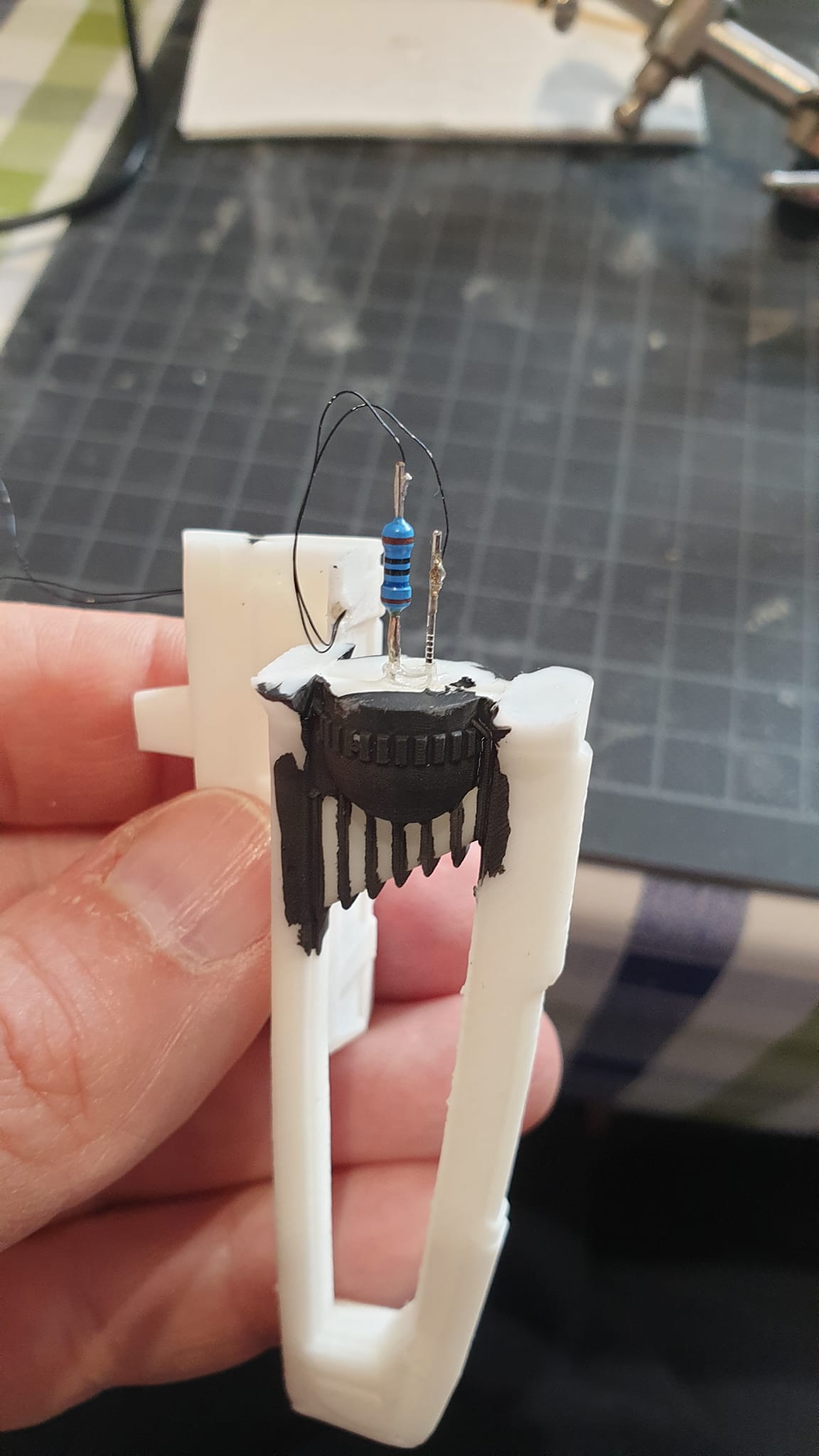

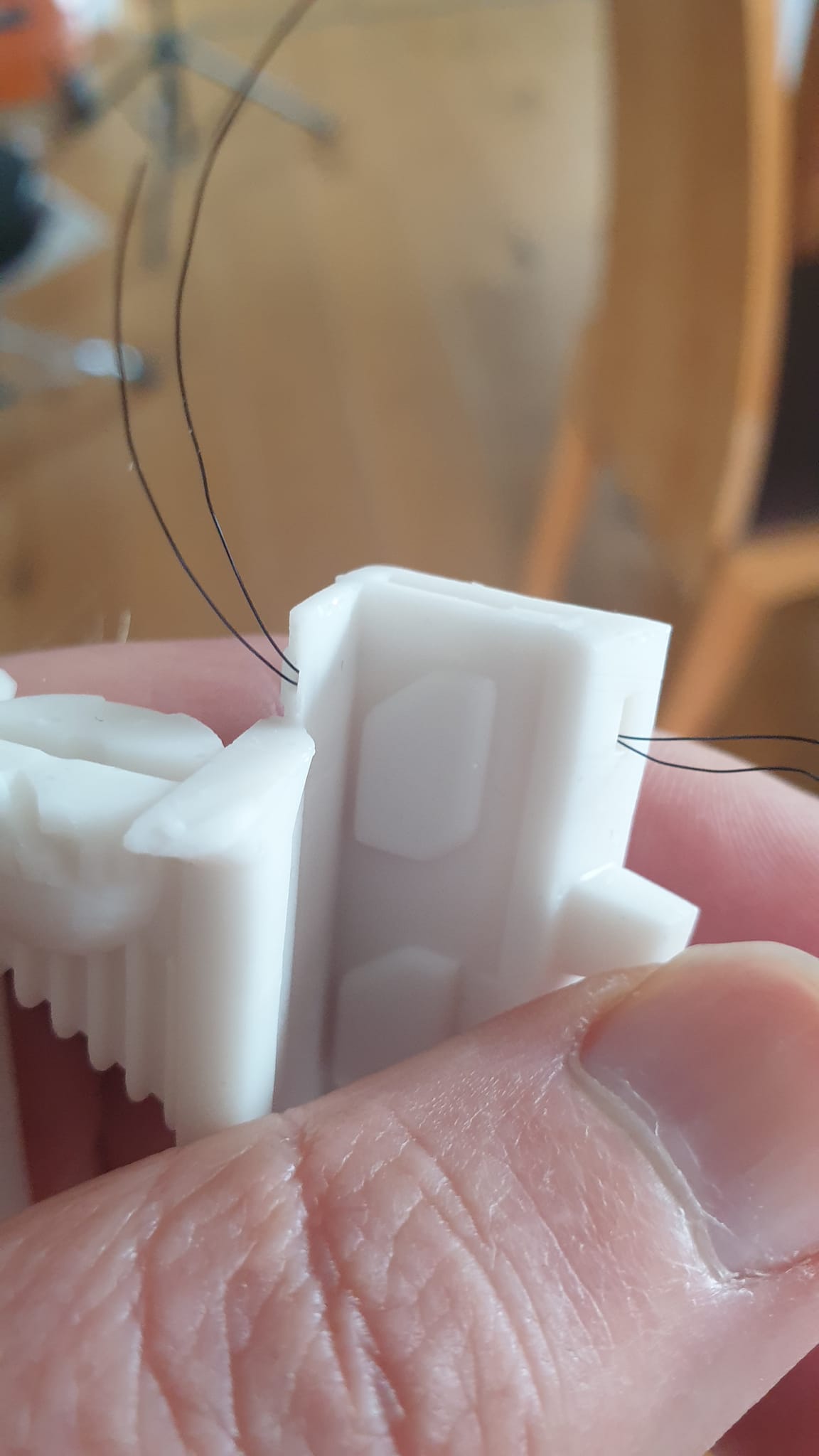

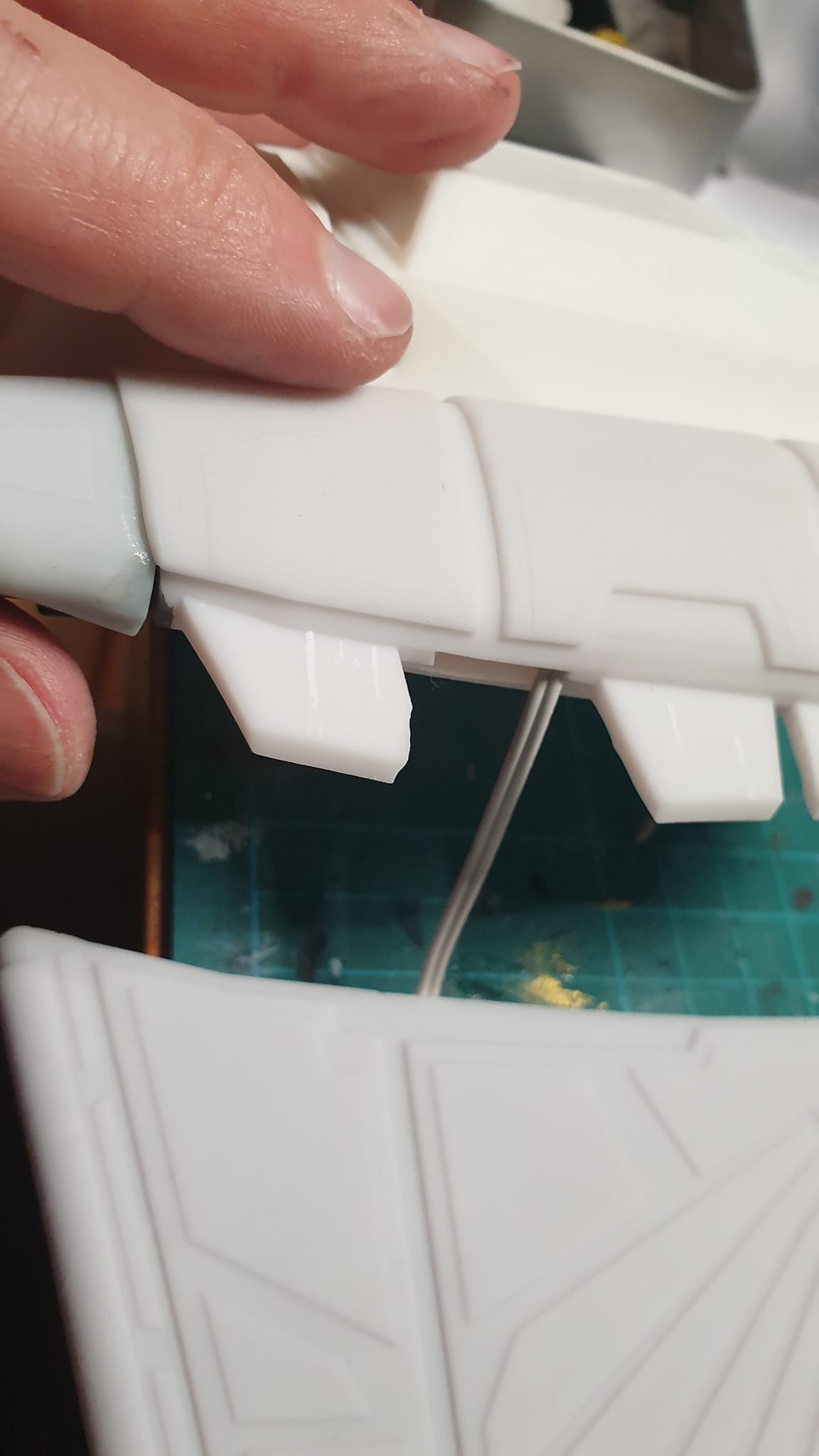

The most tricky wiring on the pylons

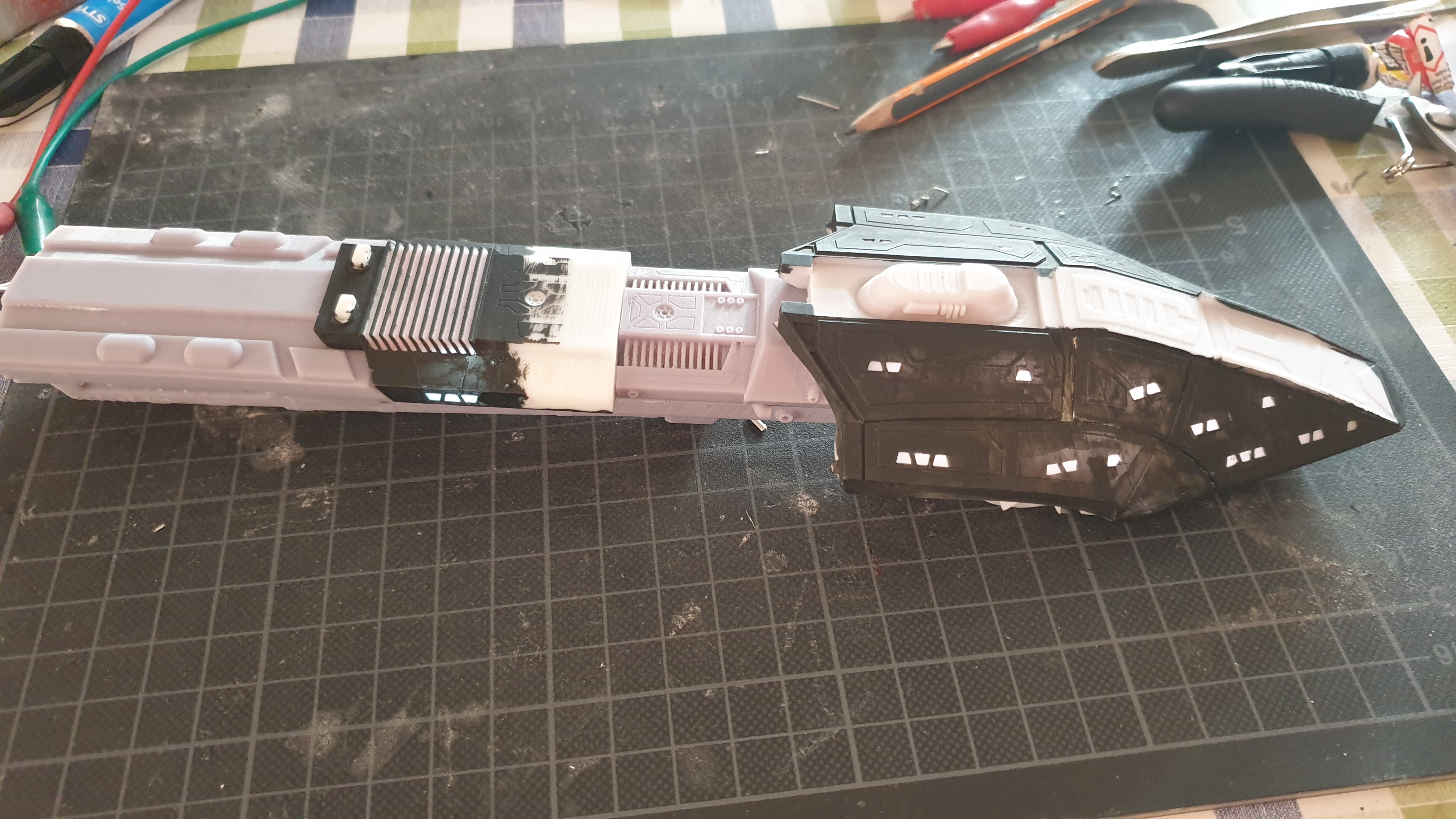

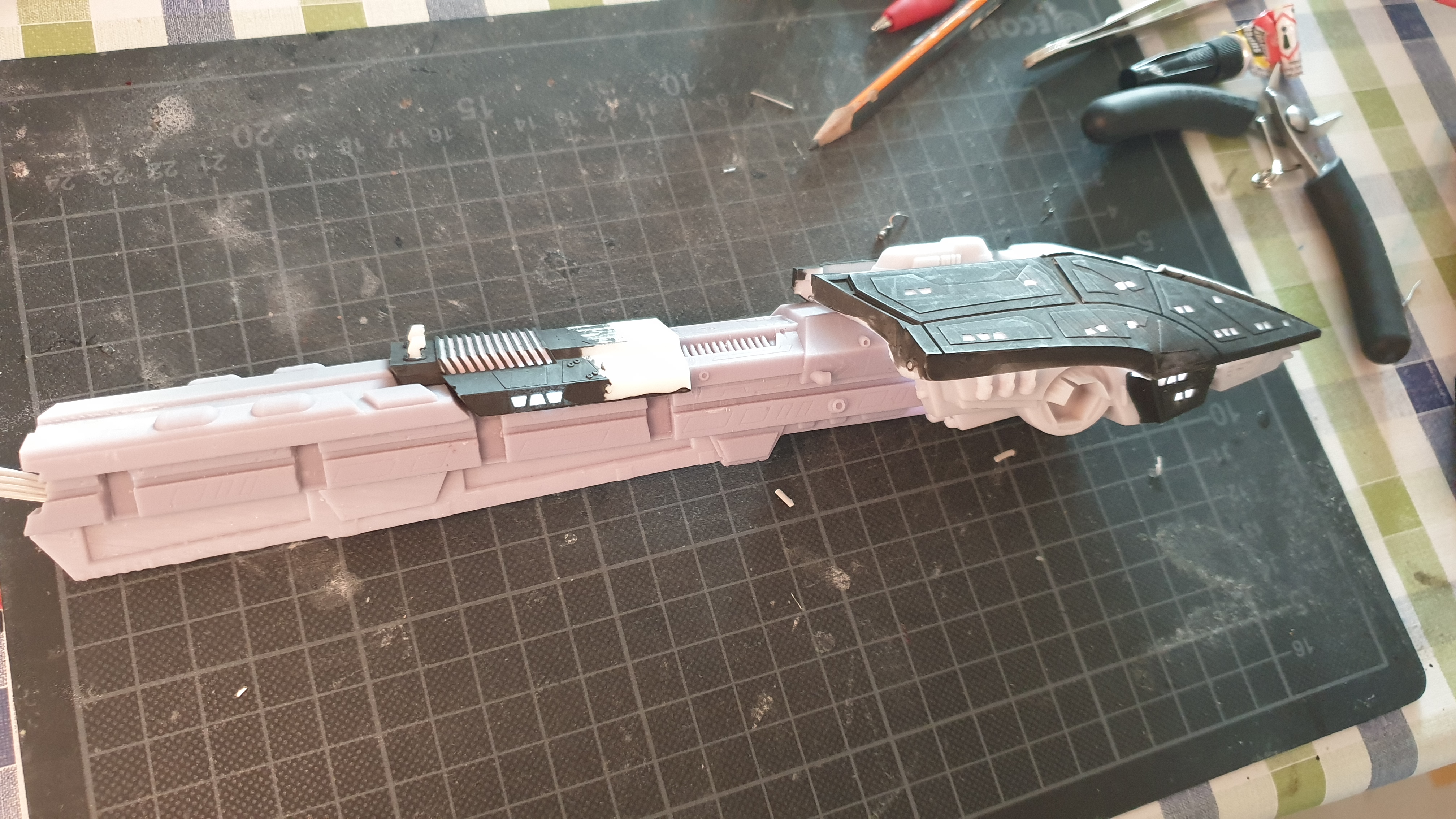

State at the moment:



[PHArchivist]

Very cool project!



[frostrubin]

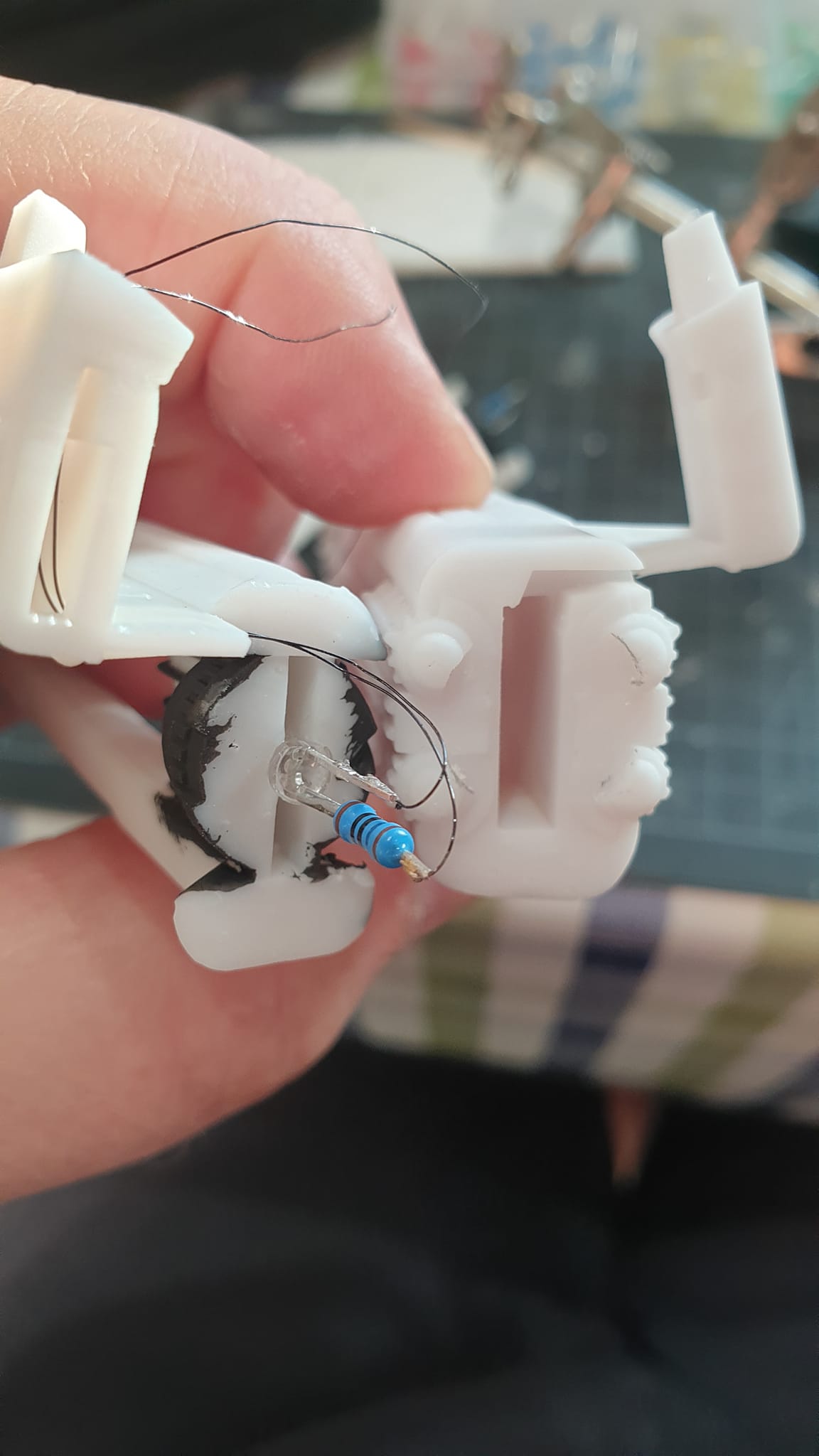

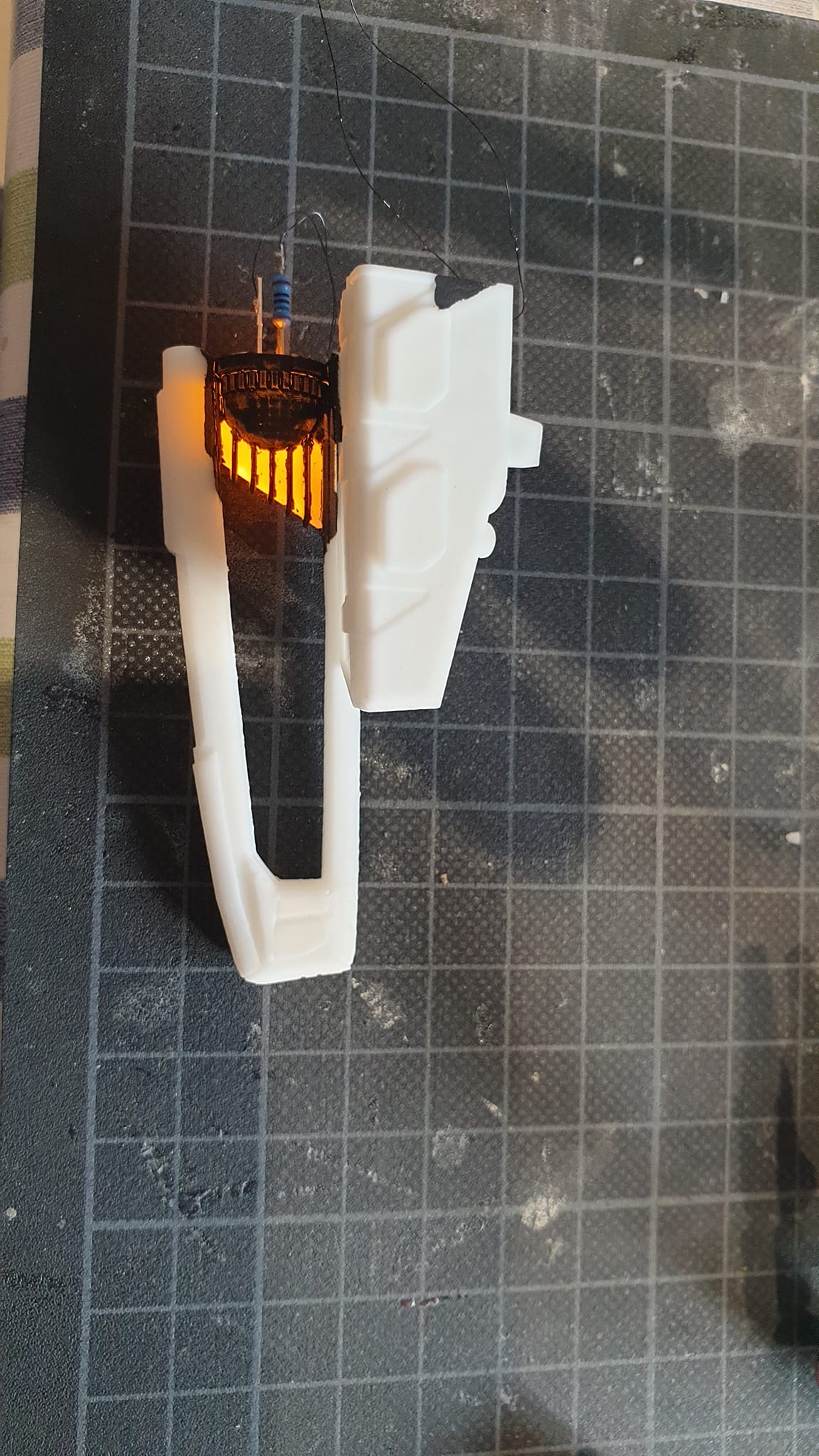

All LED wiring are done.

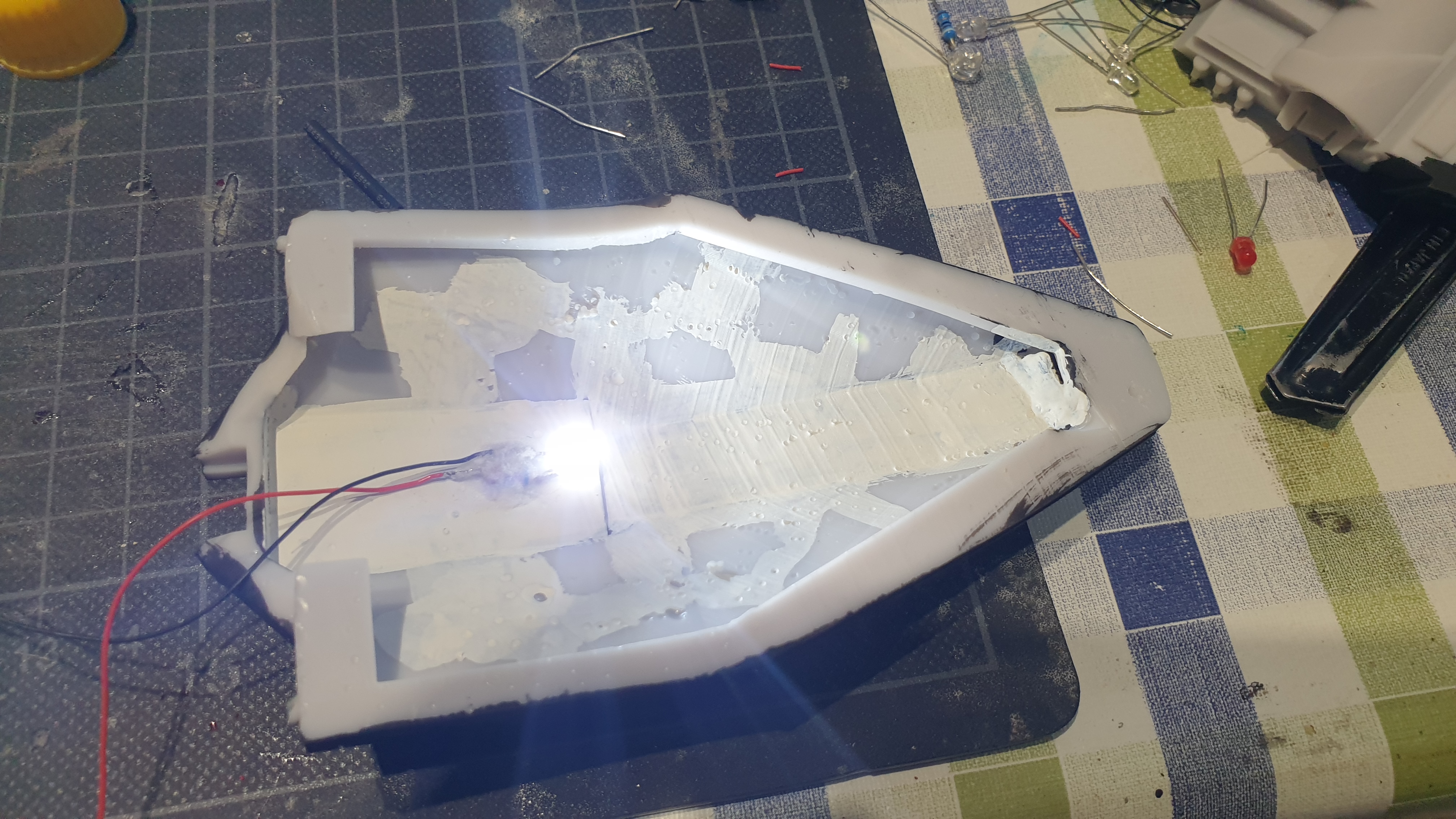

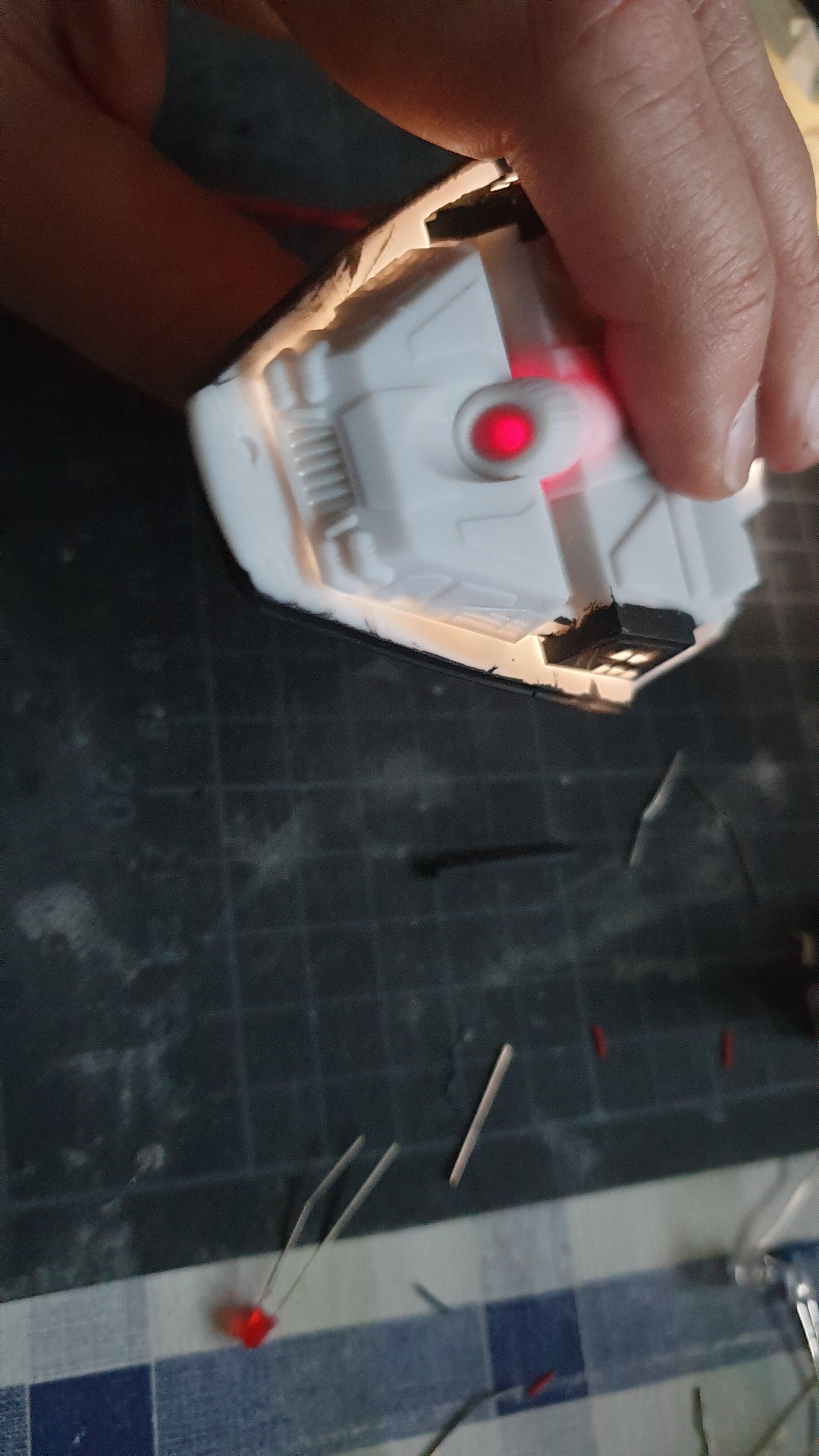

I decided to light up the windows and the torpedo tube armed. I use only one LED to light up rhe whole windows in the head section. Won't them to be too bright.



[frostrubin]

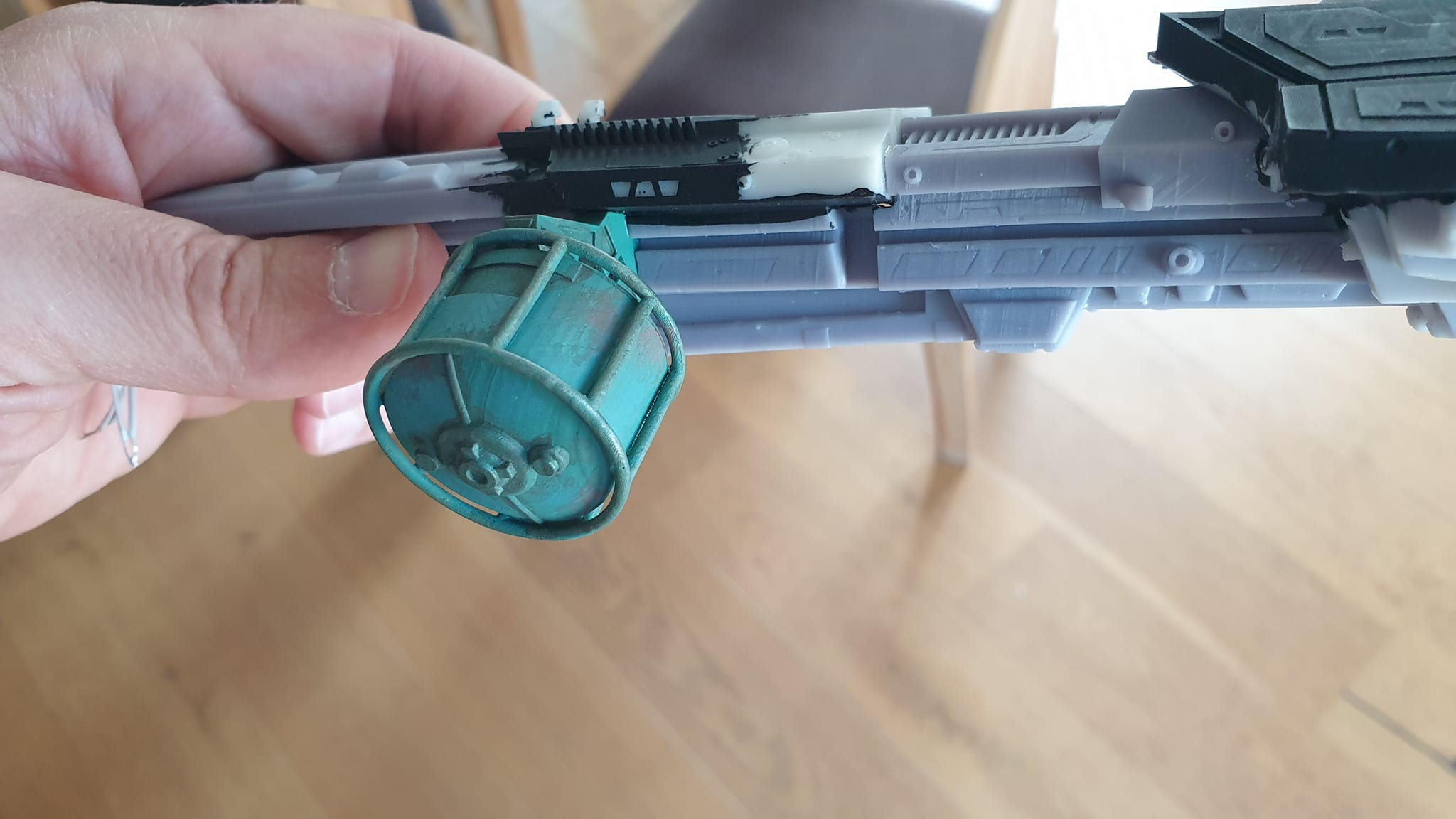

First tank is painted and the main color palette for the ship is fixed

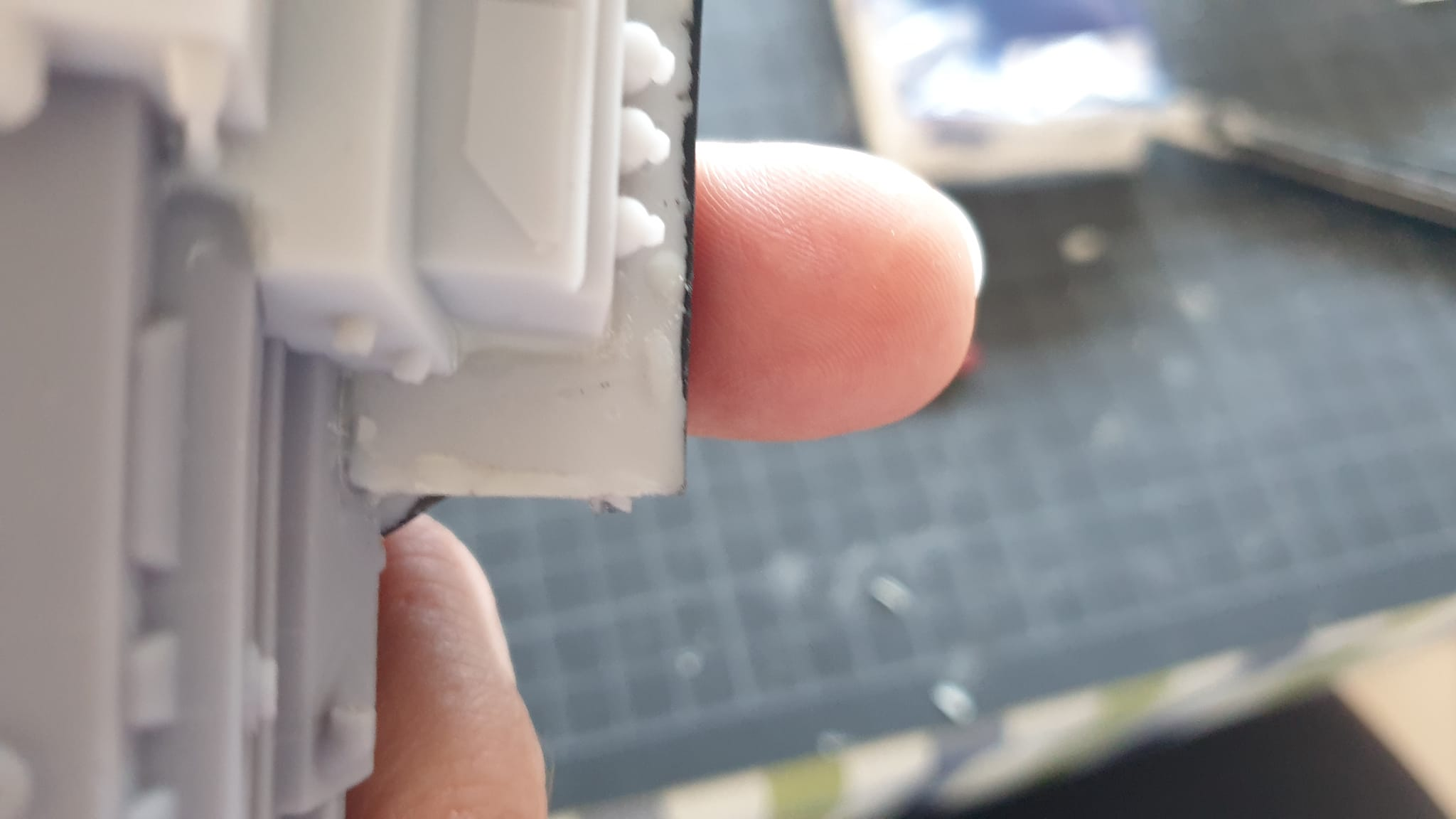

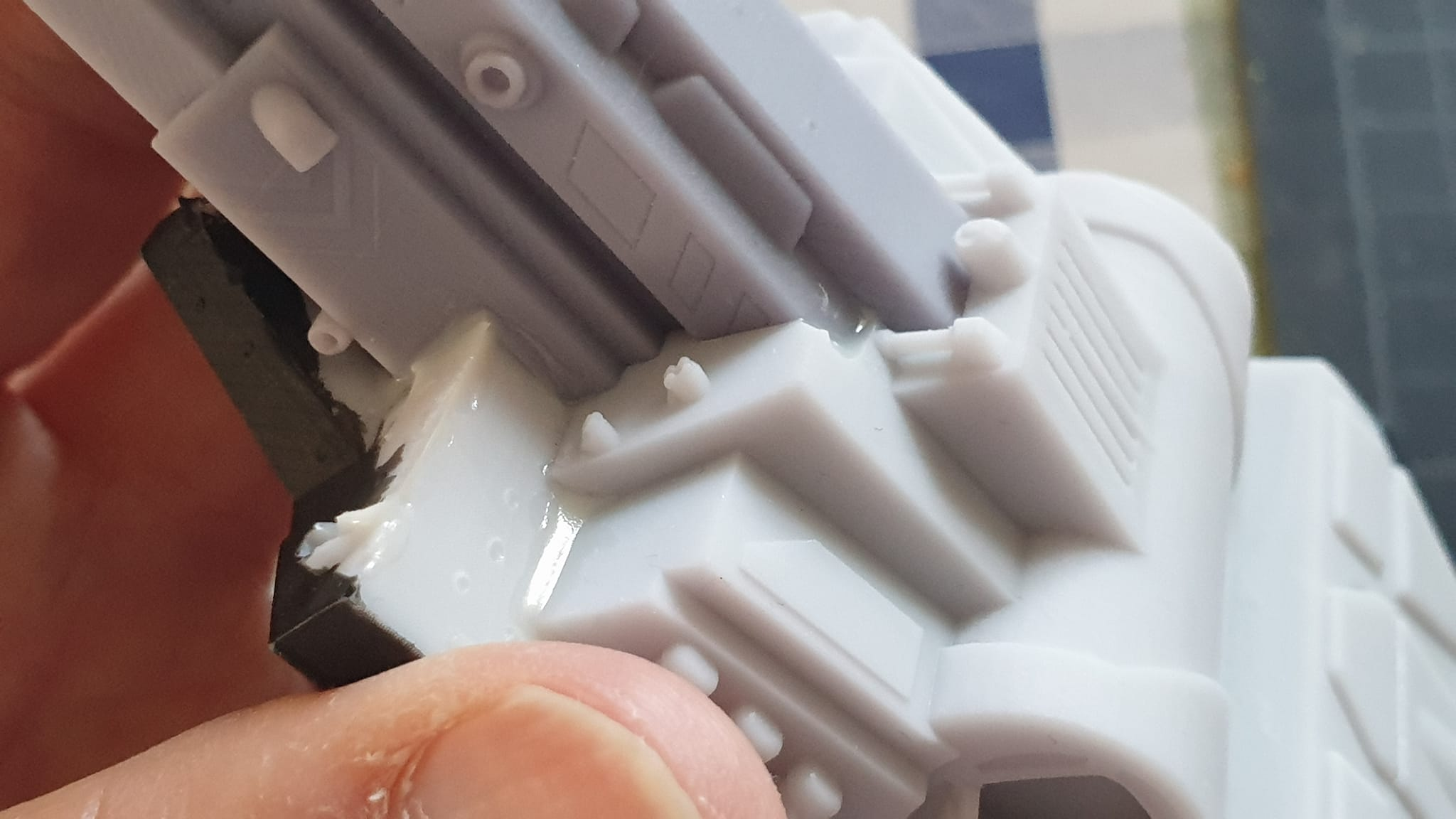

Some support failure…

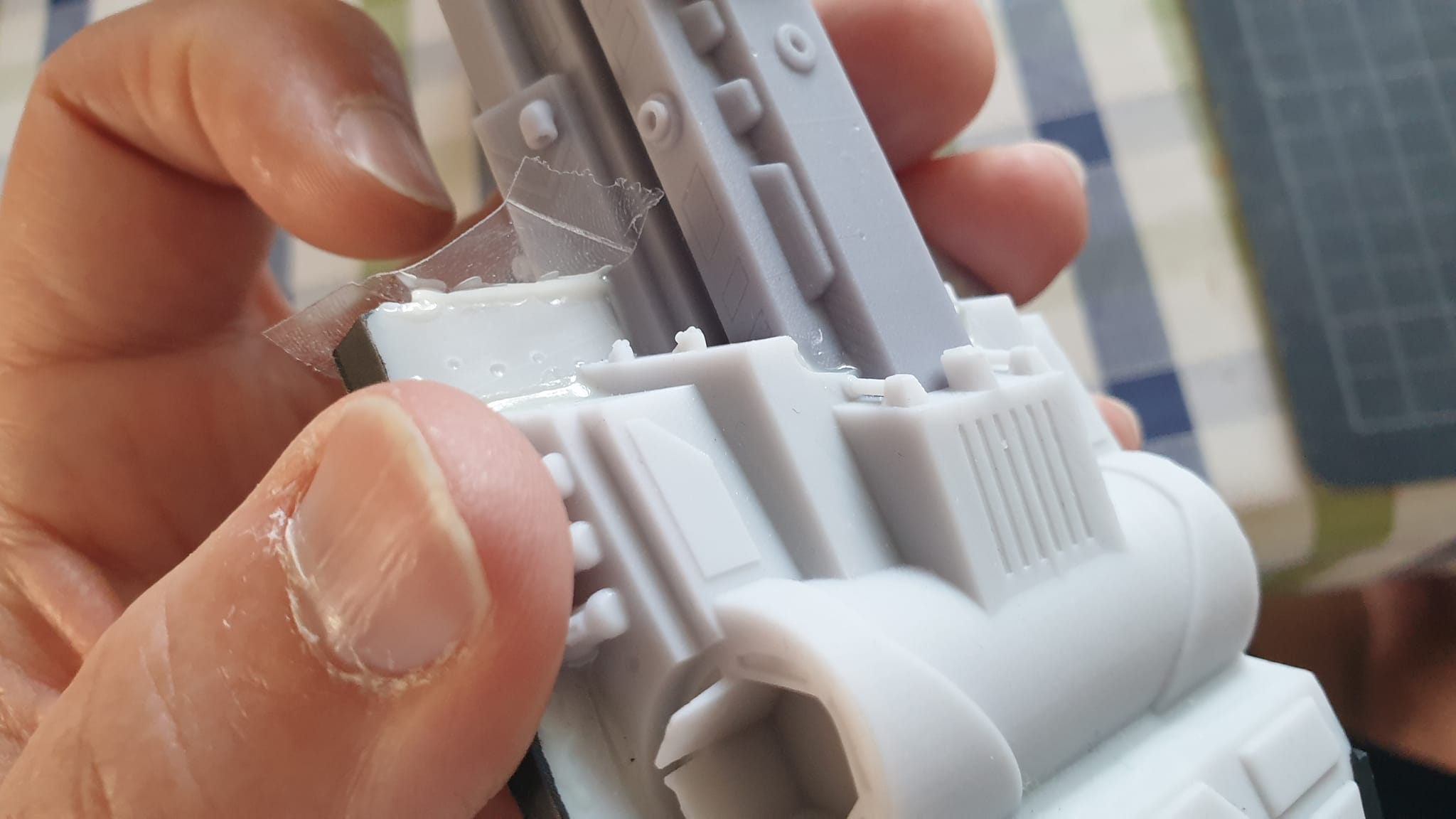

...fixed with help of tape and uv-resin



[frostrubin]

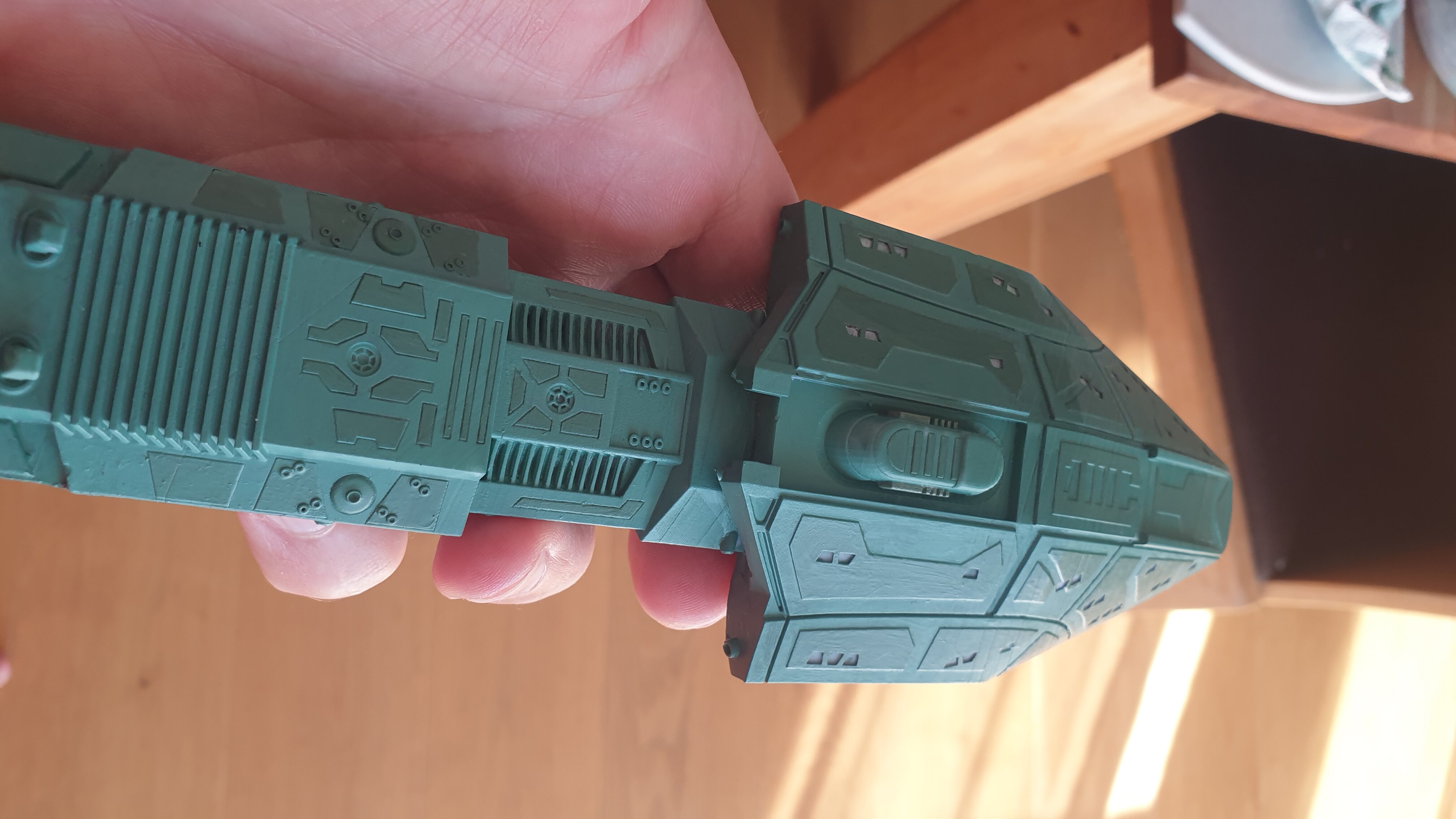

Base color is on. Also the panels with a slight darker tone.



[frostrubin]

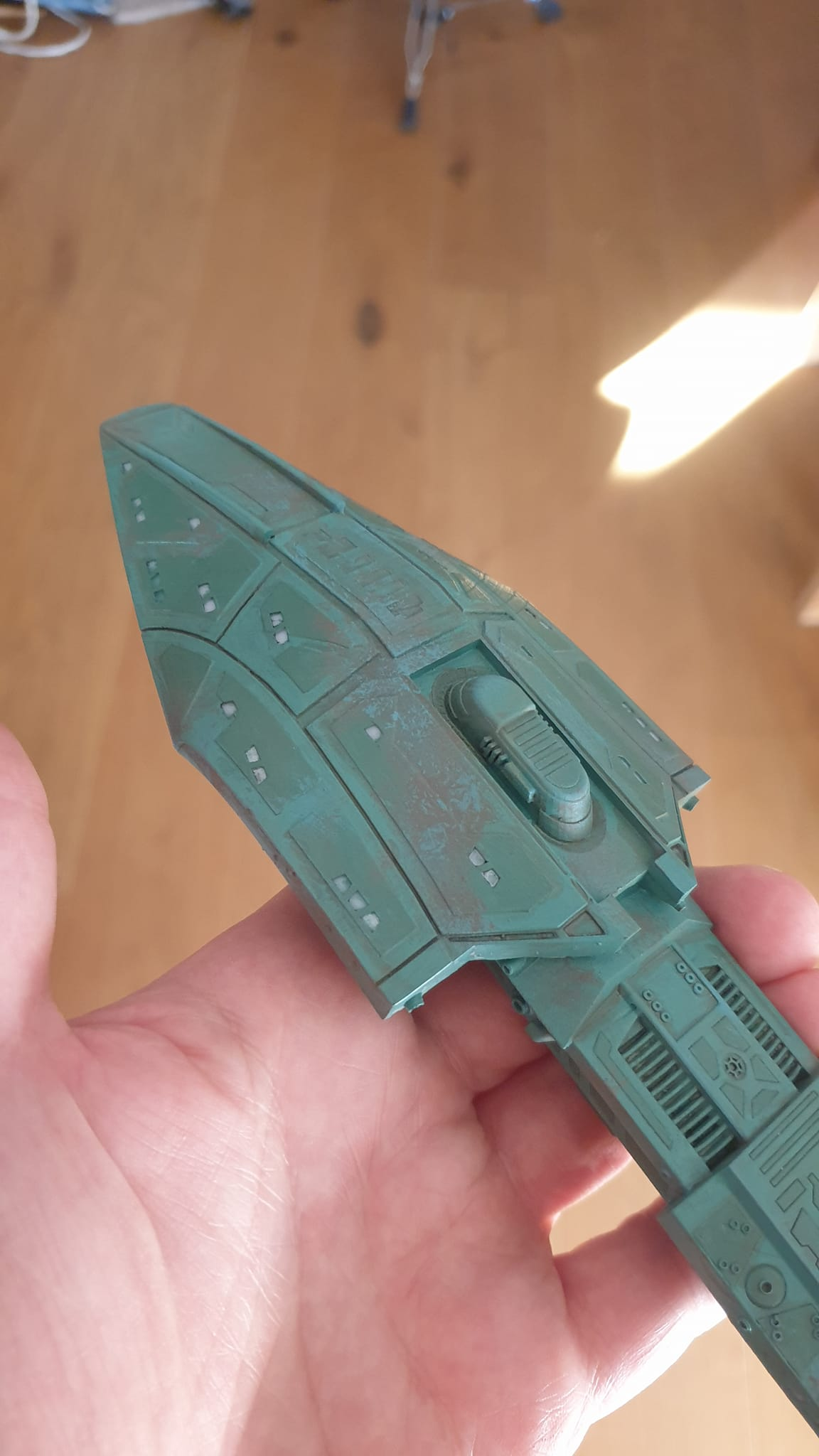

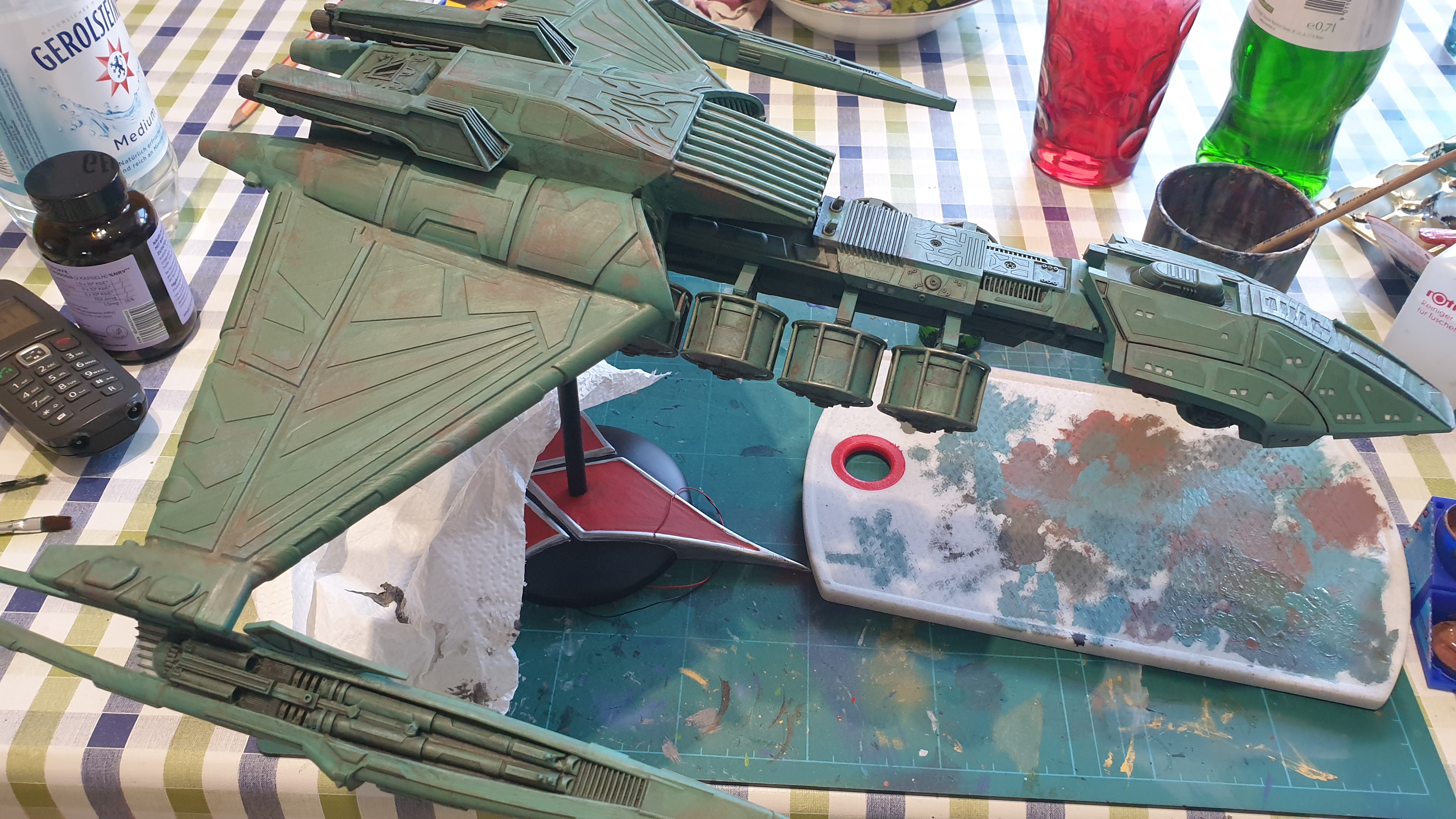

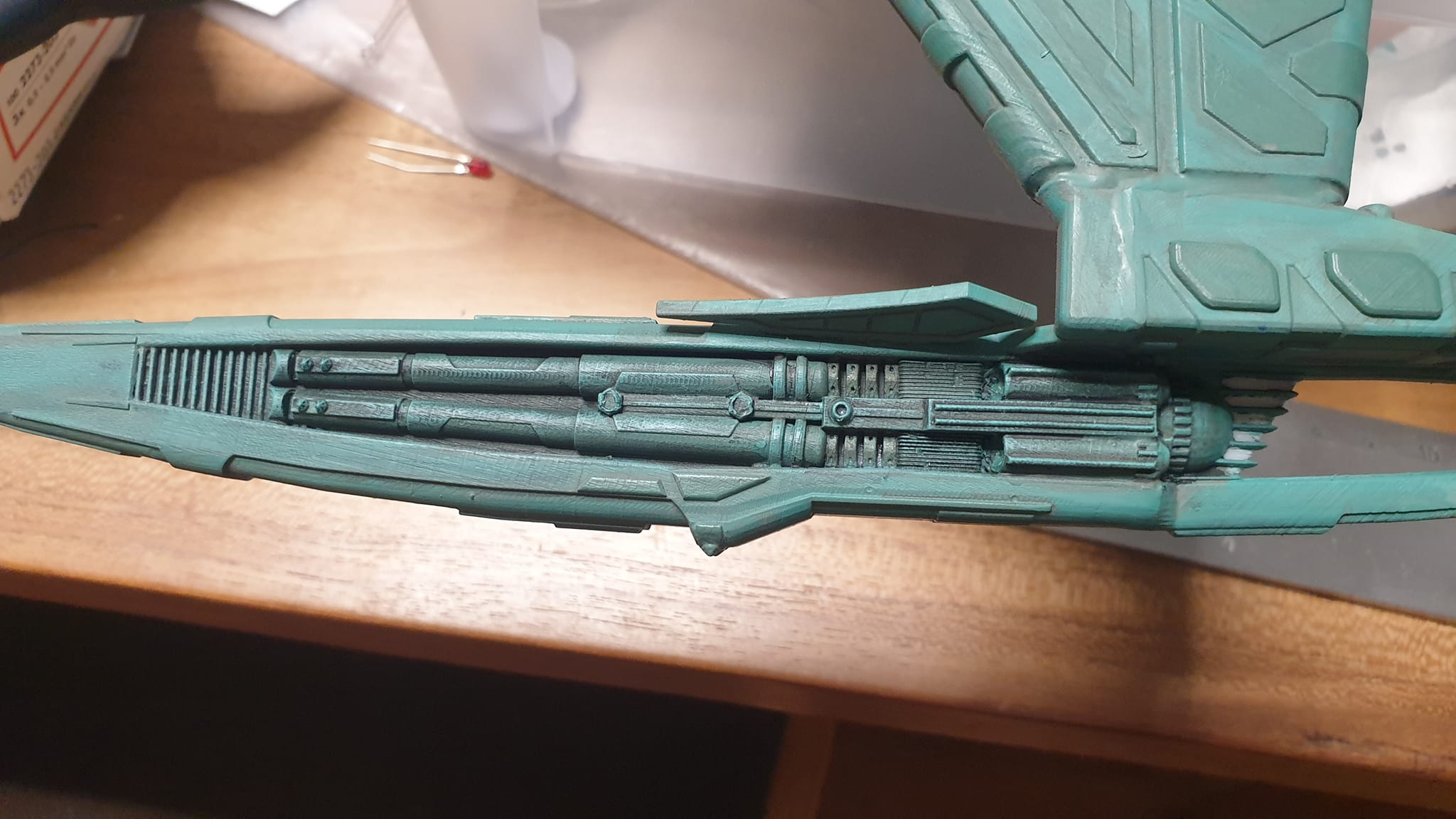

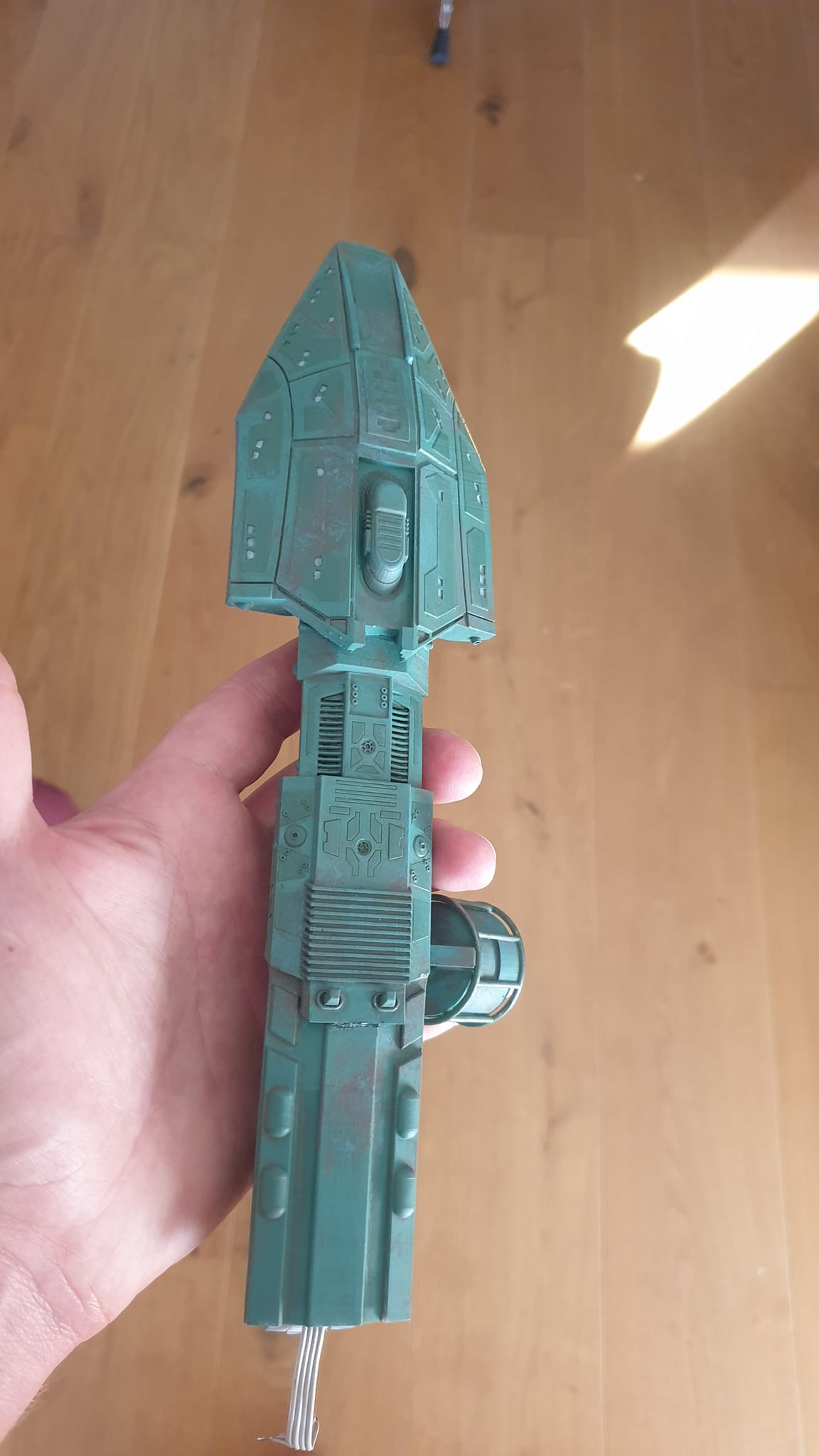

Start with I like most on building klingon ships: weathering. First pass is done...

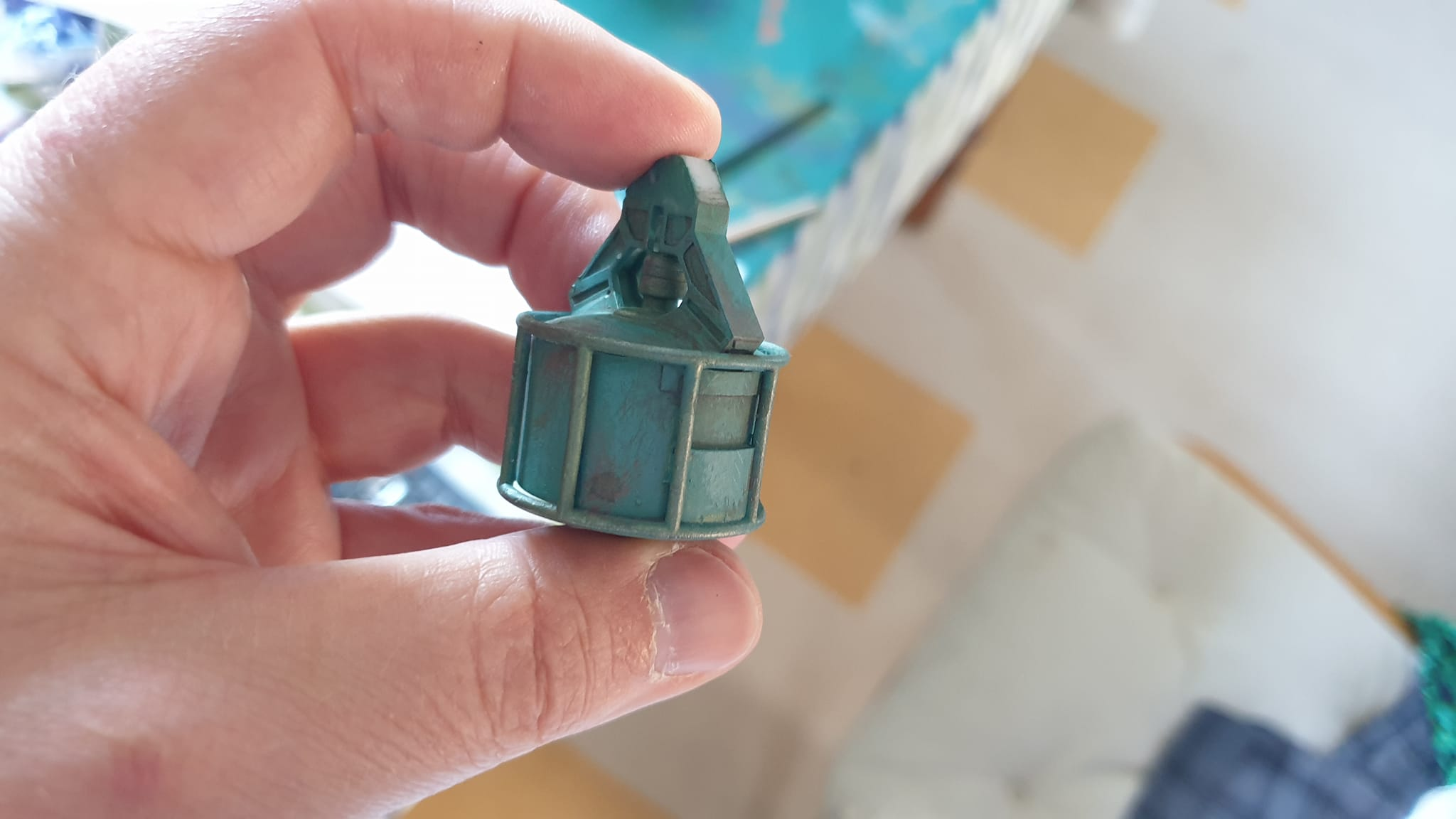

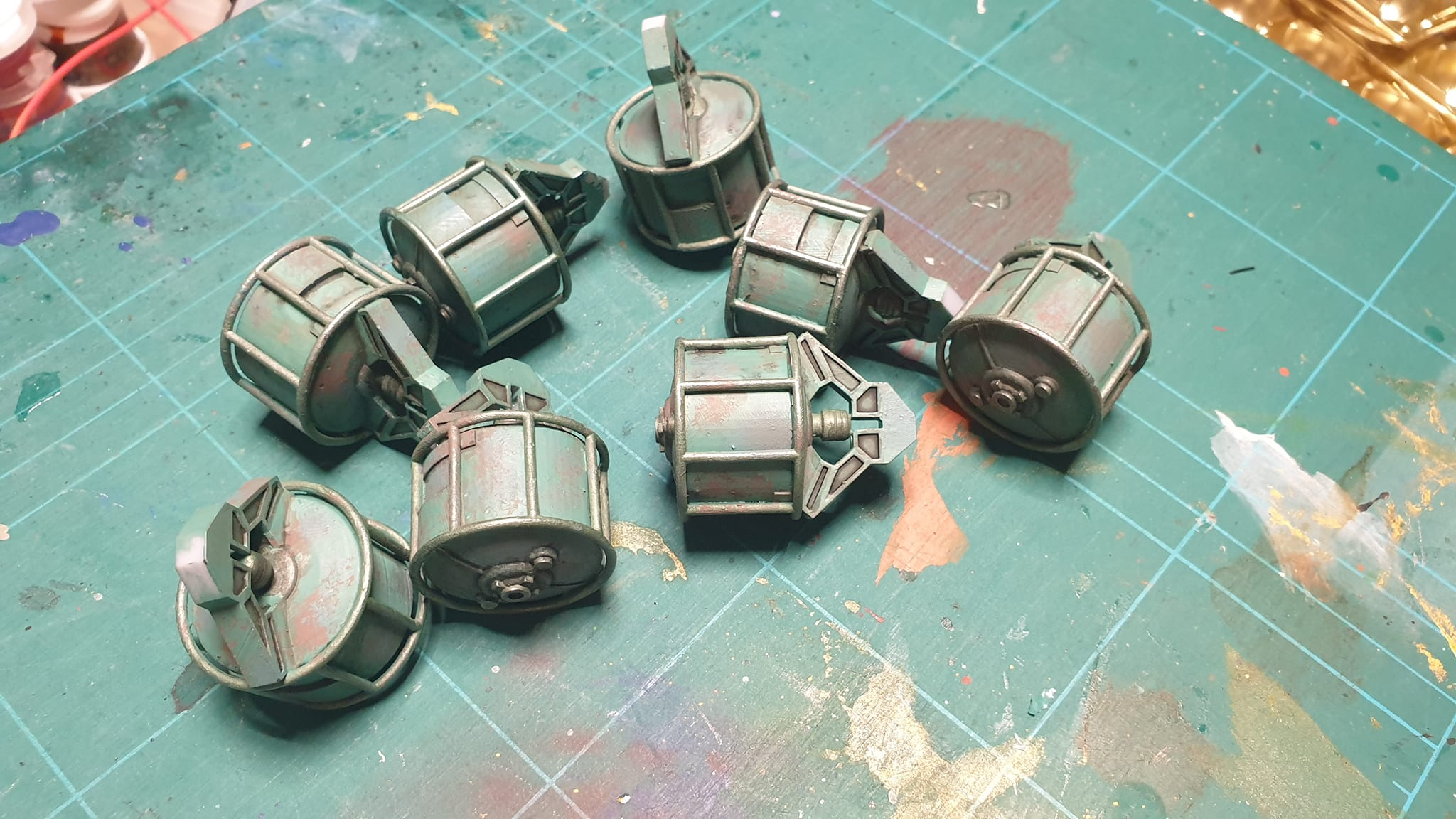

and fininished all 8 tanks.

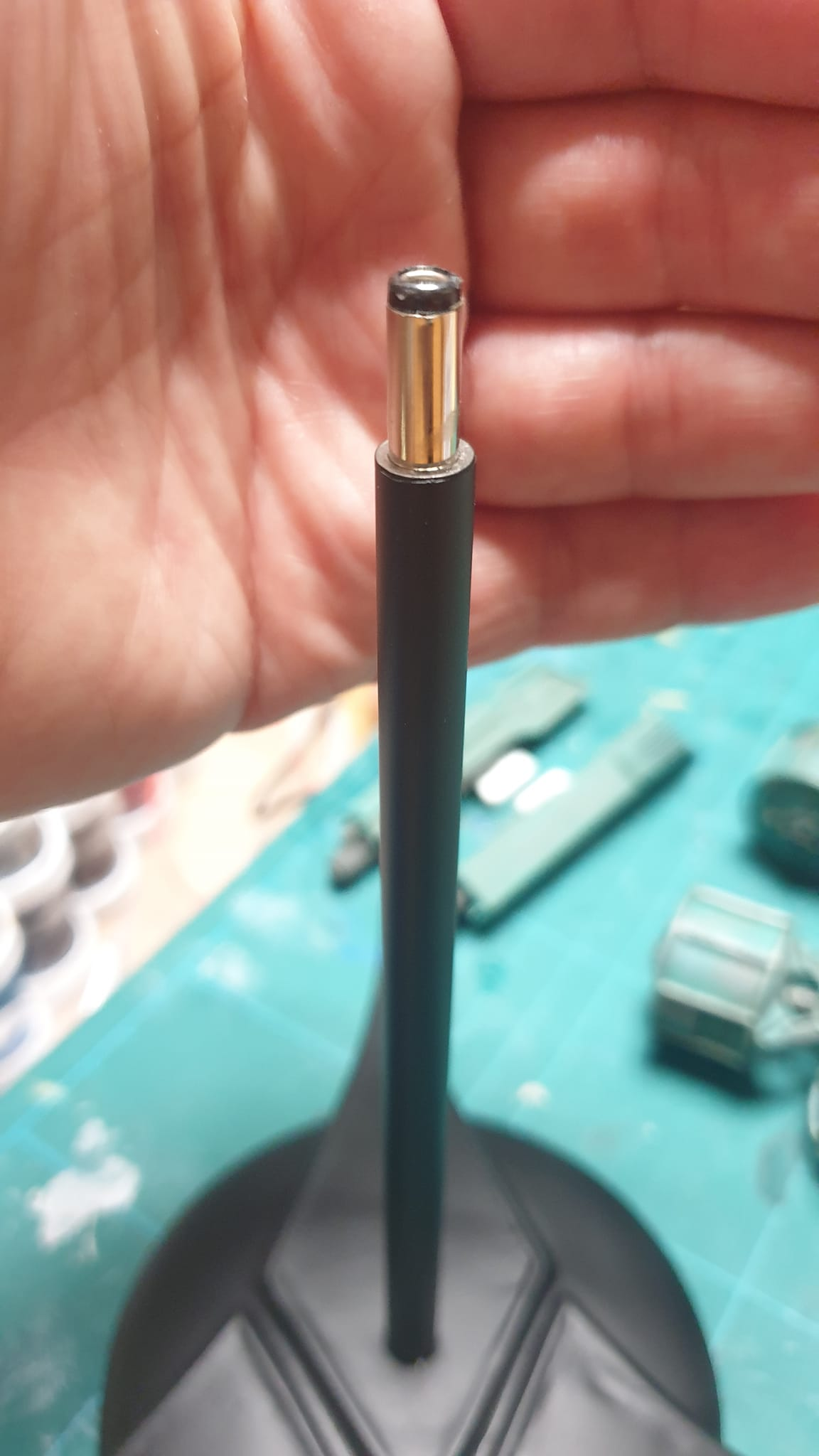

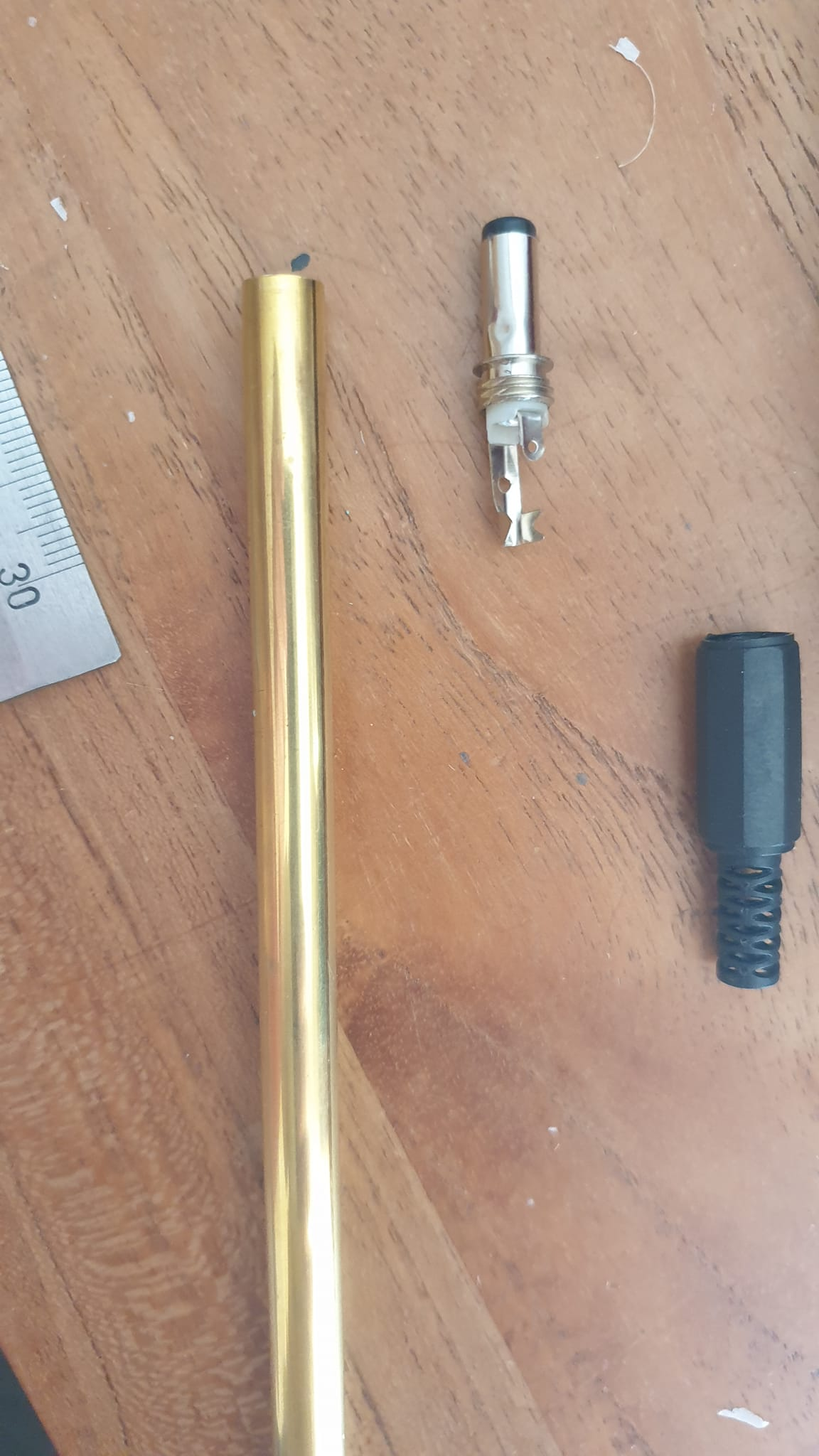

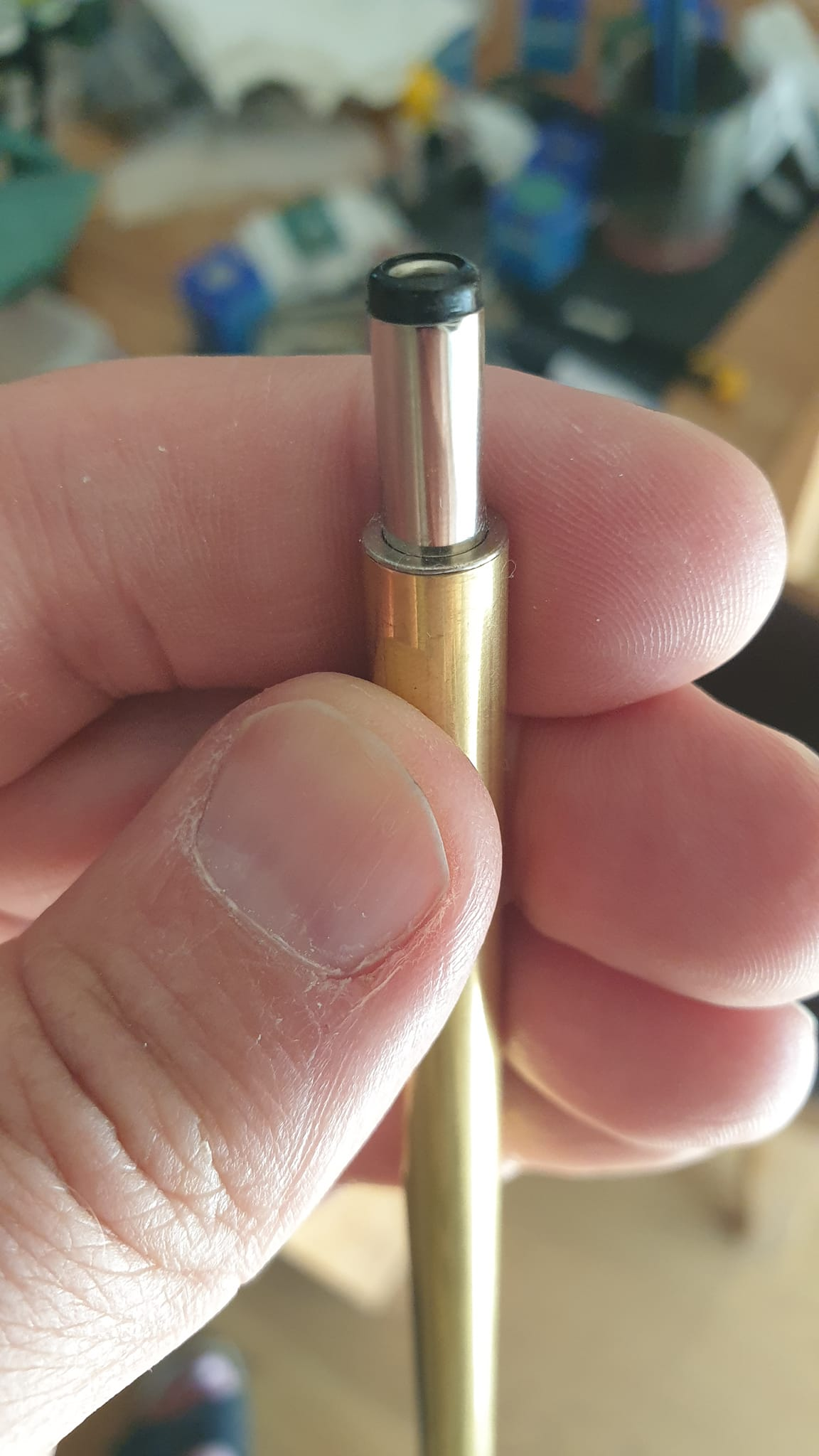

Also the base plug is glued into brass tube.



[frostrubin]

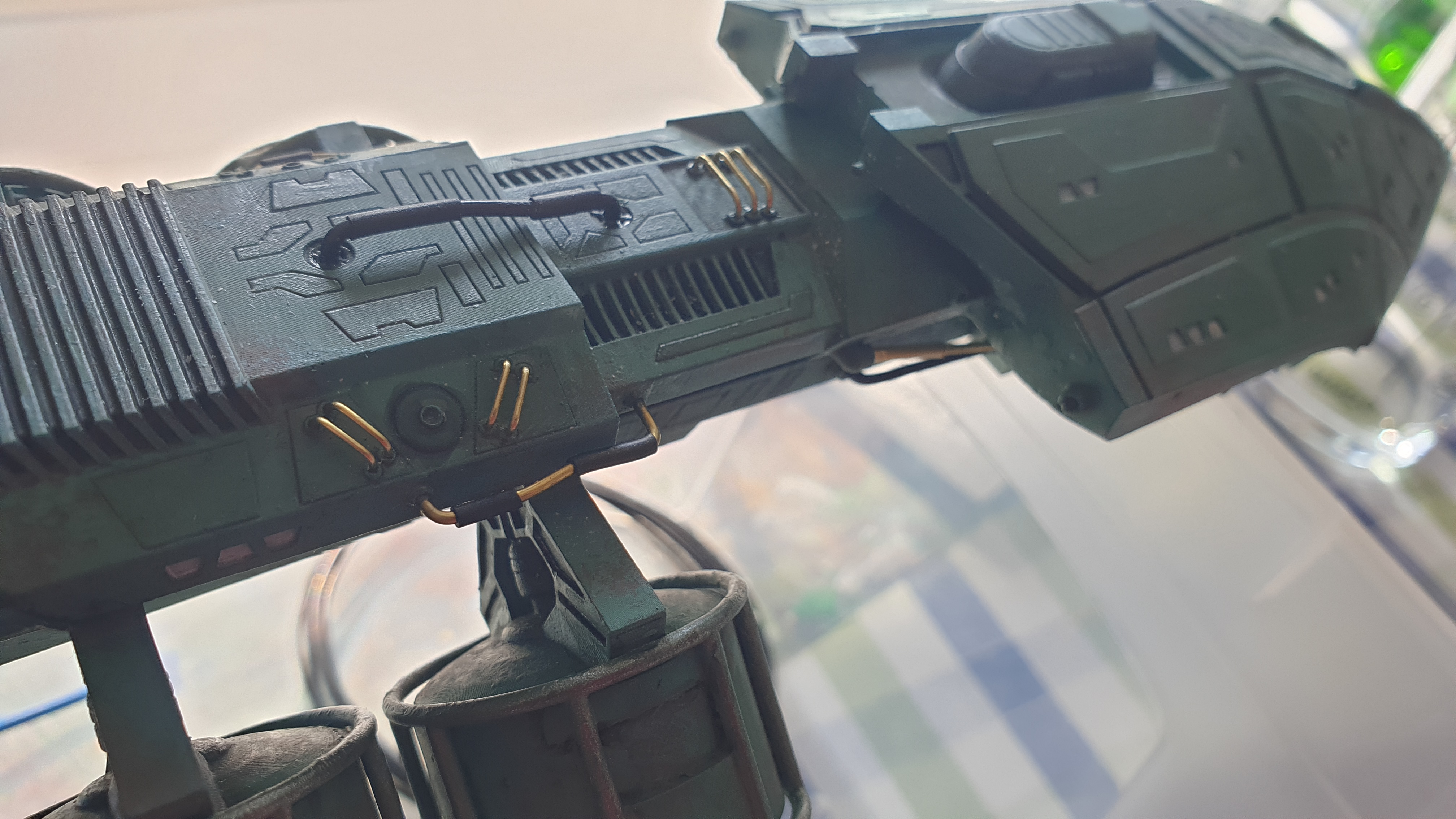

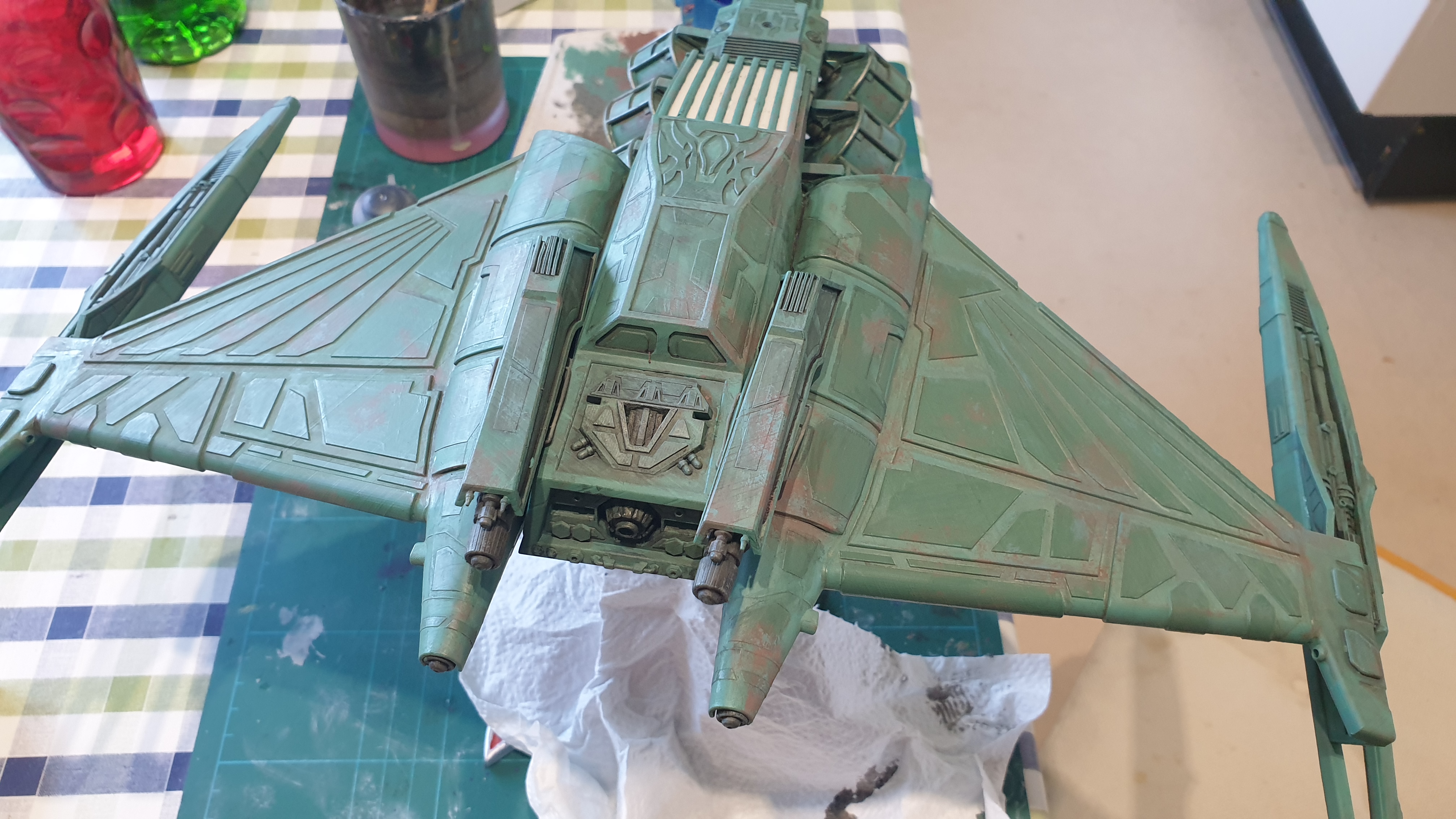

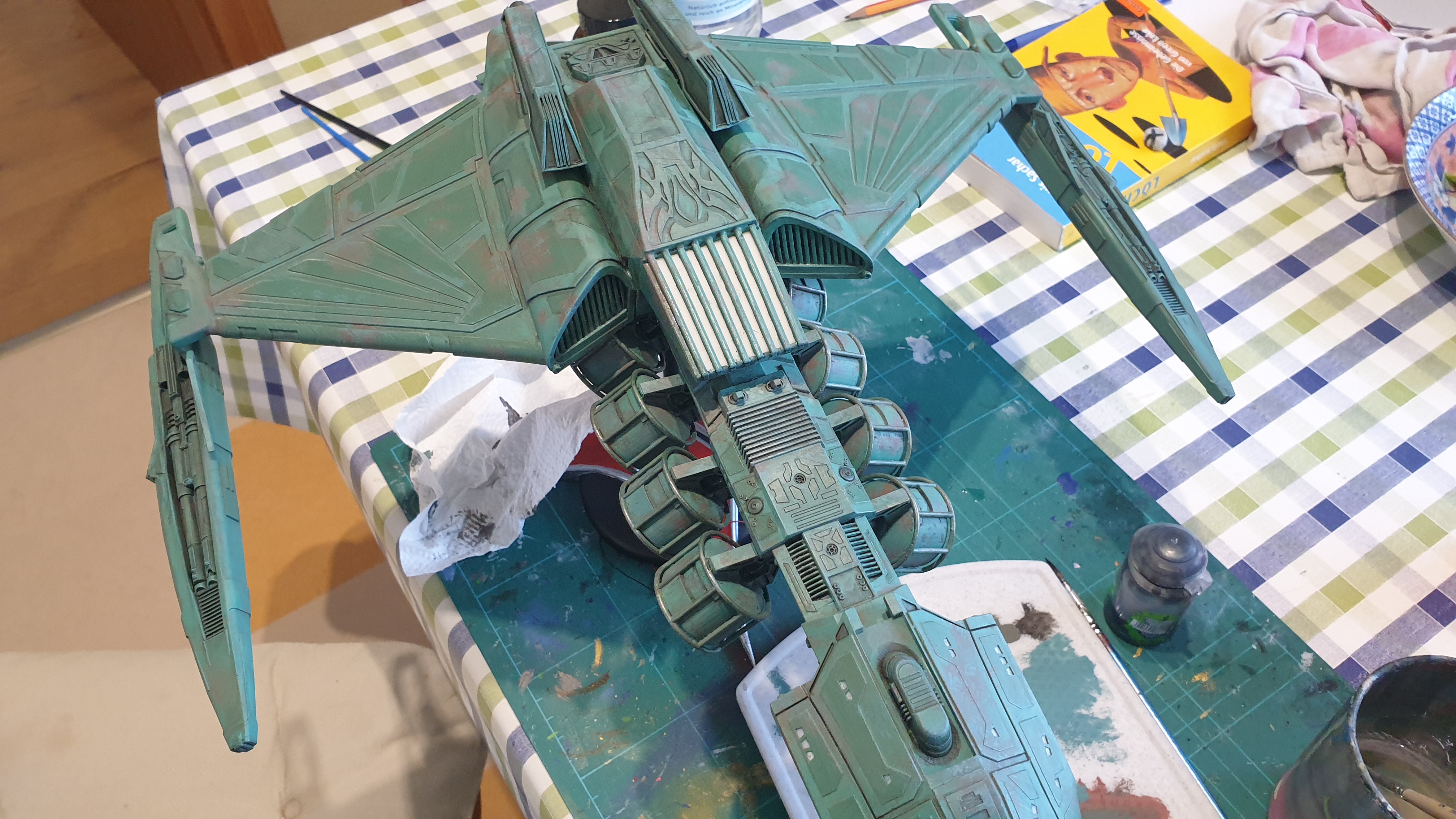

A quick update. Paint job is mainly done.

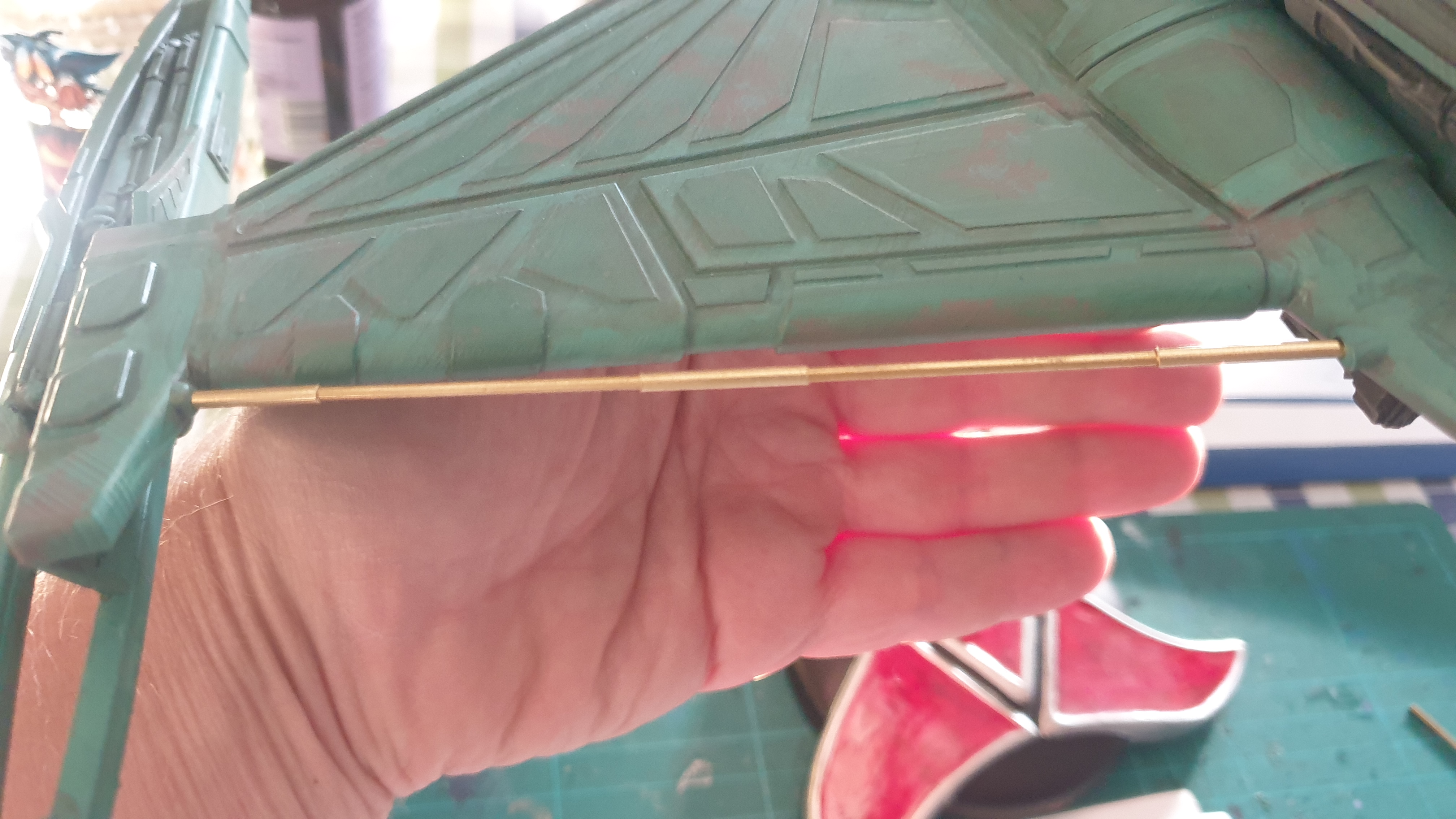

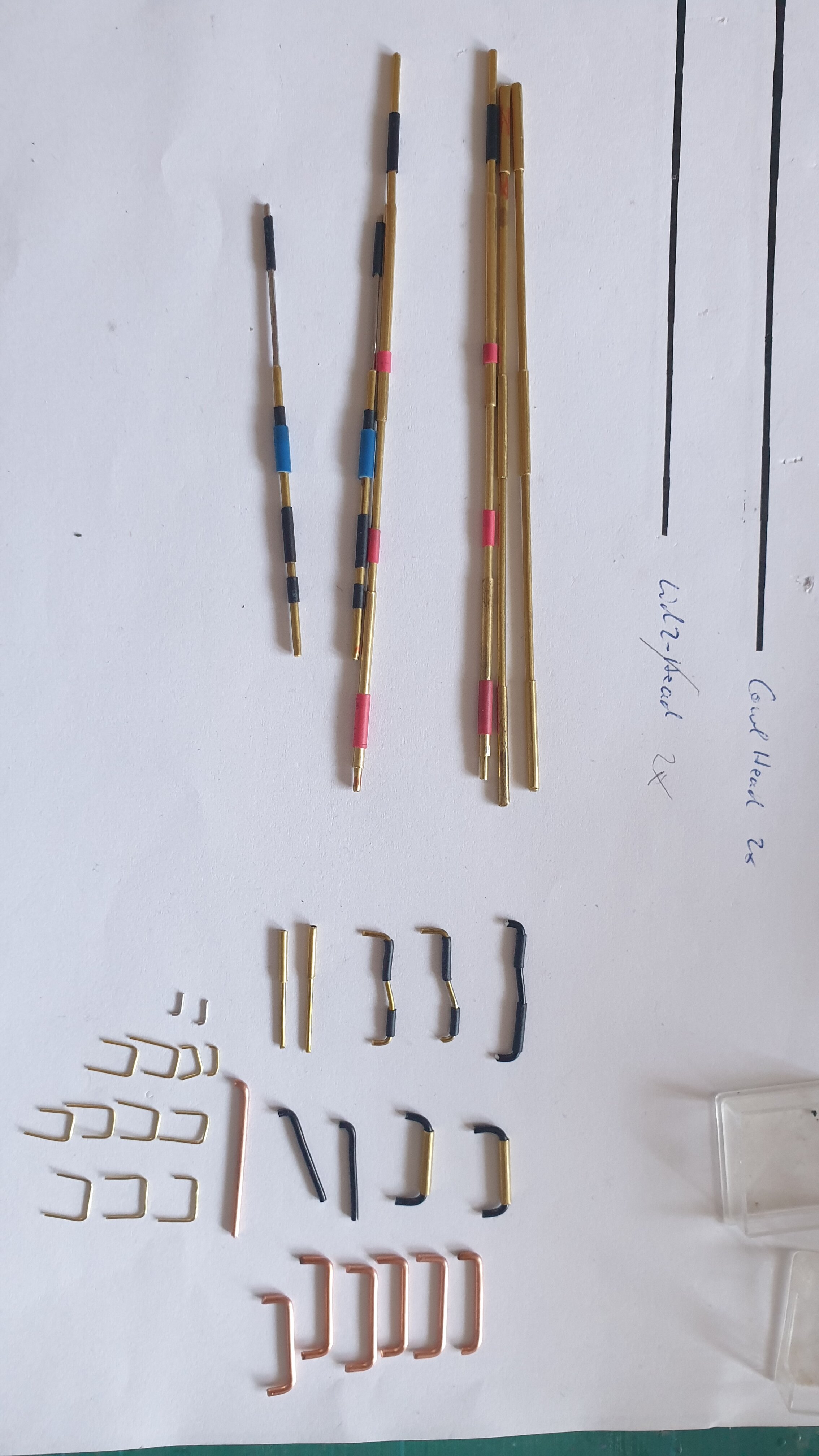

Had some metal work to do. Most of the rods will be out of brass, copper and steel pipes and tubes...



[frostrubin]

All rods and pipes are done. Some fitting tests, trimming and color and I can glue the last parts.



[frostrubin]

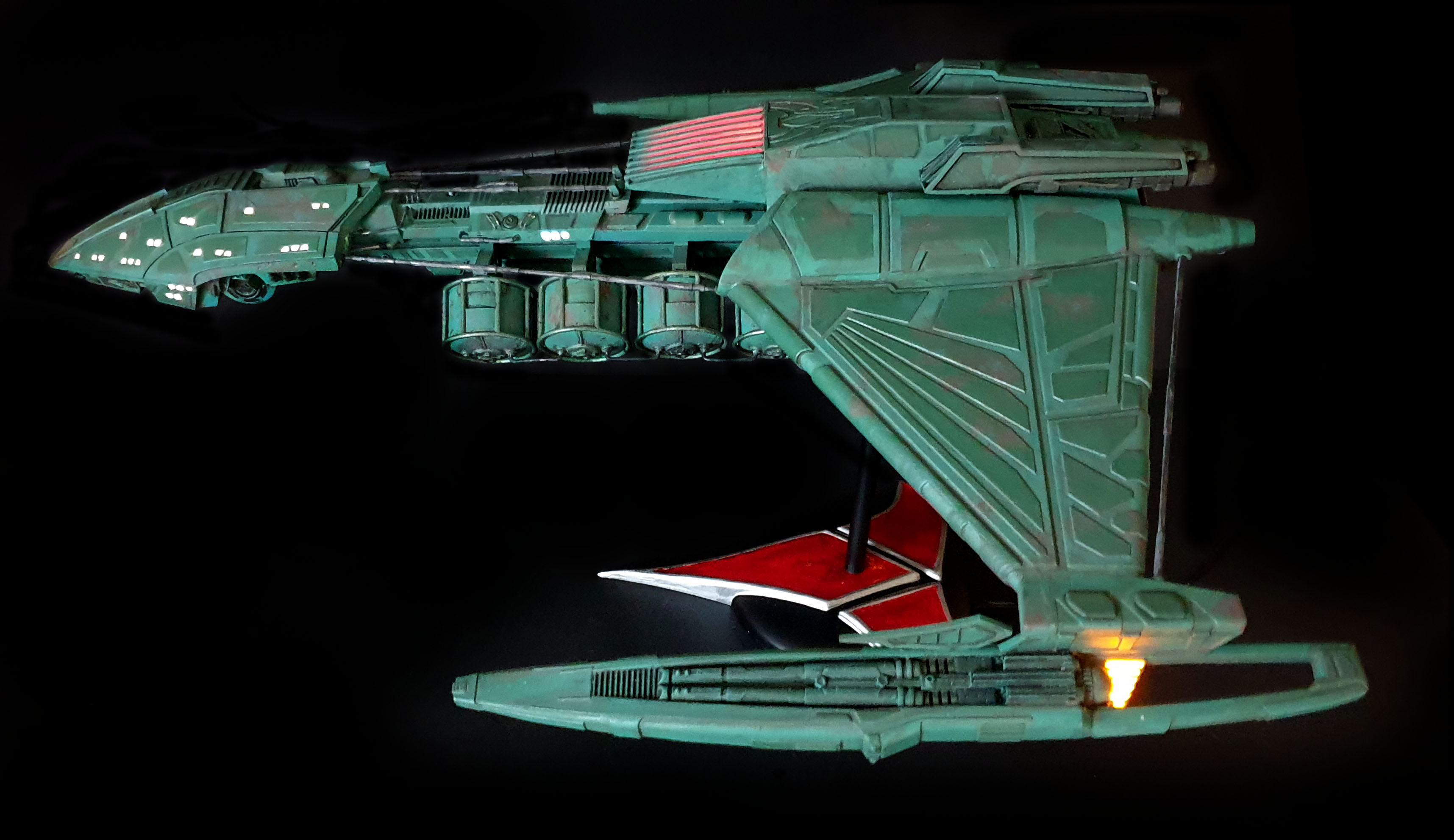

Finished!
Some beauty shots:
