xl97
Master Member
FYI..
for those of you who are ordering or intend to use the Pro-Mini and similar models.. those DO NOT HAVE USB connector on it..
you will need an FTDI cable (or another Arduino) to upload sketches to it..
similar to this one: CP2102 Module STC Download Cable USB 2 0 to UART TTL 6pin Serial Converter | eBay
for those of you who are ordering or intend to use the Pro-Mini and similar models.. those DO NOT HAVE USB connector on it..
you will need an FTDI cable (or another Arduino) to upload sketches to it..
similar to this one: CP2102 Module STC Download Cable USB 2 0 to UART TTL 6pin Serial Converter | eBay
Ok here is the code I have, its only set up to open and shut, i haven't finished it yet. I was just using this so i could get the motion smoothed out, but i need for servo 3 and 4 to run in reverse if it's possible.
Code:
#include <Servo.h>
Servo servo1; // create servo object to control a servo
Servo servo2; // create servo object to control a servo
Servo servo3; // create servo object to control a servo
Servo servo4; // create servo object to control a servo
int pos1; // angle of servo 1
int pos2; // angle of servo2
int pos3; // angle of servo3
int pos4; // angle of servo4
void setup()
{
servo1.attach(9); // attaches the servo on pin 9 to the servo head object
servo2.attach(10); // attaches the servo on pin 10 to the servo faceplae object
servo3.attach(11); // attaches the servo on pin 11 to the servo faceplate 2
servo4.attach(12); //attaches the servo on pin 12 to the servo head 2
}
void loop()
{
// Scene 1:
for (int i=0; i<45; i += 1) {
pos1 = 90 - i;
pos2 = 90 + (i*1);
pos3 = 90 + i;
pos4 = 90 - (i*1);
servo1.write(pos1);
servo2.write(pos2);
servo3.write(pos3);
servo4.write(pos4);
delay(15);
}
// Scene 2
for (int i=0; i<60; i += 1) {
pos1 = 170;
pos2 = 180;
pos3 = 170;
pos4 = 180;
servo1.write(pos1);
servo2.write(pos2);
servo3.write(pos3);
servo4.write(pos4);
delay(15);
}
}
Code:
#include <Servo.h>
Servo servo1; // create servo object to control a servo
Servo servo2; // create servo object to control a servo
Servo servo3; // create servo object to control a servo
Servo servo4; // create servo object to control a servo
int pos1; // angle of servo 1
int pos2; // angle of servo2
int pos3; // angle of servo3
int pos4; // angle of servo4
void setup()
{
servo1.attach(9); // attaches the servo on pin 9 to the servo head object
servo2.attach(10); // attaches the servo on pin 10 to the servo faceplae object
servo3.attach(11); // attaches the servo on pin 11 to the servo faceplate 2
servo4.attach(12); //attaches the servo on pin 12 to the servo head 2
}
void loop()
{
// Scene 1:
for (int i=0; i<45; i += 1) {
pos1 = 90 - i;
pos2 = 90 + (i*1);
pos3 = 90 + i;
pos4 = 90 - (i*1);
servo1.write(pos1);
servo2.write(pos2);
servo3.write(pos3);
servo4.write(pos4);
delay(15);
}
// Scene 2
for (int i=0; i<60; i += 1) {
pos1 = 170;
pos2 = 180;
pos3 = 170;
pos4 = 180;
servo1.write(pos1);
servo2.write(pos2);
servo3.write(pos3);
servo4.write(pos4);
delay(15);
}
}
7sinzz
Well-Known Member
Hey guys im back again to ask question. Lolol hahaha.
Does anyone here know how to control the speed of the servos using the commands shown on the first post?tried to change
to
But it doesnt seem to have ANY difference?
Where you have changed the 10's to 1's is the correct place to speed up the movement. However what you have done is slowed it down slightly (not enough to notice). The number refers to degrees of movement within an allocated time, NOT time taken to move. So the higher the degree of movement you set, the faster it will have to move in order to reach 180 within the given time. In order to speed it up may I suggest you change this number to 30 or 40. Ignore the comments suggesting add delays: this will just make the program wait longer before movement, however when it does eventually move it will be the same speed.
Please note: If you set the speed too high, the sudden jerk may damage the motors though, so move up slowly.
Good to see you all again by the way. Love ya all.
Last edited:
ryanmiranda
New Member
looking forward for this!,thank you for sharing! good job!
Mordor Brass
Active Member
Hi, i need give thanks to 7sinzz for his first post and write the code for control servo and lights. I´ve bought an Arduino controller and i´m very happy. In a few days i´ll upgrade my IM helmet.
Also i would like give thanks at all people that update the thread with their comments.
:thumbsup
P.S. if anybody would like see my construction, is here: http://www.therpf.com/f9/iron-man-helmet-servo-hinges-yessss-other-im-helmet-sorry-183473/
Also i would like give thanks at all people that update the thread with their comments.
:thumbsup
P.S. if anybody would like see my construction, is here: http://www.therpf.com/f9/iron-man-helmet-servo-hinges-yessss-other-im-helmet-sorry-183473/
I'm curious what is the general concensus on the size of servo needed to lift the faceplate from beneath the "widows peak". I've seen some people who seem to have gotten by with a single micro servo, others have used a high torque micro, and some have used a standard, and some say that isn't even enough. I'm not really sure what to shoot for. The cheaper and smaller the better, but I dont' want to under shoot and have to buy another servo.
xl97
Master Member
IMHO.. the micro plastics will NOT work..
but I suppose it depends on your specific prop.. what it was made form.. how thick/heavy...etc
if I was gooing for one, middle servo (like TheRealStark member here does)..
Id follow suit.. use a higher torque.. with METAL gears... (that lock or help lock it in place when not moving)
but I suppose it depends on your specific prop.. what it was made form.. how thick/heavy...etc
if I was gooing for one, middle servo (like TheRealStark member here does)..
Id follow suit.. use a higher torque.. with METAL gears... (that lock or help lock it in place when not moving)
xl97
Master Member
got some test servo's in finally..
and whipped up some of the eye pcb's I designed..
bottom side you solder wires too (transistor and resistors too)
Top side.. just some test leds in there.. (need to order some nice super bright 1206 white leds still)
these were designed to be used with an Arduino...(resistors are calculated based on the battery pack you are using)
and whipped up some of the eye pcb's I designed..
bottom side you solder wires too (transistor and resistors too)
Top side.. just some test leds in there.. (need to order some nice super bright 1206 white leds still)
these were designed to be used with an Arduino...(resistors are calculated based on the battery pack you are using)
darkside501st
Sr Member

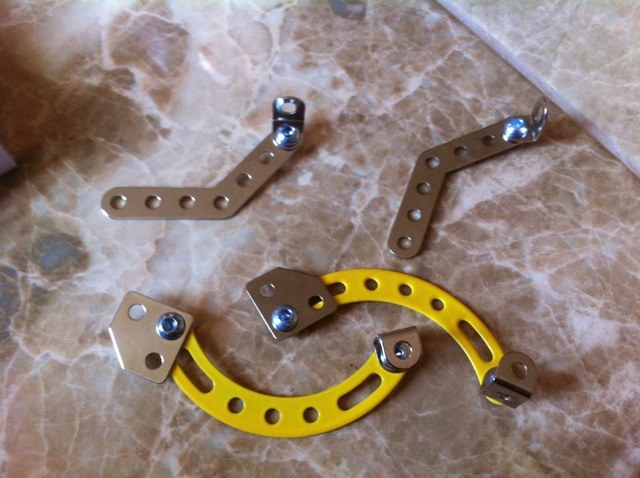

That is pretty awesome. Do you have a link to the seller or was it a used toy in a one time auction?
xl97
Master Member

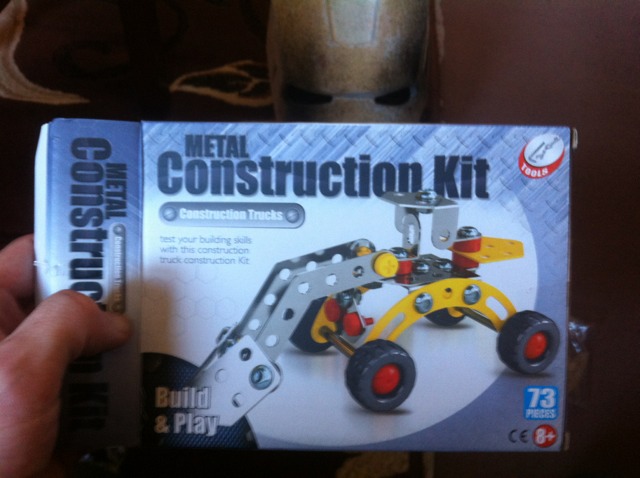

i have only seen them from UK sellers:
Construction Truck Kit Build Play 72 Pcs Toy Metal Kids Gift 8 Years | eBay
&
Metal Construction Trucks Kit 72 78 Pieces Build Play Pocket Money Gift | eBay
Construction Truck Kit Build Play 72 Pcs Toy Metal Kids Gift 8 Years | eBay
&
Metal Construction Trucks Kit 72 78 Pieces Build Play Pocket Money Gift | eBay
7sinzz
Well-Known Member
darkside501st
Sr Member
Cool, I have been following along with this thread for a while just kind of observing.
I'm getting a bit frustrated here. My servo works fine when I hook it up to the arduino directly, but when I try to power it seperately via 4 AA batteries and a 5V rectifier, it just goes all the way to 180 and buzzes regardless of the input signal. What is the deal here. I have tried it with various battery packs and various rectifiers and not of them work. It only works when it is hooked to the arduino. What am I missing here?
michaudtime
Well-Known Member
Do you have the ground wire from your batteries connected to the ground of the Arduino?
Ok, I figured that out. The issue is my rectifier. I got a 6V rectifier assuming that it would attenuate any voltage above 6v to 6v. But the the rectifier converters 6V to 4.8V, which is barely enough to make the servo turn, and results in the buzzing. If I hook it up to 9V, it pumps out about 5.8V and everything works fine. But I don't want to use a 9V battery, because it will die crazy fast. Is this typical rectifier behavior?
