I need an E-11 scope rail template for Doopydoos full resin kit

Discussion in 'Star Wars Costumes and Props' started by Evilboy, Apr 19, 2012.

  1. Evilboy

    Evilboy Member

    Trophy Points:
    191
    Does anyone out there have a template or have a link to a template for the scope rail on a DoopyDoos resin E-11 full kit?

  2. Kevin Gossett

    Kevin Gossett Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,980
    What do you need a template for? It is just a thin piece of metal notched and bent on one end to fit into the vent hole. Drill a couple of holes to bolt on your scope, and you're done

  3. Mara Jade's Father

    Mara Jade's Father Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,376
    No disrespect but that is okay advice if you just want to slap it together. I've thought about doing the kit as well and wondered about the rail so I understand his desire for a template.

    At the very least it should be known how high the rail should sit and how far from the front or back should the first screw hole go for scope?

    However, as I look around the web, I conclude that most people are simply guess-timating the rail. There are a lot of detailed tutorial and templates out there but none I have seen give any detailed info on the rail.

    Last edited: Apr 19, 2012
  4. Kevin Gossett

    Kevin Gossett Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,980
    After looking back on it, I guess my post was a bit half-assery :lol

    I definitely see your points about precise measurements, no offense taken :)

  5. Starsky

    Starsky Member

    Trophy Points:
    180
    I'm waiting for delivery of this replica myself. I don't know what I'm going to use for the rail or where to get it from, so I'm really interested in any advice on this subject.

    I also haven't worked with resin before, so what sort of glue should I use?

  6. Zenwalker

    Zenwalker Sr Member

    Trophy Points:
    1,046
    Someone could just get some measures off of the MR E-11 for the scope rail.

    I just got my resin Doopeydoos E-11 last week.

    For the rail I am just going to buy some metal stock from the hardware store, either steel or aluminum. They come in varying widths.

    For bonding the metal to resin i will use superglue gel and then for bonding resin to resin either superglue or 2 part epoxy or a combination of both.

  7. Jonny B

    Jonny B Active Member

    Trophy Points:
    341
    Some of these should help:

    We started production of our own E-11's a few weeks ago, numbers 1 and 2 already sold on eBay :thumbsup . This is the "Master" set we used for ours, all real parts as you can see.

    [​IMG]

    Notching the Rail and ~hooking~ it in the top vent hole (like in this picture) is one of three "Hero" Styles, and the most common.

    [​IMG]

    The rear is reduced to fit in the Sterlings original rear sight in several ways. The one shown here is, again, the most common one.

    [​IMG]

    One thing is VERY consistant with all E-11's; the placement of the "Battery Pack" or "Energy counter" (depends on who you talk to as to what they call this part), and that is the Hengstler Counter. The face of the HC should line up with the first ring on the Scope (be it a M19, M38, M38A2 or M40).

    [​IMG]

    I hope this helps, if you need anything else, just ask.

  8. Starsky

    Starsky Member

    Trophy Points:
    180
    I got mine today and I'm really pleased with how it looks out of the box. It's clean (no flashing to have to clean up) and I could go ahead, glue it up and paint it without really needing to tidy up any casting faults. It's also got a black pipe inside the barrel so that inside looks right and it probably adds strength. Good call.
    There's a metal wire that's included for the rear cap. The wire has a white coating, it would have been better if that was black but that's just nitpicking.
    The only other thing I would have liked to have seen in the cast is the front sight. That little piece just isn't there and it's a signature item from the Sterling. I thought it would have been included with all the other odds and ends, so many have but not this one.
    These are just suggestions to make it the perfect replica, another couple are the inclusion of the coiled wires and a spring for the barrel.
    Can anyone help with advice on what to use for the wires and spring or do I leave out the spring? Would a spring have been used in a blaster from a galaxy far far away?
    All advice and help will be gratefully received.

    Last edited: Apr 21, 2012
  9. Scandvoice

    Scandvoice Active Member

    Trophy Points:
    341
    Just a quick question: How long did you guys have to wait for your kits to arrive? I ordered mine on the 8/4 and they still haven't shipped it. I haven't ordered from Doopydoo's before, but from what I have read here on the RPF it's worth waiting for. ;-)

  10. Starsky

    Starsky Member

    Trophy Points:
    180
    I bought mine off eBay on the 13th and got it today. I'm sure yours it's on its way. I figured I had to wait because he was casting as orders came in, rather than having stocks to ship out straight away. He's obviously quite busy with orders.

  11. Zenwalker

    Zenwalker Sr Member

    Trophy Points:
    1,046
    @ Scandvoice - I ordered directly from Doops and it took about 2-3weeks to get here, although I am in Canada.

    @Starsky - Mine came with a casting of the front sight. If you ordered the full blaster kit i believe that should have been included, you may want to contact them to send you one. I may replace that however with custom made pieces as the cast of that was a bit soft, but the rest of the kit was very well cast.

  12. Starsky

    Starsky Member

    Trophy Points:
    180
    Zenwalker......I got the sight that goes onto the barrel (which is cleverly marked to show the position for the sight) but it doesn't have the little itty bitty tip. Does yours have that?

  13. Starsky

    Starsky Member

    Trophy Points:
    180
    Just thought......I wonder if I use the tip of a flat blade screwdriver bit, that would look the part.

  14. Scandvoice

    Scandvoice Active Member

    Trophy Points:
    341
    Thanks for the info, guys! ;-)

  15. Darth Lars

    Darth Lars Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,661
    What I have learned about the scope rail's dimensions:
    ANH: 1/2" wide. Could be lower in the front than in the back.
    ESB: 3/4" wide. Straight. Resin-cast stunt blasters have rails that are up to 1/8" thick. Hero blasters have thinner rails.

    thd9791 likes this.
  16. Zenwalker

    Zenwalker Sr Member

    Trophy Points:
    1,046
    Actually, I never noticed but mine does not have the tip either.

    Although, I was planning on redoing the entire front sight in other materials anyway.

    Like you said something like like a flat screw driver head would probably work.

  17. jango trooper

    jango trooper Member

    Trophy Points:
    180
    Sorry for reviving a old post.

    Johnny B i really like them pictures of the metal parts of the e11 blaster.

  18. rjgoold

    rjgoold New Member

    Trophy Points:
    2
    G'Day,

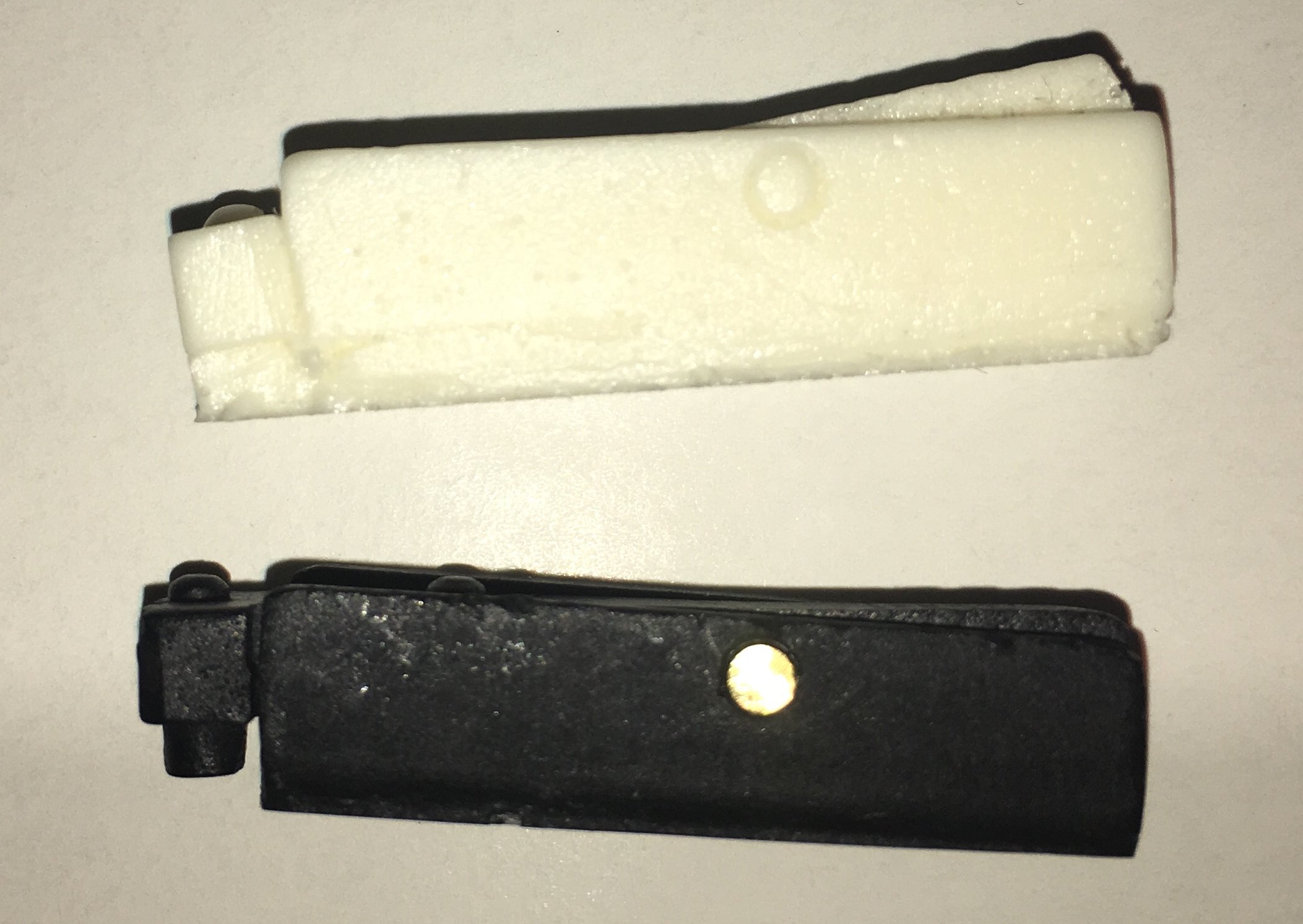

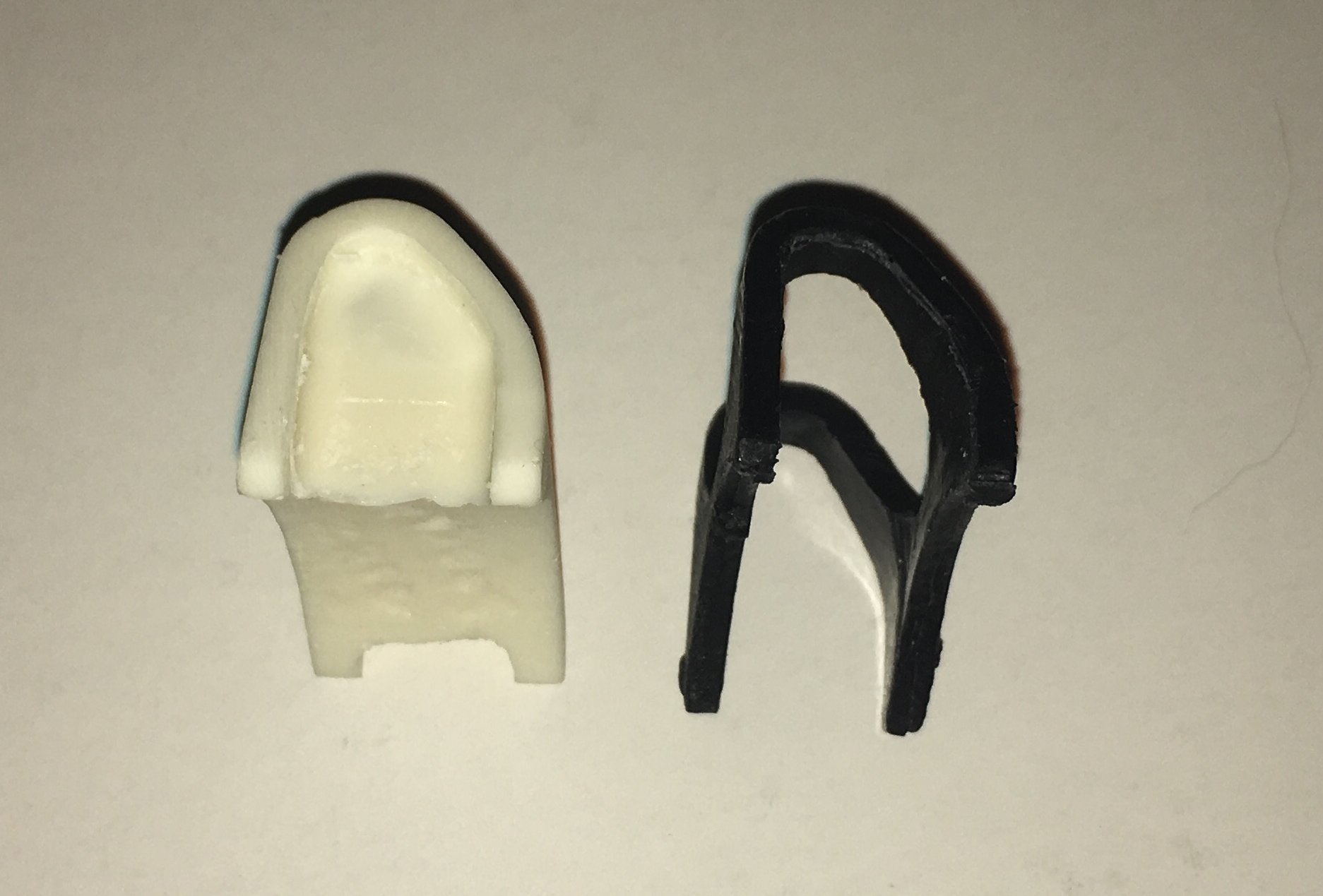

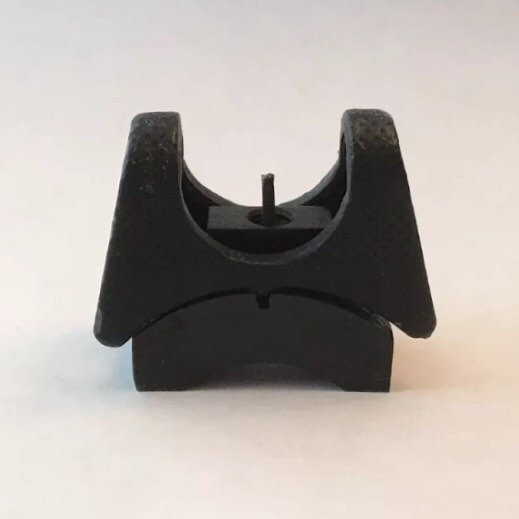

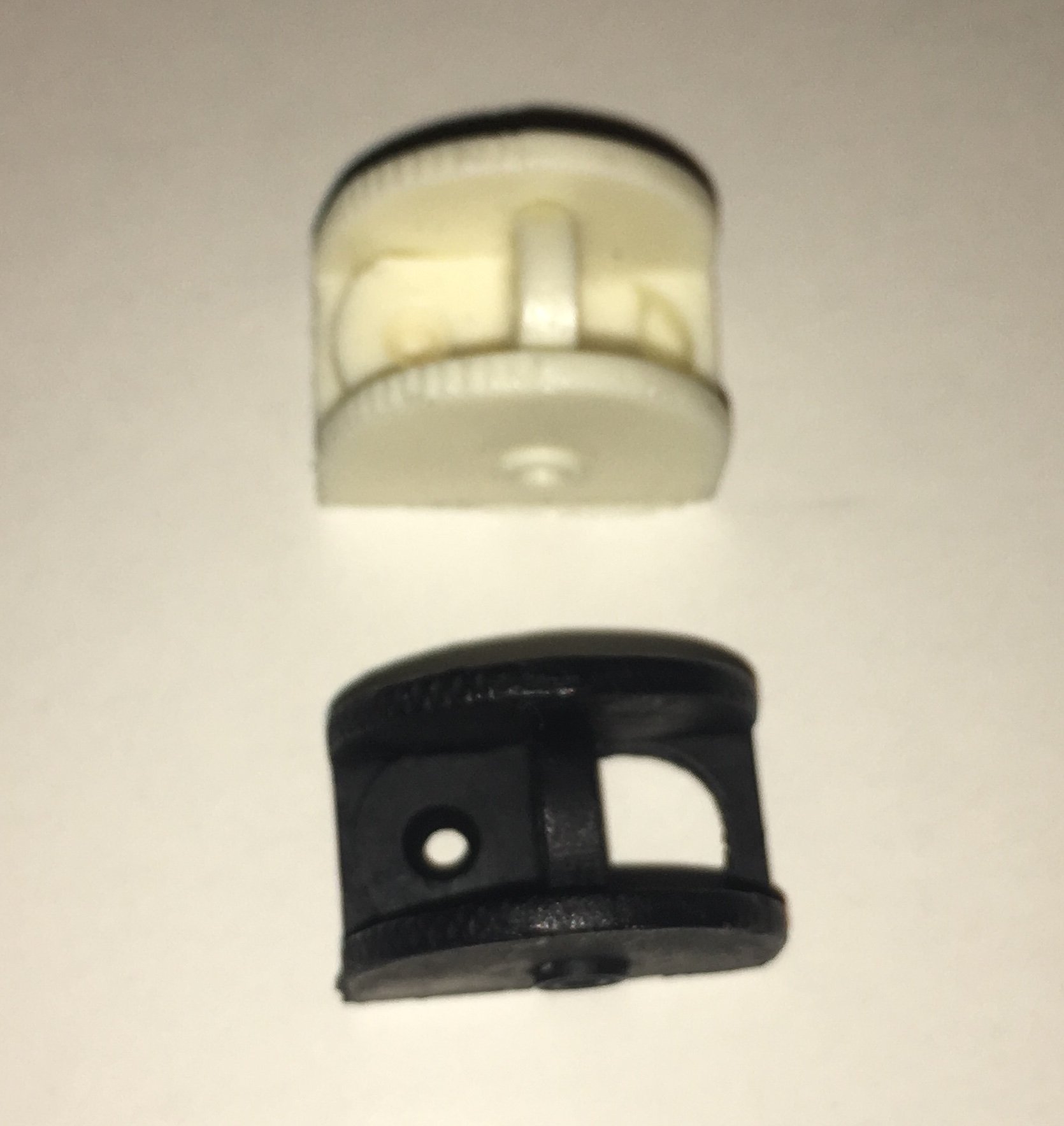

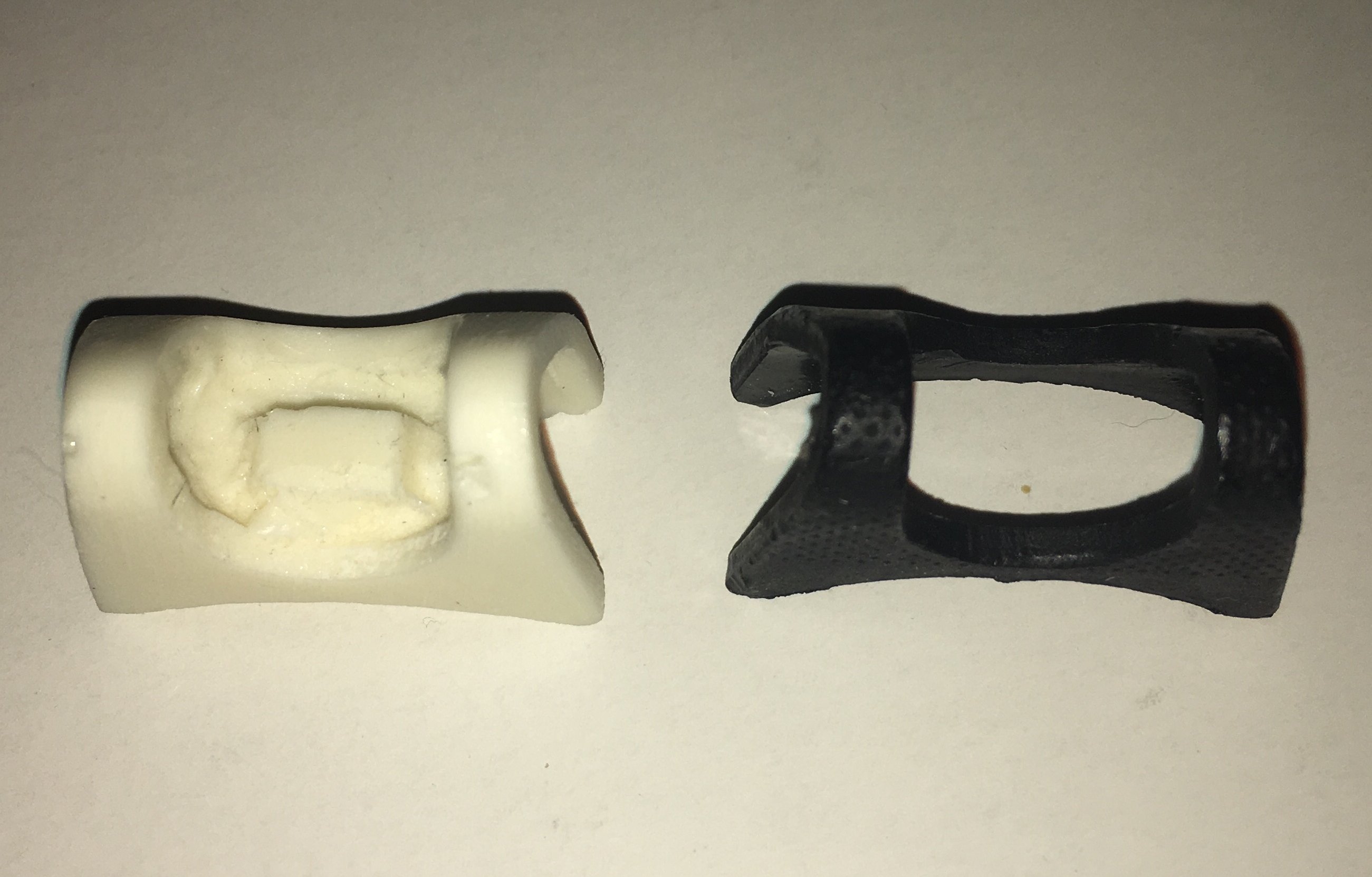

    I'm building the Doopydoo's E-11 too, but have replaced the Hengstler Counter, Scope and Power Cell Assembly with 3D printed parts
    from Shapways and also have replaced the foresight, the rear sight and back cap catch assembly (plastic) from swpropman.

    Richard. IMG_3871.jpg IMG_3870.jpg IMG_3872.jpg IMG_3873.jpg il_fullxfull.987840140_pogt.jpg

  19. thd9791

    thd9791 Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,001
    With resin castings, I always find using wood screws to attach parts always adds strength and reliability, ontop of glueing them together. I have fun hiding the screws...if i can't..star wars has rivets and screws all over props in plain sight!

    I need to do an E-11 soon.... I have a real tank scope all set. I just want an MGC or airsoft to work on
