Hello rpf, may I present you my new aluminum Mjolnir! Drawing heavy influence for Thor: the Dark World and Avengers: AoU, this hammer is my best so far and easiest to wield. In the past I have made a hollow steel hammer and a steel hammer with solid ends. Both of these hammers are pretty heavy and I felt I never really got it right, so I set out to make a much more accurate, lighter - weight hammer.

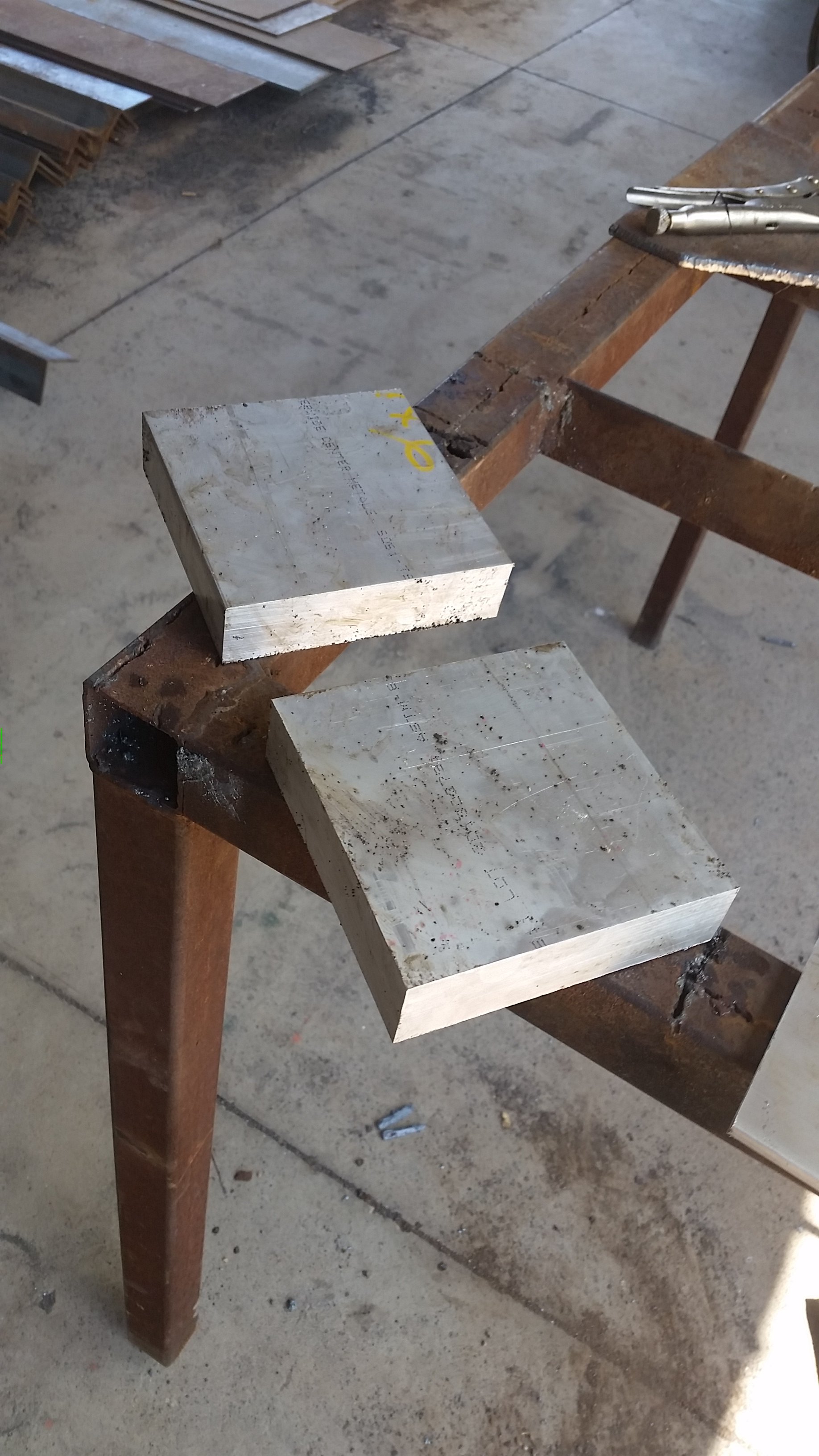

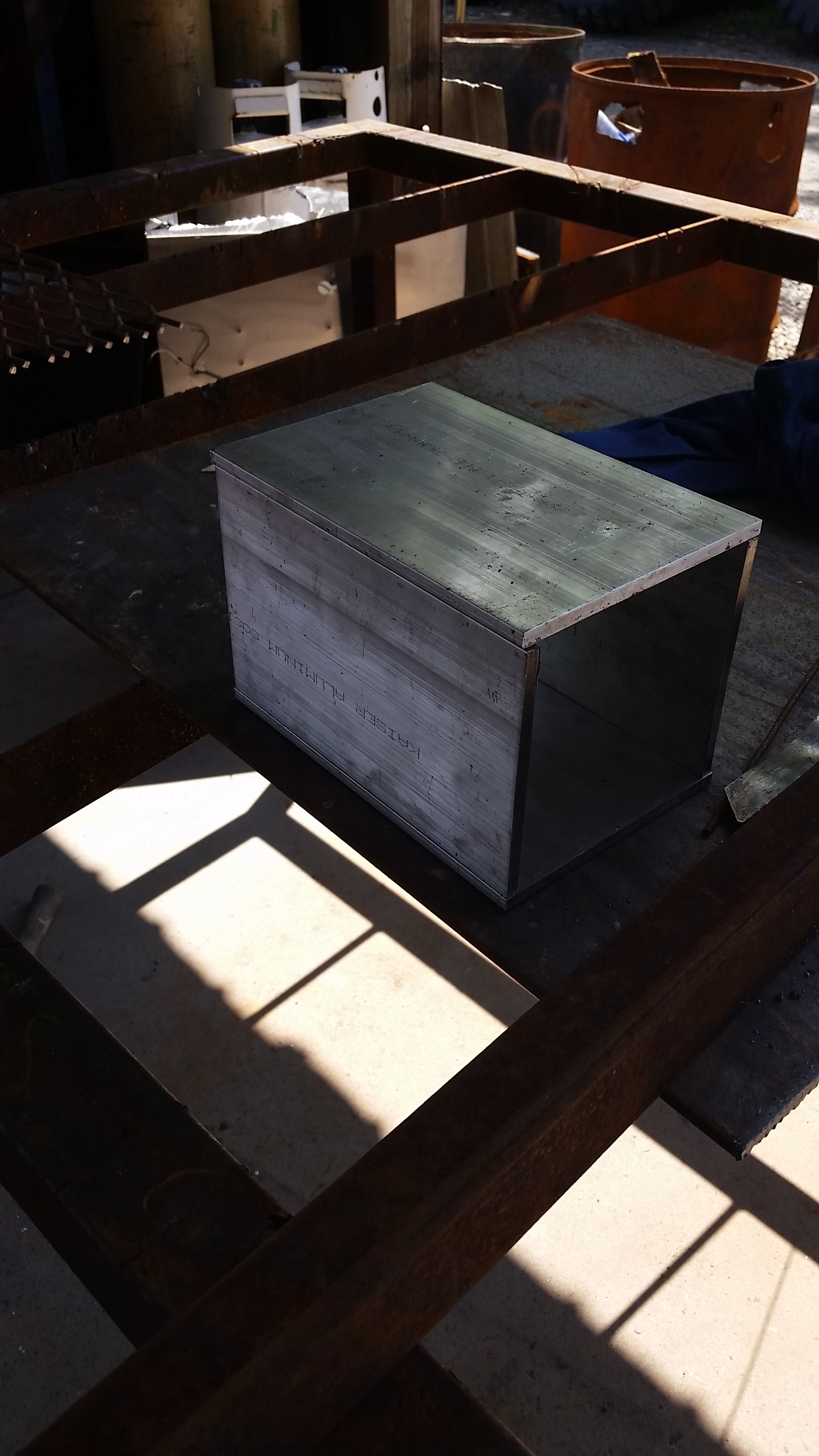

The ends of the hammer are are 5"x5"x1 1/4" solid aluminum blocks, while the main body of the hammer is a 1/4" thick box. The handle is 1" solid round. The rings on the handle are slices of 1 1/4" pipe bent in a jig made specifically for this. Now in order to make the bevel on the ends I put some 16 grit circular sandpaper on my table saw with an abrasive cutting blade to provide a solid backing. Then using the saw's t-square I passed the block against the sandpaper 100s of times... on each side.... until my spirit for the project was nearly gone. But eventually I was done!

20150605_111419.jpg20150605_111427.jpg20150605_111621.jpg20150605_111605.jpg30571.jpeg

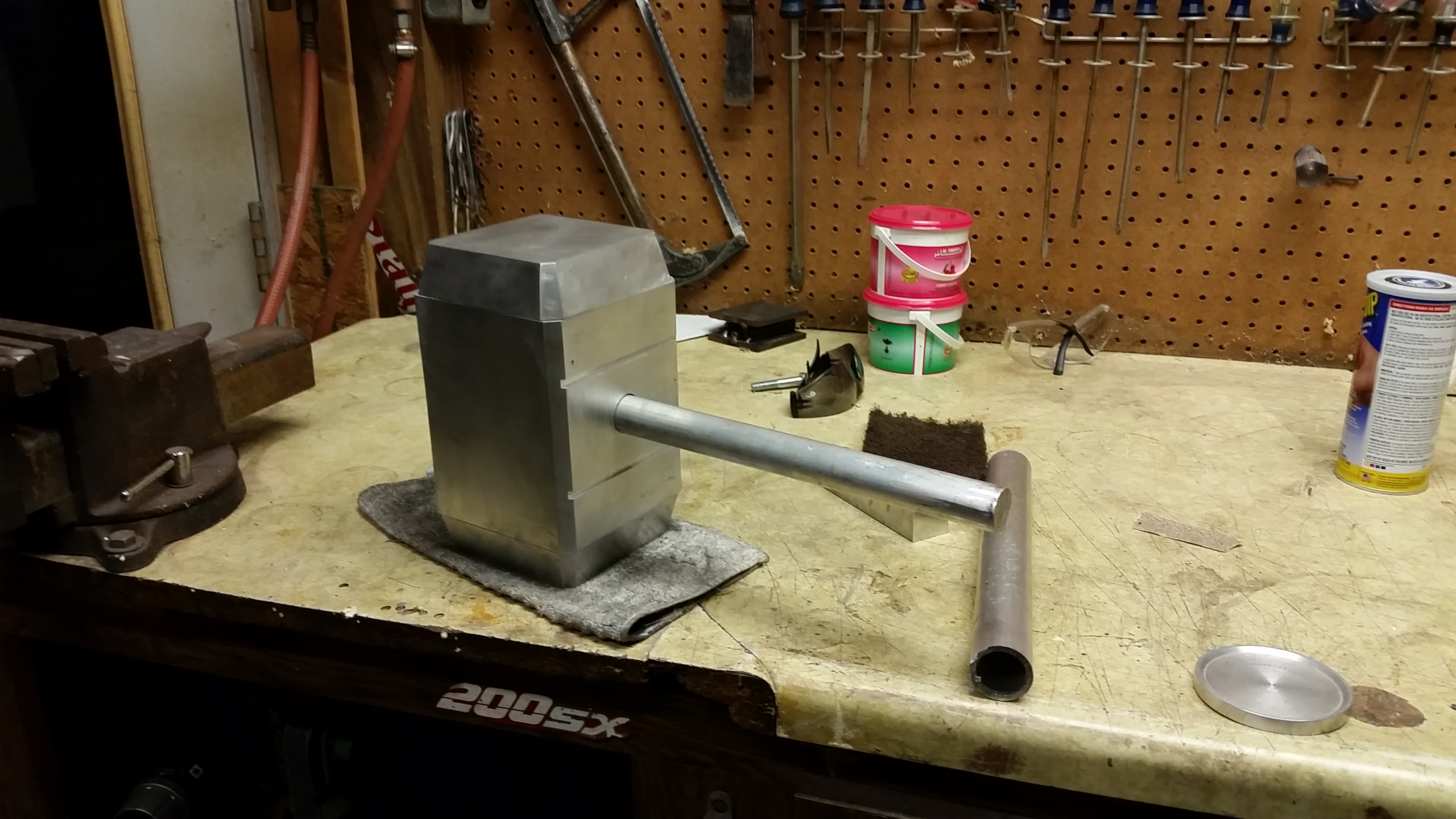

To attach the ends of the hammer to main body I welded arms that fit snuggly to the inside walls of the hammer and had them tig welded together through holes drilled in the sides. Some of the welded holes are still visable but they are not very distinct.

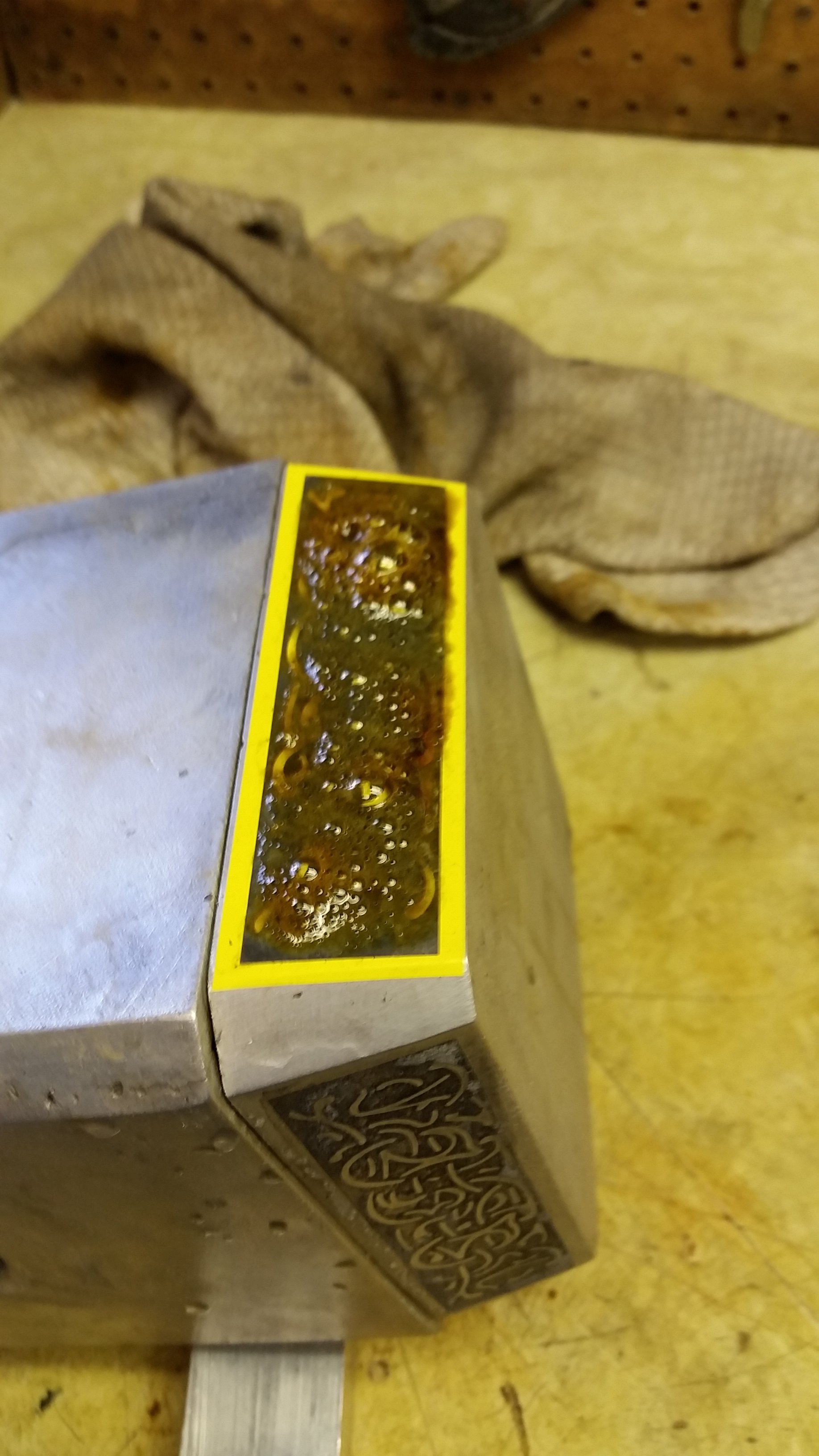

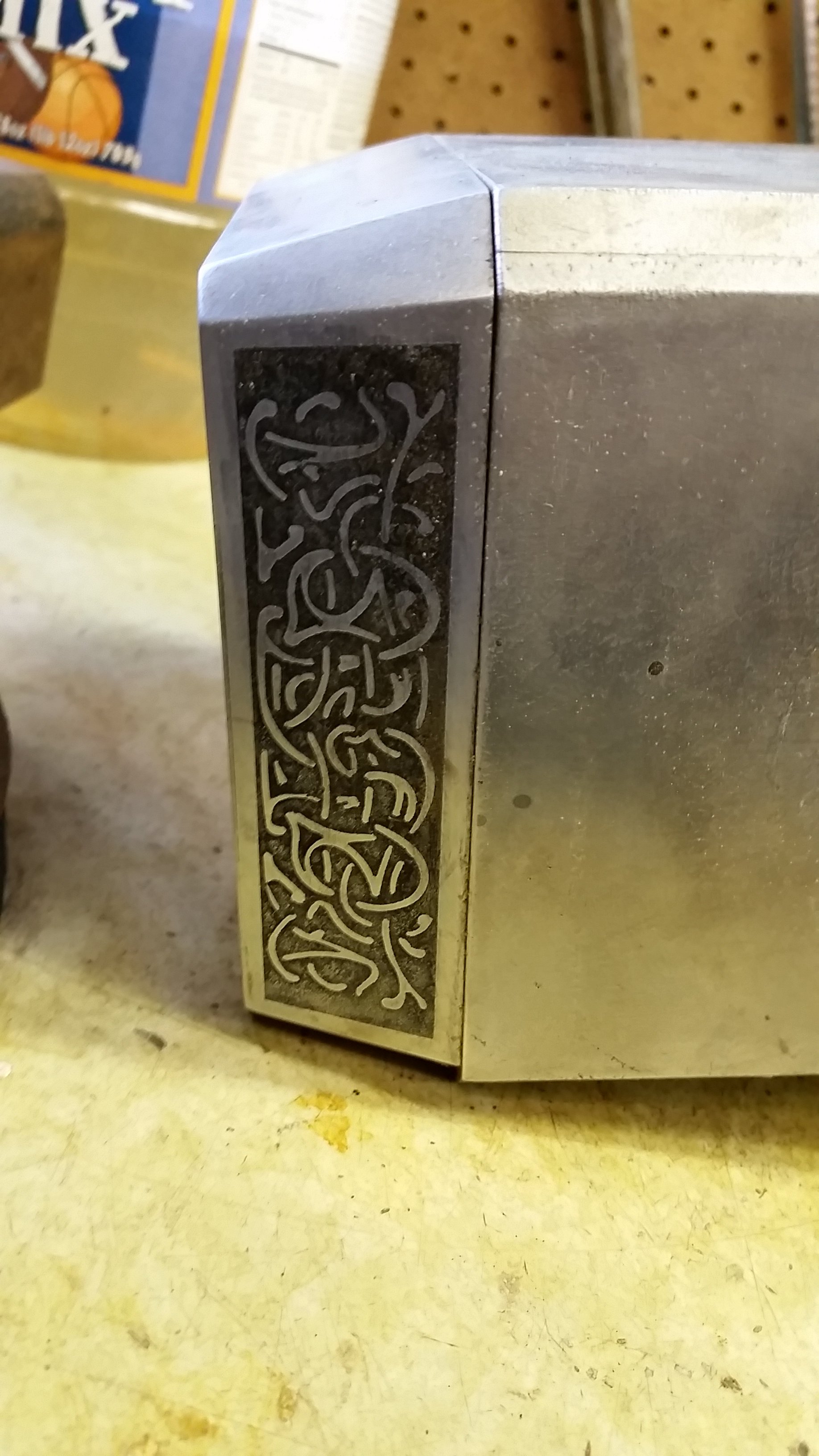

All of the etching was done with ferric chloride. To etch the ends of the hammer I drew up the design in Autocad and had some cut out in stencil vinyl by a local sign making company. Took about an hour or so for each etch and boy did they turn out sharp! For the top circle I just scribed the runes in beeswax and let the ferric chloride do what it does.

20150809_123347.jpg20150810_182612.jpg20150810_182601.jpg20150810_182606.jpg20150812_203553.jpg

The handle is rapped in some roofing rubber strips and stitched with waxed thread. To make an unbreakable tether, I used an old drive belt that was laying around and attached it by tapping a hole in the bottom of the handle and bolting it on. The little handle end was cut out from a solid bloc of aluminum using two different sized hole-saws, then it was ground down to shape. After that I drew on a design in sharpie and let it etch. The etching came out alittle shallow but the design is atleast there.


The entire head was assembled and cleaned before attaching it to the handle. In my past attempts I have always managed to get a rattle in the head and it drives me crazzzzzyyyy, but not this time! In case a rattle were to develop I used jb epoxy rather than welding it solid so it would easier to take apart.


I guess that about raps up the build, I wish I would have taken more pics of the build but the ones I have give a good view of the process. Anyways tell me what you think! I know it's not 100% accurate but damn do I feel close. More pics will be posted later along with a pdf of the knot stencil design.


Thanks for viewing!


Tumbler

Active Member
Excellent work. The etching detail is fantastic. Very clever attachment method for the main body :thumbsup


creative stress

Well-Known Member
Hello rpf, may I present you my new aluminum Mjolnir! Drawing heavy influence for Thor: the Dark World and Avengers: AoU, this hammer is my best so far and easiest to wield. In the past I have made a hollow steel hammer and a steel hammer with solid ends. Both of these hammers are pretty heavy and I felt I never really got it right, so I set out to make a much more accurate, lighter - weight hammer.

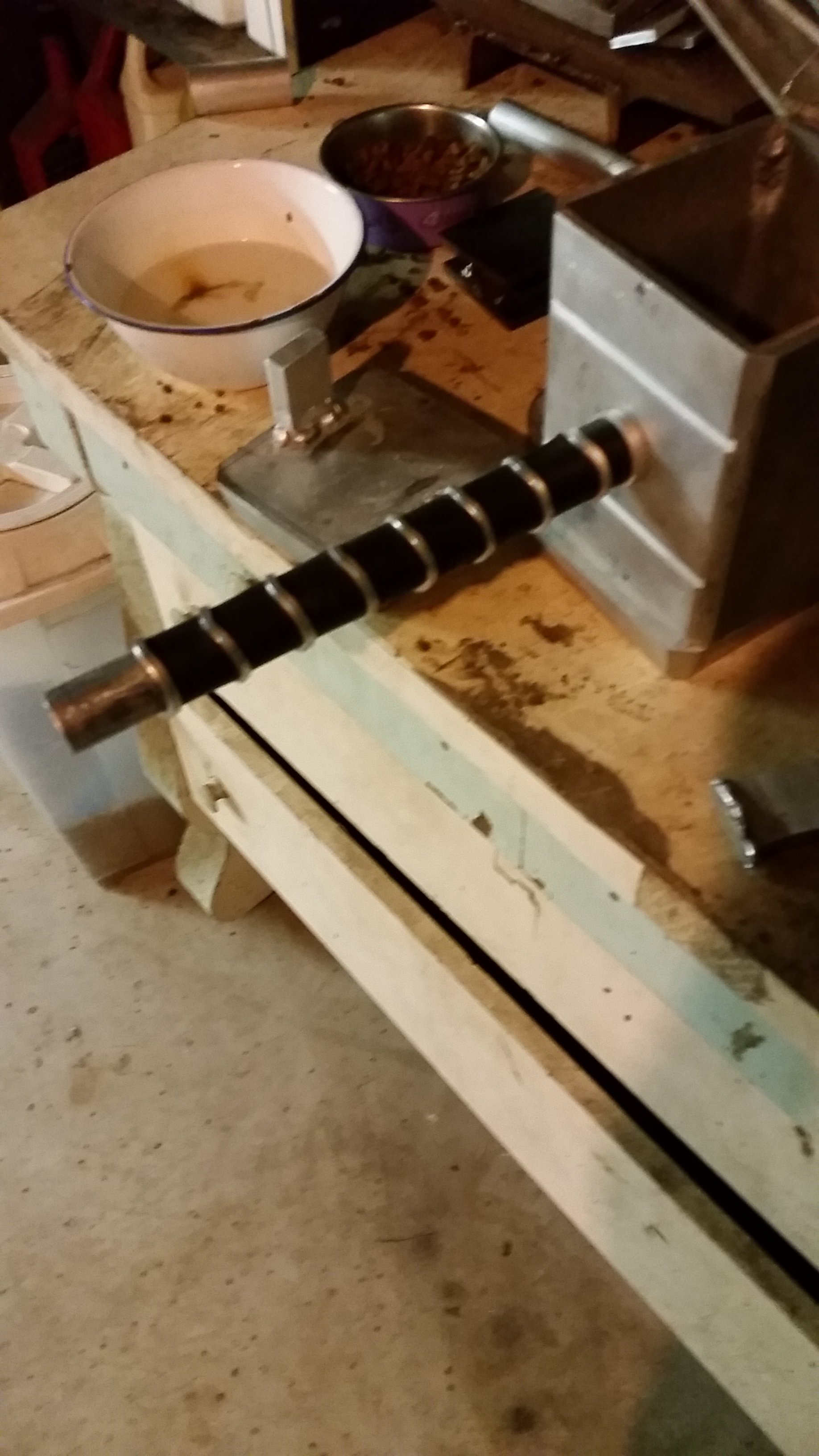

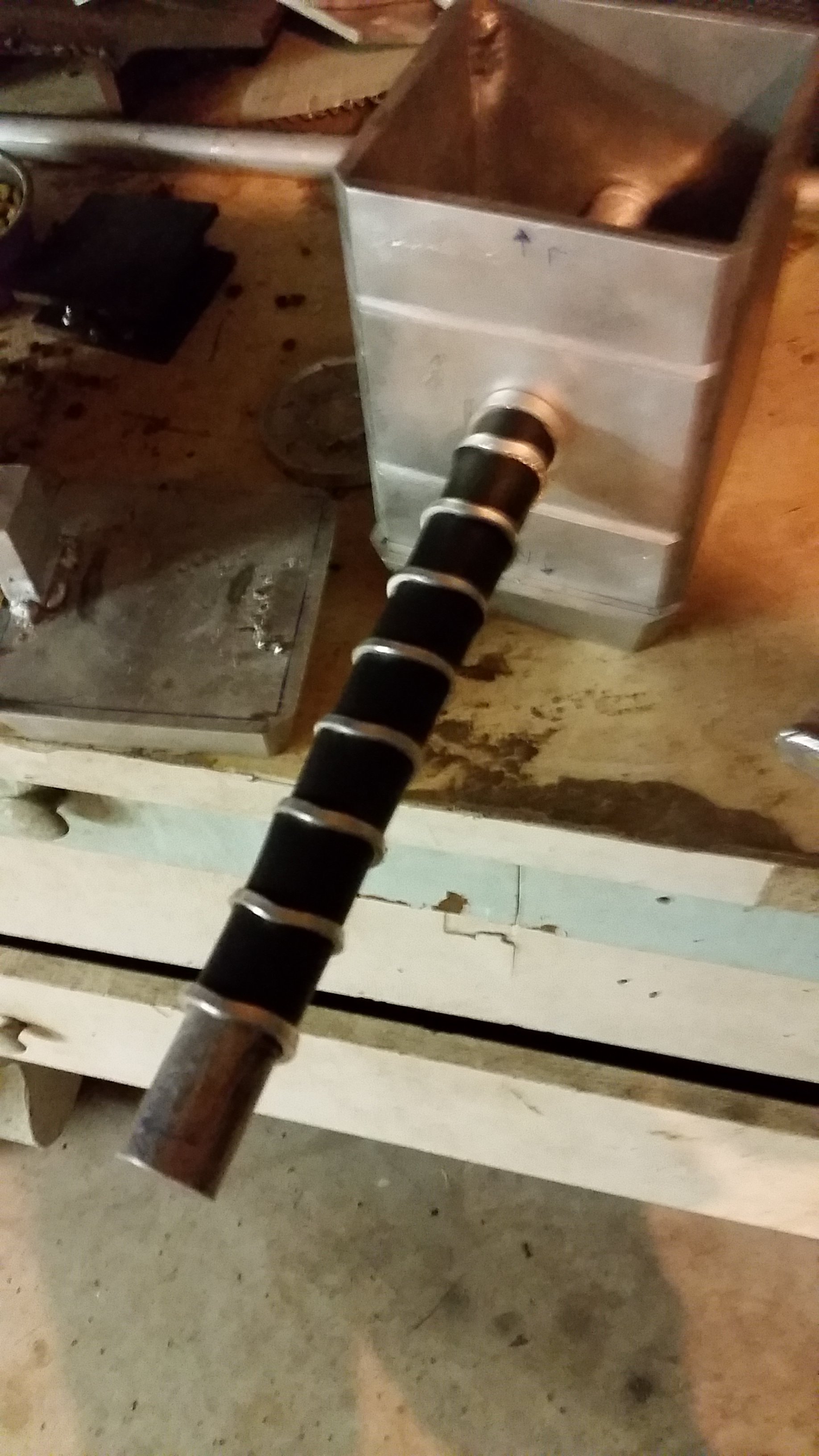

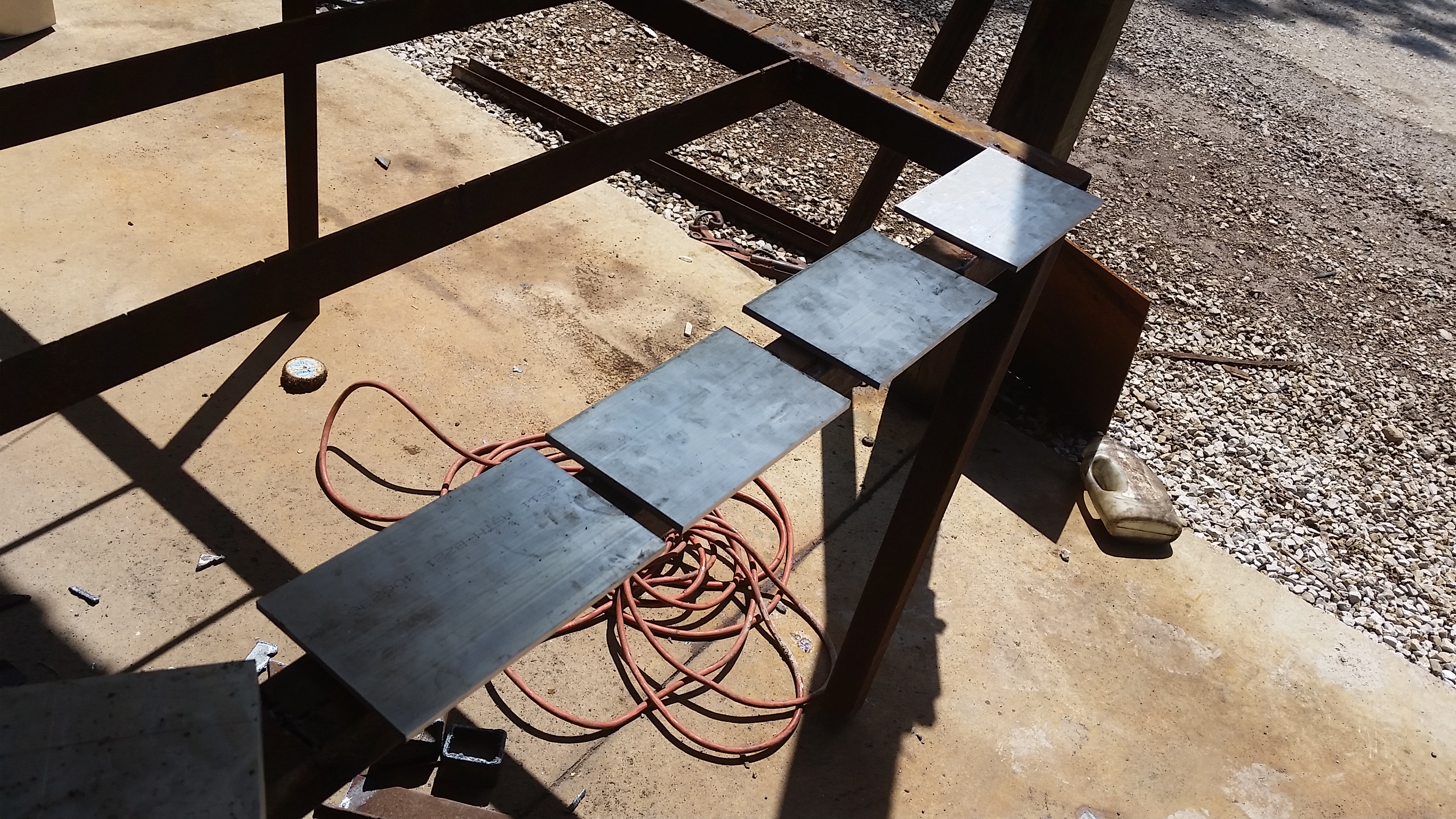

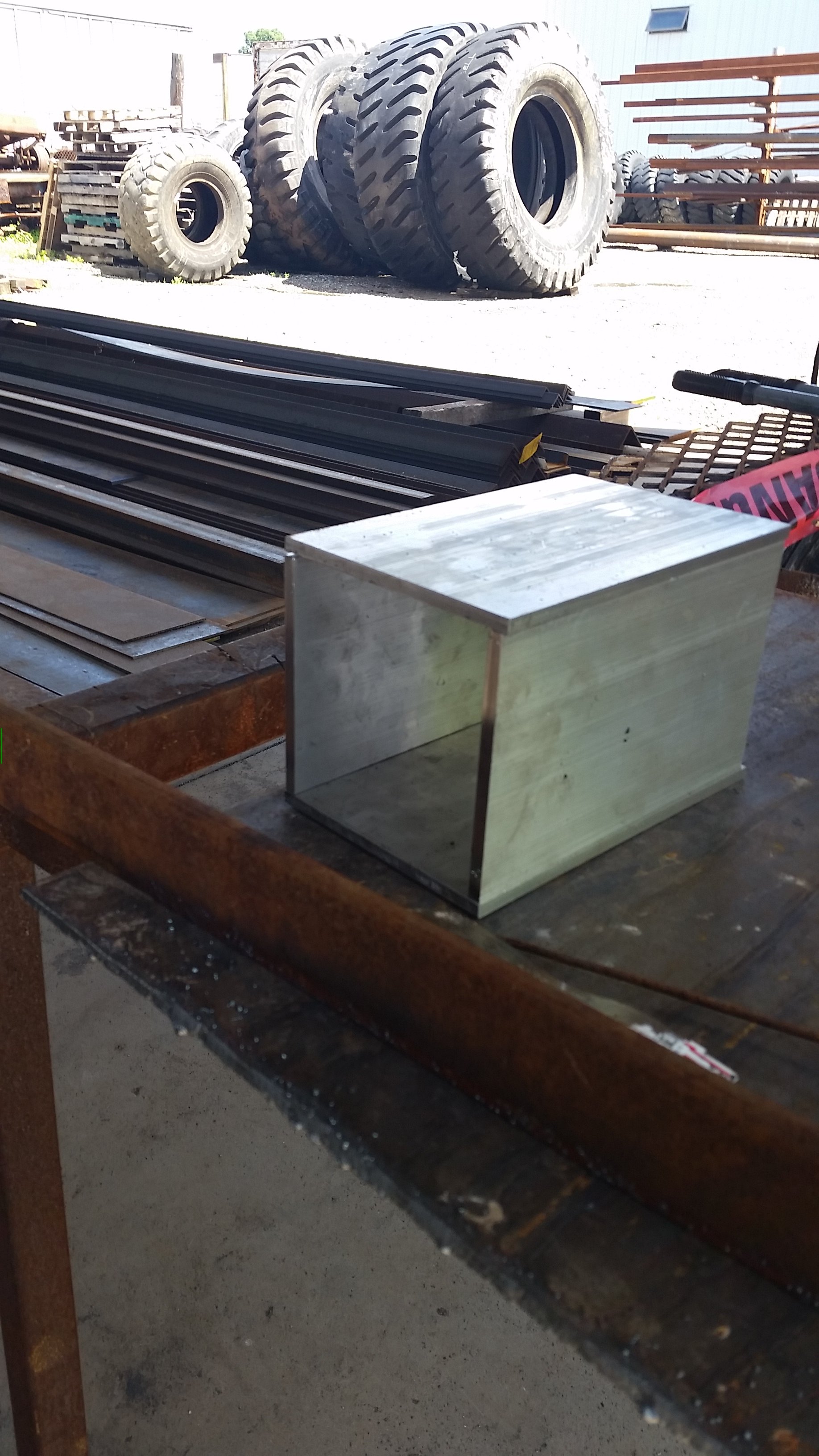

The ends of the hammer are are 5"x5"x1 1/4" solid aluminum blocks, while the main body of the hammer is a 1/4" thick box. The handle is 1" solid round. The rings on the handle are slices of 1 1/4" pipe bent in a jig made specifically for this. Now in order to make the bevel on the ends I put some 16 grit circular sandpaper on my table saw with an abrasive cutting blade to provide a solid backing. Then using the saw's t-square I passed the block against the sandpaper 100s of times... on each side.... until my spirit for the project was nearly gone. But eventually I was done!

View attachment 517610View attachment 517611View attachment 517613View attachment 517612View attachment 517609

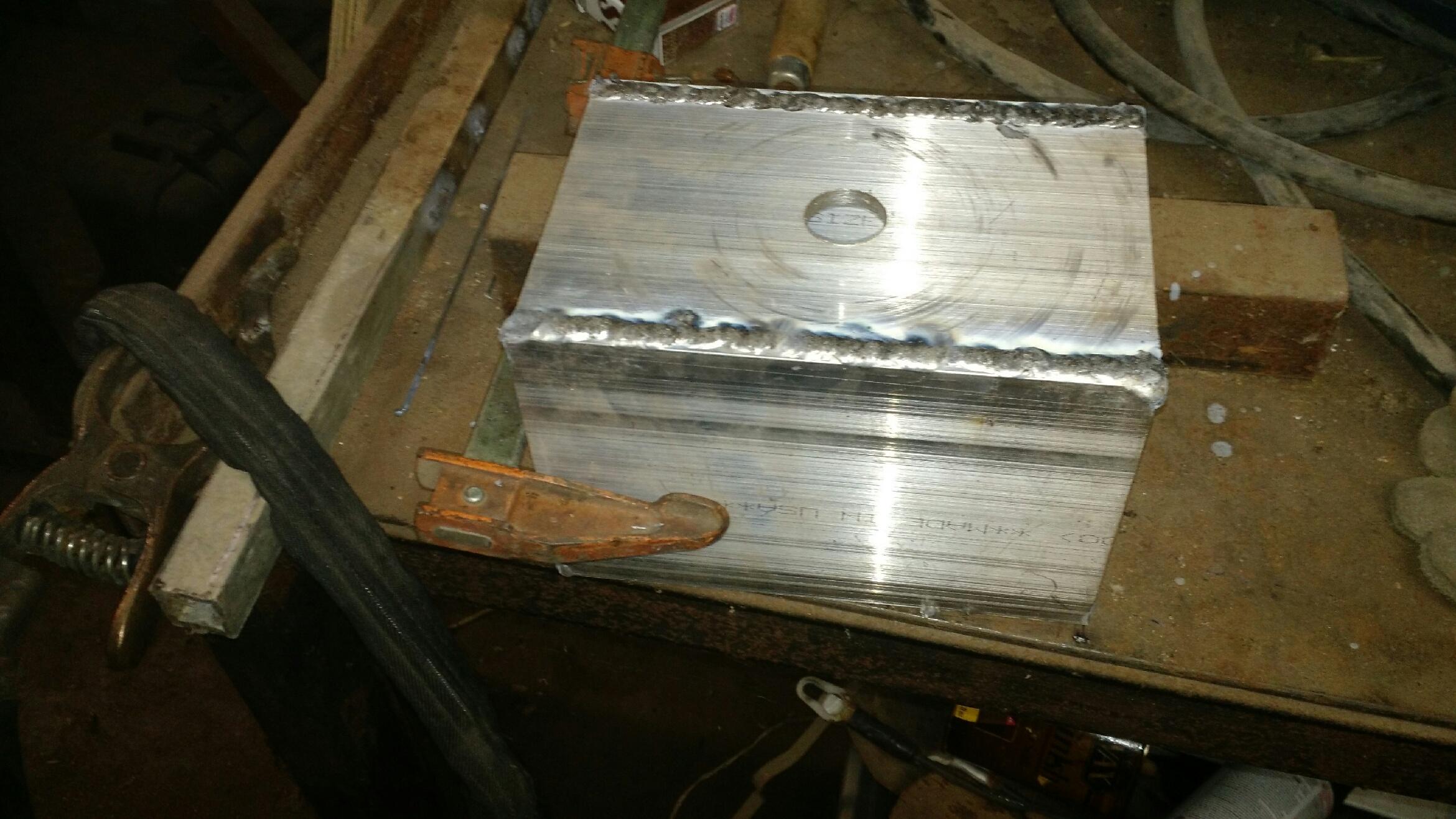

To attach the ends of the hammer to main body I welded arms that fit snuggly to the inside walls of the hammer and had them tig welded together through holes drilled in the sides. Some of the welded holes are still visable but they are not very distinct.

View attachment 517614View attachment 517615

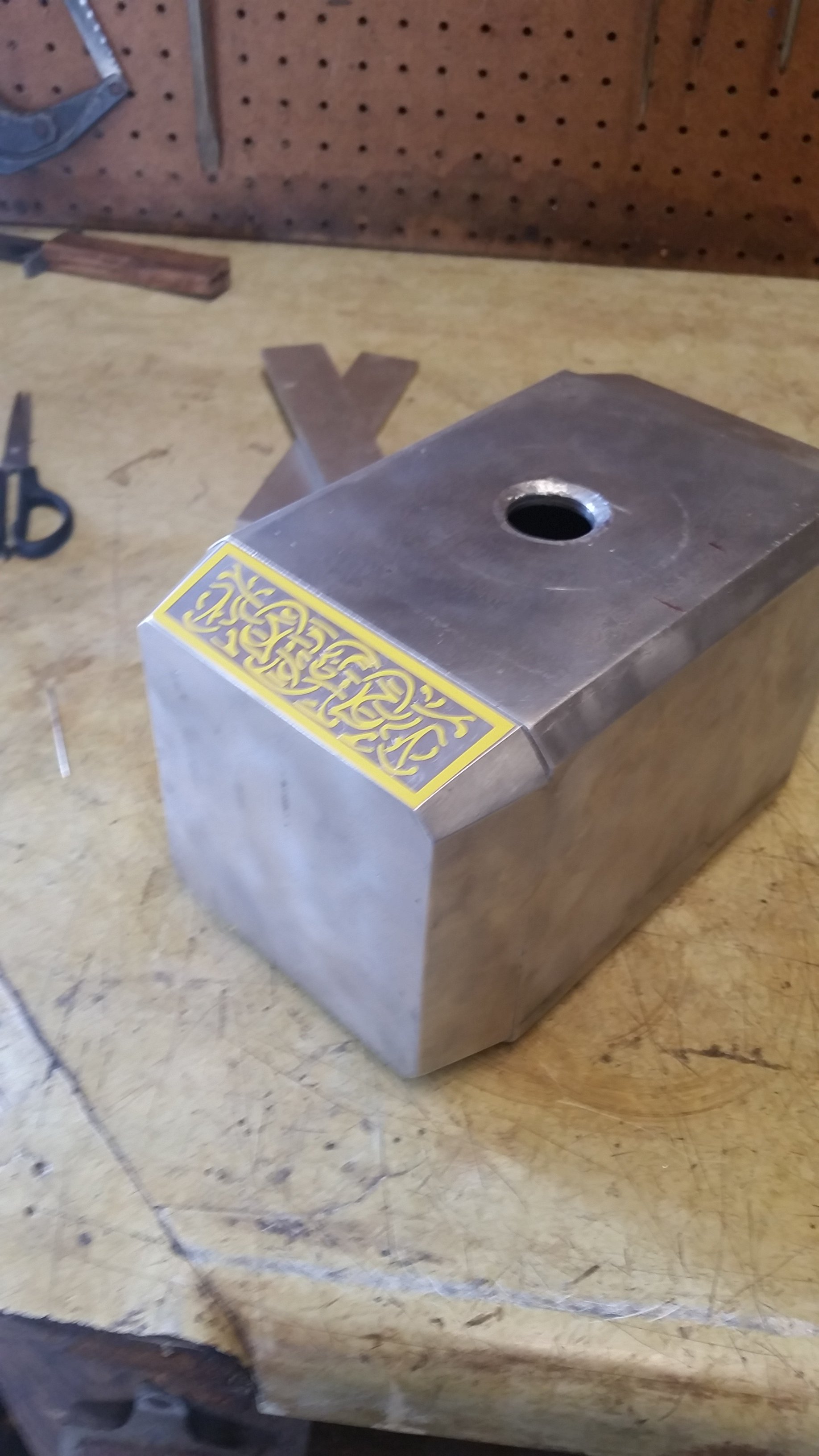

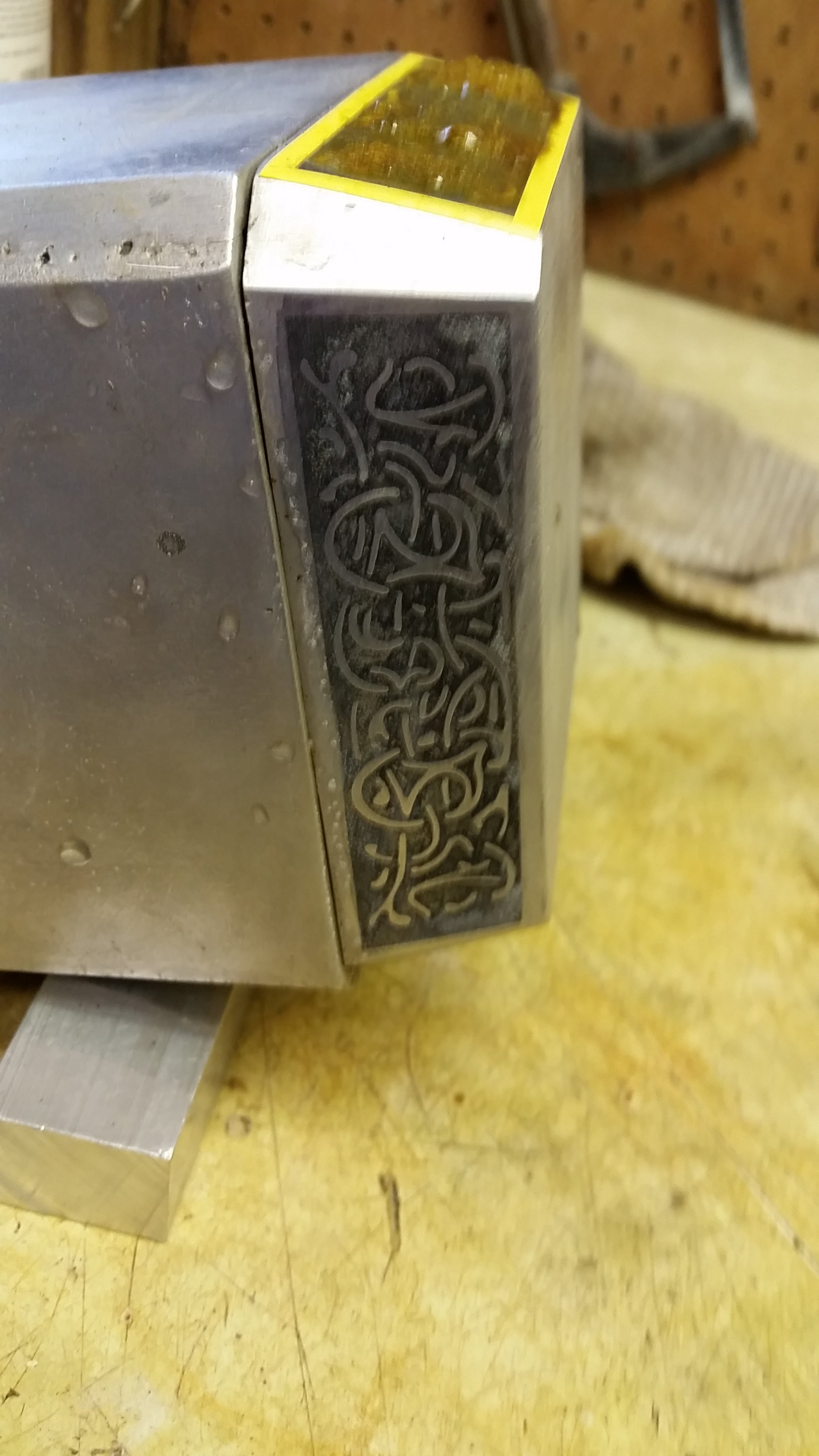

All of the etching was done with ferric chloride. To etch the ends of the hammer I drew up the design in Autocad and had some cut out in stencil vinyl by a local sign making company. Took about an hour or so for each etch and boy did they turn out sharp! For the top circle I just scribed the runes in beeswax and let the ferric chloride do what it does.

View attachment 517627View attachment 517630View attachment 517628View attachment 517629View attachment 517644

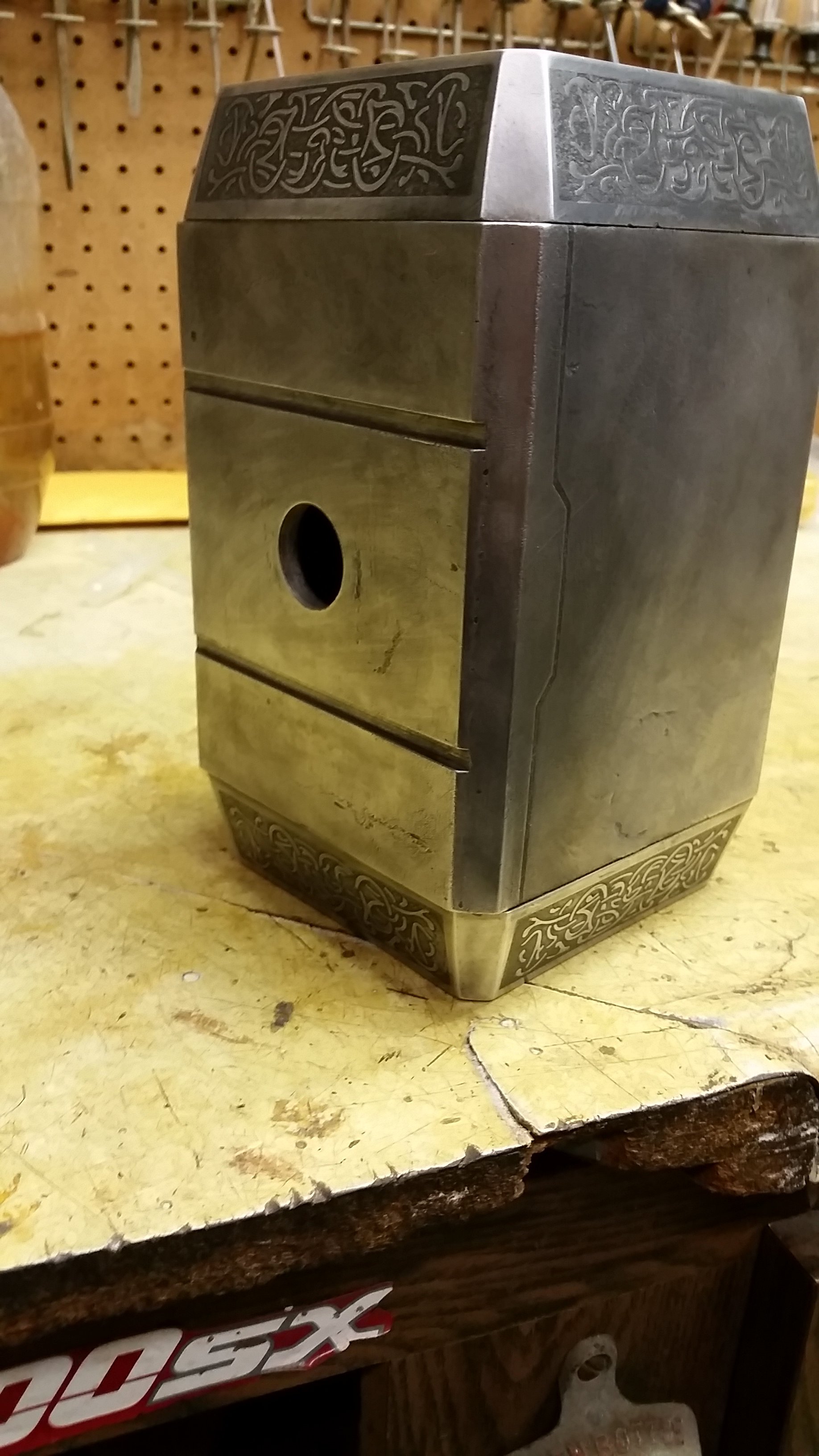

The handle is rapped in some roofing rubber strips and stitched with waxed thread. To make an unbreakable tether, I used an old drive belt that was laying around and attached it by tapping a hole in the bottom of the handle and bolting it on. The little handle end was cut out from a solid bloc of aluminum using two different sized hole-saws, then it was ground down to shape. After that I drew on a design in sharpie and let it etch. The etching came out alittle shallow but the design is atleast there.

View attachment 517632View attachment 517626

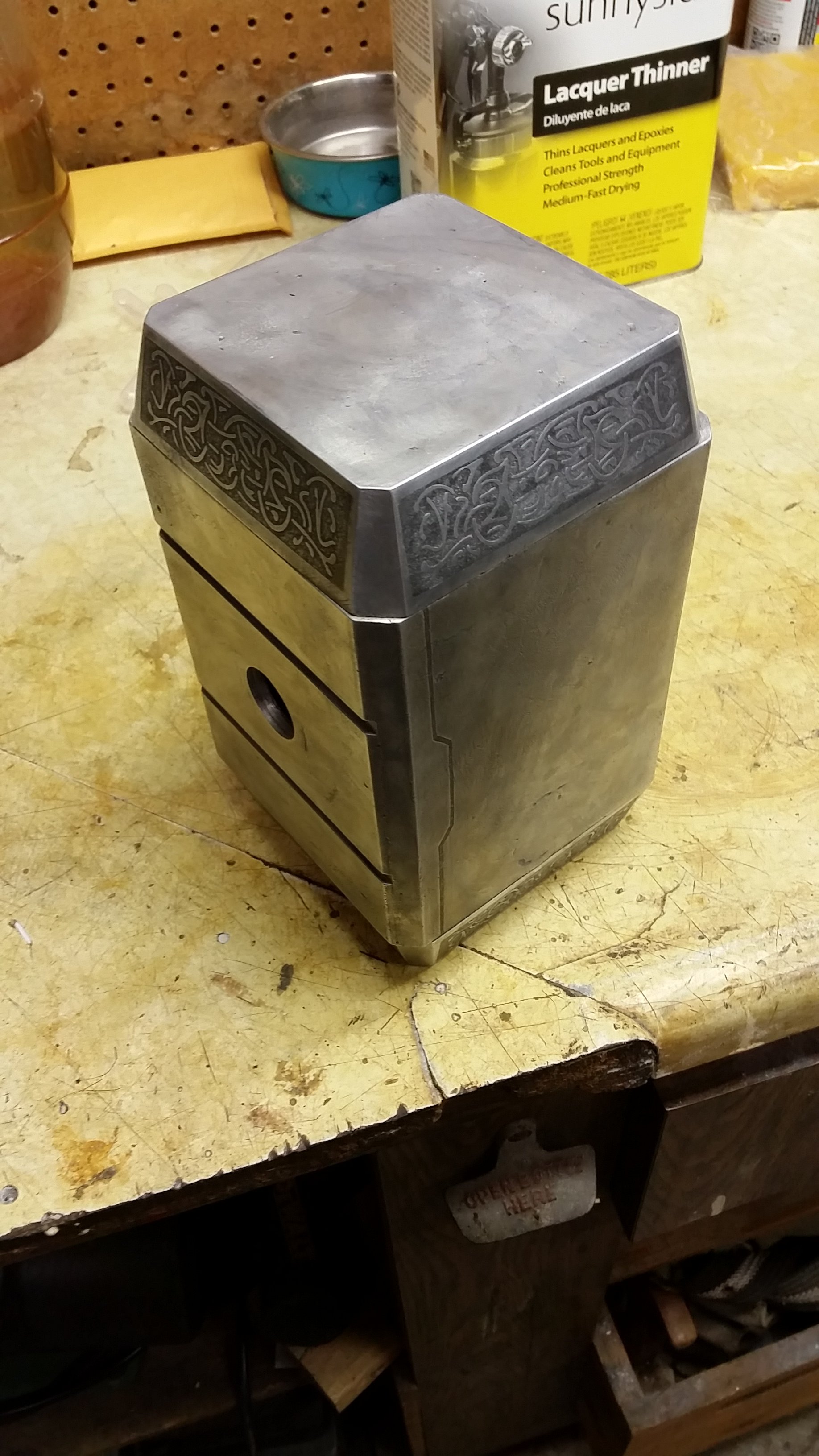

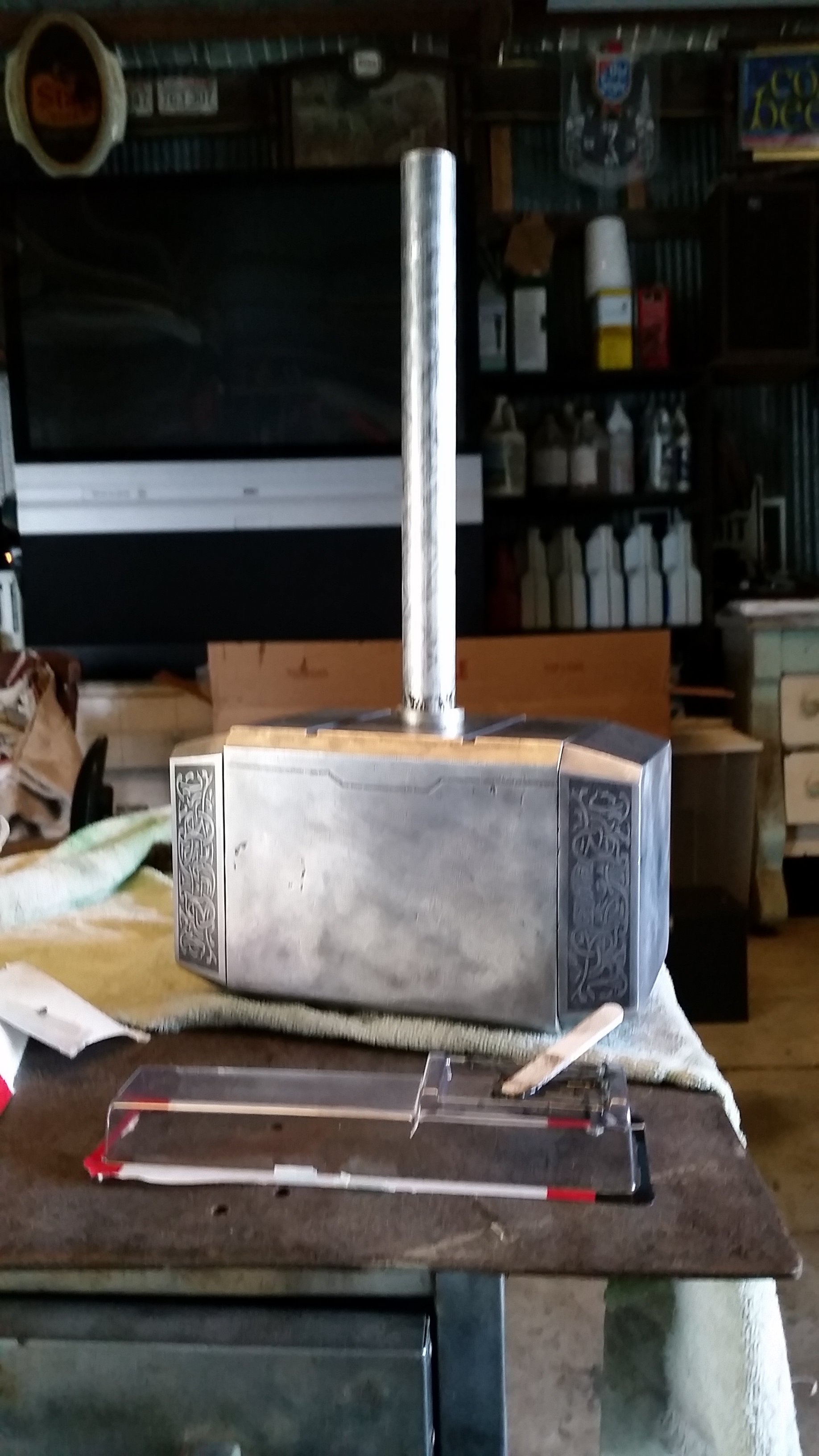

The entire head was assembled and cleaned before attaching it to the handle. In my past attempts I have always managed to get a rattle in the head and it drives me crazzzzzyyyy, but not this time! In case a rattle were to develop I used jb epoxy rather than welding it solid so it would easier to take apart.

View attachment 517631View attachment 517642

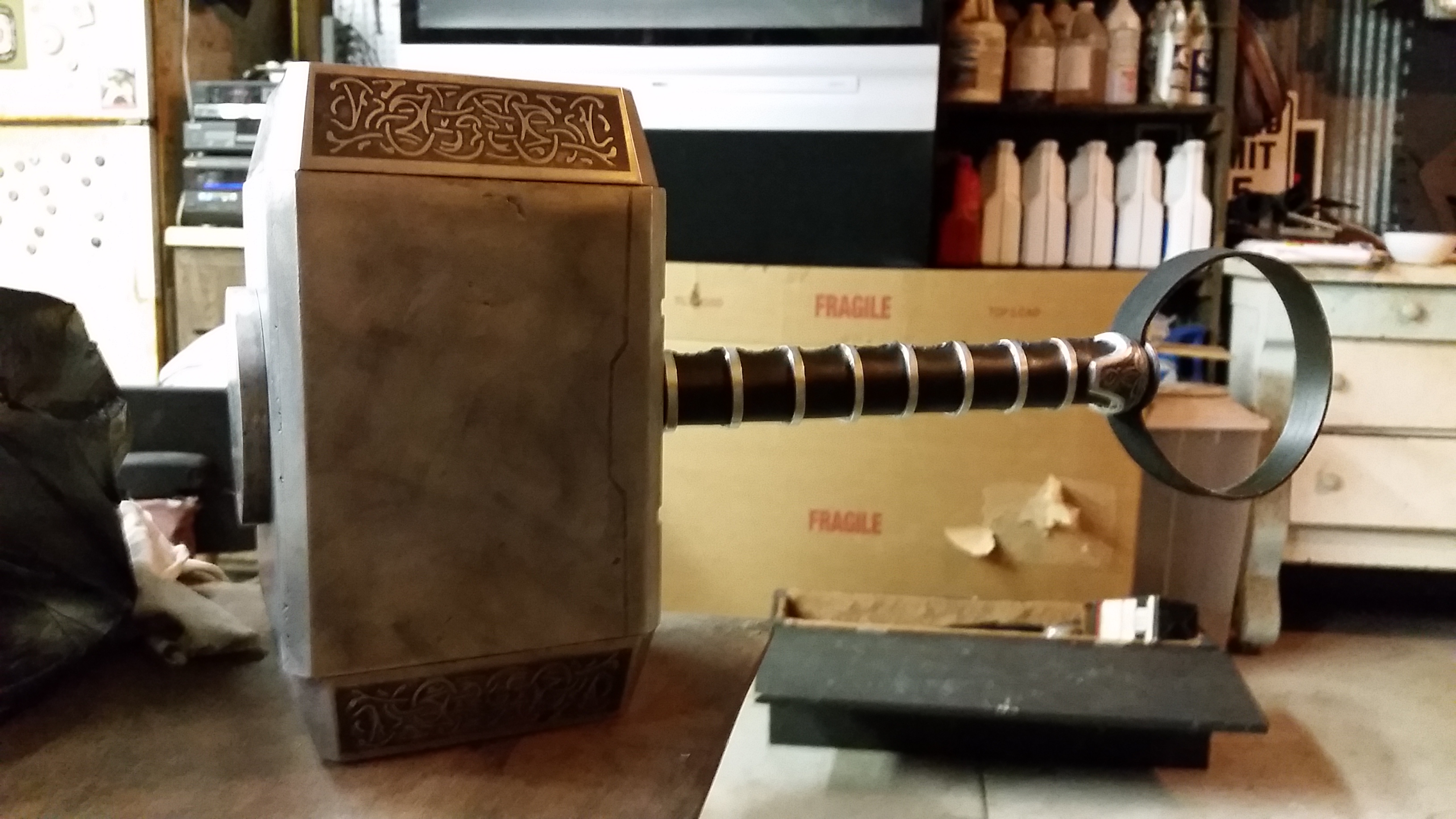

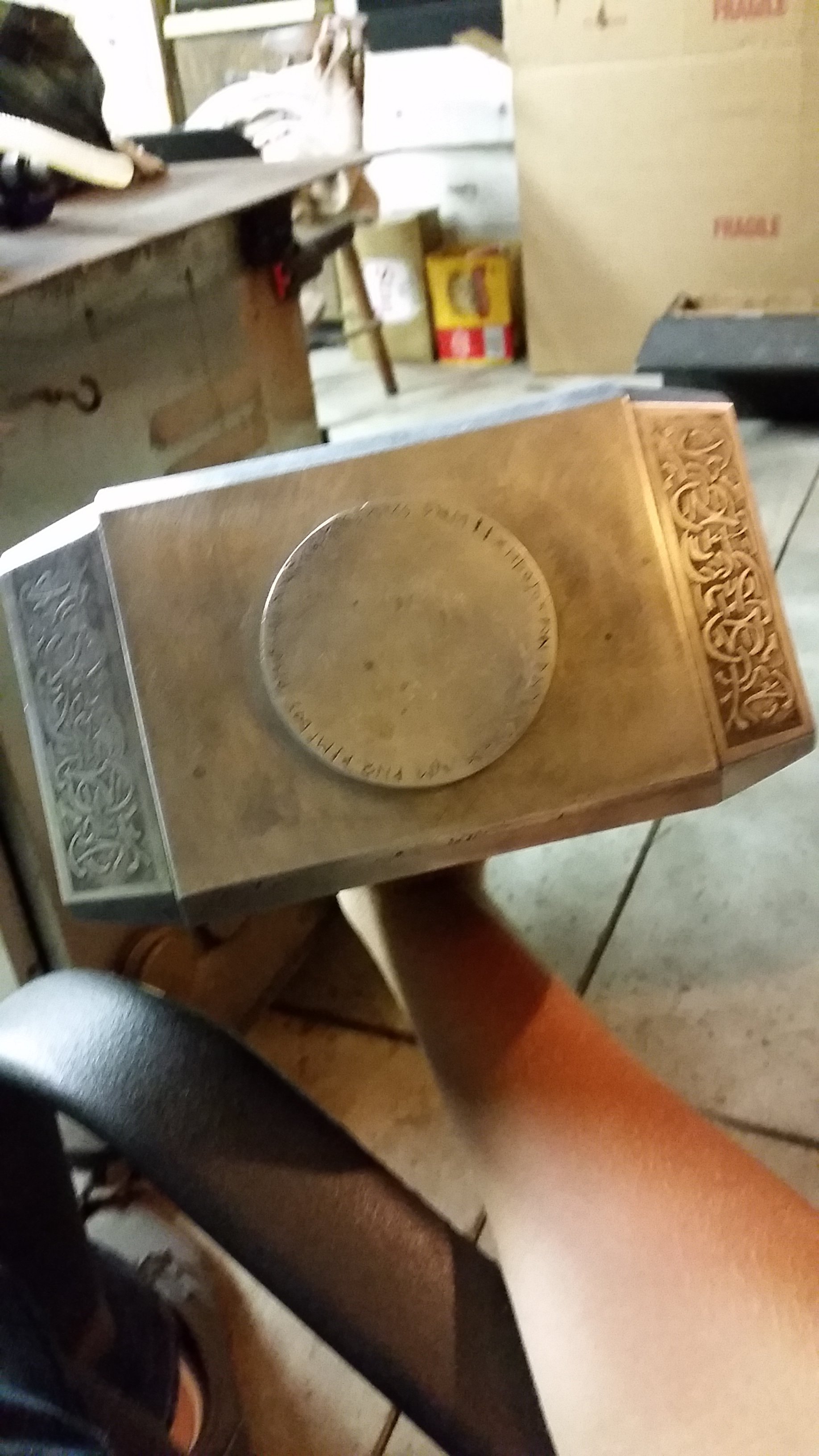

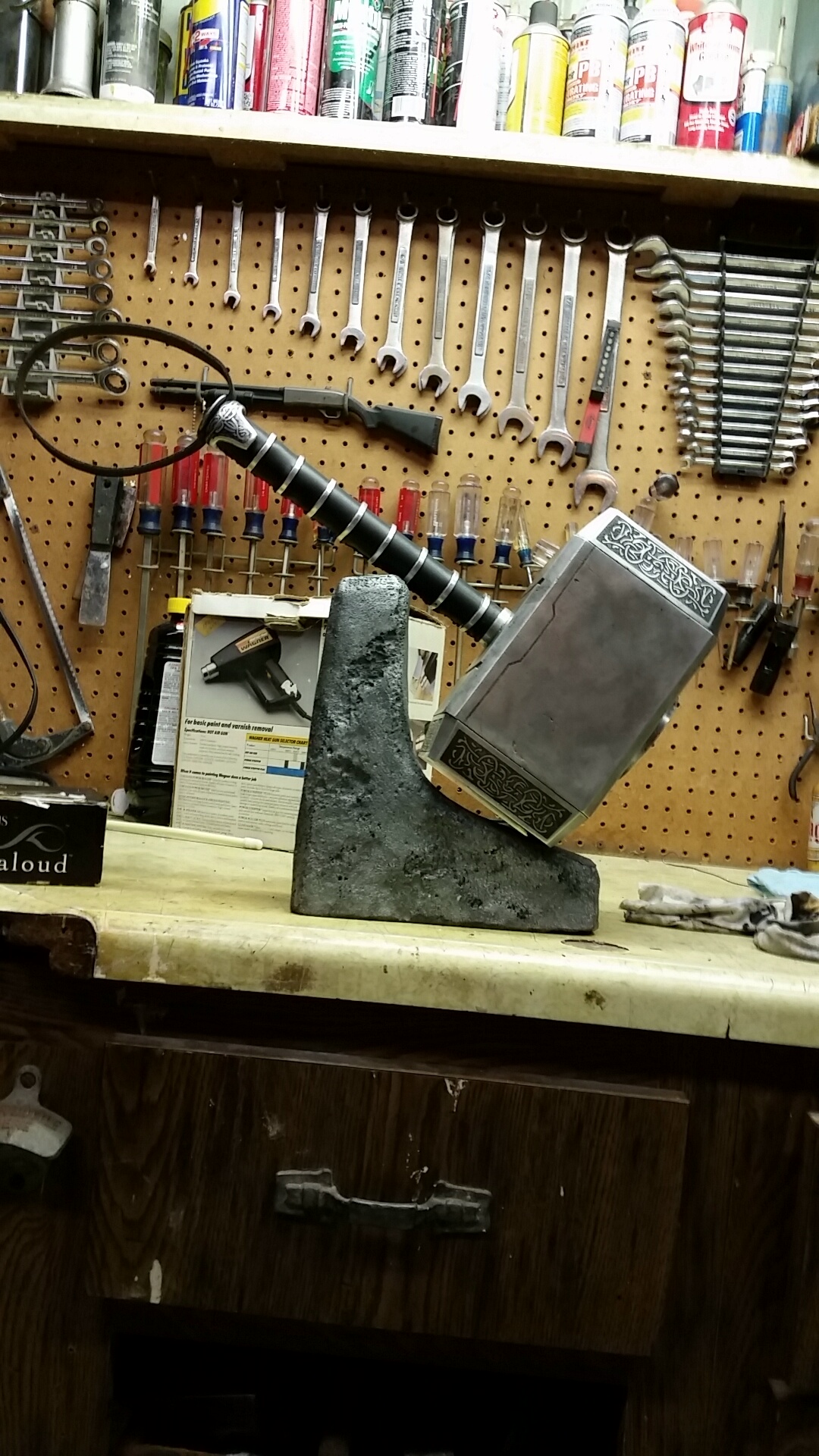

I guess that about raps up the build, I wish I would have taken more pics of the build but the ones I have give a good view of the process. Anyways tell me what you think! I know it's not 100% accurate but damn do I feel close. More pics will be posted later along with a pdf of the knot stencil design.
