Gaffi stick - accurate dimensions for the blades?

[Sluis Van Shipyards]

Does anyone have any accurate dimensions for the Gaffi stick blades? My nephew's friend is now a welder so I'm going to see if he would weld some one for me. I just need accurate dimensions, shape and thickness. The ones I've had for 24+ years are too thin and I don't think are shaped correctly.



[Mara Jade's Father]

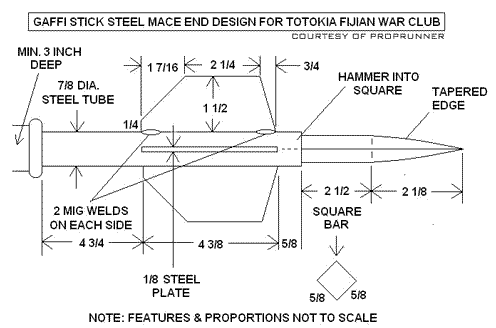

I do not know about accuracy. But since I noticed no one has answered you, I thought I would at least post this image that was posted many years ago, maybe 2012 or at least that is when I saw it.

From PROPRUNNER (one of many banned aliases).



[Halliwax]

First I’ve seen of this, thanks MJF



[Sluis Van Shipyards]

Thanks!!! The ones I still have are the size Tom Spina suggested 20+ years ago! They're only 1/16" thick and I think the blade shape is maybe off.



[Mara Jade's Father]

You are welcome. I hope it helps.
