Edge of Tomorrow - EXO SUIT - Build Thread
- Thread starter bluerealm
- Start date
Carlseattle
New Member
Devin, could you please post where to find the black backpack that you have in the picture of item found...
bluerealm
Well-Known Member
Are you talking about the ruck sack? http://www.amazon.com/Condor-Deploy...r=8-10&keywords=Condor+Tactical+MOLLE+Modular
Carlseattle
New Member
That one....thank you. JC
bluerealm
Well-Known Member

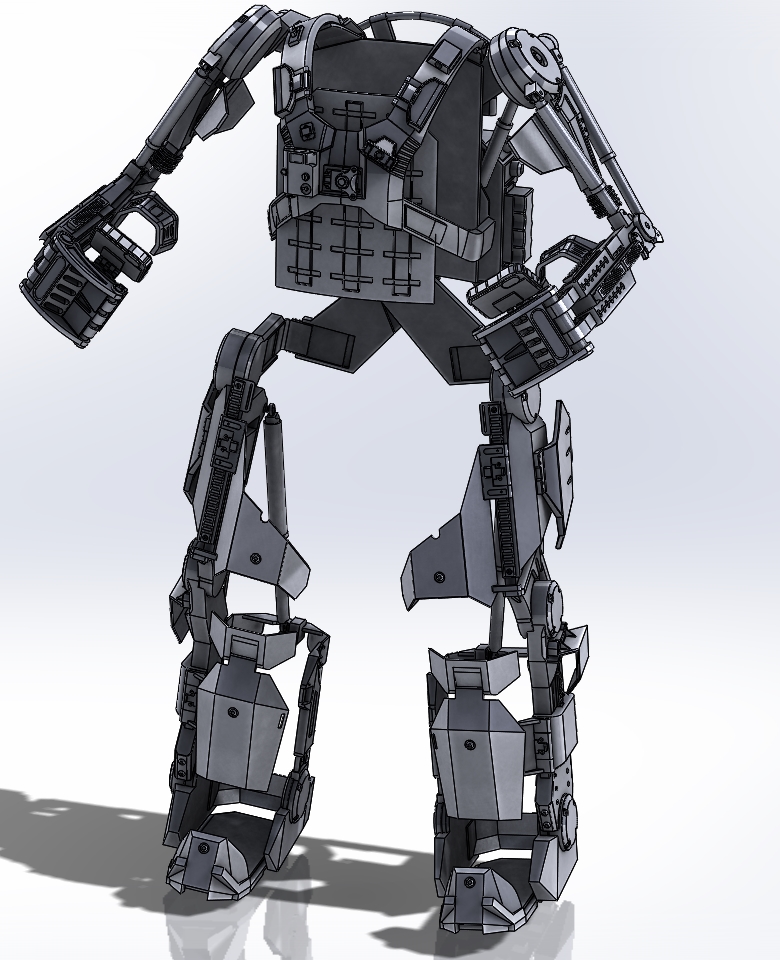

I think for the most part I'm really happy with the model. I updated a bunch of little things based on the images flimzy provided. I'll be double checking all the references before I go to fabrication, but all in all I think I'm playing in the same park as the original for sure.
-Devin
-Devin
Carlseattle
New Member
Does anybody know what are the two yellow handles in front of the chest, and what are the use for, and the name?
Laser Brain
Sr Member
Hey Flimzy! Good to see you here!!
I know you've seen the movie now. Cool huh? Shame so many of our props didn't get much of a look in. Oh well.
Your practical transponder did alright though.
Looking great Devin. Flimzy is definitely the person to go to for help.

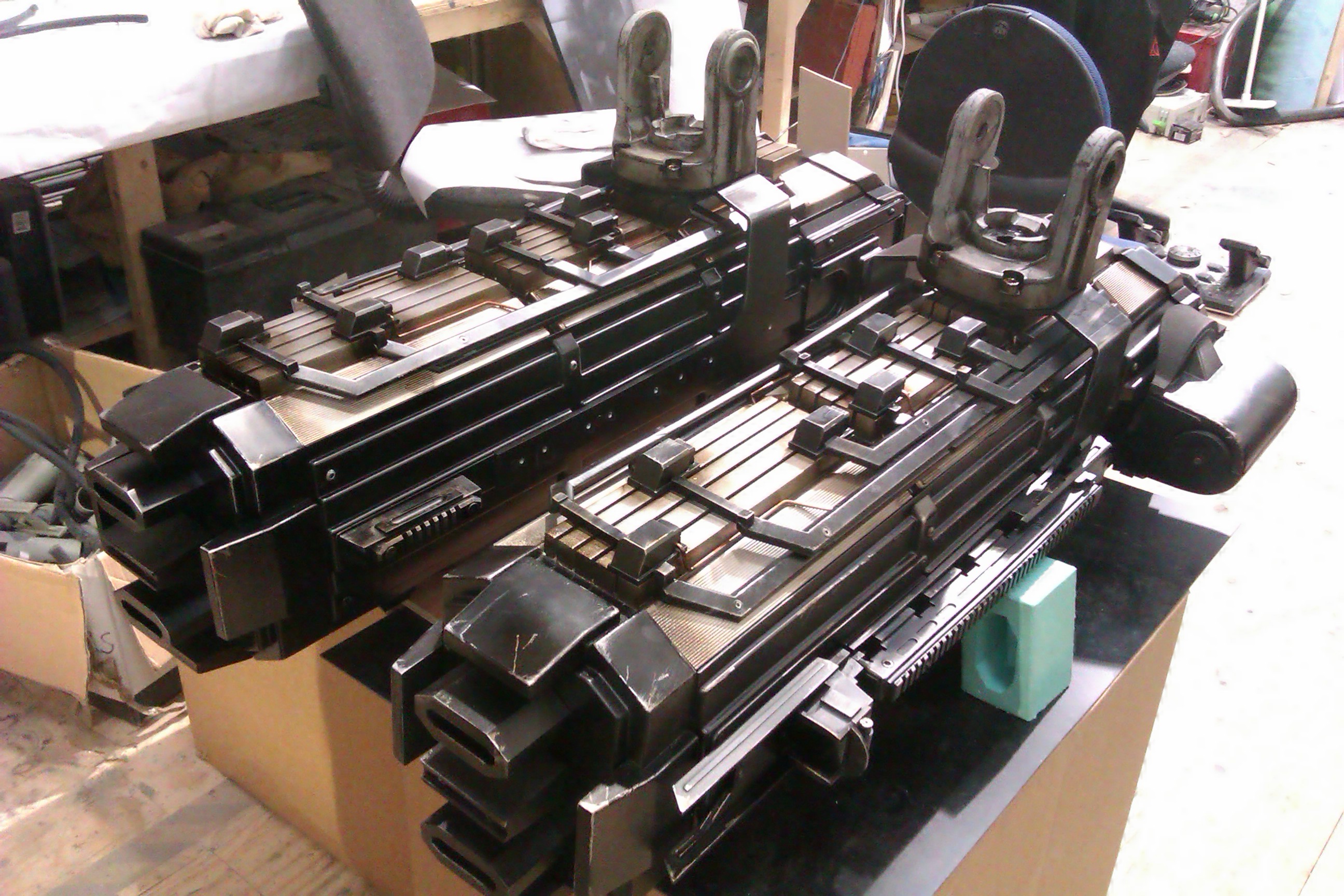

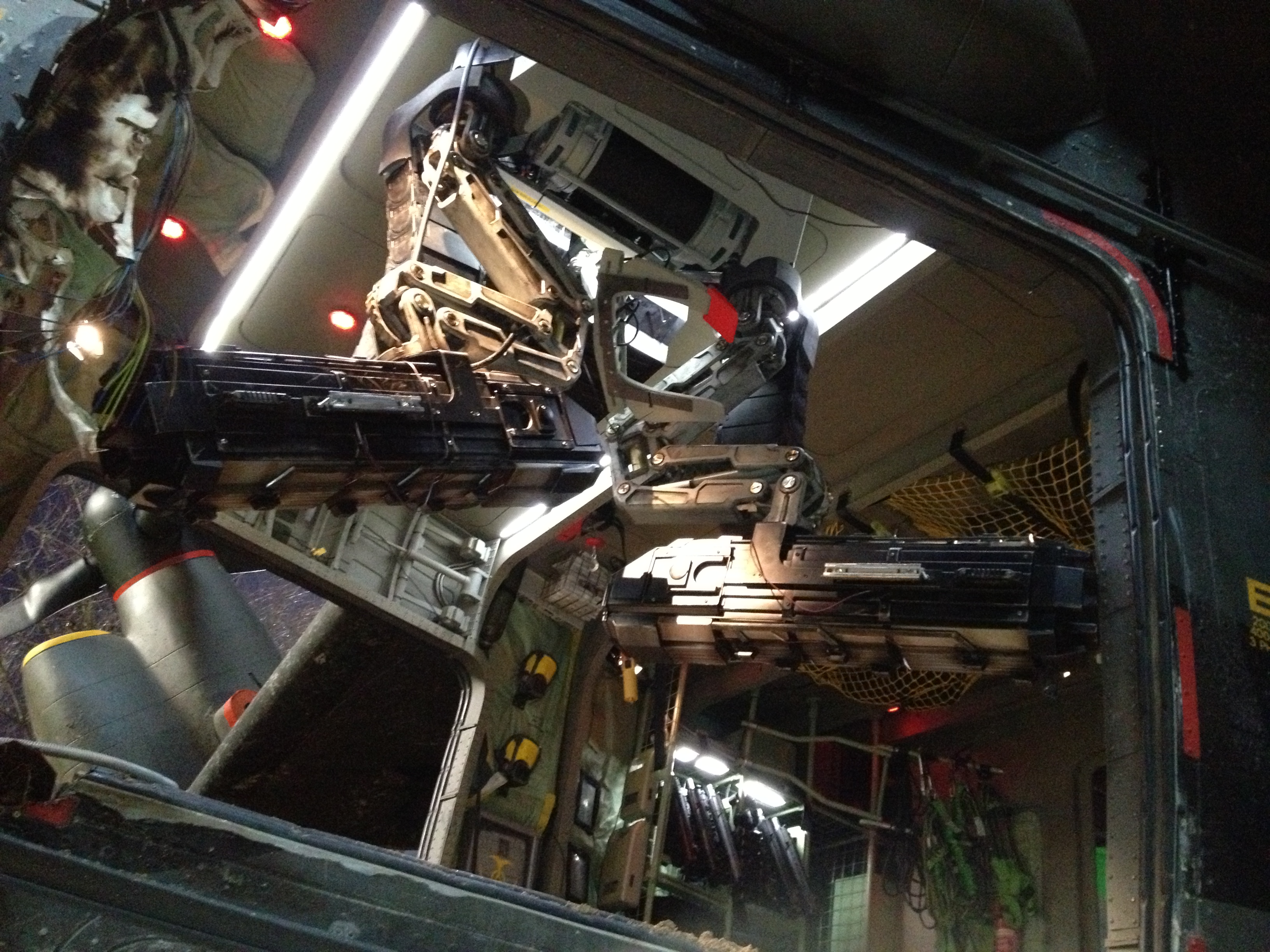

Devin, once you've finished the suit please make a set of these. Then you'll just need to knock up a drop ship.
![photo[1].JPG](https://therpf-f28a.kxcdn.com/forums/data/attachments/150/150768-b88827d9c028baf9e169ab4af5897598.jpg "photo[1].JPG")
I know you've seen the movie now. Cool huh? Shame so many of our props didn't get much of a look in. Oh well.
Your practical transponder did alright though.
Looking great Devin. Flimzy is definitely the person to go to for help.
Devin, once you've finished the suit please make a set of these. Then you'll just need to knock up a drop ship.
Last edited:
flimzy
Master Member
Hey Flimzy! Good to see you here!!
I know you've seen the movie now. Cool huh? Shame so many of our props didn't get much of a look in. Oh well.
Hi Niel. or should I call you Vos.
Iooking forward to bumping in to you here
Jediknightandy
Active Member
Hey guys!
Loving this thread, some really neat stuff here! Bluerealm have you had a chance to work anymore into this suit?
Thanks!
Loving this thread, some really neat stuff here! Bluerealm have you had a chance to work anymore into this suit?
Thanks!
mattrendar
Well-Known Member
great progress can't wait to see more !
Strontiumdoguk
Member
Looks awesome
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
DevinWhite
New Member
Necrothread resurrection
Here's the helmet I used.
Amazon.com : EMERSONGEAR Tactical Airsoft Paintball Helmet with Side Rail & NVG Mount, Lightweight Durable Construction for Head Protection Black : Sports & Outdoors
Amazon.com : EMERSONGEAR Tactical Airsoft Paintball Helmet with Side Rail & NVG Mount, Lightweight Durable Construction for Head Protection Black : Sports & Outdoors
www.amazon.com
Matrix Side Cover Set for ARC Type Airsoft Helmet Rails (Color: Foliage Green)
Shop ... , Tactical Gear/Apparel, Helmet Accessories
DevinWhite
New Member
Hey Gang!
Hope everyone is staying safe during these trying times with all the COVID19!
I want to apologize for not being being very active over that past few years. Life as been a bit crazy, two kids, new job, etc.
If you don't already know, I'm Devin White of Blue Realm Studios. I'm using my own handle now moving forward.
Now I know its been 6 years since this movie came out.... but hey I'm stuck at home with no projects to work on so I'm going to start building this bad boy out.
My plan is to start splitting up parts and throwing stuff on the 3D printer.

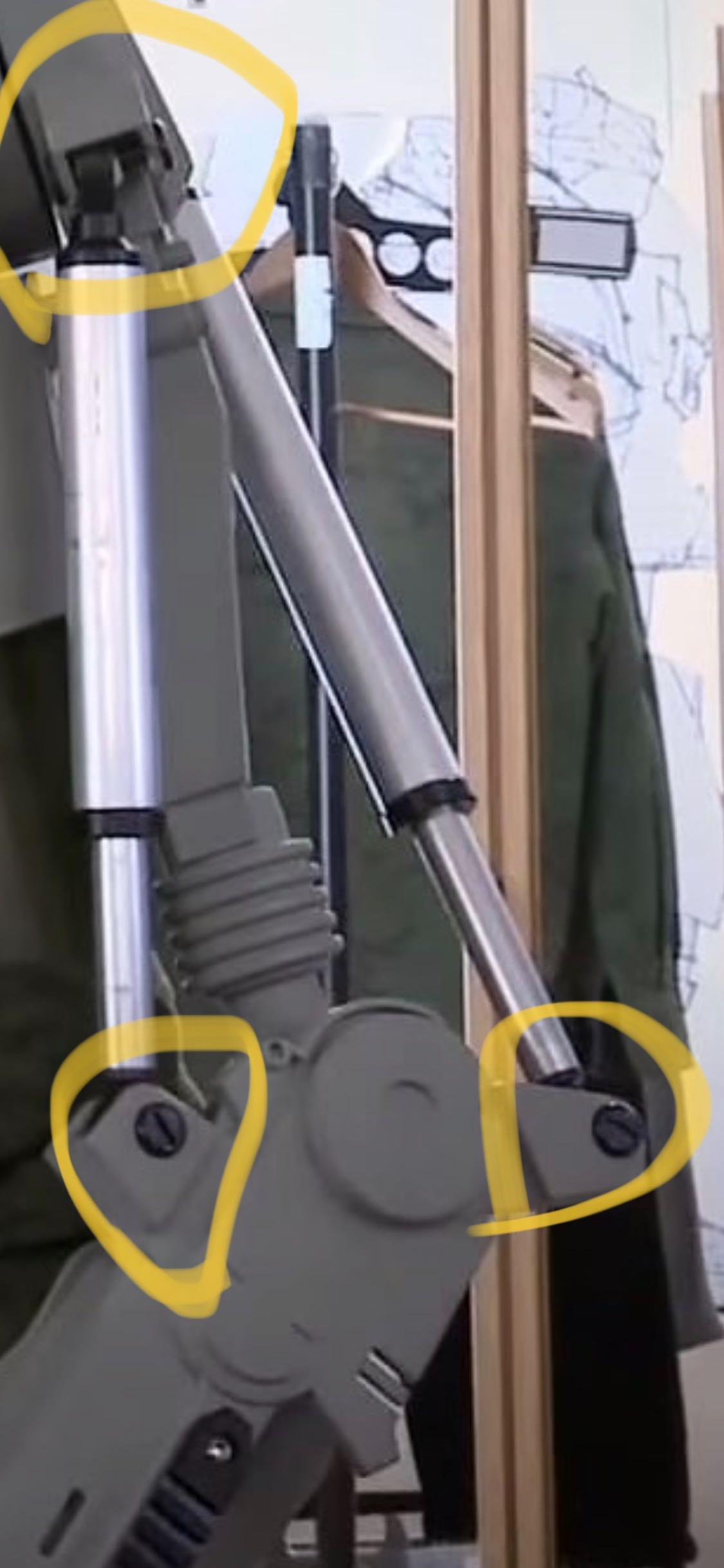

I'm making small tweaks to the model as I'm splitting stuff out. Thanks to Flimzy posting some amazing CAD shots I've been able to see some geometry that I didn't see before. I'm also adjusting scale and stuff based on found parts. I found the binding screws that were used on all the rod ends and because I know the head cap is 16mm I can now adjust the other measurements accordingly.
www.bulte.com

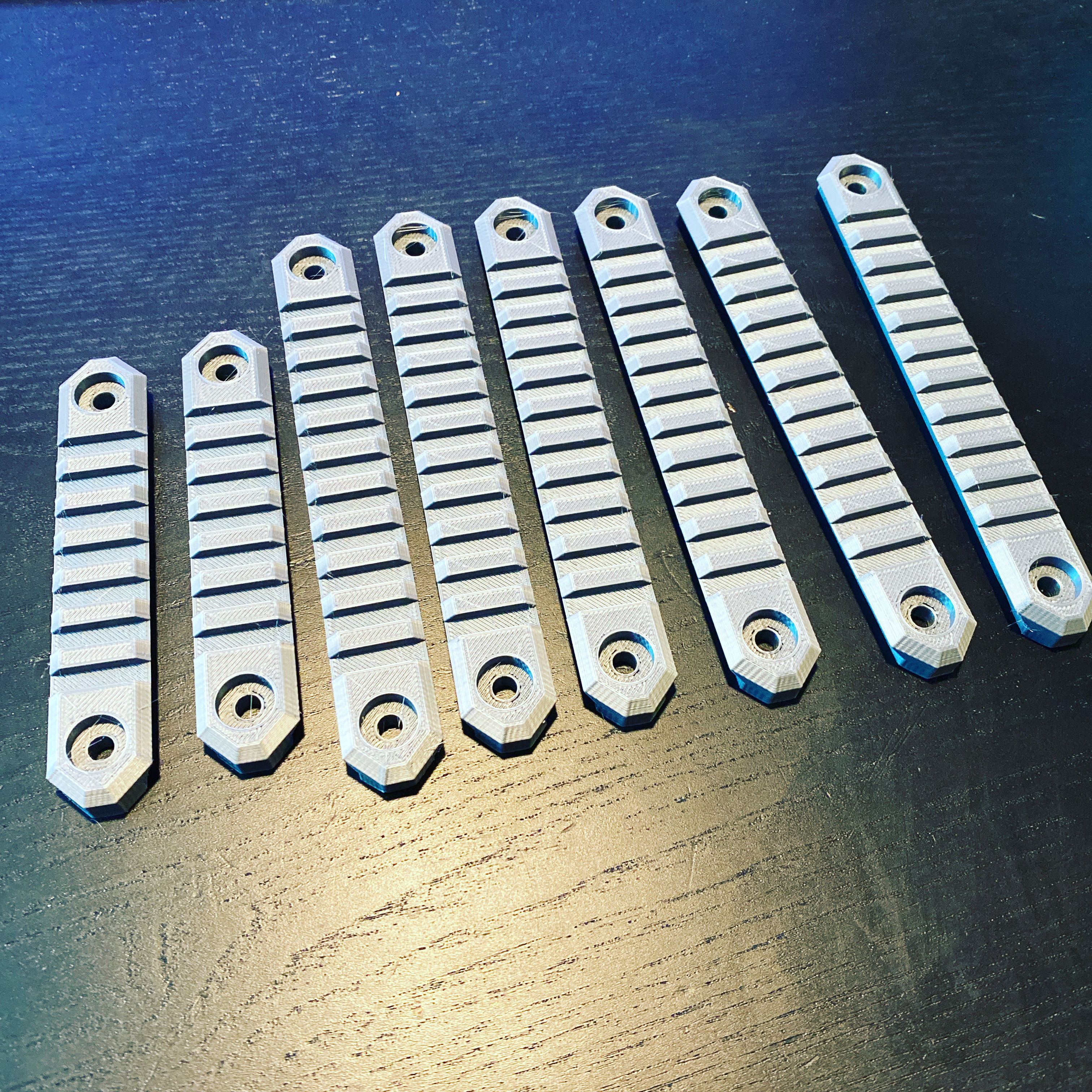

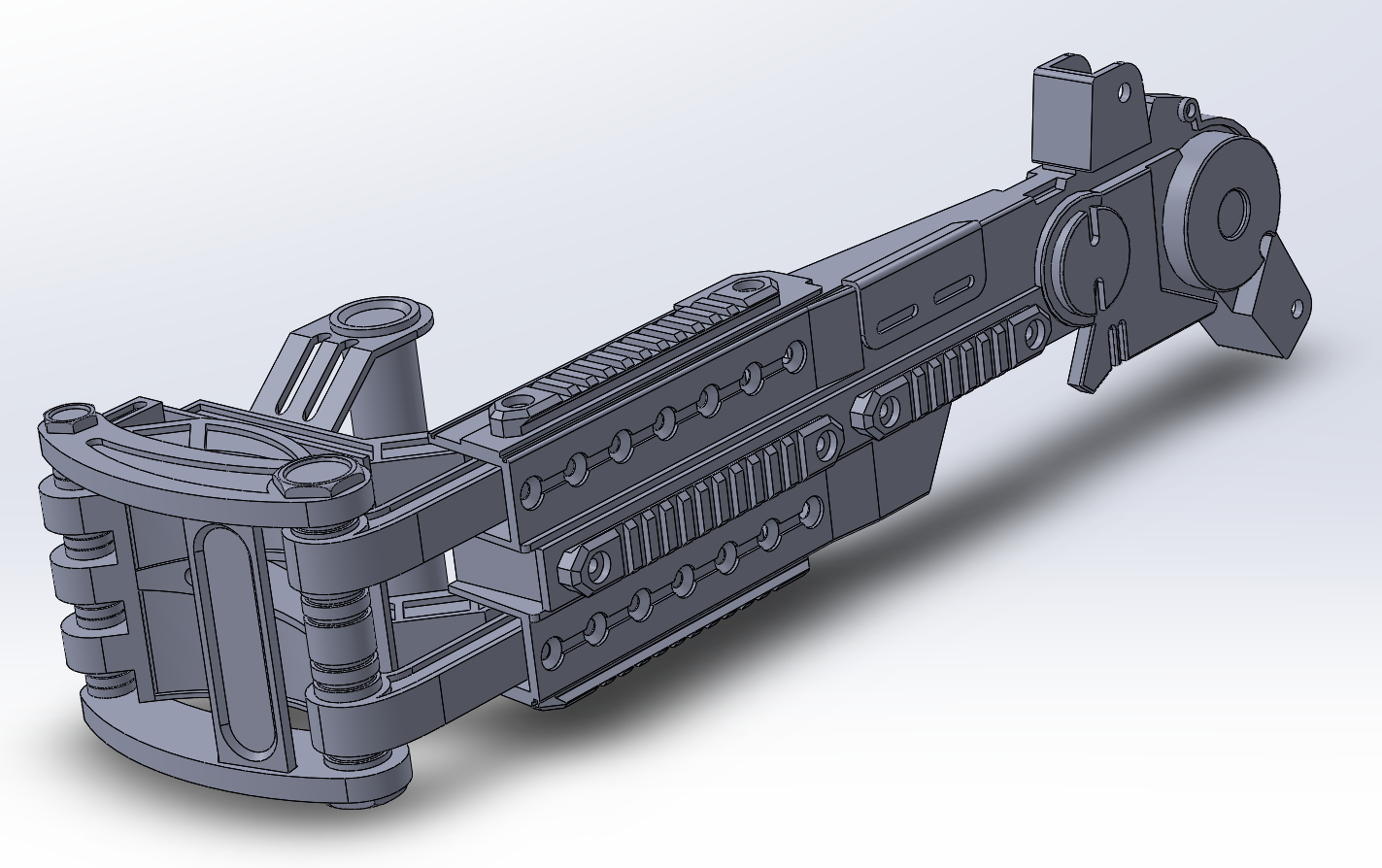

The forearm/hand assembly got an overhaul recently so I figured I'd share that. If you reference my old pictures you might notices a few changes: rail sections, overall scale, added detail, switching to metric units instead of standard... cause duh (the props were made in Europe).

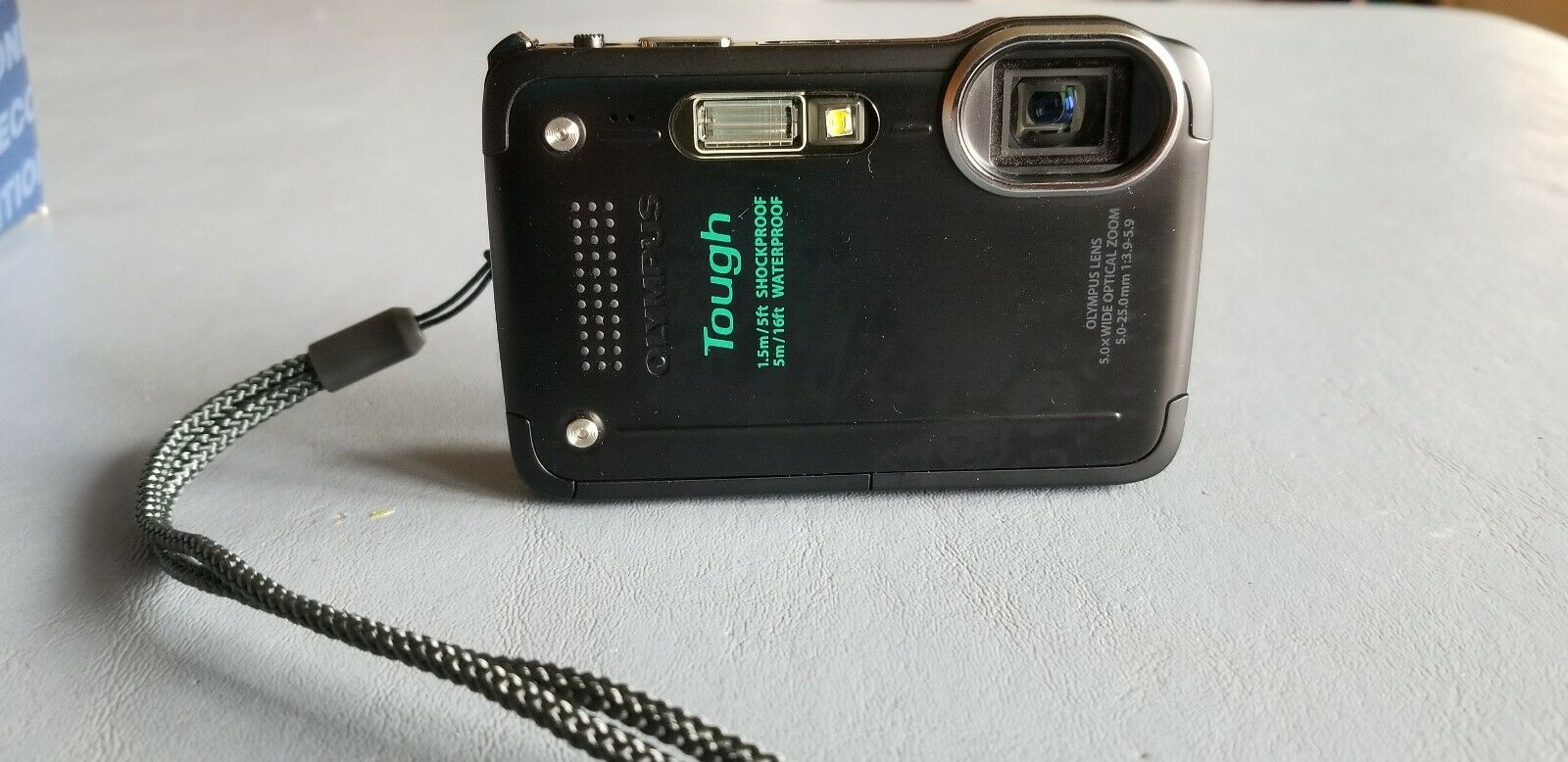

I also made the plunge and bought two used digital cameras off of ebay for the weapon systems screens. The plan there is to maybe make an animation sequence with sound and upload it to the camera so that the video plays on the cameras LCD like a little video player. Olympus Tough Stylus TG-630 if anyone is interested.
I also have a CR10 S5 on the way so I can put more than one part on it at a time to speed things up possibly. I'd also like to add i'm not going to spend much time cleaning up these parts with sanding and what not. The original props had some serious grow lines going on because they were also 3D printed. So hey that works in my favor, plus I hate sanding parts out.

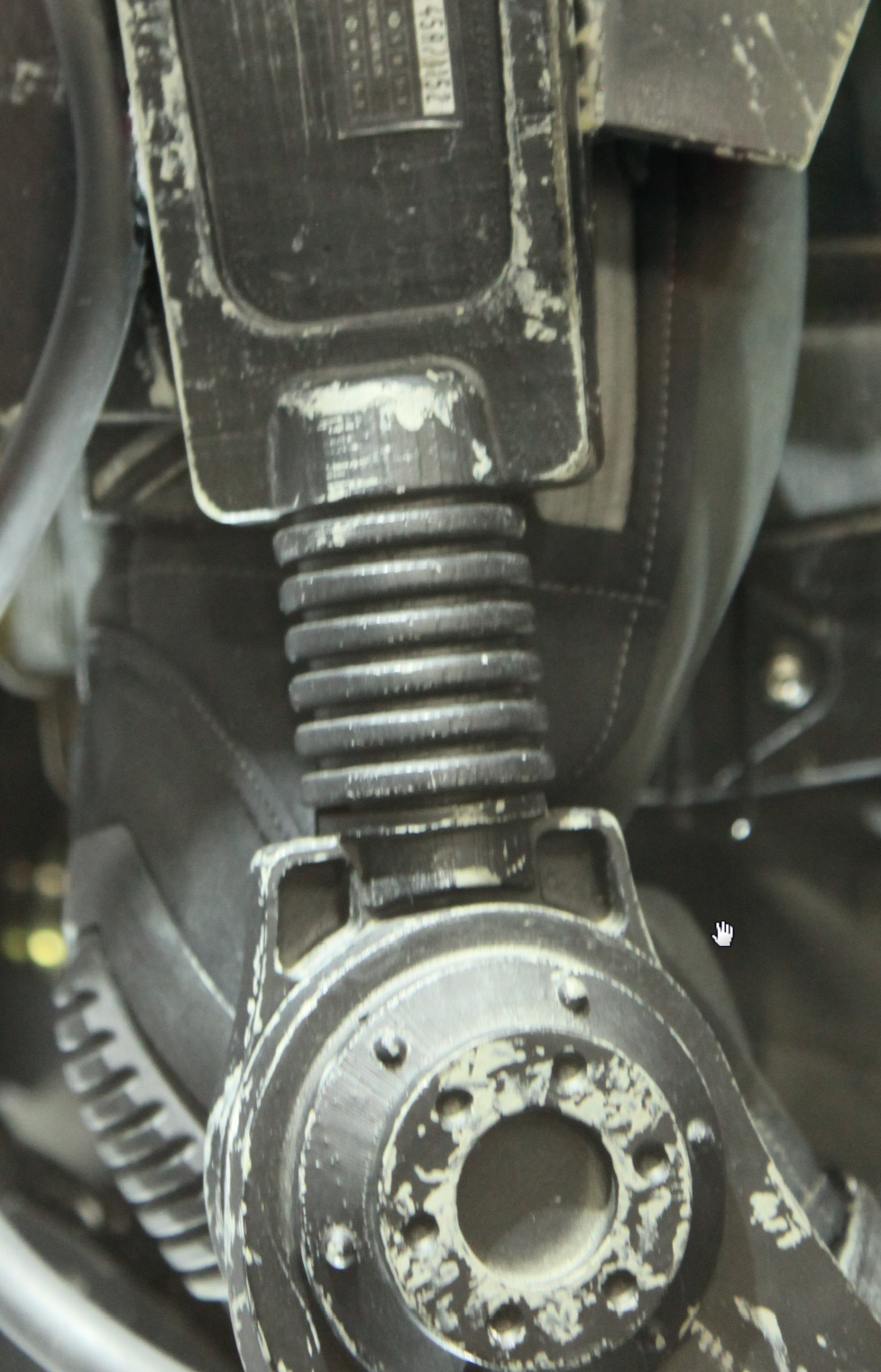

Here's a pic I snagged of the og costumes when they were on display at comic-con a billion years ago, in all its grow line glory. Thank goodness for weathered paint jobs!
_Devin
Hope everyone is staying safe during these trying times with all the COVID19!
I want to apologize for not being being very active over that past few years. Life as been a bit crazy, two kids, new job, etc.
If you don't already know, I'm Devin White of Blue Realm Studios. I'm using my own handle now moving forward.
Now I know its been 6 years since this movie came out.... but hey I'm stuck at home with no projects to work on so I'm going to start building this bad boy out.
My plan is to start splitting up parts and throwing stuff on the 3D printer.
I'm making small tweaks to the model as I'm splitting stuff out. Thanks to Flimzy posting some amazing CAD shots I've been able to see some geometry that I didn't see before. I'm also adjusting scale and stuff based on found parts. I found the binding screws that were used on all the rod ends and because I know the head cap is 16mm I can now adjust the other measurements accordingly.
Binder posts
This screw consists of a female screw + male screw assembly. The binding screw or binding screw is therefore an assembly screw.
www.bulte.com
The forearm/hand assembly got an overhaul recently so I figured I'd share that. If you reference my old pictures you might notices a few changes: rail sections, overall scale, added detail, switching to metric units instead of standard... cause duh (the props were made in Europe).
I also made the plunge and bought two used digital cameras off of ebay for the weapon systems screens. The plan there is to maybe make an animation sequence with sound and upload it to the camera so that the video plays on the cameras LCD like a little video player. Olympus Tough Stylus TG-630 if anyone is interested.
I also have a CR10 S5 on the way so I can put more than one part on it at a time to speed things up possibly. I'd also like to add i'm not going to spend much time cleaning up these parts with sanding and what not. The original props had some serious grow lines going on because they were also 3D printed. So hey that works in my favor, plus I hate sanding parts out.
Here's a pic I snagged of the og costumes when they were on display at comic-con a billion years ago, in all its grow line glory. Thank goodness for weathered paint jobs!
_Devin
DevinWhite
New Member
One cool progression in this project is I found an amazing reference awhile back that has really helped me step up the accuracy of this project. Because I have reference to a few known sizes, and with the help of this find, I'm positive its going to be as close to scale as possible.
Last edited:
DevinWhite
New Member
Here's the helmet I used.
Amazon.com : EMERSONGEAR Tactical Airsoft Paintball Helmet with Side Rail & NVG Mount, Lightweight Durable Construction for Head Protection Black : Sports & Outdoors
Amazon.com : EMERSONGEAR Tactical Airsoft Paintball Helmet with Side Rail & NVG Mount, Lightweight Durable Construction for Head Protection Black : Sports & Outdoorswww.amazon.com
Matrix Side Cover Set for ARC Type Airsoft Helmet Rails (Color: Foliage Green)
Shop ... , Tactical Gear/Apparel, Helmet Accessorieswww.evike.com
One update is I feel like the helmet I have looks too small. I keep noticing that all of the pictures of the actors in the helmets there is much more room between the head and ear section. Even Tom who I know is a smaller guy the helmet like bobs and shifts on his head as if its too big. The helmet I have seems way to small for that. I did find another version of the helmet on ebay that is marketed as XL so I'm hoping its a cheep solution to the size issue. Otherwise the real ballistics version must have been the way they went... which is probable because all the props that are on prop store are cast. So I'll keep you posted once i get the new version in from china.
DevinWhite
New Member

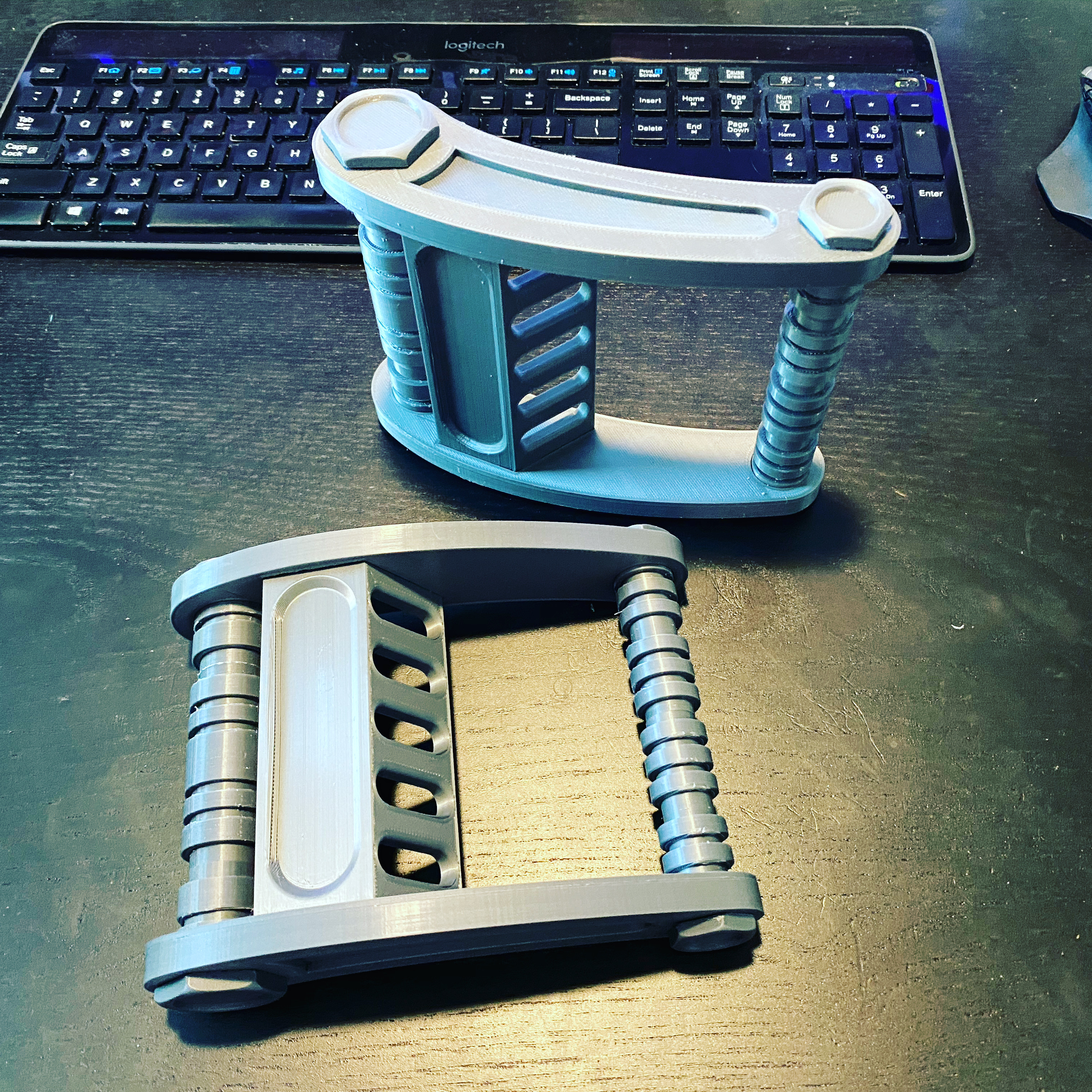

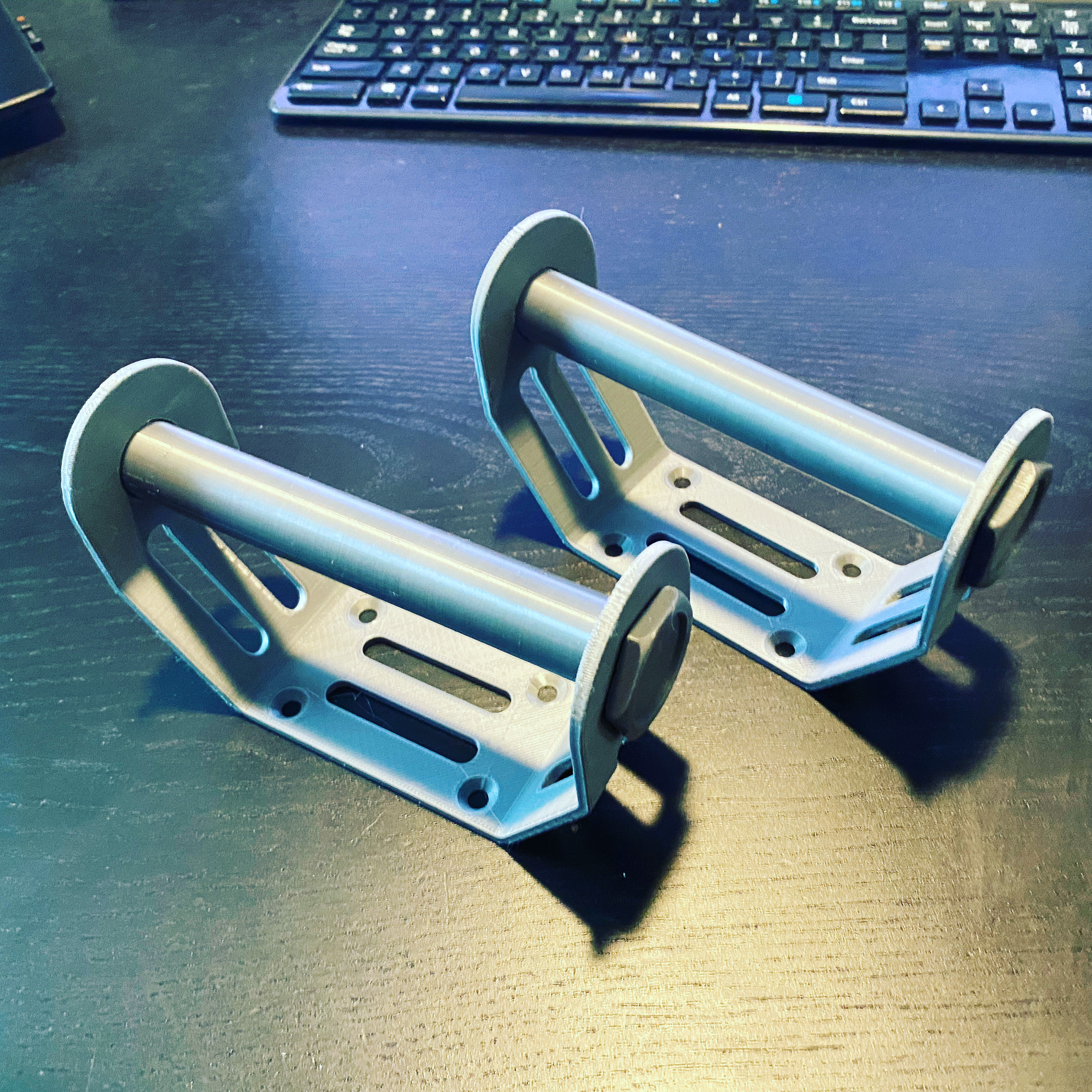

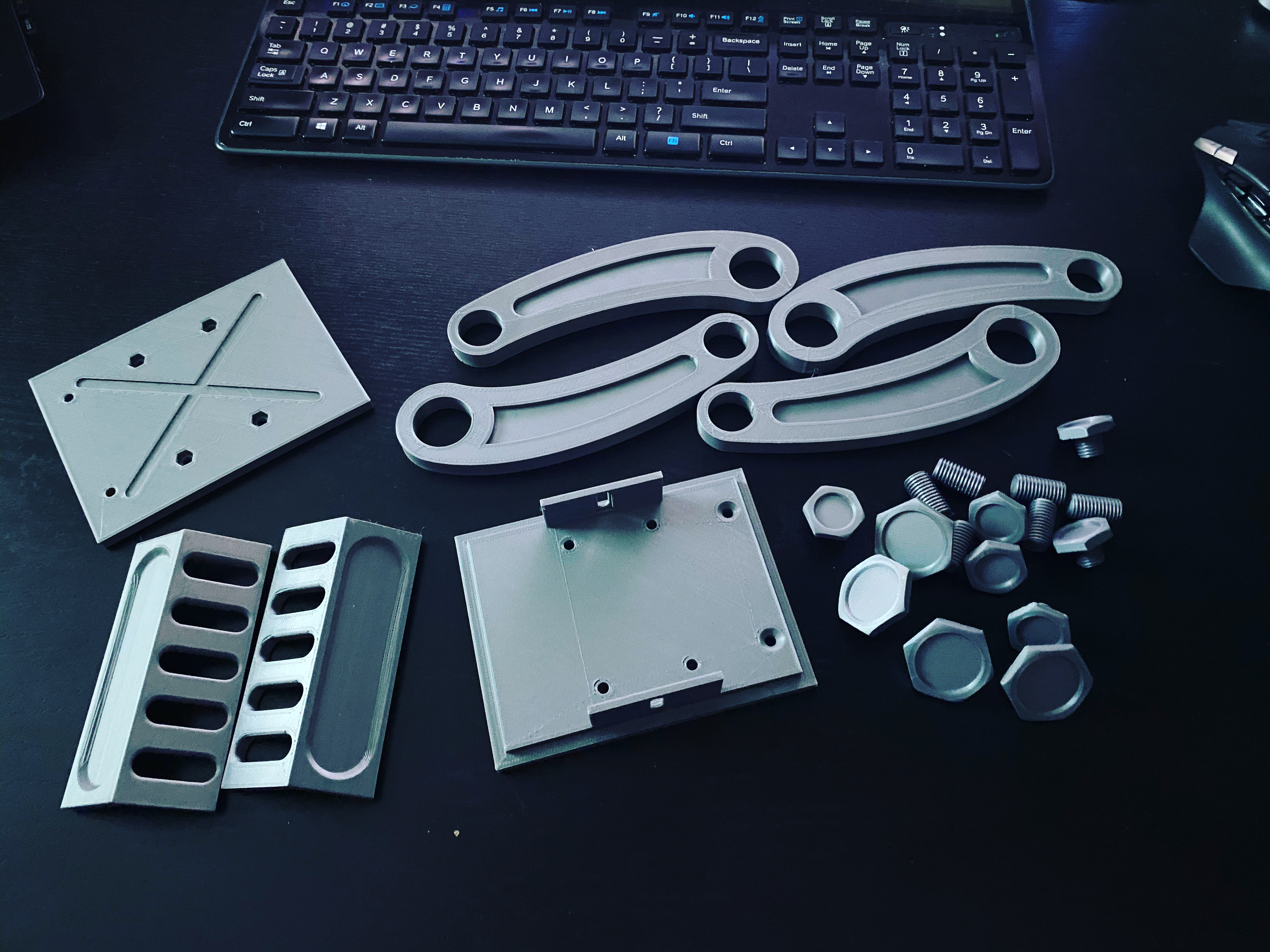

Wanted to drop a few pictures in this post as well. One fun thing I'm doing for any assembly pieces that don't require screws or other fixtures is creating threaded attachments so that you can assemble the part right off the printer. These handles have threaded bolts that screw in to the rod section.
