Avanaut
Well-Known Member
It took me almost a year to take it out of the box and finally start working on it instead of just looking at the parts and gasping my breath. It is daunting indeed but once started, it is very enjoyable.I'll echo the previous posts, but especially because I have one of these kits, and while I can't wait to start it, I'm finding it a little daunting.
This thread is fantastic, so I might work along with you?
I fixed the little warpage on the right hand sidewall. It was too thick to just be pushed in and glued, or that was my assessment. To make sure the fix would work I drilled a hole, carved it a little to countersink the screwhead and once glued and fastened, I just covered the screwhead with some putty. This worked well. The area, doorwells and all that, just needs a few more passes with that filler to clean any imperfections.

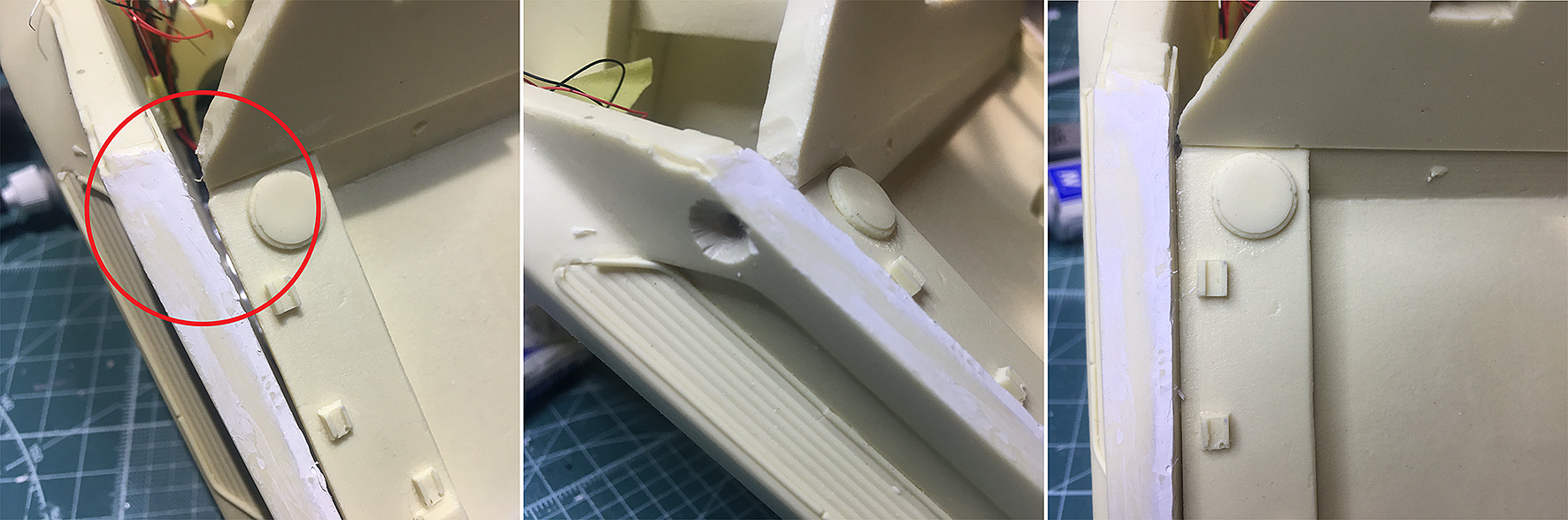

Speaking of imperfections, there are some details that need to be fixed. In these photographs you see the gaps on the air grille detail below the hole for the screw. There are little things like that here and there, easy to fix but take some time.
Oh, the custom programmed flasher driver for the leds arrived yesterday. Super! Some soldering ahead.
Avanaut
Well-Known Member
I have used leds from smallscalelights in most of my models for the past decade. It’s been great, they’ve been fast and precise to deliver every single time. For me this is a super convenient source because it’s within EU, no customs issues with the inner market. Only, this will change in January with Brexit. I hope it doesn’t make things too difficult, I'd like to keep buying from them.

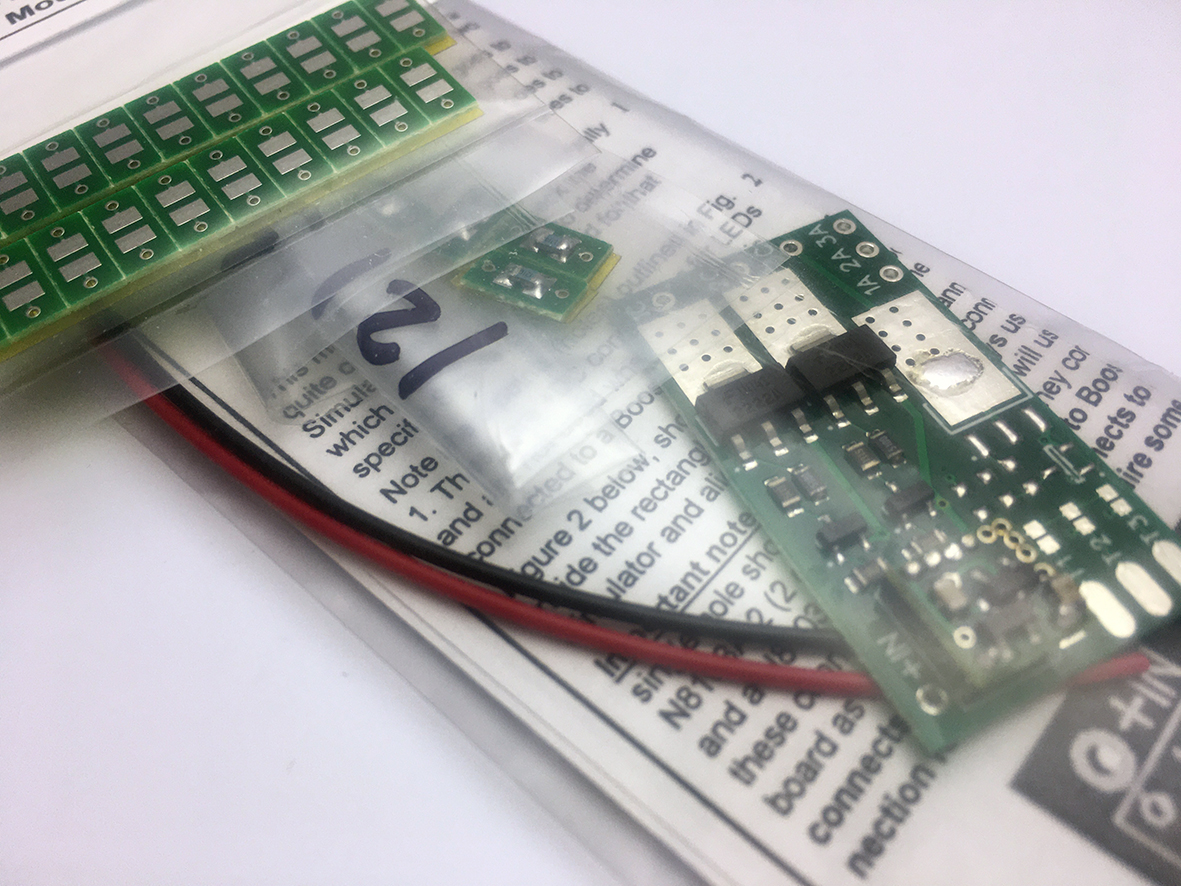

The custom programmed flash board is from Ngineering, I’ve used their services a couple of times before, will do again. I didn't want to use the lighting kit from Voodoo because it felt like the colours in that were too blue. The Voodoo kit seems to use "cool white" leds and they are difficult to work with when photographing models. I guess I could have negotiated some tweaks to that but eventually found it more interesting to design the whole thing myself from scratch than to start hacking the Voodoo kit. I'm sure it's a super useful kit though.
It is good to know alternatives in case the regular sources fall through for one reason or another. Thanks!
Avanaut
Well-Known Member

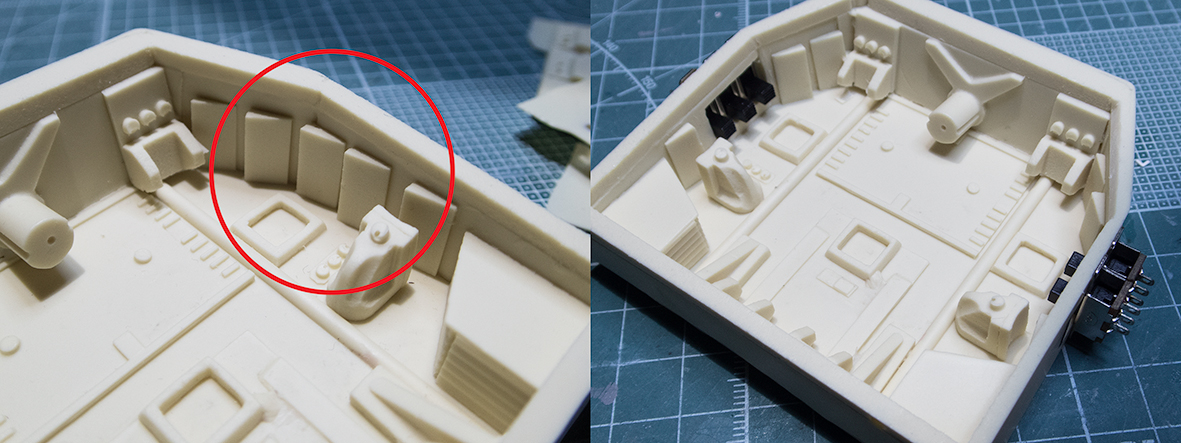

Working randomly on different areas here and there. One dashboard part needed to be replaced entirely. There were air bubbles at both end of one piece of the dashboard mounted monitor arm, the bubbles were in very inconvenient spots. I figured it was easier to just make another one entirely than to try to fix it. Here, the monitor arm and a replacement part in test fitting:
This working around here and there approach was actually to avoid the part I dread the most (well, this and the final paintcoat): electronics! I originally thought this model woudn't be too difficult with lights but I was wrong. There number of leds that go in there is quite big and I had to sit down and really focus on designing the wiring to get everything right with the first attempt.
The model is being built for photography and I need to control the lights to a degree. They can't be all on all the time, I divided them into five banks on two circuits. Hiding the switches for them was a head scratcher but in the end I decided to sacrifice the flying drone well on the roof. Hidden in it now are the five switches I need. All I really had to do was scrape those wedges on the sidewalls off and make holes for the switches. This was the easy part.
When inserting all the wires necessary one easily gets them in a messy bundle. I wired one bank at the time (the steel tubes under the floor worked perfectly) and fastened each separately to the inner walls of the rear hull. This was to not get everything mixed further down the line.

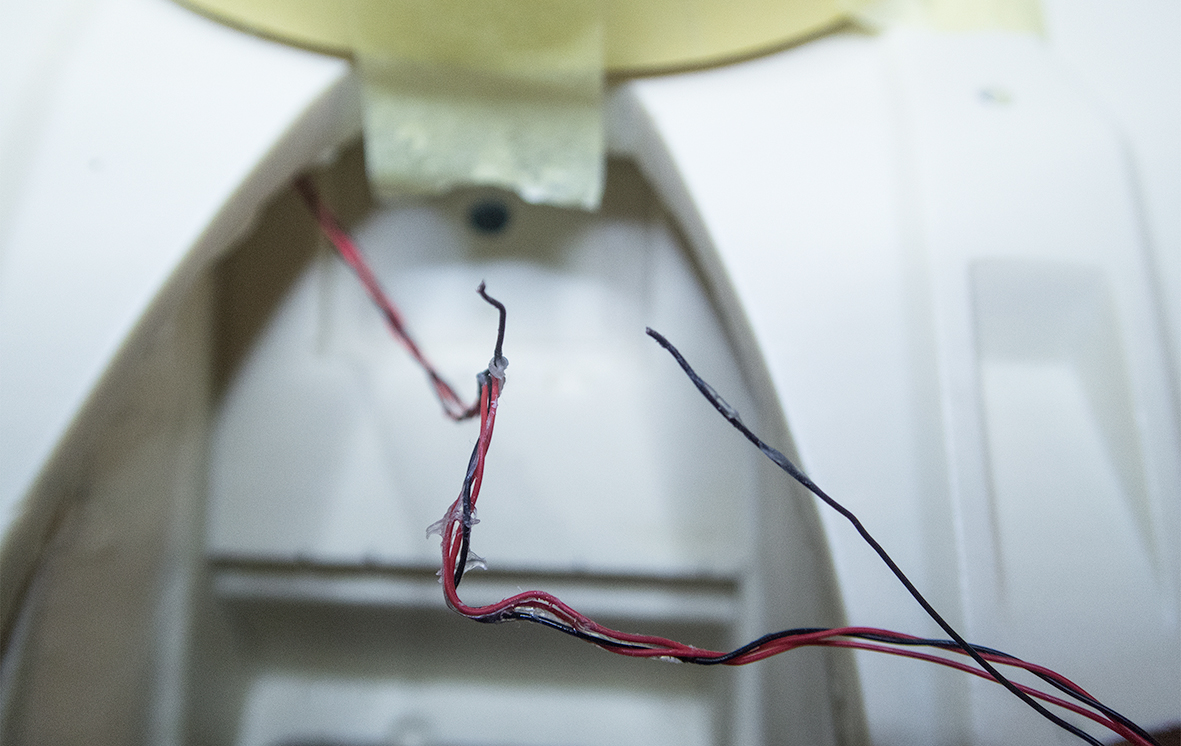

There was one mistake I made when fastening some of the wires though. It was so stupid. I use tiny hot glue blobs, it's great for fastening items that needn't look too neat, it's fast and non corrosive. I glued some wires with it on the inside and at one point I pressed the almost cooled glue down to make a neater little blob. To my horror the glue stuck to my finger more than usual and as I pulled my finger out I pulled a wire too. This was in a very narrow passage behind the rear cabin wall, absolutely impossible to fix with a soldering iron. I coudn't even see the other end of the severed wire at first. After some cusswords I had a heureka moment. It was hot glue, I heated it a little with a heater gun with a narrow nozzle to direct the air current precisely and sure enough, as the glue melted, I was able to loosen the wires with a dentist's tool (a hook at the end of a stick, like a pen) and wiggle them out thru a hole in the back.
I hate when this sort of stuff happens but it's fixed now. Phew!
Next, some tiny scale soldering for the flashing leds on top and bottom of the model. X-acto blade for size reference. No shaky hands for this bit.
The irony in this is that I don't need the lights to flash for photographs, this is just for fun.
This working around here and there approach was actually to avoid the part I dread the most (well, this and the final paintcoat): electronics! I originally thought this model woudn't be too difficult with lights but I was wrong. There number of leds that go in there is quite big and I had to sit down and really focus on designing the wiring to get everything right with the first attempt.
The model is being built for photography and I need to control the lights to a degree. They can't be all on all the time, I divided them into five banks on two circuits. Hiding the switches for them was a head scratcher but in the end I decided to sacrifice the flying drone well on the roof. Hidden in it now are the five switches I need. All I really had to do was scrape those wedges on the sidewalls off and make holes for the switches. This was the easy part.
When inserting all the wires necessary one easily gets them in a messy bundle. I wired one bank at the time (the steel tubes under the floor worked perfectly) and fastened each separately to the inner walls of the rear hull. This was to not get everything mixed further down the line.
There was one mistake I made when fastening some of the wires though. It was so stupid. I use tiny hot glue blobs, it's great for fastening items that needn't look too neat, it's fast and non corrosive. I glued some wires with it on the inside and at one point I pressed the almost cooled glue down to make a neater little blob. To my horror the glue stuck to my finger more than usual and as I pulled my finger out I pulled a wire too. This was in a very narrow passage behind the rear cabin wall, absolutely impossible to fix with a soldering iron. I coudn't even see the other end of the severed wire at first. After some cusswords I had a heureka moment. It was hot glue, I heated it a little with a heater gun with a narrow nozzle to direct the air current precisely and sure enough, as the glue melted, I was able to loosen the wires with a dentist's tool (a hook at the end of a stick, like a pen) and wiggle them out thru a hole in the back.
I hate when this sort of stuff happens but it's fixed now. Phew!
Next, some tiny scale soldering for the flashing leds on top and bottom of the model. X-acto blade for size reference. No shaky hands for this bit.
The irony in this is that I don't need the lights to flash for photographs, this is just for fun.
Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.
Chuffy 70
Member
Loving the build so far, I have a few R.Cooper kits (Ghost and Phoinex) so this is of interest to me as the K Spinner on my wants list.
I've also planned to light my kits 'my way' but had no idea how to do it, so I found a place in the UK called Welcome Aboard! (captainjacksmodels.co.uk) where I sent a scaled drawing of the model to a very helpful chap called Chris Williams who has helped me with all my needs...maybe of interest to you perhaps?
Good luck with the build
I've also planned to light my kits 'my way' but had no idea how to do it, so I found a place in the UK called Welcome Aboard! (captainjacksmodels.co.uk) where I sent a scaled drawing of the model to a very helpful chap called Chris Williams who has helped me with all my needs...maybe of interest to you perhaps?
Good luck with the build
Avanaut
Well-Known Member
Thanks for the tip. It is good to know options and different sources for all the various bits and bobs.Loving the build so far, I have a few R.Cooper kits (Ghost and Phoinex) so this is of interest to me as the K Spinner on my wants list.
I've also planned to light my kits 'my way' but had no idea how to do it, so I found a place in the UK called Welcome Aboard! (captainjacksmodels.co.uk) where I sent a scaled drawing of the model to a very helpful chap called Chris Williams who has helped me with all my needs...maybe of interest to you perhaps?
Good luck with the build
I prefer using small SMD leds for my builds, they're small and efficient but take very little room to install. Only on rare occasions I use 3mm or 5mm leds, I tend to shy away from their whites because the ones I have found have inconsistencies in colour temperatures. Even though the naked eye accepts some of that variance, the digital camera is merciless, it picks up even the slightest differences. It's very annoying. Red ones are good and quite handy if a more focused beam of light is needed.
Great so far and I’m glad that you’re enjoying the build. Your lighting work is outstanding, far beyond me, but it’s going to look phenomenal.
For supporting the front wheels, would it be possible to install a steel axle or anchor pin which could be engaged/ disengaged by an external magnet?
I’ll probably strengthen the kit’s major joints as you’ve done. It can be daunting, but is a long term investment.
I’ve found that replacing resin tubes etc with rod or tube is far easier than trying to round the resin part and it can help square, strengthen or bring symmetry to sub assemblies. Most of the details on my BTTF train were substantially modified and some scratch built. Your floor replacement is a great idea, I may end up doing the same.
I have not started my build, but think that I have identified the likely problem areas.
Keep up the great work.
For supporting the front wheels, would it be possible to install a steel axle or anchor pin which could be engaged/ disengaged by an external magnet?
I’ll probably strengthen the kit’s major joints as you’ve done. It can be daunting, but is a long term investment.
I’ve found that replacing resin tubes etc with rod or tube is far easier than trying to round the resin part and it can help square, strengthen or bring symmetry to sub assemblies. Most of the details on my BTTF train were substantially modified and some scratch built. Your floor replacement is a great idea, I may end up doing the same.
I have not started my build, but think that I have identified the likely problem areas.
Keep up the great work.
Avanaut
Well-Known Member
Slowly going forwards.
The main electronics are installed and THEY WORK! It looks messy but it's really not. There is a system. On the top you see my notes, the markings are a reminder of the colour coded wiring. I need to be aware of what colour runs which set of lights. It has worked well so far.
There are still three set of wires loose to be connected to the lights on and in the ceiling of the chassis when it's installed, and to the dashboard.
The dashboard is tricky. It takes three wires to operate and I need to be able to have the roof element on before I can install the dashboard. That means wiggling the dashboard in thru the door and gluing it on inside the cabin. The sequence is a bit awkward but I don't see how else I can possibly do it. The dashboard will be connected to the wires by a simple connector plug during assembly. I'm confident it'll work just fine. Fingers crossed.
Here are the wires criss-crossing inside the front wall. Nothing will be visible when finished.

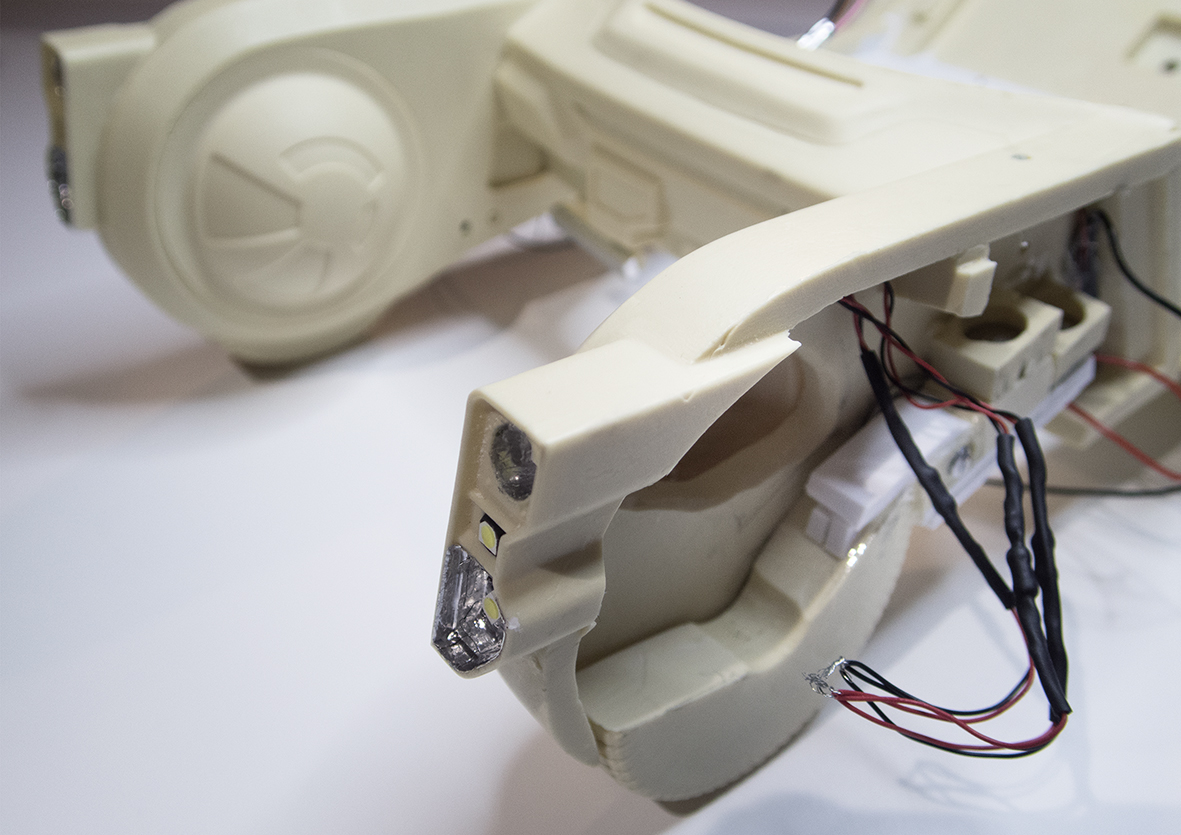

While figuring these out, I made progress with the front mandibles. Some of the numerous headlights are now fitted to their slots. Here you can also see the adjustable front tires, they were cut to pieces to make more room for the wires. They weren't rotating wheels so this doesn't matter.
Now, these were the broad brushstrokes, so to speak. After this everything becomes increasingly more delicate, details need to be finessed with precision because everything will be seen in the final model. The model kit doesn't have all the details the actual filming vehicle has. I need to scratchbuild some to add some bits and pieces here and there. I do not have very good photographic reference of the interior. Well, I have the images I have found online but they're really not as good as I would like.
I have images like the ones below. Some are closer, some from slightly different angles but essentially not much better. There are also the screencaps from the movie but they're not really that extensive either. I may have to wing some of the details simply to my liking. Unless, of course, any of you have better references to share...
I still don't know what to paint the chassis with. There is time to figure that out yet.
The main electronics are installed and THEY WORK! It looks messy but it's really not. There is a system. On the top you see my notes, the markings are a reminder of the colour coded wiring. I need to be aware of what colour runs which set of lights. It has worked well so far.
There are still three set of wires loose to be connected to the lights on and in the ceiling of the chassis when it's installed, and to the dashboard.
The dashboard is tricky. It takes three wires to operate and I need to be able to have the roof element on before I can install the dashboard. That means wiggling the dashboard in thru the door and gluing it on inside the cabin. The sequence is a bit awkward but I don't see how else I can possibly do it. The dashboard will be connected to the wires by a simple connector plug during assembly. I'm confident it'll work just fine. Fingers crossed.
Here are the wires criss-crossing inside the front wall. Nothing will be visible when finished.
While figuring these out, I made progress with the front mandibles. Some of the numerous headlights are now fitted to their slots. Here you can also see the adjustable front tires, they were cut to pieces to make more room for the wires. They weren't rotating wheels so this doesn't matter.
Now, these were the broad brushstrokes, so to speak. After this everything becomes increasingly more delicate, details need to be finessed with precision because everything will be seen in the final model. The model kit doesn't have all the details the actual filming vehicle has. I need to scratchbuild some to add some bits and pieces here and there. I do not have very good photographic reference of the interior. Well, I have the images I have found online but they're really not as good as I would like.
I have images like the ones below. Some are closer, some from slightly different angles but essentially not much better. There are also the screencaps from the movie but they're not really that extensive either. I may have to wing some of the details simply to my liking. Unless, of course, any of you have better references to share...
I still don't know what to paint the chassis with. There is time to figure that out yet.
Last edited:
Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.
Avanaut
Well-Known Member
I did swap the resin axles for the front wheels for steel ones but I didn't alter the functionality. There might be room for a locking pin, it's a great idea, I never thought of that.

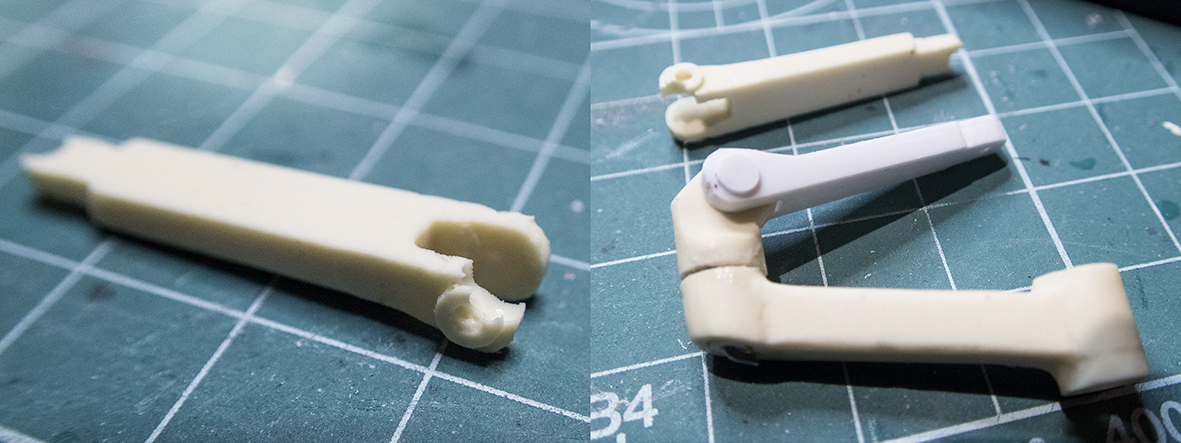

For functionality of the front wheels I added strengthening material to the magnet extensions. Actually, I extended them to make them hold better and added more magnets. Now I think they will hold the weight when finished, but if not, I will find that out before gluing the mandible exterior on. If the car is too heavy for the magnets, I can simply add more before sealing everything in.
If you replace the floor, watch out for the little angle around the front edge of the door. I kinda missed that and my floor is straight. It won't show when finished if you don't know exactly where to look, but it's there and it's a flaw. I can live with it though and the good thing is that the floor is now solid as a rock, it won't be the first to crack if this thing falls to the floor.
Some screen captures here:
lukedowding.com
and
270+ Blade Runner 2049 4k Screen Shots / Frame Captures - Luke Dowding - on the web
(Last Updated On: March 10, 2018)The 4k Blu-Ray version of Blade Runner 2049 recently came out so I spent a few hours going through the movie frame-by-frame to get some of the most beautiful screenshots from the movie. Well, I ended up getting 270 so I guess I absolutely love this movie, Roger...
lukedowding.com
and
Blade Runner 2049 Screencaps Gallery - Ryan Gosling, Harrison Ford, Robin Wright and Sylvia Hoeks (2017)
Gallery of Blu-ray screen captures from the 2017 American neo-noir science fiction movie, 'Blade Runner 2049'. Ryan Gosling, Harrison Ford, Robin Wright and Sylvia Hoeks.
screenmusings.org
Last edited:
Avanaut
Well-Known Member
Thanks! There are several sites for screencaps. The various sites have slightly different frames, going thru them just needs a moment.Some screen captures here:
270+ Blade Runner 2049 4k Screen Shots / Frame Captures - Luke Dowding - on the web
(Last Updated On: March 10, 2018)The 4k Blu-Ray version of Blade Runner 2049 recently came out so I spent a few hours going through the movie frame-by-frame to get some of the most beautiful screenshots from the movie. Well, I ended up getting 270 so I guess I absolutely love this movie, Roger...
and
Blade Runner 2049 Screencaps Gallery - Ryan Gosling, Harrison Ford, Robin Wright and Sylvia Hoeks (2017)
Gallery of Blu-ray screen captures from the 2017 American neo-noir science fiction movie, 'Blade Runner 2049'. Ryan Gosling, Harrison Ford, Robin Wright and Sylvia Hoeks.screenmusings.org
The thing is that they don't show the car very well in the movie. It's just a prop, they use it only for telling the story.
Avanaut
Well-Known Member
Not much progress. It's Christmas time and it takes some steam off from these things.

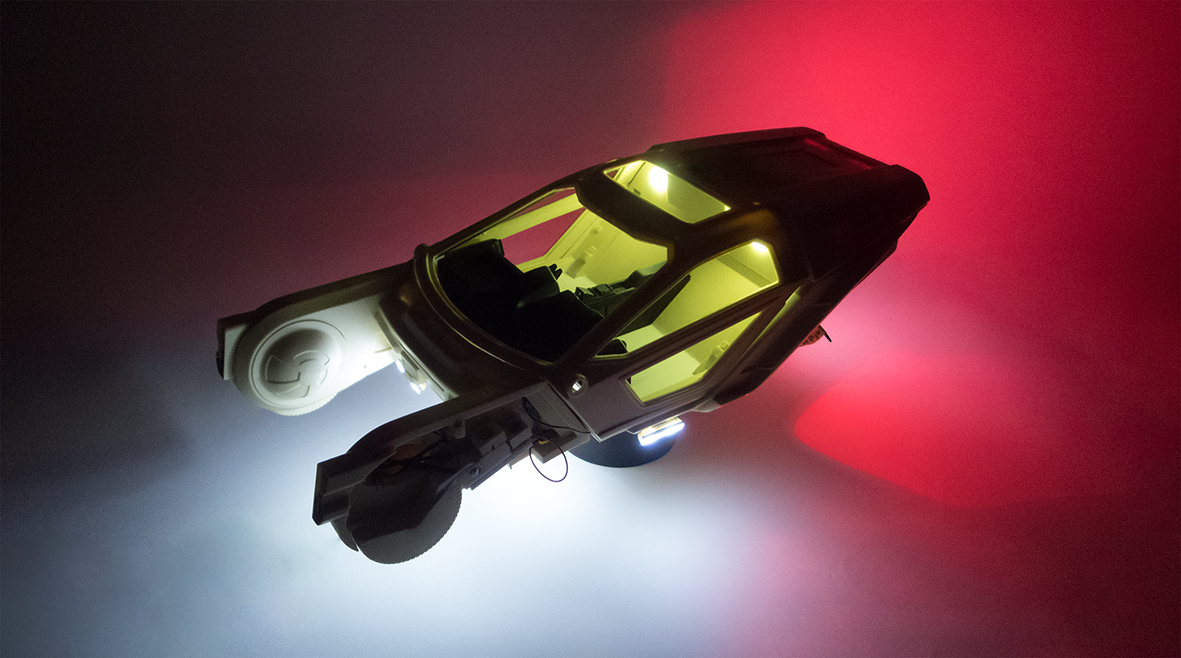

I have successfully installed some of the lights and they all work. Even the red and white blinkers work fine:
