Batman V Superman Grapple COMPLETE!!

[13doctorwho]

I just started this 2 days ago. It's a model of the Batman Versus Superman grapple gun. I am working from the pictures in the Batman V Superman Technical Manual. The pictures of the props are excellent in this book, and allowed me to see some details I was unable to make out from other photos off the internet. Here is my progress so far. I may carve the handle out of wood and 3d print the rest. Take a look and let me know what you think!!



[13doctorwho]

Re: Batman Versus Superman Grapple model UPDATED

Here is a little update.It's coming along pretty well. Take a look and let me know what you think.



[Rusty85]

Re: Batman Versus Superman Grapple model UPDATED

Looks great! Super detailed. Has anyone done one of these in metal?



[13doctorwho]

Re: Batman Versus Superman Grapple model UPDATED

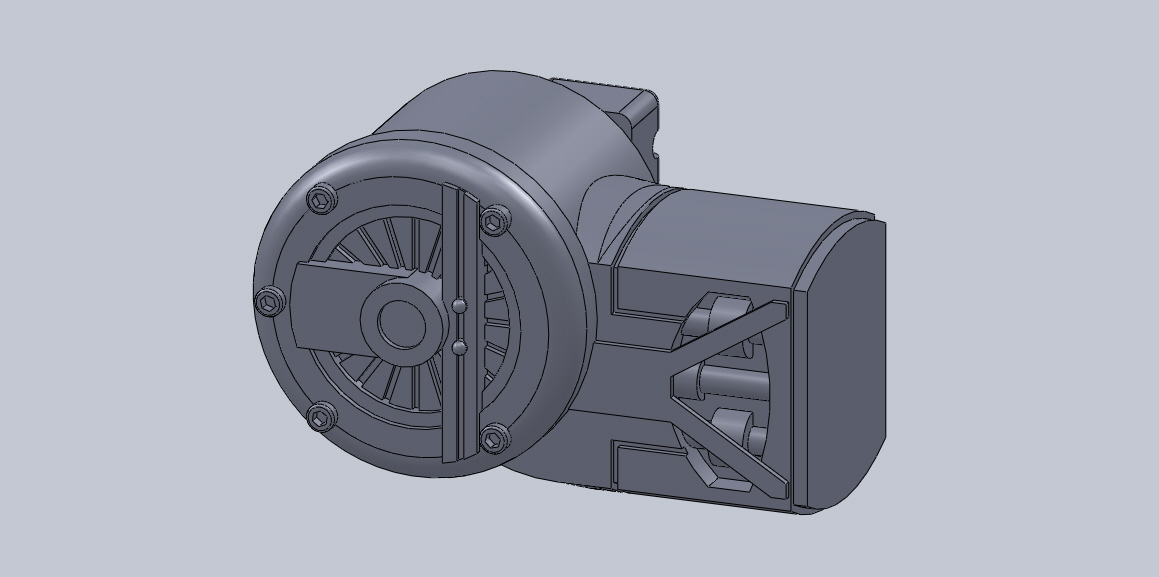

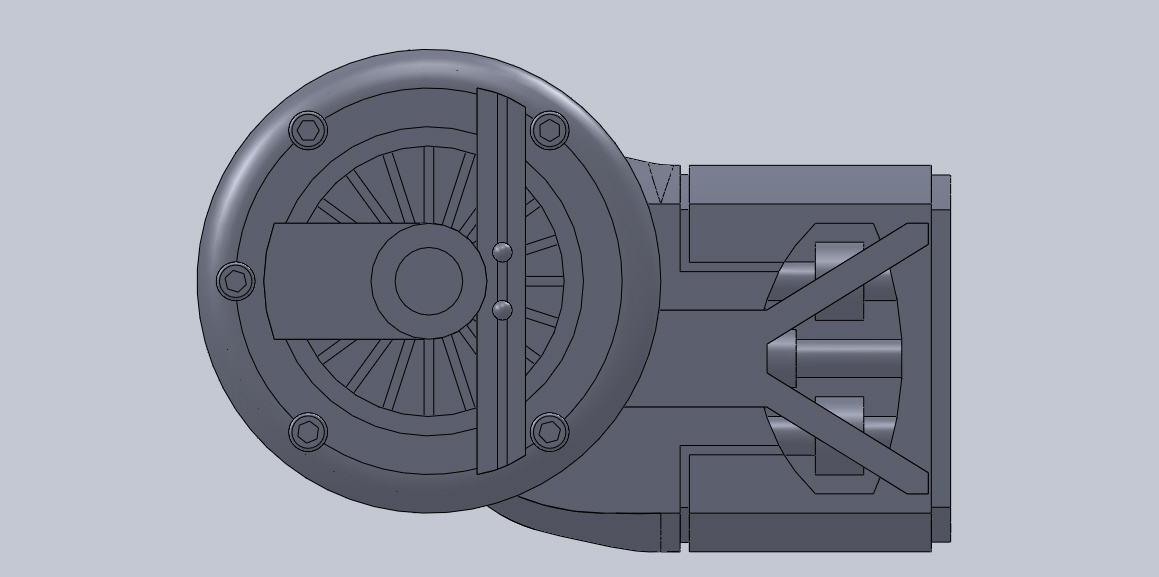

Here is another update. I'm making pretty good progress. Take a look!



[13doctorwho]

Re: Batman Versus Superman Grapple model UPDATED

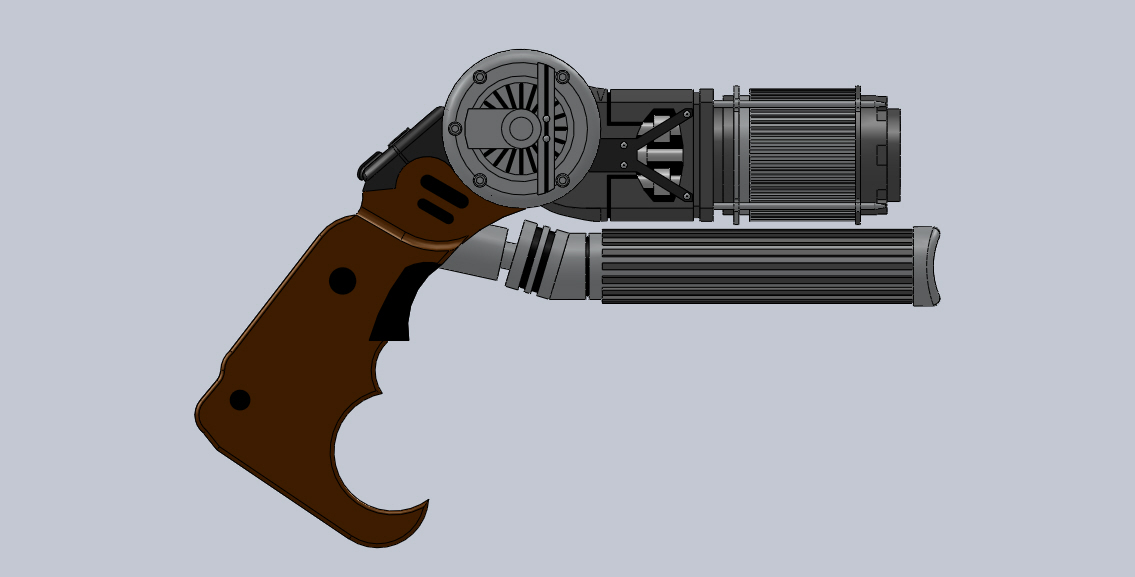

I'm almost there! I am having a hard time getting the program to shape the handle. I may print the handle as is and shape it with a dremel tool. The other option is to not print the handle and make it out of wood. Here are some progress shots. Take a look and let me know what you think.



[teragon]

Re: Batman V Superman Grapple Updated 4/24/2016

I would suggest hollowing the under barrel and putting it closer to the main barrel, almost clipping through it. Good job otherwise !



[13doctorwho]

Re: Batman V Superman Grapple Updated 4/24/2016

Thank you for your comments. I agree that the under barrel should be closer to the main barrel. In the pictures they look like they touch, but for the purpose of modelling I left some space so when I break it into parts it's easier. The under barrel will have pins that mount it to the top barrel in the final version



[305primus]

Re: Batman V Superman Grapple Updated 4/24/2016

Looks great nice modeling, is it cool if I use this as a blueprint/reference when I build my grapple gun out of PVC and foam?

Gus



[13doctorwho]

Re: Batman V Superman Grapple Updated 4/24/2016

Feel free to use this as a reference for your own build. I recommend using the Batman V Superman Technical Manual book, that's what I used for reference.



[13doctorwho]

Re: Batman V Superman Grapple Updated 4/24/2016

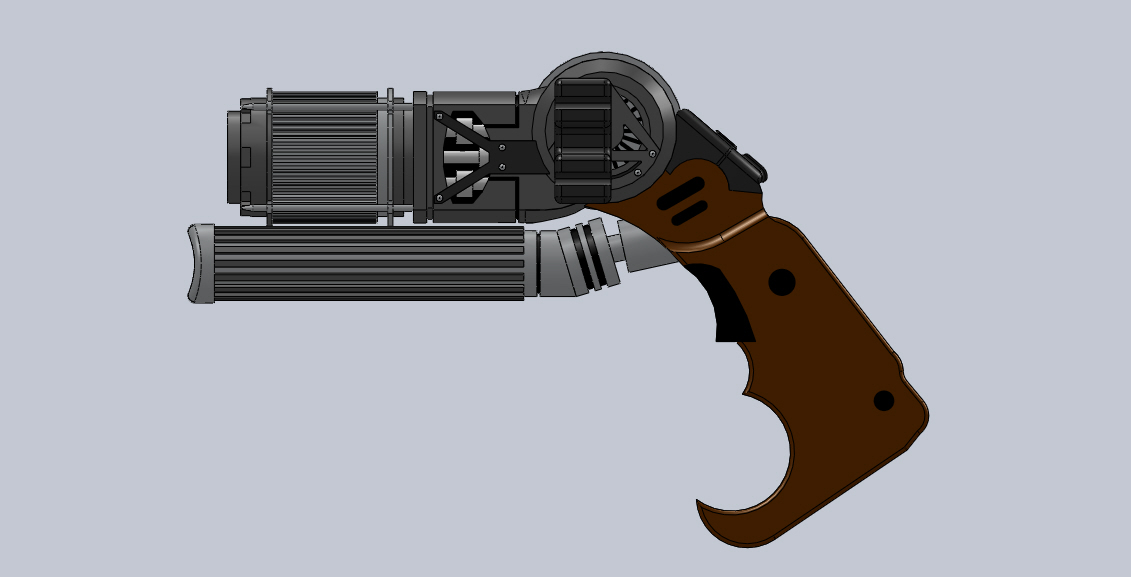

Here is another update. I moved the lower barrel closer to the main barrel. There are a couple small details I still need to add, but I'm getting really close to finished!



[Rusty85]

Re: Batman V Superman Grapple Updated 4/24/2016

Looks great!



[creative stress]

Re: Batman V Superman Grapple Updated 4/24/2016

Great modelling impressed

Sent from my SM-G900F using Tapatalk



[13doctorwho]

Re: Batman V Superman Grapple Updated 4/24/2016

Thank you all for your comments. I have hollowed it out to reduce printing cost. I am in the process of dividing it into pieces to make printing easier and cheaper!



[zmanz]

Re: Batman V Superman Grapple Updated 4/24/2016

I like that its hollow, so I'll be able to put a dart in there. I mean... When you sell me one:thumbsup



[13doctorwho]

Re: Batman V Superman Grapple Updated 4/24/2016

Parts are on order! In a few weeks I should be able to start actual assembly!



[13doctorwho]

Re: Batman V Superman Grapple Updated 4/24/2016

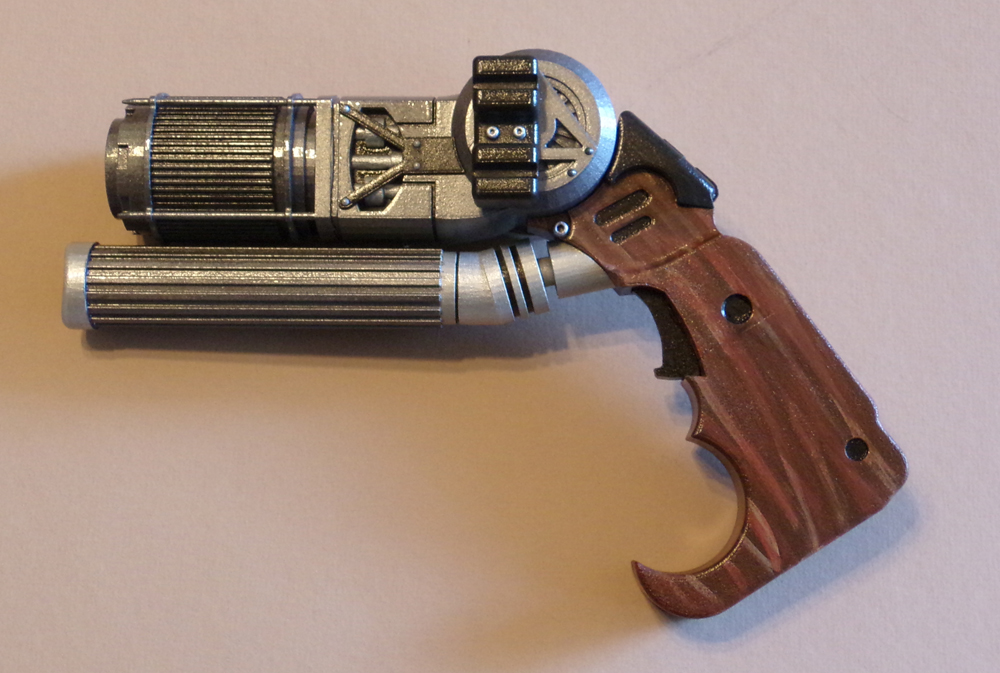

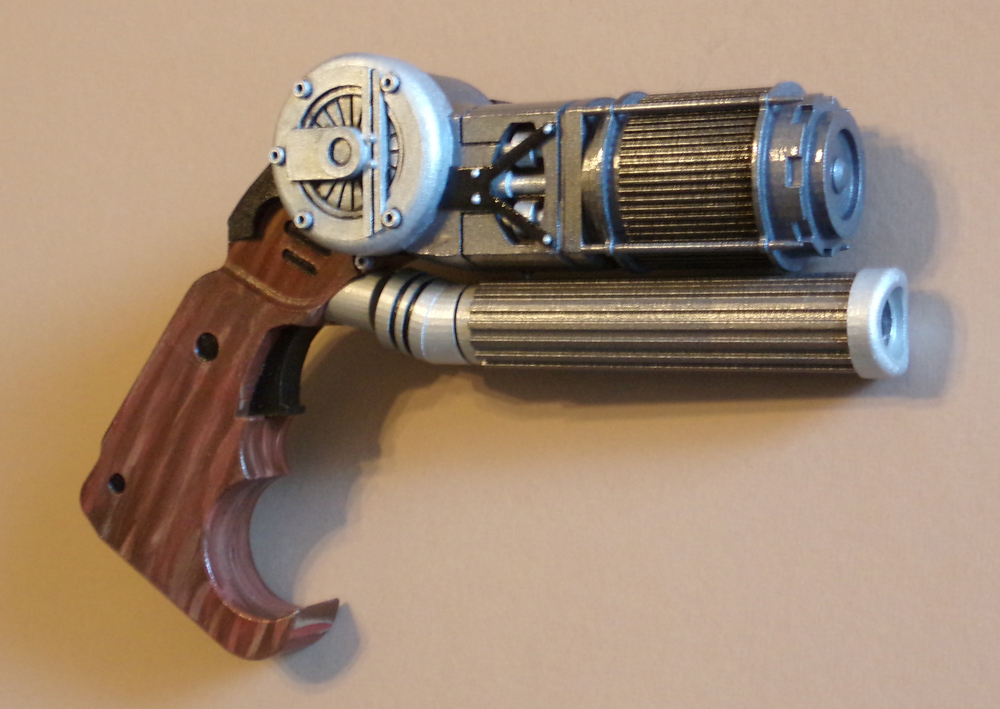

I finally have the prototype complete. There are things I want to change, but it's a good first try. Take a look and let me know what you think.



[zmanz]

very nice.



[13doctorwho]

Thank you to everyone who has taken the time to look, like or comment! I have finished modeling part 2, the actual hook. It's far from perfect, but I think it will look good with the grapple!! Take a look and let me know what you think.



It OPENS!!



[zmanz]

Sweet... Great work.



[Stocos28]

Awesome! Now I need one.
