Any one good with circuits and electronics?

[Drac]

Then the external amp should work if wired correctly, can I ask a dumb question, is it doing anything or is the setup totally dead?:unsure

No such thing as a stupid question ;-) there is power getting to the sound board, and if I bridge the ground to the activators then I can hear sound if I plug in earphones into the earphone socket. But that’s it nothing else is working


Sent from my iPhone using Tapatalk



[teslabe]

In your picture from post #164, I don't see any power leads going to the amp and as "jintosh" noted, the input was hooked up incorrectly, was the photo taken before you added the wires for power?



[Drac]

In your picture from post #164, I don't see any power leads going to the amp and as "jintosh" noted, the input was hooked up incorrectly, was the photo taken before you added the wires for power?

I was trying to figure out how to run the input for the sound and the power, I was confused as to which went to where. I may look into the sound board with built in amp to avoid needing the mess around of a separate amp.


Sent from my iPhone using Tapatalk



[teslabe]

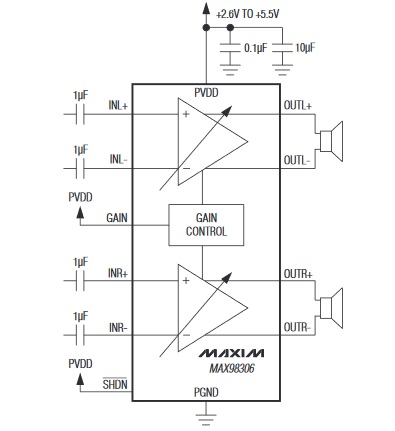

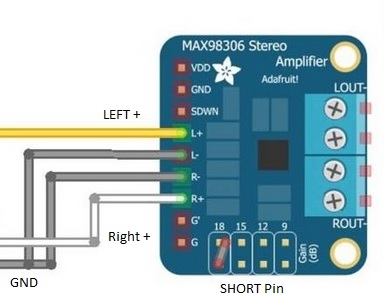

Can I suggest you try one more time with your pictured setup but wire like the picture here. Connect the Right output from the sound board to Right + on the amp, Left output from the sound board to Left + on the amp, both Right and Left - to ground of the setup but this time be sure to short at least one of the gain pins at the bottom of the amp, start with the "9db" pins, just wrap a wire around them to start with and let me know if that works.



[teslabe]

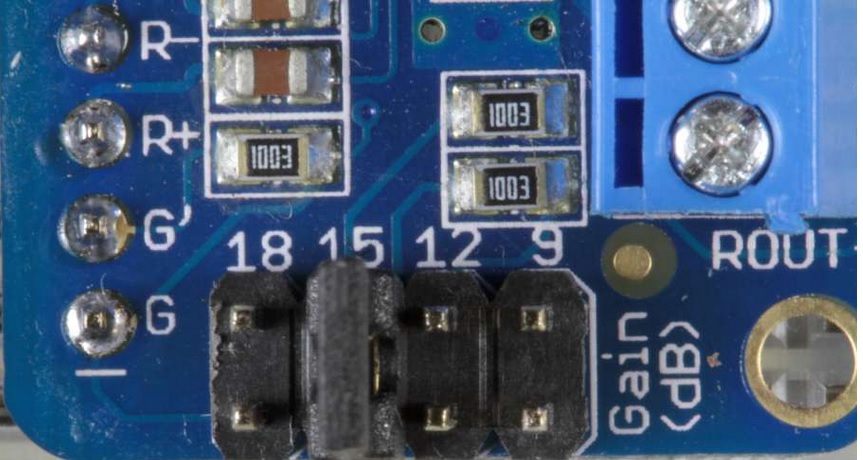

Sorry, forgot the picture of the pins to short.... Again, start with 9db and go up from there.



[Drac]

Sorry, forgot the picture of the pins to short.... Again, start with 9db and go up from there.

View attachment 777767

Thanks I’ll give it a try, I’m working through this week, but I’ll try again at the weekend. Of course this is all in vain if I’ve already blown the board lol :-/


Sent from my iPhone using Tapatalk



[teslabe]

As long as you didn't tie the speaker output's negative line to the systems ground you should be o.k., they need to float.
