3d printed 1:1 Johnny 5 and Chappie heads

[andynccb]

Hi all,

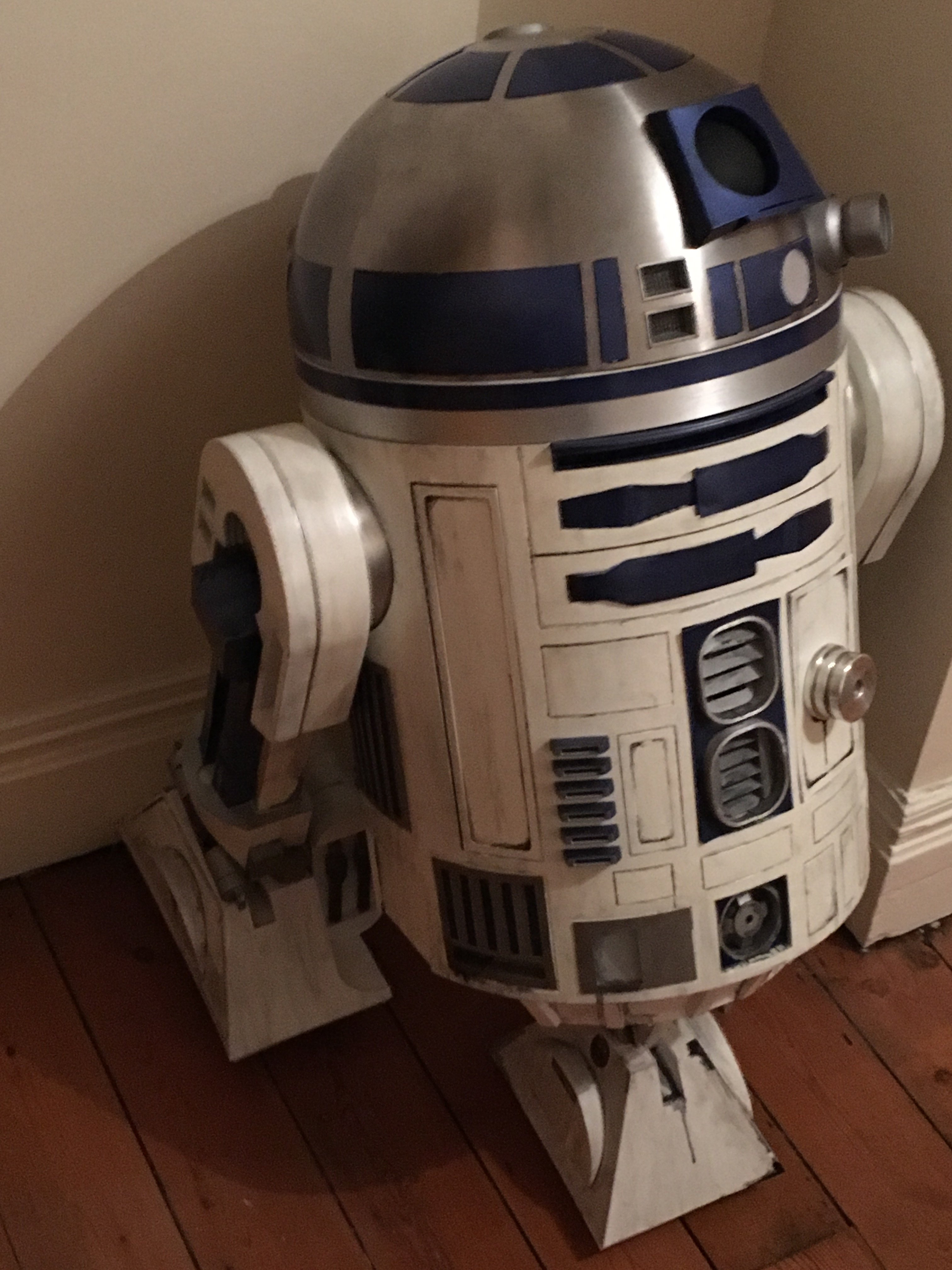

This is my first post been a member a while but with family commitments I have hardly done any modelling or any cad work. After completing a full RC R2 complete with EZ robot hardware and now on with WALL-E and having purchased a 3d printer which I do say helps loads prototyping, I thought it was time to get back at it. At this moment I suppose I am after any feed back, criticism pointers as I would like to offer these files or full kits if there is enough interest. The files are not fully complete yet and are probably not 100% accurate but are close.

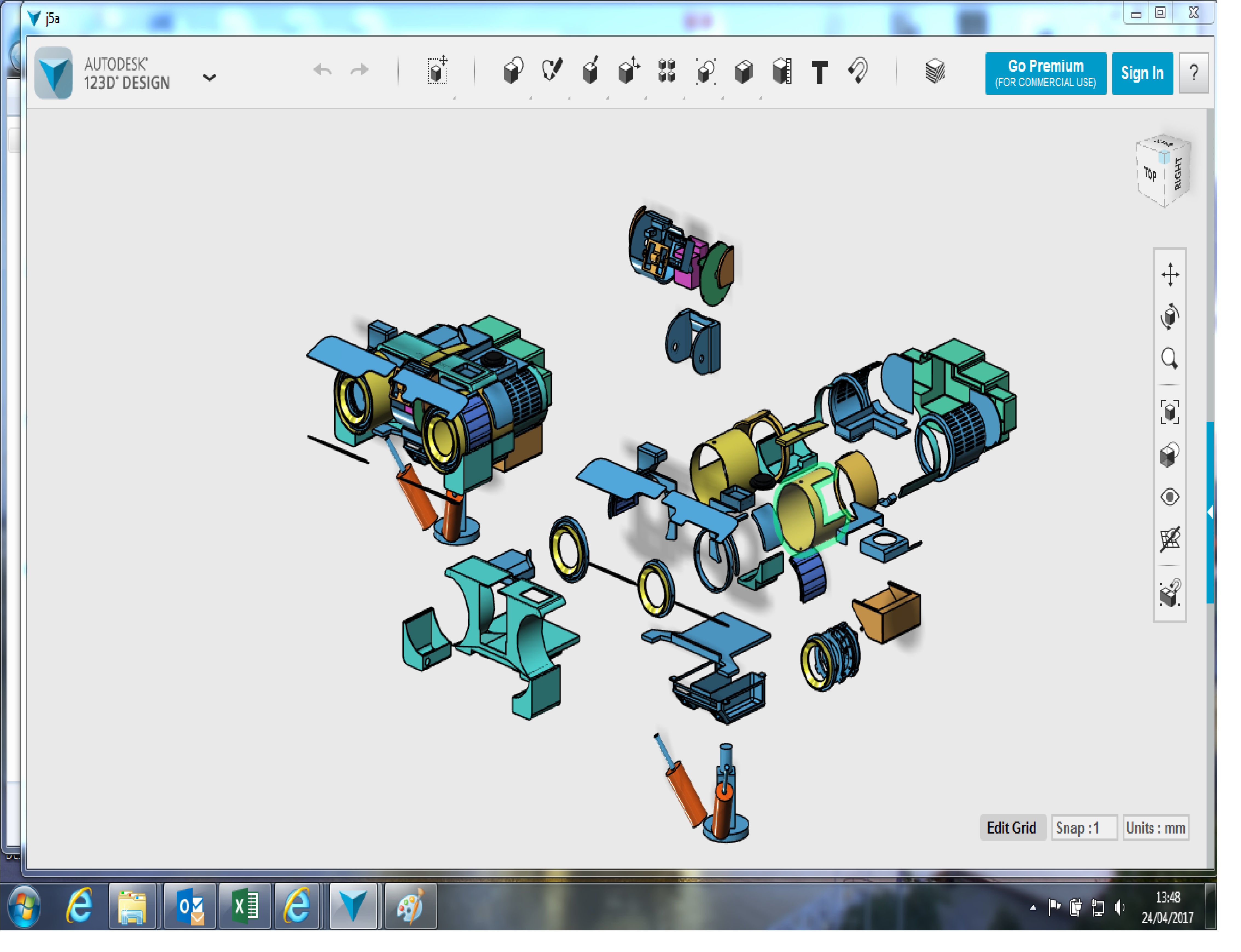

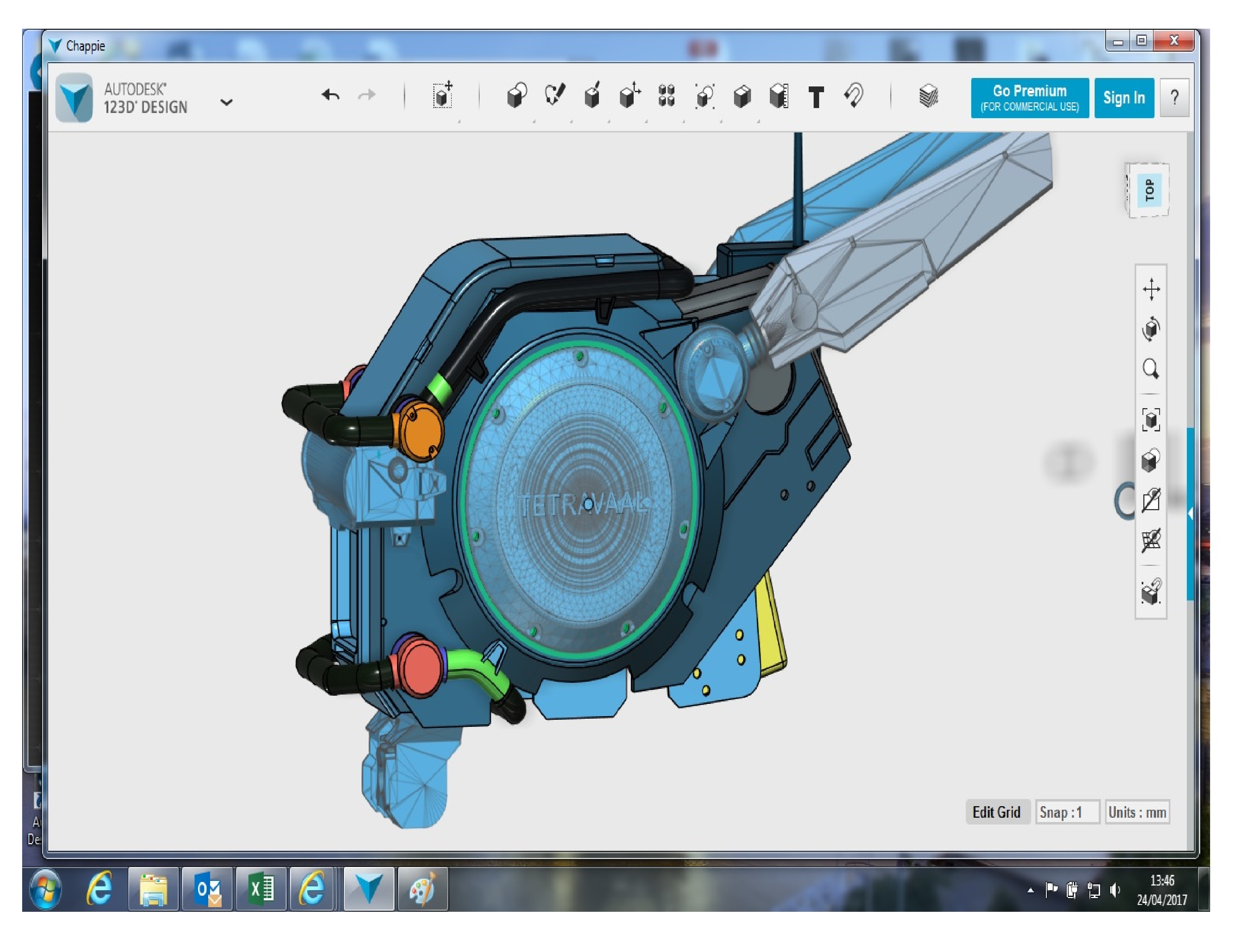

The chappie head would allow for all the servos that move the brow and ears etc, the Johnny 5 head is more complicated with a 3d printed Iris I have prototyped this already for proof of concept and it works great servo controlled also with integrated servos for the nose and eye lids I will post a pic and a vid when I get chance.



obviously both of these are 3d printable and I can break them up for smaller printers if required anyway less of me rabbiting on.

many thanks



Andy B

Leeds UK



[TinyTim]

This is awesome! I started modeling Johnny's tread section in Inventor, but my computer needs a clean install of windows before I can continue. Hopefully I can wrap that up this weekend. What did you use to model this?
