I'm about 80% done so far. The plan is to make this 3d printable in snap-together pieces like I did with the scout trooper blaster.
Last edited:
3D printable DL-18 Kanan's blaster from Star Wars Rebels COMPLETED!
- Thread starter zenix
- Start date
MarkoPolo69
New Member
Re: 3D printable DL-18 Kanan's blaster from Star Wars Rebels
Nice ... Here is my version, requires glue though!
Nice ... Here is my version, requires glue though!
MarkoPolo69
New Member
Re: 3D printable DL-18 Kanan's blaster from Star Wars Rebels
Sweet trigger!! I used Cinema 4D to do the modeling.... The blockyness was done on purpose. I'm in the UK so wanted to make sure it could not be mistaken for a real firearm. It looks fine from a distance when painted black and weathered but is obviously NOT real up close. That's also the reason It doesn't have a trigger, we have to be super careful at the moment.
Sweet trigger!! I used Cinema 4D to do the modeling.... The blockyness was done on purpose. I'm in the UK so wanted to make sure it could not be mistaken for a real firearm. It looks fine from a distance when painted black and weathered but is obviously NOT real up close. That's also the reason It doesn't have a trigger, we have to be super careful at the moment.
Attachments
Last edited:
Re: 3D printable DL-18 Kanan's blaster from Star Wars Rebels
Fantastic, I was hoping someone would model up that blaster! I like how they adapted the Jabba's palace blaster for the show.
Fantastic, I was hoping someone would model up that blaster! I like how they adapted the Jabba's palace blaster for the show.
Mara Jade's Father
Master Member
Re: 3D printable DL-18 Kanan's blaster from Star Wars Rebels
Very nice. Any plans to do more Rebels items like Hera's Blaster, Sabine's paint sprayer, etc...?
Very nice. Any plans to do more Rebels items like Hera's Blaster, Sabine's paint sprayer, etc...?
Re: 3D printable DL-18 Kanan's blaster from Star Wars Rebels

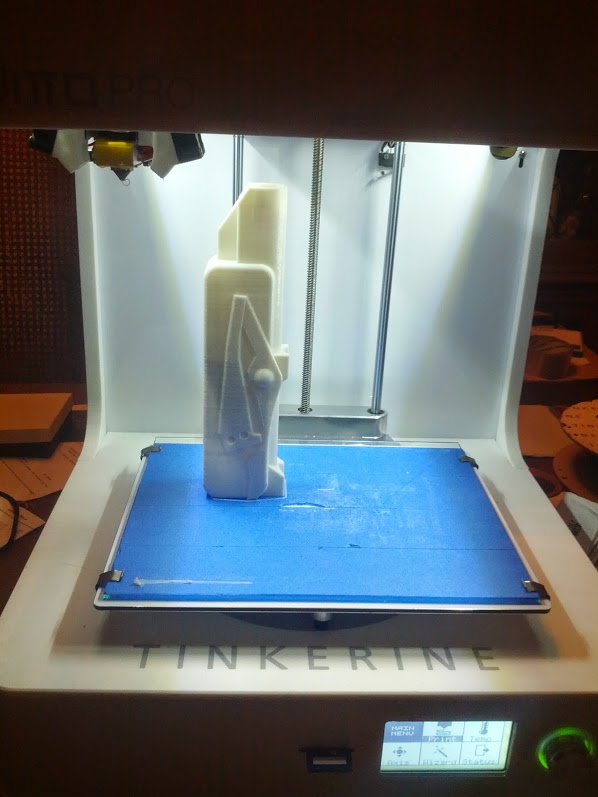

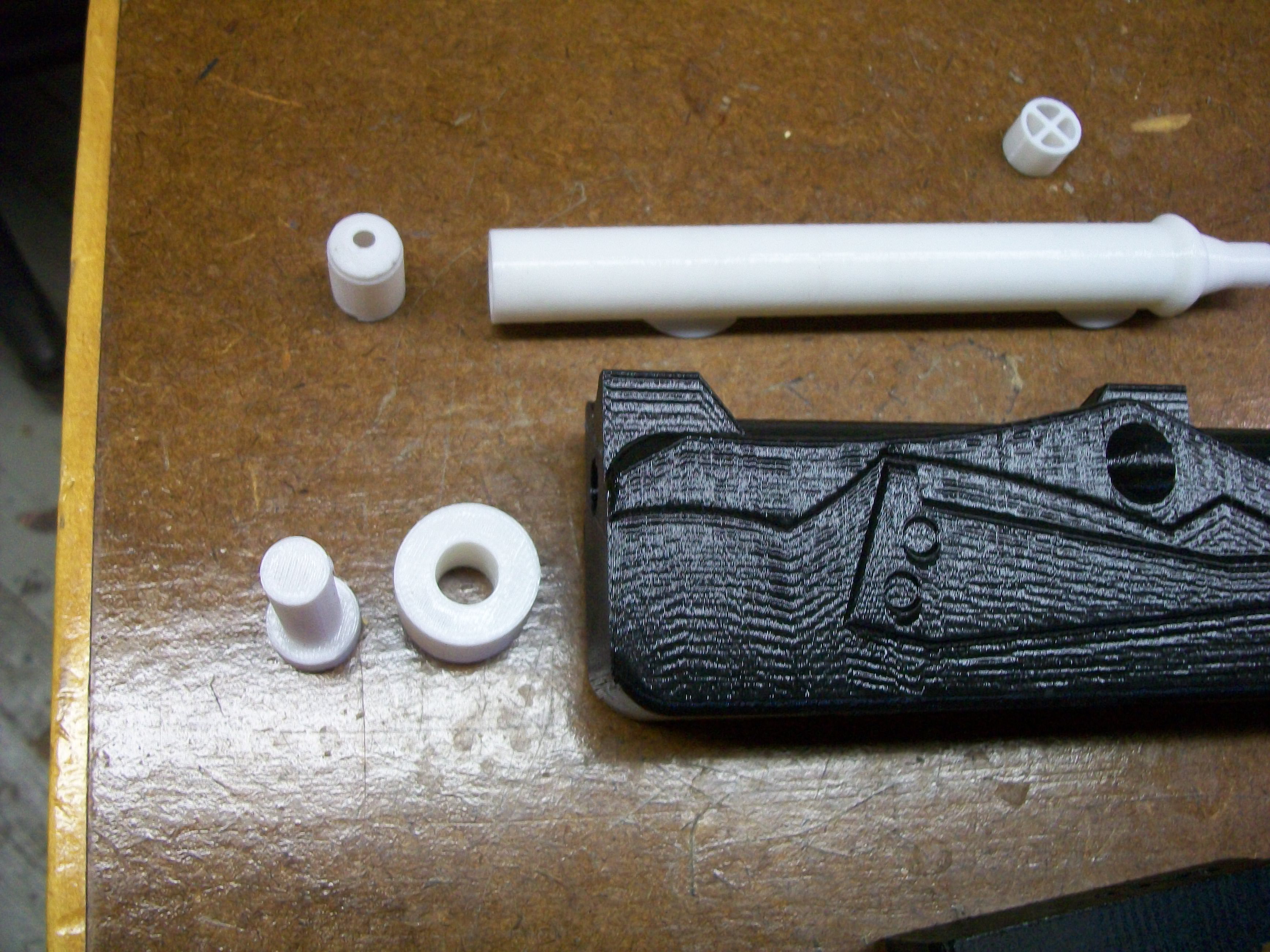

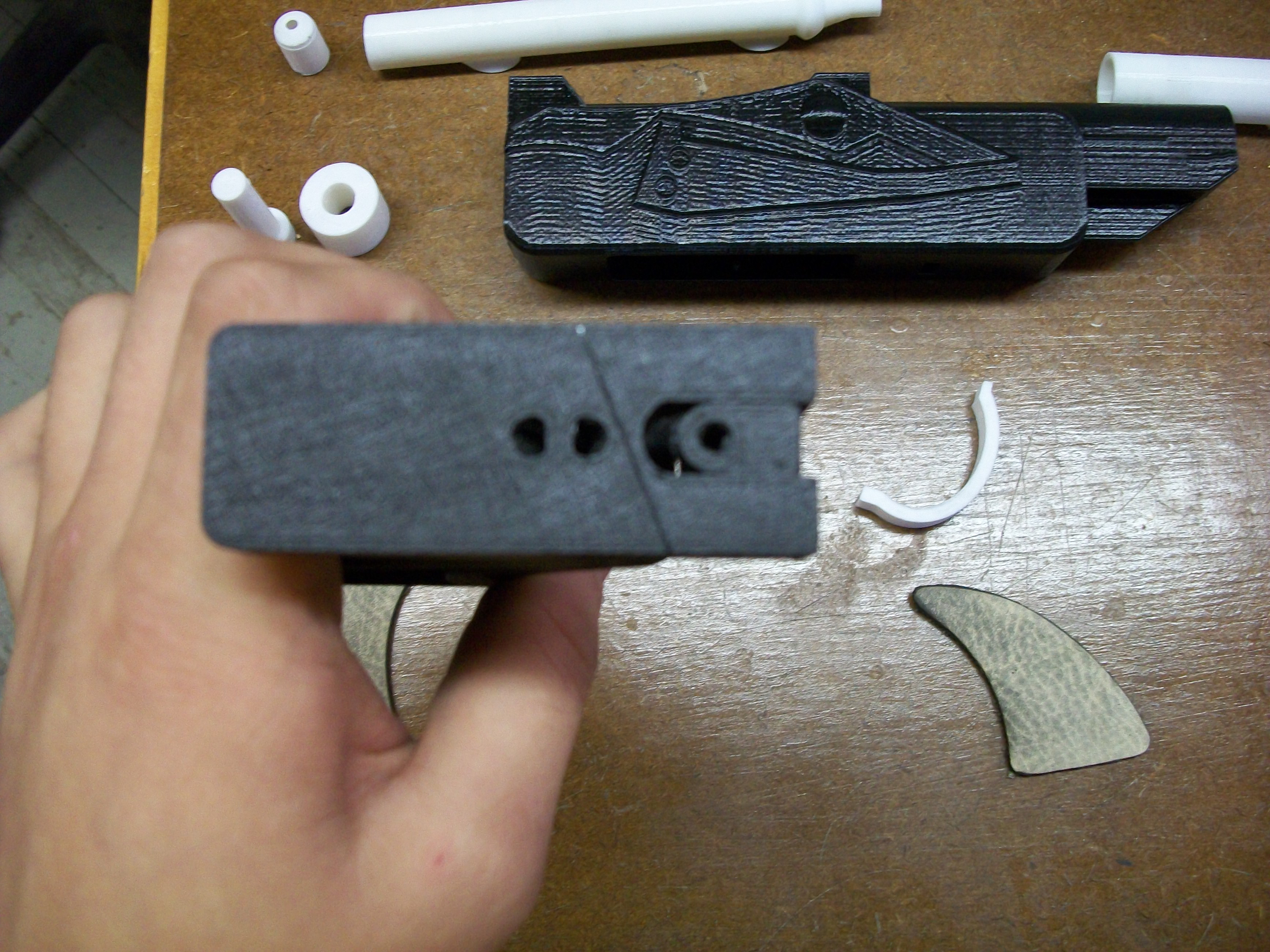

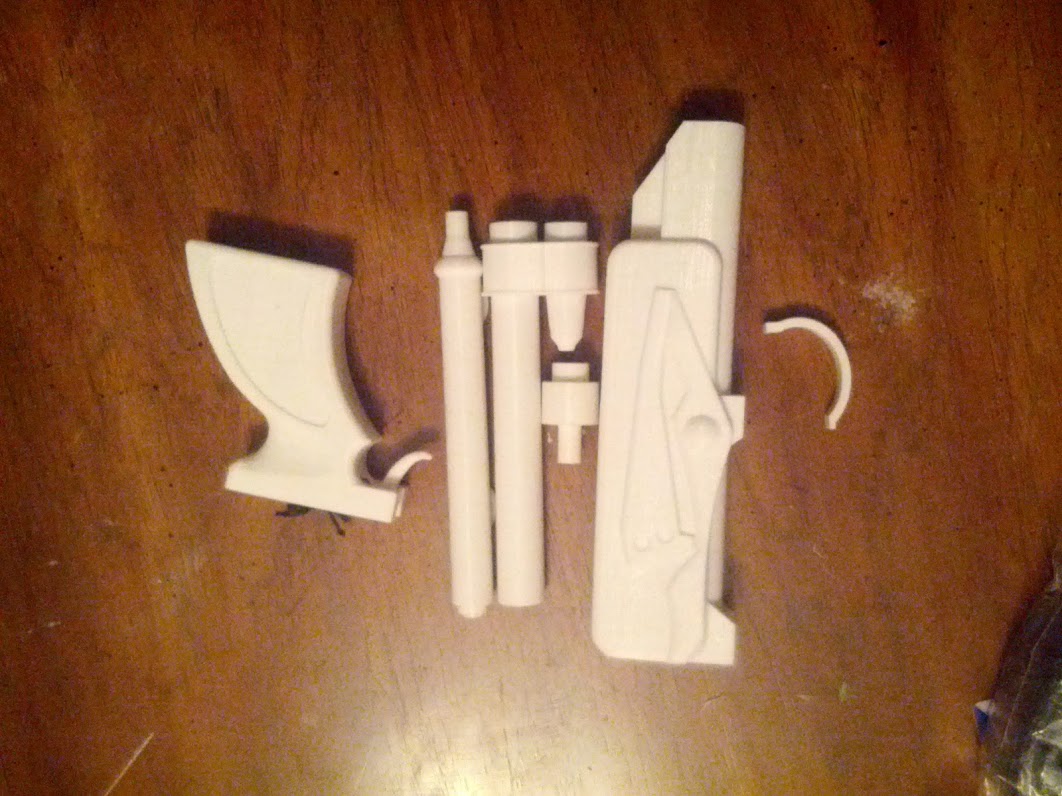

Ya I can do them. I don't see the side rockets on Kanan's so I won't b including it in the main model. It's going to be 9 or 10 pieces total. I'm pretty much done. I've printed the scope and the handle so far. A bunch of the small parts are printing now. I'll finish the main block before i go to bed and get the print tarted overnight. It's the longest one by far

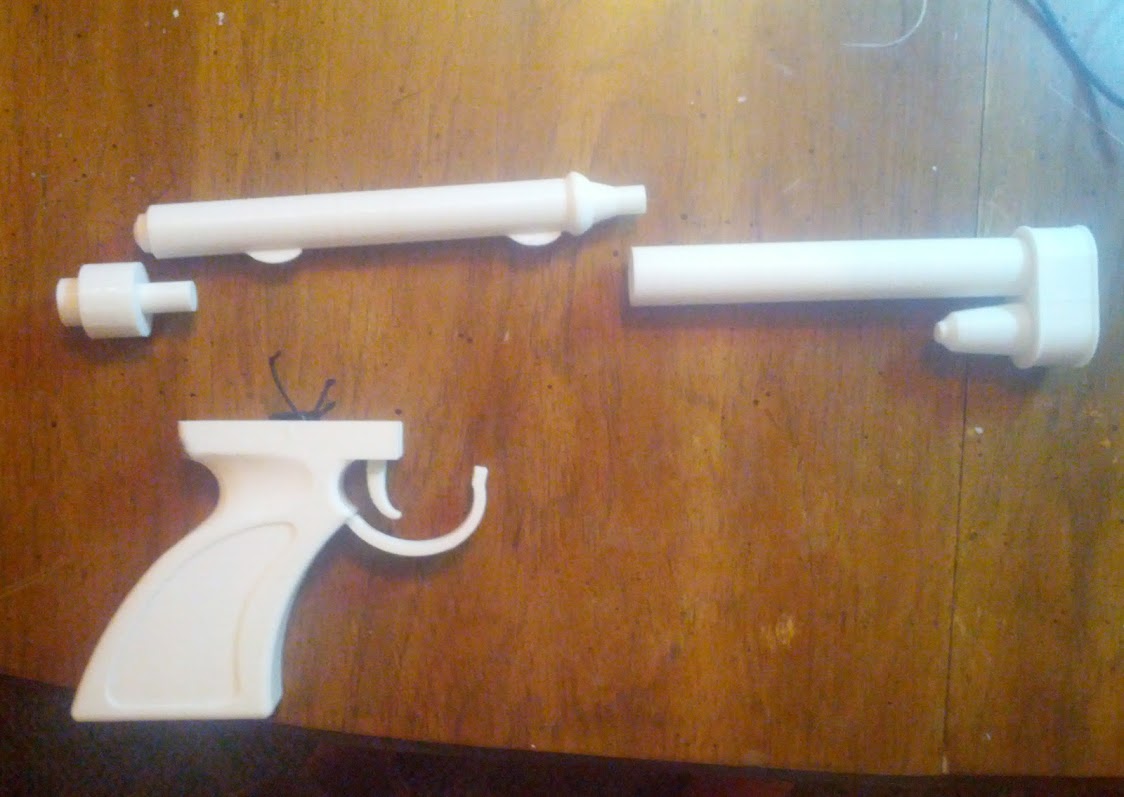

Here's the handle, trigger printed-in-place
Ya I can do them. I don't see the side rockets on Kanan's so I won't b including it in the main model. It's going to be 9 or 10 pieces total. I'm pretty much done. I've printed the scope and the handle so far. A bunch of the small parts are printing now. I'll finish the main block before i go to bed and get the print tarted overnight. It's the longest one by far
Here's the handle, trigger printed-in-place
Last edited by a moderator:
Country Paul
Sr Member
Re: 3D printable DL-18 Kanan's blaster from Star Wars Rebels

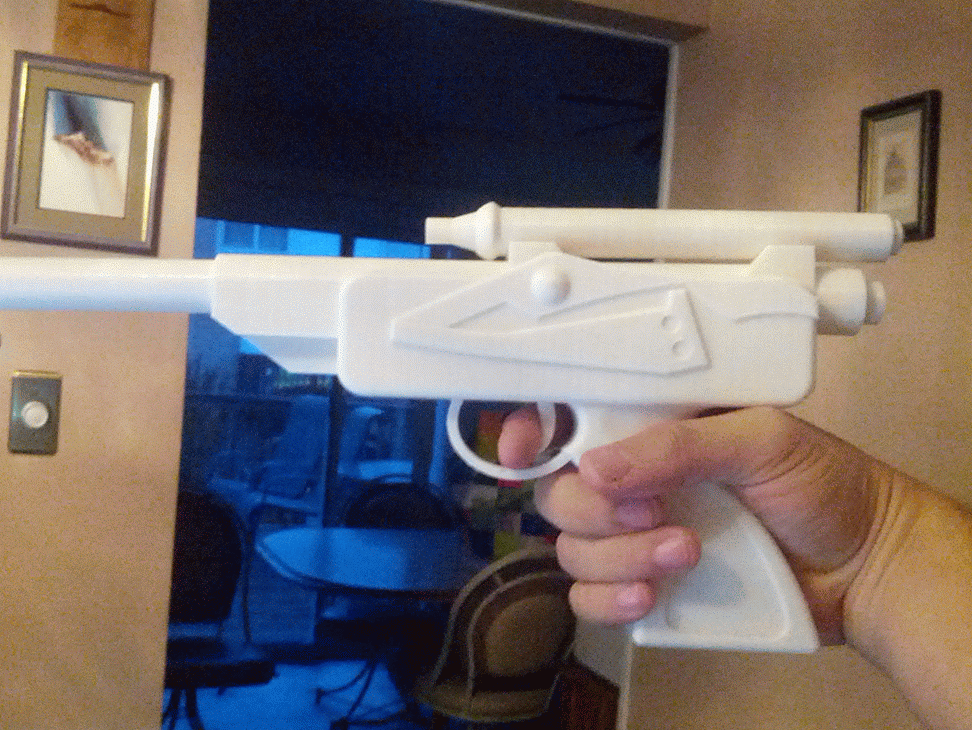

Looks fantastic, very nice kit you've built
Looks fantastic, very nice kit you've built
Re: 3D printable DL-18 Kanan's blaster from Star Wars Rebels
I immediately went to the JY to look for the FS thread.:cry
I have no access to a printer & don't drive, so if you decide to sell actual kits, I'm ready to pay.:thumbsup
(within reason, of course)
I immediately went to the JY to look for the FS thread.:cry
I have no access to a printer & don't drive, so if you decide to sell actual kits, I'm ready to pay.:thumbsup
(within reason, of course
)
Re: 3D printable DL-18 Kanan's blaster from Star Wars Rebels
Don't jump the gun... I'm not done yet!

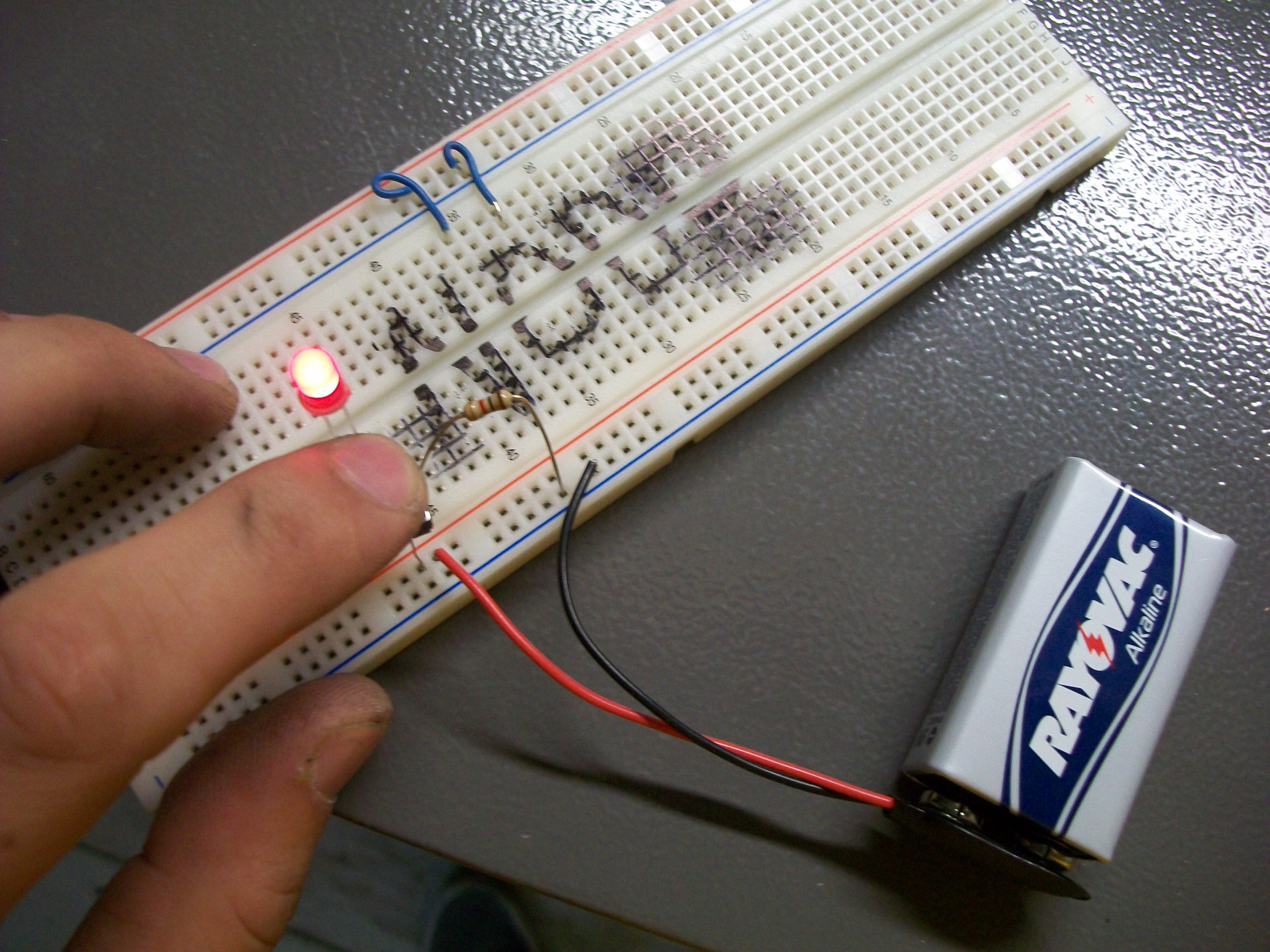

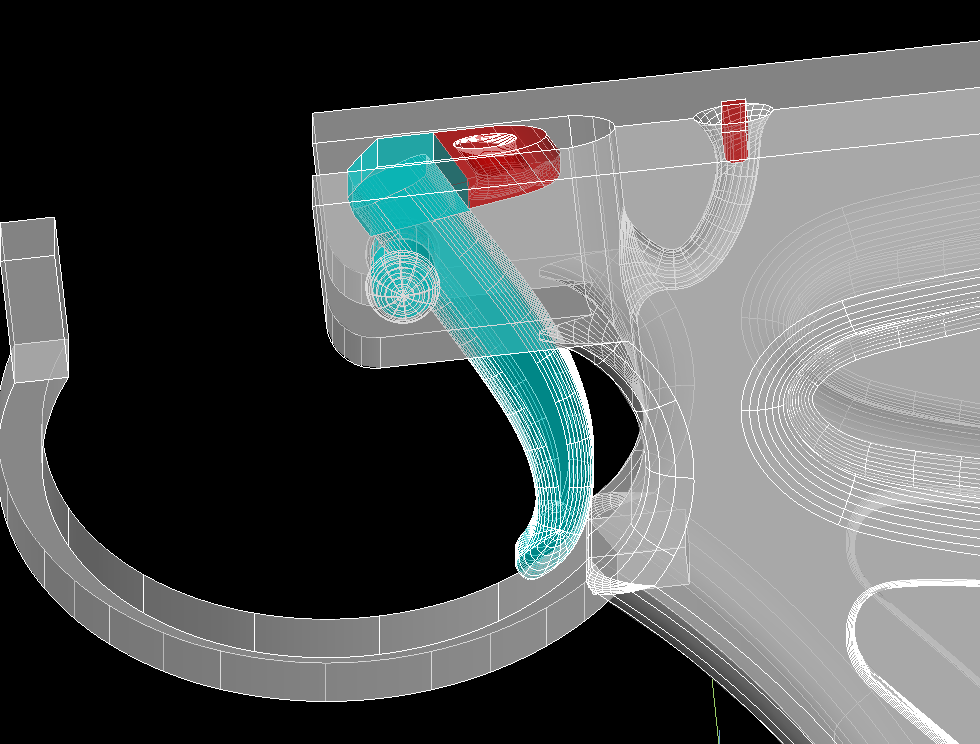

I made a few minor tweaks, and designed in spacing for electronics. I just did a rough blockout for a 9v battery, and made a tube that connects the internal chamber up through the barrel. the trigger swings just the right distance to tap a microswitch mounted directly over the cavity where the trigger sits. I didn't model any mounts or anything for it yet, nor did I design a circuit. For a simple LED they're pretty simple though. The next step is paint, and I'll need to cut out the leather grips and see how they look when attached.
Don't jump the gun... I'm not done yet!
I made a few minor tweaks, and designed in spacing for electronics. I just did a rough blockout for a 9v battery, and made a tube that connects the internal chamber up through the barrel. the trigger swings just the right distance to tap a microswitch mounted directly over the cavity where the trigger sits. I didn't model any mounts or anything for it yet, nor did I design a circuit. For a simple LED they're pretty simple though. The next step is paint, and I'll need to cut out the leather grips and see how they look when attached.
Re: 3D printable DL-18 Kanan's blaster from Star Wars Rebels
:angry...fine.
I'll be waiting over here.:thumbsup
:angry...fine.
I'll be waiting over here.:thumbsup
Re: 3D printable DL-18 Kanan's blaster from Star Wars Rebels
Awesome work on the modeling!
Awesome work on the modeling!
