Re: John Long Phaser 1 Kit Buildup plus MM P2 Restoration

I think I can help or at the very least give you an option.

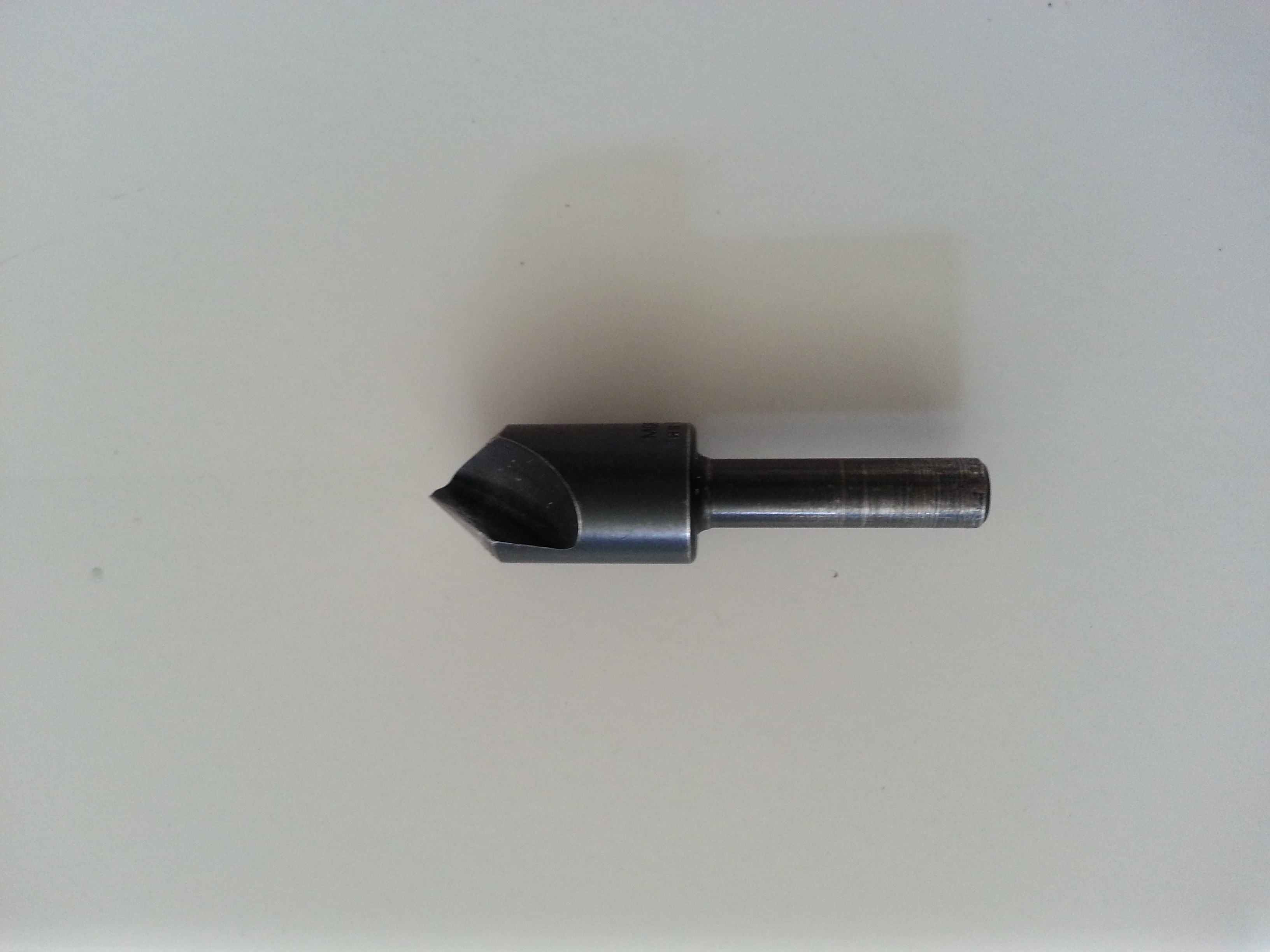

This is a normal type of count sink used for tapering holes for flat head screws.
View attachment 519204

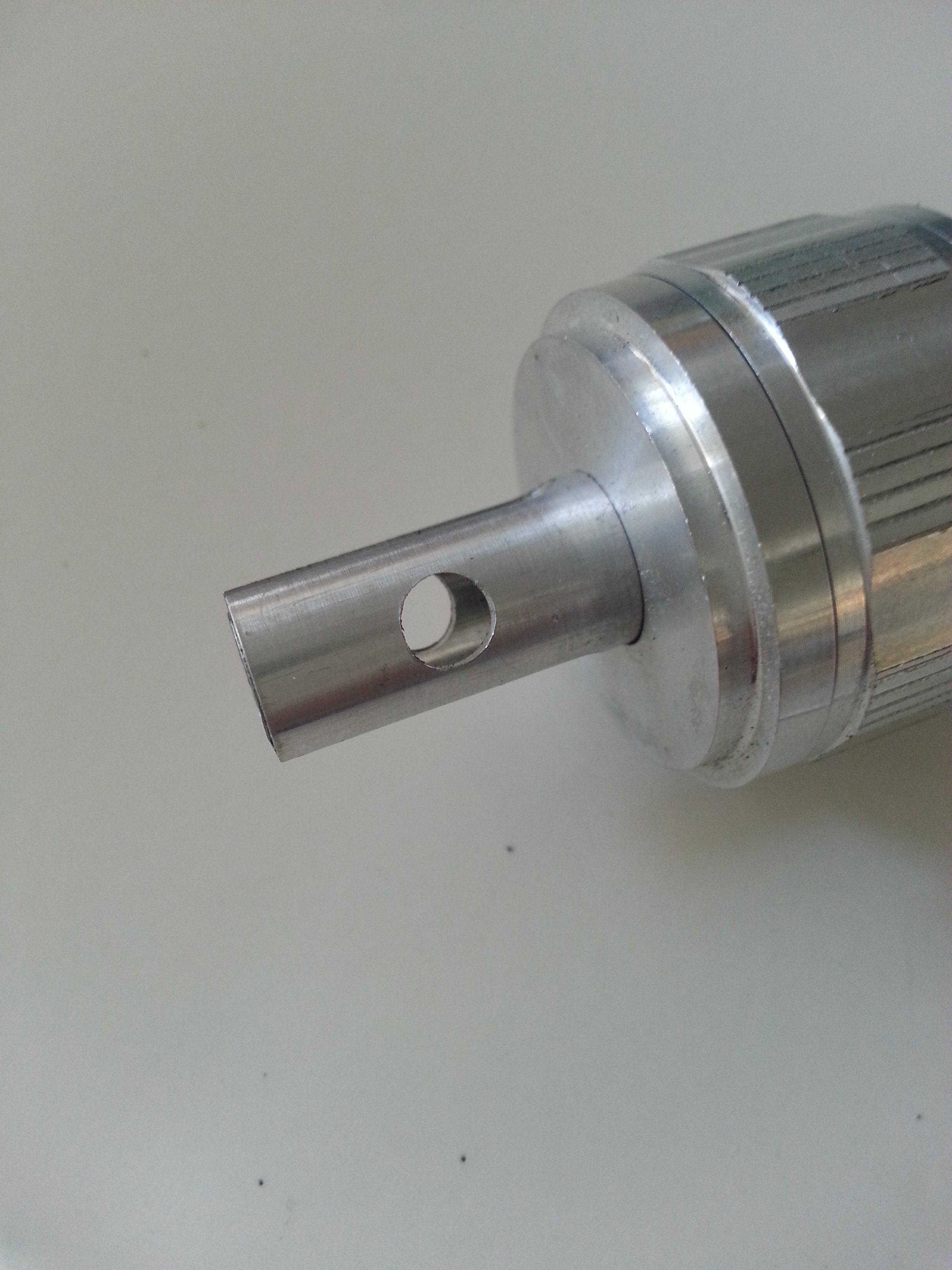

As you can see it's much to big to go through the top access hole in your nozzle.

View attachment 519205

Here's a little trick I use.

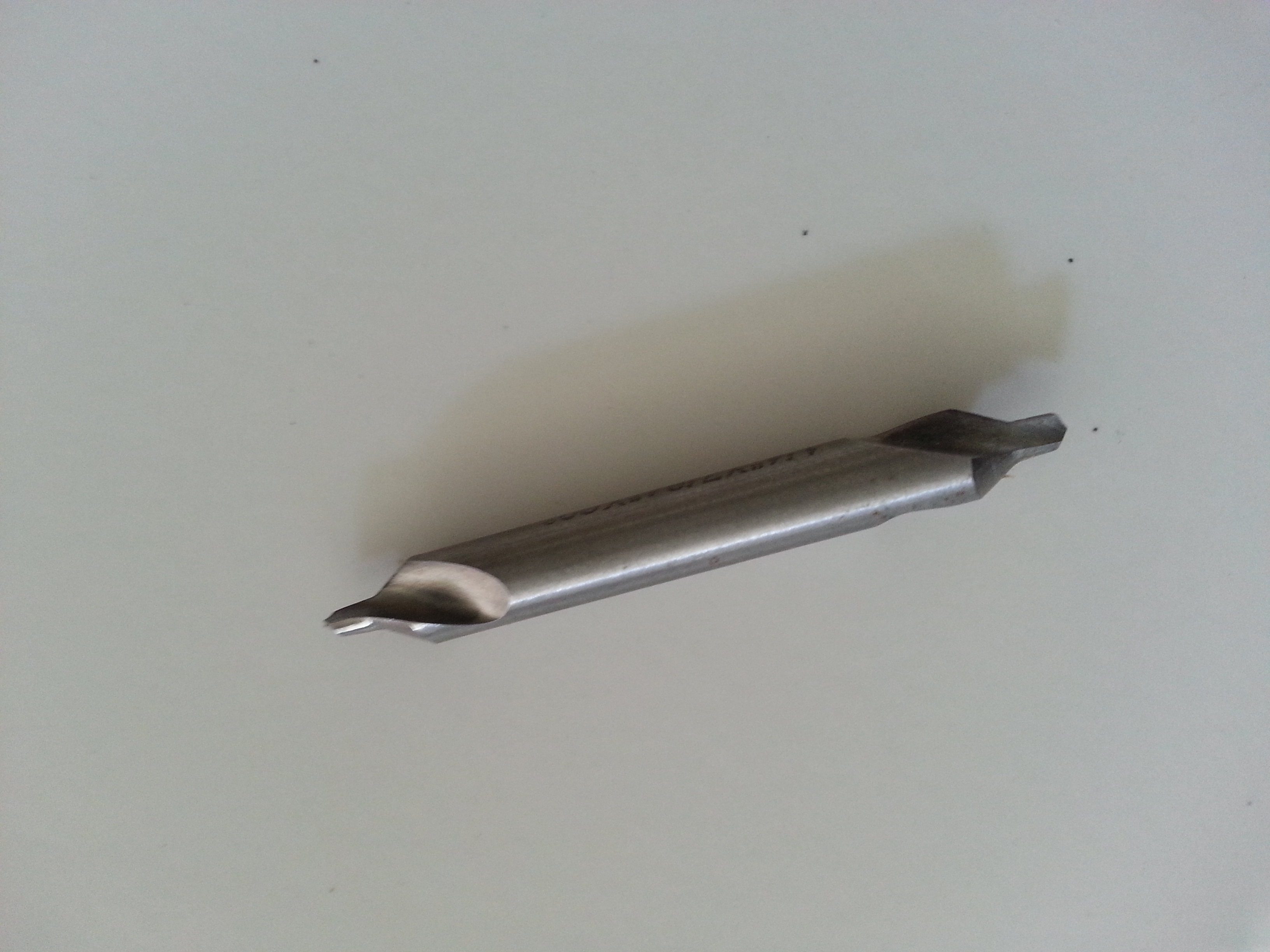

I don't know the technical name of this little gem but it's used with a lathe's tail piece to make
a centering hole when a piece is to long and needs to be supported on both ends.

View attachment 519208

It works quite well as a counter sink.

You may have to slightly enlarge the outer screw hole on your nozzle to get to the bottom screw hole.
I would recommend turning it by hand a little bit at a time until you get the results you want. Do not
use this in a drill cause you run the risk of going all the way through and ruining your nozzle.

Hope this helps....

That's a center drill. That's what I use on the lathe for opening centers, both for starting a drill operation and for opening a divot for use with a live or dead center in the tailstock. I prefer to call it the Center Divot Thingy 3000, because marketing. We have all kinds of those things, and countersinks too, but I was hoping to figure something out that didn't involve opening the outside hole.*

Don't worry, going in there with a drill was not on my list of options. I'm crazy, but I'm not stupid. Or... I dunno. One of those.

* EDIT-- And of course, I wound up opening the outside hole anyway, because I'm not a magician. Although I can pull a rabbit out of my ass.



[asalaw]

Re: John Long Phaser 1 Kit Buildup plus MM P2 Restoration

Ugh! Bad day at black rock. I had the entire receiver mechanism perfect, and then when I went to drill the hole for the wire that connects to the return spring, the shop bit I was using was dull, and the pressure (and the heat) actually twisted the damn thing out of alignment! Plus there's a broken bit in there now. So after nailing it, I have to nail it again...

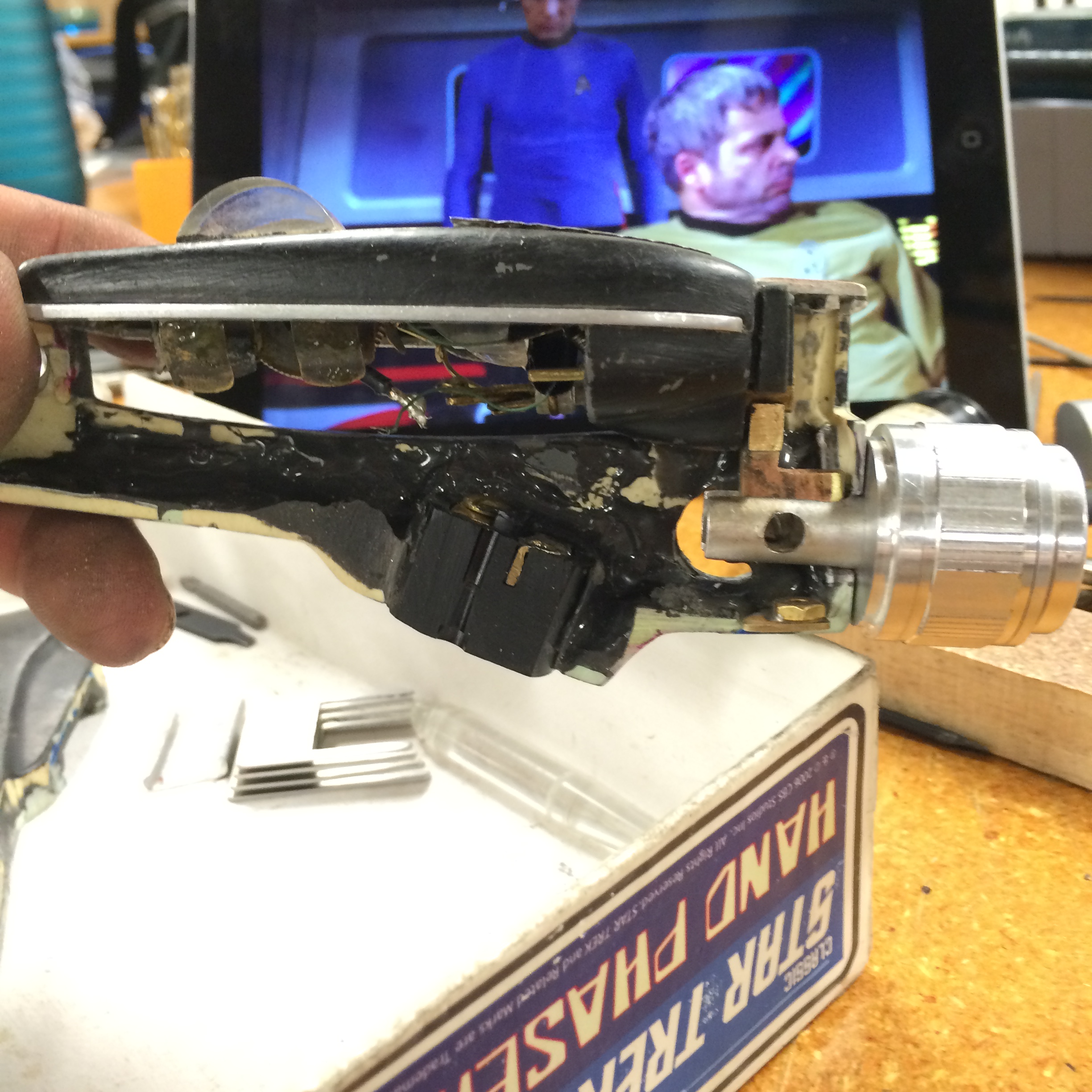

I'm back to the shop tomorrow (Sunday) to do it all over again, and I'll probably post the whole thing on Monday. Meanwhile, here's a couple of shots of tonight's near miss...
