Thanks, David! I have learned a lot about woodworking with this project. The mistakes, as usual, will be "weathering," right?

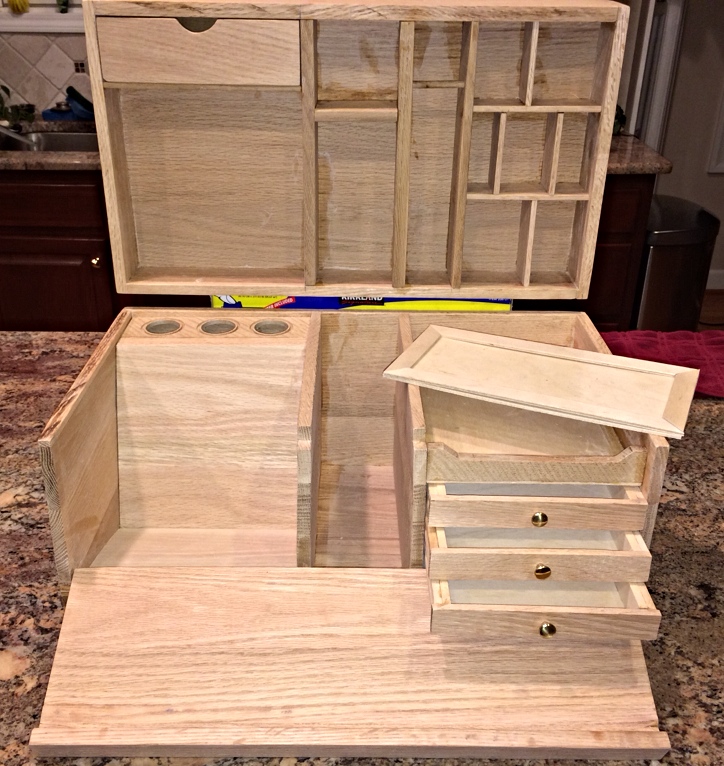

The drawers are all assembled using strip bass wood from the hobby store (except the faces which are 1/4" oak from Lowe's). The bottoms are Revell's model airplane plywood (1/8"birch). The rails the drawers slide on are 1/4" x 1/4" basswood strips. Each side of each drawer is just a slightly-over-1" strip with two slightly-less-than-1/4" strips glued to the outside leaving a slightly-wider-than 1/4" groove between them for the rail to slide in. The back is a bass wood strip the same width with no added-on strips. Remember the drawers have to be short enough so the pulls fit behind the door of the box! The pulls are a standard hardware store item made by Hillman

http://wedo.hillmangroup.com/viewitems/miniature/decorative-accessories

(I got them at Ace Hardware).

The bottom is cut snug and glued in ( no fasteners).

There is a "secret" hiding place under the bottom drawer. I wonder what Professor Broom hid there?



[ahoudini]

BTW, you certainly could rout the groove in a long, narrow piece of stock and then assemble the drawers using the grooved stock for the sides.



[ahoudini]

Well, crap! I only thought I was nearing the end of building this. When I test fit the door, I discovered that it blocks the opening of the bottom drawer. Somehow, I made the fixed piece of the front at the bottom too wide. This is going to be a bitch to fix but I have to come too far now to bail! Measure once, cut twice or something like that!:unsure



[ahoudini]

Well, that's better. One scary moment while I ran the whole box through the table saw to cut the bottom of the front down…



[airhead]

Nice! I like the rings around the ink bottle openings. And thanks for the details on the drawers - I am thinking about the routed slot on the sides, although a glued up version might be easier.

What do you plan to use for the incised lettering and logo? Adam said that it didn't look like a Dremel and Contec did it the hard way. That oak is tough stuff.

Something that you might try with the weathering (I haven't used it myself, but it should work) is to use a dilute potassium permanganate solution to oxidize the wood. It is a technique used to match aged wood in instrument repairing. I can remember from my misspent youth that it will definately stain your fingers brownish.

David



[ahoudini]

Thanks, David. I happen to have a bottle of crystals and I will give it a try. If nothing else it might give contrast to the areas done with vinegar and steel wool as suggested earlier in the thread. I will report back on the results.

I was going to use Contec's transfer trick to get laser printer output onto the wood and then use a Dremel router with a pointed router bit to make a V-shaped groove. I have some practice planks! A CNC router would be best. Another option would be to take it to a sign shop and have them make a rubber stencil and sand blast it.

The rings/holes were done with a hole saw for the ring and then a Forstener bit for the hole.
