Star Wars Rebels Ezra Bridger/Imperial Cadet Helmet WIP

Onyx

Active Member
RPF PREMIUM MEMBER
Hi Fierfek!

I'm finishing my Cadet helmet this week or next week. It's painted and the black decals are applied.
Next is the color decals which in my case are Blue. The front logo was no problem at all, but I was wondering how you positioned the back and side decals so nicely? Did you use any specific measurements or something ? :)


Fierfek

Sr Member
Hi Fierfek!

I'm finishing my Cadet helmet this week or next week. It's painted and the black decals are applied.
Next is the color decals which in my case are Blue. The front logo was no problem at all, but I was wondering how you positioned the back and side decals so nicely? Did you use any specific measurements or something ? :)

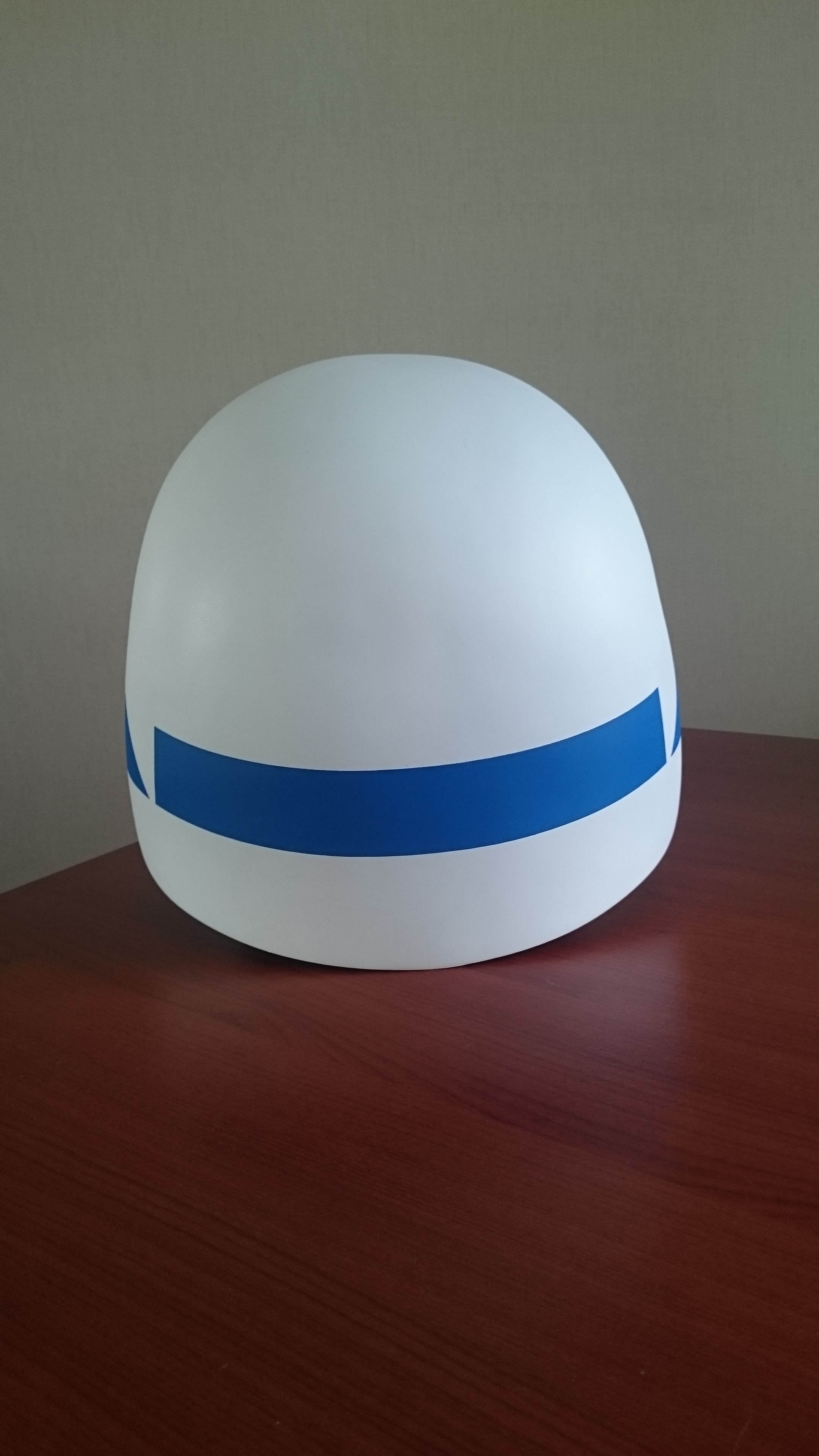

Very good, I look forward to seeing it. Using reference pictures, I was able to determine the relative spacing. Each helmet deco pattern varies slightly in the placement due to the different shapes. However, the consistent shape from all of the patterns is the rectangular strip that goes in the back. I like to place it about 2.25" inches from the bottom and 4.25" inches from the side edges. From there, it should be easier to determine the placement of the rest of the decals relative to the position of the back.


Onyx

Active Member
RPF PREMIUM MEMBER
Thank you ! Those two measurement really help a lot. I just drew some removable marks on the helmet and they check out ;) I'll post pictures when it's ready in the next few days ;)


Fierfek

Sr Member
Thank you ! Those two measurement really help a lot. I just drew some removable marks on the helmet and they check out ;) I'll post pictures when it's ready in the next few days ;)
I'm glad I could help and you're certainly welcome.


Onyx

Active Member
RPF PREMIUM MEMBER
I got a little bit delayed last couple of days. But the decals are in place and I just finished spray painting the matte clear coat. Just need to install the visor! Pictures coming soon! :D


Fierfek

Sr Member
I got a little bit delayed last couple of days. But the decals are in place and I just finished spray painting the matte clear coat. Just need to install the visor! Pictures coming soon! :D
That's great, can't wait to see it.


Onyx

Active Member
RPF PREMIUM MEMBER

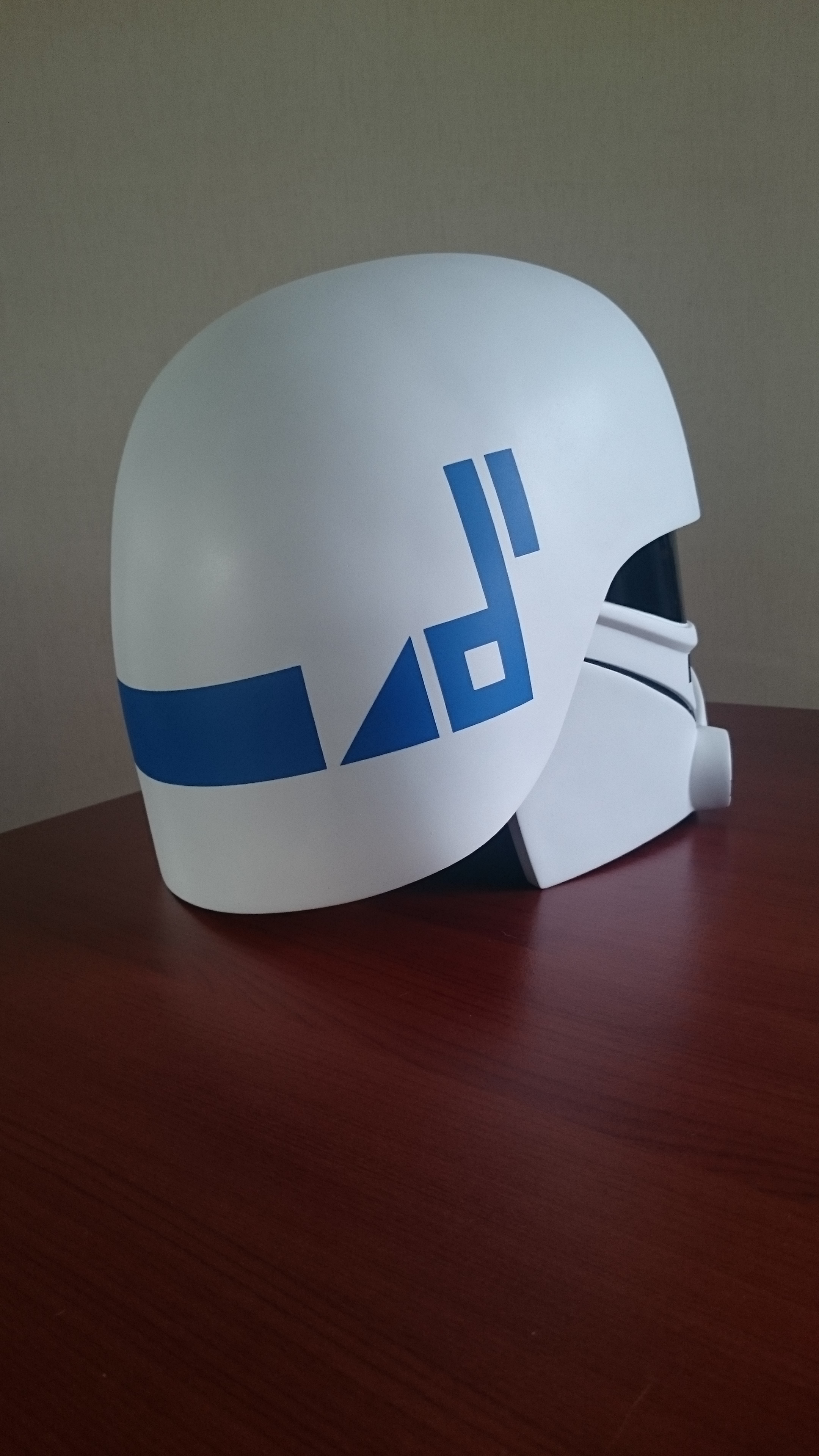

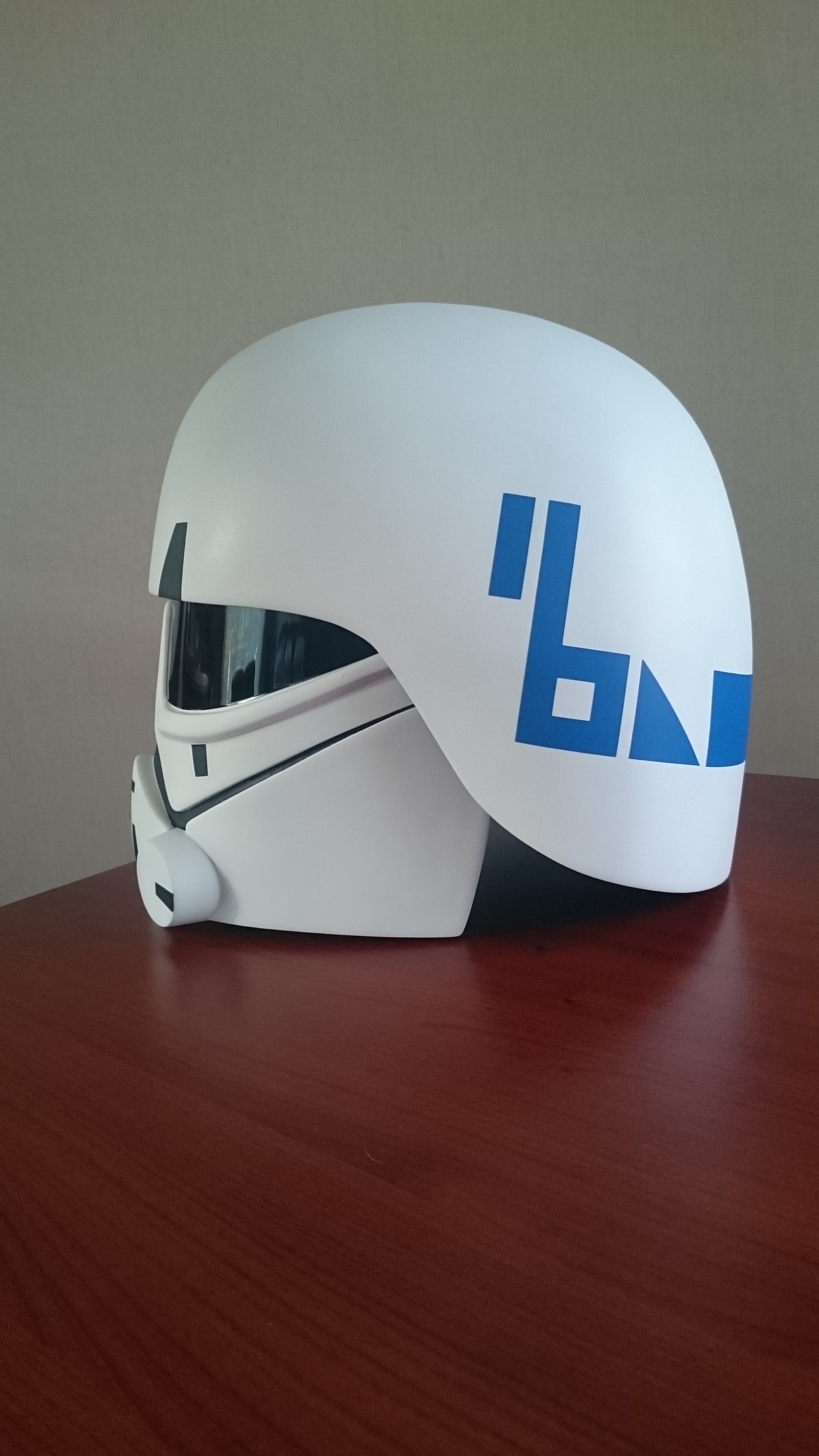

So, here are the pictures! Sorry to keep you guys waiting :)
I did my best, it's not perfect but I'm very happy with how it turned out.

Two points of positive criticism to Fierfek to make this helmet more screen accurate:

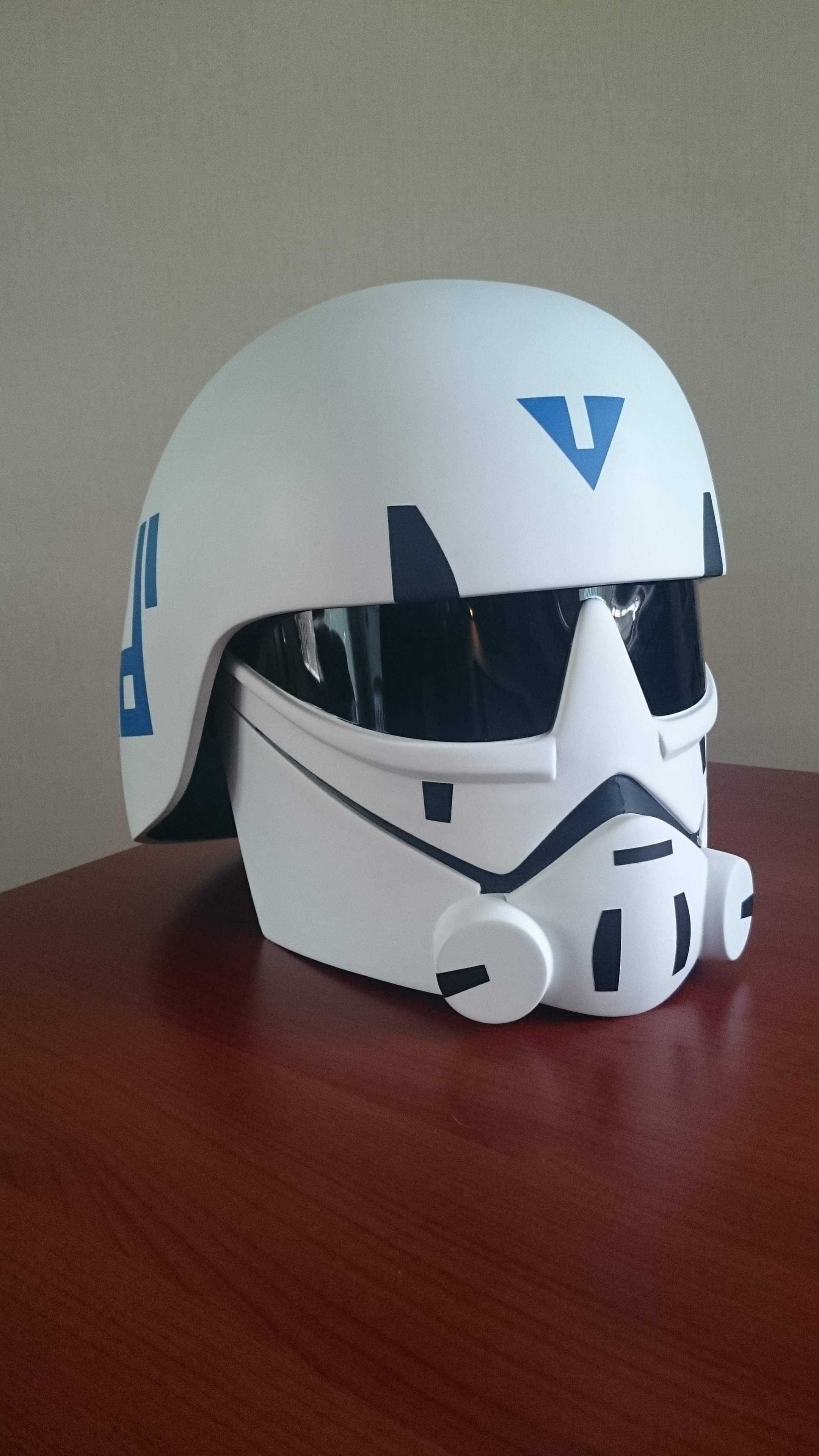

1. The two black decals on the front side of the dome should be a bit longer so they will curve over the edge.

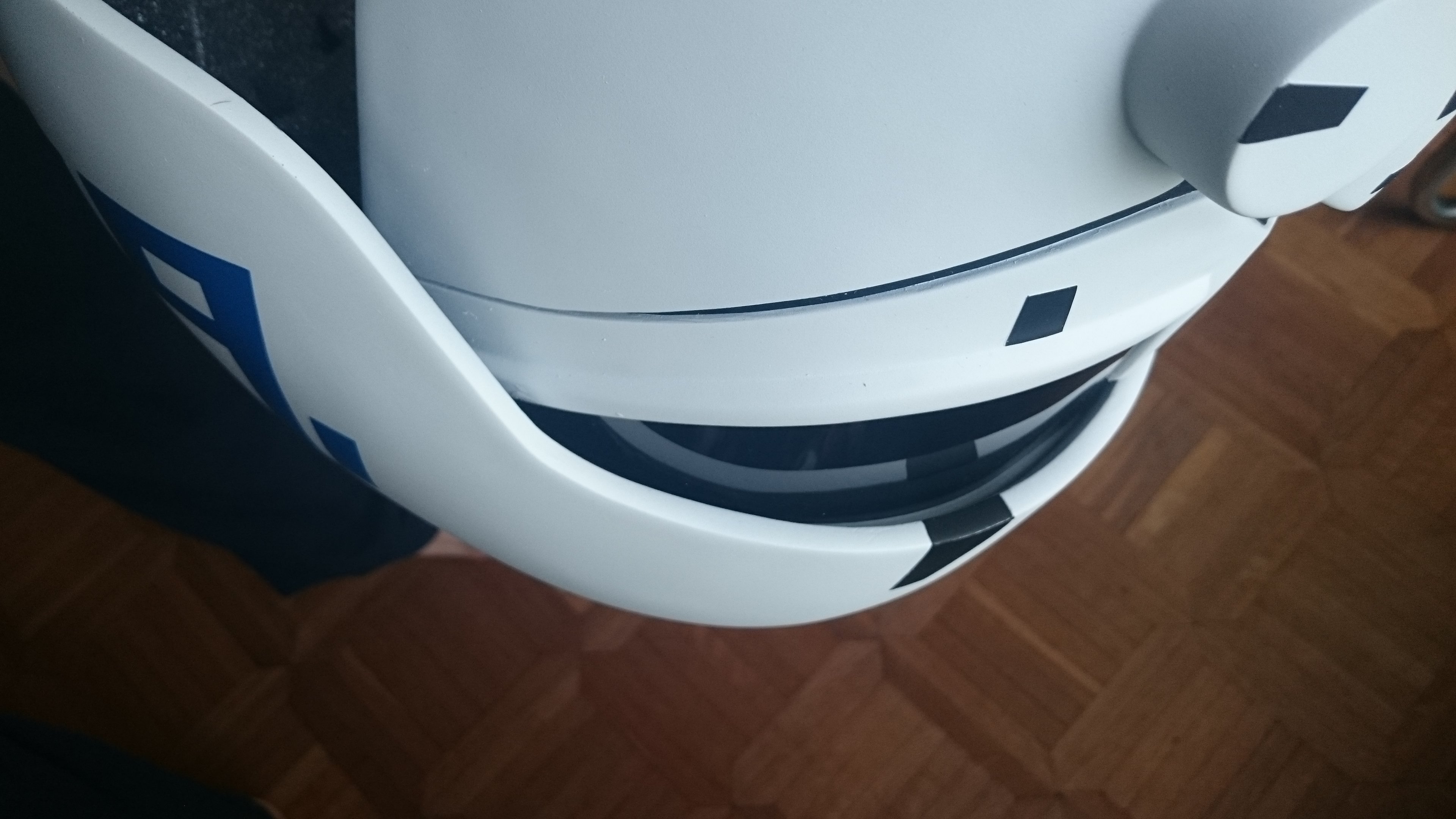

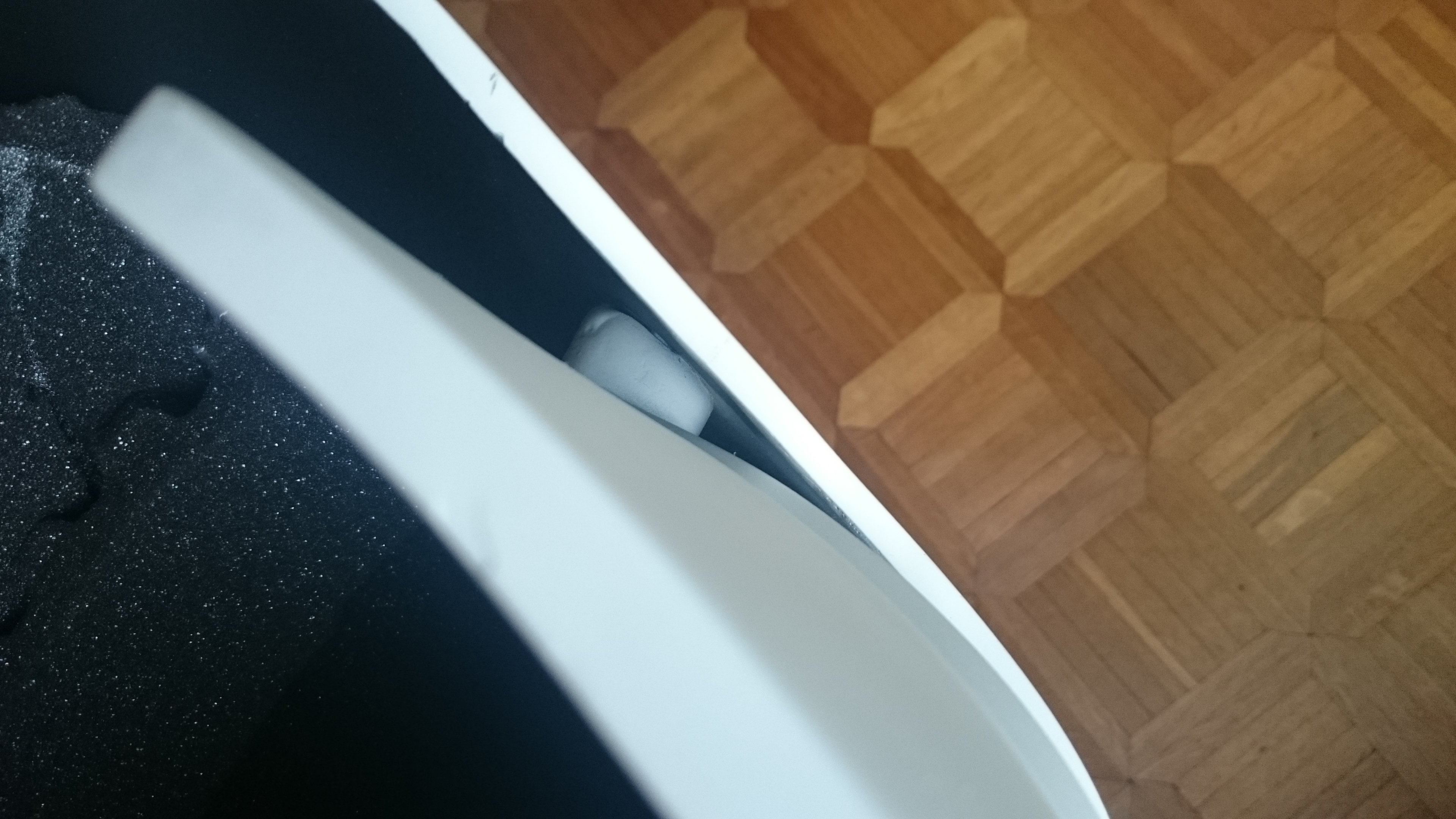

2. I added two round pieces of ABS as to ressemble the hinges.
For both these points you need to have a close look at the reference photo's though :)

In my opinion this helmet is great, there were a lot of air bubbles in my dome though, but as with every helmet you know you need to sand a lot, that's what makes it fun ;)
As you can see I didn't follow Fierfek's assembly guide and glued the two parts together. When you create the two ''Hinges'' and together with the faceplate fitting nicely in the inside of the dome, you have some very strong glue points. However if you do it this way the positioning is very difficult.

As I said, Fierfek, this helmet kit is great and a nice quality item!

Hope you guys and Fierfek offcourse like how this baby turned out ;)

Last edited:

TheGo2SWATking

New Member
Nice job, it looks great! Thanks for sharing the pictures and feedback. I'm already implementing those changes into the V2 design, which splits in half.
This looks awesome! Have you made any progress on the V2 design? I'd be interested in one if you're not too busy.


Fierfek

Sr Member
This looks awesome! Have you made any progress on the V2 design? I'd be interested in one if you're not too busy.
Yes, the prototypes are just about ready for molding. The only thing that I have yet to figure out is a viable accurate hinge mechanism that will still allow the helmet to be wearable. Otherwise, the V2 split mask would have to be attached with magnets as a modular non-mechanical design.
does the helmet open like on the show? These are fantastic!
Thanks, the V2 will when it's finished.


sketcherdan

Active Member
RPF PREMIUM MEMBER
Interested in a V2, working mechanism would be really cool. Maybe something you lever with your thumb whilst touching the side (like in the show) but I'm sure you've got ideas already :p


Fierfek

Sr Member
Interested in a V2, working mechanism would be really cool. Maybe something you lever with your thumb whilst touching the side (like in the show) but I'm sure you've got ideas already :p
Yes, I was thinking of using a reed switch with magnets. Maybe I'll make an accurate working mechanism for display purposes only because I don't see an accurate motorized helmet being wearable. The mask portion in the animation appears to intersect with and disappear into the head. Still, I think there's a possibility of it working with the right suspension system and altered angle of incline.

If anyone else has any ideas or thoughts concerning this mechanism, feel free to post them.
