Star Trek Enterprise Dr Phlox's Medical Scanner (Seasons 1-4)

[renaissance_man]

The clear acrylic scanning nodes for the base are being shipped to me.


If anyone is interested in a kit I will get some clear screens laser cut and start offering kits.



[renaissance_man]

Thanks for your the kind words everyone.

Some major updates.
Drilled out the side slot for the switch, which is absolutely tiny.


Lastly a test fit on the scanning emitters/nodes.



[renaissance_man]

A couple of pictures of the scanner with the LEDs in. The LED inside which lights the screen has been masked off for painting so it doesn't look as bright as the 5 in the base do, but when the tape is removed the Blue LED inside is very bright.




The clear acrylic nodes for the base arrived today.
If there's any interested I will get the screens laser cut by next week and can have kits ready to ship by the 24th if anyone is interested?



[renaissance_man]

Kits or finished scanners are available see the Junkyard for kit sales.

MOD EDIT: Please do not post Junkyard links outside the Junkyard forum, thanks.

Thanks



[renaissance_man]

Bump



[renaissance_man]

A lot of my old Photobucket links are dead but I thought I would post an up-date.

I just did a build up of 3 of these kits for a fan film.

Take a look at the video and stills below of the 3 hero props.

3 Phlox Medical scanners by JamieThomas28, on Flickr

3 Phlox Medical scanners bases by JamieThomas28, on Flickr



[renaissance_man]

I just finished building 3 of the kits into hero light up props for a fan film.

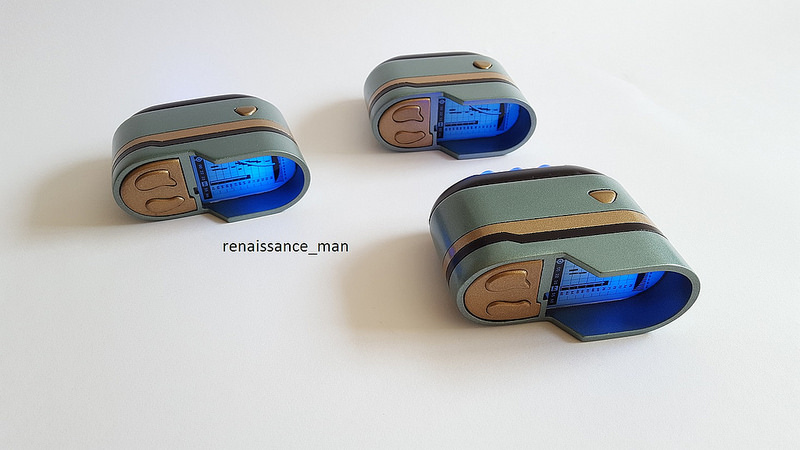

3 Phlox Medical scanners by JamieThomas28, on Flickr

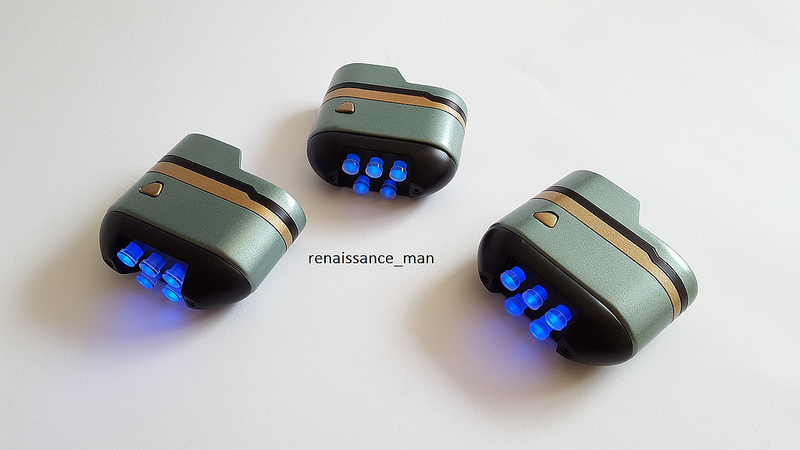

3 Phlox Medical scanners bases by JamieThomas28, on Flickr

Kits and build ups are available.
