Nuka Cola Test Print

[falloutboy]

Just wanted to share my take on the Nuka Cola bottle.
It's 7.75 inches tall and (obviously) water tight. Used water and some food coloring.
Edit: (Yes I know I embossed the logo - but I just liked the idea of having it that way- a throwback to old coke bottles)
While I liked some of the ones on thingiverse, etc. - they just weren't quite 'right' for me, (inconsistent or too thick of walls) so - here's my version 4.

It's a raw print, just out of it's IPA bath (resin printer), will be hitting it with Krylon Acrylic UV blocking gloss within a few days to get that shiny glass look.

What are your thoughts?



[Brigandia36]

:thumbsup



[falloutboy]

Thanks



[GhostMinion]

Looks pretty darn good to me. At first I noticed the fins were a bit thicker than in the game, but then I saw that it was because they are hollow too. That is pretty cool.

Will a bottle cap fit on?



[falloutboy]

A standard cap will almost fit on. I'm using a cap-shaped stopper I printed currently. The piece of the neck that tapered that extra bit was cut off due to the supports pushing it past the max height envelope.
I could make a small insert that wouldn't look out of place- not sure I want to go the route of shrinking the bottle more to go down to that size- it feels perfect in hand at current size.

Thanks as well- it is really neat to see the fluid in the fins.



[james kirk]

That is really great.
Can't wait to see it glossed up.
If you are going to be selling one hit me up.
Thanks

Mike



[falloutboy]

I would consider it- just not sure people would be okay with the cost? I don't think I would be willing to do a run- but one offs might be considered?

There are minor flaws.. let me know when I gloss one

I don't have a ton of free time with work- and wouldn't want to bit off more than I could chew.



[falloutboy]

Accidently tipped over V4 bottle and instinctively grabbed- will strip, wet sand and do-over, the fogging remaining is splotchy on the outside on it where I accidently grabbed it.

Incase you're curious on the changes-
V2 - the label was too large, solid fins. 100nm print.
V3- the label was a little low, some stretching. hollow fins. watertight. 100nm print.

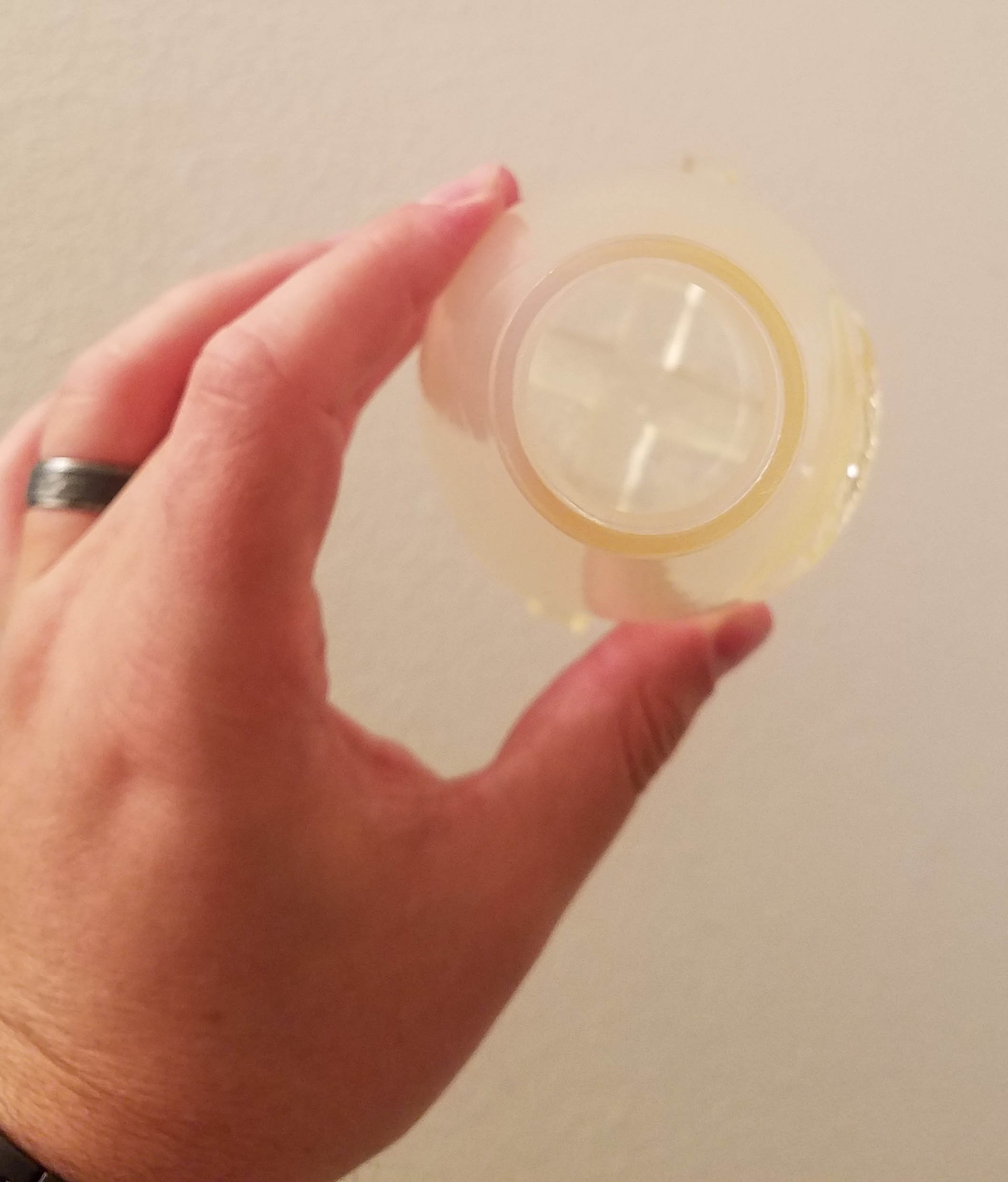

V4 - the label (in our opinion) perfect. hollow fins. the inside on the bottom is dimpled. watertight. 50nm print.

Thoughts?



[veektohr]

The raw one looks like you just pulled it out of the freezer I personally dig the embossed logo more than the in-game one.


Sent from my iPhone using Tapatalk



[falloutboy]

Thanks!! I prefer the embossed look too (obviously), and took care to round the edges of the labels. Printing my take on a Nuka-Cherry today- so am looking forward to seeing it come out of the vat tonight.



[falloutboy]

Raw pull from last night and tonight- a (finally almost perfect!!) Nuka Cola, and a almost-perfect Nuka Cherry!

So incredibly pleased with the cherry. Will have my UV bath fixed tomorrow to do a quick final cure and start the gloss coating.



[falloutboy]

A "Around the bottle" view of a "Glossed" Bottle.



[falloutboy]

It looks better in person- not sure how to describe it. The lighting and photos pick up a texture that simply isn't present. Although the ghost ripples are present- they're not 'feelable' with touch, and not very observable in person.



[falloutboy]

Newly cured Nuka Cola and Nuka Cherry bottles
Excited about them, since they came out with no significant visual surface flaws.



[james kirk]

Looks pretty good.
In the last set of pictures is that water that shows thru the bottle?
Thanks

Mike



[falloutboy]

@mike-
There are water droplets that show thru from the inside .

Do you want me to take a pic of the newly cured raw bottles with liquid inside?



[Qumair84]

What is your plan for the actual bottlecap, are you 3d printing an actual game accurate version, or are you using a simple standard bottlecap?



[falloutboy]

I'll be printing a game accurate one. Just need to count the divits on the crimped edge to ensure its right- and nail the right flairing angle.
I am making a adapter for a metal cap as well on the end of a plug for a friend.

Soooo - it can be both?

- - - Updated - - -

Also debating making a v5 of the bottle potentially. If so, it'd be so that I could make a good mold.

Anyone in the Seattle area good at molding and have a vacuum chamber/ willing to help ( I'd be willing to give a couple bucks or bottles , and get materials)?



[Qumair84]

I'll be printing a game accurate one. Just need to count the divits on the crimped edge to ensure its right- and nail the right flairing angle.
I am making a adapter for a metal cap as well on the end of a plug for a friend.

Soooo - it can be both?

- - - Updated - - -

Also debating making a v5 of the bottle potentially. If so, it'd be so that I could make a good mold.

Anyone in the Seattle area good at molding and have a vacuum chamber/ willing to help ( I'd be willing to give a couple bucks or bottles , and get materials)?

If you are planning a game accurate one, you should check out Bill Doran's Nuka Cola 3D modelling, he does the cap and all



[falloutboy]

I'll check out his cap. I've looked at his bottles and his designs weren't quite up to what I was looking for. . Hence the designing my own ;-)

Thanks for the reminder
