Hello everyone.[/B]
I've been a lurker here for a long time and I started building suits around 3-4 years ago, I've built quite a few suits and props over the years and now I'd like to start sharing them with the community. There are pics of most of my work in my signature.
I am an Electrical Engineering major and I will be graduating this semester. This Iron Man suit was my team's capstone senior design project and as such has a lot of extra features that I'm excited to show everyone.
Here's a list of all the extra features that have been included in this build:
• Camera/Microphone mounted in the chin
• Heads-Up Display inside faceplate with Time, Temperature, and Battery-Life Readout
• 3 Vision Modes; Normal, Heat, and Night (Not actual heat/night vision)
• Moving Pieces: Faceplate and Jaw, Forearm Missile Pod, Flight Stabilizers on the Back
• Lighting effects: Eyes with Flicker Effect, Unibeam and Palm Repulsor Light and Sound Effects
• Mp3 Playback (Iron Man, Back in Black, etc.)
• Controls: Hidden Buttons, Wireless Remote Control Pad
• Voice Commands with Jarvis Audio Responses to User Commands/Inquiries
• Built-in Wi-fi with Google and Wolfram Alpha Integration (for Siri style voice interaction)
• Around 6 hours of Battery Life
Here is a video going over the build process and the features of the suit:
(note this is aimed at people who are unfamiliar with the general build process)
Here is a time-lapse of the entire build:
Here is video going over the electronics involved in the build:
This suit was constructed by me for the YouTuber SlyFoxHound and you can see a short video of him trying it on for the first time here:
The Pep files I used for this build:
(I have a certain way I like to construct the cardstock portion so I edited these files a little for my own use)
http://www.therpf.com/f78/dancinfools-iron-man-mark-iii-pep-files-new-chest-started-101543/
http://www.therpf.com/f78/zabana-s-iron-man-wip-boots-finished-page-13-new-leg-page-14-a-76175/
The Team involved in the creation of the electronics/software used for this build:
Trevor Greer - Controls/User Input, Integration, Suit Construction
Elijah Rockers - Video Processing, HUD Design
Travis Kirk - Power Allocation, Custom PCB Design
Corbin Vader - Audio Processing, Voice Command Implementation
All members helped with some of the construction
Special thanks to Zachary Greer for miscellaneous help and assistance

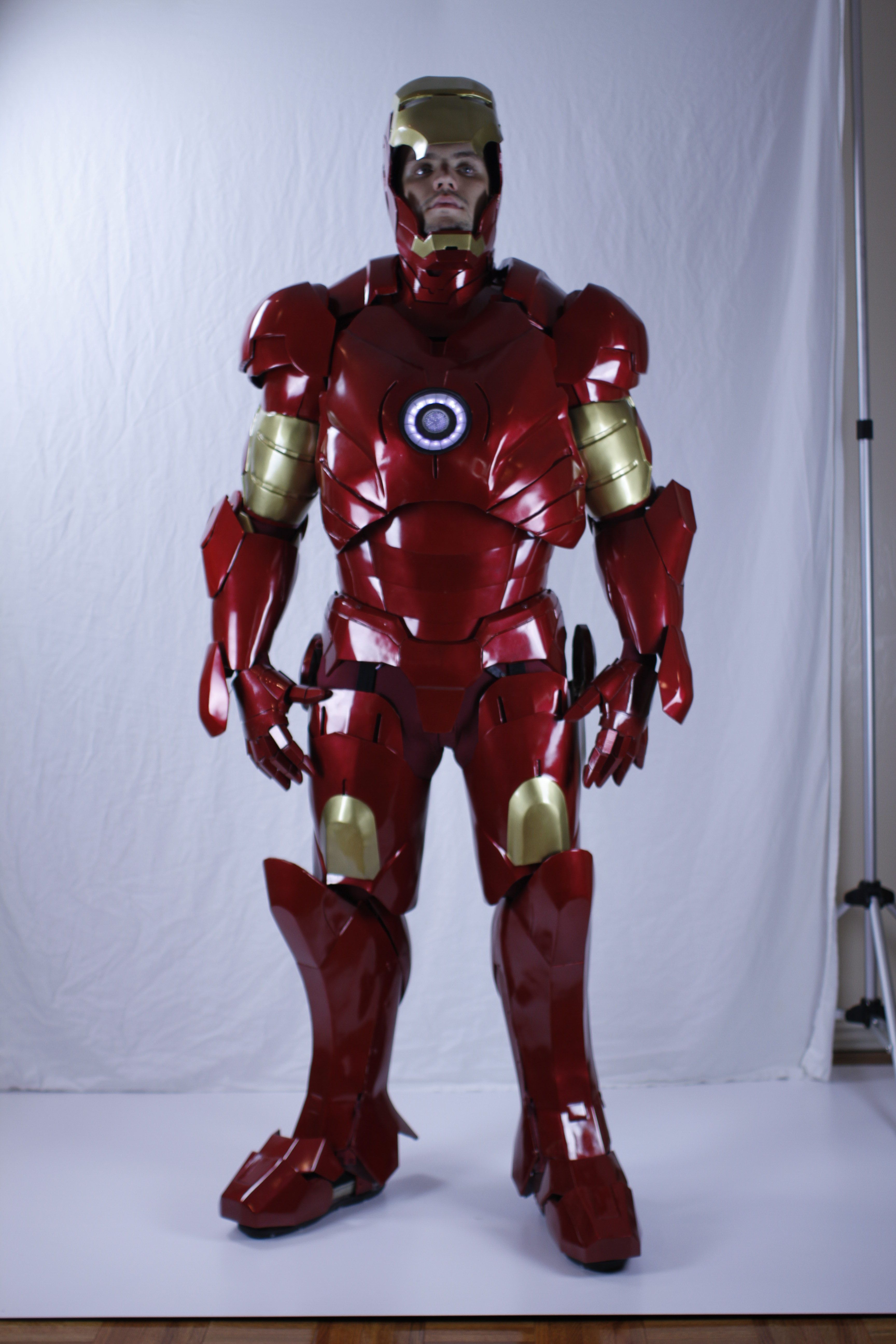

Some pics of the suit:

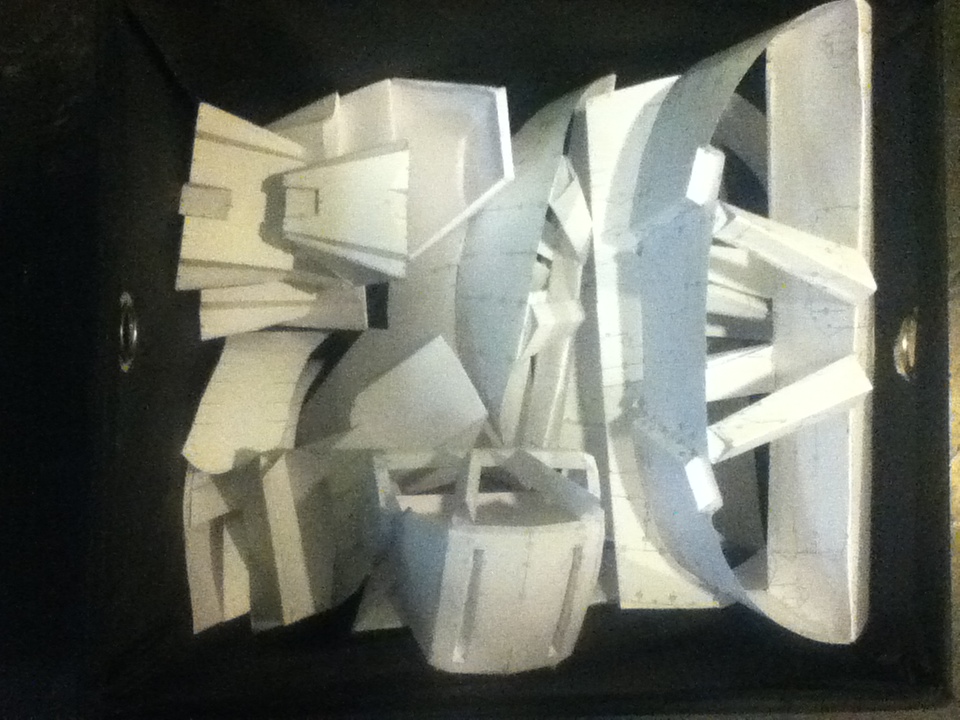

A few pics from the build process:
(Lots more in the time-lapse video above)
I have also attached the user manual that I sent Sly so people here can look through it and see how the suit is operated.
Special thanks to RPF members Stealth and XRobots for inspiration and to Dancin_Fool and Zabana for their Pep files.
So that's pretty much it for this suit, I have a lot more projects planned for the future that I hope to share with you guys!
Please let me know what you think!
