Brothervader
Well-Known Member

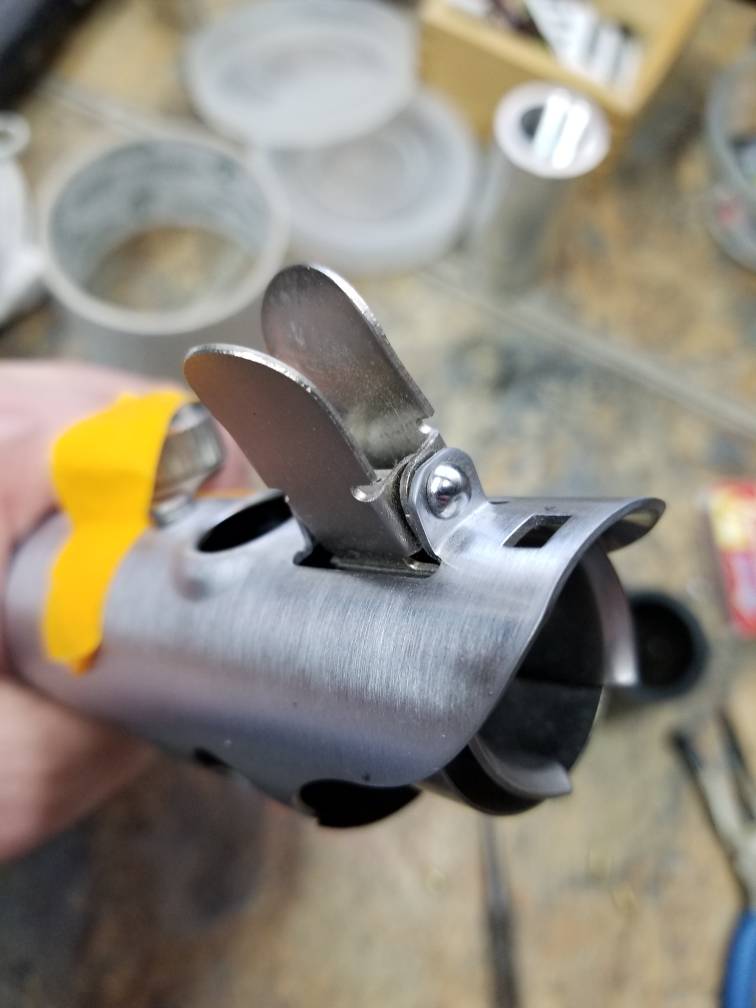

I'm trying to replace my graflex blade holder, but I don't know how to remove this pin in order to remove the bunny ears. Help!
How do I remove graflex bunny ears?
- Thread starter Brothervader
- Start date
Use a small punch and place it on the small end of the rivet/pin (the end you have showing in your photo) and gently tap the rivet/pin loose. Then you can pull it out and remove the bunny ears.
Unless this is a repo-Graflex and it has a screw, then unscrew it. What does the other end look like?
Brothervader
Well-Known Member
There's no screw, definitely a pin.
Brothervader
Well-Known Member
Unfortunately, I just tried it, and it's not budging.
Brothervader
Well-Known Member
I'm not sure why, but that pin is wedged in really tight. It doesn't seem to move it all. I'm afraid to hit it much harder.
Yep, that's it. Line up a small punch/nail setter smaller than the pin hole and tap away. It will take a little bit of pressure but you can whack the pin out.
TippettFan94
New Member
A brass punch and rubber mallet could help keep from making any marks, but tbh that'd just be free weathering.
Drew Baker
Sr Member
I've run into one or two pins that have taken a surprising amount of force to get out. (I think the worst was one the pin bent while still in the collar in the ears.) I taped a mousepad around my flash to protect it from the hammer.
Shoot it WD-40, And let it sit for a few hours, then give it another shot. You are also working against decades of corrosion inside that joint, most likely.
Another piece of advice: apply painters tape around the area to avoid any unintended scrapes and nicks as you attempt to remove the pin.
Another piece of advice: apply painters tape around the area to avoid any unintended scrapes and nicks as you attempt to remove the pin.
Brothervader
Well-Known Member
I think it's a hilt from TGS. It's fairly old though. I'm not sure how long they've been in business, but this one is nice and weathered. What kind of "tells" do I look for to know who the make was?
Brothervader
Well-Known Member
Tried contacting them. They were vague in their response.
That's good to know just in case it is screwed in. I don't want to damage it trying to get it out.
That's good to know just in case it is screwed in. I don't want to damage it trying to get it out.
Ah fair enough.
Yeah, might be worth cutting a small notch into the bottom of it, so you can try a small flathead driver rather than trying to grip the top with pliers or something.
Drew Baker
Sr Member
Gerard2567
Well-Known Member
yeah, probably would've been best if you specified the maker from the beginning lol, most people assumed it was vintage.
If it's a TGS, it's a threaded screw.
If it's a TGS, it's a threaded screw.
I think with the drifting of the back of the screw we may just have a problem now..
To unscrew those tight pesky bunny ear replica rivets (screw version)
I use hot glue on the end of a pencil, let it totally cool down and give it a snap counter clockwise
Usually works for me with zero damage to the face of the rivet
To unscrew those tight pesky bunny ear replica rivets (screw version)
I use hot glue on the end of a pencil, let it totally cool down and give it a snap counter clockwise
Usually works for me with zero damage to the face of the rivet
Brothervader
Well-Known Member
You really can use hot glue for everything! Thanks for the great tip!
Give it a try, if the screw is now crooked or the thread messed up... might be time to think of another option
