Hello;

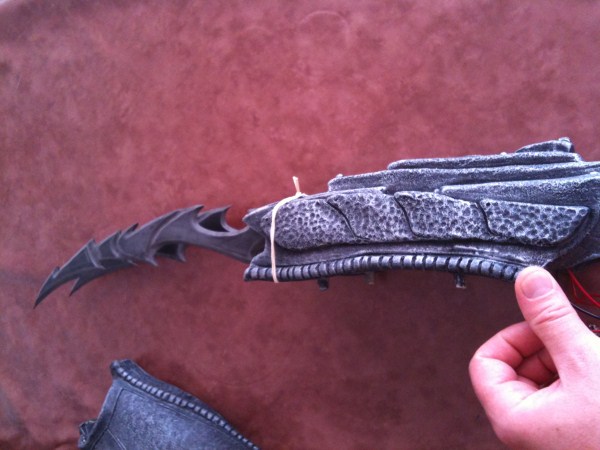

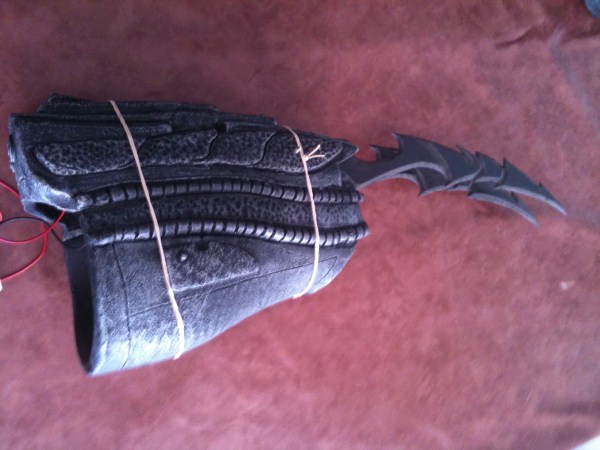

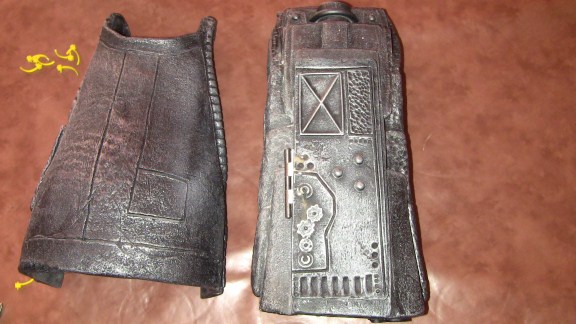

I am trying to make an animatronic system in Steve Arnold's gauntlets.








There are resin and heavy enough to serve as a support.

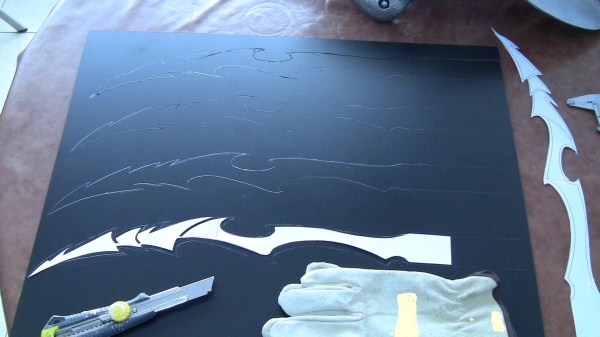

I had to change blades of origin because they were too big to go into the glove, then I made them in Sintra/Forex.

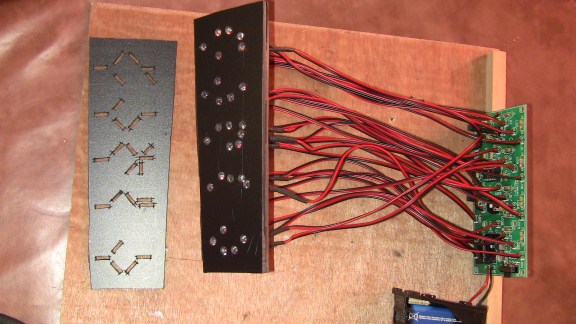

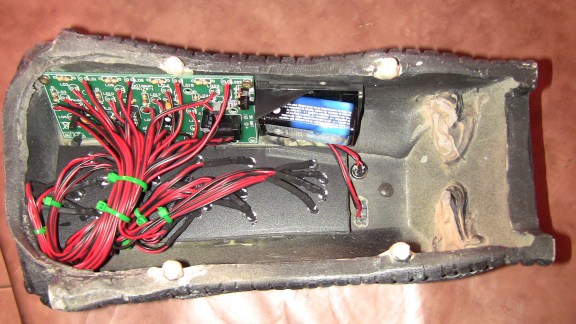

For the countdown, I used a Velleman (Chevron Arrow) kit and I made a support for the diodes in Sintra.

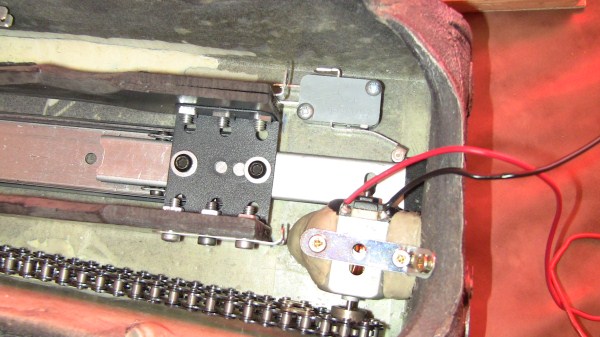

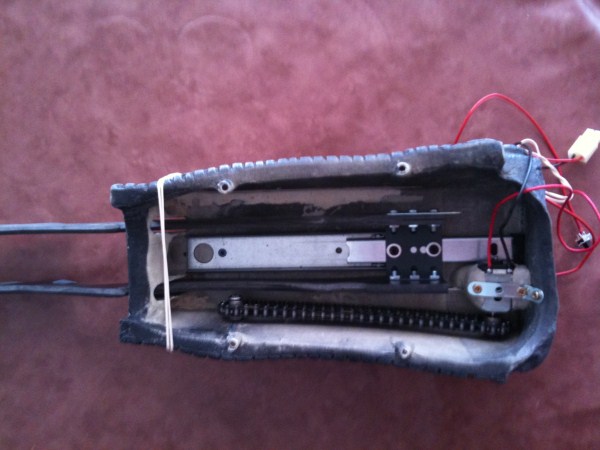

To move the blades I use parts of remote control motorcycle (gears, chains) and a toy engine and relays.













Thanks all Hunters for precious advices I had found on the lair
Thank you for looking...

Last edited by a moderator:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Fohammer

New Member
I really liked how you did the gauntlet using the chain. Thank you for showing the inside of it too. That was really clever.


Elkman

New Member
Looks good. You probably could have used a smaller gauge wire for hooking up the LEDs to the circuit board, because they don't carry a lot of current. That would have saved you some room in there in case things get kind of tight.

I like the idea of using the gears and chains from a remote control motorcycle. You did some good engineering there.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

djodjo2xl

New Member
Hi Bro,

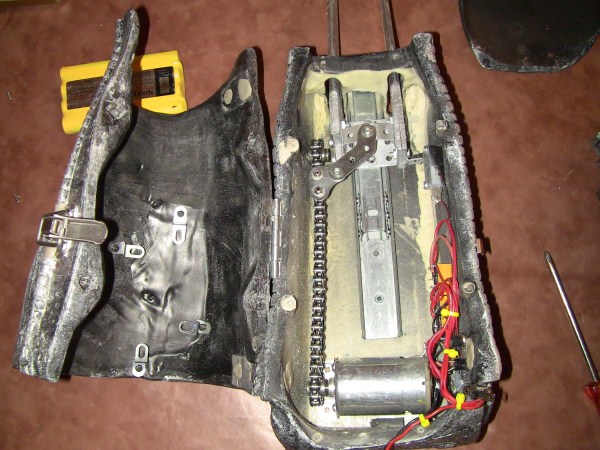

I had finished my gauntlets, I had to change the motor for a more powerfull one (from a drill).

And a little video with Mannowar's P2 Hand:

Thank you for looking...



Attachments

Last edited by a moderator:

Metal Man

New Member
Hi Bro,

I had finished my gauntlets, I had to change the motor for a more powerfull one (from a drill).

And a little video with Mannowar's P2 Hand:

Thank you for looking... :D
Very nice job. Love the way it works.

Last edited by a moderator:

MEANGENE83

Sr Member
I keep returning to this thread to watch your video over and over.

EDIT IDIOT: I just realized the new pics where of the new motor. I didnt look closely enough

I had the same idea and have an old drill saved for that exact purpose.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

djodjo2xl

New Member
Good evening Bro!

Thanks Hunters for all your compliments,

Sorry,Predator RK , for the moment I don't want to sell them.

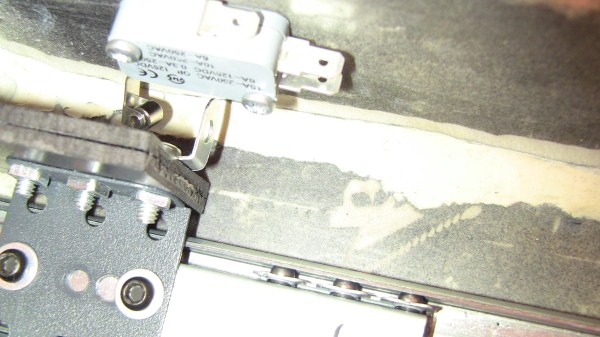

VaderDave :I had put two pairs of switch, one pair on the gauntlet and the second one can be palce inside the latex hand.

Thanks .
