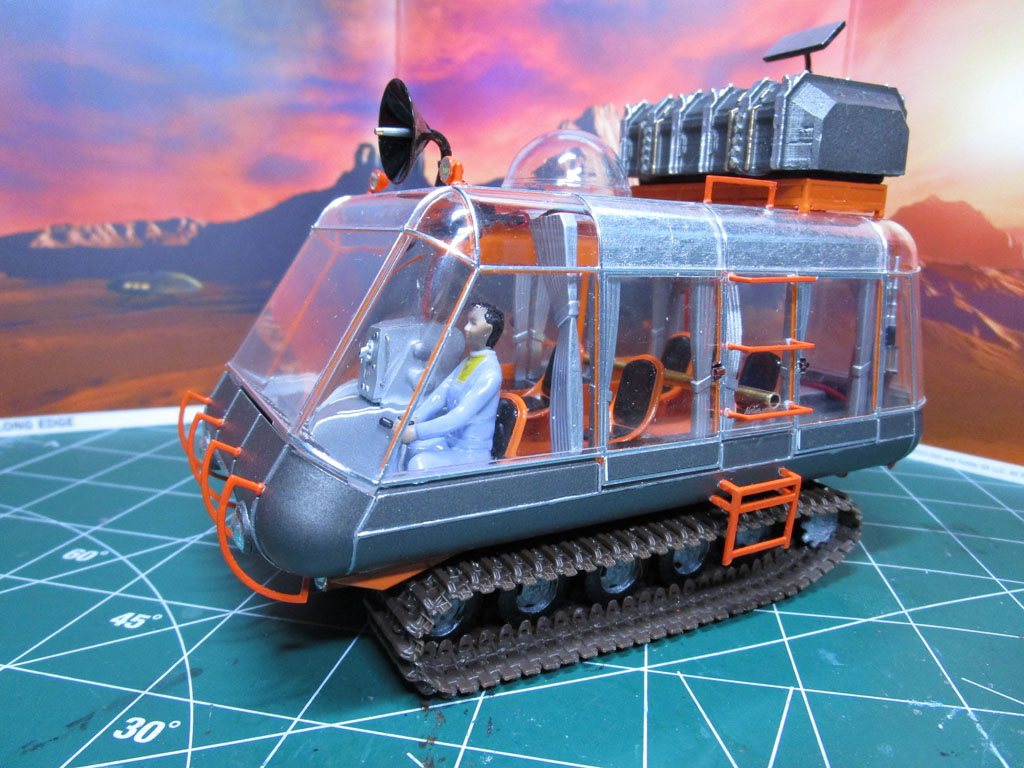

1/35 LIS Chariot, nice little kit with extras

teslabe

Sr Member
I had waited for many years and had a pre-order for Moebius's kit that never was and so happy that someone took on the project....(y)
Doll & Hobby did a very nice job with this kit, especially when you consider it's size. It is a simple kit and I just can't build an "out of box"
version and will focus on the mods I plan to add, hope it's of some interest....:unsure:

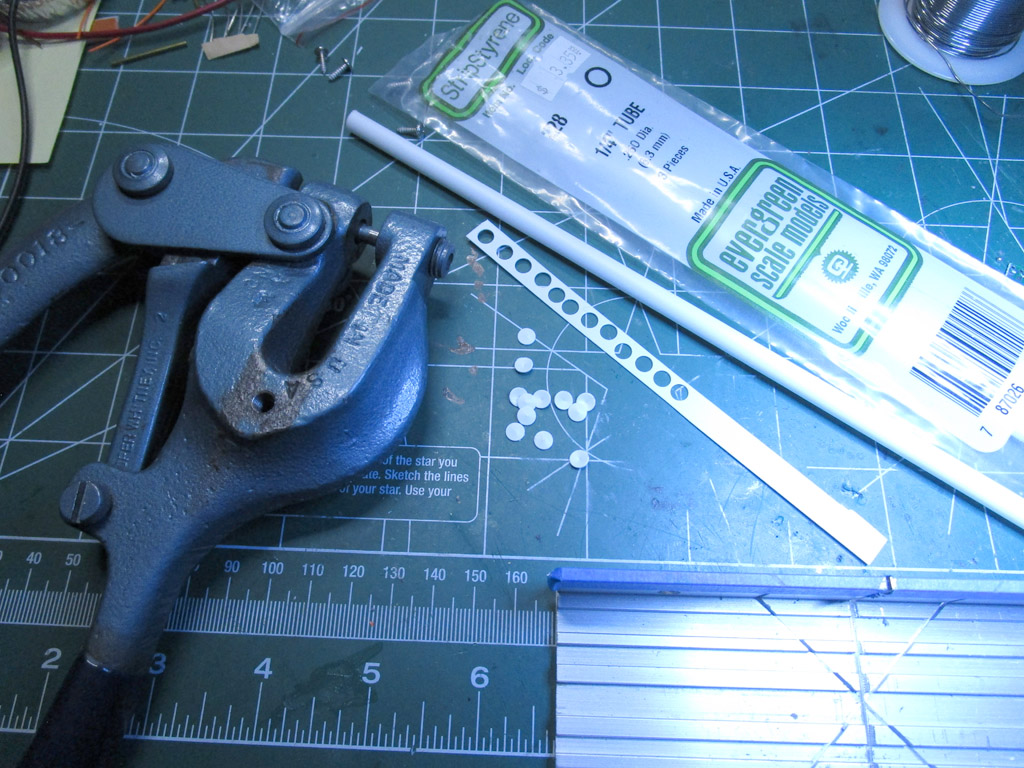

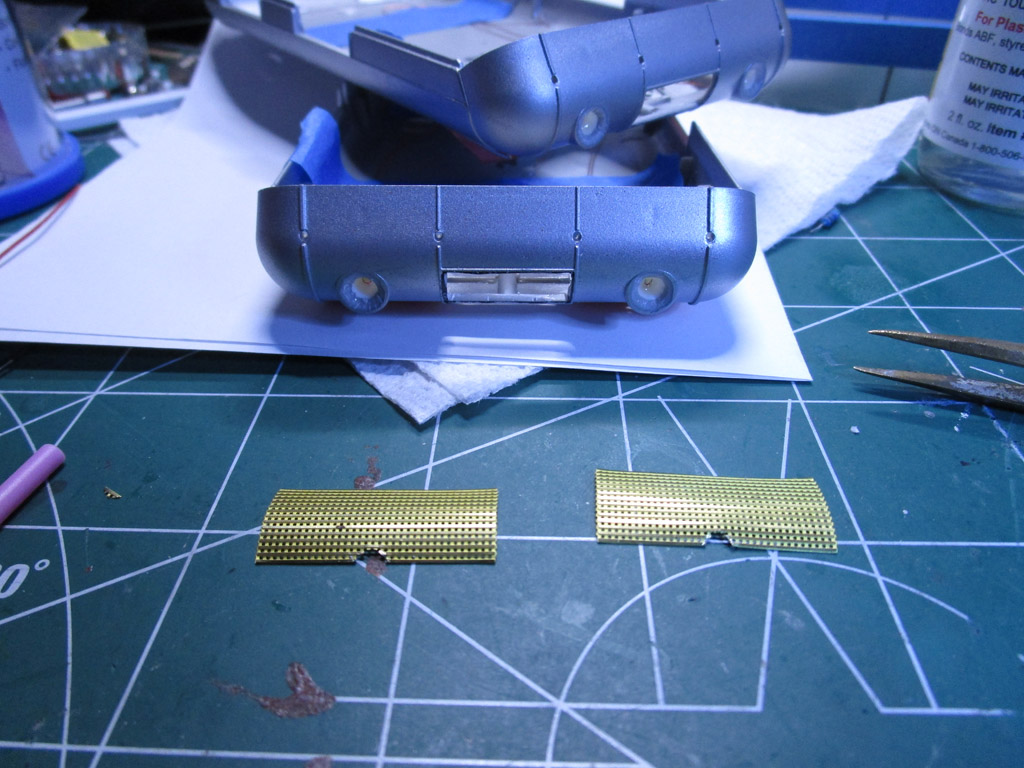

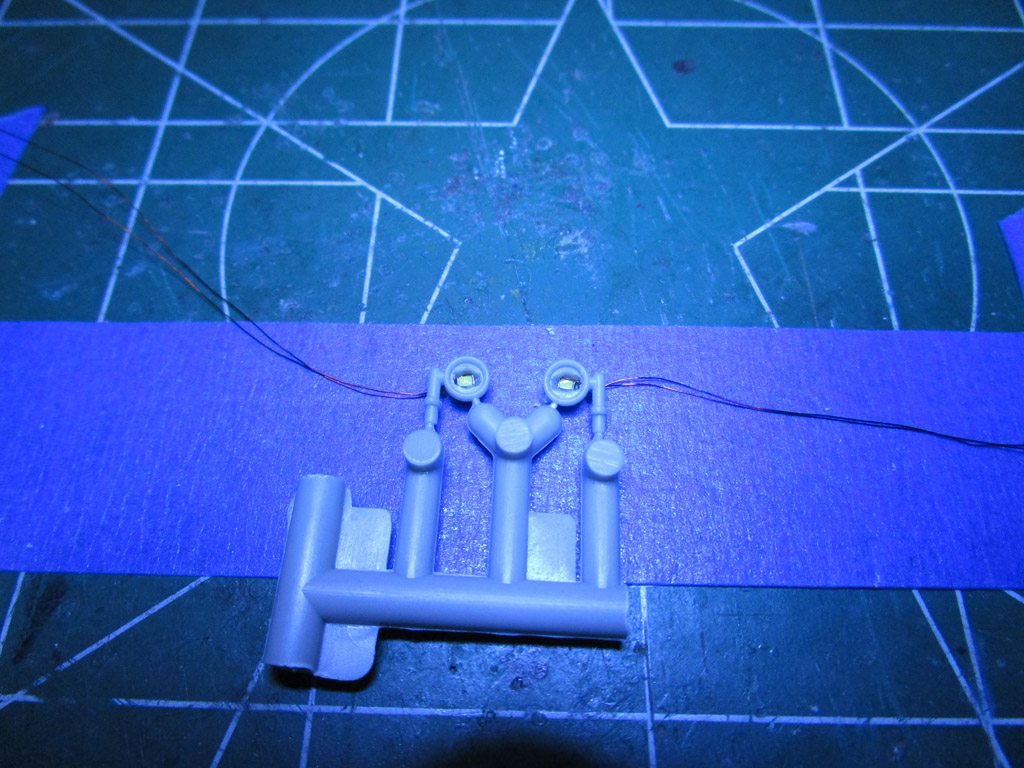

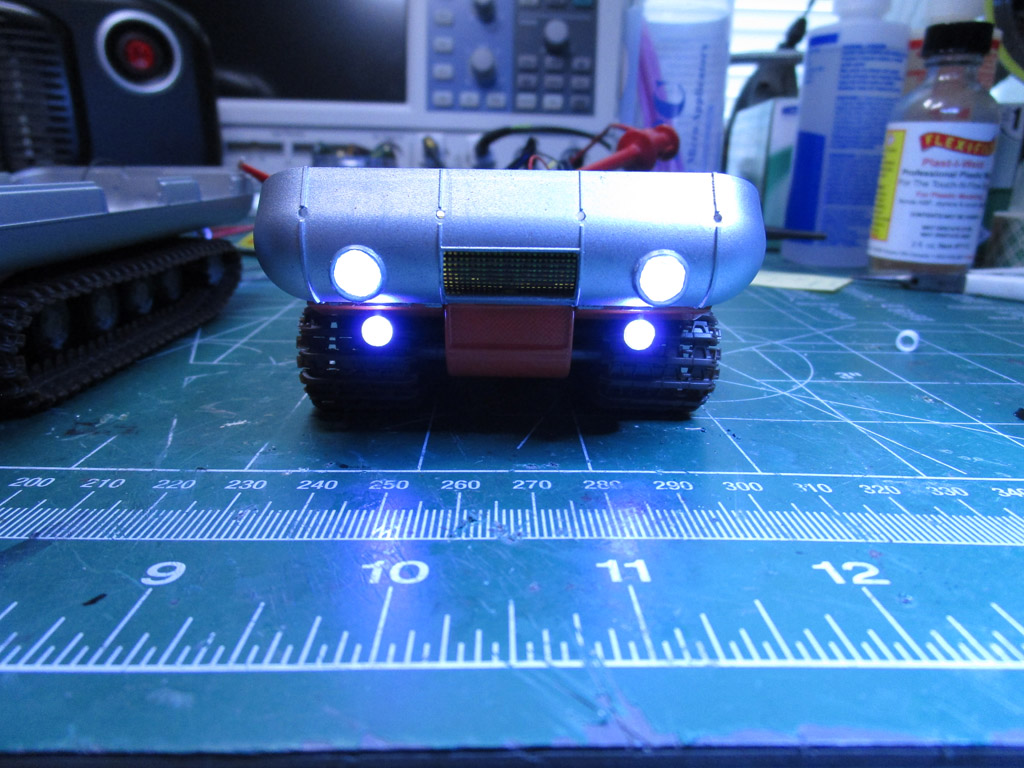

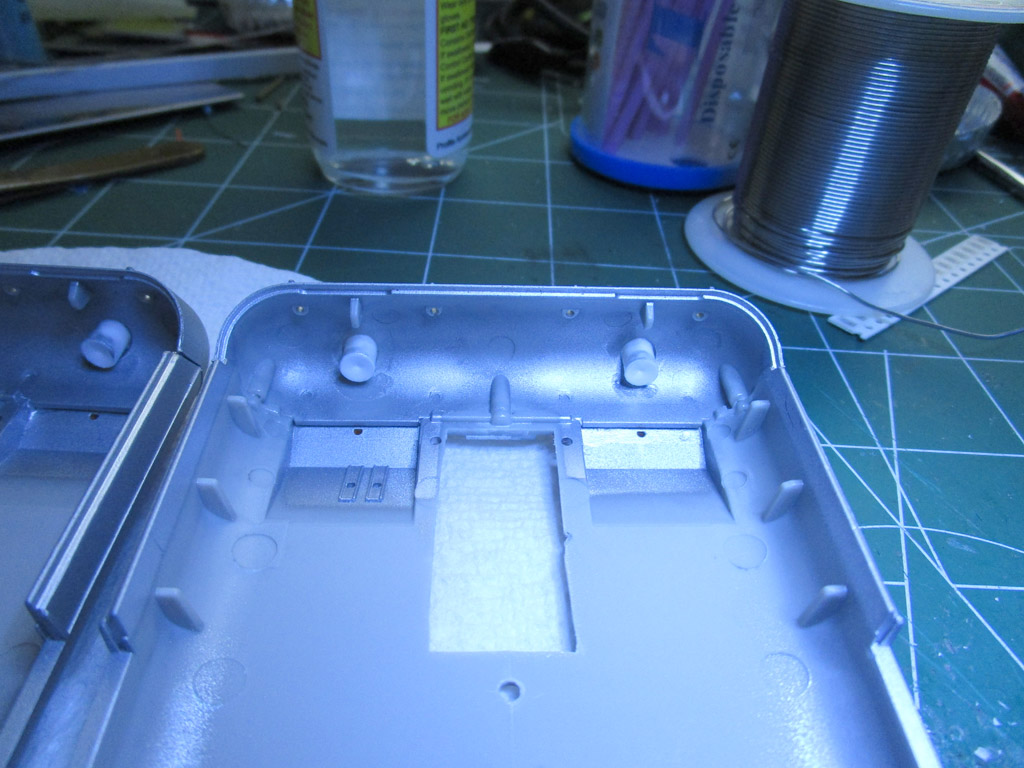

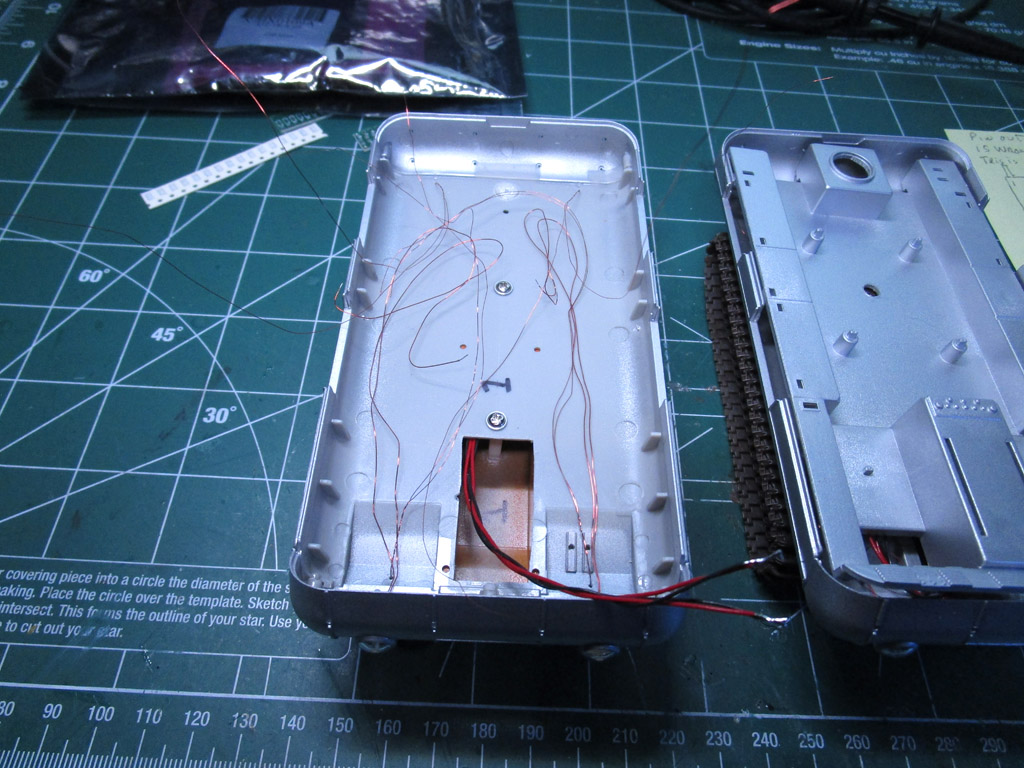

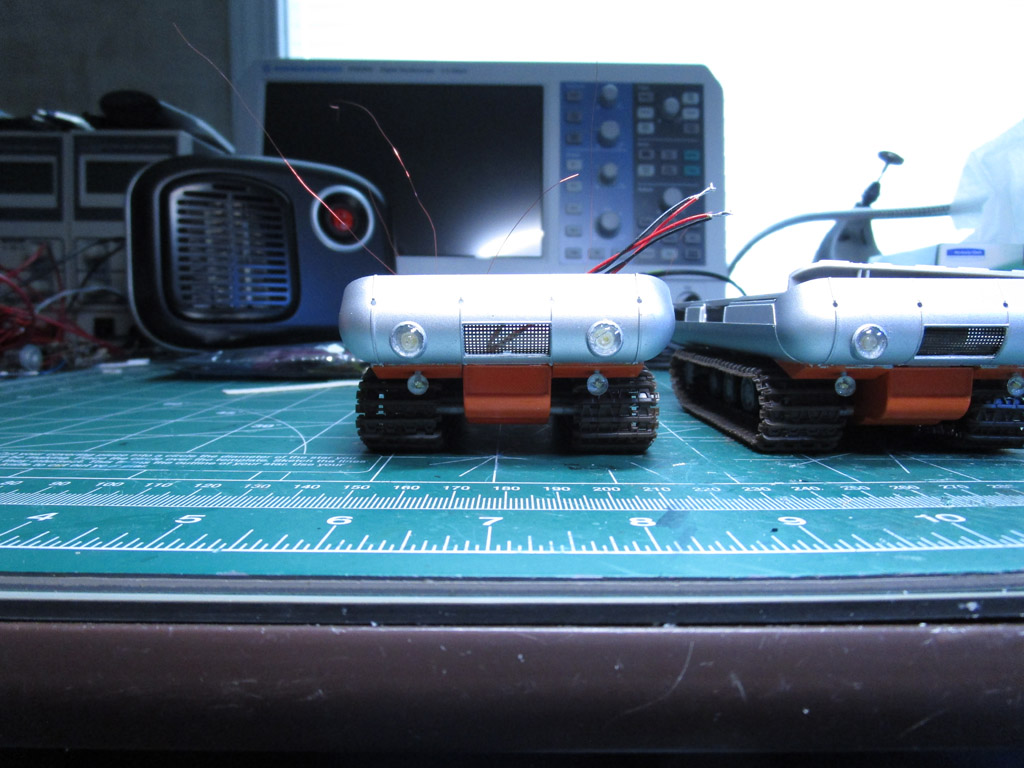

I added both headlights and spotlights to build, glad the plastic is soft, had to add a better grill while I was at it.



Attachments

  • chariot lighting01.jpg
    chariot lighting01.jpg
    237.4 KB · Views: 61
  • chariot lighting03.jpg
    chariot lighting03.jpg
    280.1 KB · Views: 47
  • chariot lighting05.jpg
    chariot lighting05.jpg
    195.2 KB · Views: 51
  • chariot lighting08.jpg
    chariot lighting08.jpg
    204.7 KB · Views: 53
  • chariot lighting09.jpg
    chariot lighting09.jpg
    243.5 KB · Views: 58
  • chariot lighting11.jpg
    chariot lighting11.jpg
    234.9 KB · Views: 63
  • chariot lighting07.jpg
    chariot lighting07.jpg
    216.1 KB · Views: 64

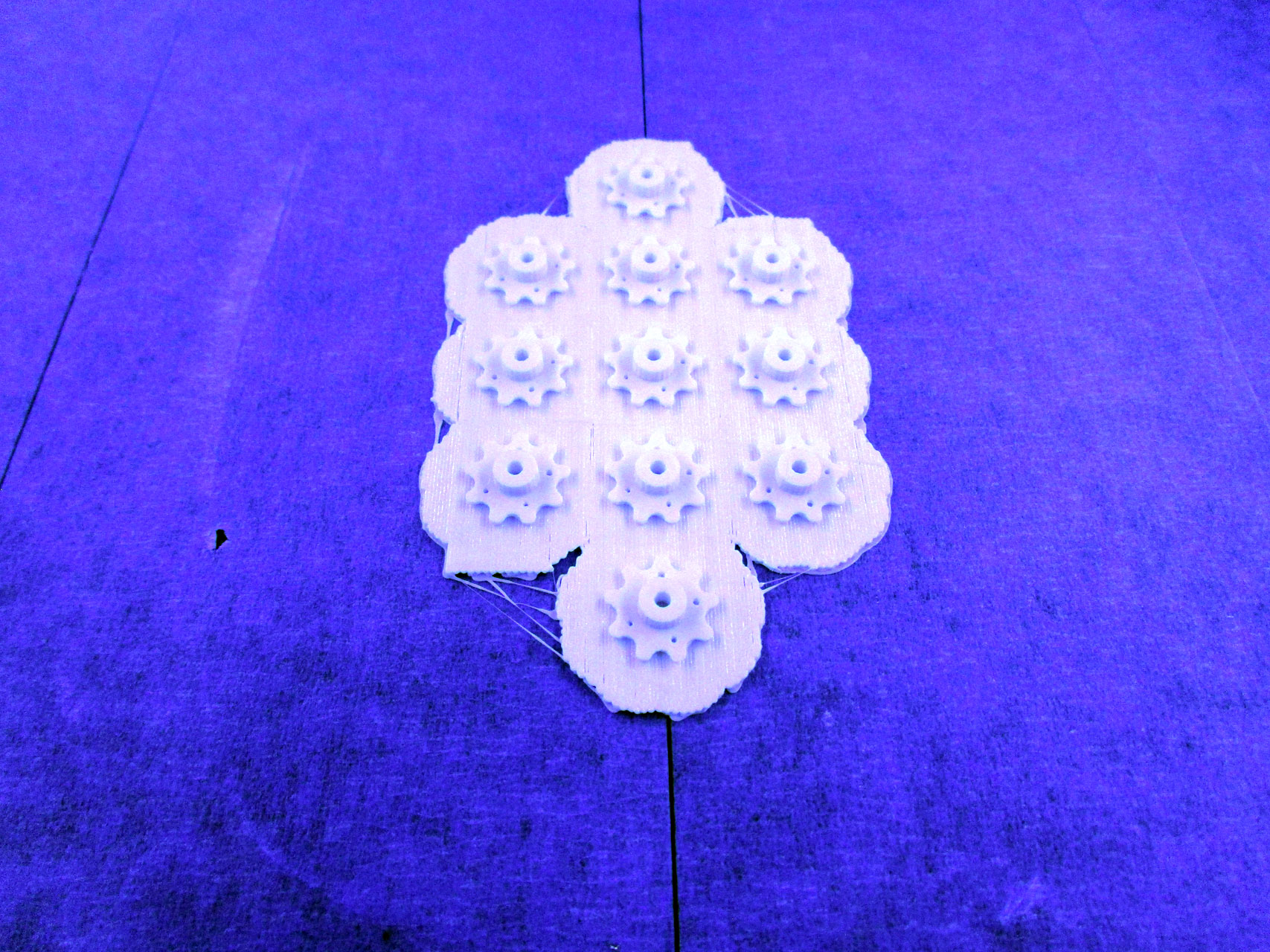

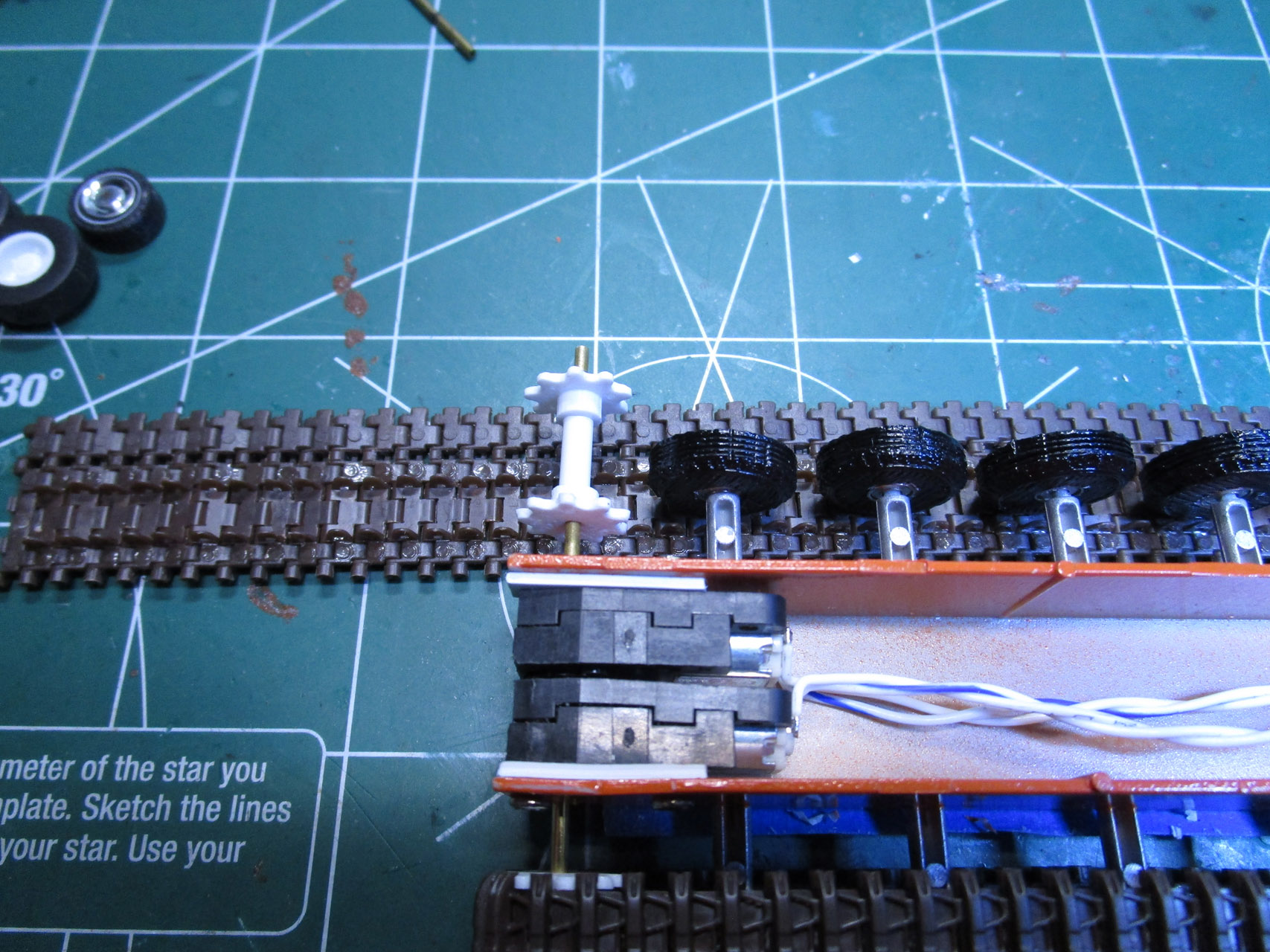

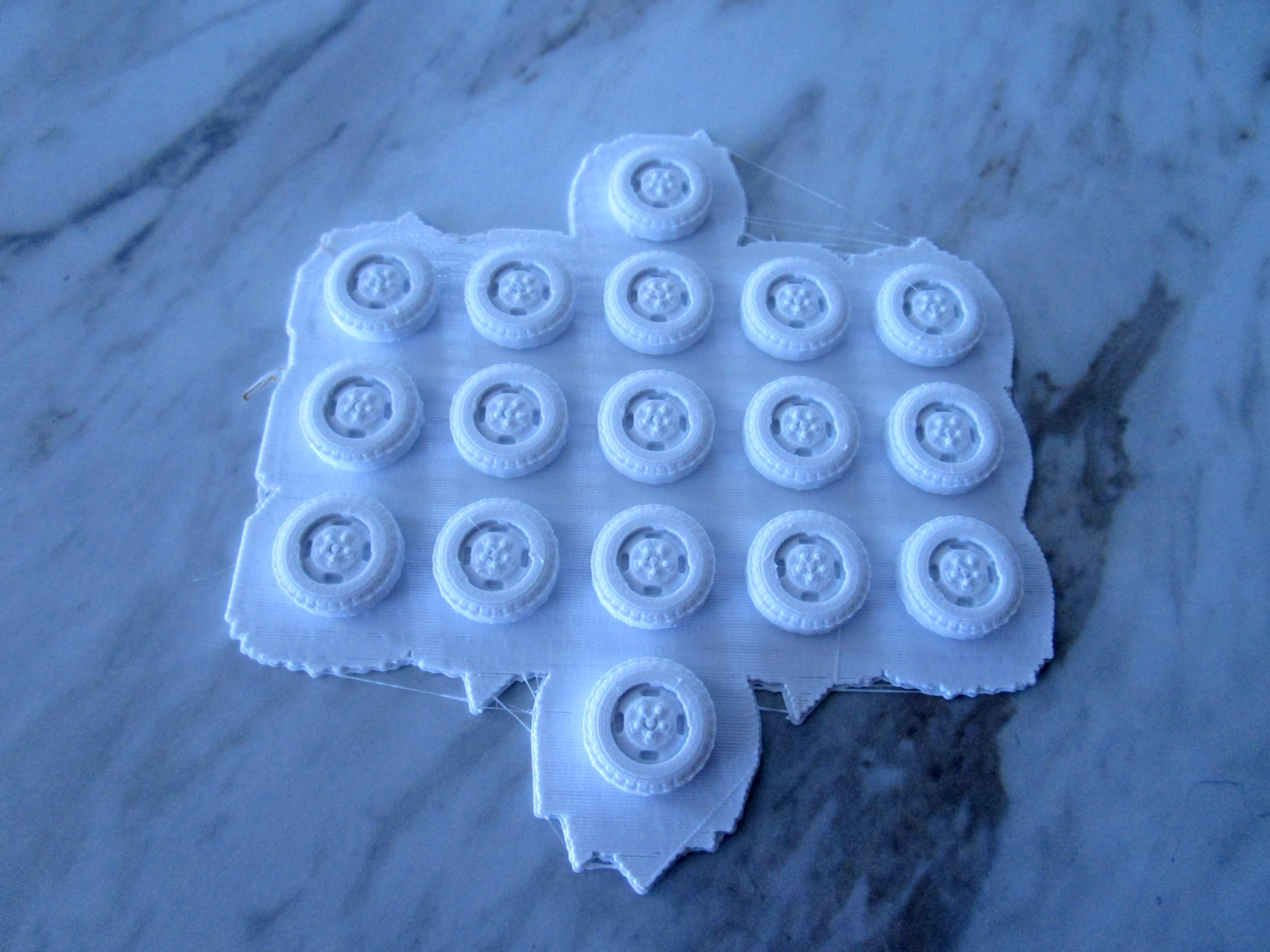

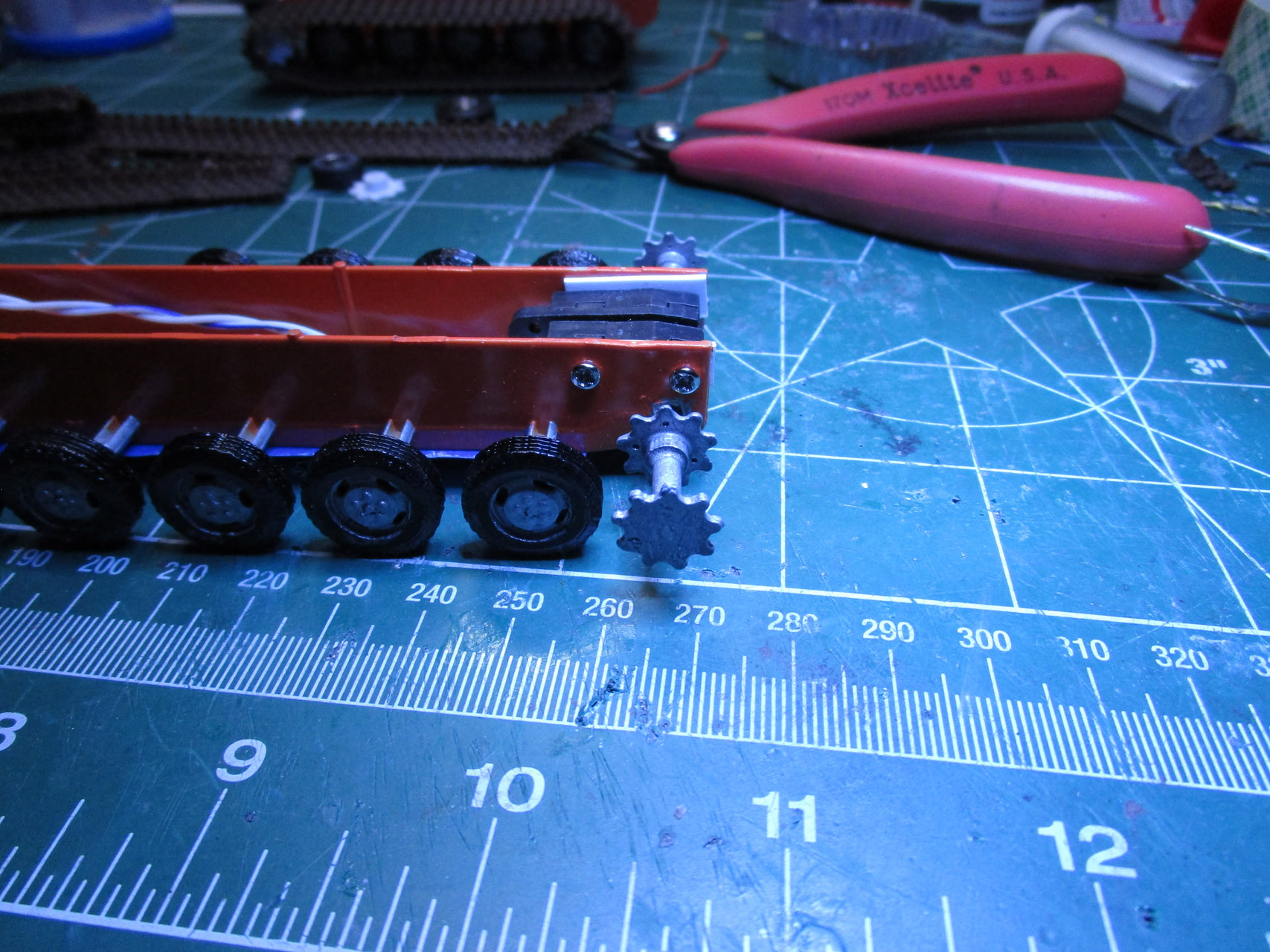

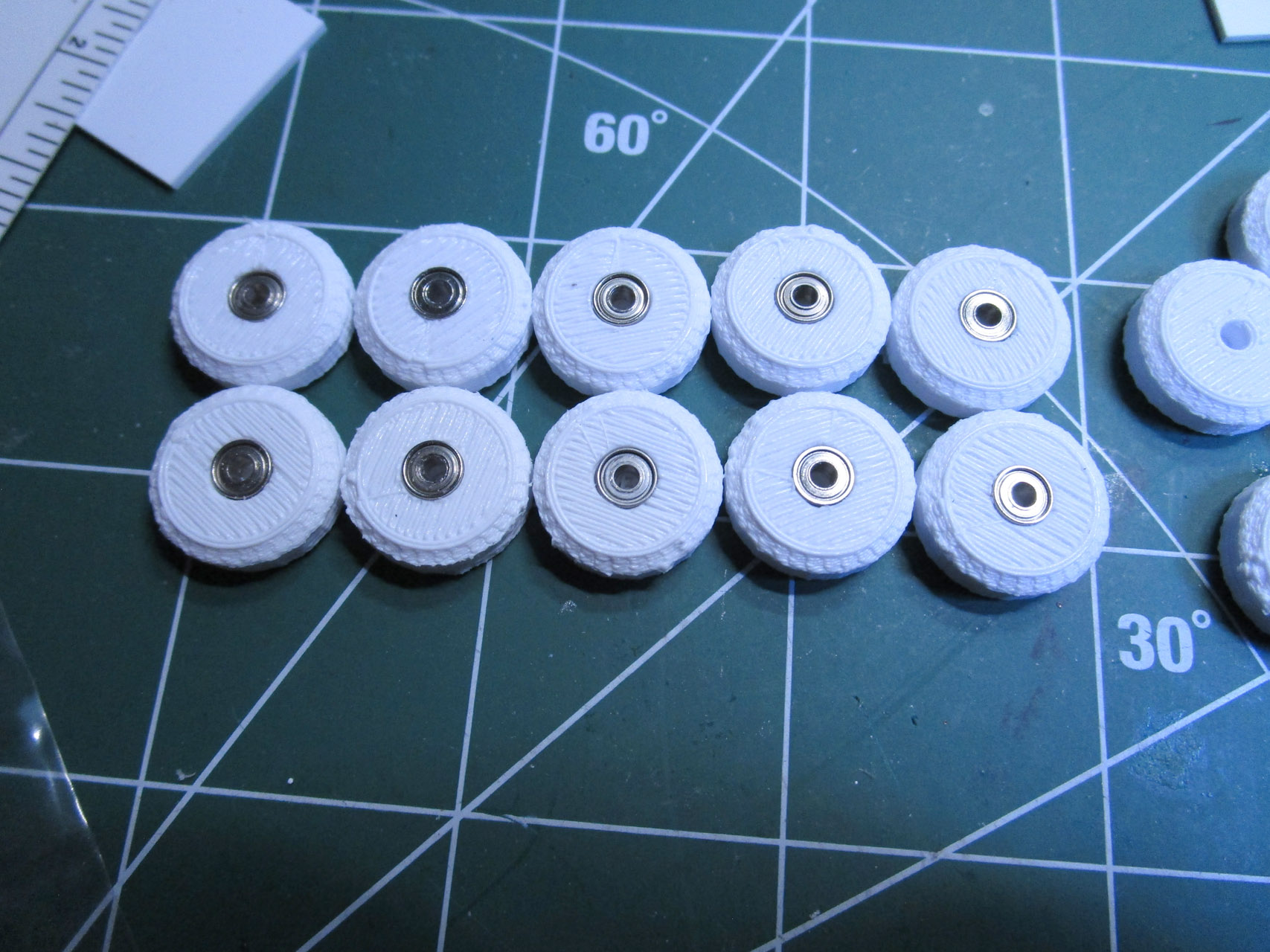

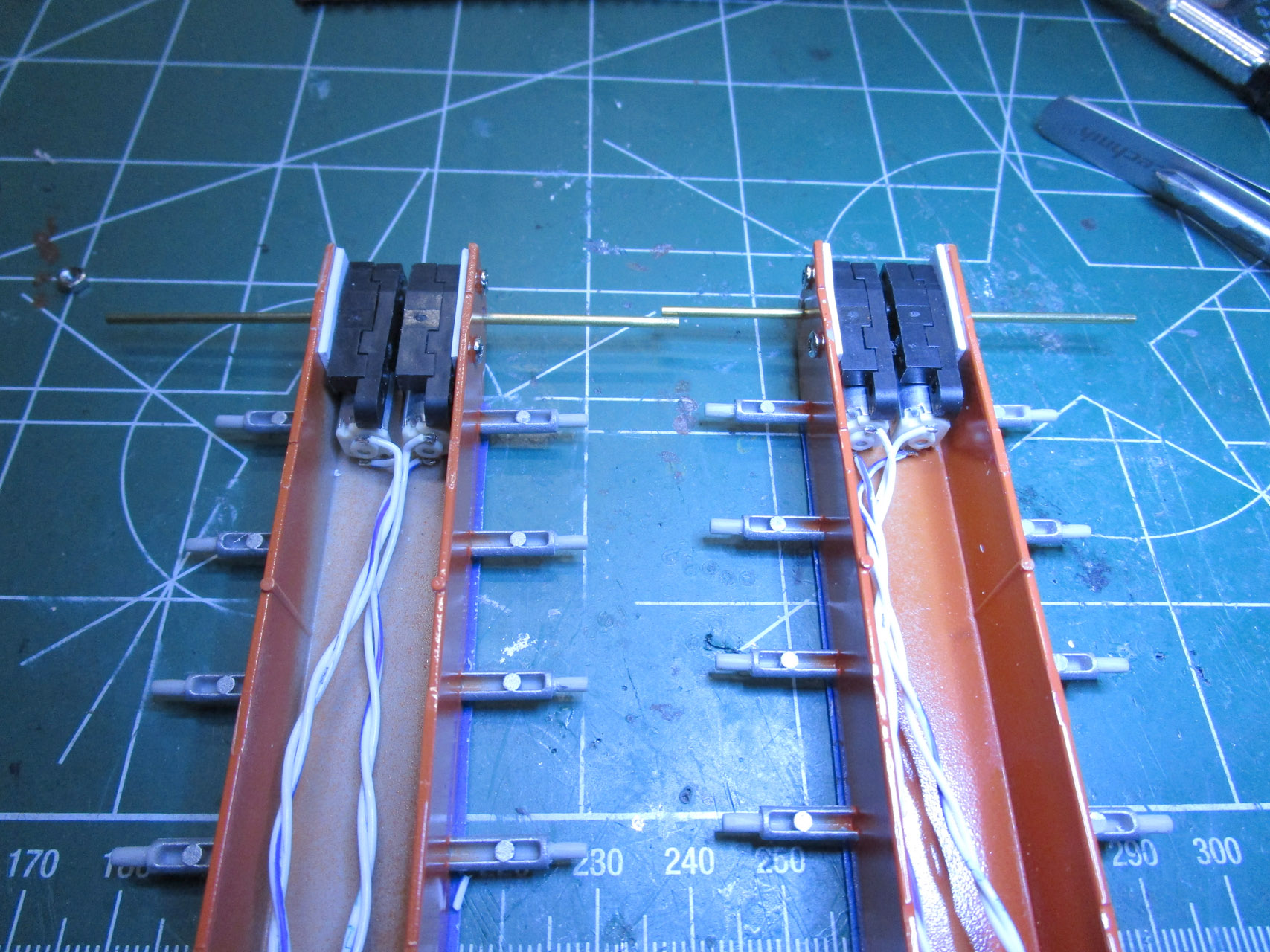

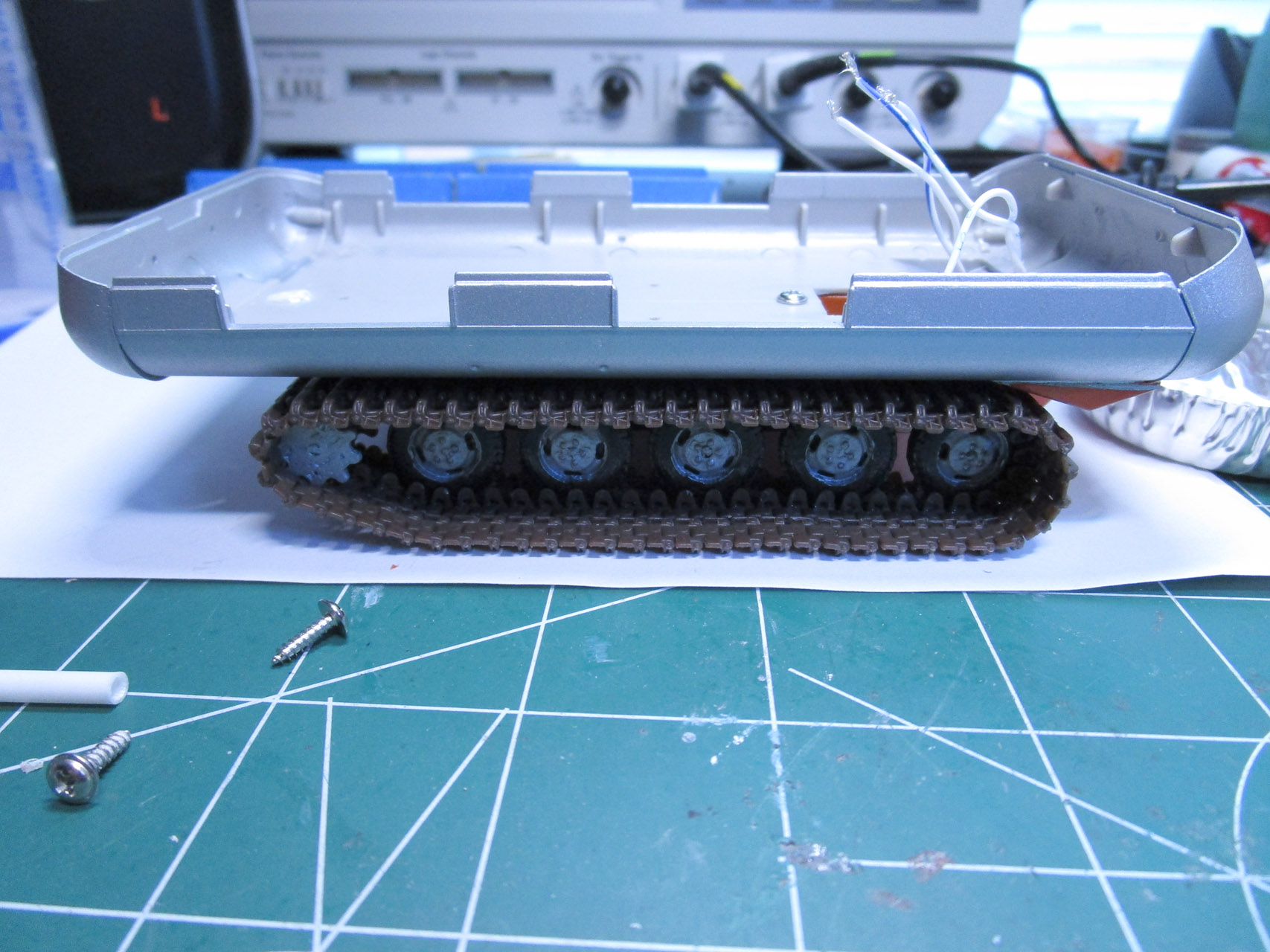

Here is the next update of my small Chariot build. I can't remember the last time I did a "out of box" build and I wanted this one to move like my 1/24 Moebius Chariot does, you can find that video at the beginning of my "youtube" videos (teslabe7701), I did it 12 years ago....o_O I could not find wheels to fit the scale and had to print them myself at about 16mm, I think they turned out ok.



Attachments

  • drive assy05jpg.jpg
    drive assy05jpg.jpg
    505.1 KB · Views: 50
  • drive assy02jpg.jpg
    drive assy02jpg.jpg
    389.7 KB · Views: 48
  • drive assy01.jpg
    drive assy01.jpg
    373.1 KB · Views: 46
  • drive assy06jpg.jpg
    drive assy06jpg.jpg
    602.6 KB · Views: 43
  • drive assy07jpg.jpg
    drive assy07jpg.jpg
    471.6 KB · Views: 49
  • drive assy08jpg.jpg
    drive assy08jpg.jpg
    475.7 KB · Views: 45
  • drive assy09jpg.jpg
    drive assy09jpg.jpg
    374.8 KB · Views: 44
Your motor drive assembly unit is that a custom build or a kit and what type of board are you using to control the motors?

Your motor drive assembly unit is that a custom build or a kit and what type of board are you using to control the motors?

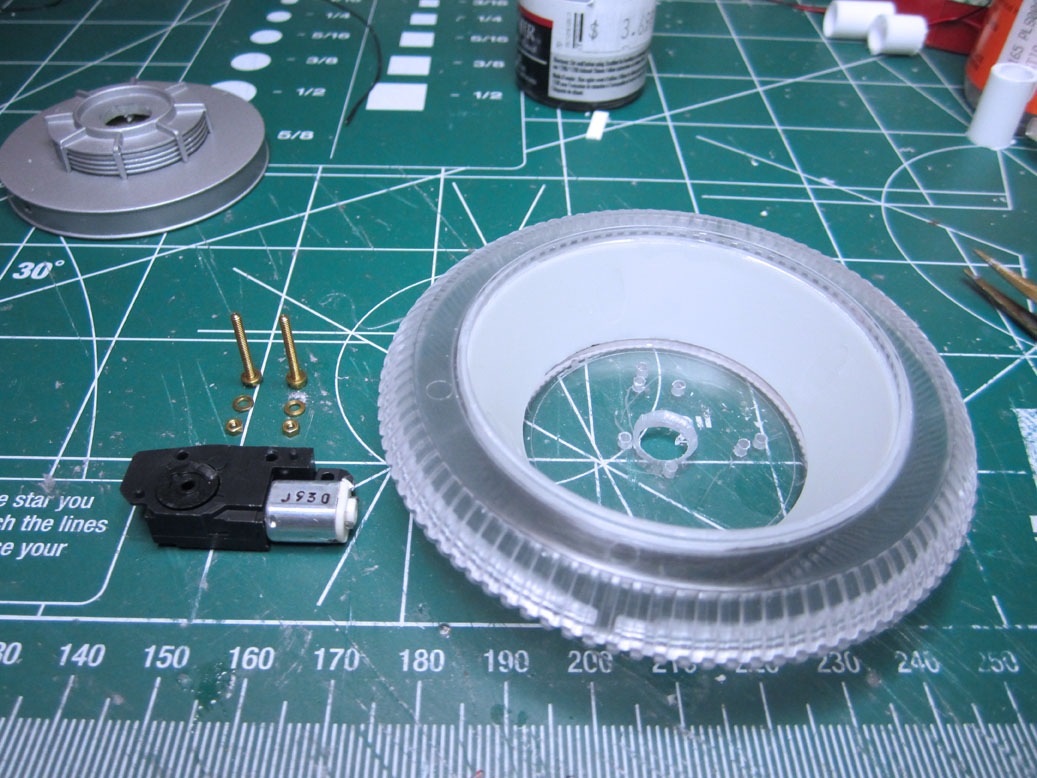

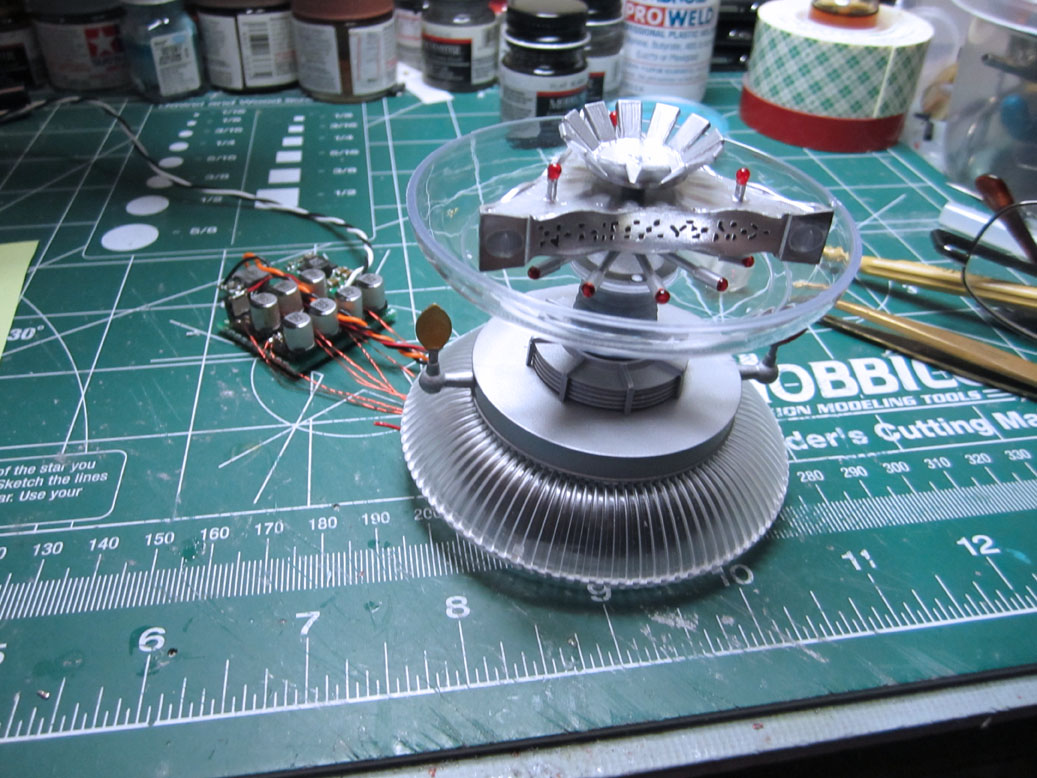

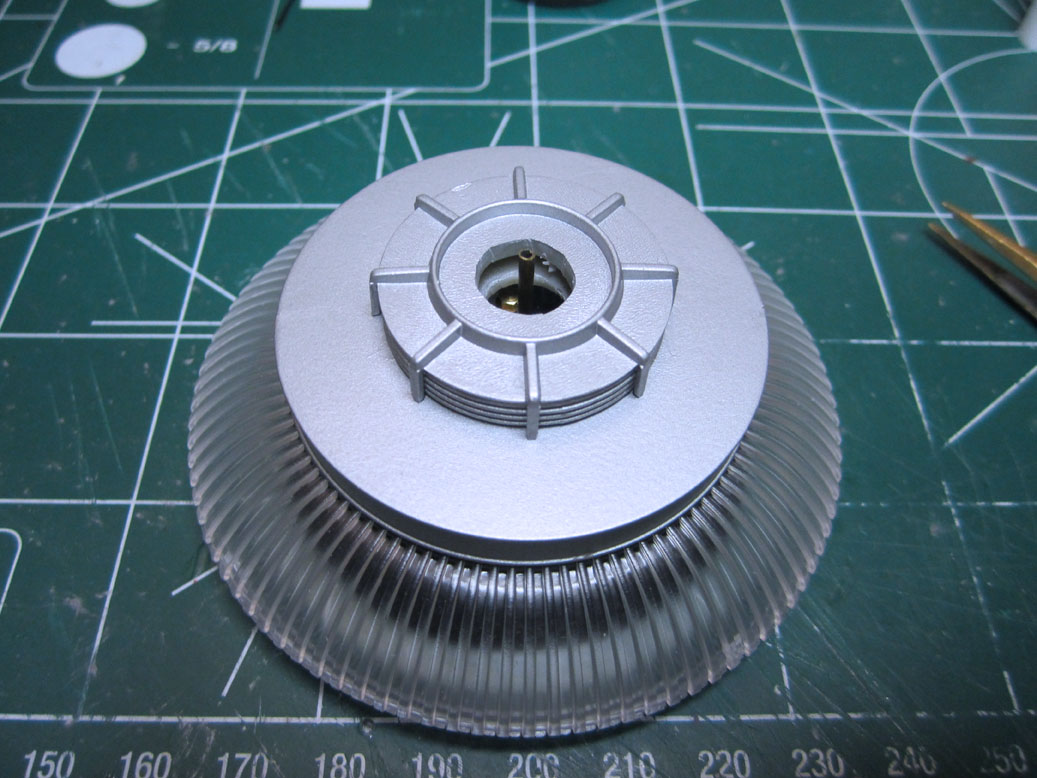

The motor/gearboxes are not custom, I bought a bag full of these off ebay back when I was working on my 1/6 Moebius B-9's
crown animation around January 2014, I believe they came from a discontinued product or an overproduction, I've not seen them again.

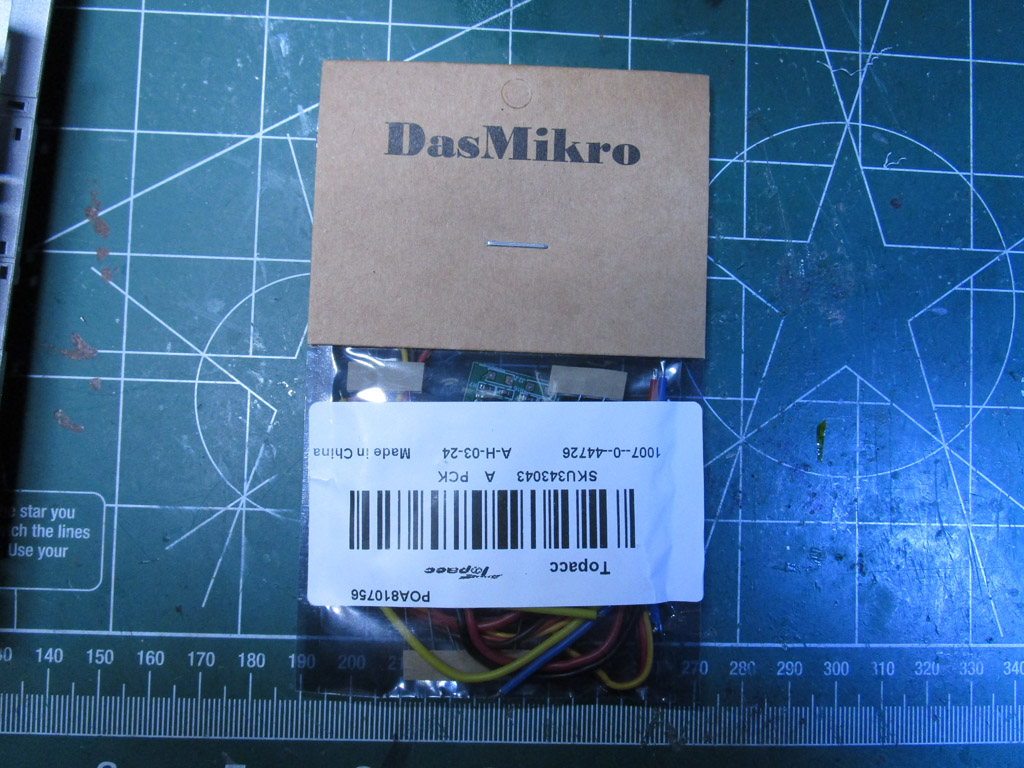

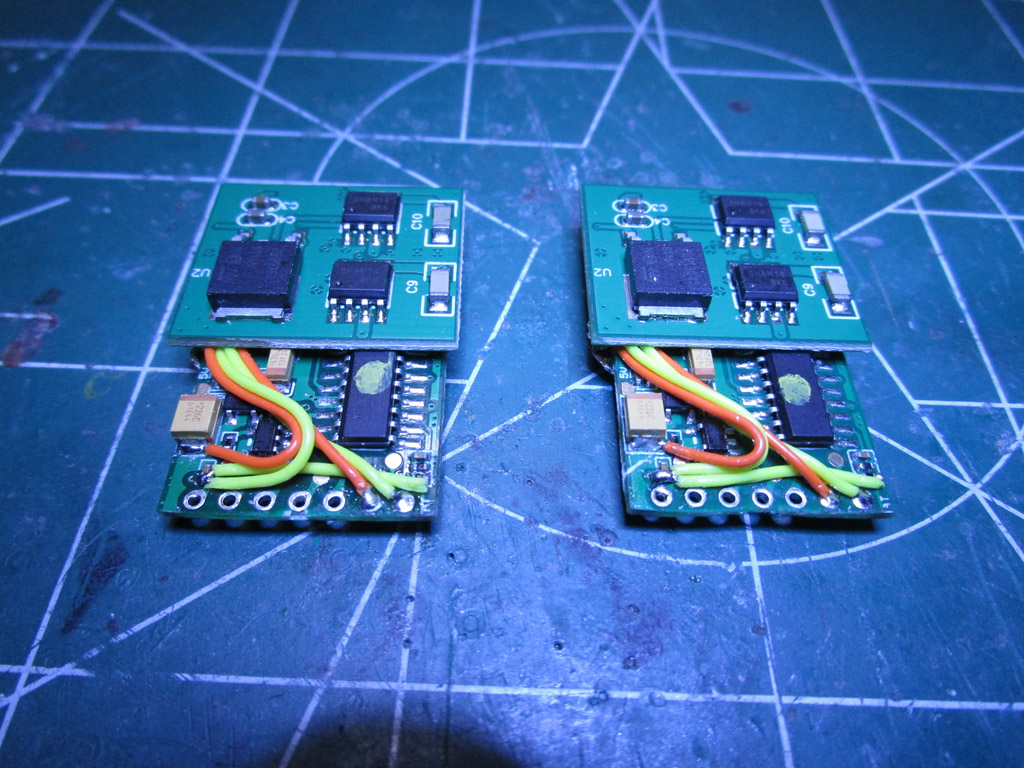

The ESC for the motors are from DasMikro, I bought those back in 2018 when I was upgrading my Moebius 1/25 Chariot's receiver/motor drive
and they are not being produced any longer.



Attachments

  • Receiver and ESC03.jpg
    Receiver and ESC03.jpg
    244.4 KB · Views: 17
  • Brain lighting19.jpg
    Brain lighting19.jpg
    224.7 KB · Views: 21
  • Crown motor06.jpg
    Crown motor06.jpg
    176.7 KB · Views: 17
  • Crown motor01.jpg
    Crown motor01.jpg
    213.9 KB · Views: 20
  • Receiver and ESC02.jpg
    Receiver and ESC02.jpg
    265.3 KB · Views: 18
There are tiny esc's available that would work for this application, but i have not found a small 130/180 size 90 degree gearbox that would work yet. still looking.

There are tiny esc's available that would work for this application, but i have not found a small 130/180 size 90 degree gearbox that would work yet. still looking.
Yes, there are tiny esc boards out there, but I think you'll find them to be for single brushed dc motors. This board was only 23mm x 19mm and dual motor with built-in mixing.
