The Martian Space Suit

[Captain April]

Helmet looks fantastic, I can't wait to see it in person.



[geekdriver]

YES! That is looking quite nice.

finally painted and assembled the mock up helmet

https://www.instagram.com/p/BIczru4jzQG/?taken-by=bcfx



[DarkJedi1500]

@DarkJedi1500 did you use captain april's model to build the helmet as in the dimensions as i was told by sevrle vacumforming companys that the visor could not be vacumformed but you have done a fantastic job of in

im now thinking of a plan b :thumbsup

I want to stress that nothing on my suit is 3d printed or CNC'd

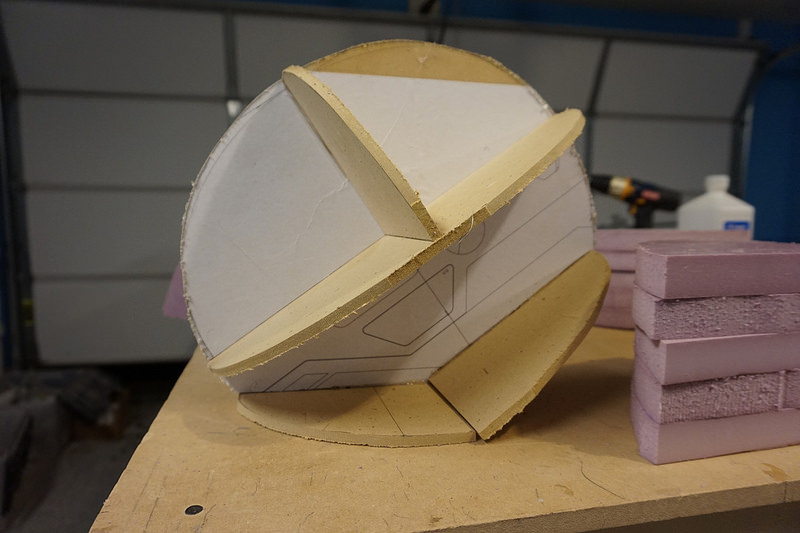

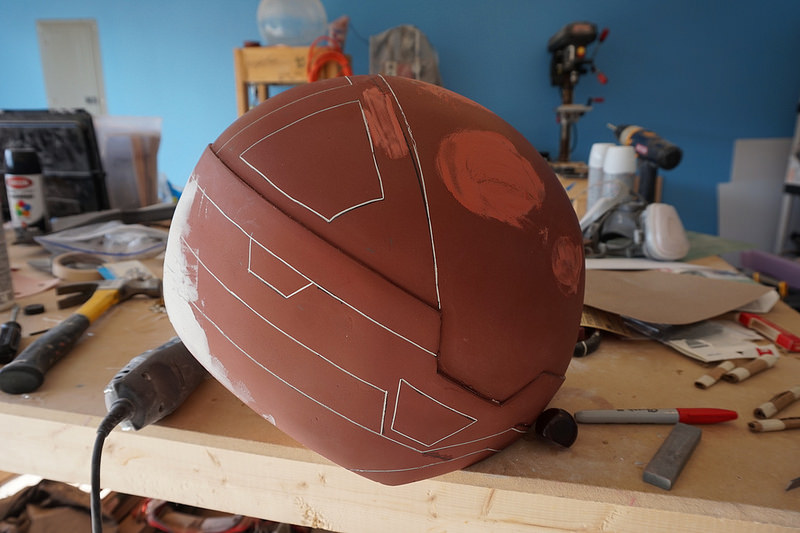

The helmet was sculpted from foam using Captain April's 2D post. I build an MDF skeleton and sculpted the helmet from bondo and pink foam.

DSC01854 by 2StoryProps, on Flickr

DSC01855 by 2StoryProps, on Flickr

DSC01882 by 2StoryProps, on Flickr

DSC01892 by 2StoryProps, on Flickr

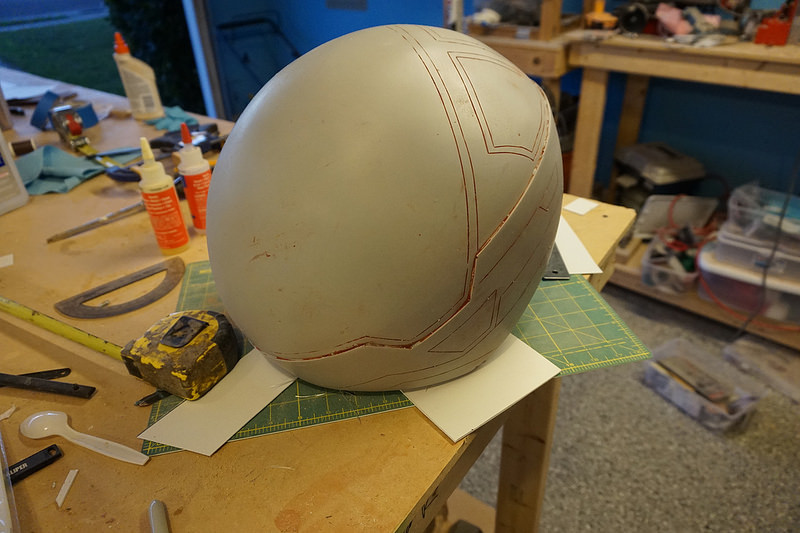

A mold of the rough sculpt was made and two casting pulled. One became the positive for the final helmet mold and one was made into the vacuum forming buck. The visor is 0.09" PETG pulled on our 24 x 24 inch protoformer.



[BC-FX]

i understand you scratch build it i was only asking as i was told that the visor could not be vacuform, but now i know its possible to pull a visor the with the dimentions to fit my helmet i now just need a bloody big vacuum form

I want to stress that nothing on my suit is 3d printed or CNC'd

The helmet was sculpted from foam using Captain April's 2D post. I build an MDF skeleton and sculpted the helmet from bondo and pink foam.

https://c4.staticflickr.com/8/7472/26548752443_f41a248297_c.jpgDSC01854 by 2StoryProps, on Flickr

https://c1.staticflickr.com/8/7348/27120197296_7845b6d7a4_c.jpgDSC01855 by 2StoryProps, on Flickr


https://c3.staticflickr.com/9/8797/28424510522_5589bb2301_c.jpgDSC01882 by 2StoryProps, on Flickr

https://c2.staticflickr.com/9/8886/28452664321_f09ff9aaff_c.jpgDSC01892 by 2StoryProps, on Flickr

A mold of the rough sculpt was made and two casting pulled. One became the positive for the final helmet mold and one was made into the vacuum forming buck. The visor is 0.09" PETG pulled on our 24 x 24 inch protoformer.



[Captain April]

You did it old school, I am glad that my drawings helped.



[DarkJedi1500]

You did it old school, I am glad that my drawings helped.

They did and the helmet decals worked out great.

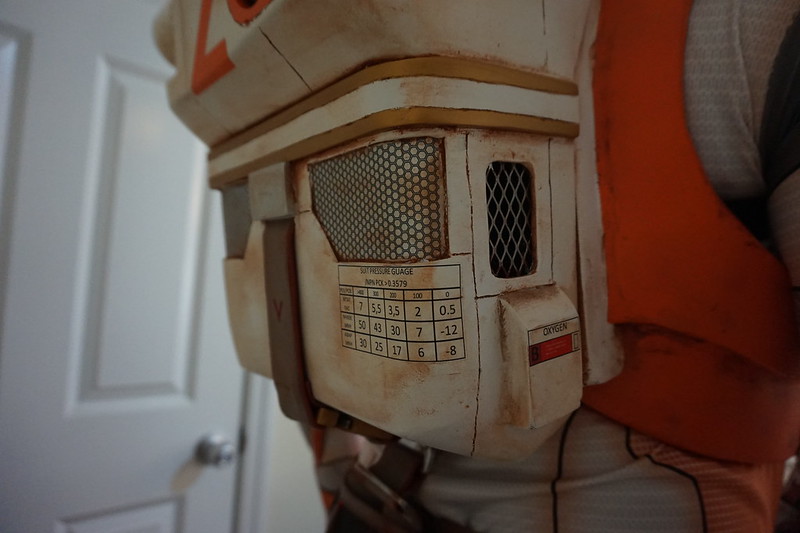

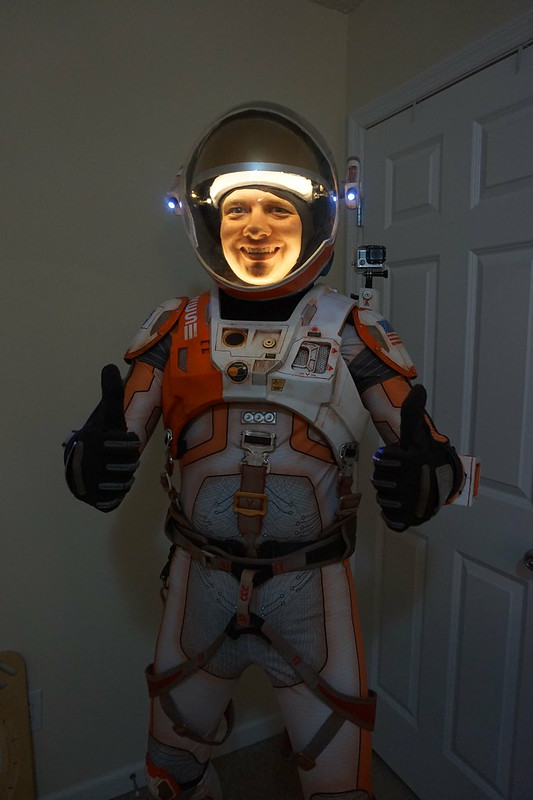

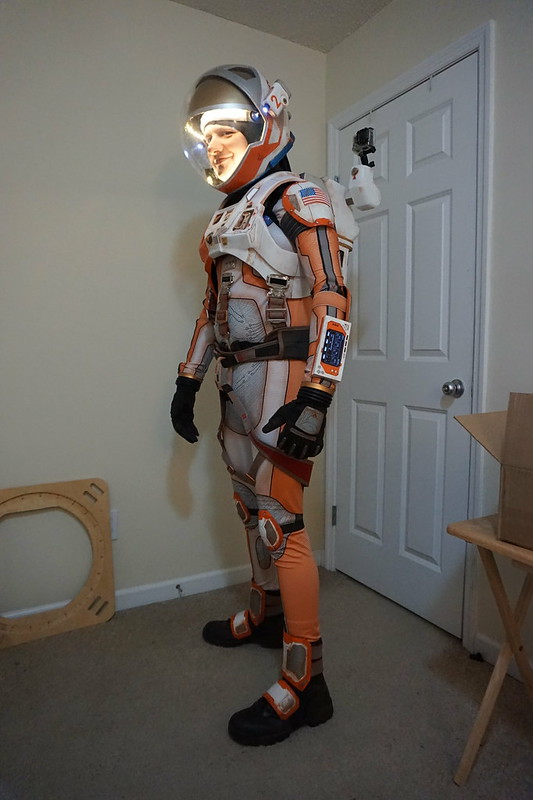

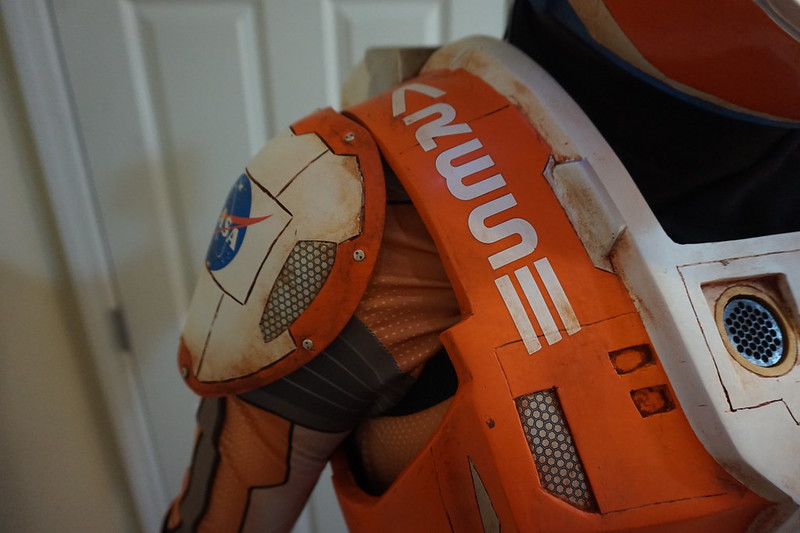

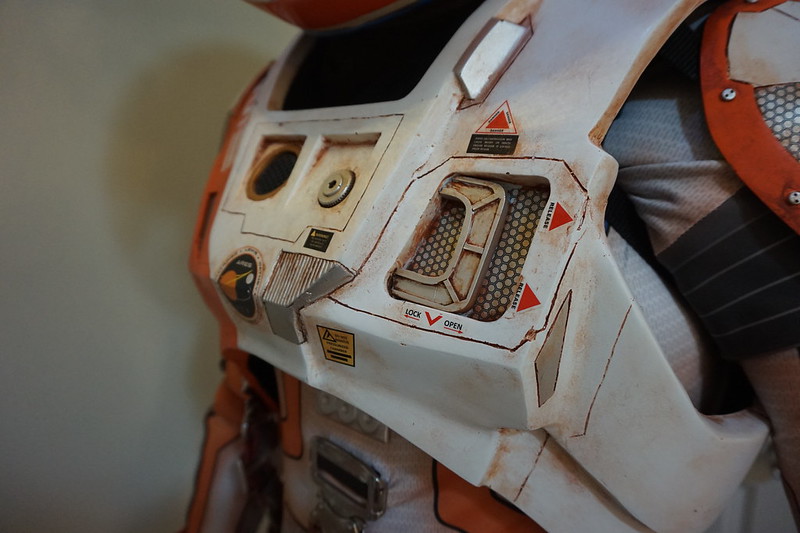

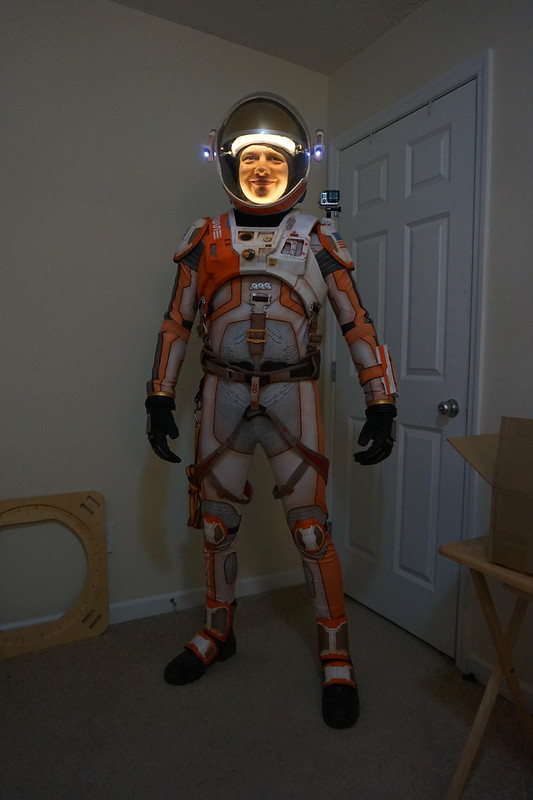

Finished weathering this evening. I need to add some padding to the back of the torso to hold it in the correct place, but here is the full suit.

DSC02021 by 2StoryProps, on Flickr

DSC02022 by 2StoryProps, on Flickr

DSC02025 by 2StoryProps, on Flickr

DSC02027 by 2StoryProps, on Flickr

DSC02031 by 2StoryProps, on Flickr

DSC02033 by 2StoryProps, on Flickr

DSC02034 by 2StoryProps, on Flickr



[BC-FX]

fantastic :thumbsup



[Captain April]

Wow, now I know the decals fit. Looks great.



[tessellated]

Woah, epic job! That looks fantastic!



[DarkJedi1500]

Wow, now I know the decals fit. Looks great.

I called several sign shops and nobody had clear vinyl. The one I went with printed the decals on white and pre cut them as well. A few of them, like visor and the pressure lable on the cheak i did on waterslides.

The decals worked great. I would make the suggestion through of including the meatball if you revisit the decal sheet. On my helmet castings the meatball is about 2.25 inches tall.

I've had several people ask if Im going to offer kits. I have the molds now but I have to sit down and figure out the cost and instructions to include. I've been staying up late the last month working to finish my suit for Dragon*Con (on top of working on and off since the movie came out) so Im going to rest a bit and research offering casting later this fall.



[DarkJedi1500]

If anyone is curious, here is the view from the GoPro on the suit.

GP010025-0001 by 2StoryProps, on Flickr

GP010025-0003 by 2StoryProps, on Flickr



[Captain April]

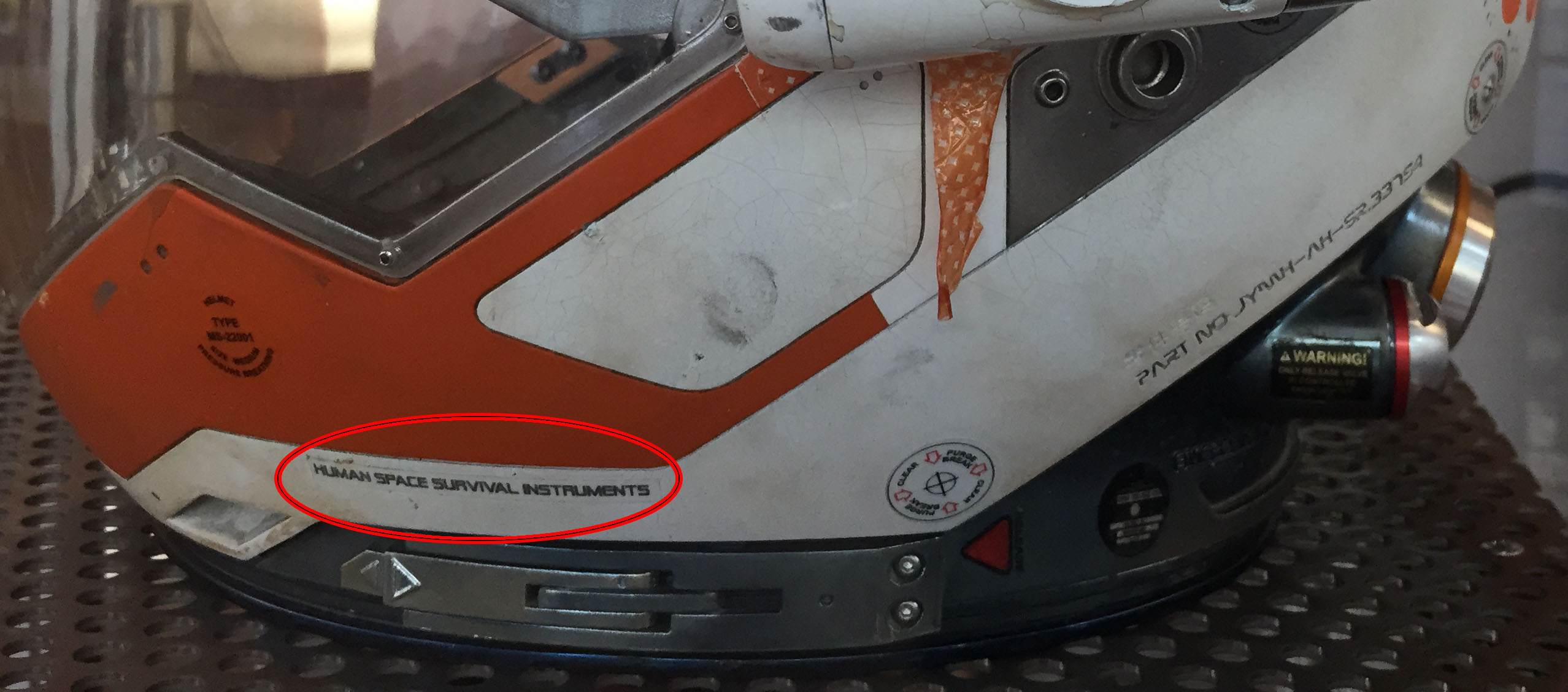

Here's a revised Decal sheet including the NASA seal, also I noticed that one of the decals was placed in the wrong location:

View attachment Helmet Decals.pdfView attachment Helmet Decals.ai



[Captain April]

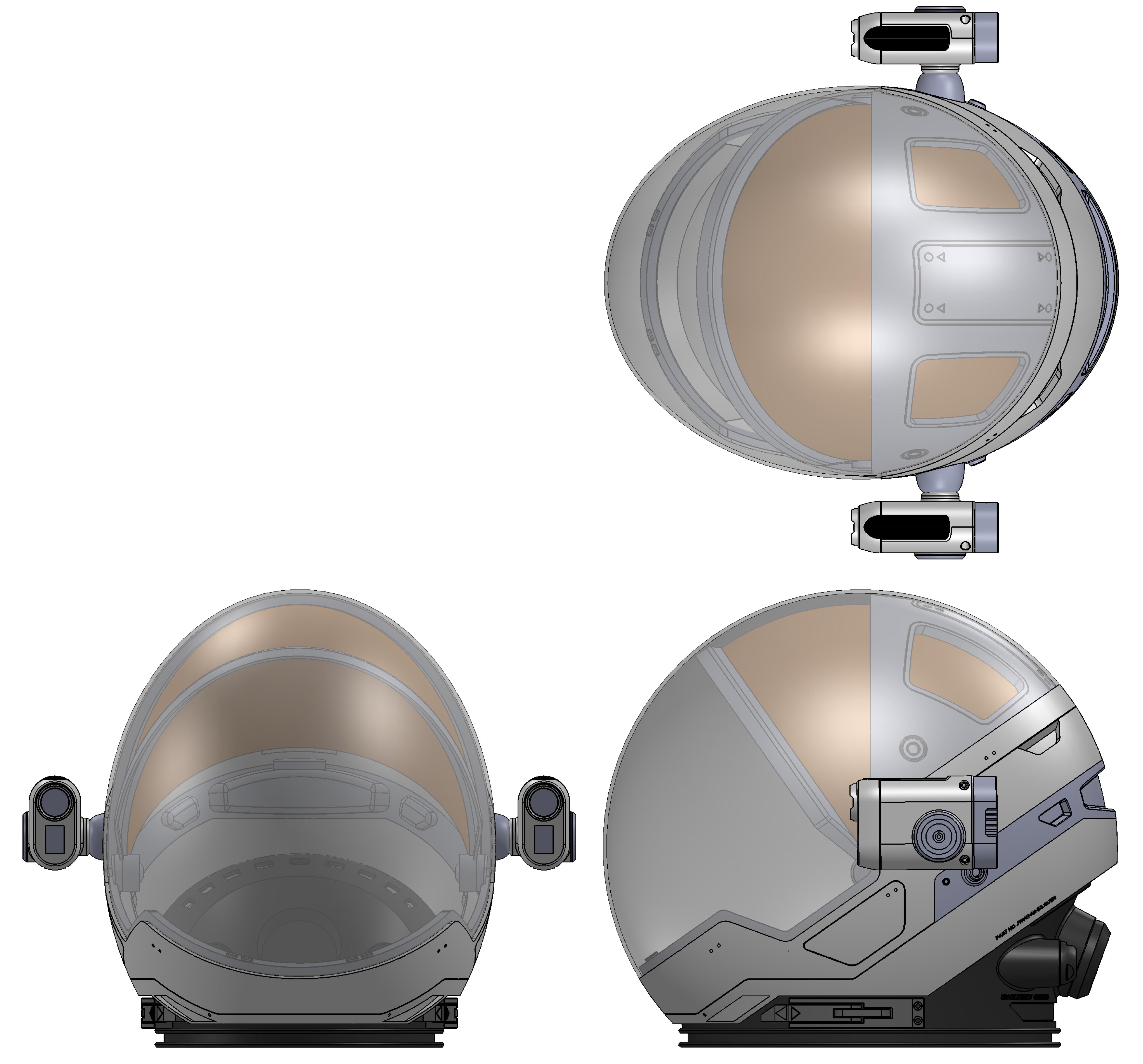

I revised my helmet again. Here's a image of it.
View attachment Pressure Helmet Assembly-2.jpg



[Captain April]

The work of BCFX has inspired me to revise my model. Enough time has past that I can review the model with fresh eyes, and not surprising I have found a couple of mistakes but more important I have added details that I overlooked or just missed. I have also added tabs to position the parts for assembly.Here's the final version unless someone points out something I missed.View attachment Pressure Helmet Assembly-W-Dims.PDF
Many of you continue to ask for the 3d model to build your own helmet, I have decided to offer the files for purchase, I figured out a price and if anyone is interested please PM me, the price is inline with what one would pay for a large scale garage model kit.



[Captain April]

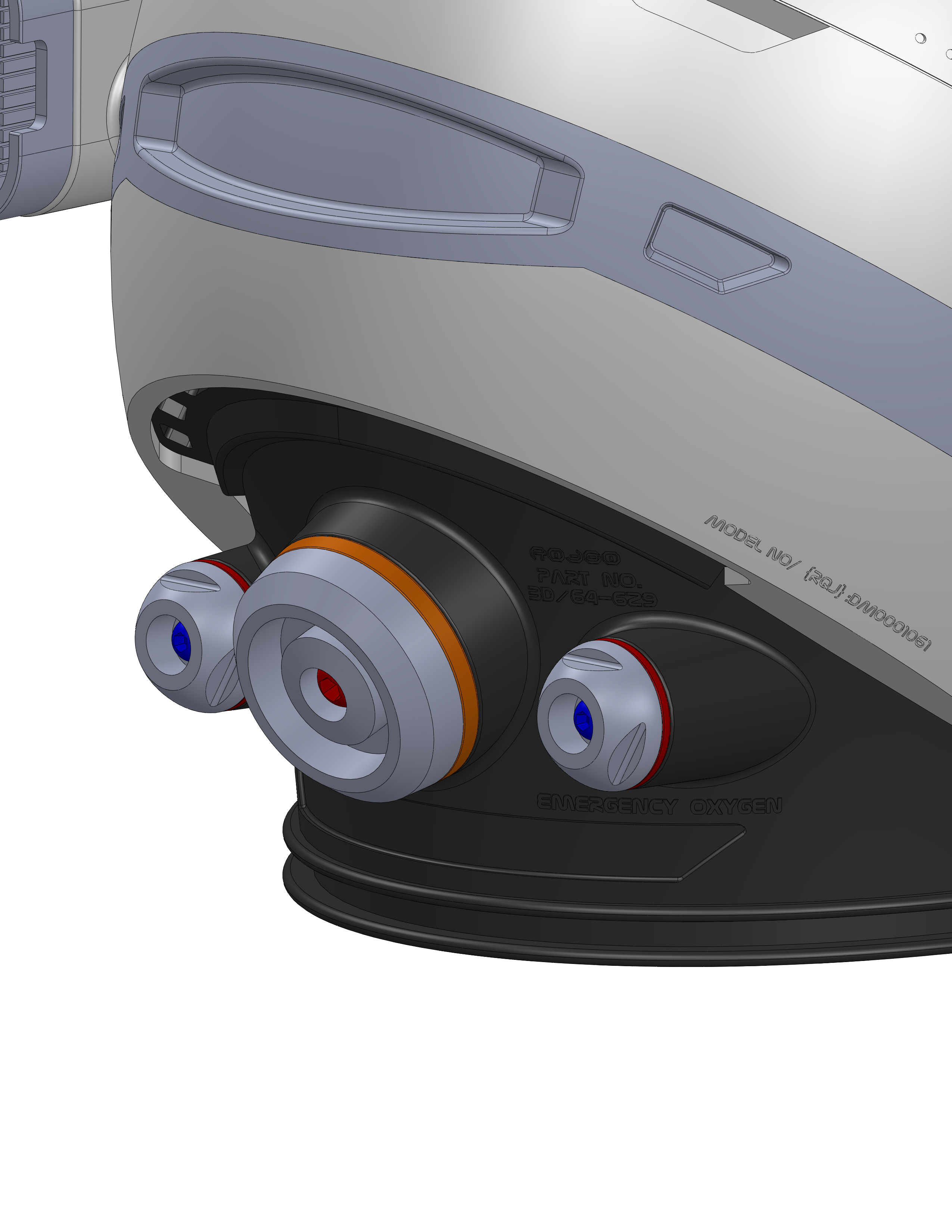

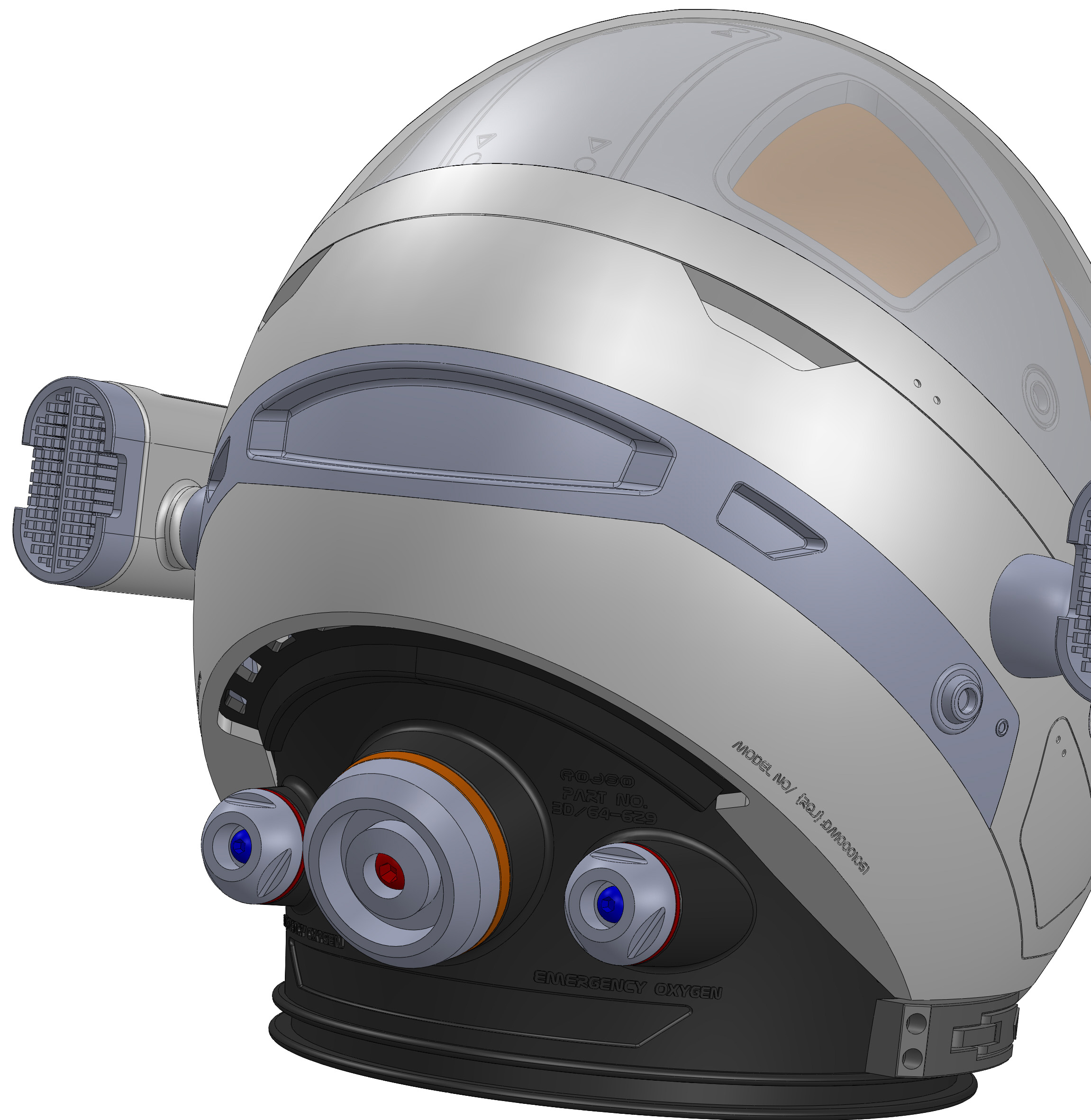

Here's the area I added detail to.



[Eyes Only]

WOW! Amazing work! I can't wait to see this at Dragoncon this year.



[DarkJedi1500]

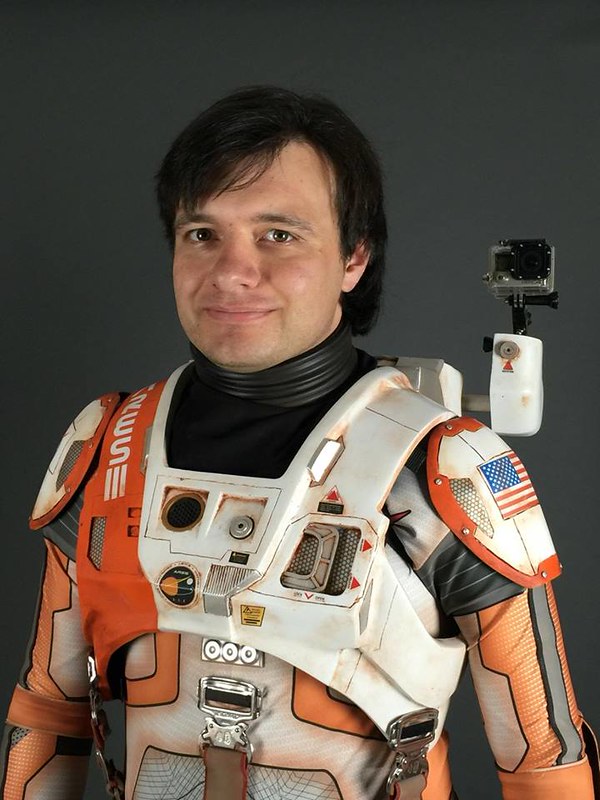

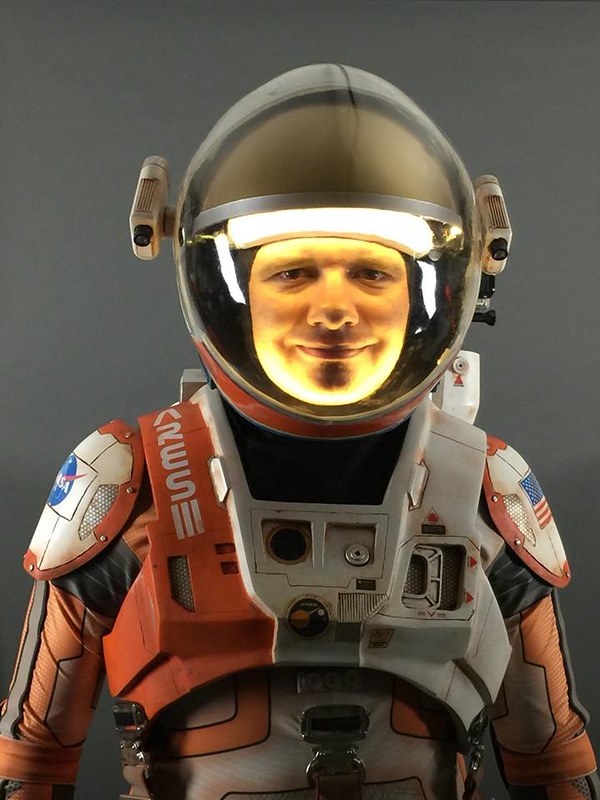

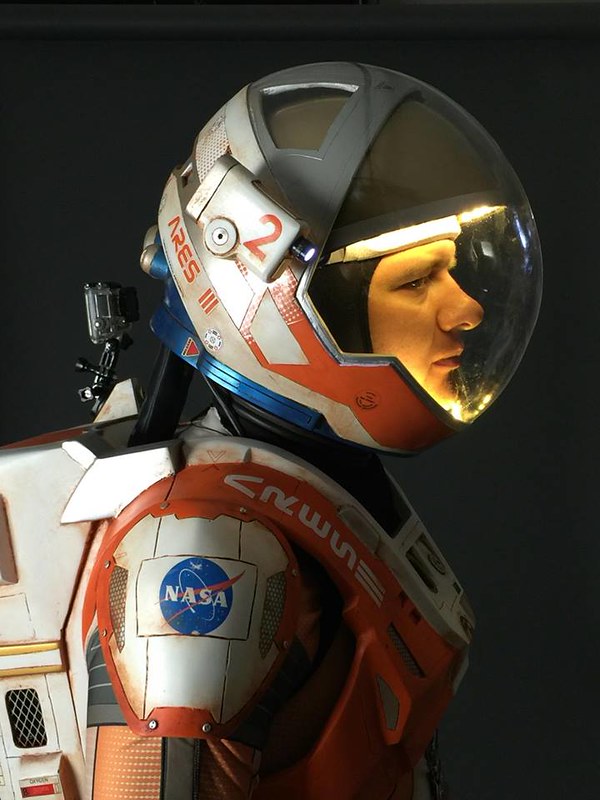

I did a photoshoot with my friend David this weekend. He's editing the shots now but here is a little sneak peak.

14138567_10100335887311713_56343537_n by 2StoryProps, on Flickr

14138491_10100335887286763_576436231_n by 2StoryProps, on Flickr

14111924_10100335887301733_2000371682_n by 2StoryProps, on Flickr



[Eyes Only]

do you have a day planned when you are wearing it?



[Captain April]

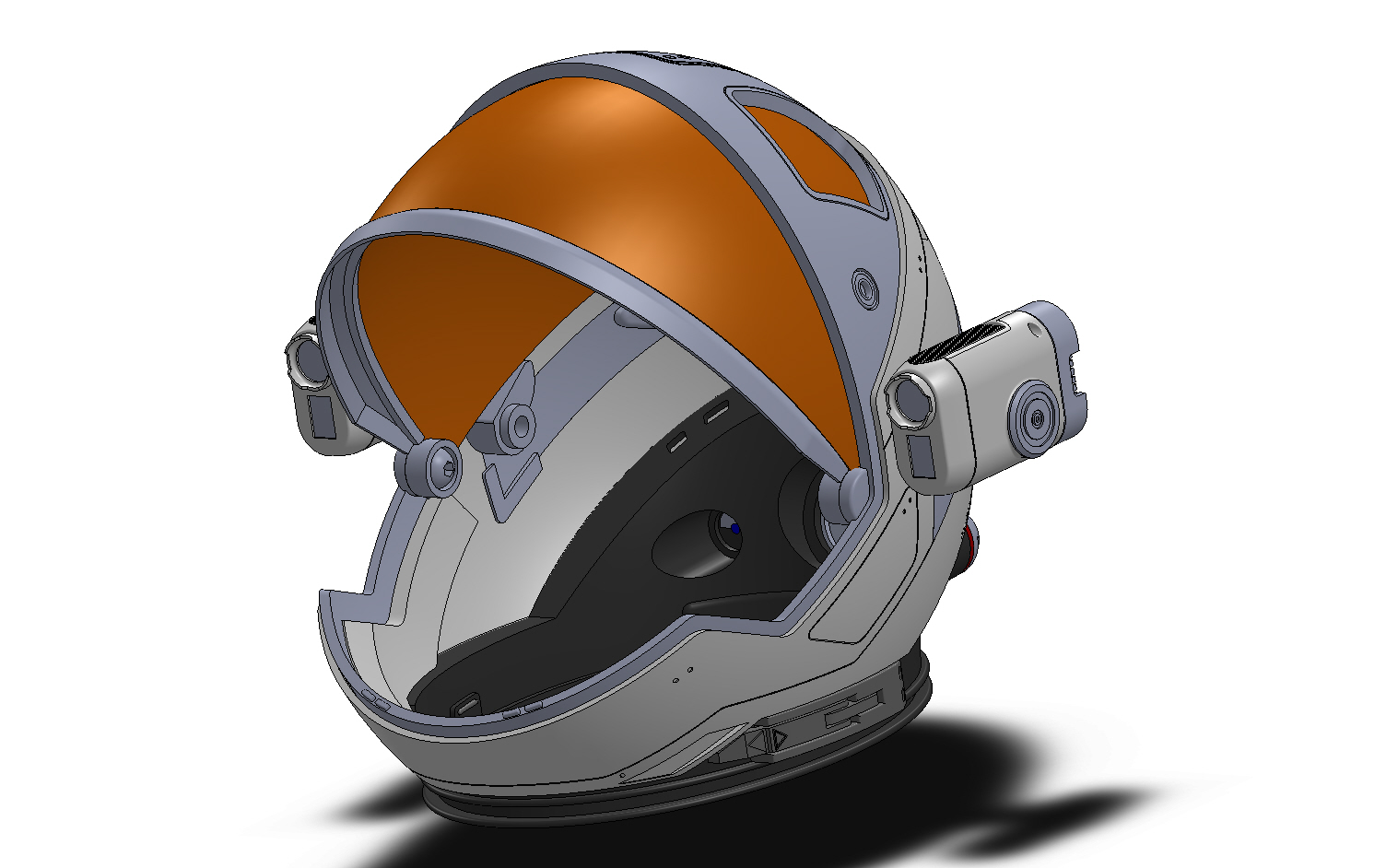

I added two more parts to mount the head harness.



[DarkJedi1500]

do you have a day planned when you are wearing it?

I will be wearing it tomorrow night and then competing with it in the masquerade. I have to see how the crowds are before I bring it out other times.
