Okay, so. Moving on to the Insignia!
Insignia
I decided not to go with metal for this build. In the reference, the insignia can be assumed to be made of metal, as indicated by the texture. Most costumes of Ezio I've seen include an insignia sculpted with clay, and then cast in resin + painted/weathered. I've even seen an insignia made of wood.
I think both of those options make no practical sense, and are completely ridiculous. We're talking about a parkour assassin here. The guy jumps off buildings, rolls around, performs flips... Every time he bent his abdomen he would be stabbing himself in the chest with the tip of the insignia. This is definitely not at all productive, and could in fact lead to injury.
Ubisoft designers have no idea what they're doing, practically speaking. Design-wise, their stuff looks ******** awesome. Practically speaking, their design for Ezio sucks.
And this has been proven to me over and over again, especially upon studying closely the model. Belt buckles in many instances make NO SENSE. Think the boots, the insignia buckles, and many other places. The design for Ezio's main robe has no closure. It's solid, like a shirt. Not only that, it's form-fitting. It would be impossible for Ezio to wear his robes without using stretchy fabric. Or having some way to open his robes, like a jacket. And stretchy fabric didn't exist during the time of the renaissance. So that's a pretty major flaw. Also, in the super-detailed hyper-realistic reference images, Ezio's robes appear to be made out of leather. LEATHER. Are these people insane? Do they have ANY IDEA how incredibly hot Ezio would be wearing multiple layers of leather? Not to mention his lack of flexibility in combat. He'd be dead before he encountered his second enemy.
In general Ezio's getup was not designed with reality in mind. It was not designed to be practical, comfortable, or stealthy. It was designed to look cool.
Moving on from my rant, I decided to go for a more practical approach with the insignia. I decided to make it out of leather. Since leather armor seems to be a rather major theme in Ezio's design, and since leather is a flexible material, the impracticality of the enormous belt insignia can be somewhat combated.

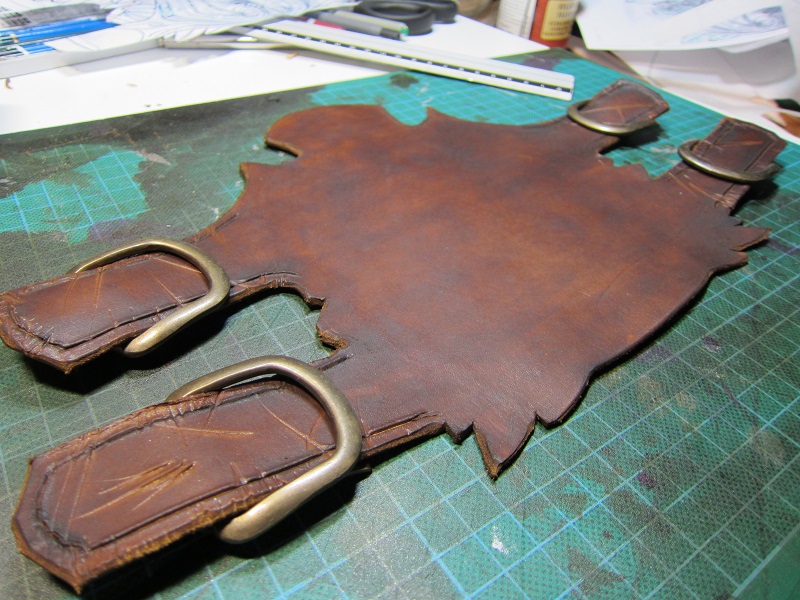

To make it I first cut out a basic piece of leather as a foundation, to which I would stitch all the remaining pieces.

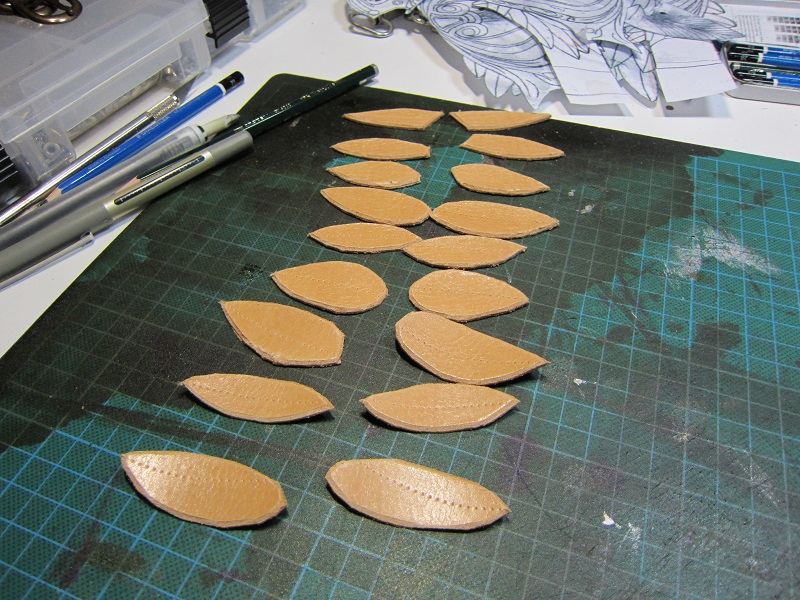

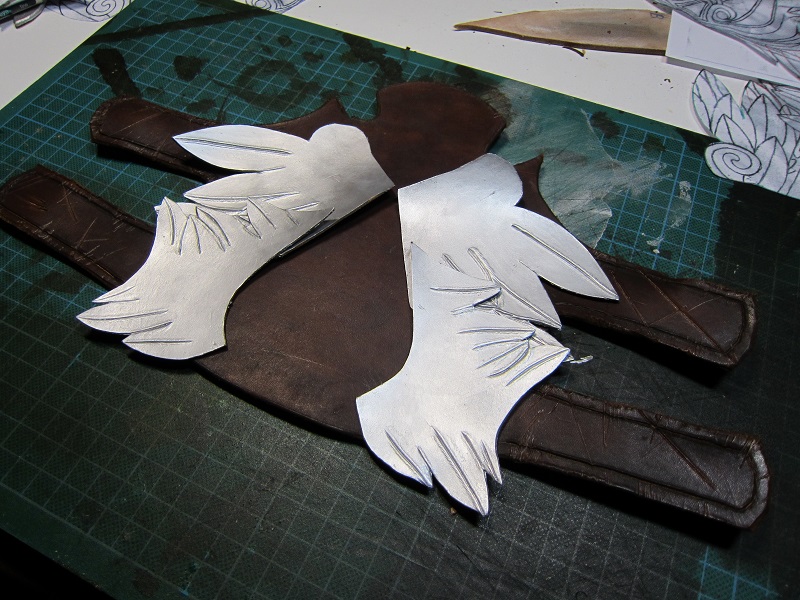

Looking at the reference image I determined which leaves I would have to cut out individually, and worked out an order for them as far as layering was concerned. For the leaves at the very bottom I cut out larger pieces of thin leather, with groups of leaves, which would serve as a base for the individual leaves.

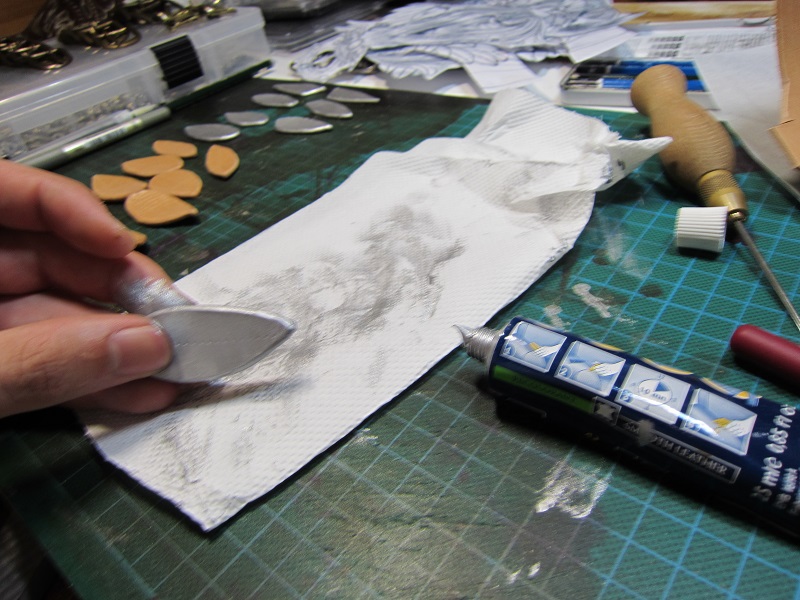

I painted all the leaves silver.

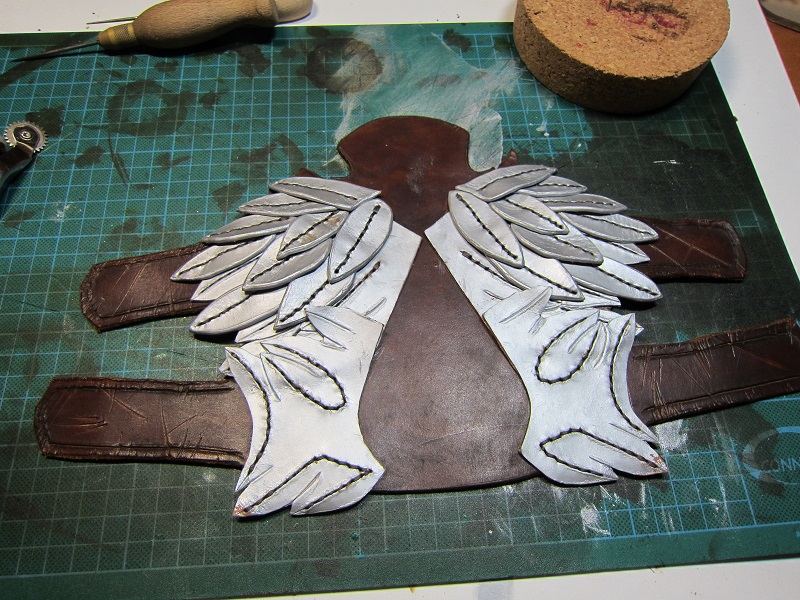

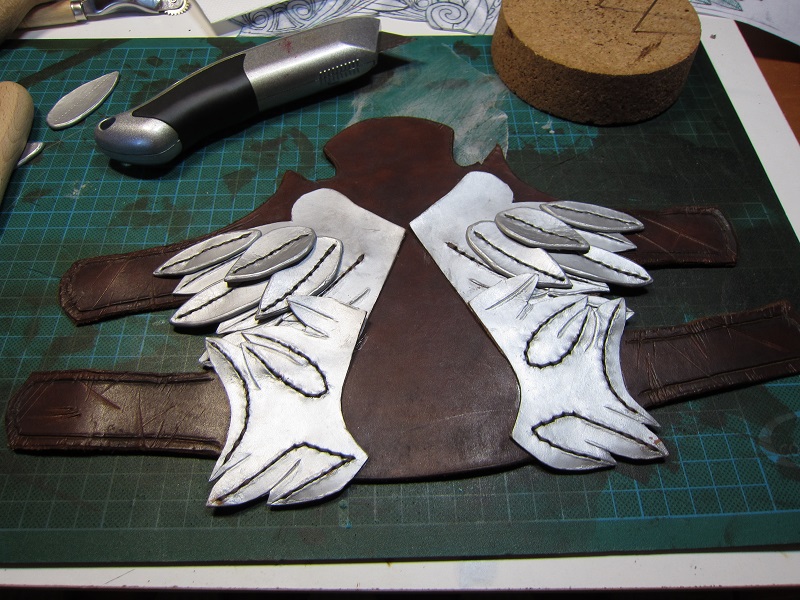

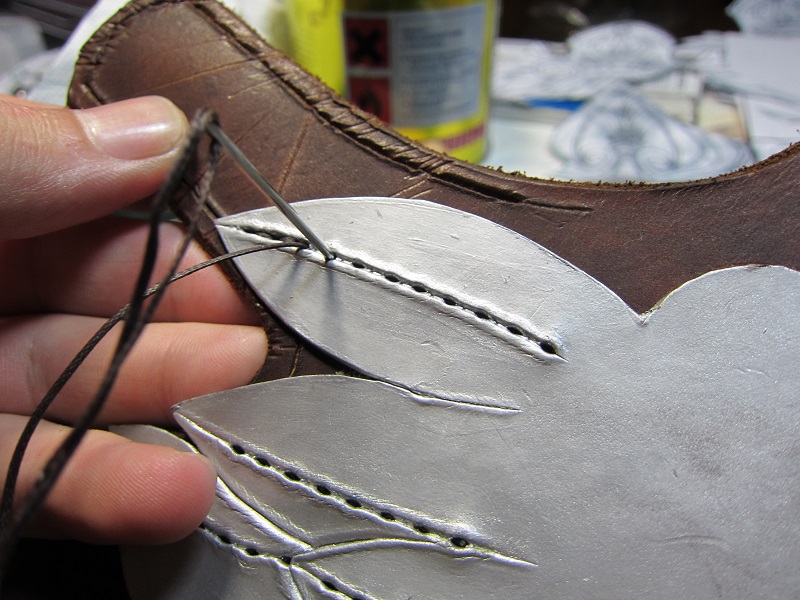

Next I stitched to the backplate the four base leaf pieces. I used the stitching simultaneously functionally and decoratively, the latter because I was able to use the stitching placement to form the midrib.

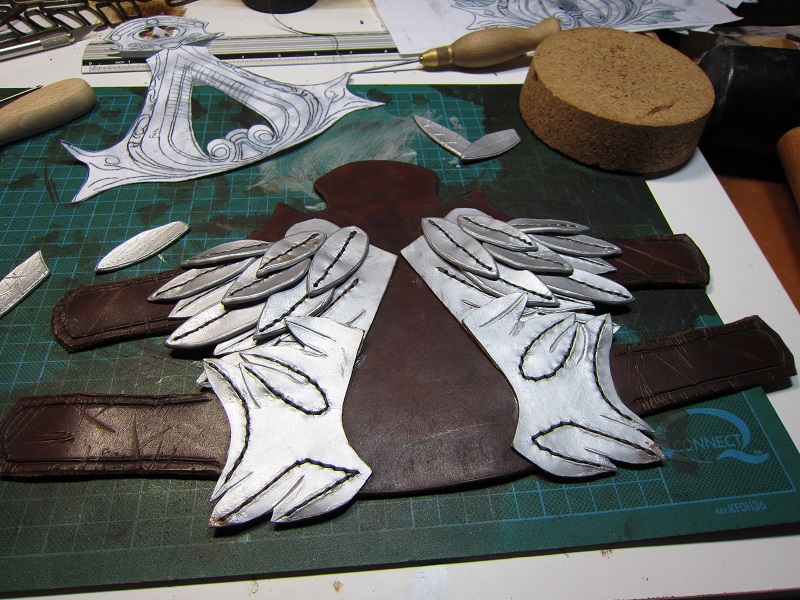

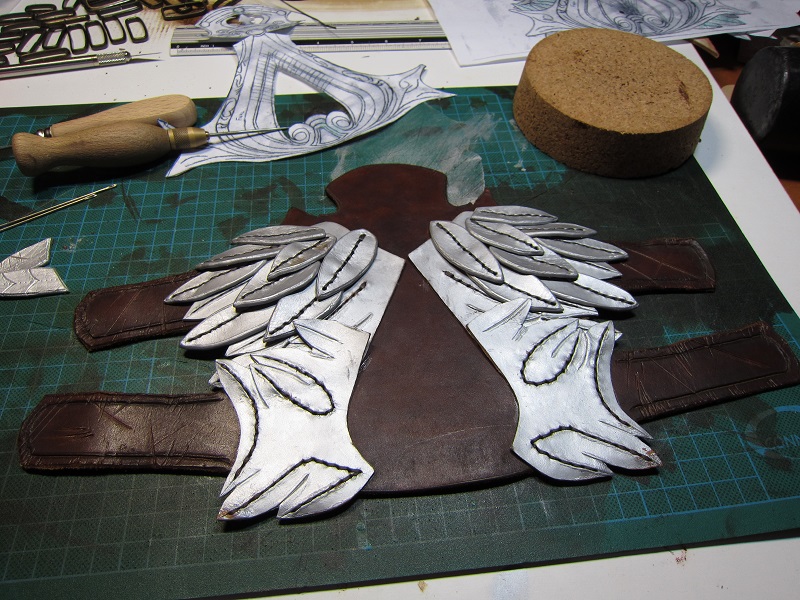

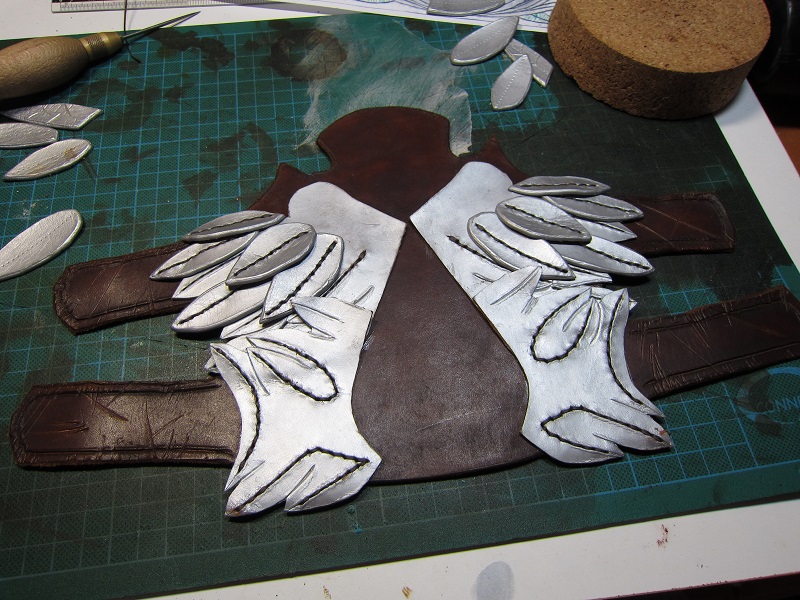

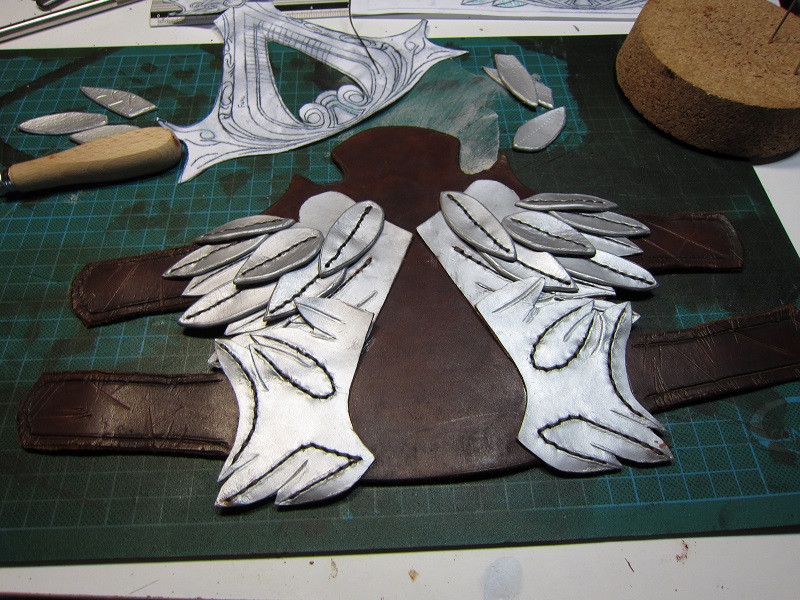

Working up from there, I began to stitch each individual leaf to the backplate separately, slowly creating an overlapping network of leaves in the middle of which would go the two central pieces, the upper "crown"-like section with the jewel, and the lower "A" symbol.
Each individual leaf was stitched separately, by hand.

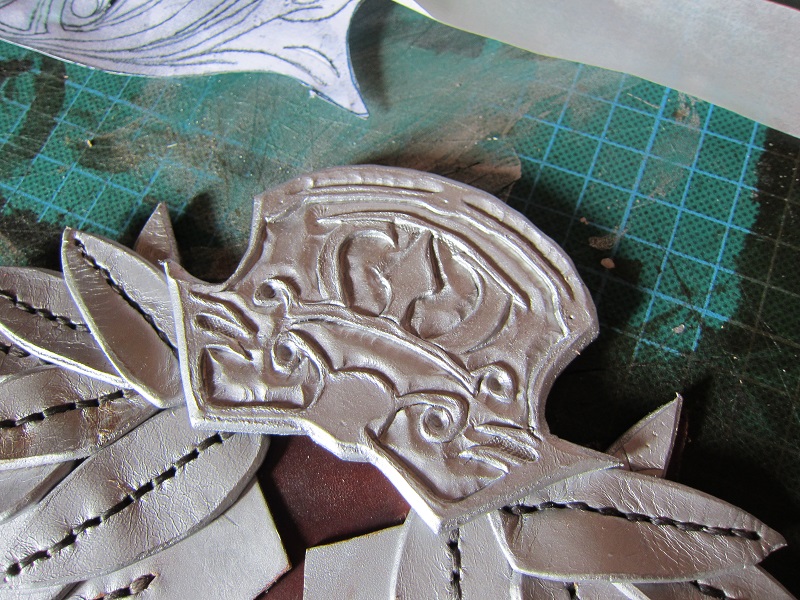

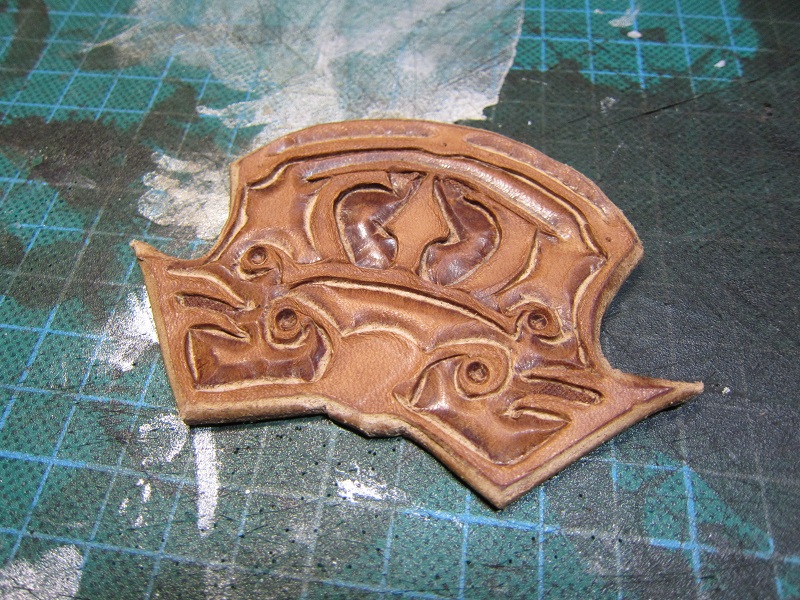

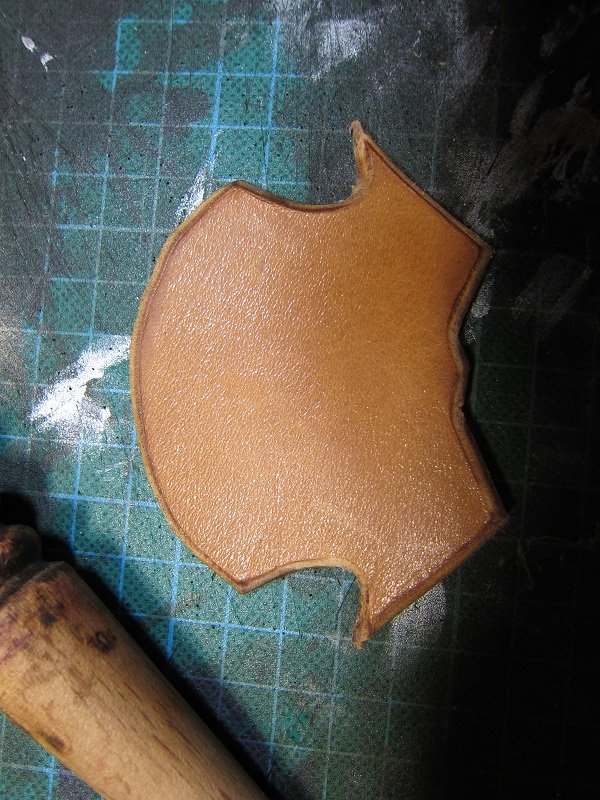

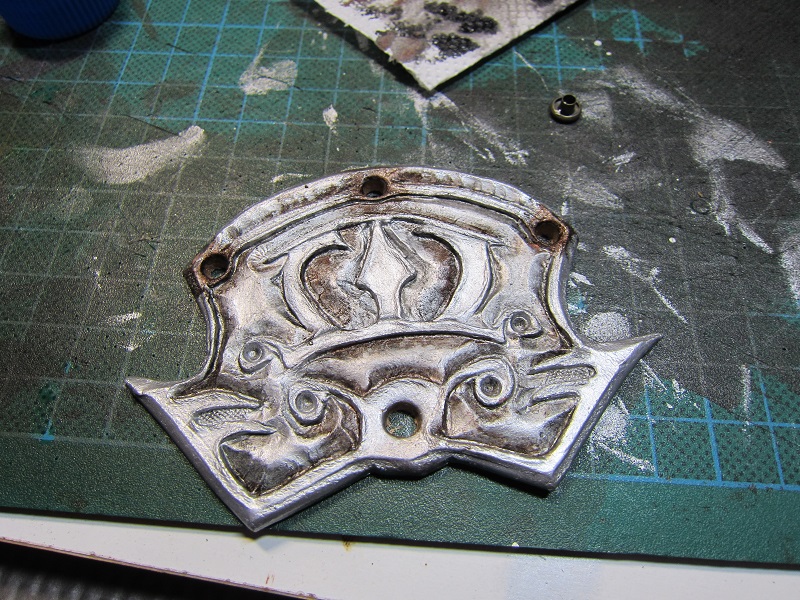

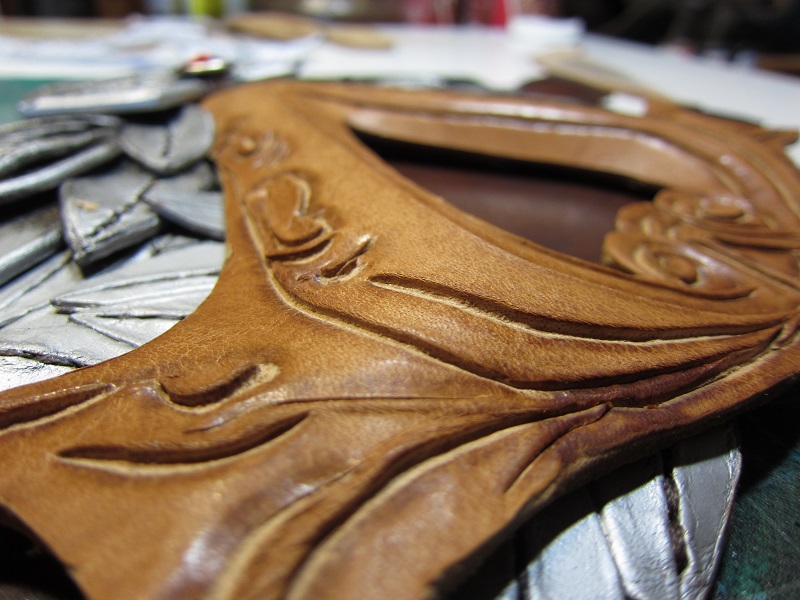

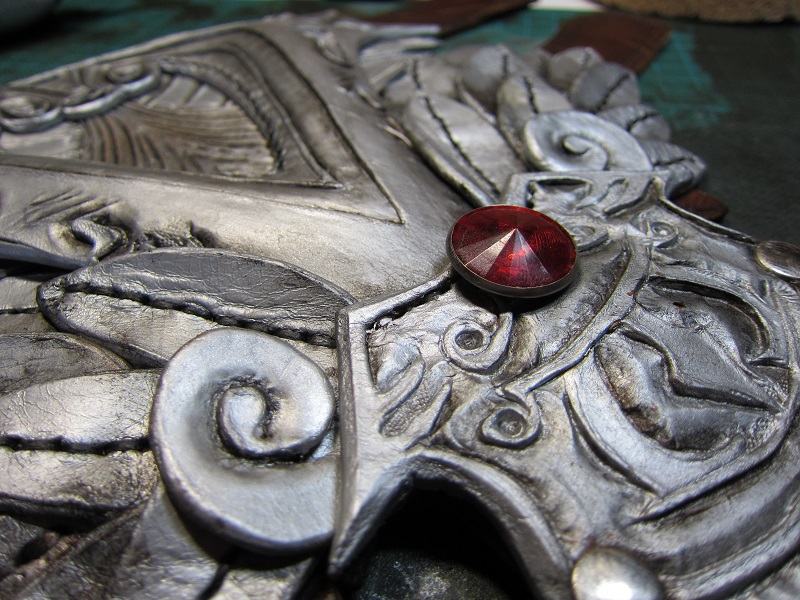

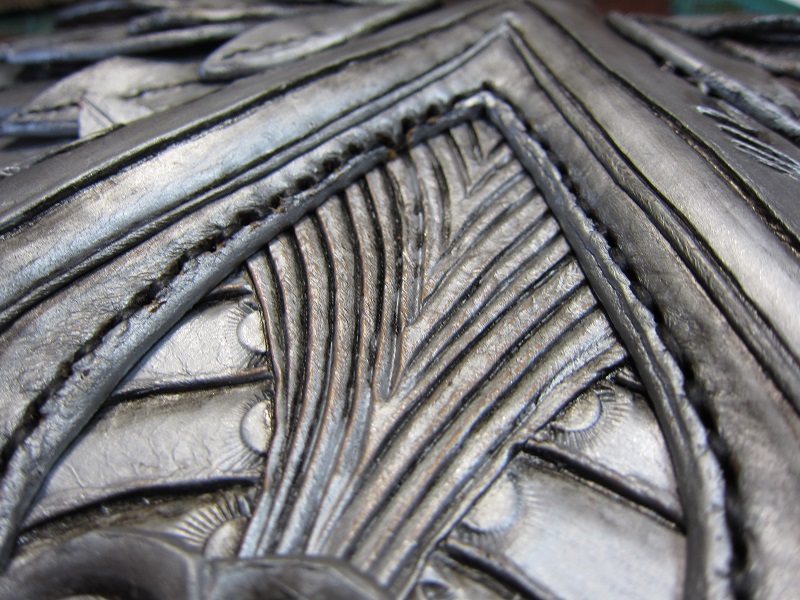

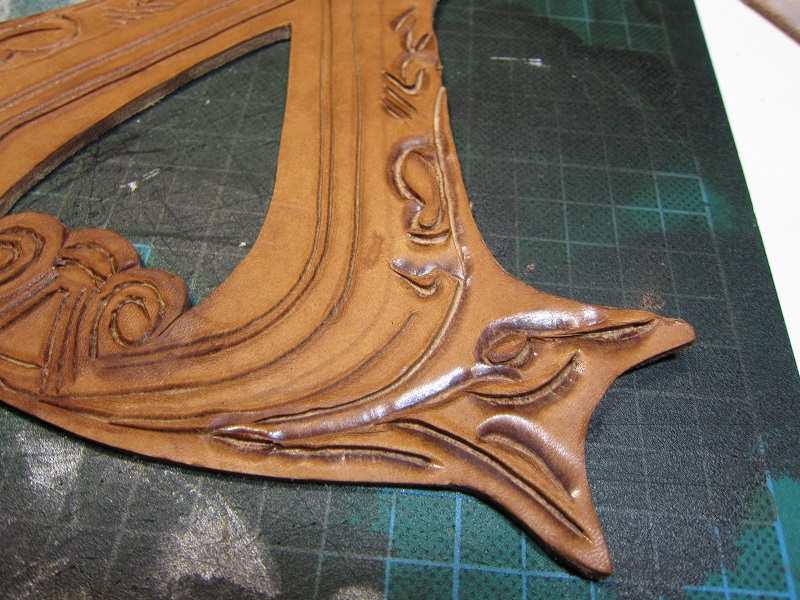

To create these two central pieces I cut them out of thick leather (3+ mm) to give me maximum carving depth. After marking the designs on the pieces I used a swivel knife to cut out the lines and a beveler to tool them. Next I painted the entire piece silver. Using black, bronze, and grey I weathered the pieces, giving them some depth and bringing out the detail. Now I'm not a fan of painting leather silver. Especially carved leather. I think it's a pity, because the silver really kind of ruins the beautiful look natural/dyed leather has. In any case, using the secondary paints really improved the overall effect.

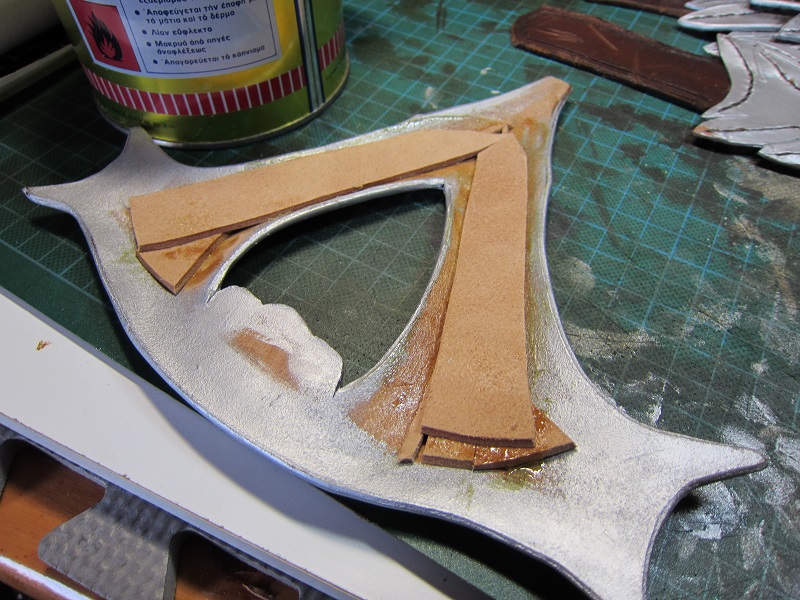

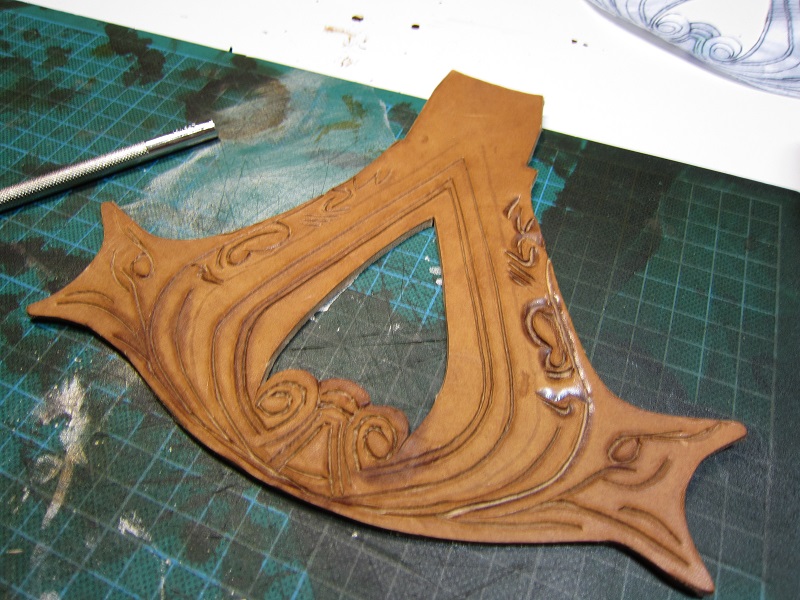

For the Assassin symbol section, which is 3D, in other words it has a raised center, I needed to mold it a little bit. As before I cut out the main piece, carved out the design, and tooled it. However this time, before I painted it, I wet the main sections with water and molded it so that it would retain a 3D shape. Also, to prevent it from collapsing once it was put together and pressure was applied to it (for example if I lay on my stomach), I reinforced the back with pieces of leather which acted as fillers.

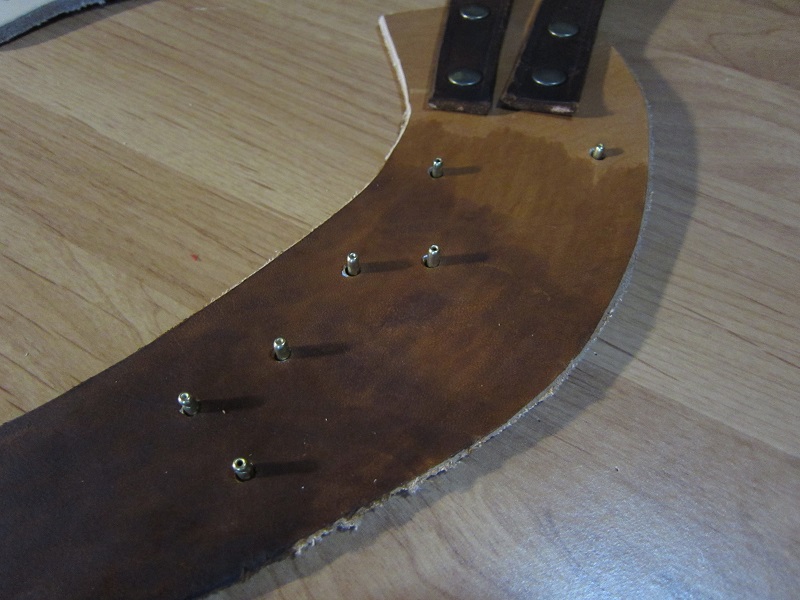

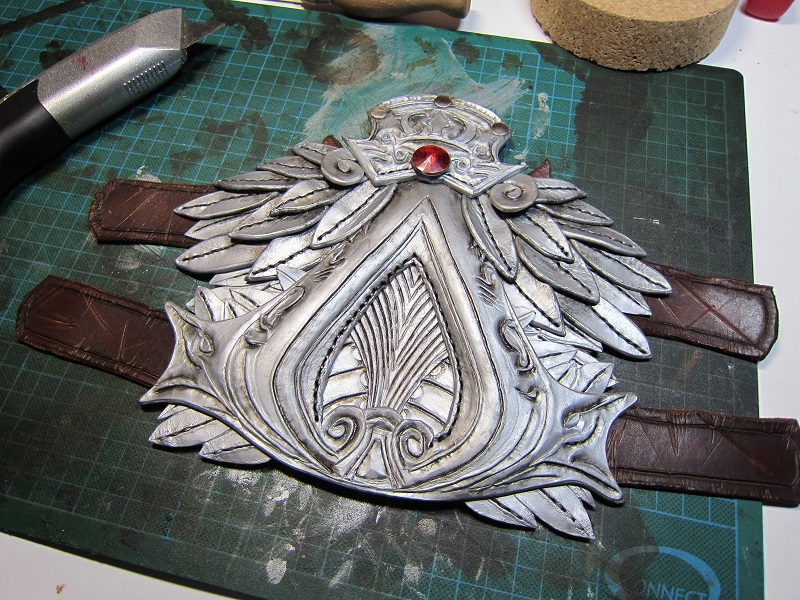

I also prepared the inner piece, and stitched everything together. The jewel was sewn through the backplate, after a hole was punched in the"crown" section, which in turn was riveted to the backplate with three nickel-plated rivets. Finally the other two pieces were stitched on, and the basic insignia was finished.
