I started with part 1 in my Lightsaber thread: http://www.therpf.com/showthread.php?t=204664&highlight=retracting+lightsaber

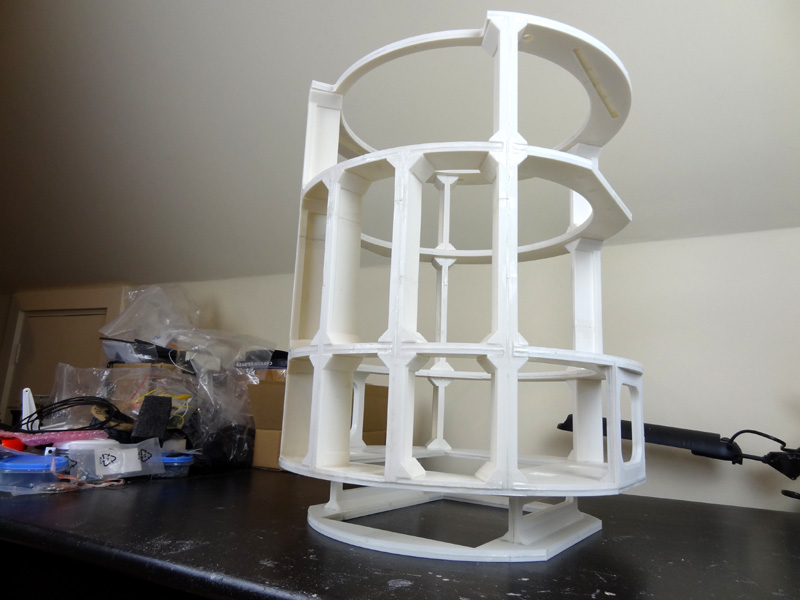

I've now built the entire frame:







Here's the video of it being built:



Attachments

  • frame17.jpg
    103.3 KB · Views: 72
Last edited by a moderator:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Johnny Darko

Active Member
awesome work sir! recently found you on YouTube, so many projects...(loving the hulkbuster progress!) where on earth do you find the time to fit in all of this amazing work?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

OldKen

Master Member
Amazing.

Best 3d printed project yet!

I think the "play" in the sliding mechanism will only make it more "real R2" cause even in the best cut takes, in the OT movies it wasn't a tight fluid motion...

So a little jerkiness IMHO will actually only add to the effect!

And like you said, once it's down it locks straight and solid So... Yeah...

Simply awesome!

Now get back to work! ;)


Johnny Darko

Active Member
looking great sir, can't wait to see it up on its feet. for an old school crafter like myself, its amazing to watch the parts coming together with those 3d printers, although it would seem that some of the joy of making those parts yourself by hand is lost?


Prototypical

Active Member
Very Nice!

You make me want to start up a R2 build. well maybe not a R2, I'm thinking more on the line of T6 from SWTOR. Just to be different.

I have a 3D printer, I just need to design him up.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

mugatu

Sr Member
RPF PREMIUM MEMBER
Man, you people on this site have me shaking my head in disbelief every day.
The talent and skill is impressive.

I'll be watching this one.


jayroth

Active Member
RPF PREMIUM MEMBER
I think I will end up getting a TAZ 5 thanks to watching James at work. I have a Makerbot Replicator 2, but am stuck in PLA land without heavy mods I don't feel like messing with. And the TAZ has that nice, large build area! I will wait for a bit, as I anticipate that nifty auto-level feature from the Mini will migrate over soon (I hope!). Getting into 3D printing a couple of years back got me back into doing things by hand as well, as the prints never come out the way I would like. That means, sanding, finishing, and quite often, mold making...


XRobots

Well-Known Member

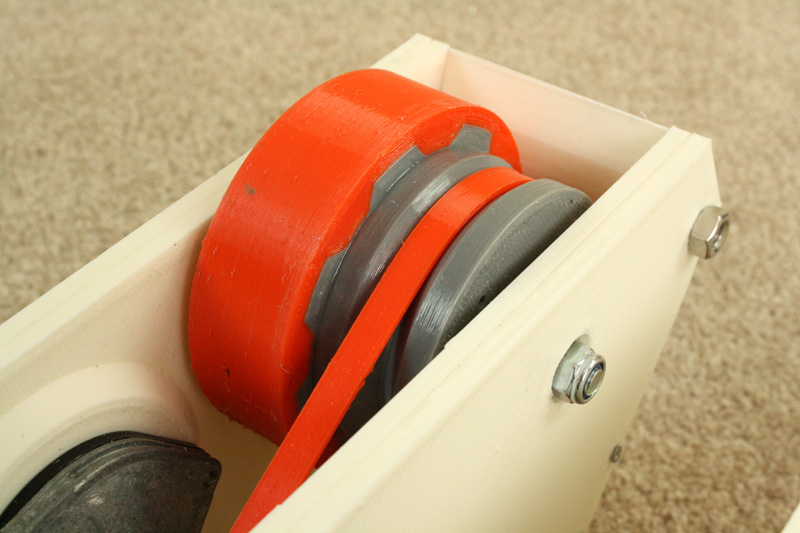

Here's the main drive wheels - they are printed in Ninjaflex and ABS bonded together with dual extruders:
