LeonardoMS

New Member

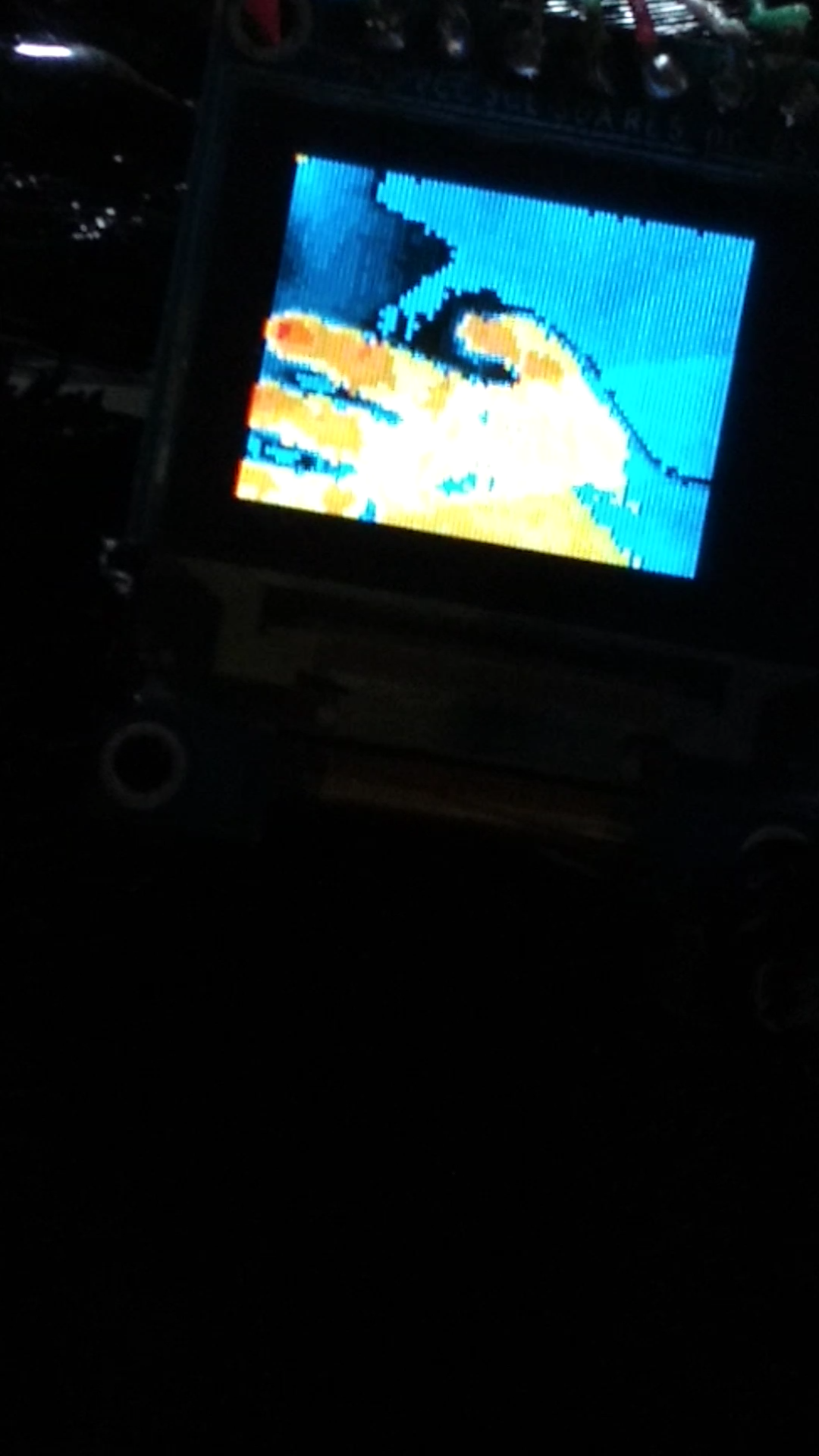

Hello all!. I´m new here and I would like to hear from you guys your opinion about a projet of mine. Recently I got a couple of Thermal cameras breakout boards. I began to develop the circuits and software for something similiar to de classic predator thermal vision and HUD system. Of course it won´t have the zoom in capabilities yet and the range wont be more than 20 meters. I´ve almost finished the roaming and targeting systems. The targeting triangle will be like in the Predator '1 movie. (It doesn´t rotate like in the more recent movies). Still working on the audio systems. Actually I´m having a hard time with it, more the the video part. I´ve 3d-printed a classic predator helmet, but I made a bad choice in using PLA as the printing material. Still waiting for the ABS to arrive. I will soon post all the photos of the circuits and some more thermal images from the camera built in it.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

LeonardoMS

New Member
Thermal cameras are expensive. I bought 2 SPARKFUN FLIR LEPTON boards. They cost $259.95 each and have 80x60 pixels resolution, There are very small, though. I was going to use 2 of them(one in each eye soquet) to give 3d stereo depth vision, but the technical challenge and final price rose a lot. I´m going to use 1 camera and 2 OLED displays.


LeonardoMS

New Member
I´m a terrible artist. I relly on my old faithful 3d printer. I will really need lots of advice. But as I said, I chose PLA , and the results were terrible. Needless to say the countless hours of printing time. I will have to start over.


LeonardoMS

New Member
Here are the basic circuits. The audio parts I left in the office. As you can see the camera is very small. The only part that will be exposed is the small germanium lens that has little more than 2mm in diameter. The display is very small also. I´ll use 2 of them. I´m am editing the code to make better color vs temperature options. I was thinking in making different color pallets to simulate the diferent light frequencies the predator sees, like in predator 2 when it shifts through different light spectrums. I would also like to put a audio spectrum analyser that roles down the screen to analyse some audio samples. Well, it´s gonna take a while to finish everything. Lots of work at the office and chores at home to attend to.





Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

LeonardoMS

New Member
In the first thermal image I posted, I was using as raspberry Pi. Now I will use a teensy 3.2 board. The Pi takes a while to boot, and I really didn´t want that. In this case I prefer bare metal to do the job.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

LeonardoMS

New Member
Guys, can anyone provide a 3D printable P1 mask with the correct 1:1 scale? I need to print one to fit all the required electronics. Since I´m a terrible artist, that part i´ll definitely appreciate the help. Thanks!


LeonardoMS

New Member
I made some tests using the bi-convex lenses. It´s not very hard to see trough it. It seems like your watching a 80 " TV at 3 feet away. I still have to install the other display. It will be stereo vision.

OPTICS AND MIRROR.jpg
